Locking Device

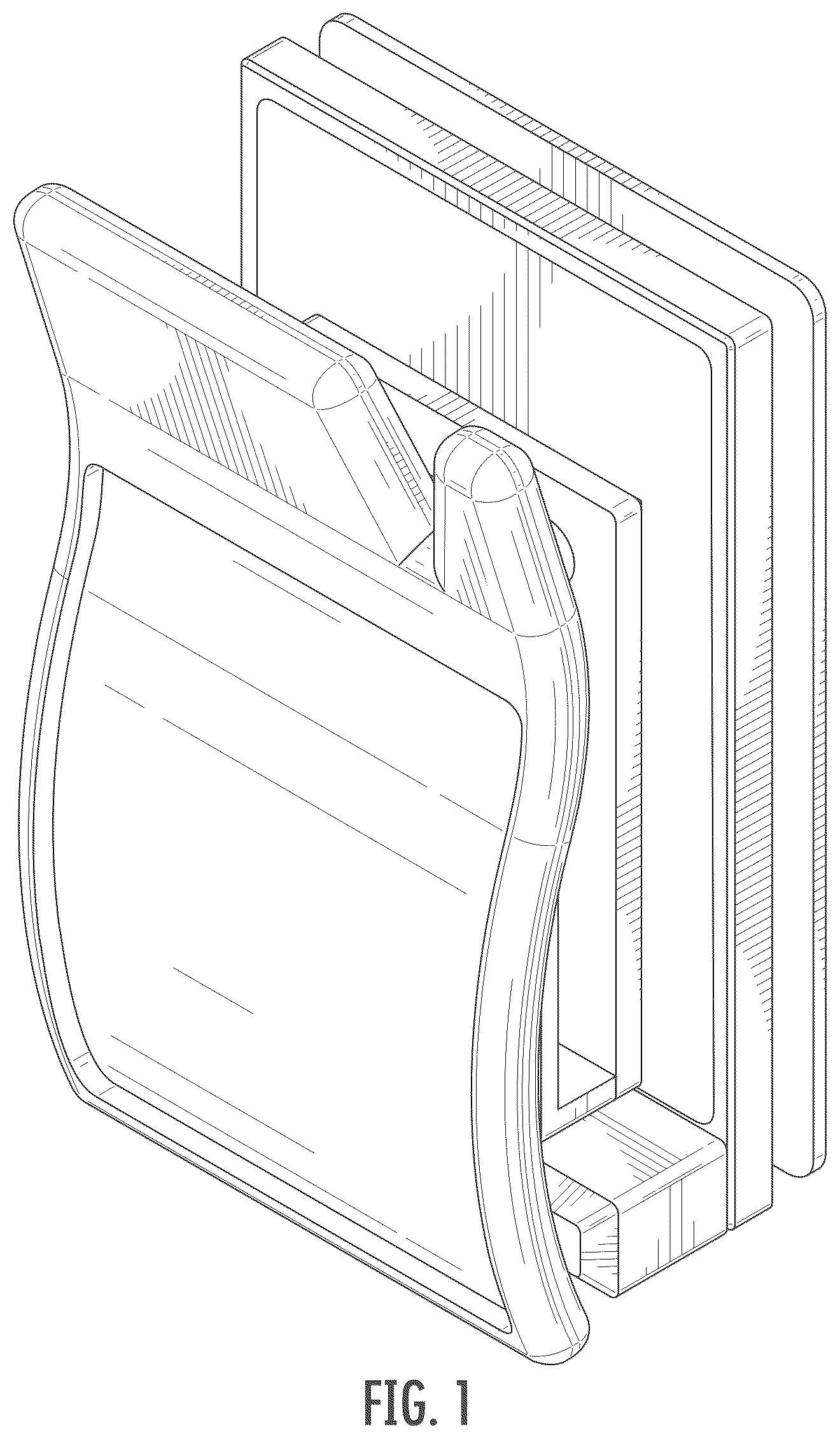

FIG. 1 is a left front perspective view of a locking device of my present invention.

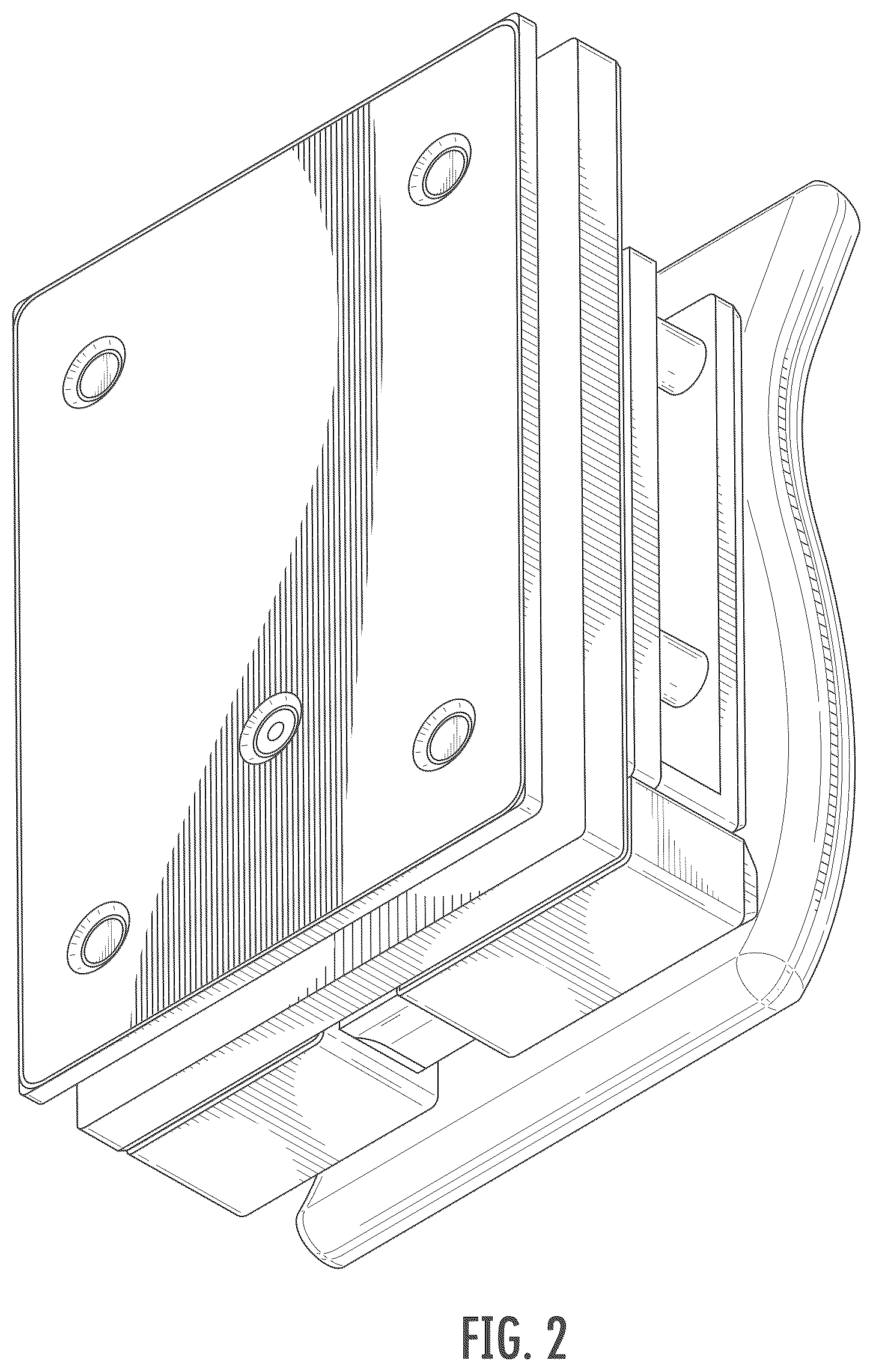

FIG. 2 is a right rear perspective view thereof.

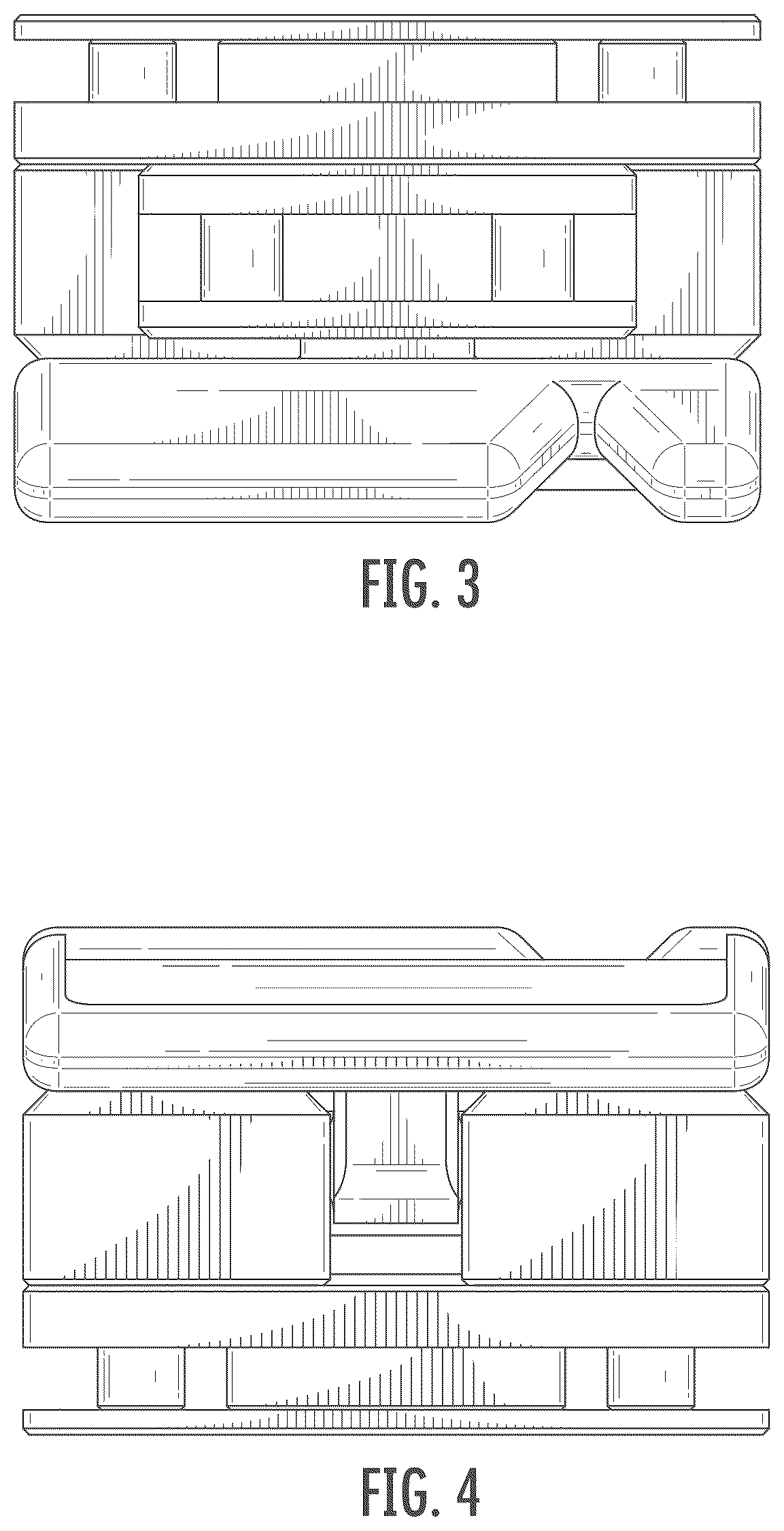

FIG. 3 is a top plan view thereof.

FIG. 4 is a bottom plan view thereof.

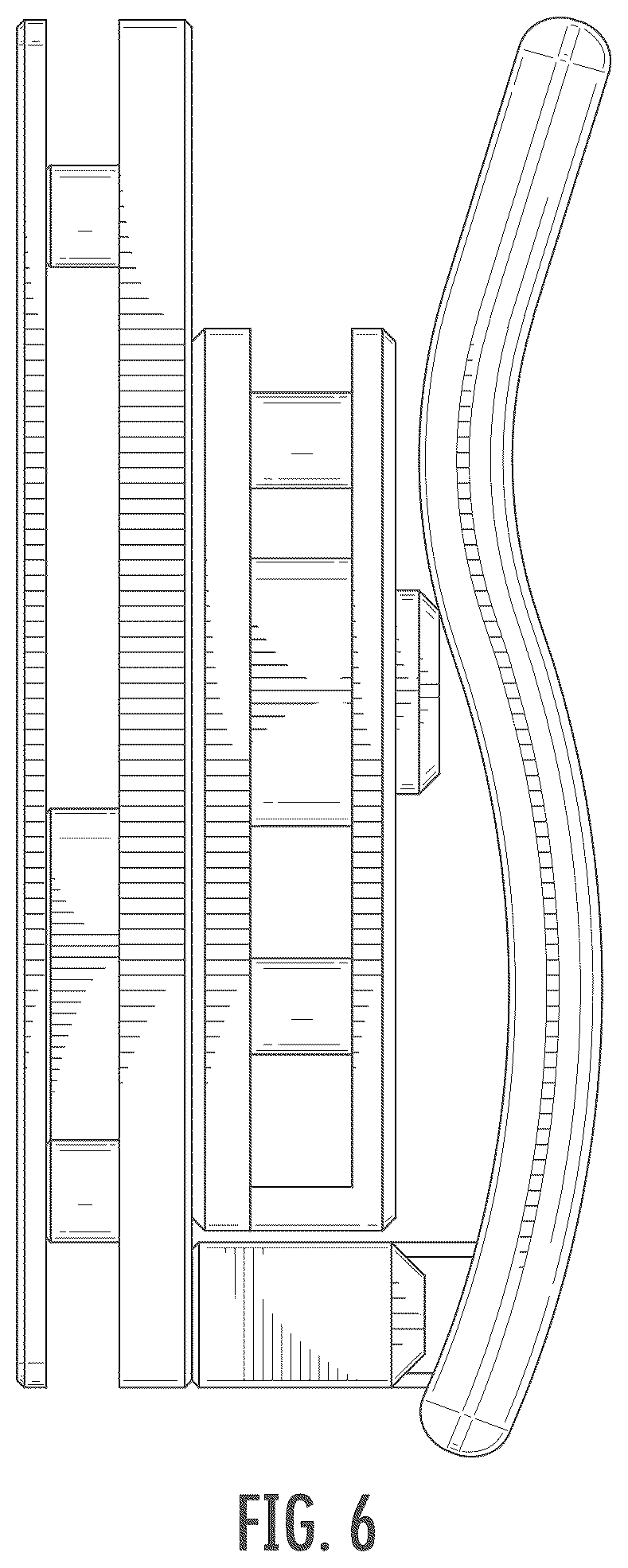

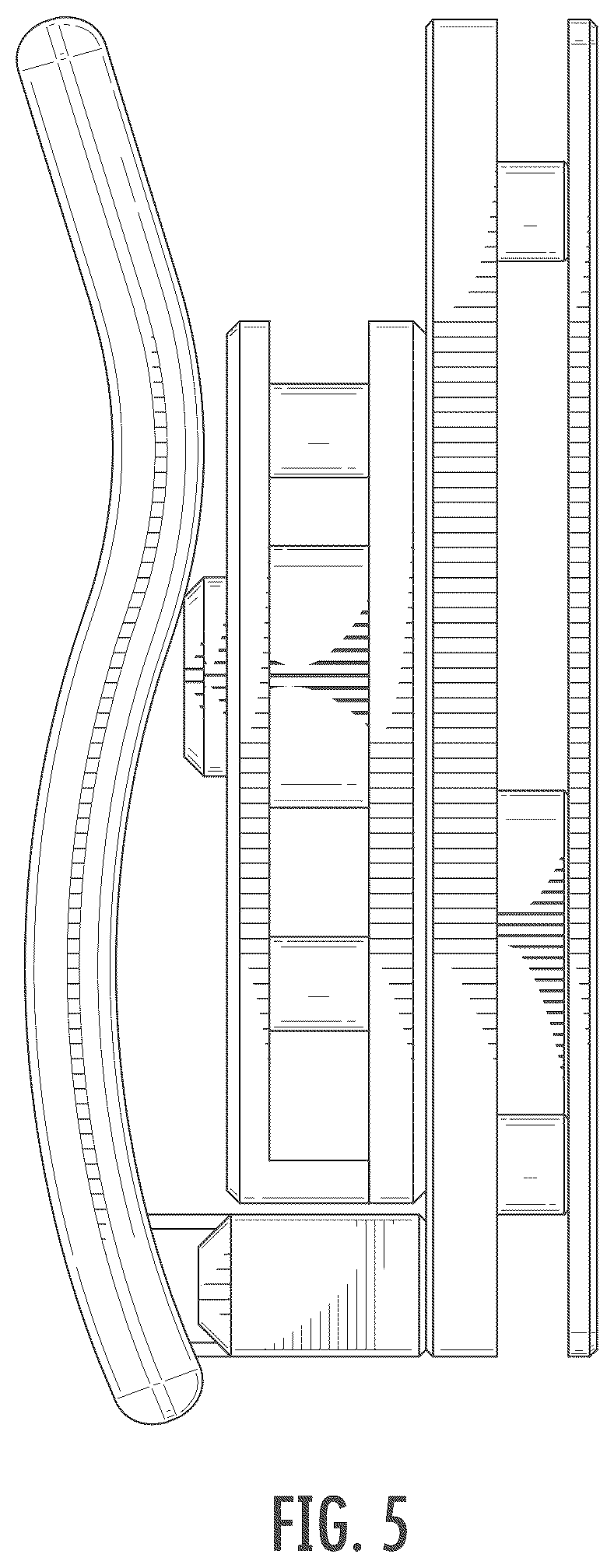

FIG. 5 is a right side elevation view thereof.

FIG. 6 is a left side elevation view thereof.

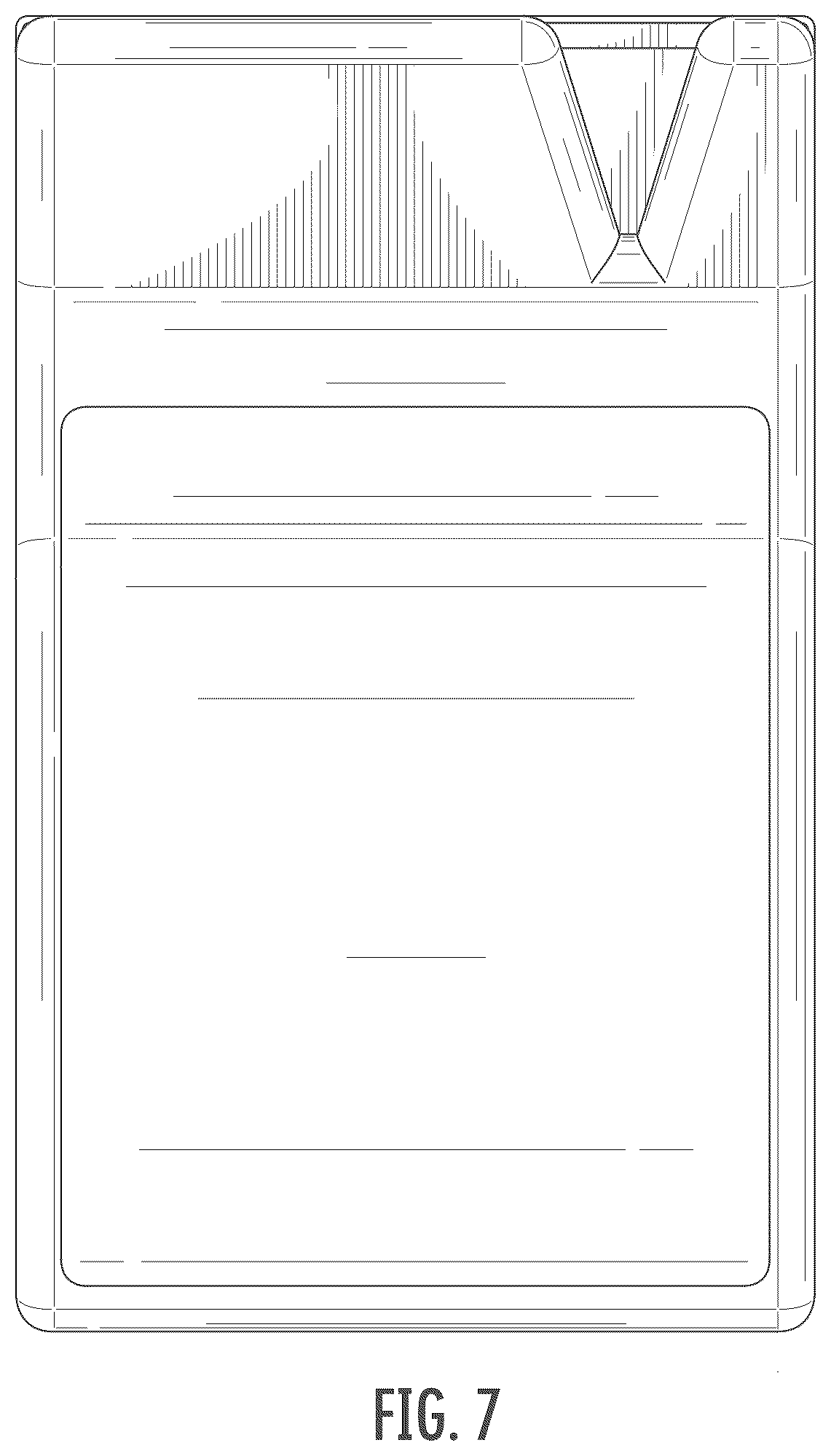

FIG. 7 is a front elevation view thereof.

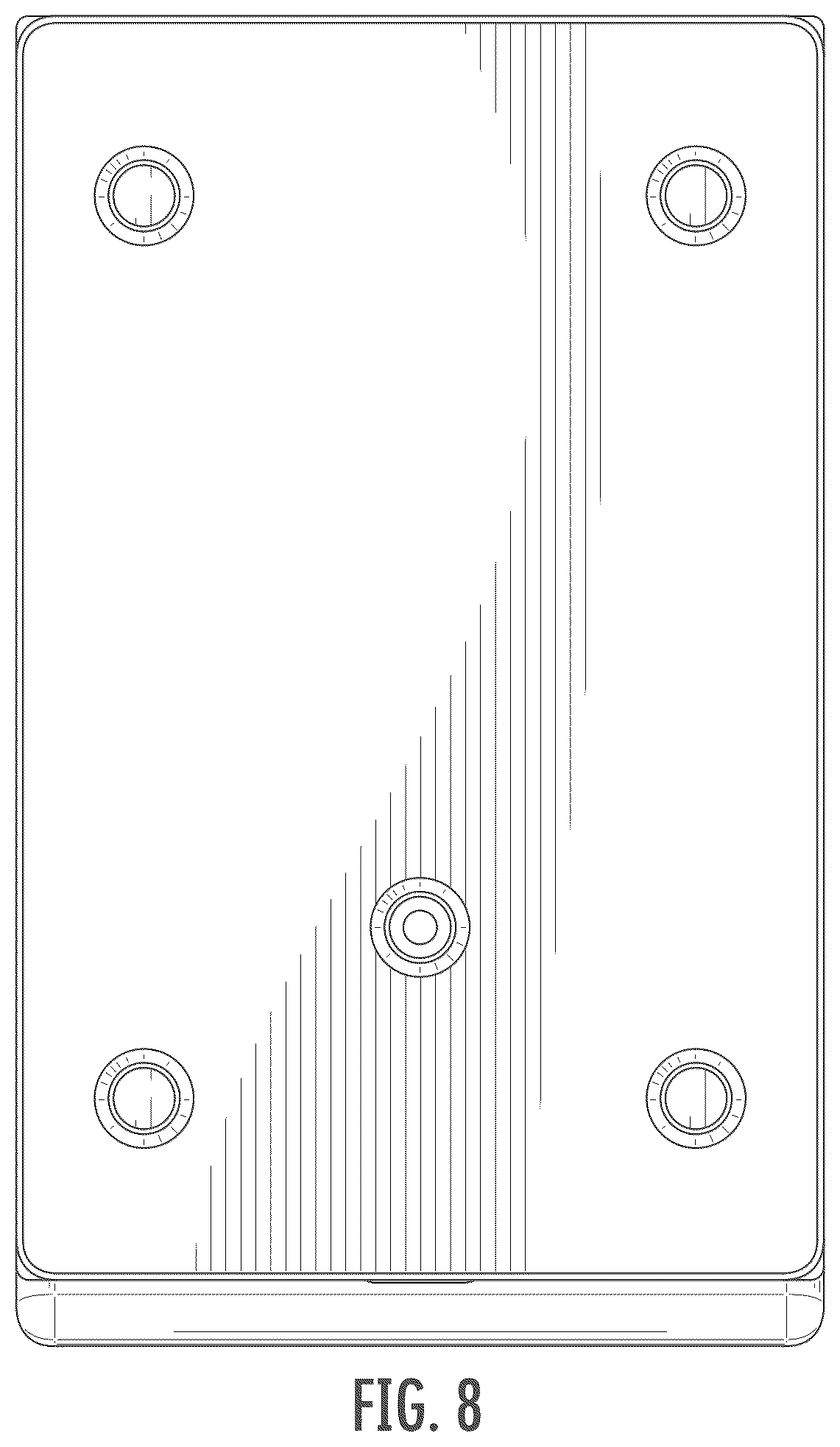

FIG. 8 a rear elevation view thereof.

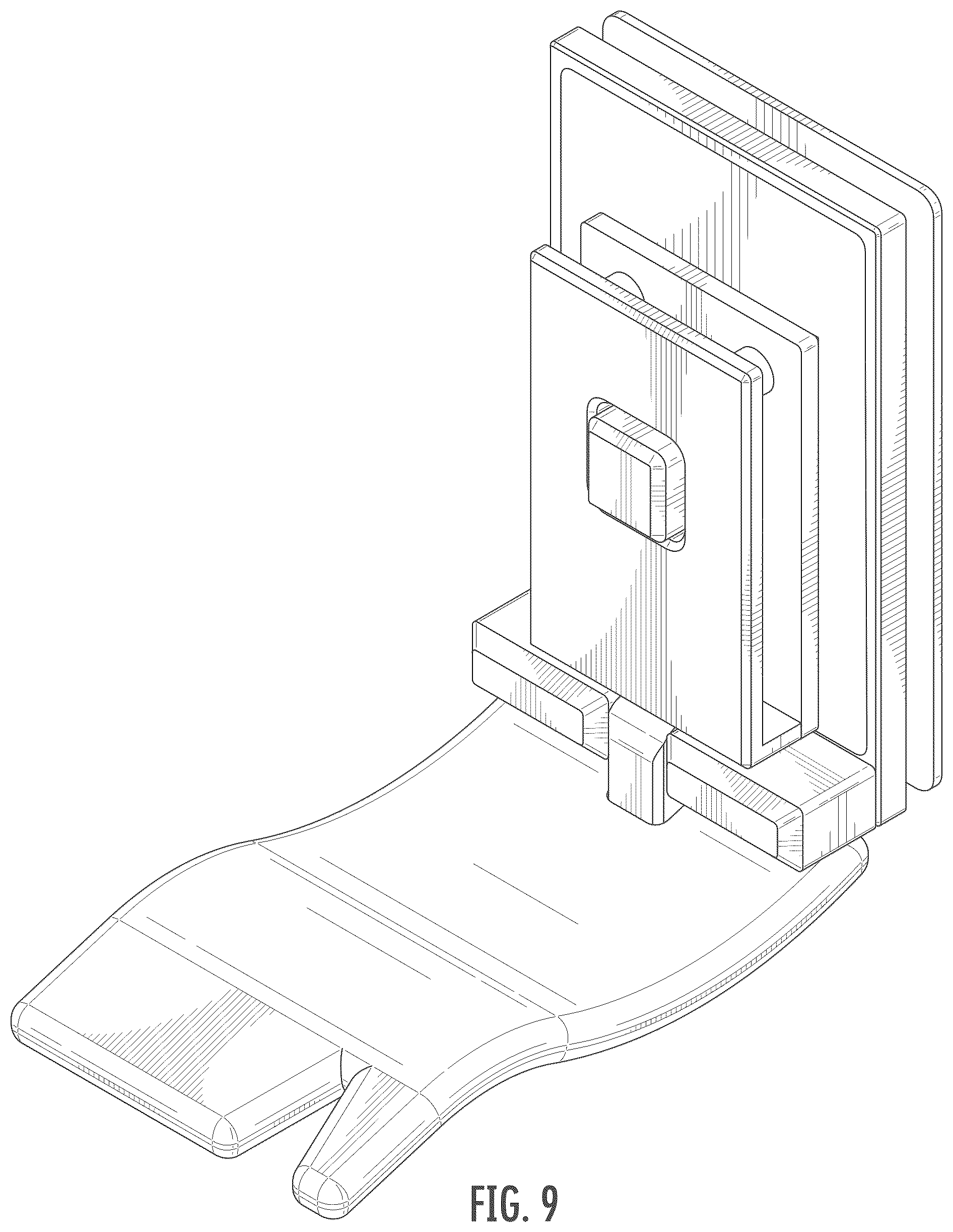

FIG. 9 is a left front perspective view of the locking device in an open position.

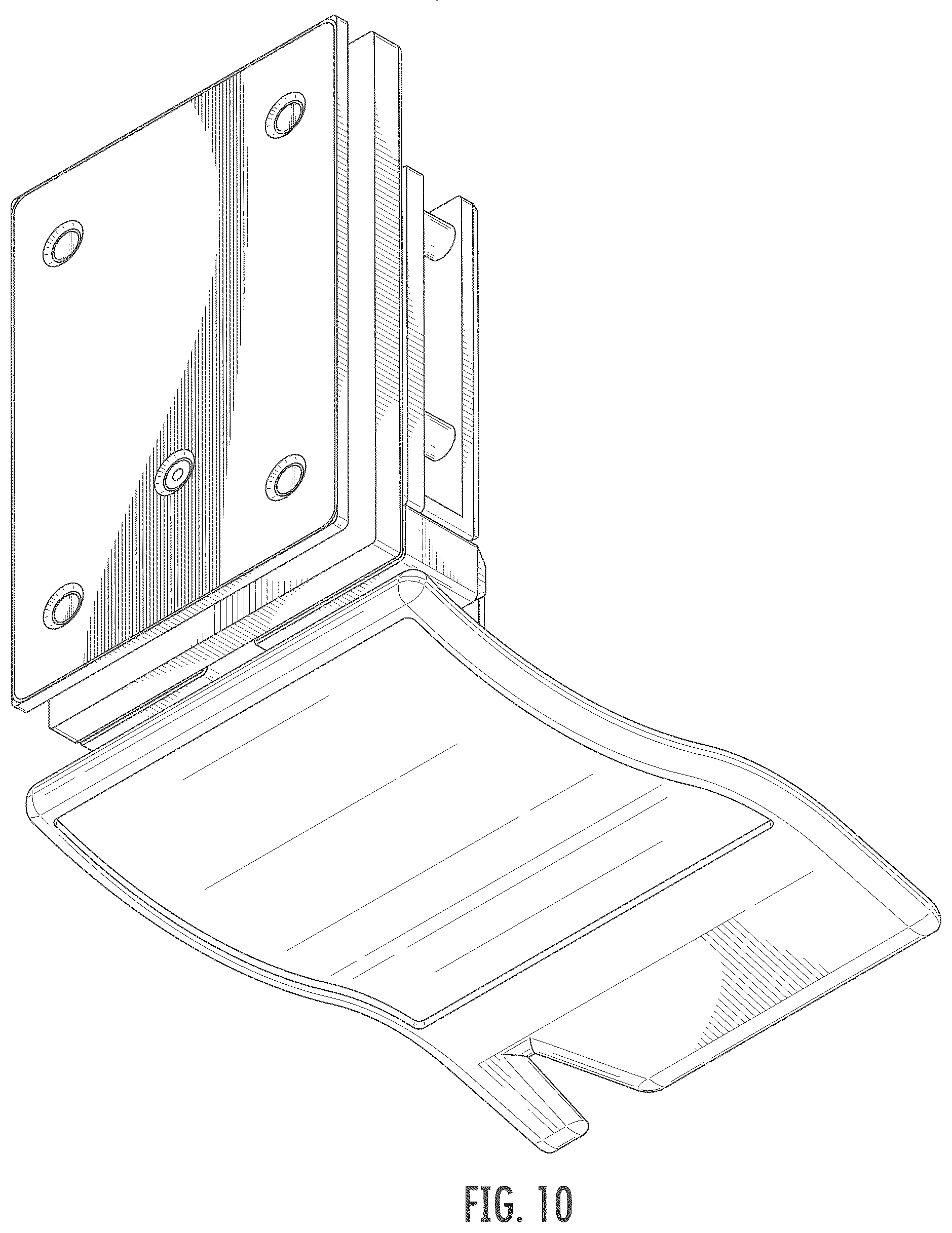

FIG. 10 is a right rear perspective view thereof.

FIG. 11 is a top plan view thereof.

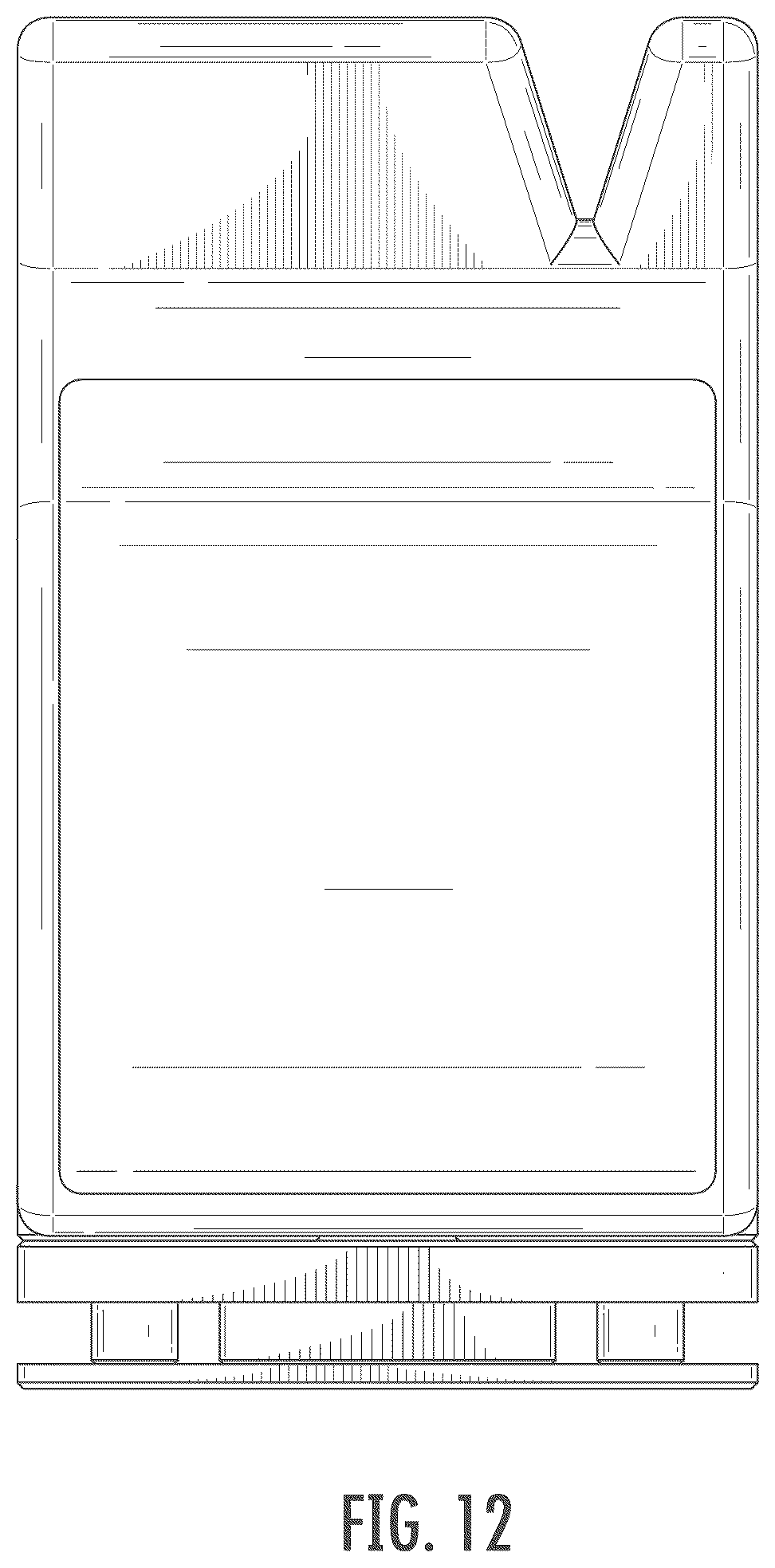

FIG. 12 is a bottom plan view thereof.

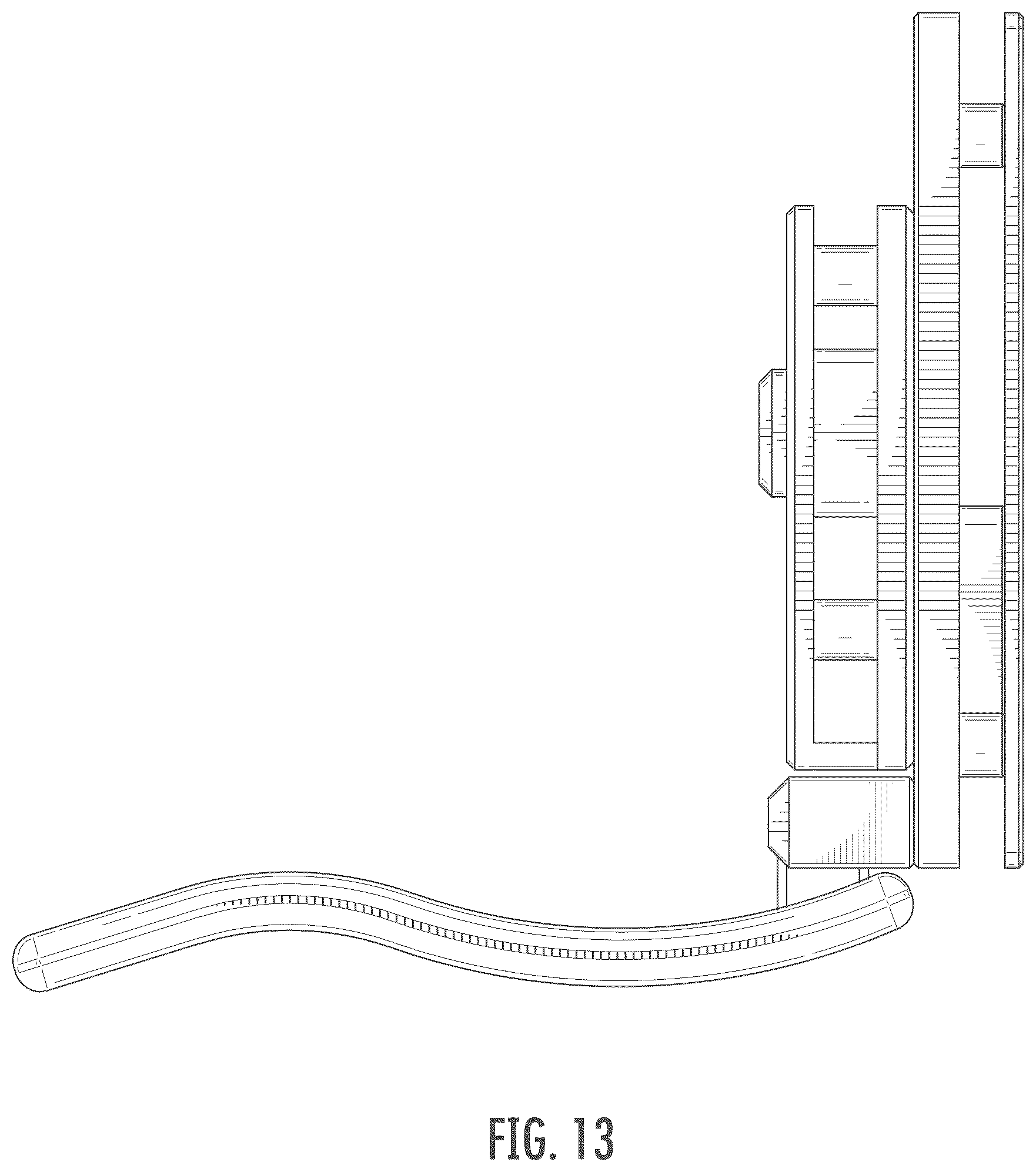

FIG. 13 is a right side elevation view thereof.

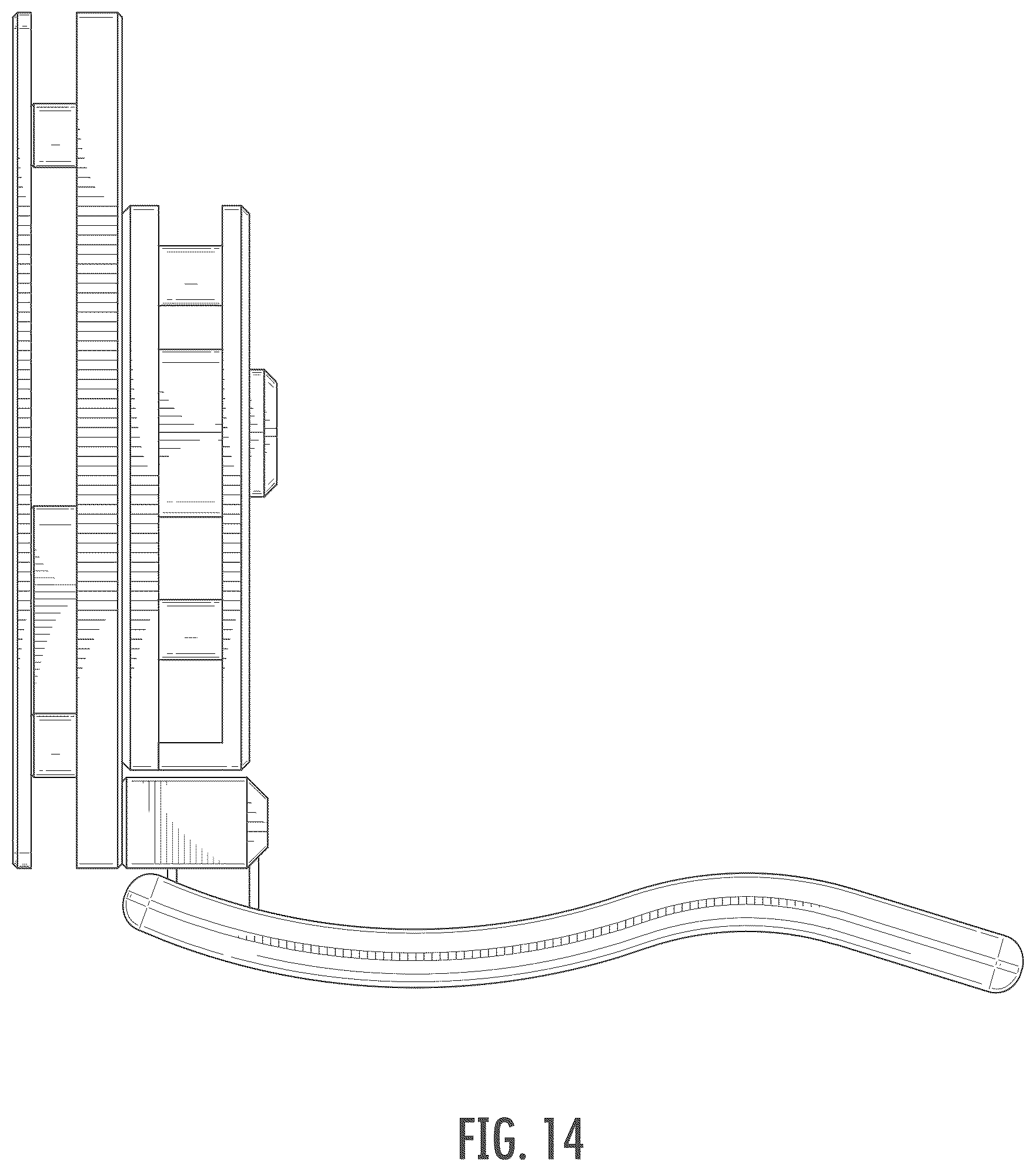

FIG. 14 is a left side elevation view thereof.

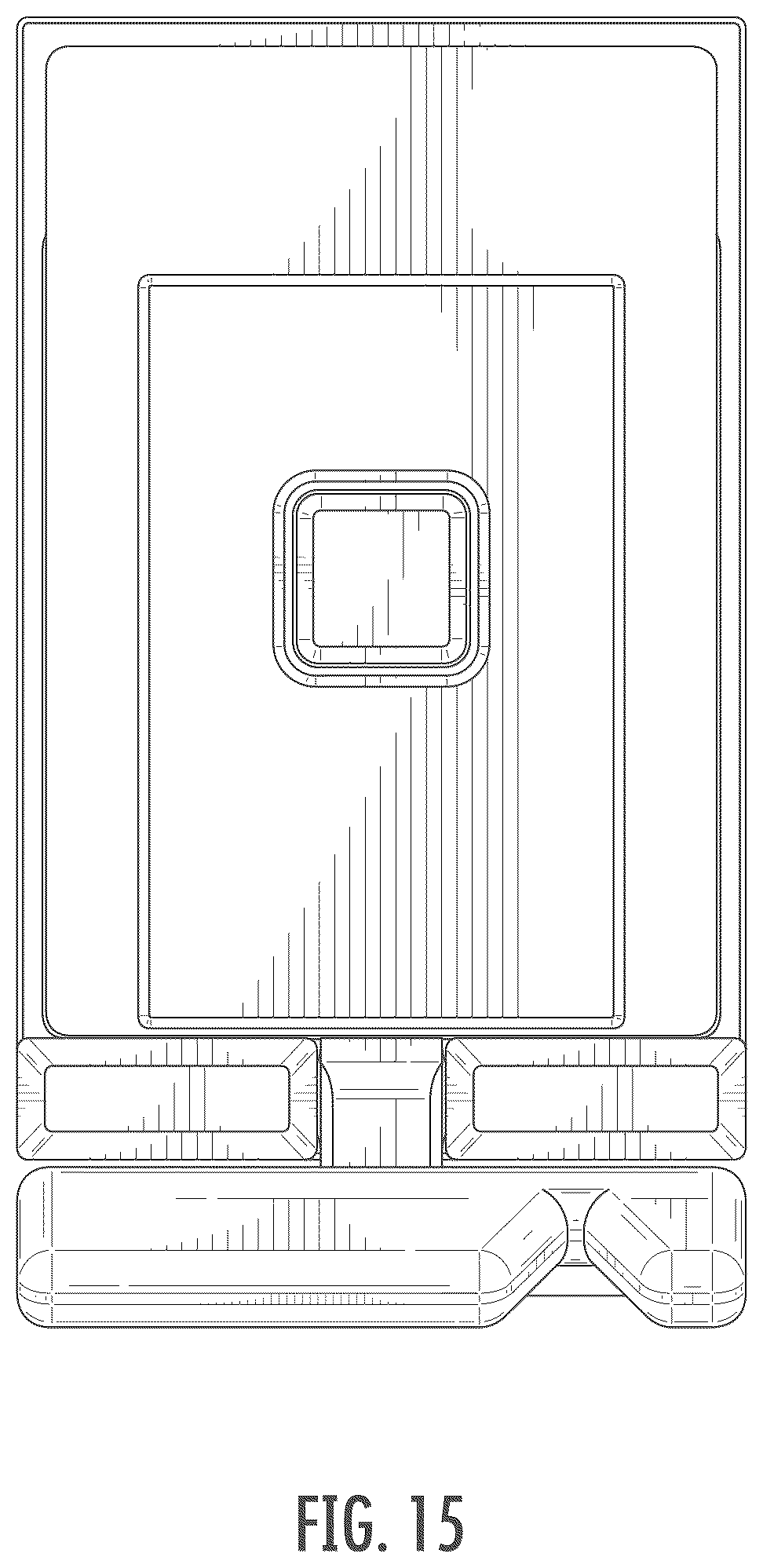

FIG. 15 is a front elevation view thereof; and,

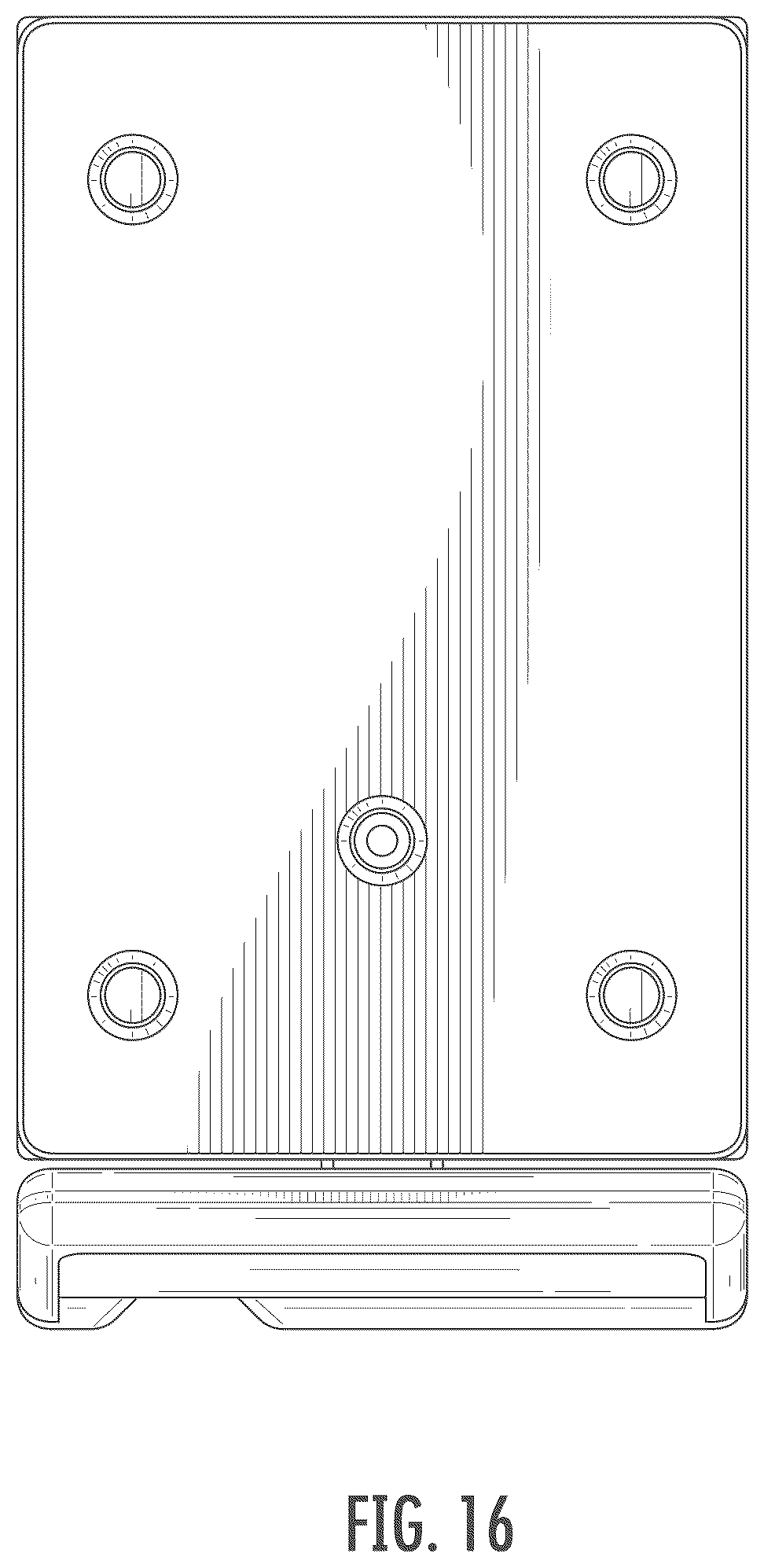

FIG. 16 is a rear elevation view thereof.

No claim is made to portions that are not shown. The surfaces are lined for contour.
