Camping Lamp

USD1044070No. D 1,044,070designGranted 9/24/2024
Patent USD1044070 — Camping lamp — Figure 1
Fig. 1 · Camping Lamp

Claims (1)

Claim 1 (Independent)

The ornamental design for a camping lamp, as shown and described.

Full Description

Show full text →

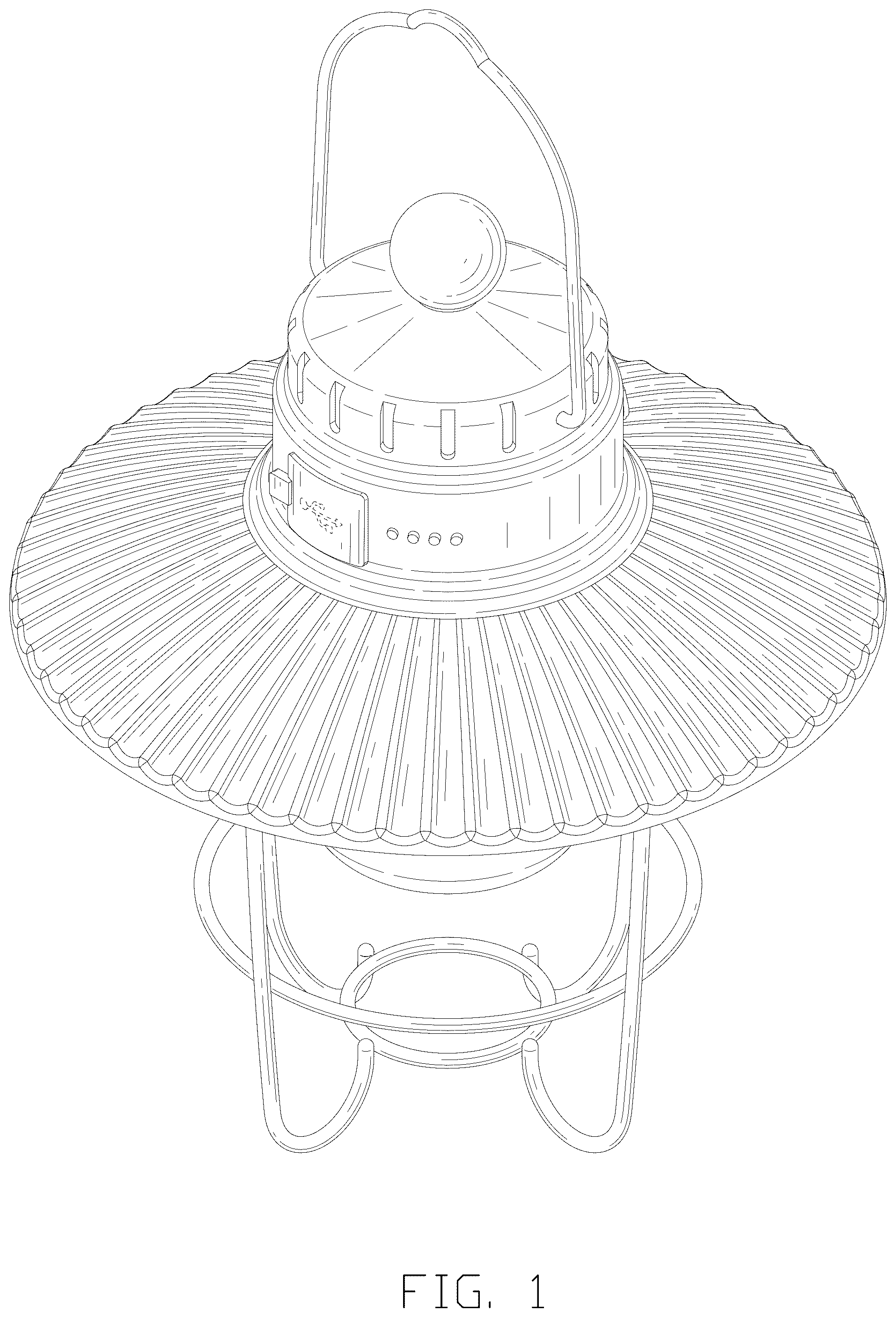

is a top front right perspective view of a camping lamp showing my new design;

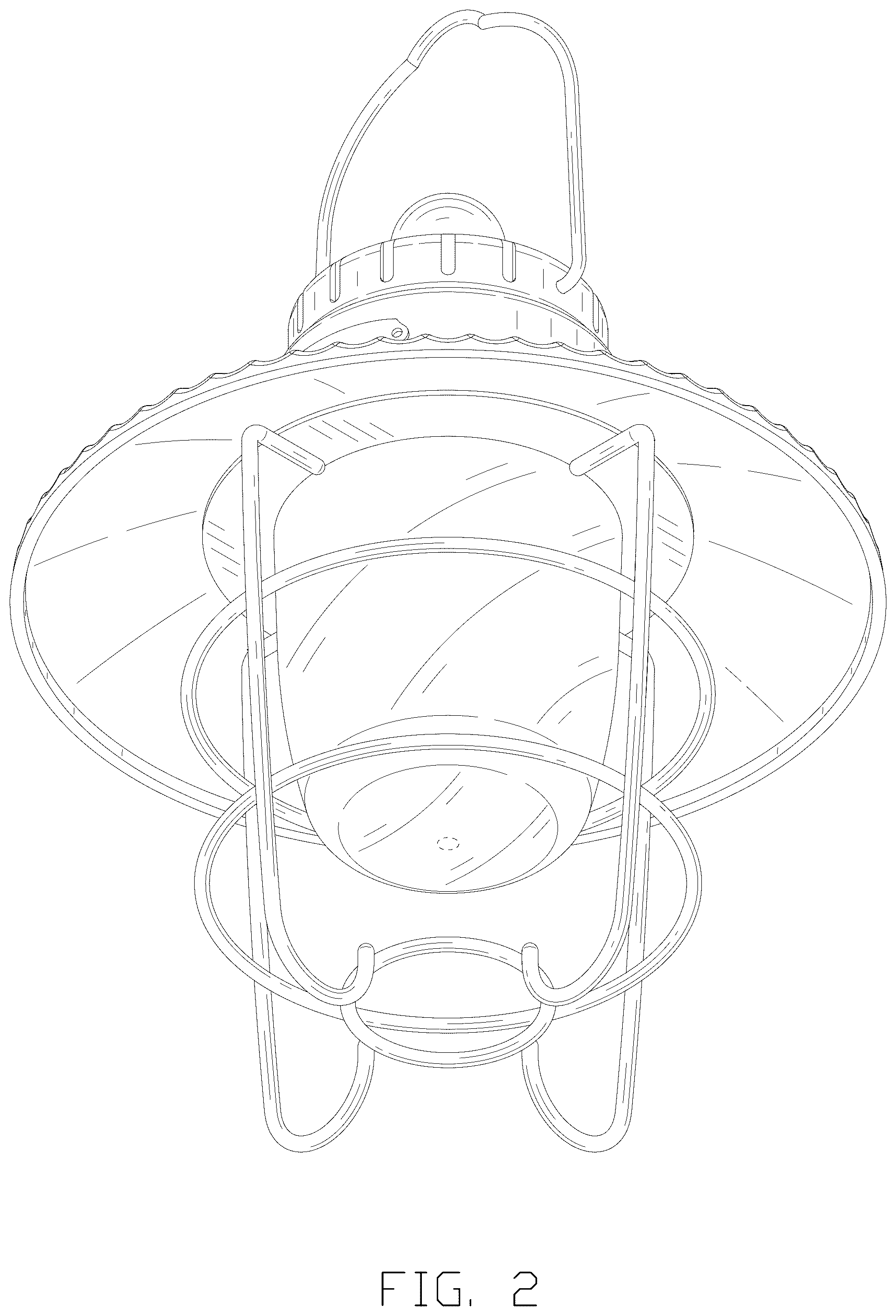

is a bottom rear left perspective view thereof;

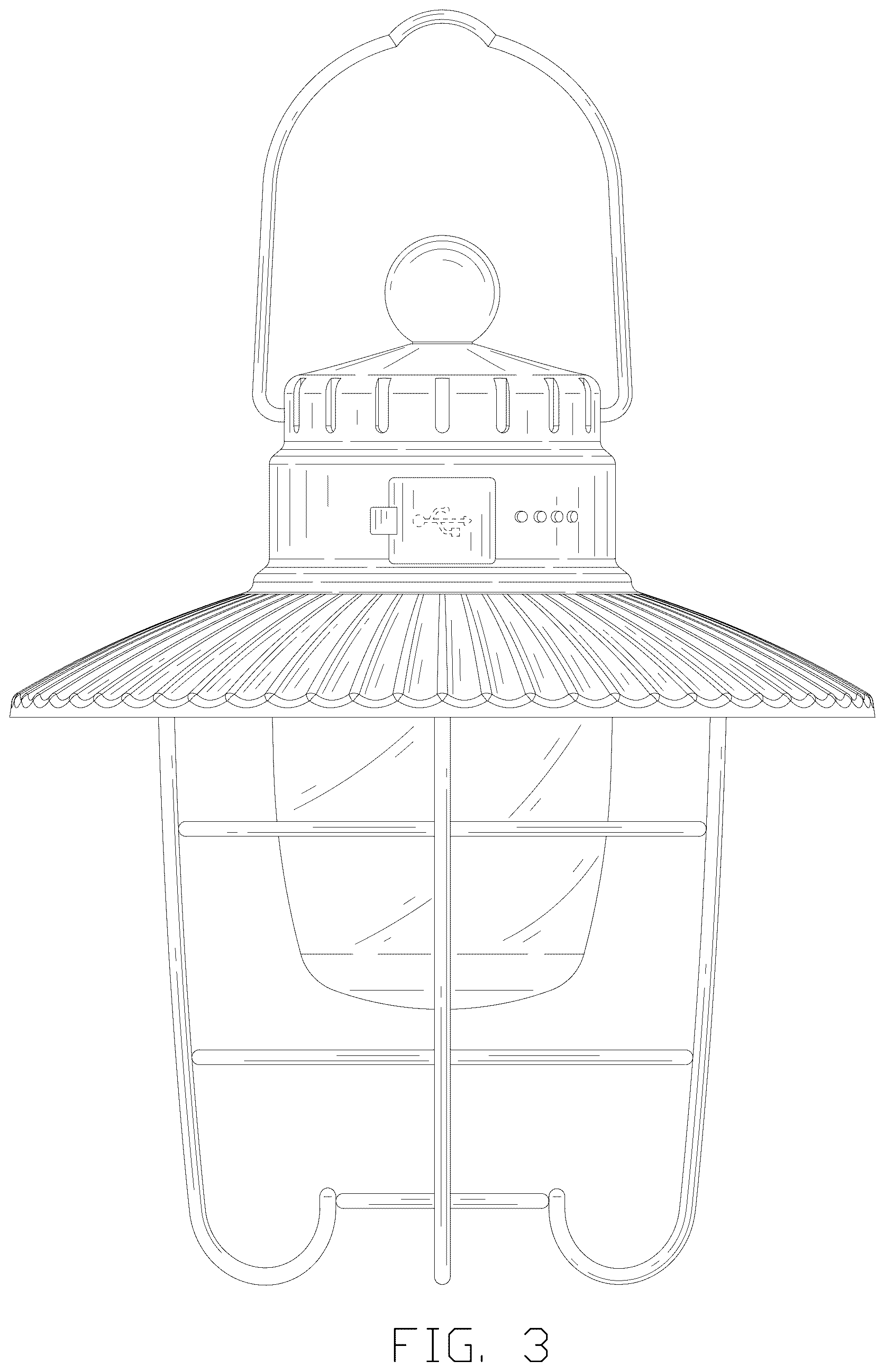

is a front elevational view thereof;

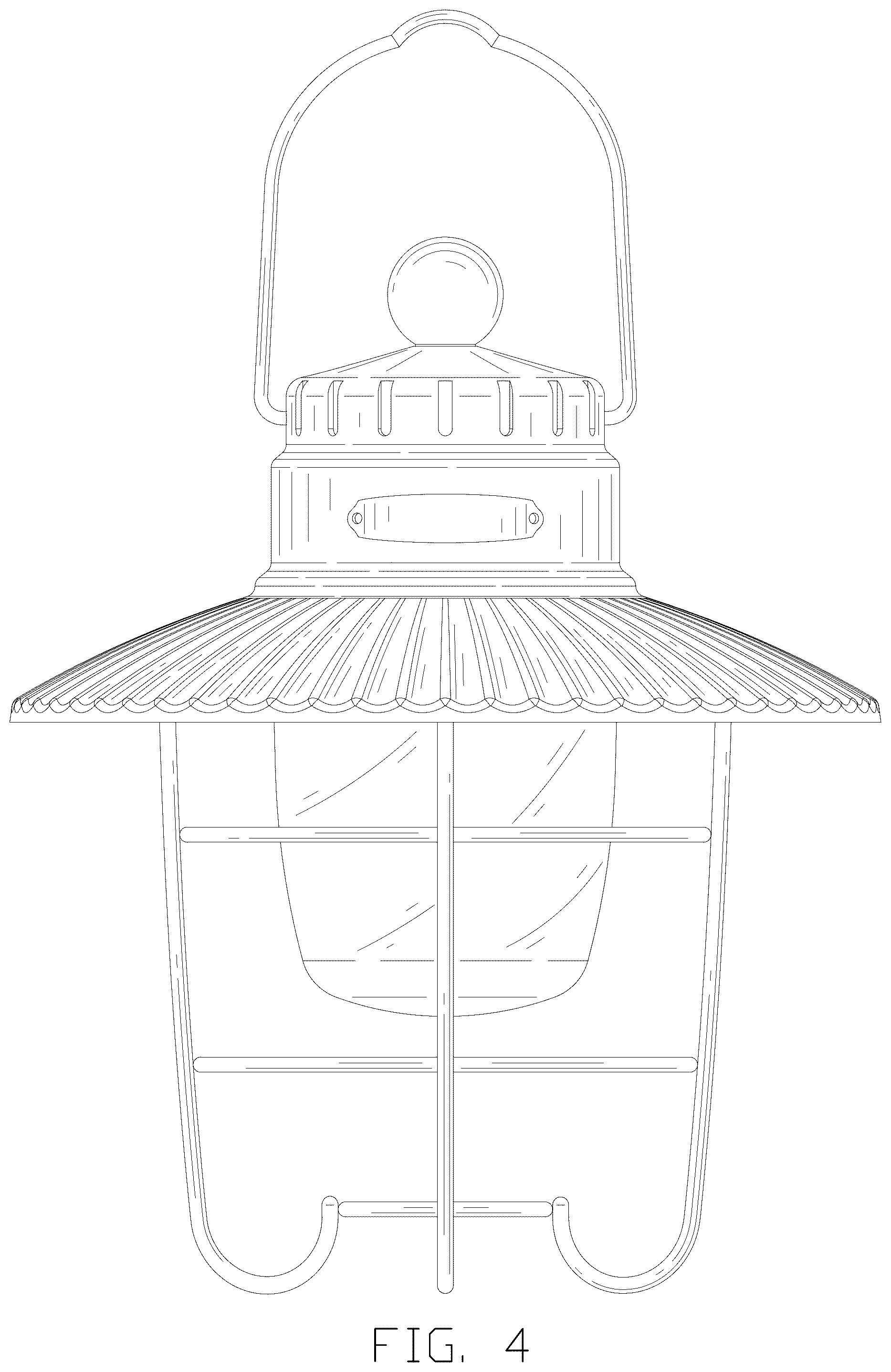

is a rear elevational view thereof;

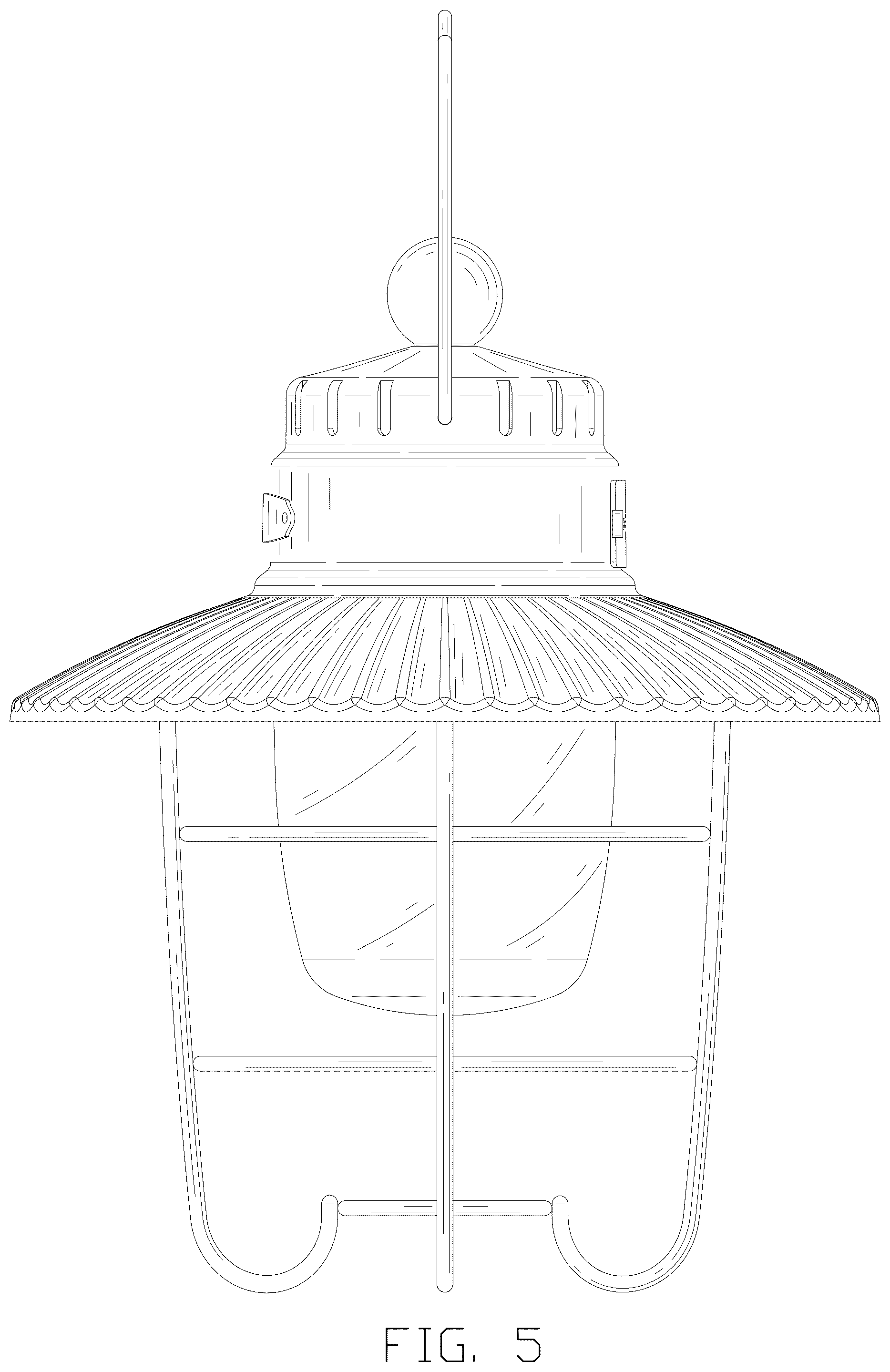

is a left side elevational view thereof;

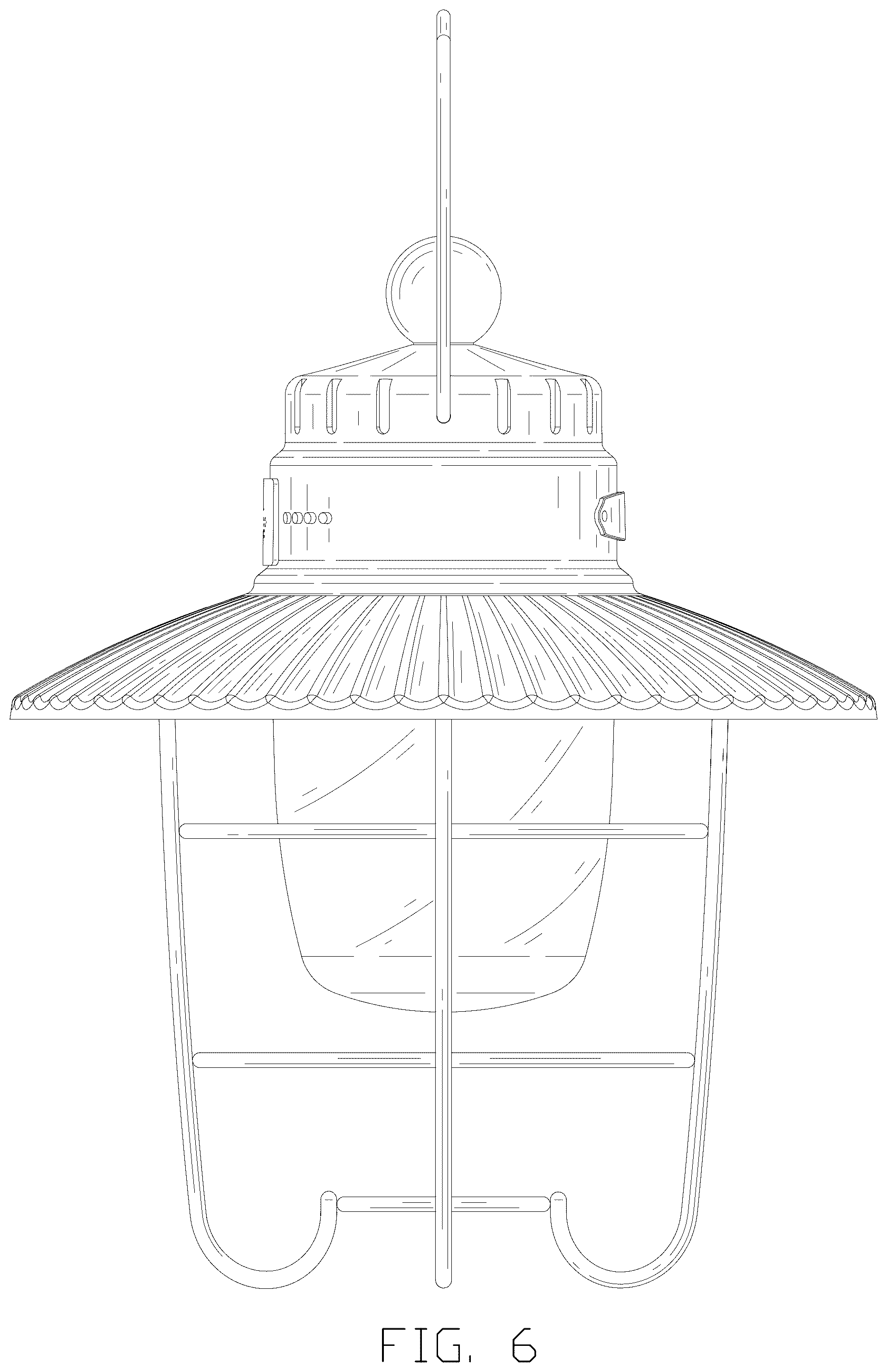

is a right side elevational view thereof;

is a top plan view thereof; and,

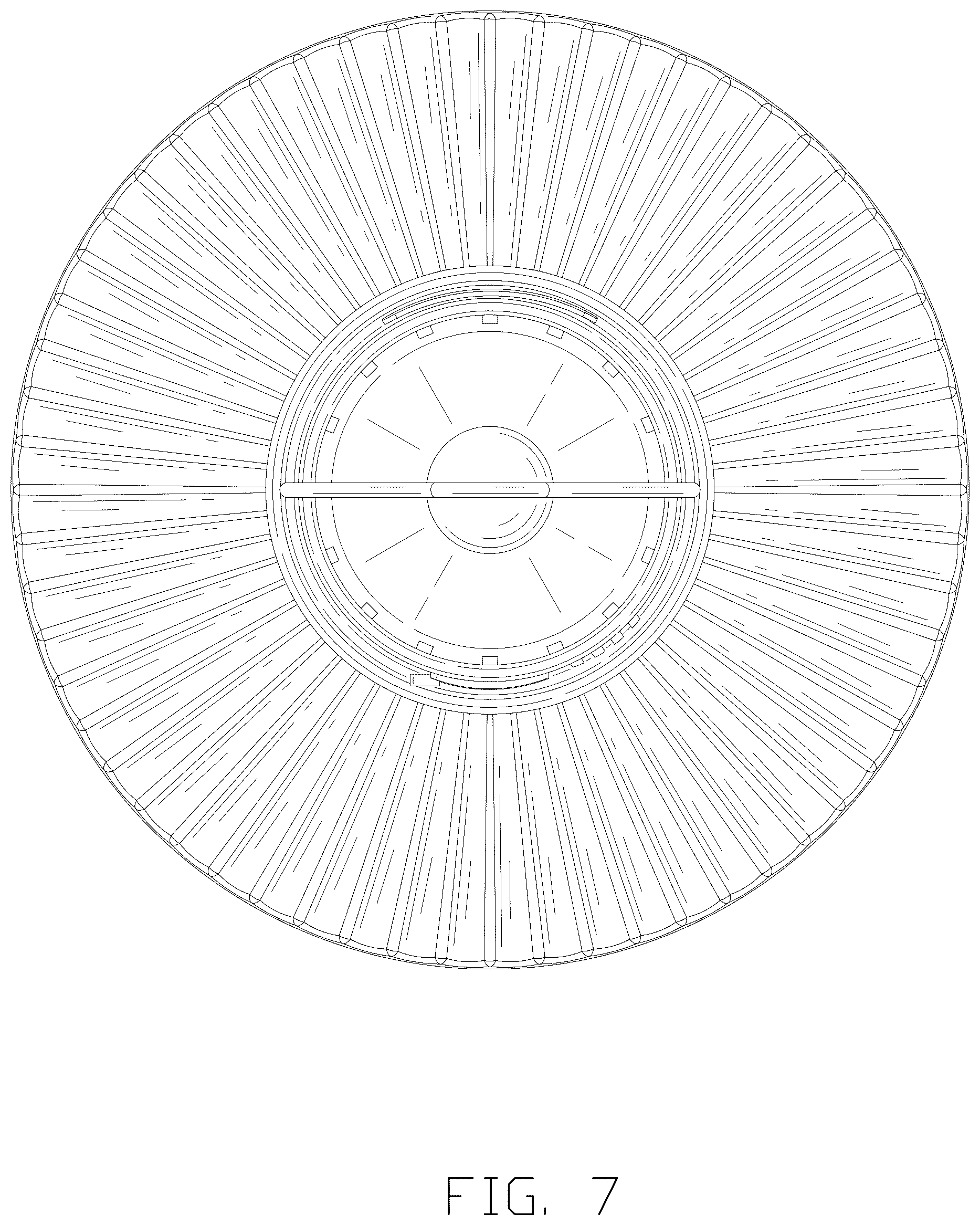

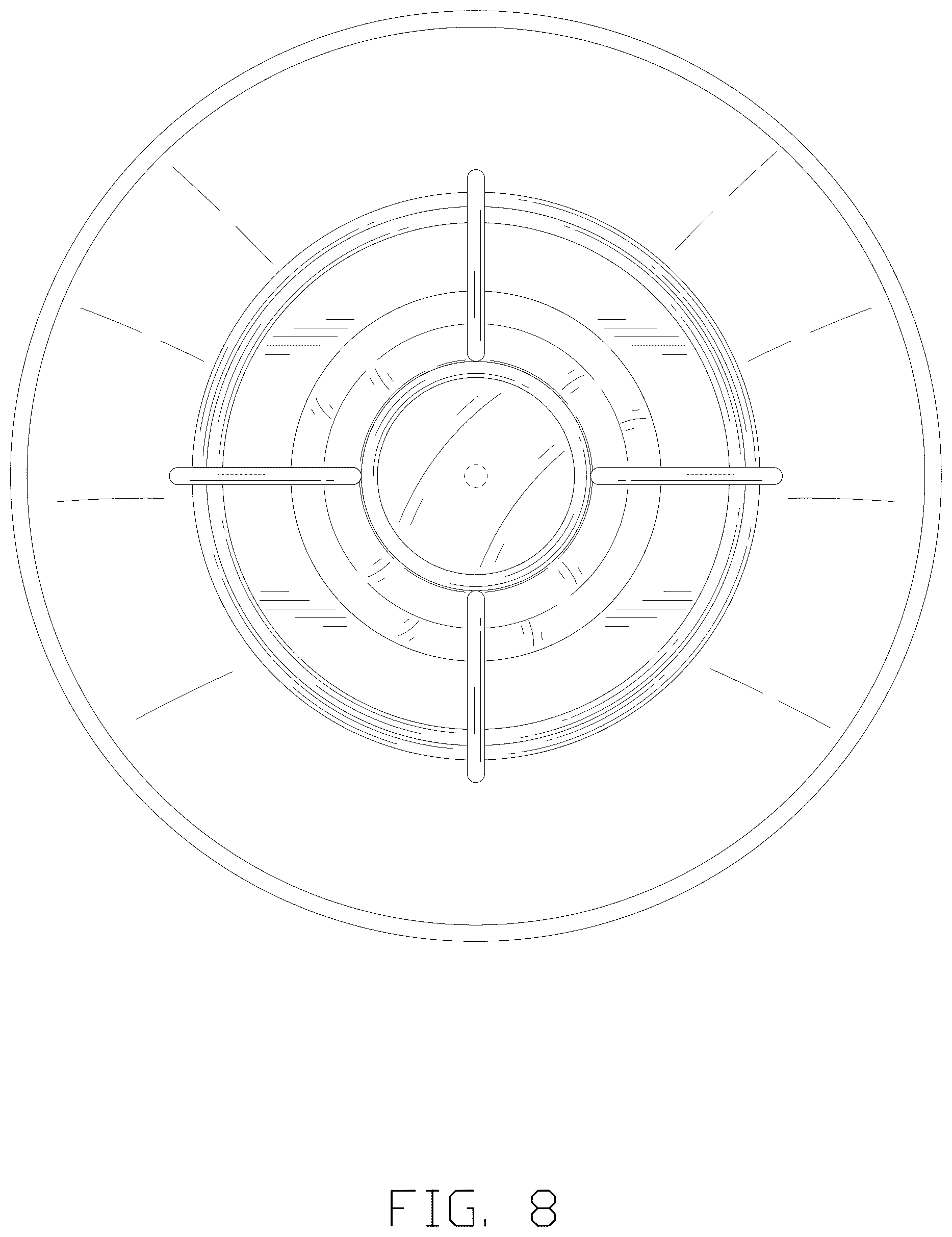

is a bottom plan view thereof.

The broken lines in the drawings are for the purpose of illustrating portions of the camping lamp that form no part of the claimed design.
