Candle

USD1044051No. D 1,044,051designGranted 9/24/2024
Patent USD1044051 — Candle — Figure 1
Fig. 1 · Candle

Claims (1)

Claim 1 (Independent)

The ornamental design for a candle, as shown and described.

Full Description

Show full text →

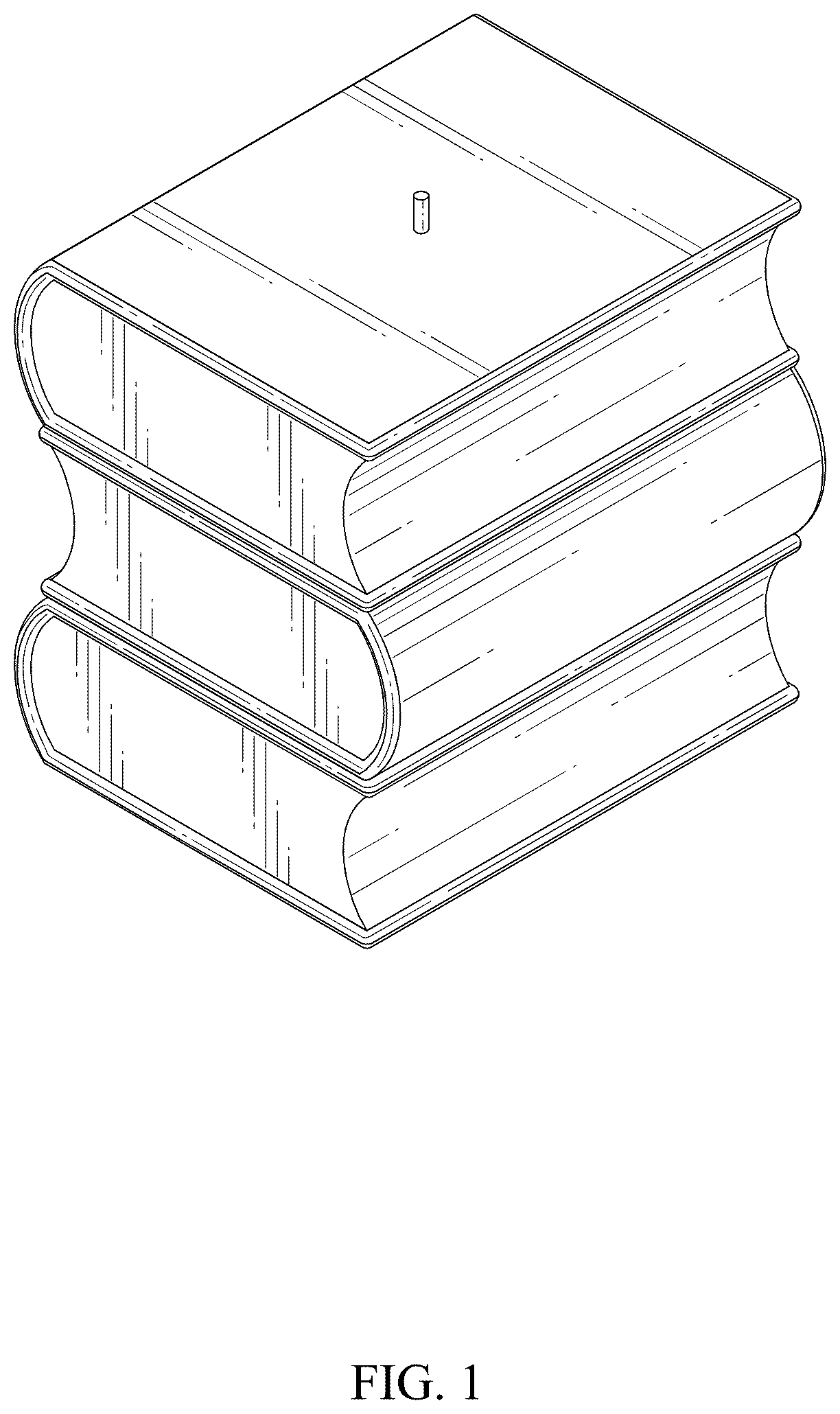

is a front-top-right perspective view of a candle showing my new design;

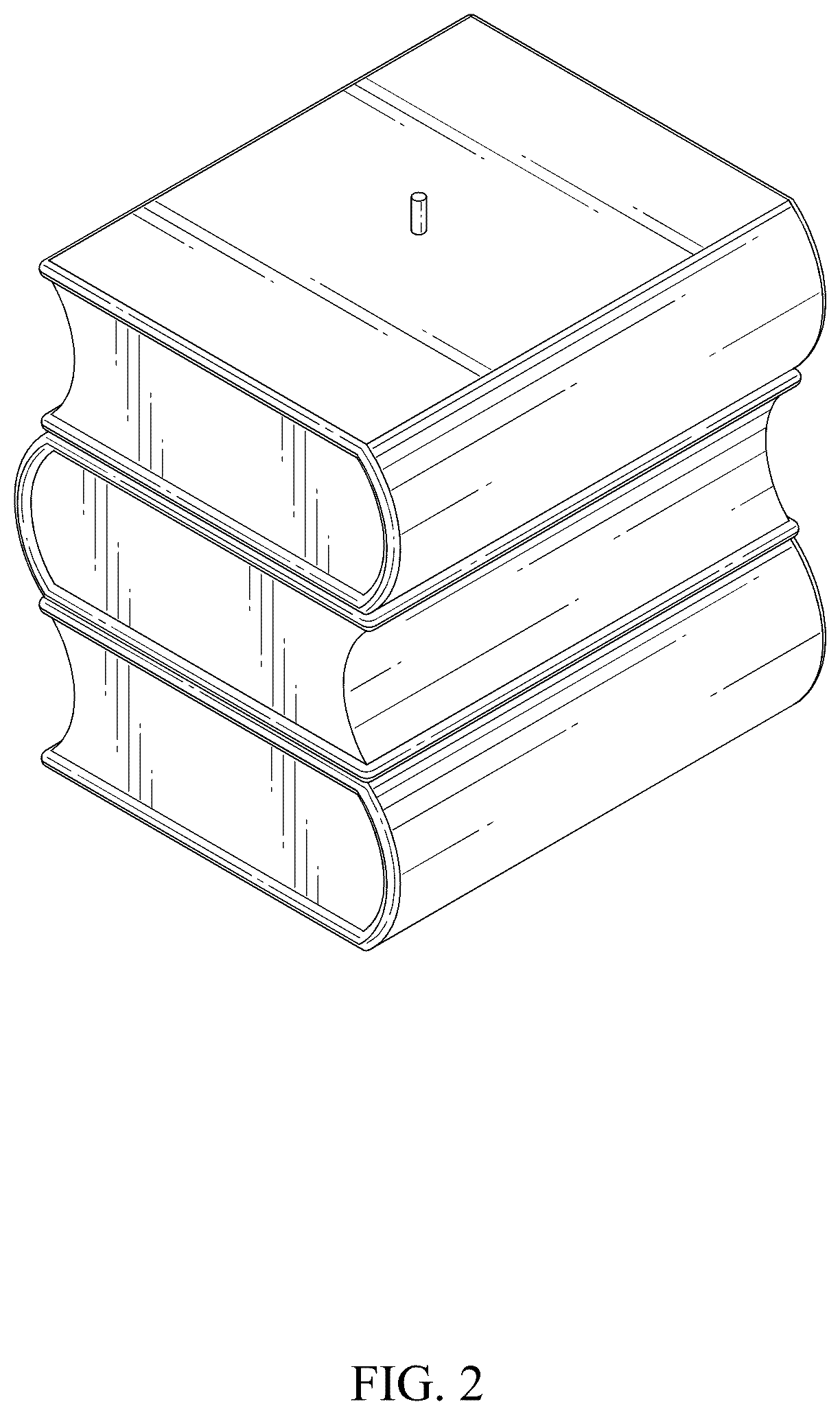

is a rear-top-left perspective view thereof;

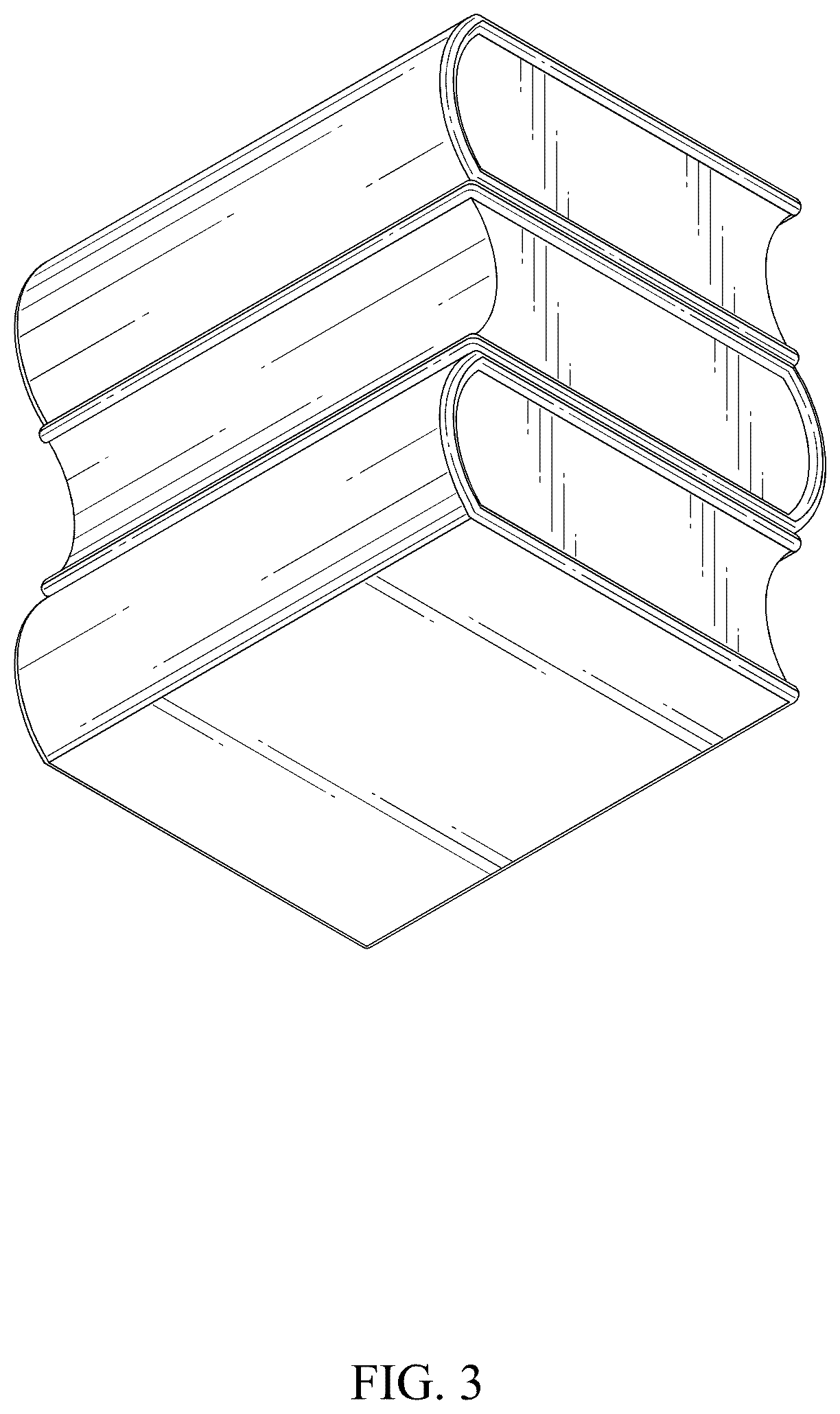

is a front-bottom-left perspective view thereof;

is a front elevational view thereof;

is a rear elevational view thereof;

is a top plan view thereof;

is a bottom view thereof;

is a right-side elevational view thereof; and,

is a left-side elevational view thereof.

Figures (9)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
