Claims (1)
Claim 1 (Independent)
The ornamental design for a liquid transfer device, as shown and described.
Full Description
Show full text →

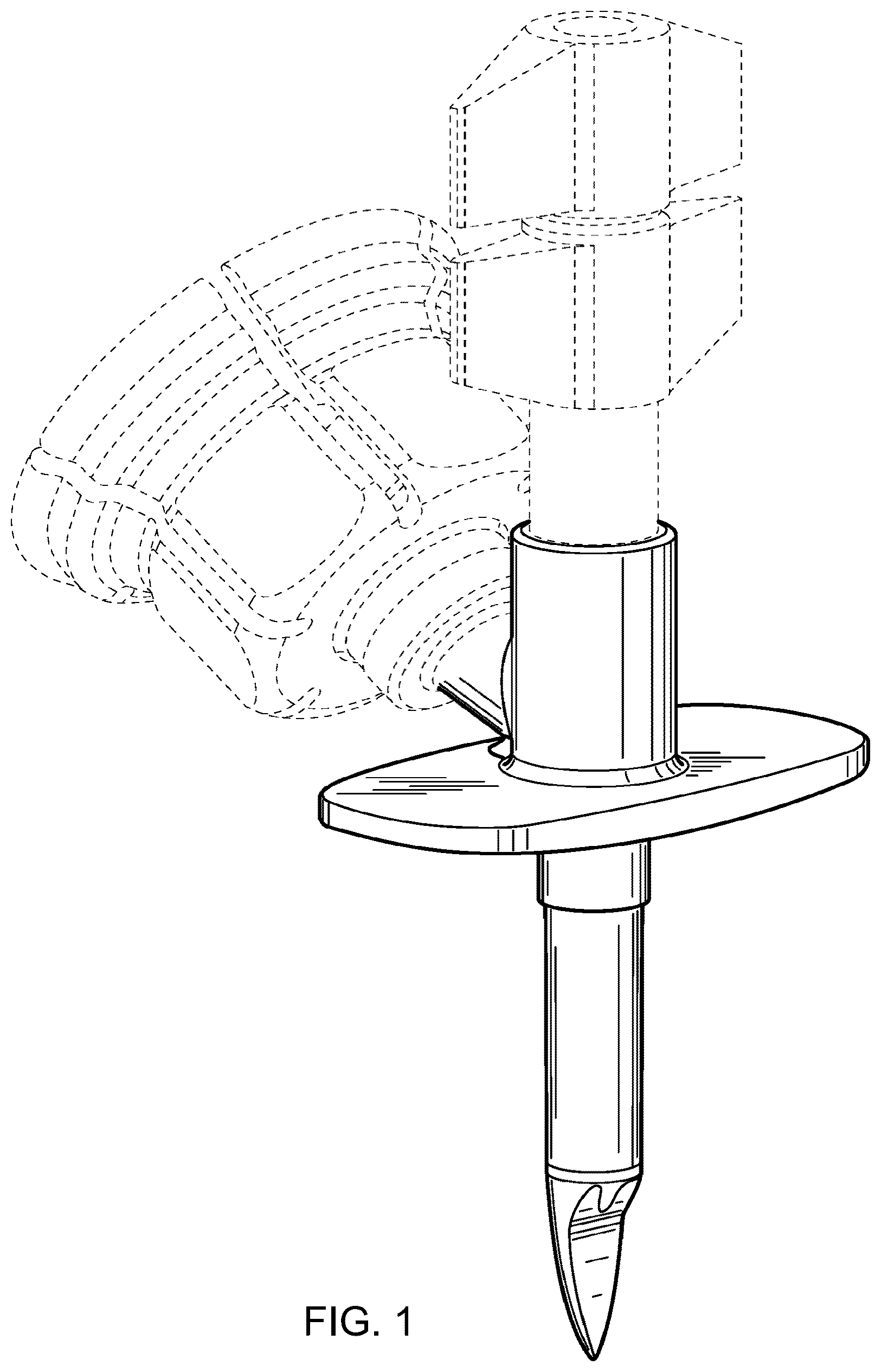

is a perspective view of a liquid transfer device; and,

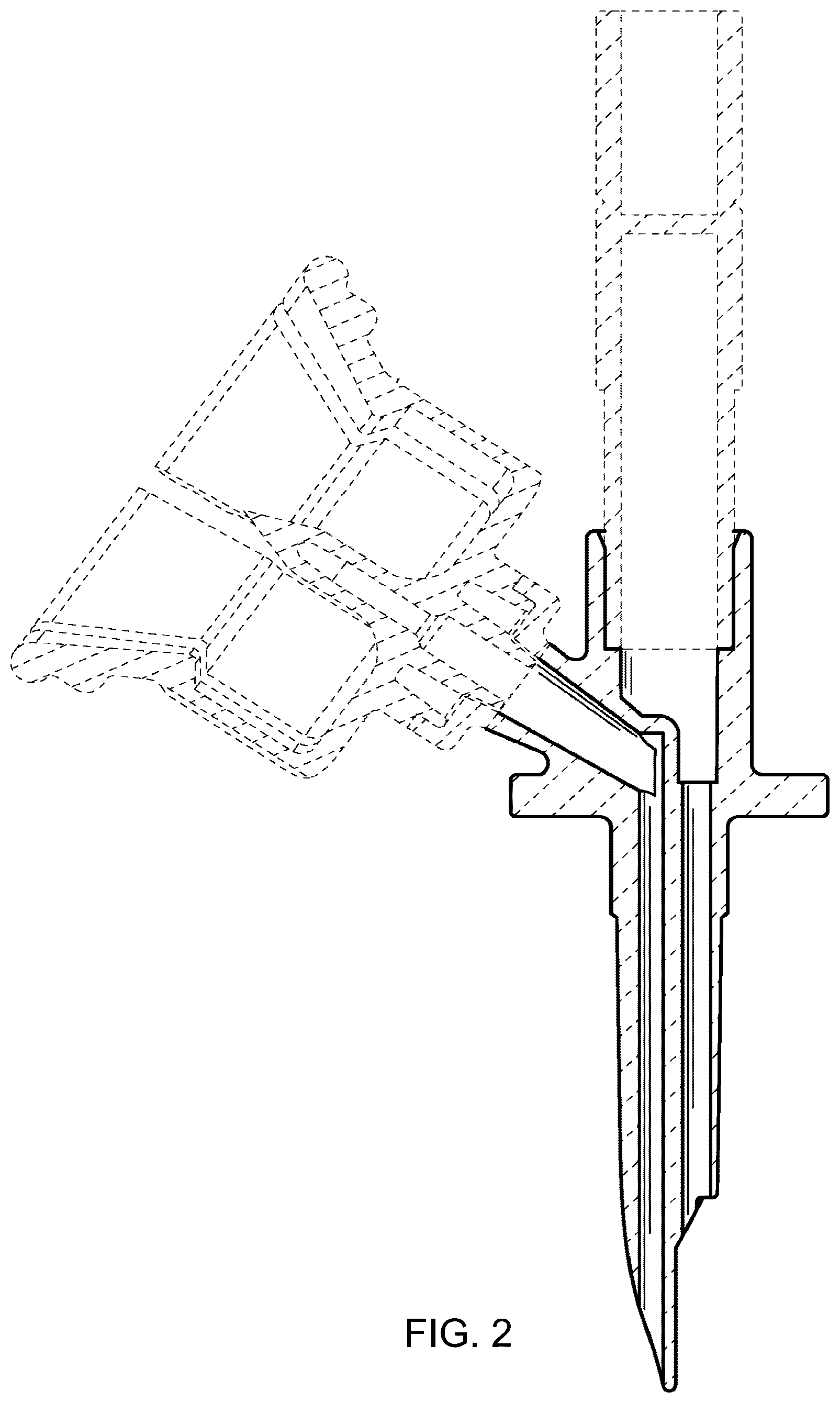

is a cross-sectional view thereof.
The dashed broken lines in the figures show portions of the liquid transfer device that form no part of the claimed design.
Figures (2)
