Applicator for a Bottle for Eye Drops

USD1043971No. D 1,043,971designGranted 9/24/2024

Claims (1)

Claim 1 (Independent)

The ornamental design for an applicator for a bottle for eye drops, as shown and described.

Full Description

Show full text →

1. Applicator for a bottle for eye drops

1 . 1 : Top

1 . 2 : Back

1 . 3 : Right

1 . 4 : Bottom

1 . 5 : Perspective

1 . 6 : Left

1 . 7 : Front

1 . 8 : Perspective

An eye drop applicator which comprises a body of generally inverted bowl shape formed of an opaque material with an opening in the top of the inverted bowl into which the top of a bottle of eye drops can be inserted.

Figures (8)

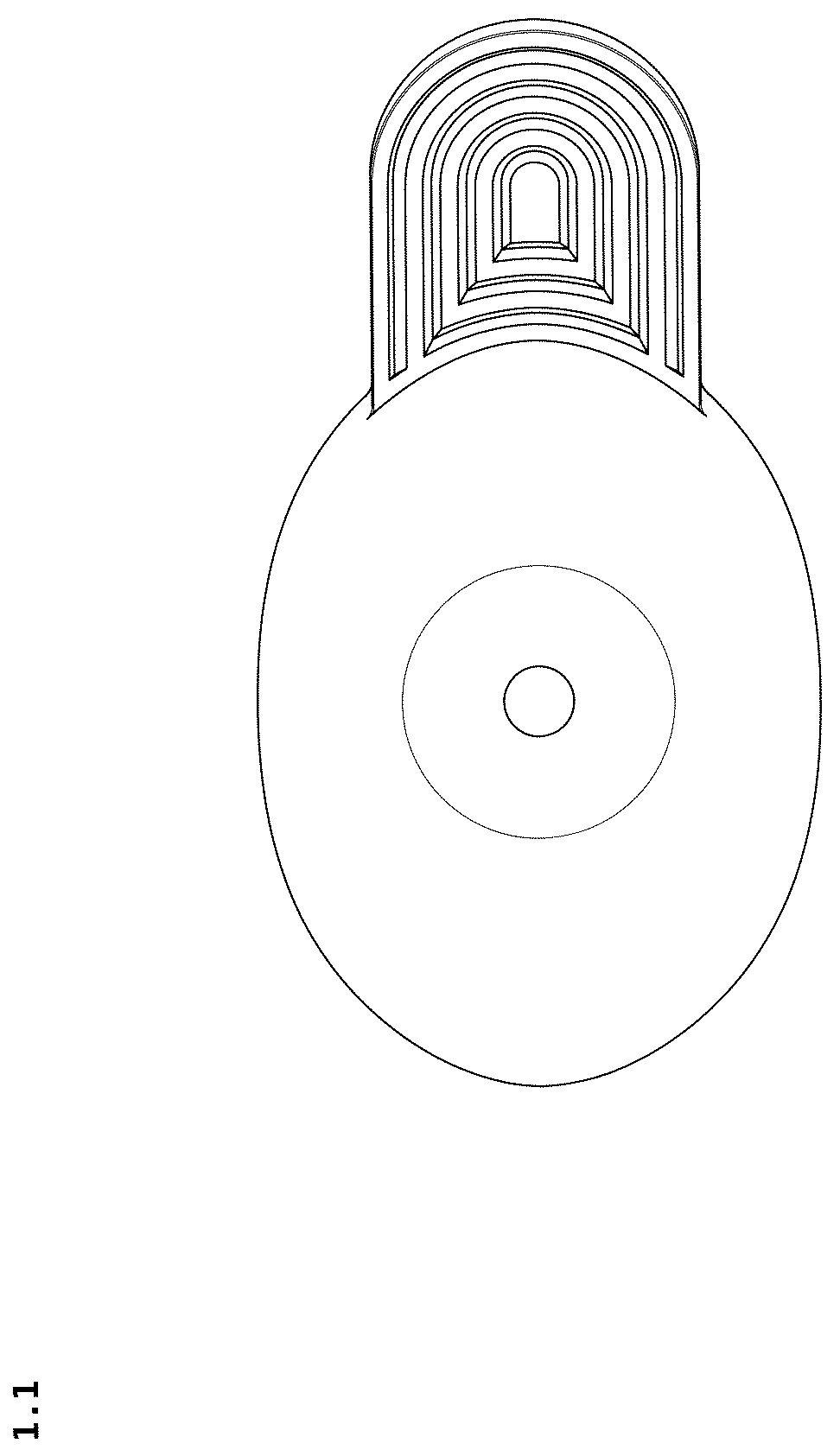

Patent USD1043971 Figure 1 – Applicator for a bottle for eye drops — Fig. 1

Patent USD1043971 Figure 2 – Applicator for a bottle for eye drops — Fig. 2

Patent USD1043971 Figure 3 – Applicator for a bottle for eye drops — Fig. 3

Patent USD1043971 Figure 4 – Applicator for a bottle for eye drops — Fig. 4

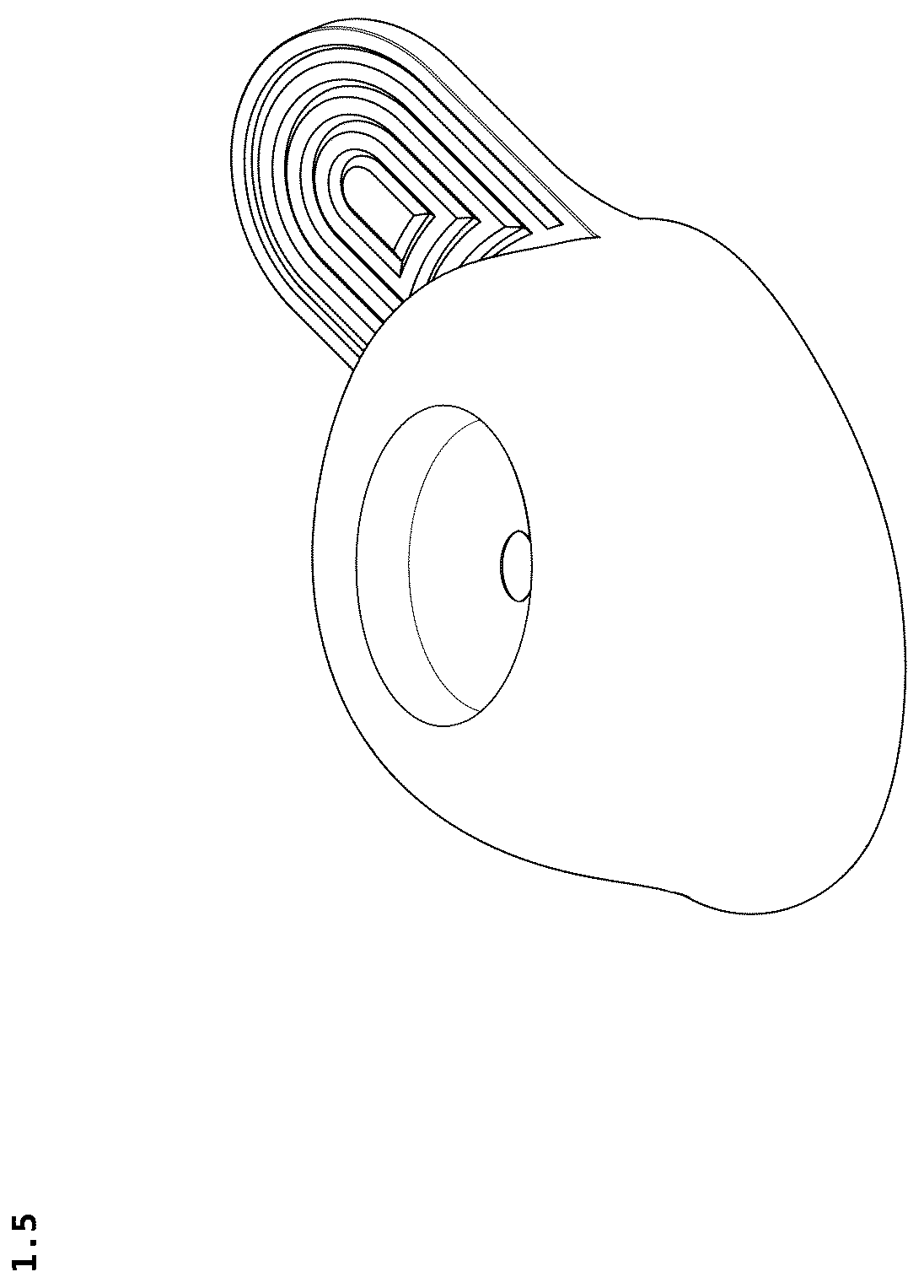

Patent USD1043971 Figure 5 – Applicator for a bottle for eye drops — Fig. 5

Patent USD1043971 Figure 6 – Applicator for a bottle for eye drops — Fig. 6

Patent USD1043971 Figure 7 – Applicator for a bottle for eye drops — Fig. 7

Patent USD1043971 Figure 8 – Applicator for a bottle for eye drops — Fig. 8
