Chiller

USD1043935No. D 1,043,935designGranted 9/24/2024
Patent USD1043935 — Chiller — Figure 1
Fig. 1 · Chiller

Claims (1)

Claim 1 (Independent)

The ornamental design for a chiller, as shown and described.

Full Description

Show full text →

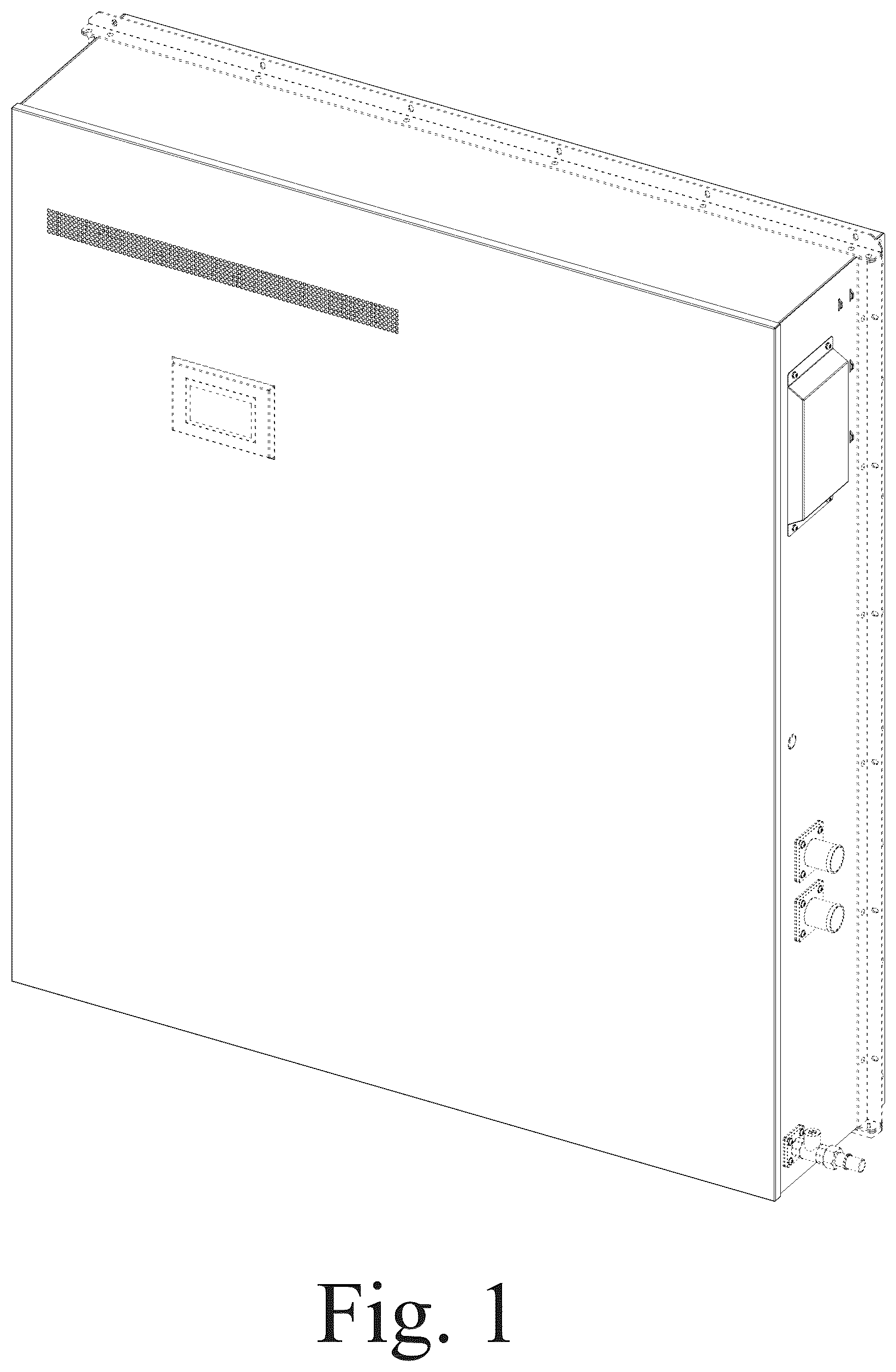

is a front, right, top perspective view of a chiller;

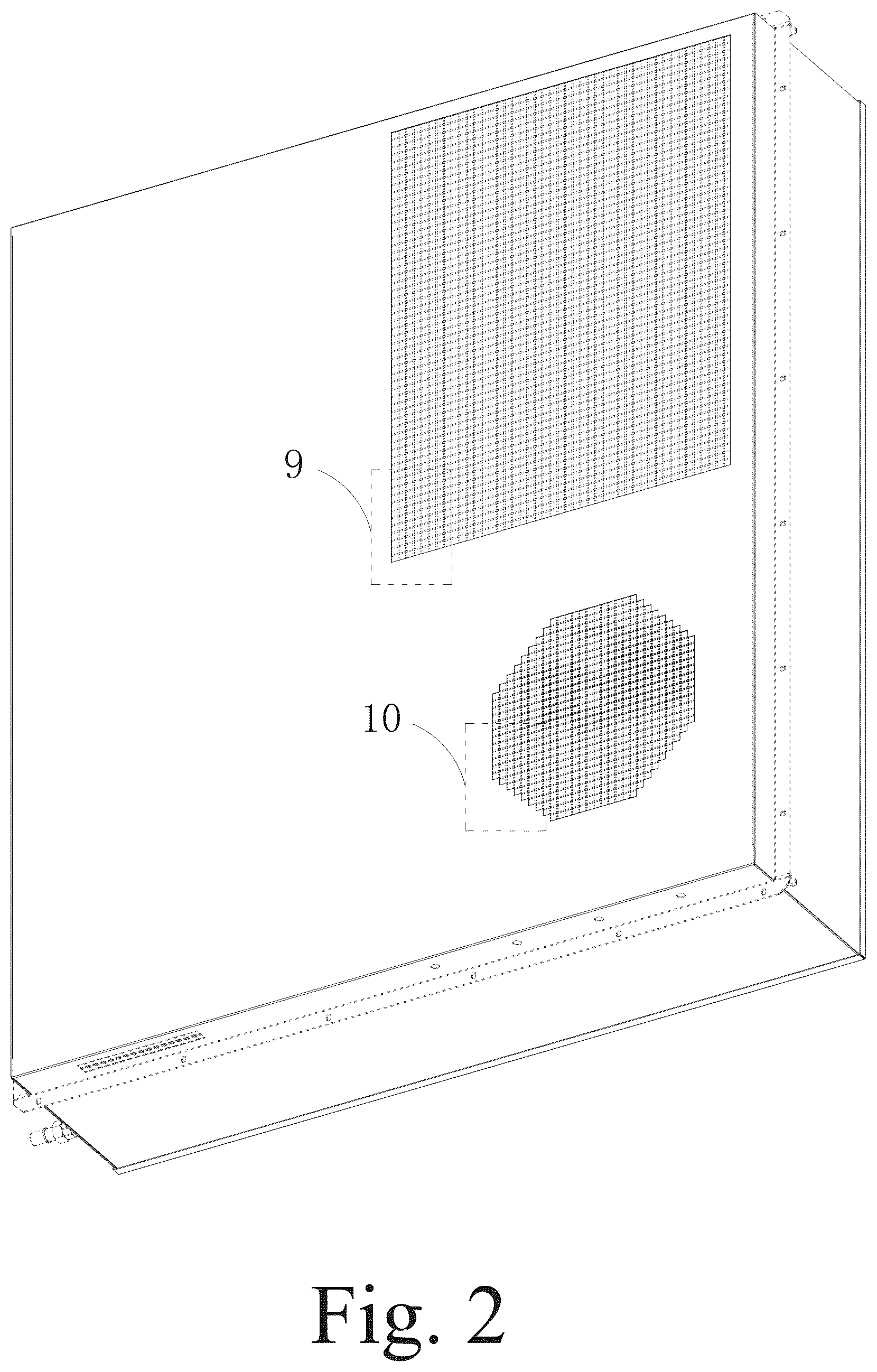

is a rear, left, bottom perspective view thereof;

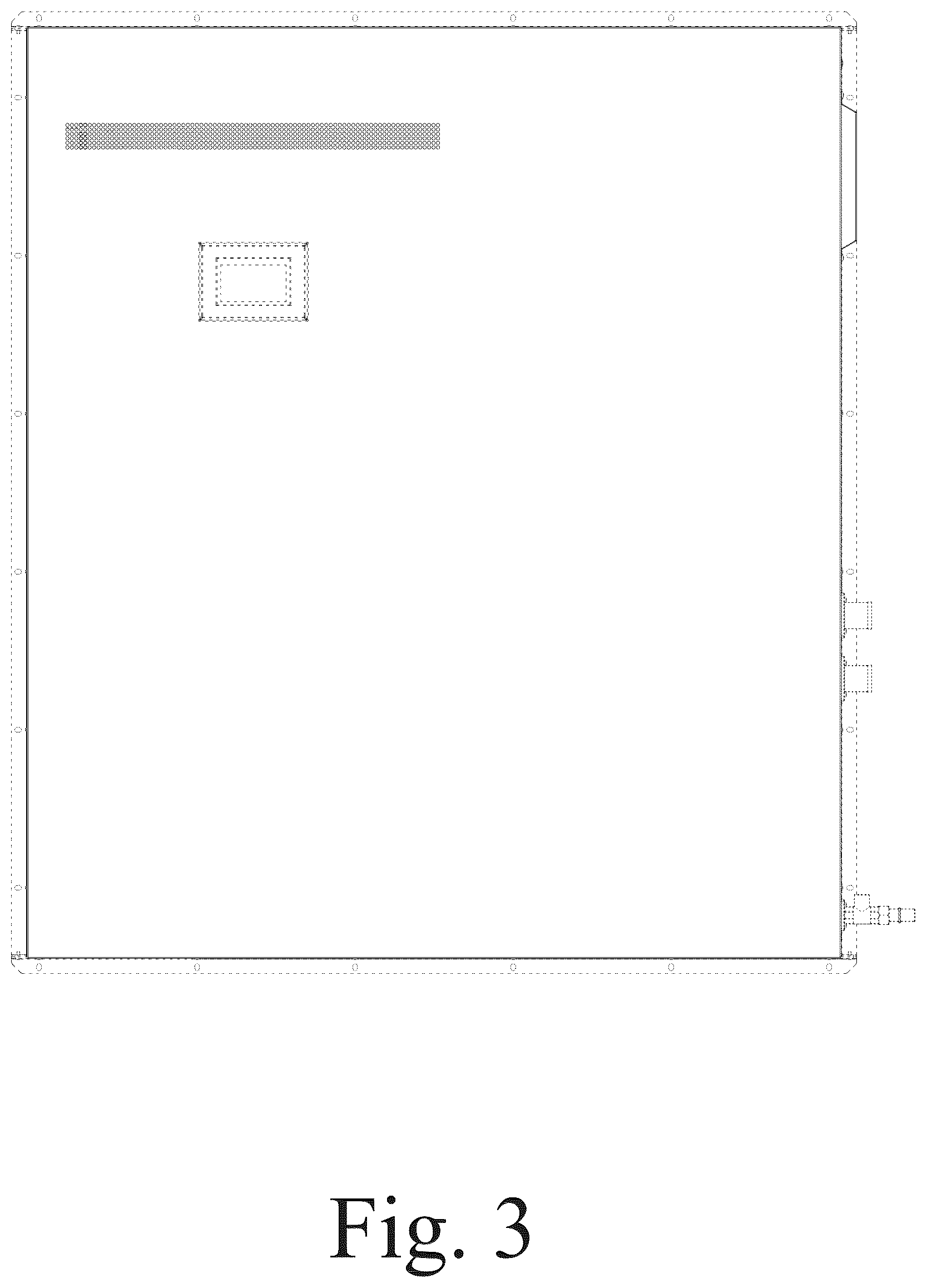

is a front elevation view thereof;

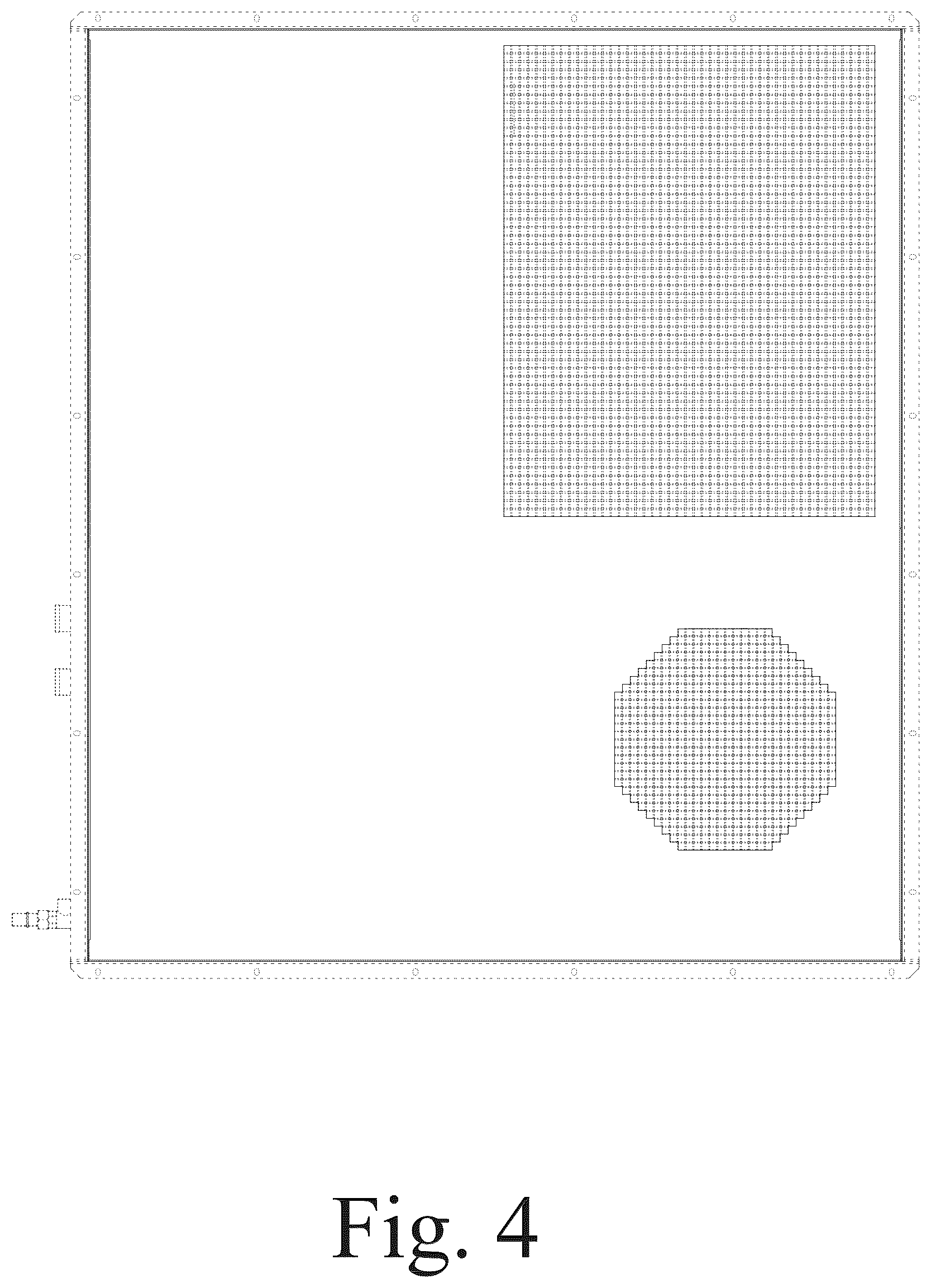

is a rear elevation view thereof;

is a left side elevation view thereof;

is a right side elevation view thereof;

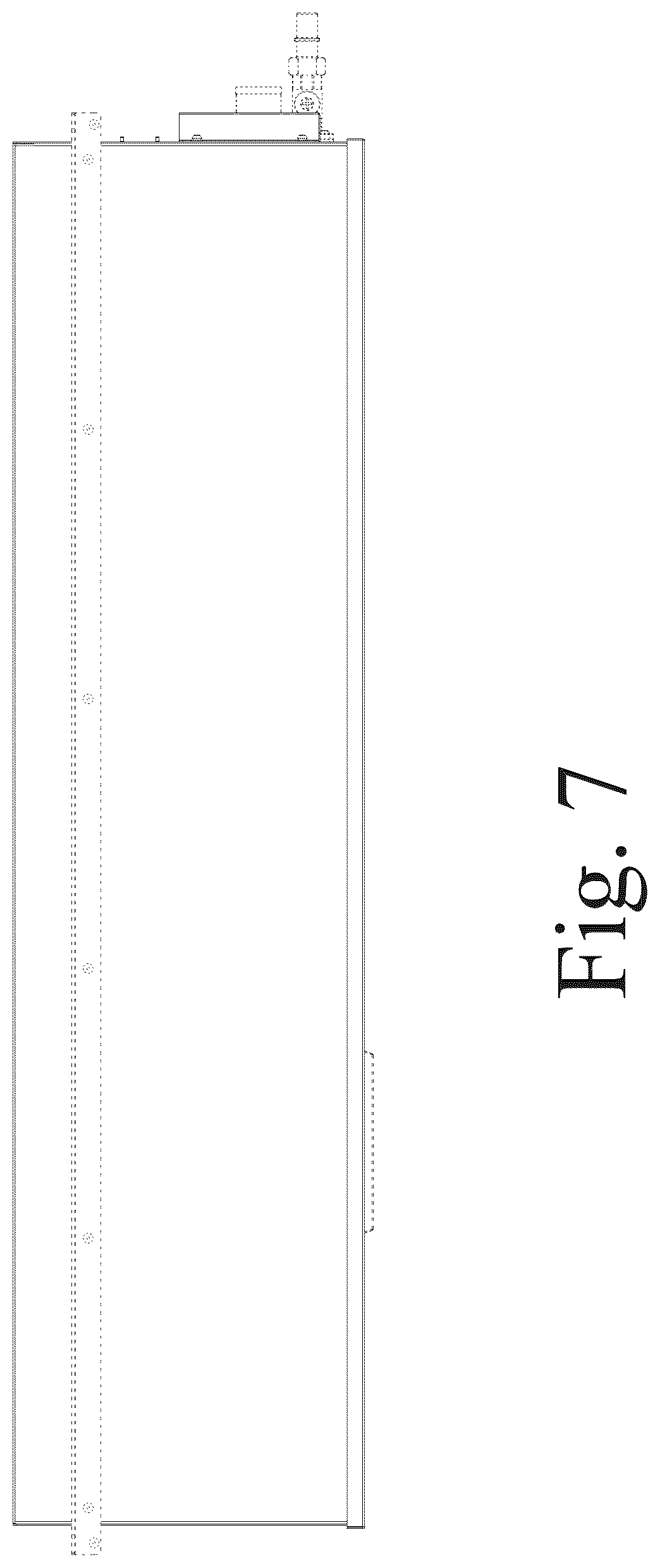

is a top plan view thereof;

is a bottom plan view thereof;

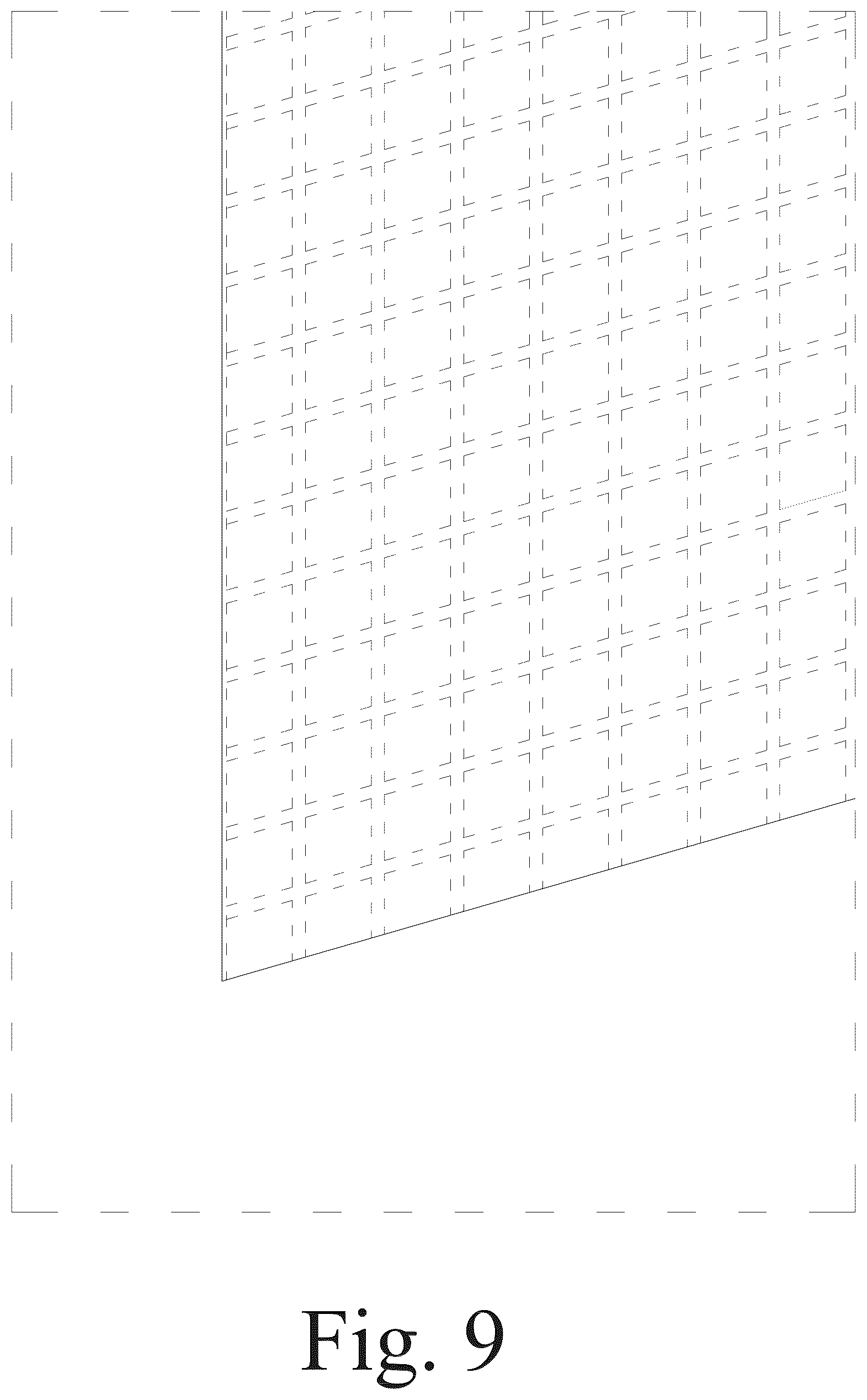

is an enlarged view of a portion 9 of ; and,

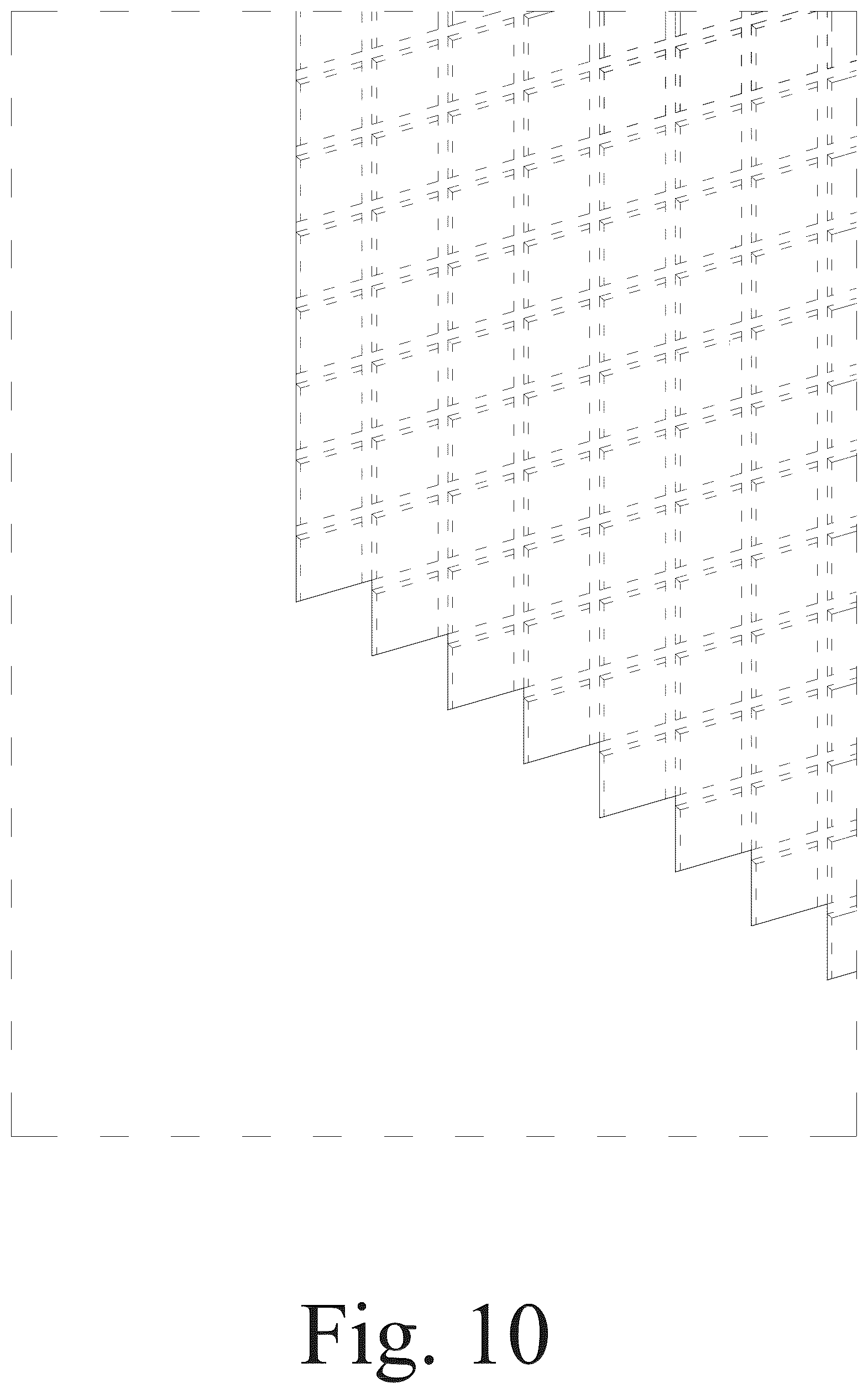

is an enlarged view of portion 10 of .

The broken lines in the drawings depict portions of the chiller that form no part of the claimed design.
