Magnifier

USD1043784No. D 1,043,784designGranted 9/24/2024
Patent USD1043784 — Magnifier — Figure 1
Fig. 1 · Magnifier

Claims (1)

Claim 1 (Independent)

The ornamental design for a magnifier, as shown and described.

Full Description

Show full text →

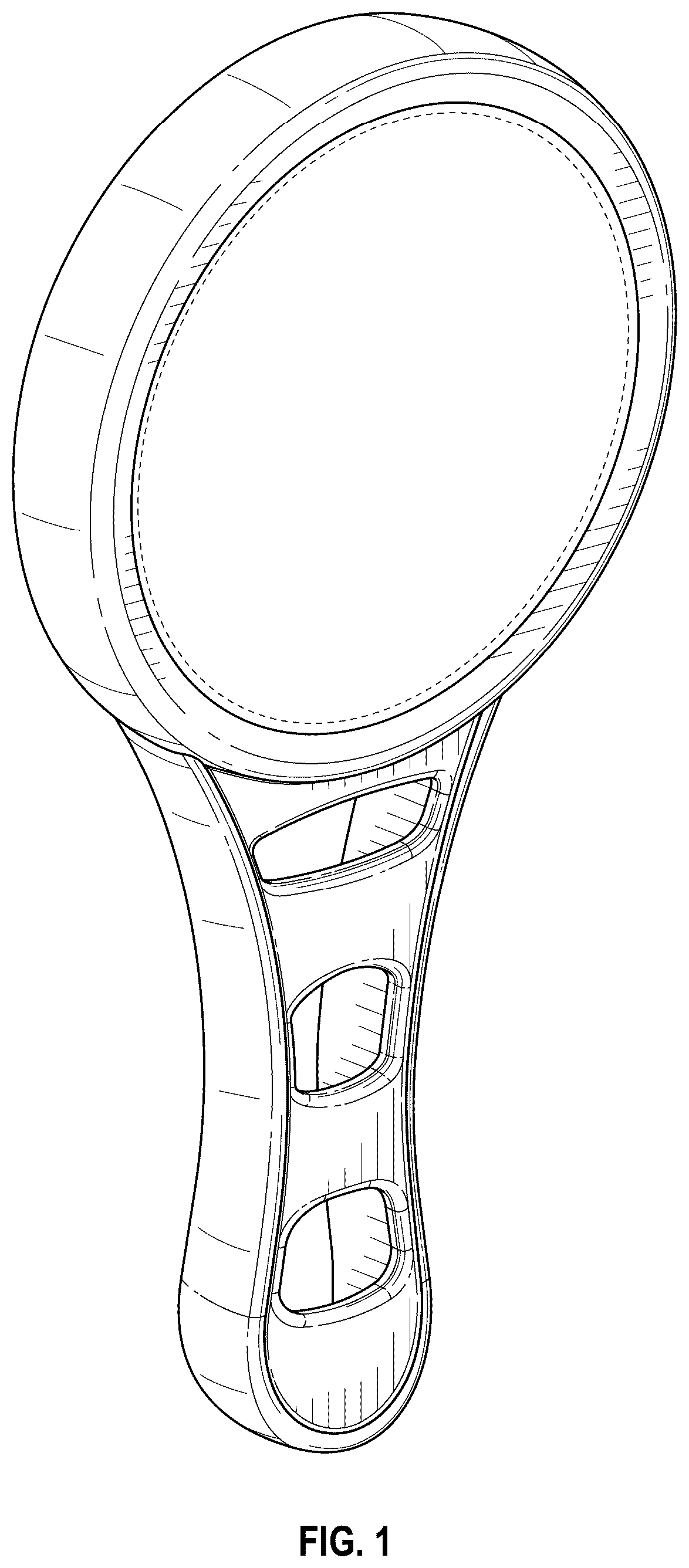

is a perspective view of the magnifier showing our new design;

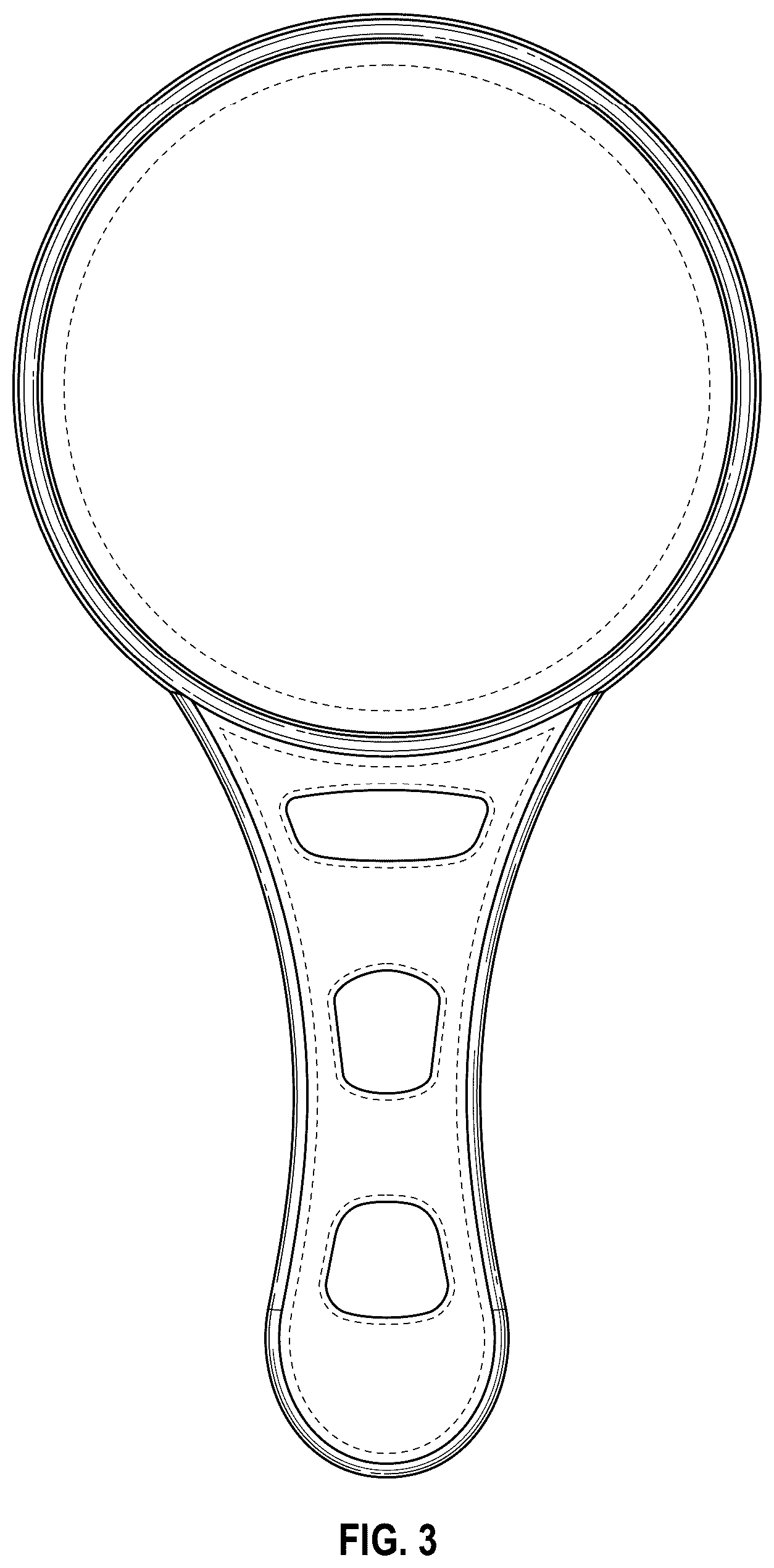

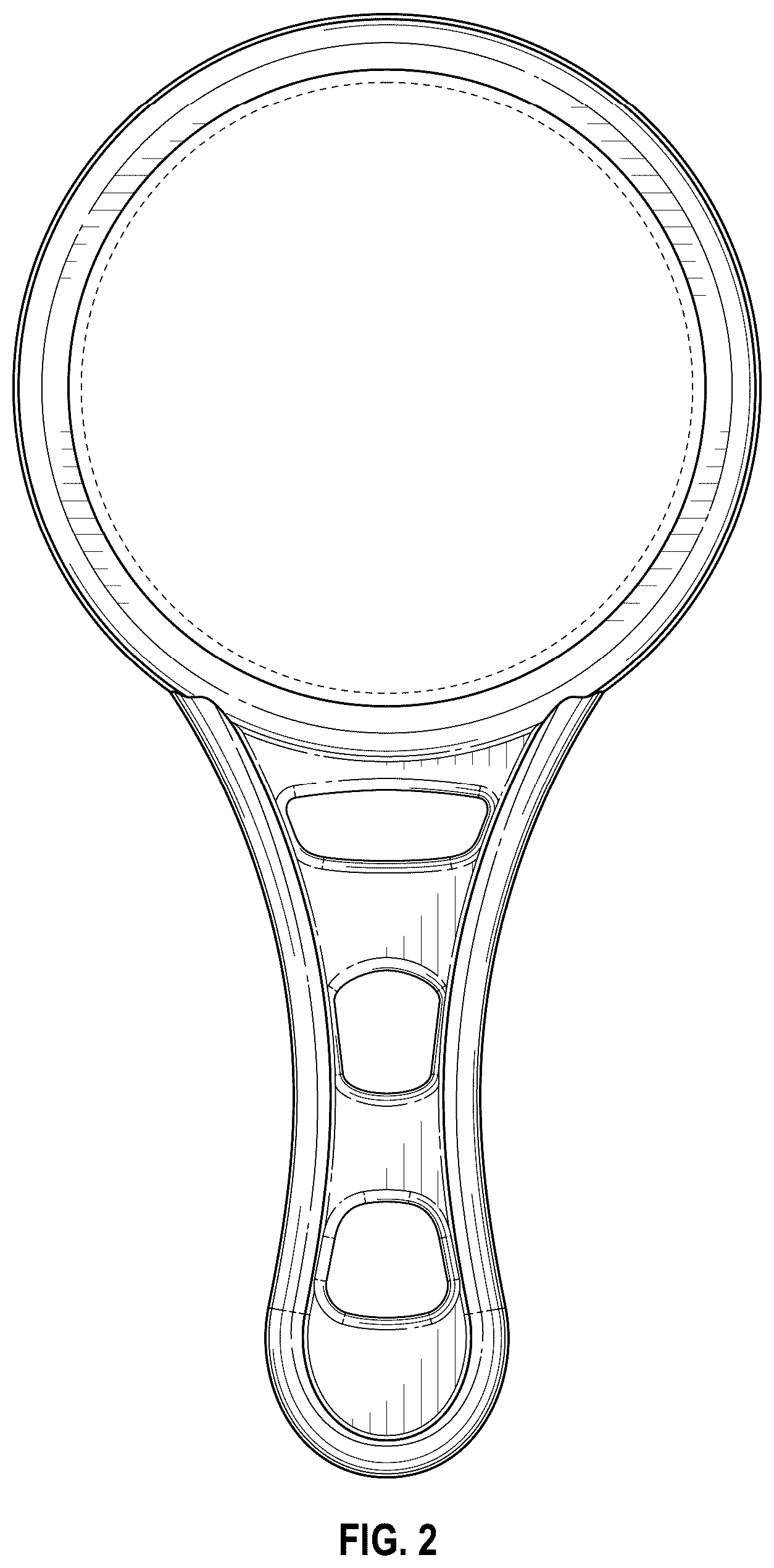

is a front elevational view thereof;

is a back elevational view thereof;

is a left side elevational view thereof;

is a right side elevational view thereof;

is a top plan view thereof; and,

is a bottom plan view thereof.

The dotted lines show features and regions that are portions of the article that form no part of the claimed design.
