Display Device

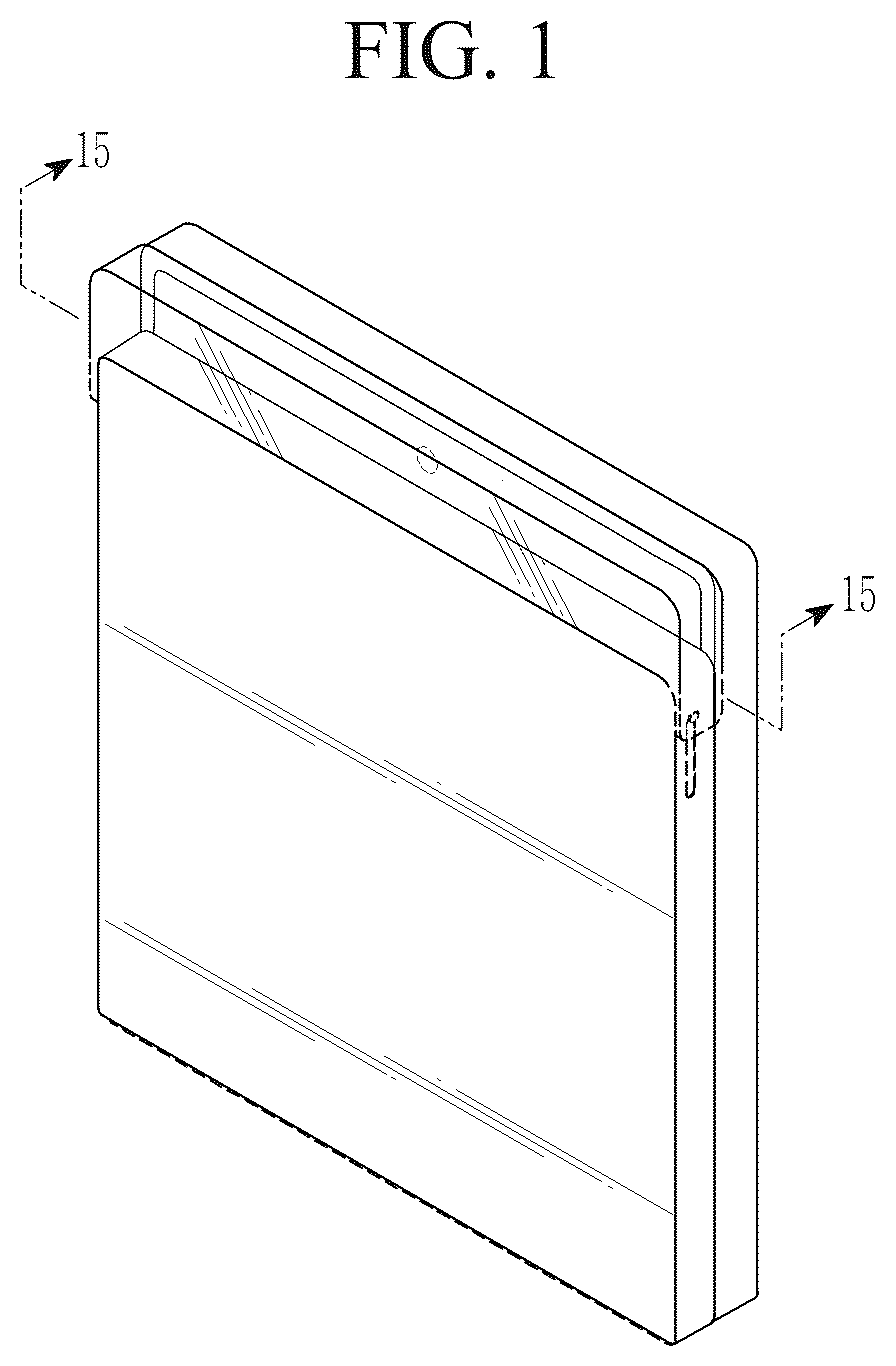

FIG. 1 is a perspective view of a first embodiment of a display device shown in a folded state;

FIG. 2 is a front view thereof;

FIG. 3 is a rear view thereof;

FIG. 4 is a left side view thereof;

FIG. 5 is a right side view thereof;

FIG. 6 is a top view thereof; and

FIG. 7 is a bottom view thereof;

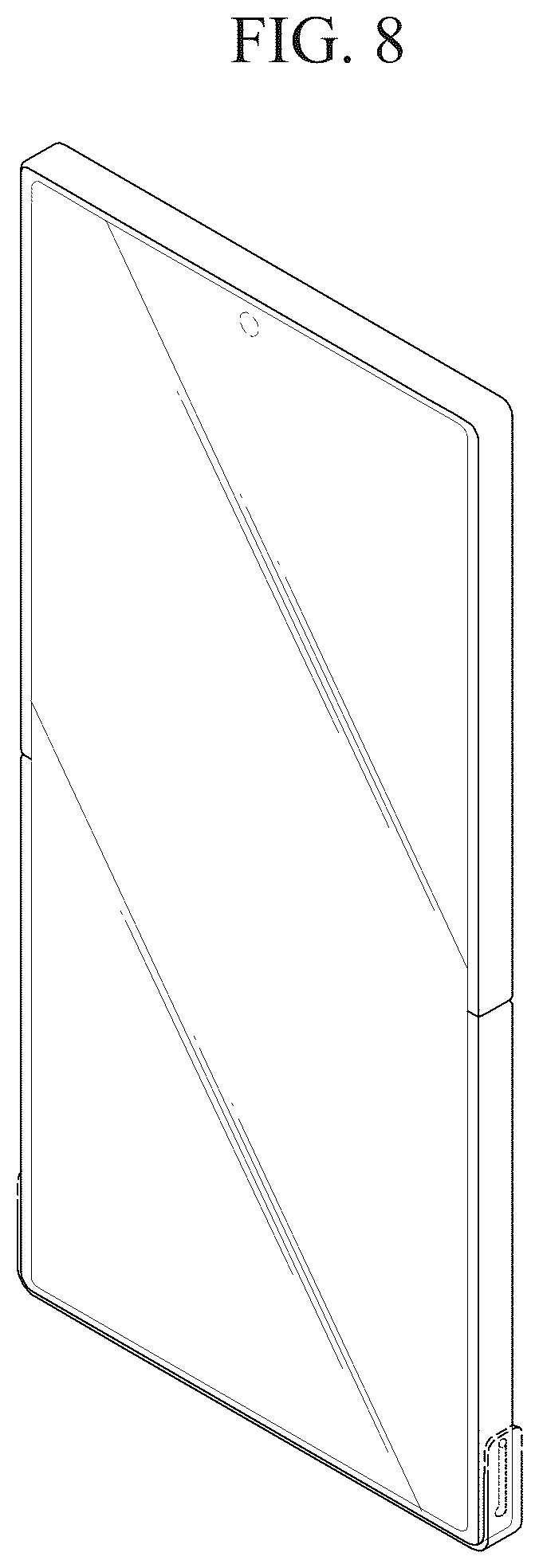

FIG. 8 is a perspective view of the display device shown in an alternate unfolded configuration;

FIG. 9 is a front view thereof;

FIG. 10 is a rear view thereof;

FIG. 11 is a left side view thereof;

FIG. 12 is a right side view thereof;

FIG. 13 is a top view thereof;

FIG. 14 is a bottom view thereof;

FIG. 15 is a cross-sectional view taken along line 15 - 15 in FIG. 1 ;

FIG. 16 is a front view of the display device of FIG. 1 , shown in an environment of use;

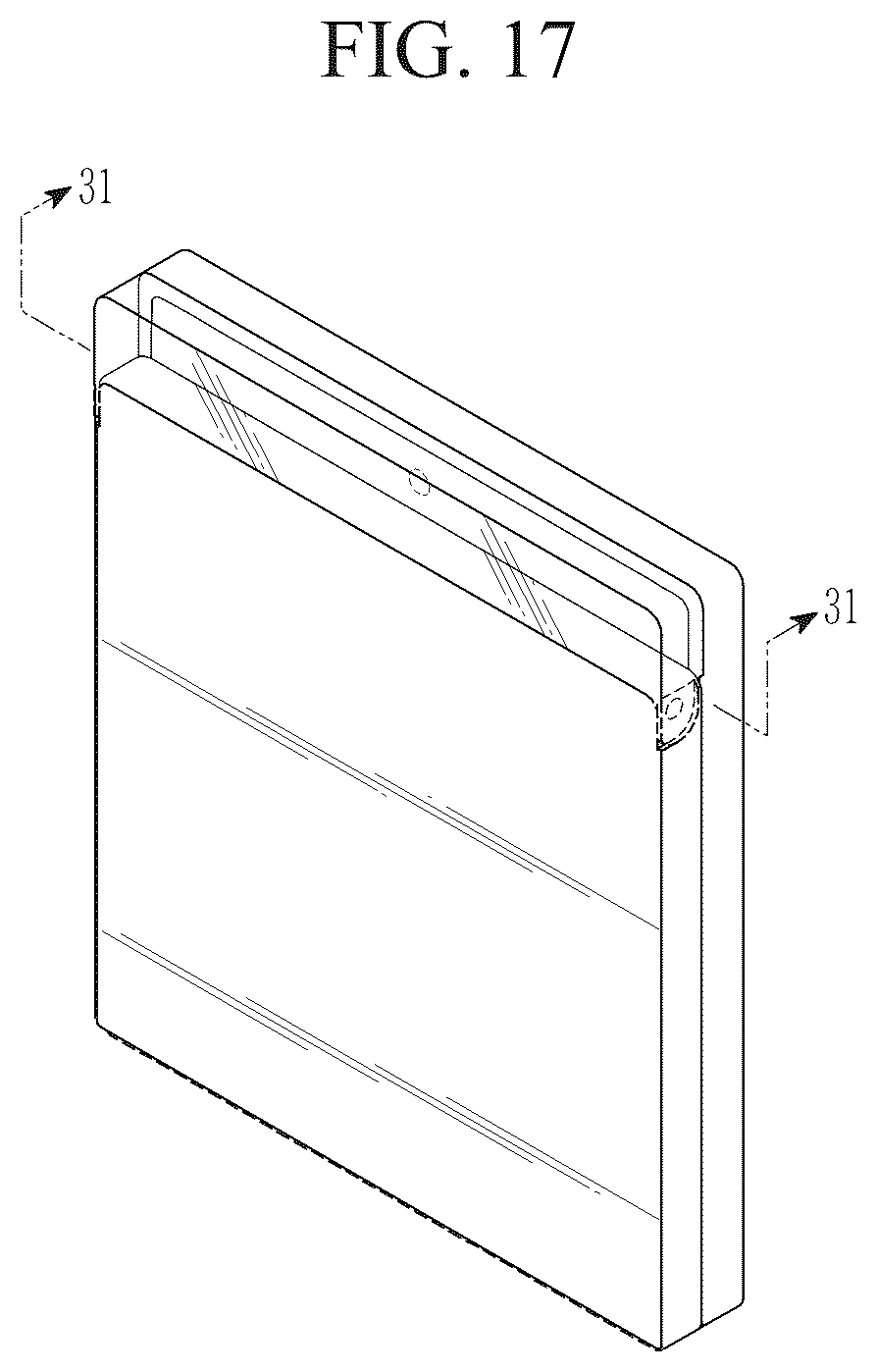

FIG. 17 is a perspective view of a second embodiment of the display device, shown in a folded state;

FIG. 18 is a front view thereof;

FIG. 19 is a rear view thereof;

FIG. 20 is a left side view thereof;

FIG. 21 is a right side view thereof;

FIG. 22 is a top view thereof;

FIG. 23 is a bottom view thereof;

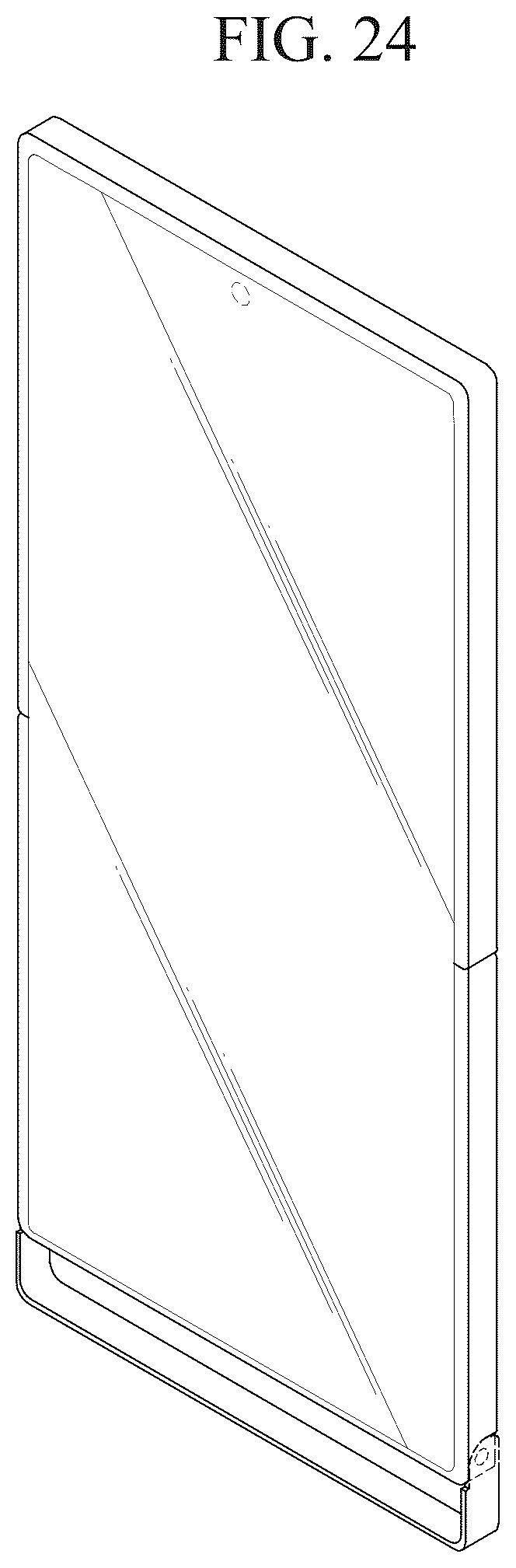

FIG. 24 is a perspective view of the display device shown in an alternate unfolded configuration;

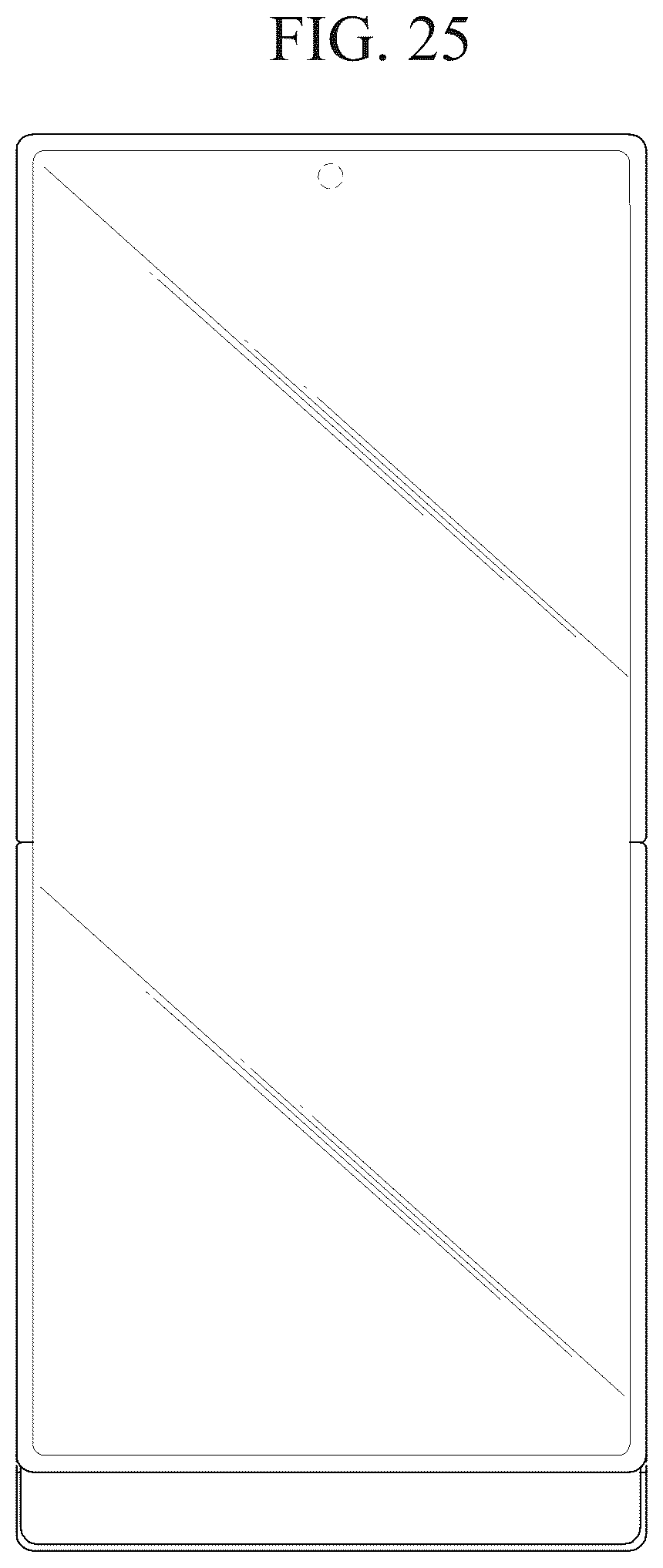

FIG. 25 is a front view thereof;

FIG. 26 is a rear view thereof;

FIG. 27 is a left side view thereof;

FIG. 28 is a right side view thereof;

FIG. 29 is a top view thereof; and

FIG. 30 is a bottom view thereof;

FIG. 31 is a cross-sectional view taken along the line 31 - 31 in FIG. 17 ;

FIG. 32 is a front view of the display device of FIG. 17 , shown in an environment of use; and,

FIG. 33 is a perspective view of a display device shown in an alternate configuration with the transparent cover rotated.

The broken lines in the figures depict portions of the display device that form no part of the claimed design. The dot-dot-dash lines in FIGS. 1 , 15 ,-. 17 , and 31 represent a cut line and form no part of the claimed design.
