Watch Case

USD1043404No. D 1,043,404designGranted 9/24/2024
Patent USD1043404 — Watch case — Figure 1
Fig. 1 · Watch Case

Claims (1)

Claim 1 (Independent)

The ornamental design for a watch case, as shown and described.

Full Description

Show full text →

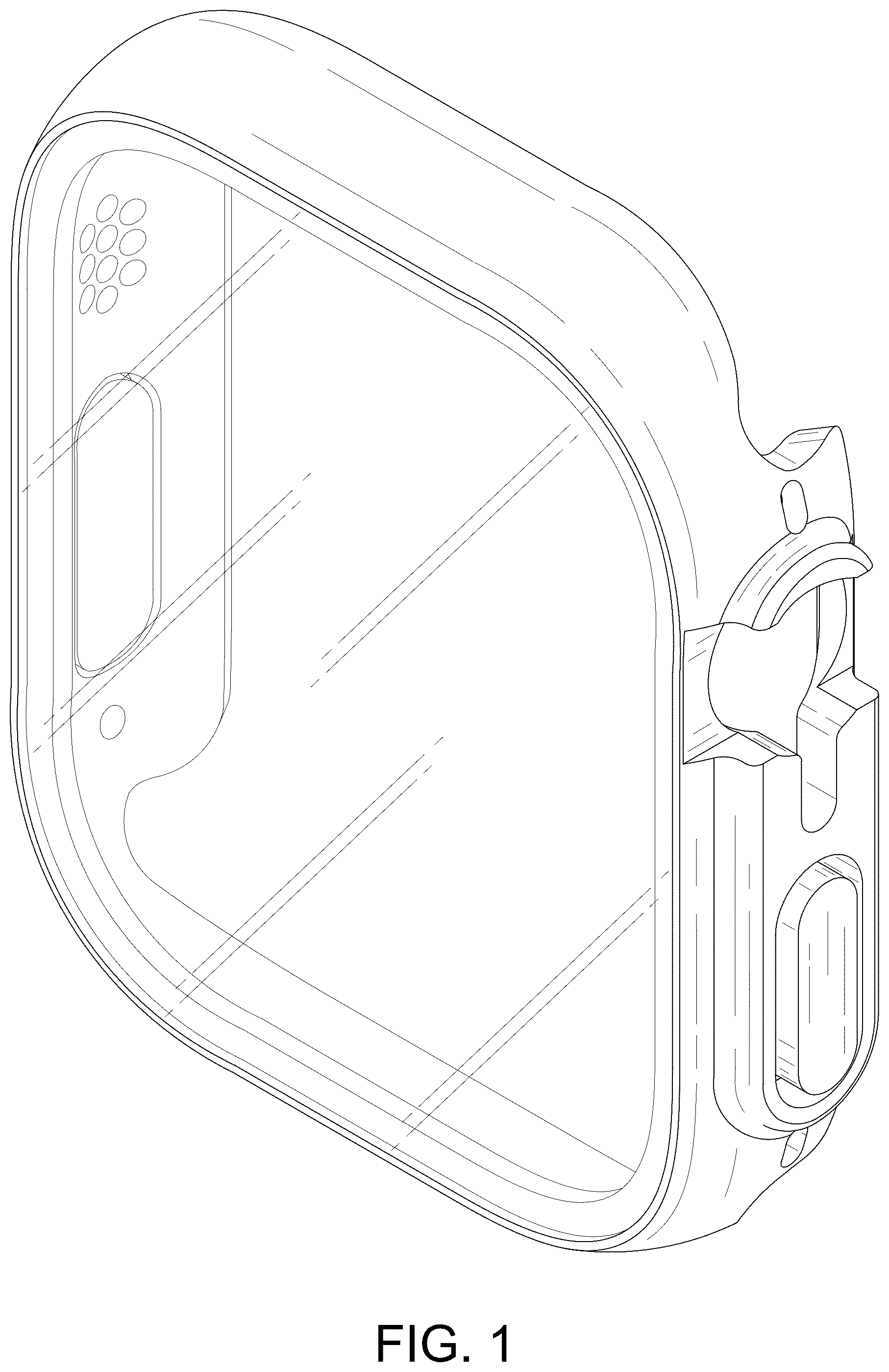

is a front, right and top perspective view of a watch case, showing my new design;

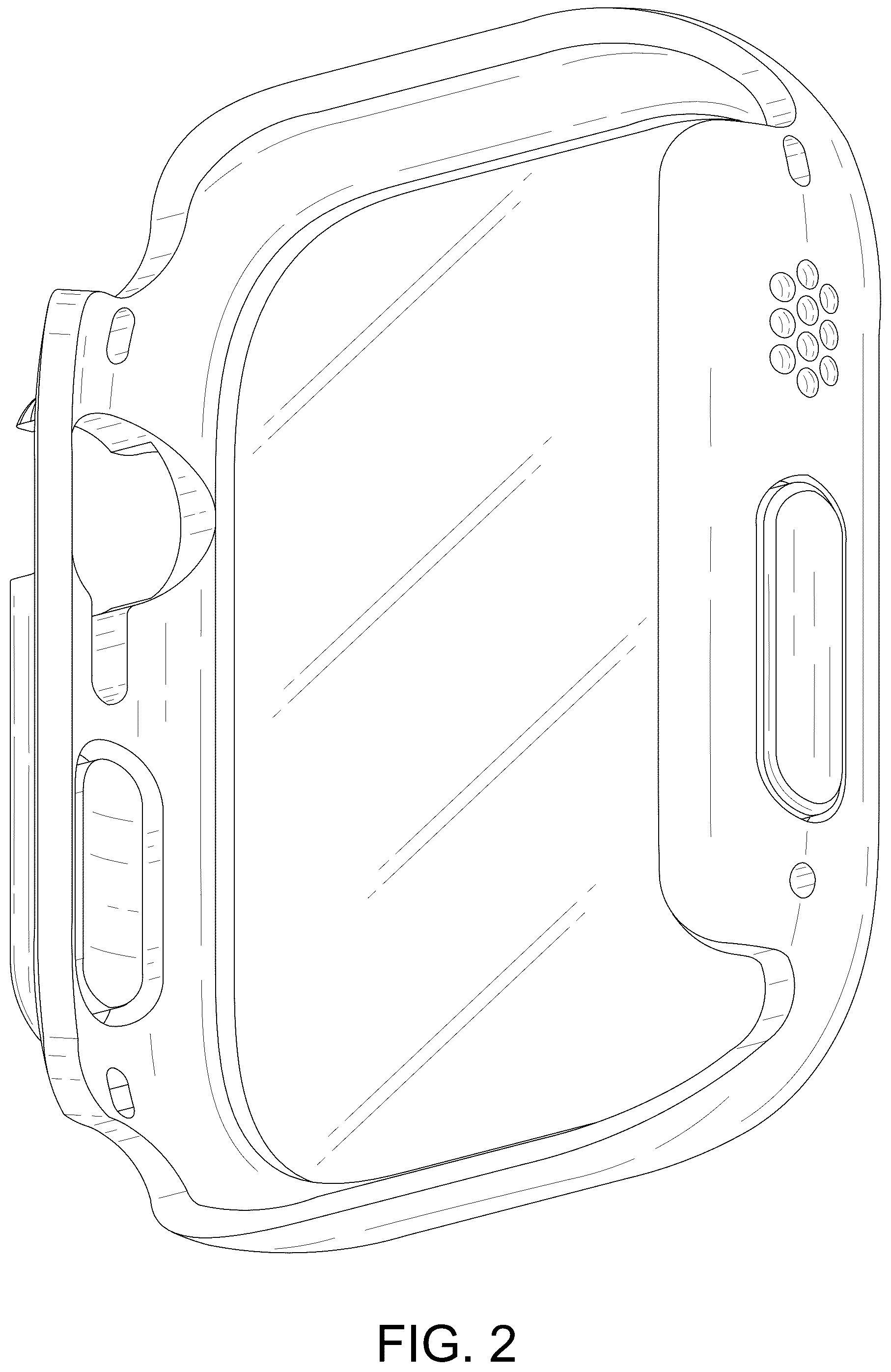

is a rear, left and bottom perspective view thereof;

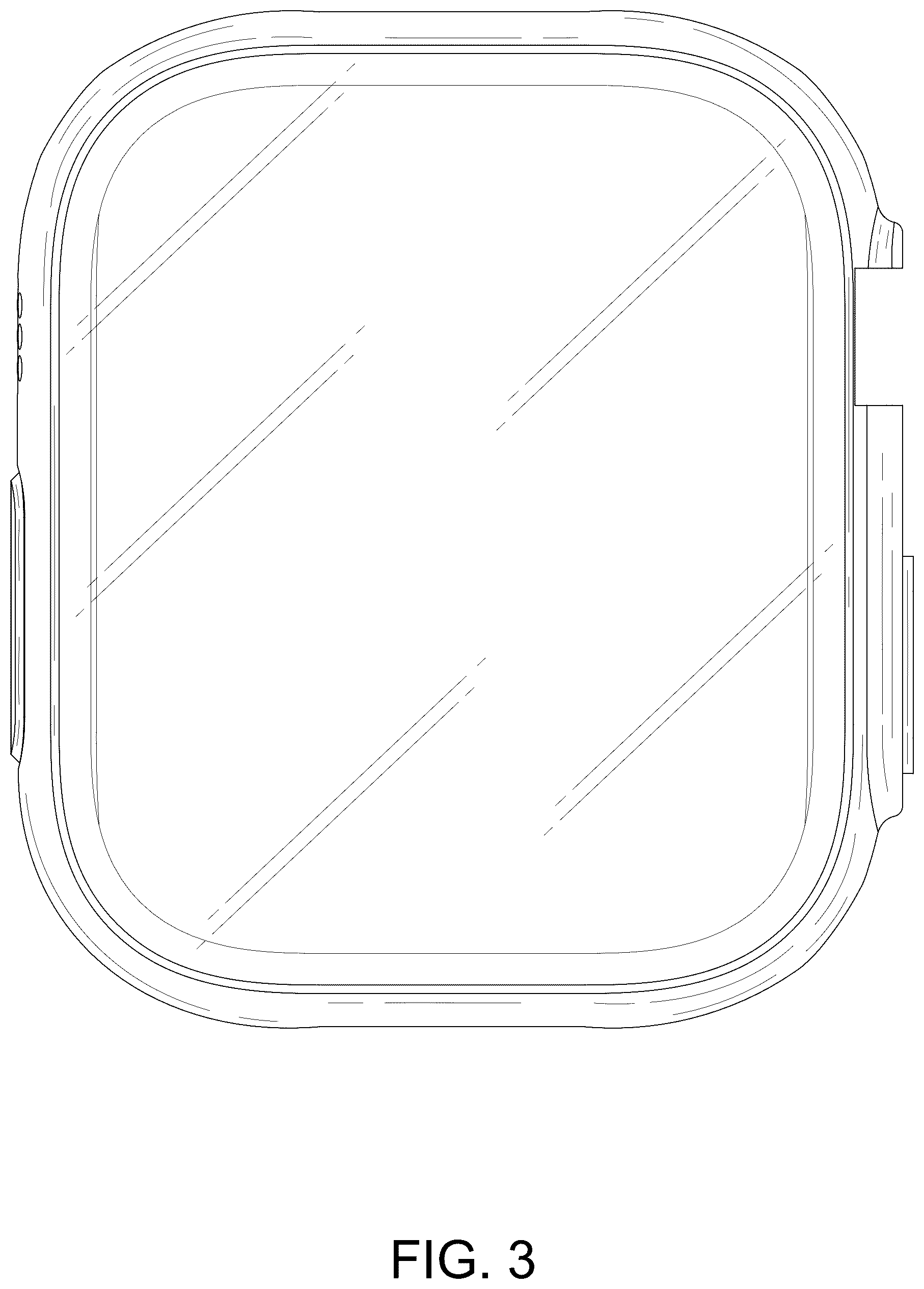

is a front view thereof;

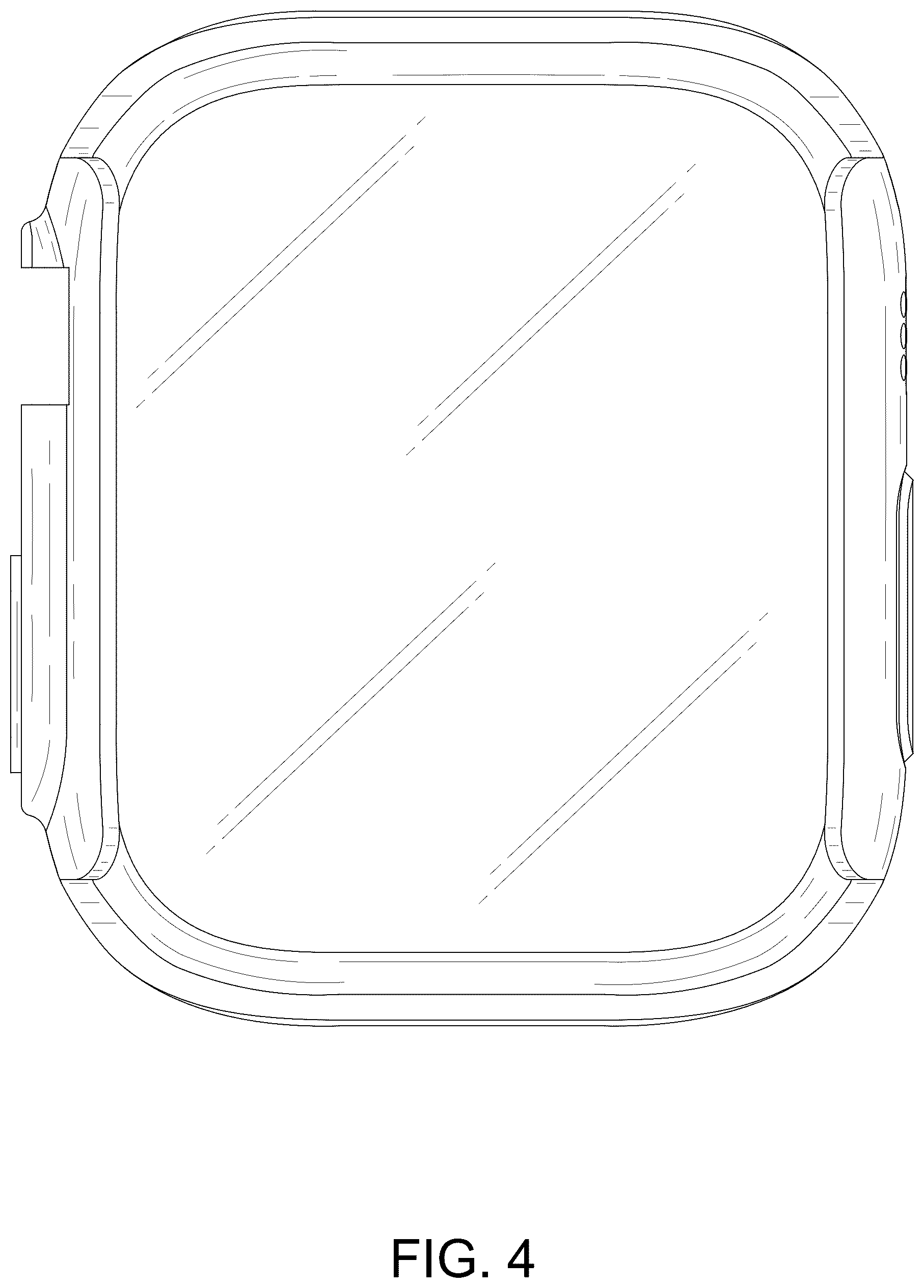

is a rear view thereof;

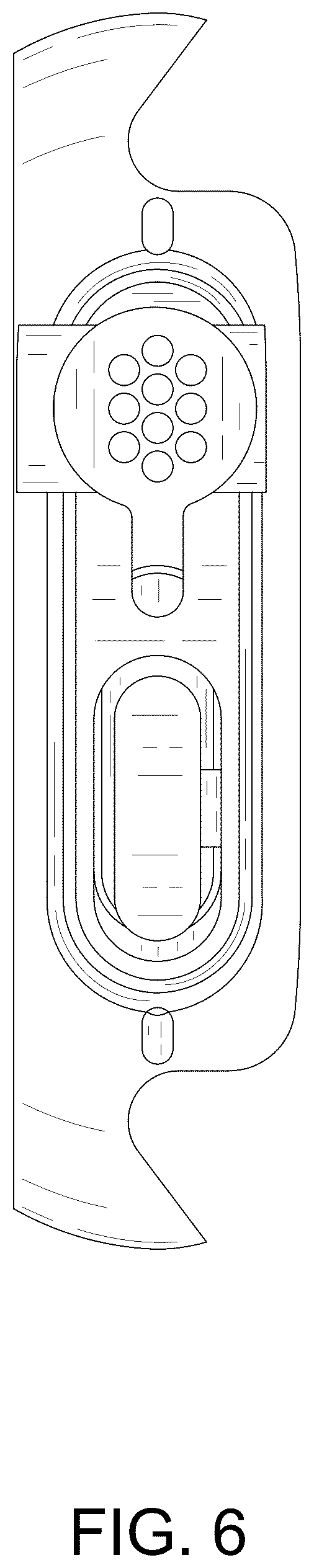

is a left side view thereof;

is a right side view thereof;

is a top plan view thereof; and,

is a bottom plan view thereof.
