Over the Counter Medicinal Container with Surface Ornamentation

The present application file contains at least one drawing executed in color. Copies of this patent or patent application publication with color drawing(s) will be provided by the Office upon request and payment of the necessary fee.

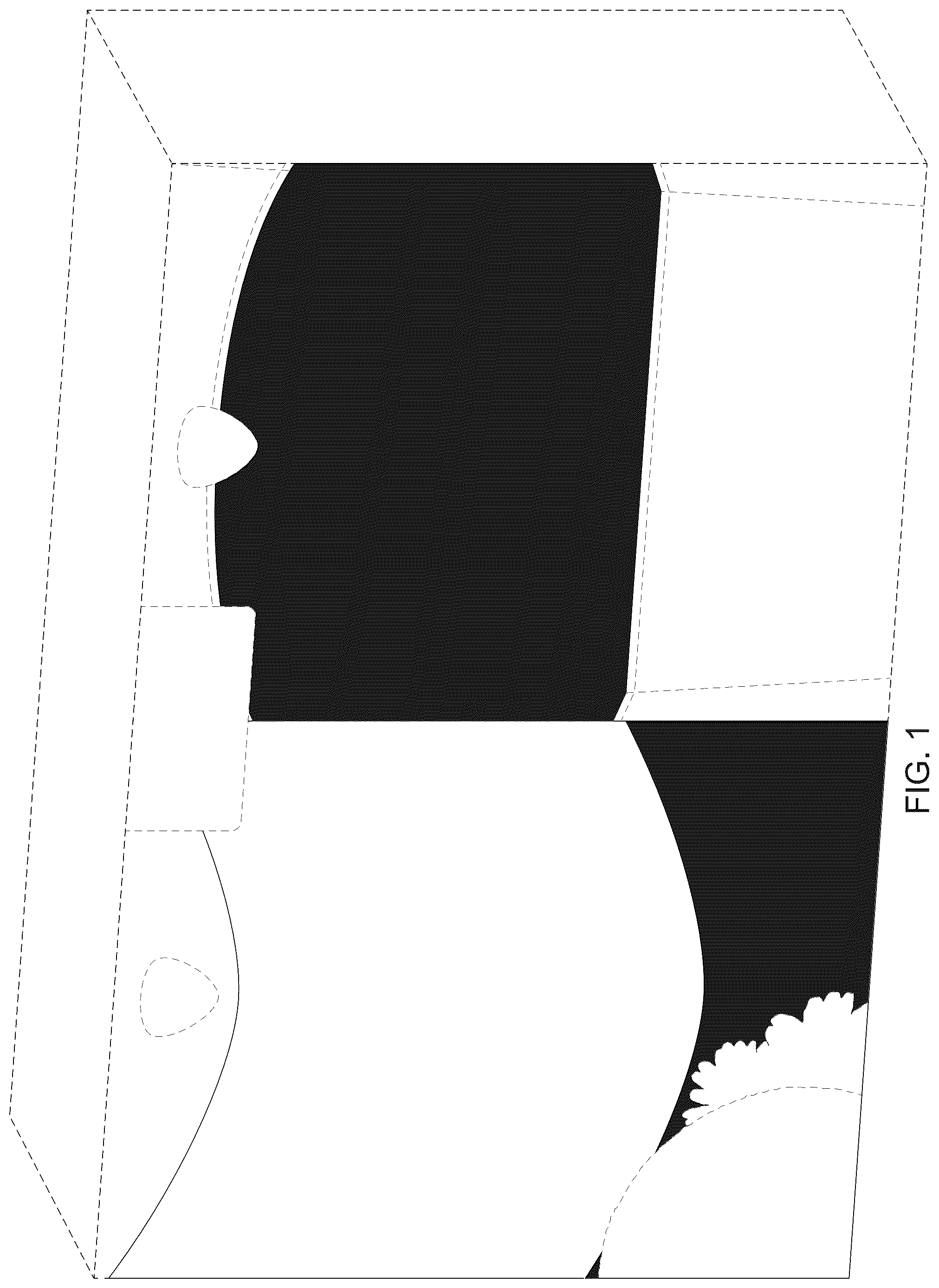

FIG. 1 is a perspective view of a first embodiment of an over the counter medicinal container with surface ornamentation;

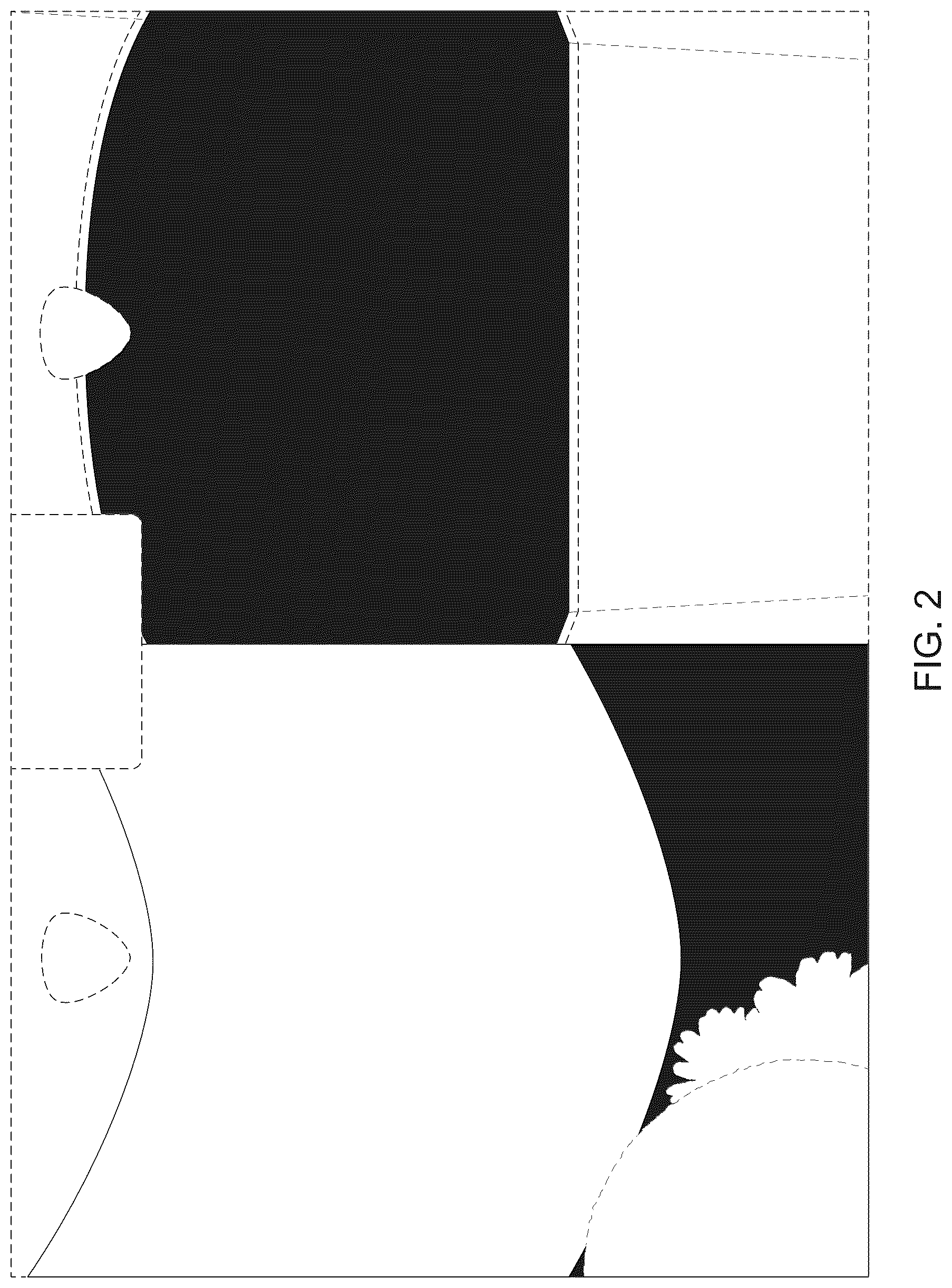

FIG. 2 is a front view thereof;

FIG. 3 is a left side view thereof;

FIG. 4 is a back view thereof;

FIG. 5 is a right side view thereof;

FIG. 6 is a top view thereof;

FIG. 7 is a bottom view thereof;

FIG. 8 is a perspective view of a second embodiment of an over the counter medicinal container with surface ornamentation;

FIG. 9 is a front view thereof;

FIG. 10 is a left side view thereof;

FIG. 11 is a back view thereof;

FIG. 12 is a right side view thereof;

FIG. 13 is a top view thereof; and,

FIG. 14 is a bottom view thereof.

The evenly-spaced broken lines shown in the figure drawing views represent environmental structure only that form no part of the claimed design. The two (2) diagonal broken lines shown within the colored claimed surface on the left side of the design and the semi-circle broken line shown adjacent to colored and white claimed surfaces on the right side of the design in FIGS. 1 , 2 , 8 and 9 illustrate surface ornamentation that forms no part of the claimed design.
