Cooktop

USD1043227No. D 1,043,227designGranted 9/24/2024

Patent USD1043227 — Cooktop — Figure 1 — Fig. 1 · Cooktop

Claims (1)

Claim 1 (Independent)

The ornamental design for a cooktop, as shown and described.

Full Description

Show full text →

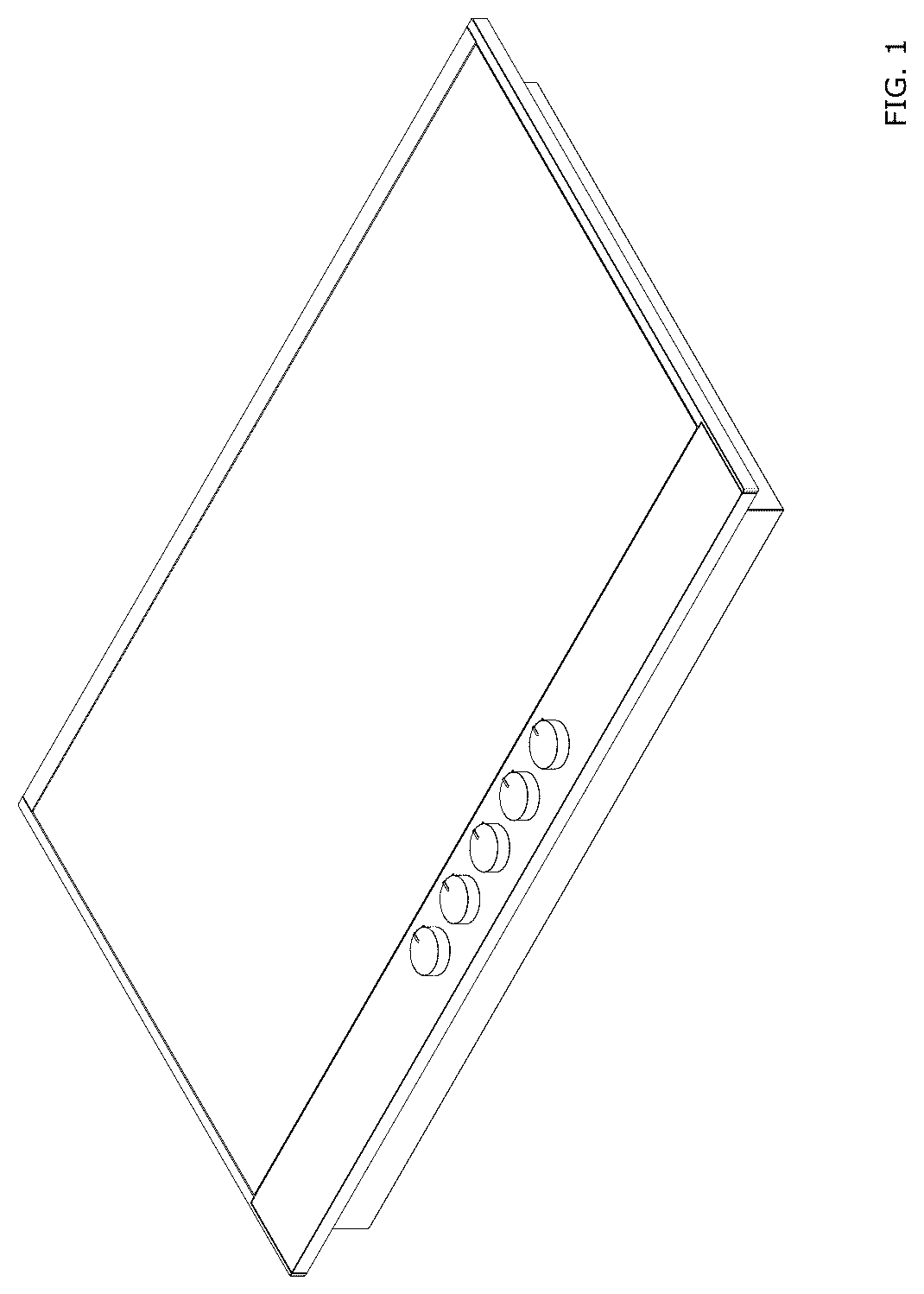

is a perspective view of the cooktop according to my new design;

is a top view thereof;

is a left-side view thereof;

is a right-side view thereof;

is a rear view thereof; and

is a front view thereof;

The bottom is not a part of the claimed design and therefore is not shown.

is a perspective view of a second embodiment of the cooktop according to my design;

is a top view thereof;

is a left-side view thereof;

is a right-side view thereof;

is a rear view thereof; and

is a front view thereof;

The bottom is not a part of the claimed design and therefore is not shown.

is a perspective view of a third embodiment of the cooktop according to my design;

is a top view thereof;

is a left-side view thereof;

is a right-side view thereof;

is a rear view thereof; and

is a front view thereof;

The bottom is not a part of the claimed design and therefore is not shown.

is a perspective view of a fourth embodiment of the cooktop according to my design;

is a top view thereof;

is a left-side view thereof;

is a right-side view thereof;

is a rear view thereof; and,

is a front view thereof.

The bottom is not a part of the claimed design and therefore is not shown.

Figures (20)

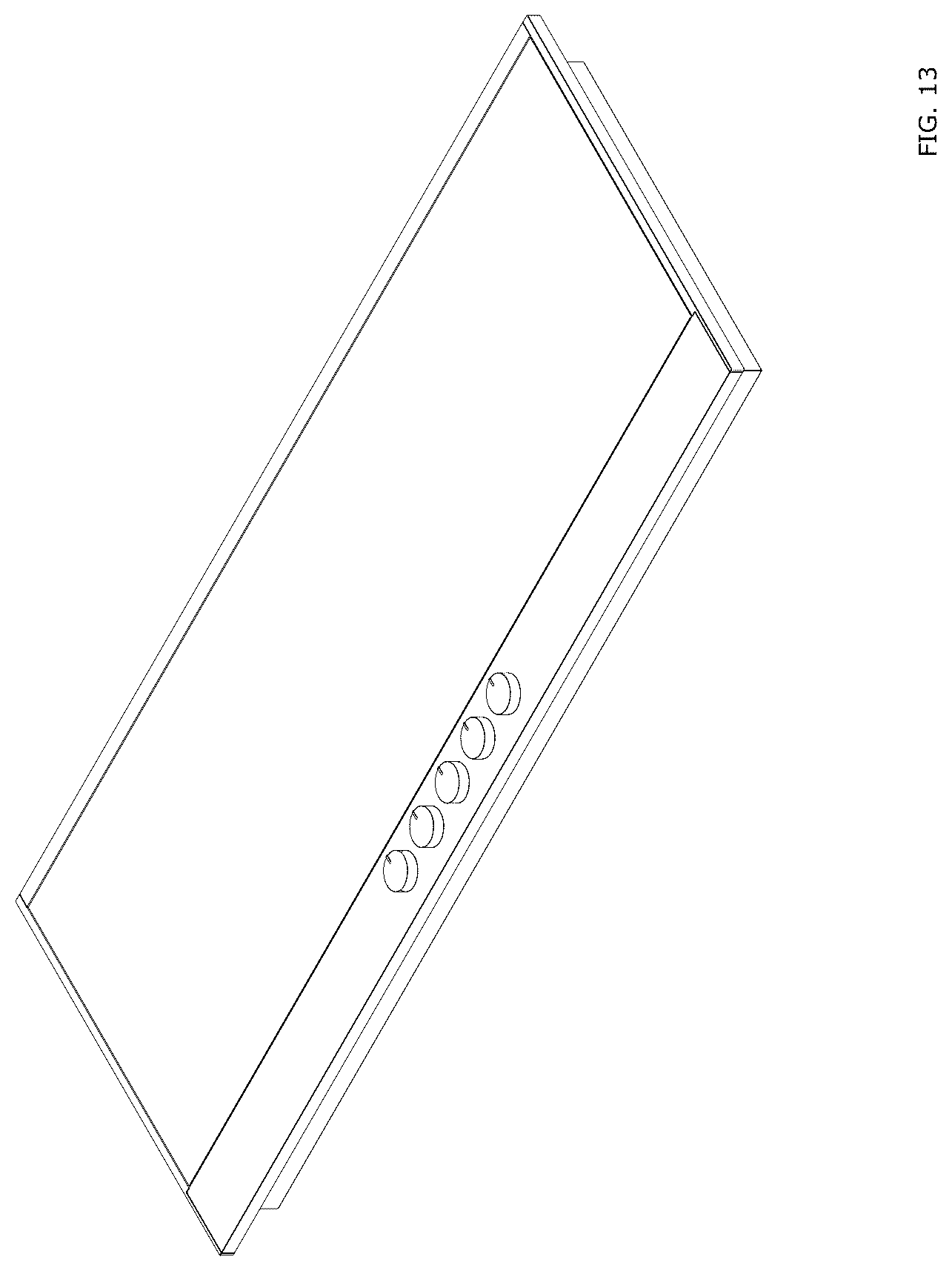

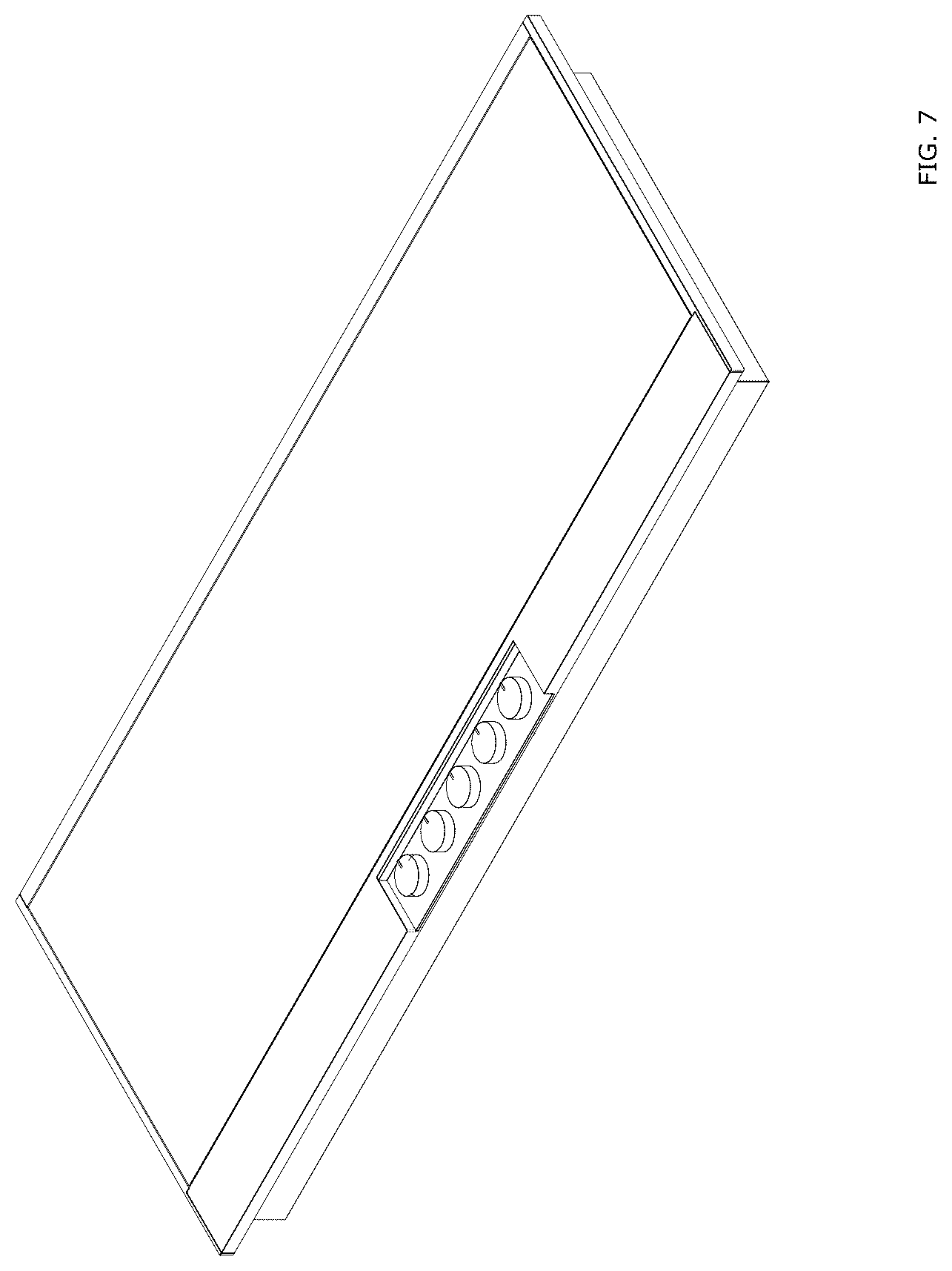

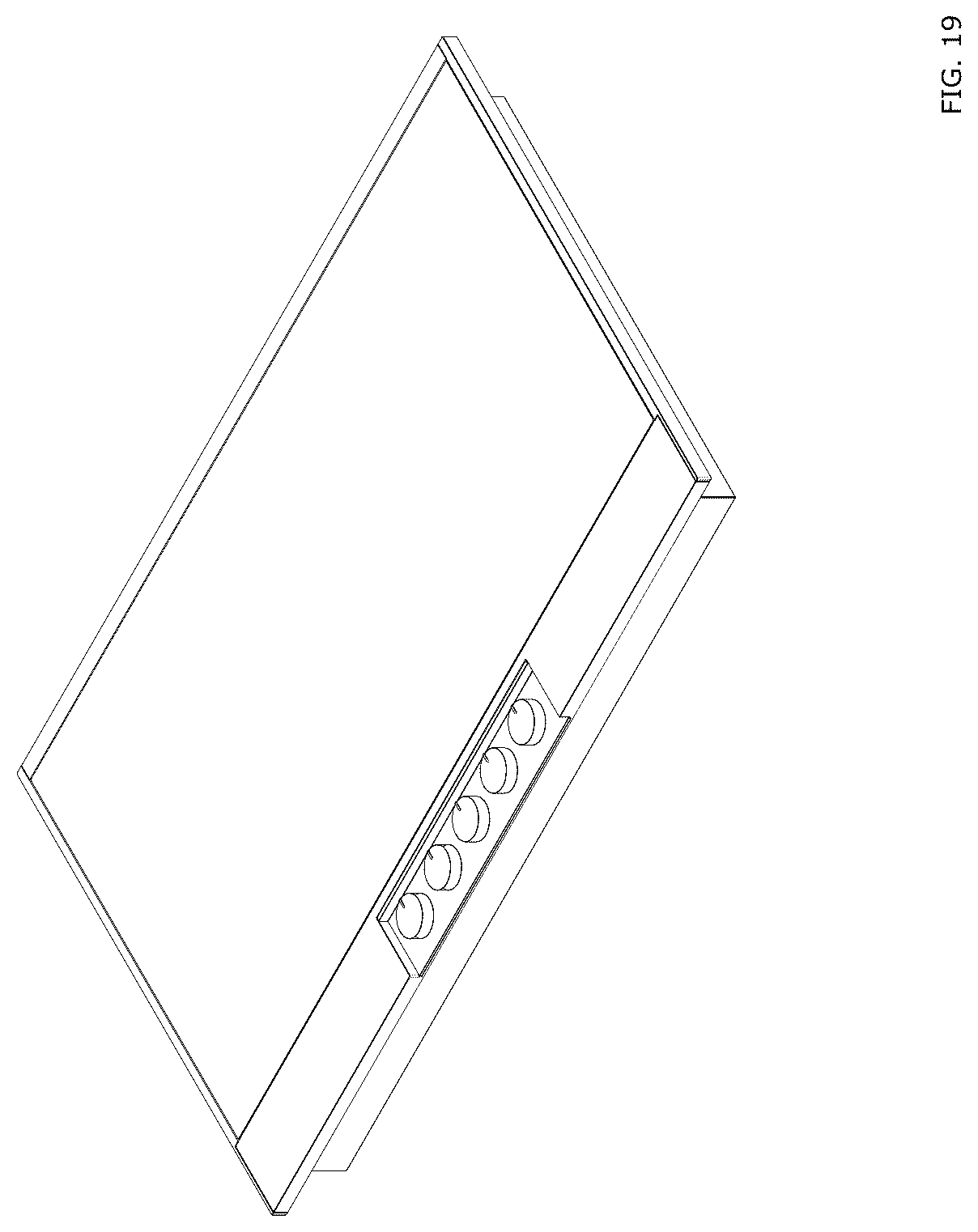

Patent USD1043227 Figure 1 – Cooktop — Fig. 1
