Backrest

USD1043211No. D 1,043,211designGranted 9/24/2024
Patent USD1043211 — Backrest — Figure 1
Fig. 1 · Backrest

Claims (1)

Claim 1 (Independent)

The ornamental design for a backrest, as shown and described.

Full Description

Show full text →

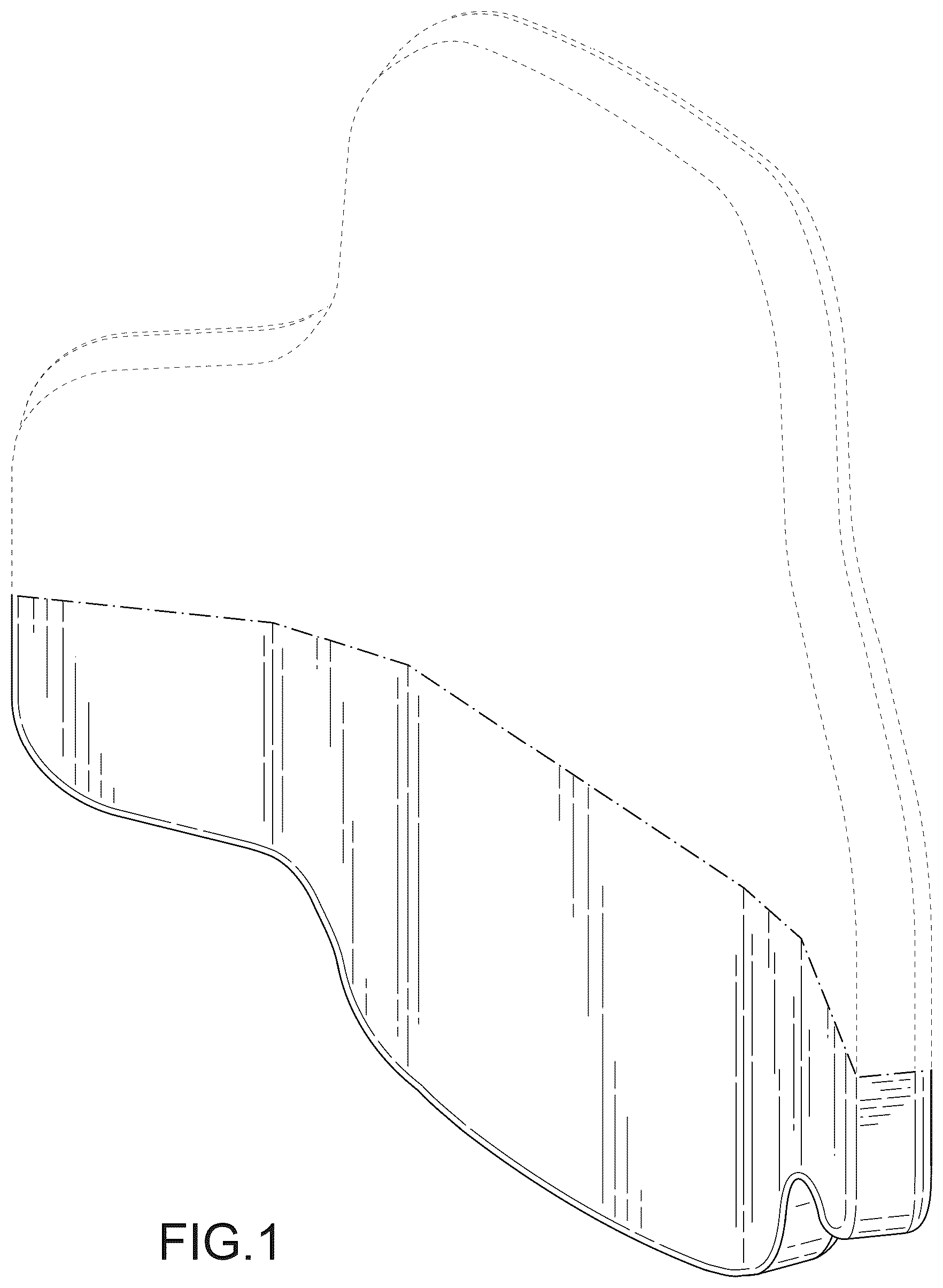

is a front perspective view of the backrest;

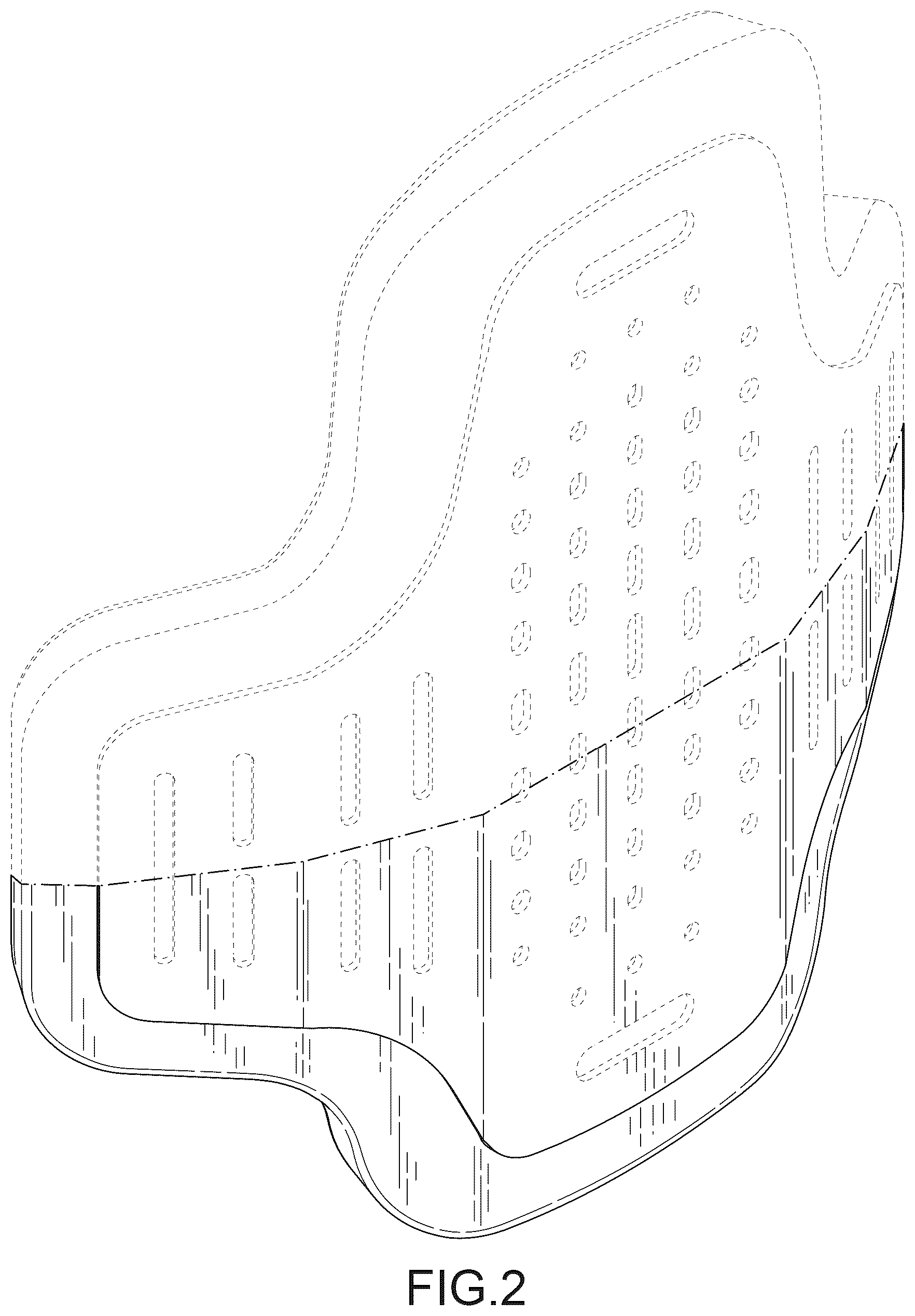

is a rear perspective view of the backrest of ;

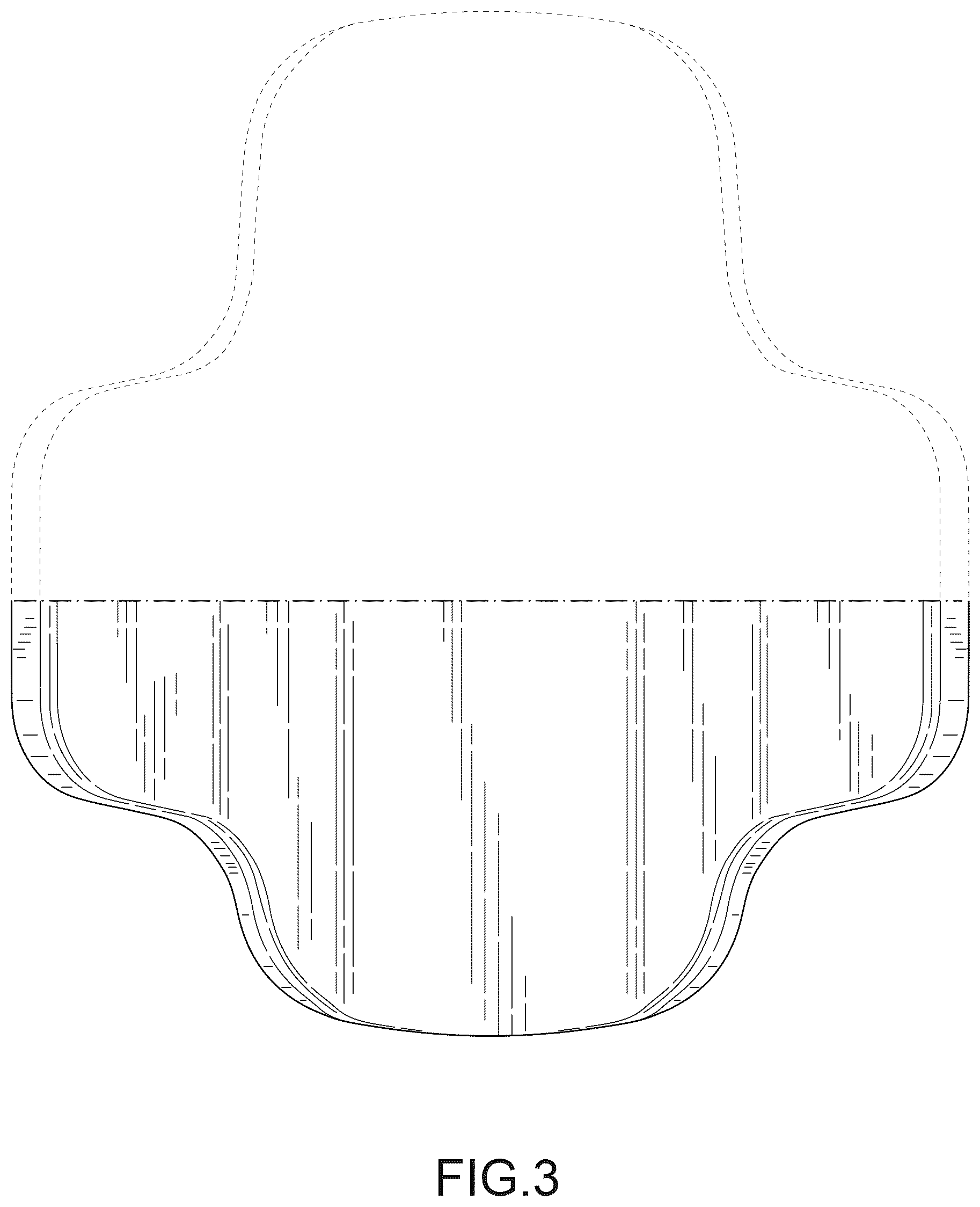

is a front view of the backrest of ;

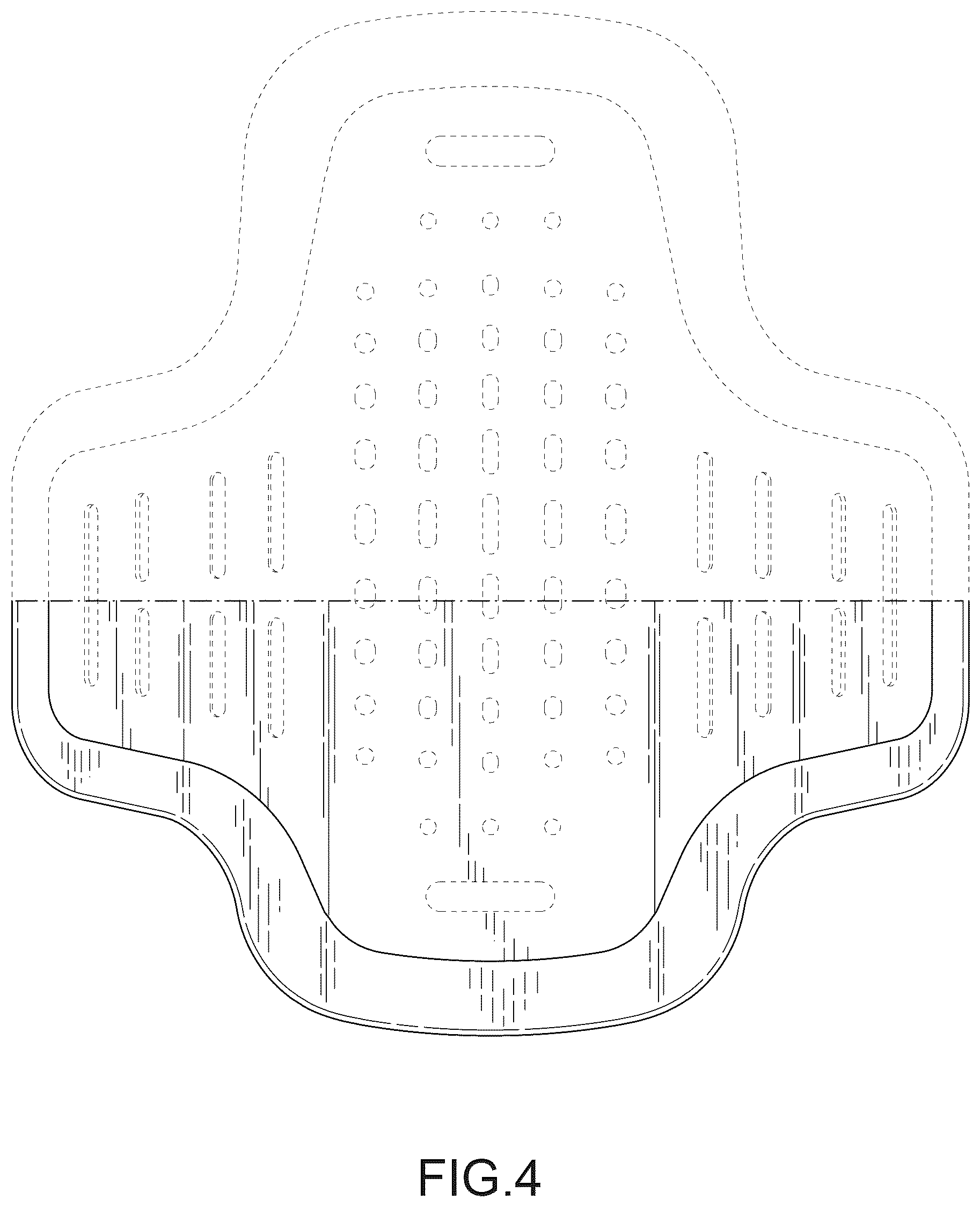

is a rear view of the backrest of ;

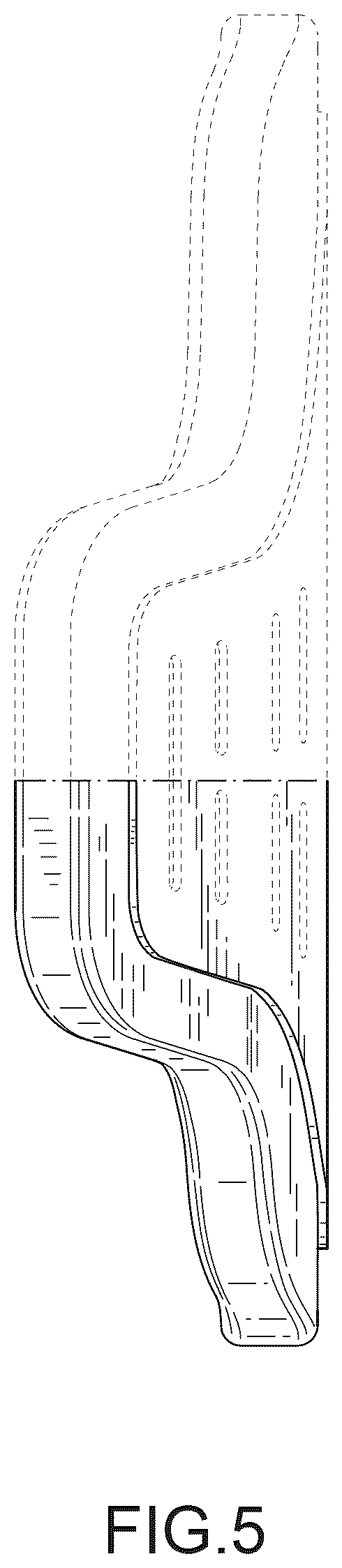

is a left side of the backrest of ;

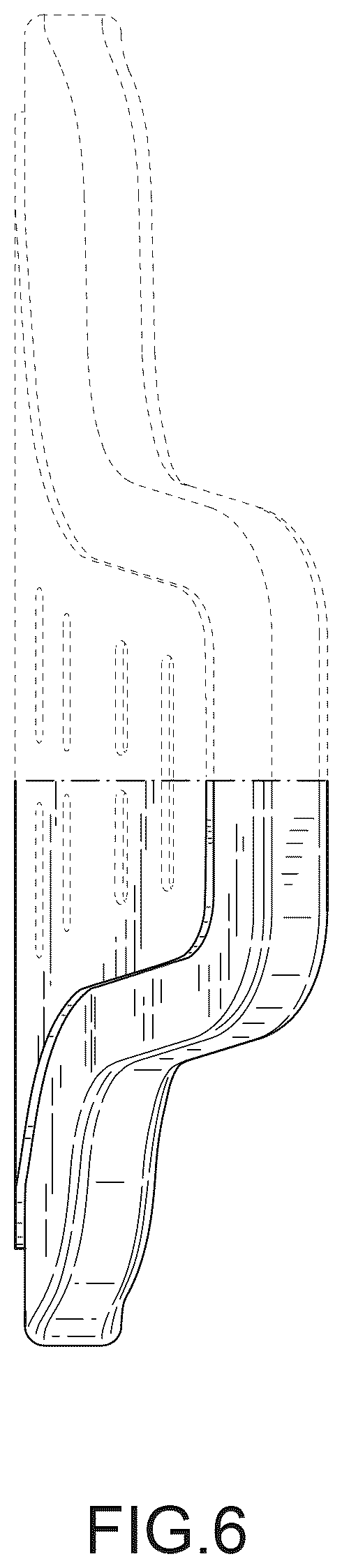

is a right side view of the backrest of ;

is a top view of the backrest of ; and,

is a bottom view of the backrest of .

The short-dash broken lines in the figures depict portions of the backrest that form no part of the claimed design. The dash-dot-dash broken lines in the figures represent the boundary of the claimed design and form no part of the claimed design.
