Coat Rack

USD1043199No. D 1,043,199designGranted 9/24/2024
Patent USD1043199 — Coat rack — Figure 1
Fig. 1 · Coat Rack

Claims (1)

Claim 1 (Independent)

The ornamental design for a coat rack, as shown and described.

Full Description

Show full text →

1. Coat rack

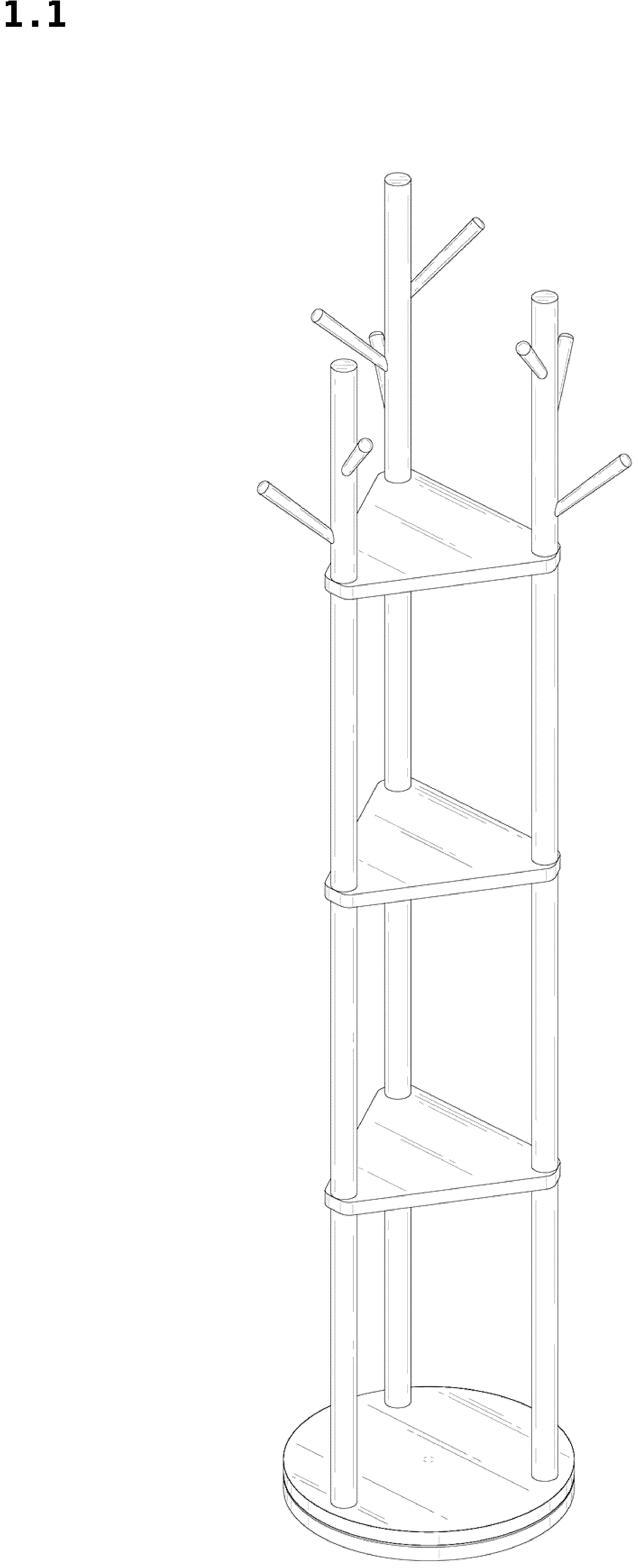

1 . 1 : Perspective

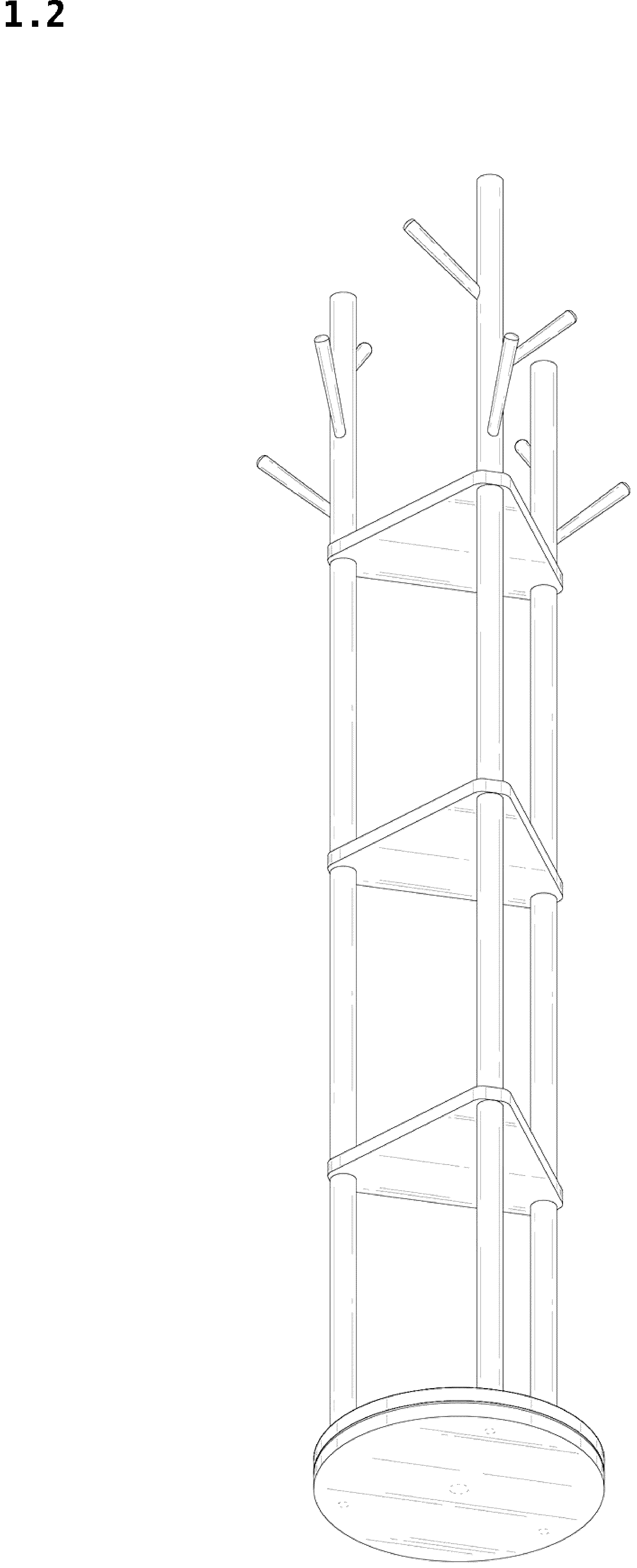

1 . 2 : Perspective

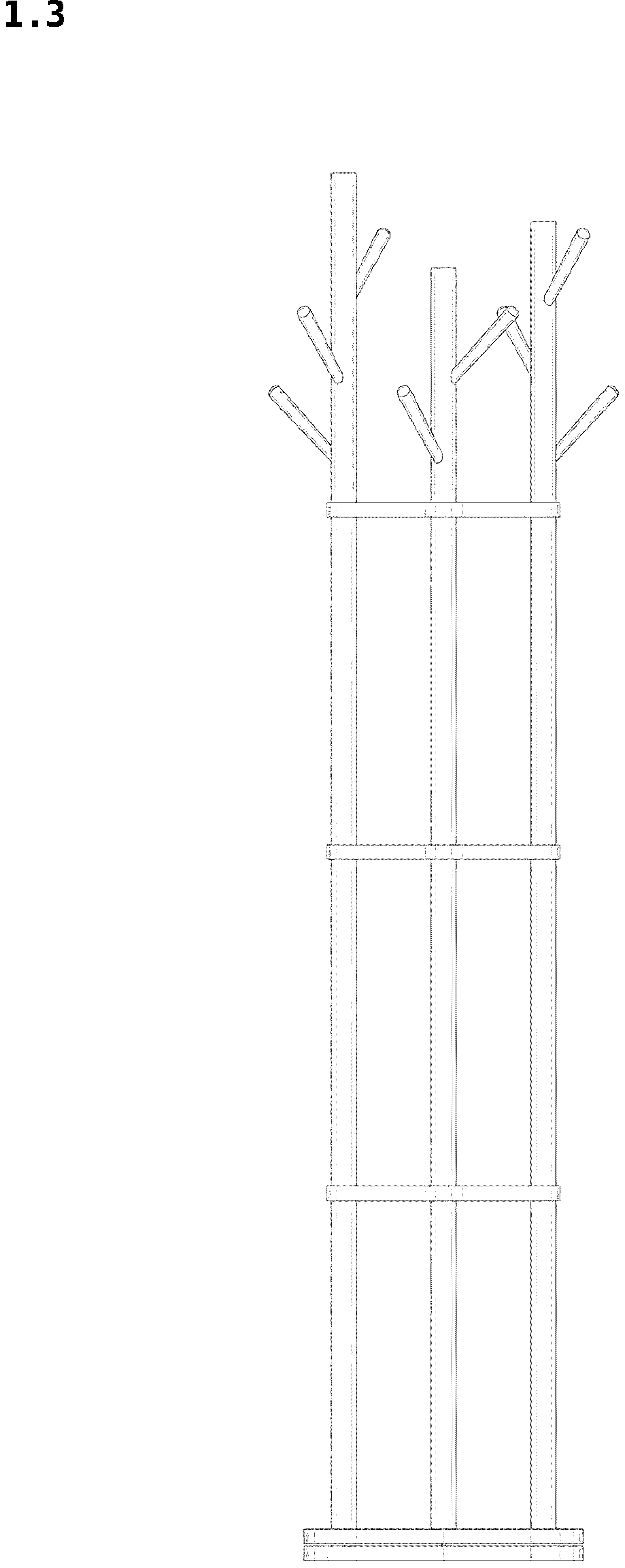

1 . 3 : Front

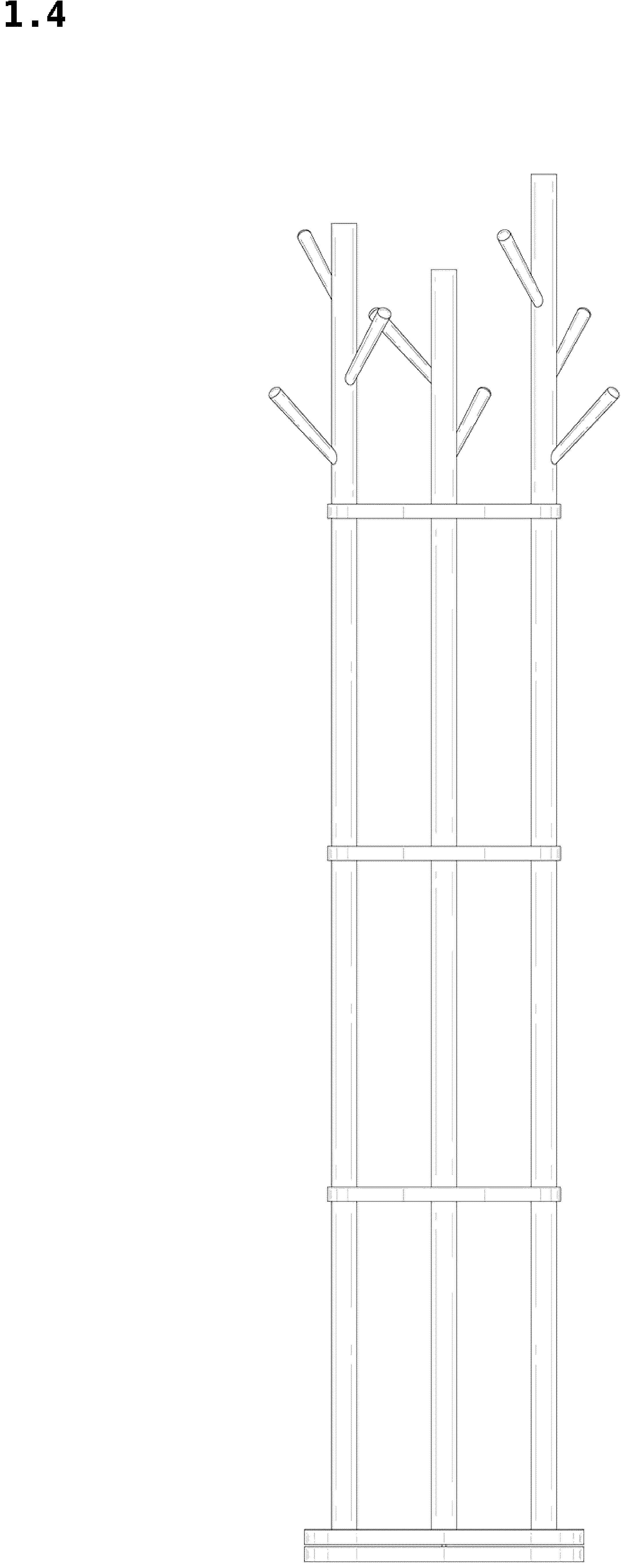

1 . 4 : Back

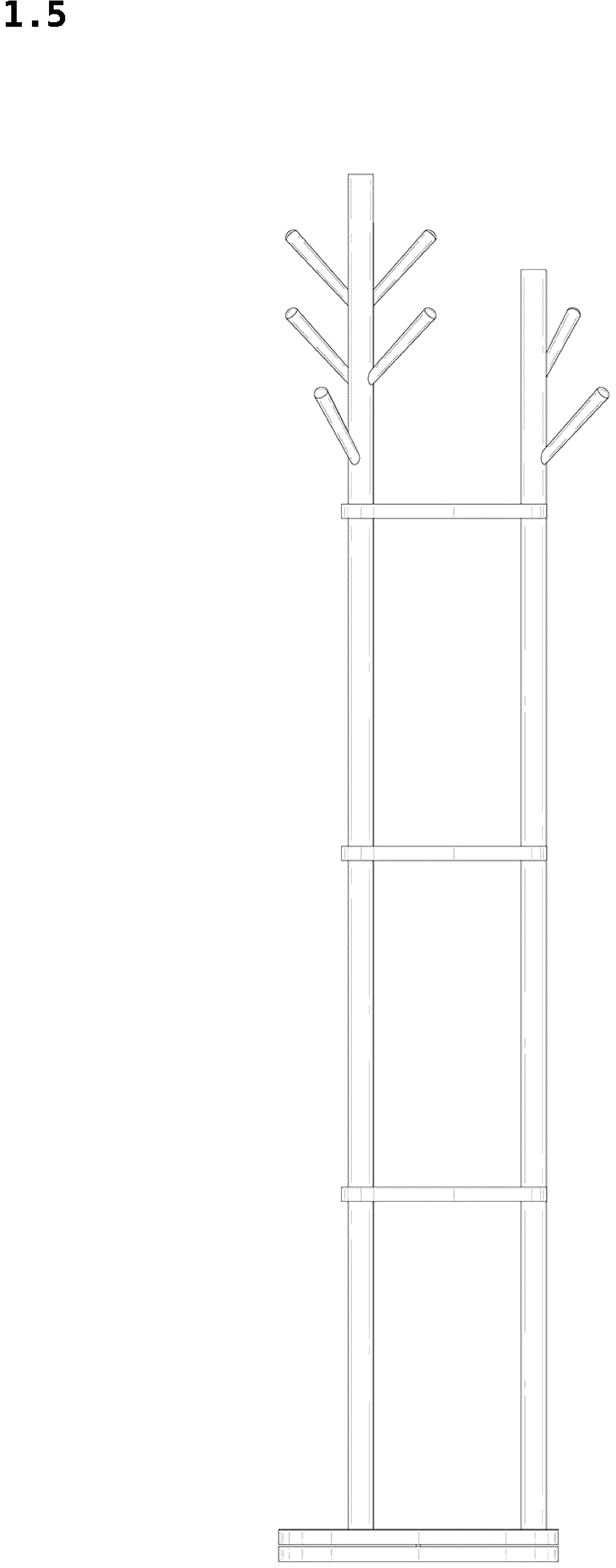

1 . 5 : Left

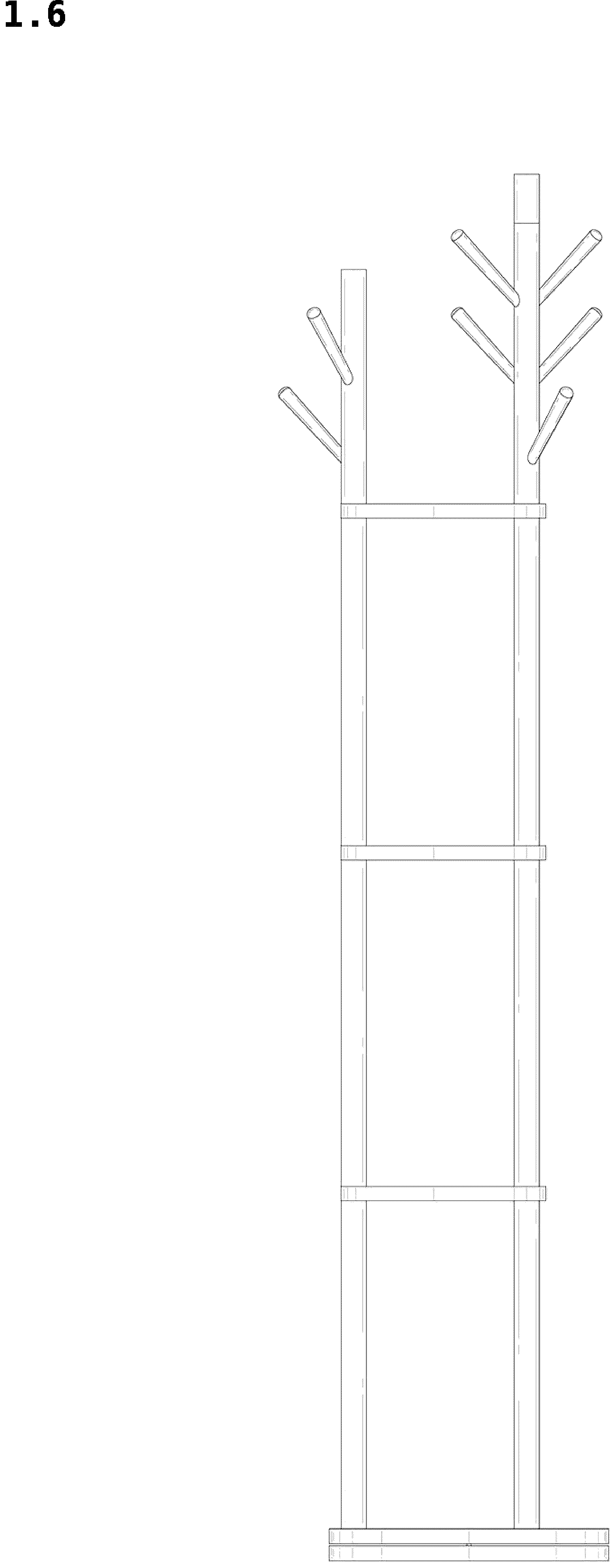

1 . 6 : Right

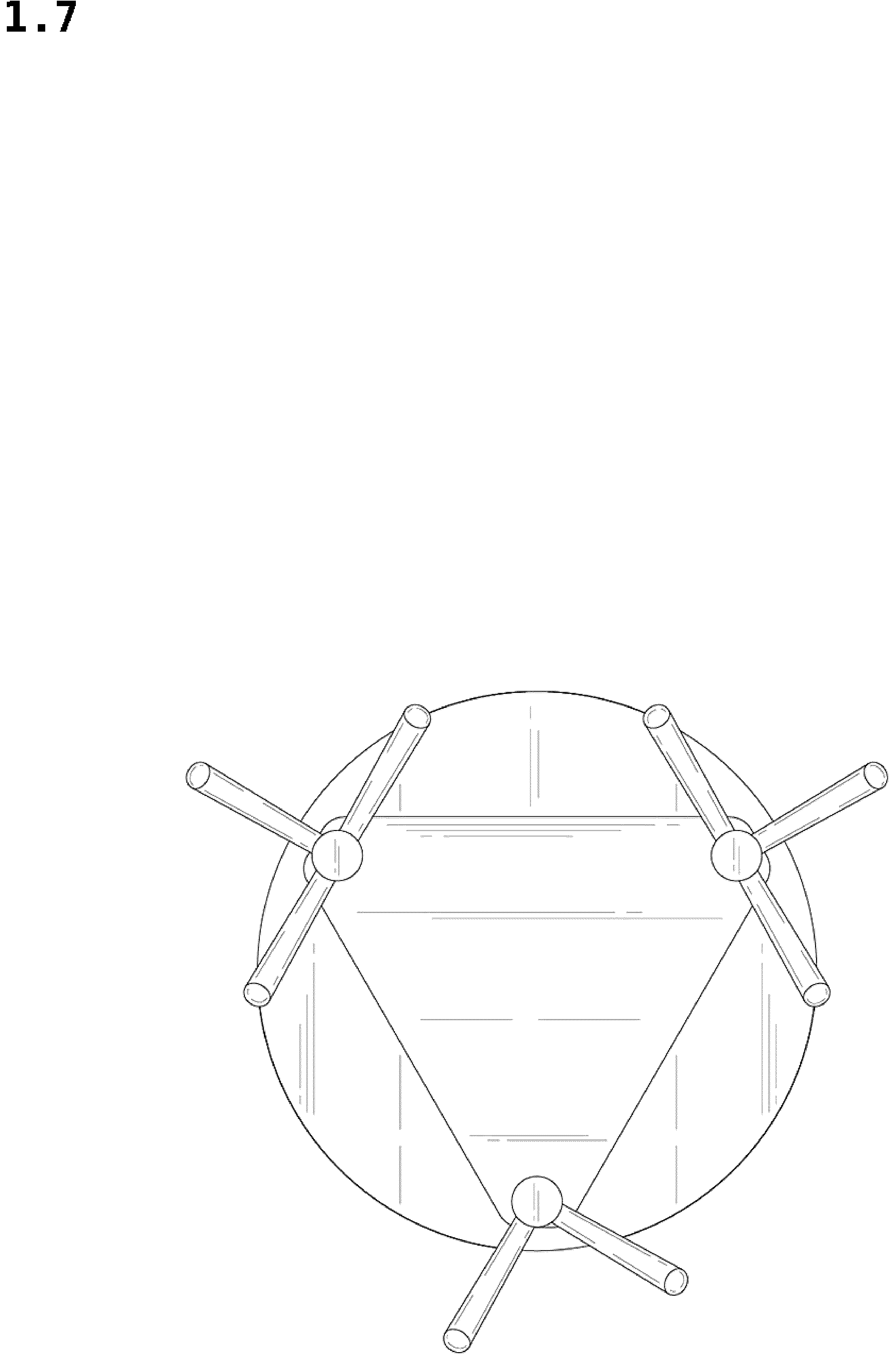

1 . 7 : Enlarged top view

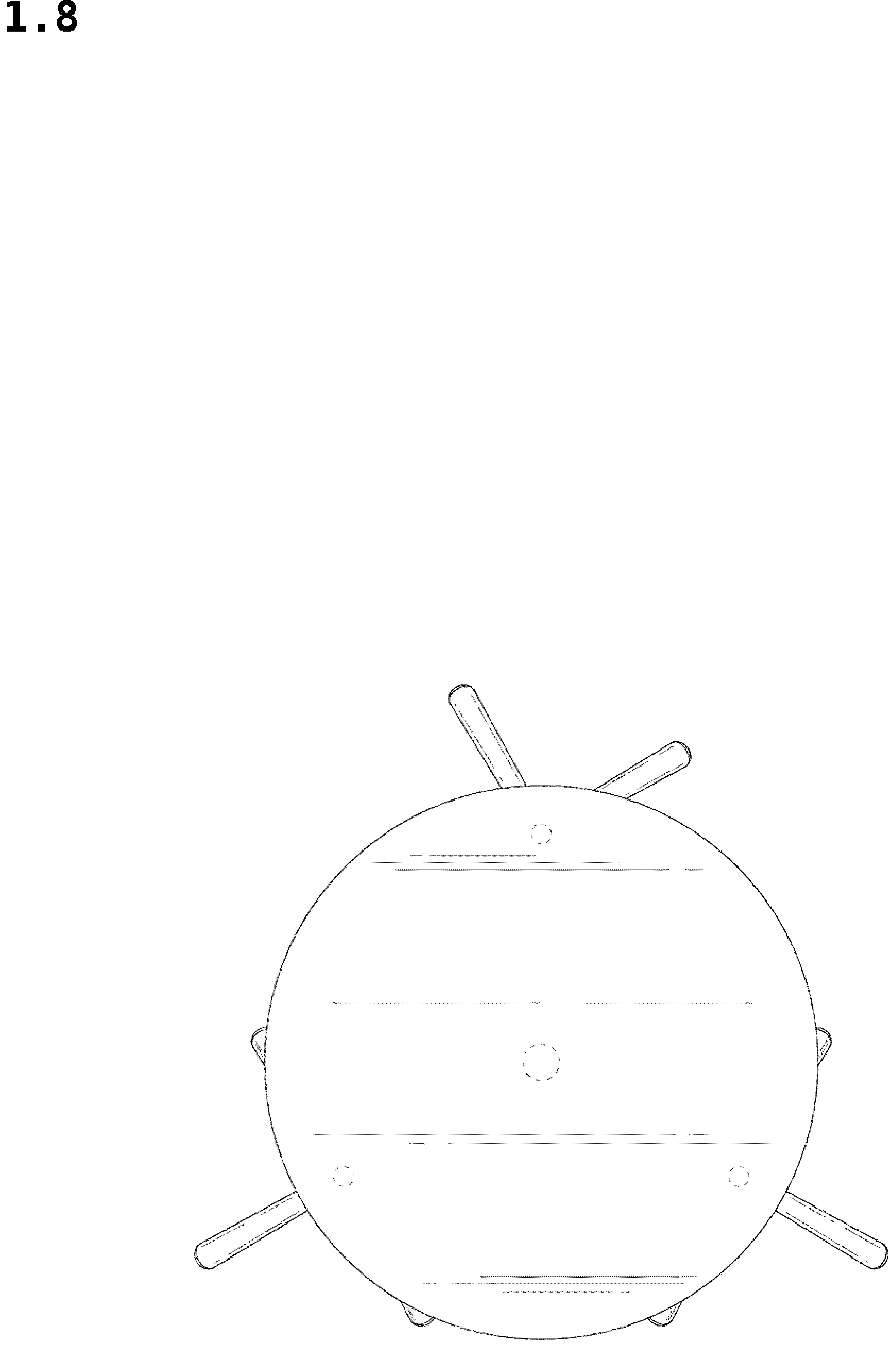

1 . 8 : Enlarged bottom view

The broken lines in the reproductions depict portions of the coat rack that form no part of the claimed design.
