Apparatus for Directing Lift Cords or Lift Chains of Architectural Opening Coverings
USD1043178No. D 1,043,178designGranted 9/24/2024
Claims (1)
Claim 1 (Independent)
The ornamental design for an apparatus for directing lift cords or lift chains of architectural opening coverings, as shown and described.
Full Description
Show full text →

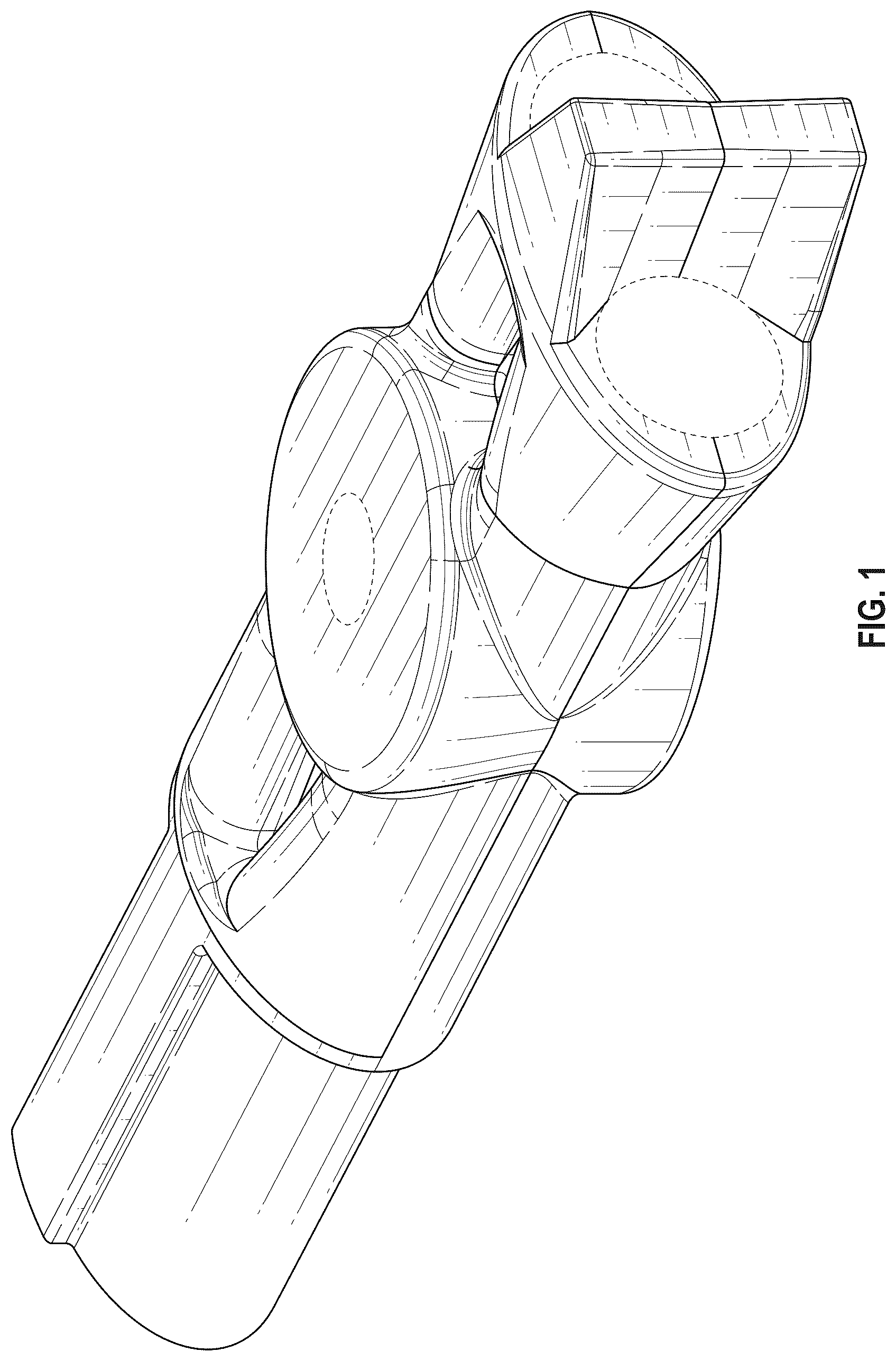

is an upper perspective view of an apparatus for directing lift cords or lift chains of architectural opening coverings showing our new design.

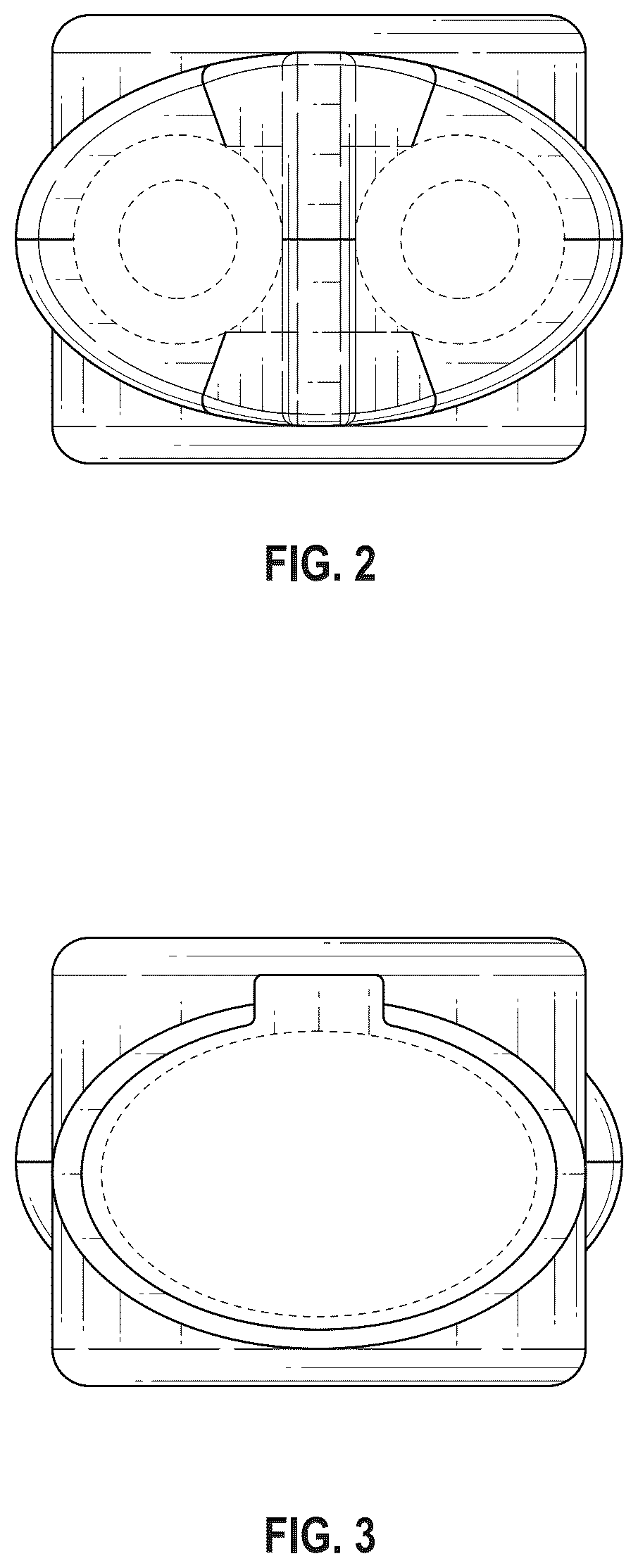

is a top plan view thereof;
is a bottom plan view thereof;

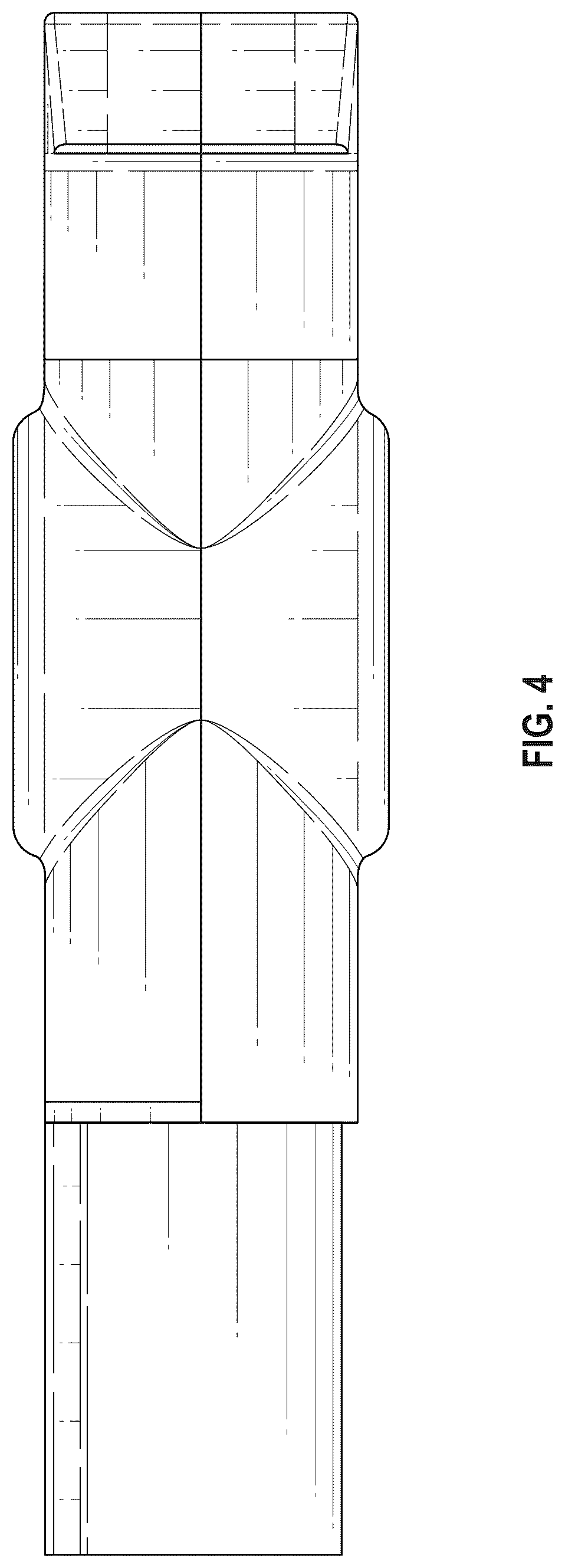

is a right side elevational view thereof;

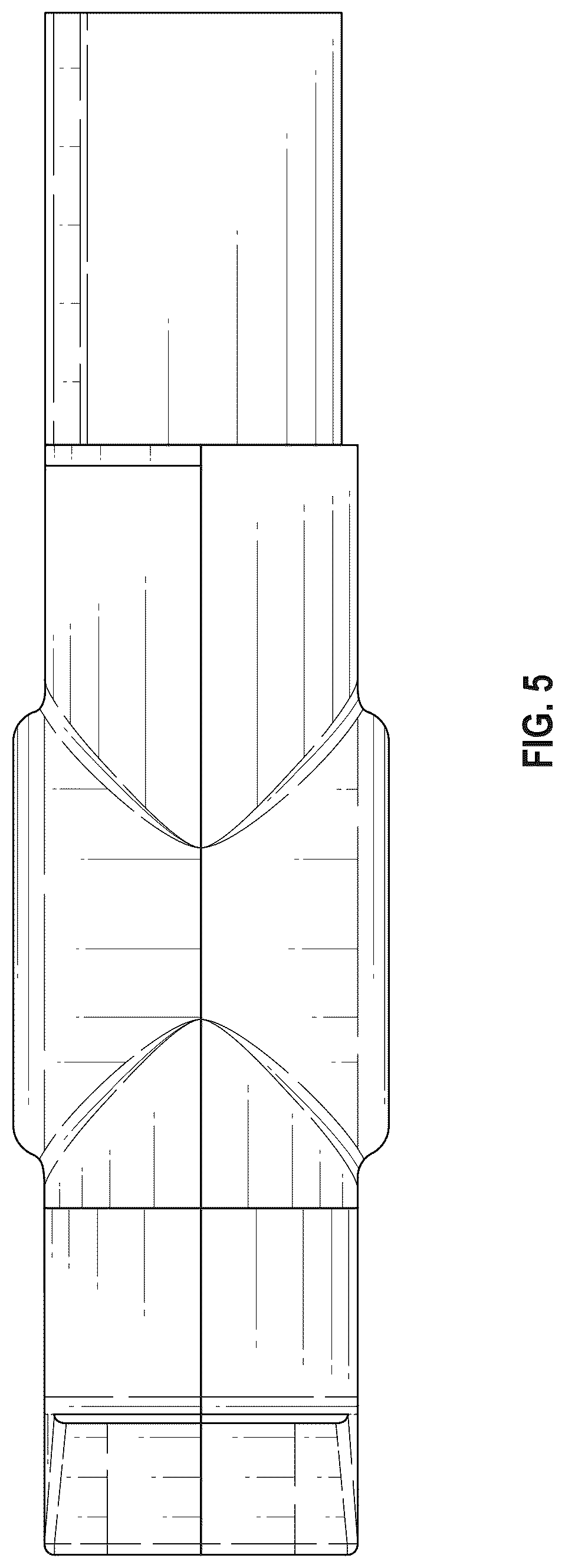

is a left side elevational view thereof;

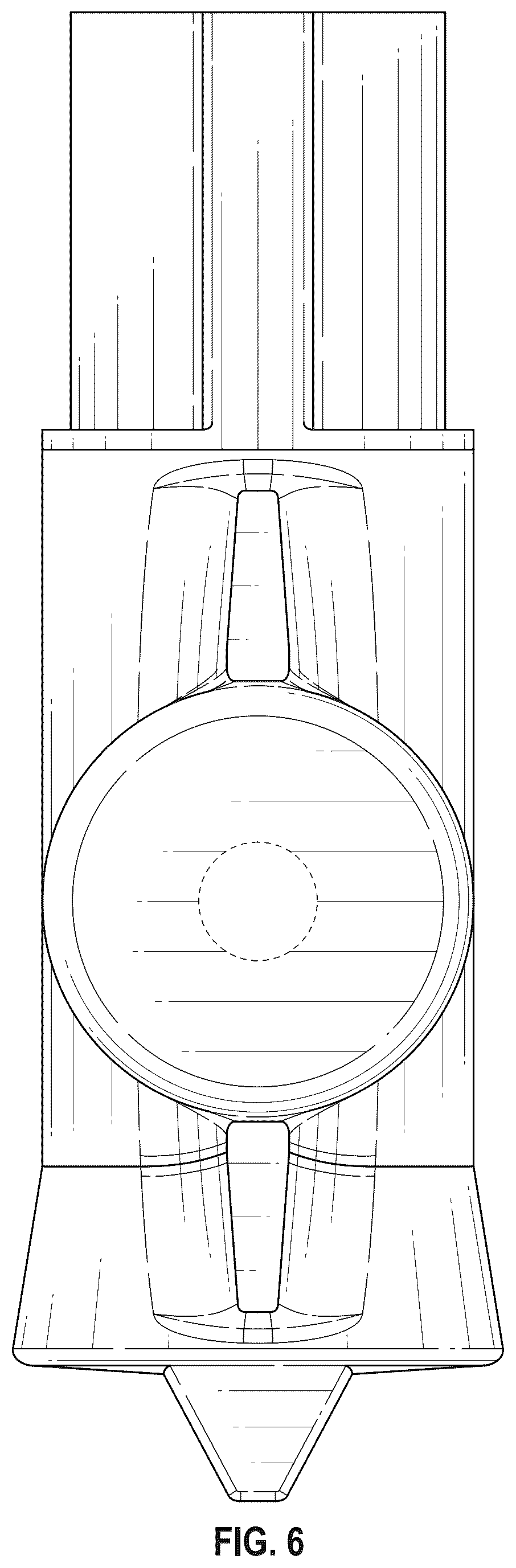

is a front elevational view thereof; and,

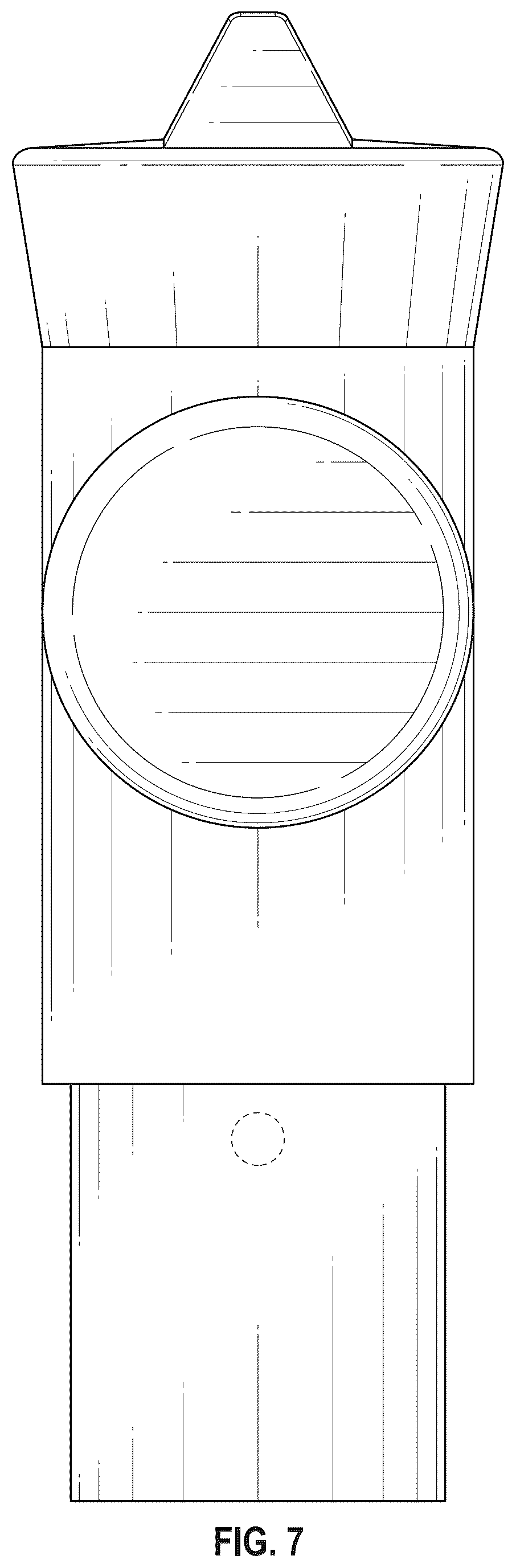

is a rear elevational view thereof.
The broken lines in the drawings illustrate portions of the apparatus for directing lift cords or lift chains of architectural opening coverings that form no part of the claimed design.
