Automotive Tissue Valet

USD1043167No. D 1,043,167designGranted 9/24/2024
Patent USD1043167 — Automotive tissue valet — Figure 1
Fig. 1 · Automotive Tissue Valet

Claims (1)

Claim 1 (Independent)

The ornamental design for an automotive tissue valet, as shown and described.

Full Description

Show full text →

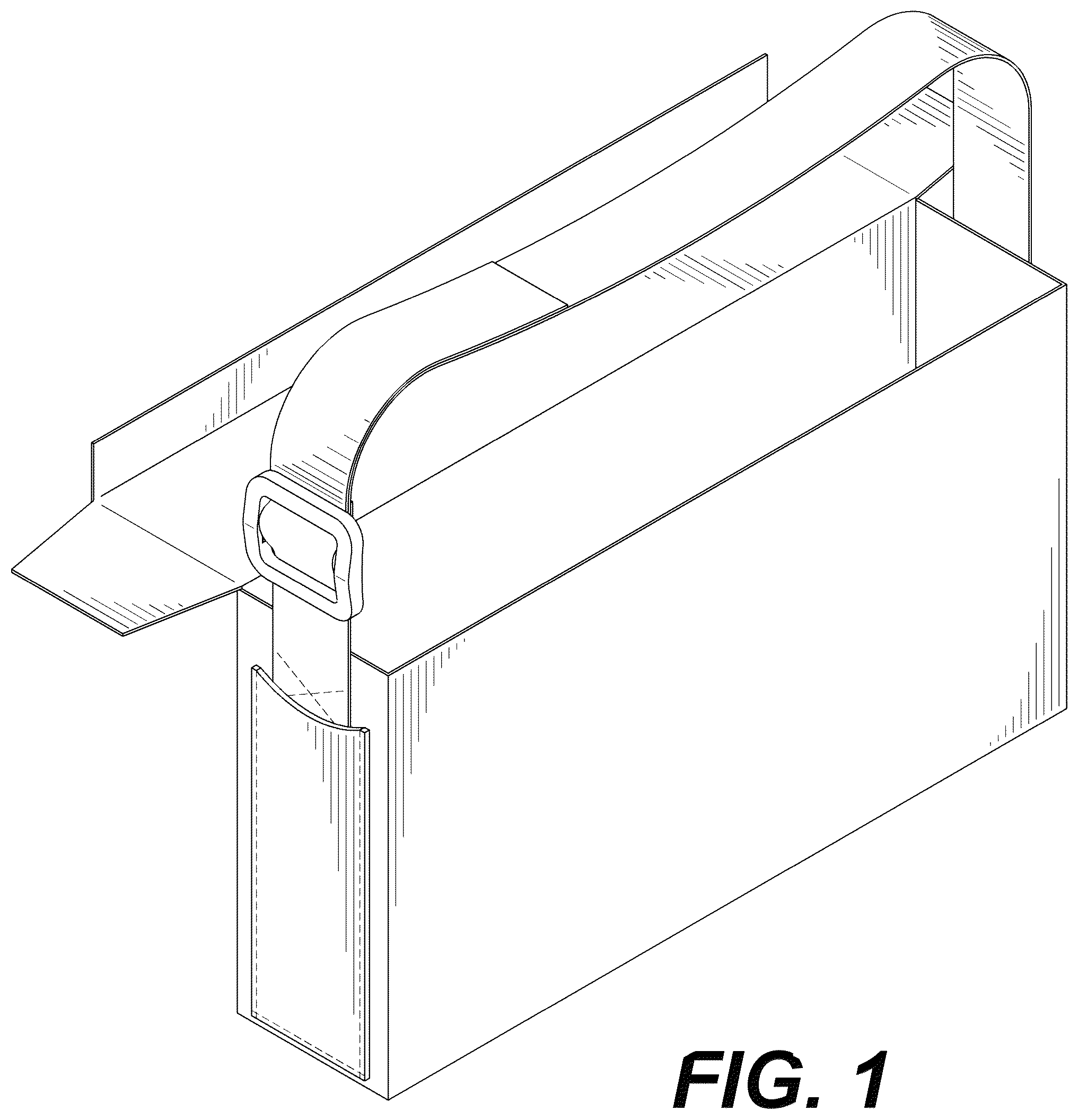

is a three-dimensional isometric view of a first embodiment of an automotive tissue valet;

is a top plan view thereof.

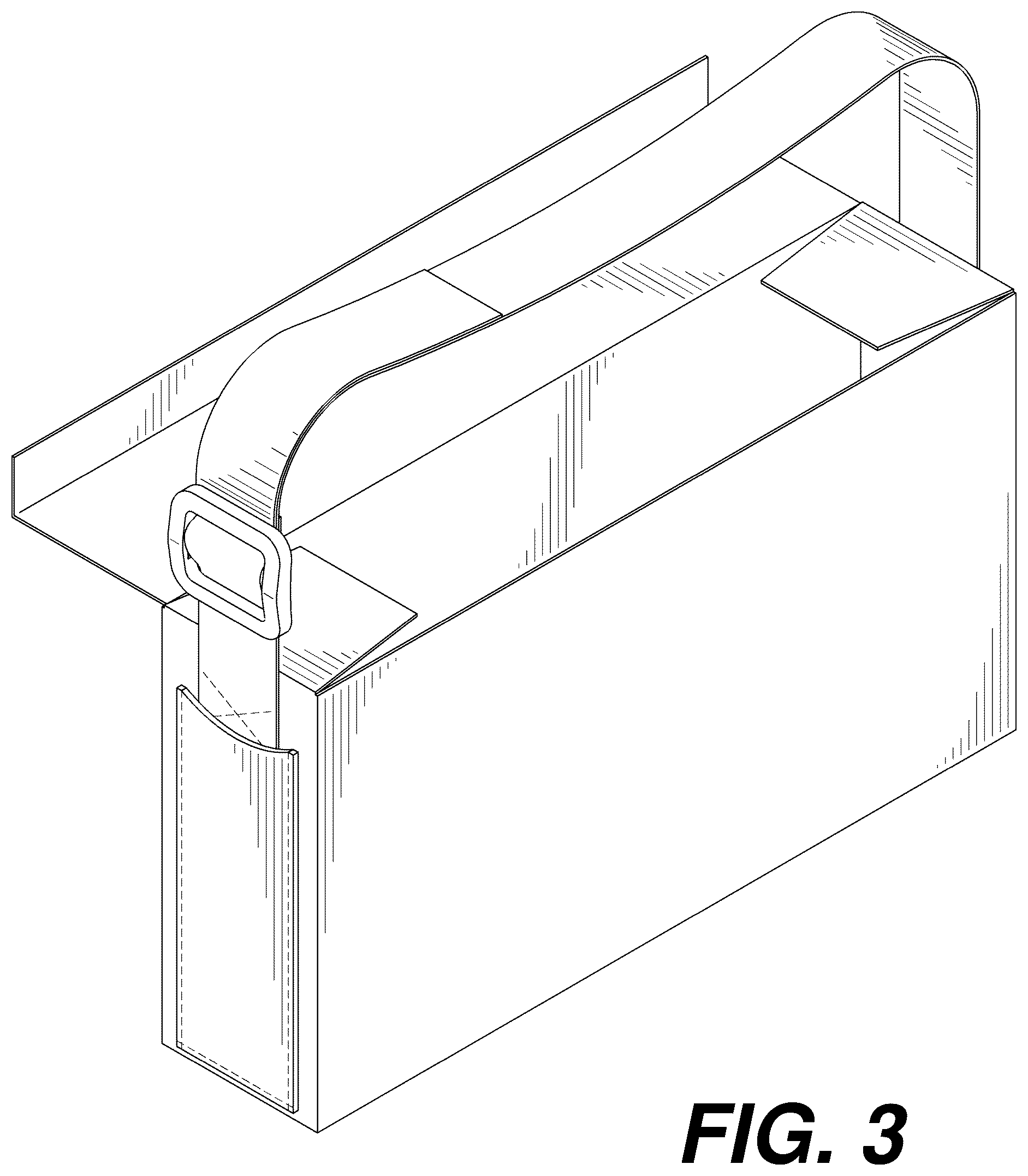

is a three-dimensional isometric view of a second embodiment of an automotive tissue valet; and,

is a top plan view thereof.

The dash-dash broken lines along the strap and strap receiver shown in is for the purpose of depicting stitching and forms no part of the claimed design. The dot-dash broken lines depict the boundaries of the automotive tissue valet, and form no part of the claimed design.

Figures (4)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
