Hat Hanger

USD1043137No. D 1,043,137designGranted 9/24/2024
Patent USD1043137 — Hat hanger — Figure 1
Fig. 1 · Hat Hanger

Claims (1)

Claim 1 (Independent)

The ornamental design for a hat hanger, as shown and described.

Full Description

Show full text →

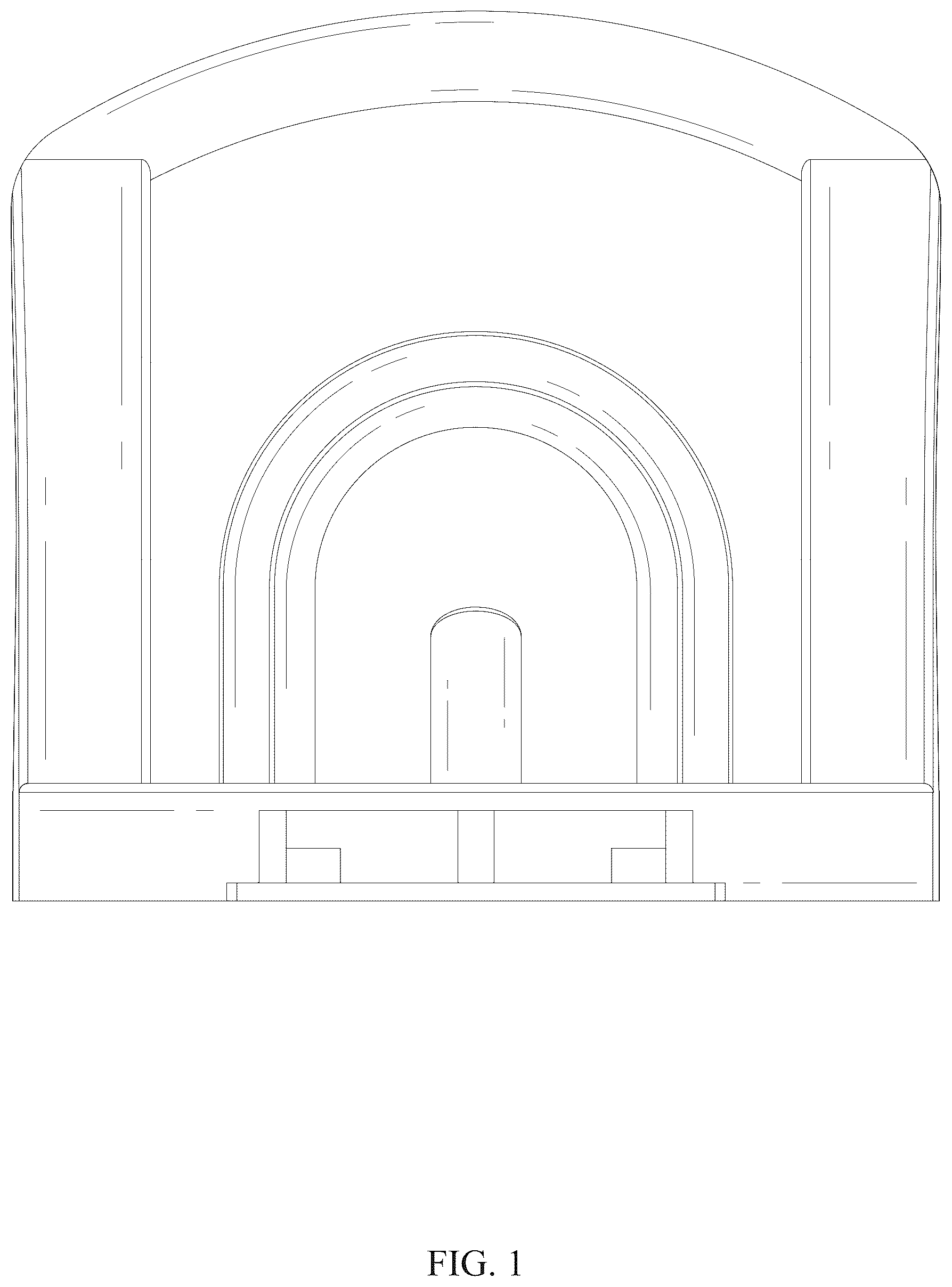

is a front elevation view of a hat hanger showing the new design;

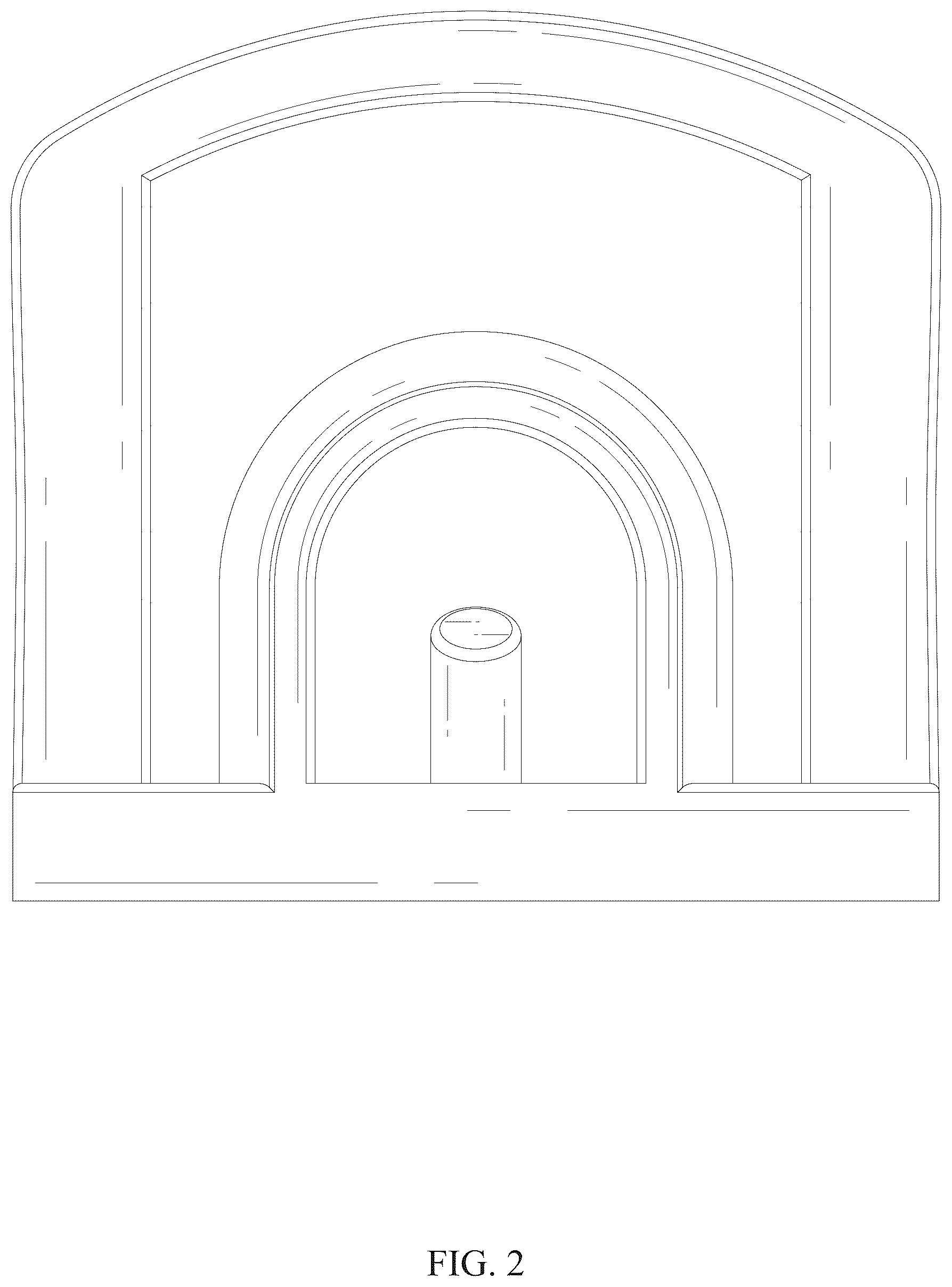

is a back elevation view thereof;

is a left-side view thereof;

is a right-side view thereof;

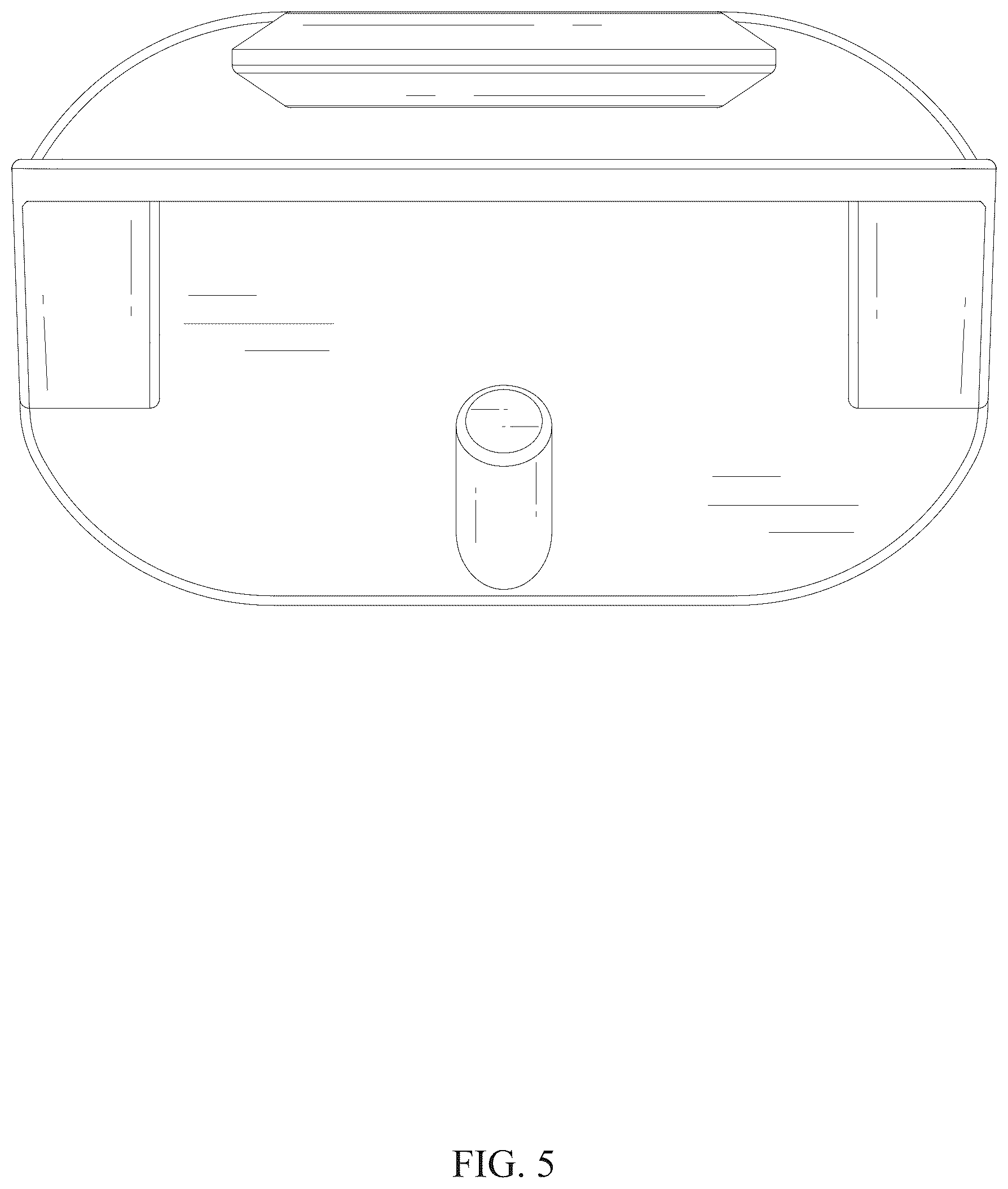

is a top plan view thereof;

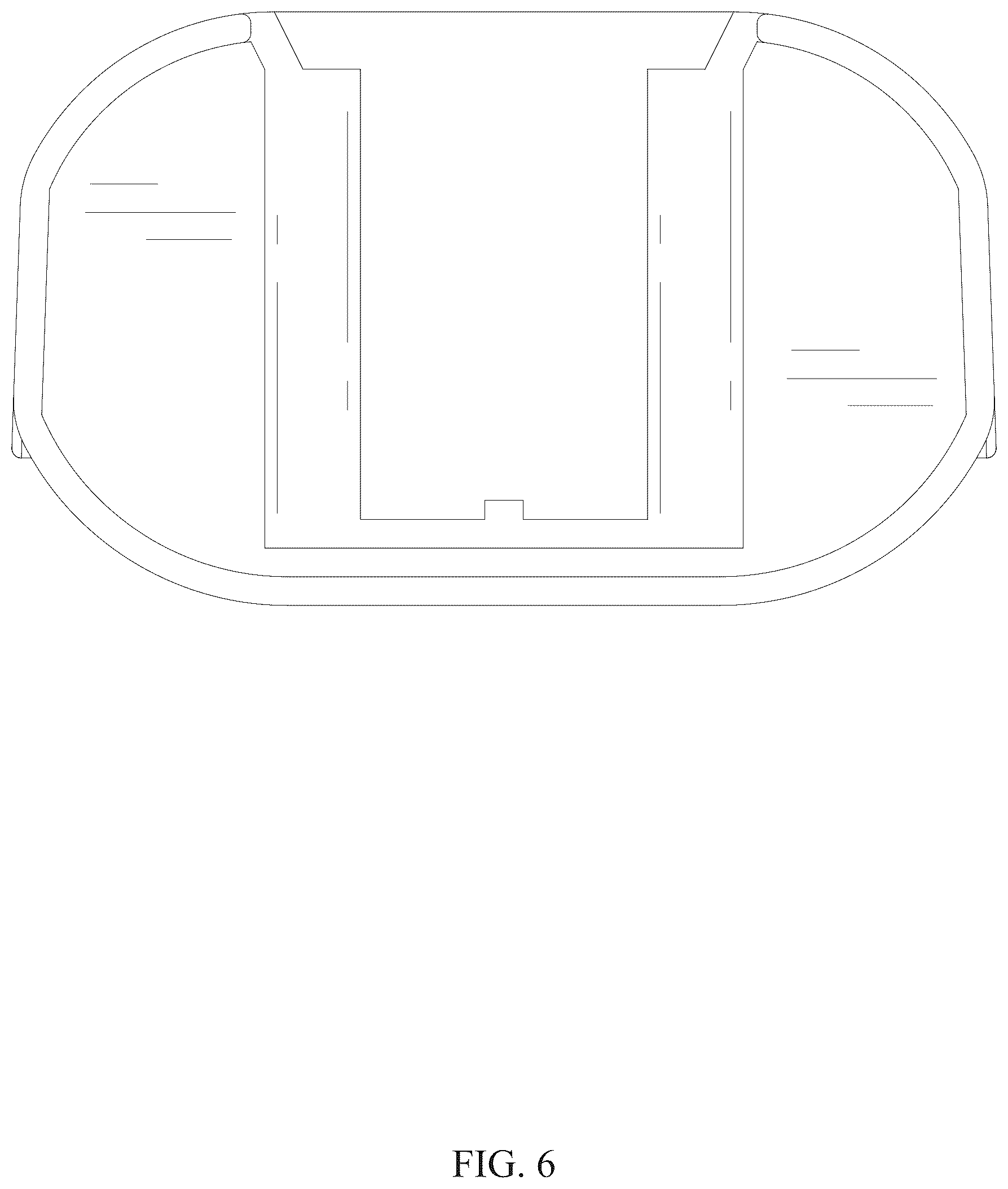

is a bottom plan view thereof;

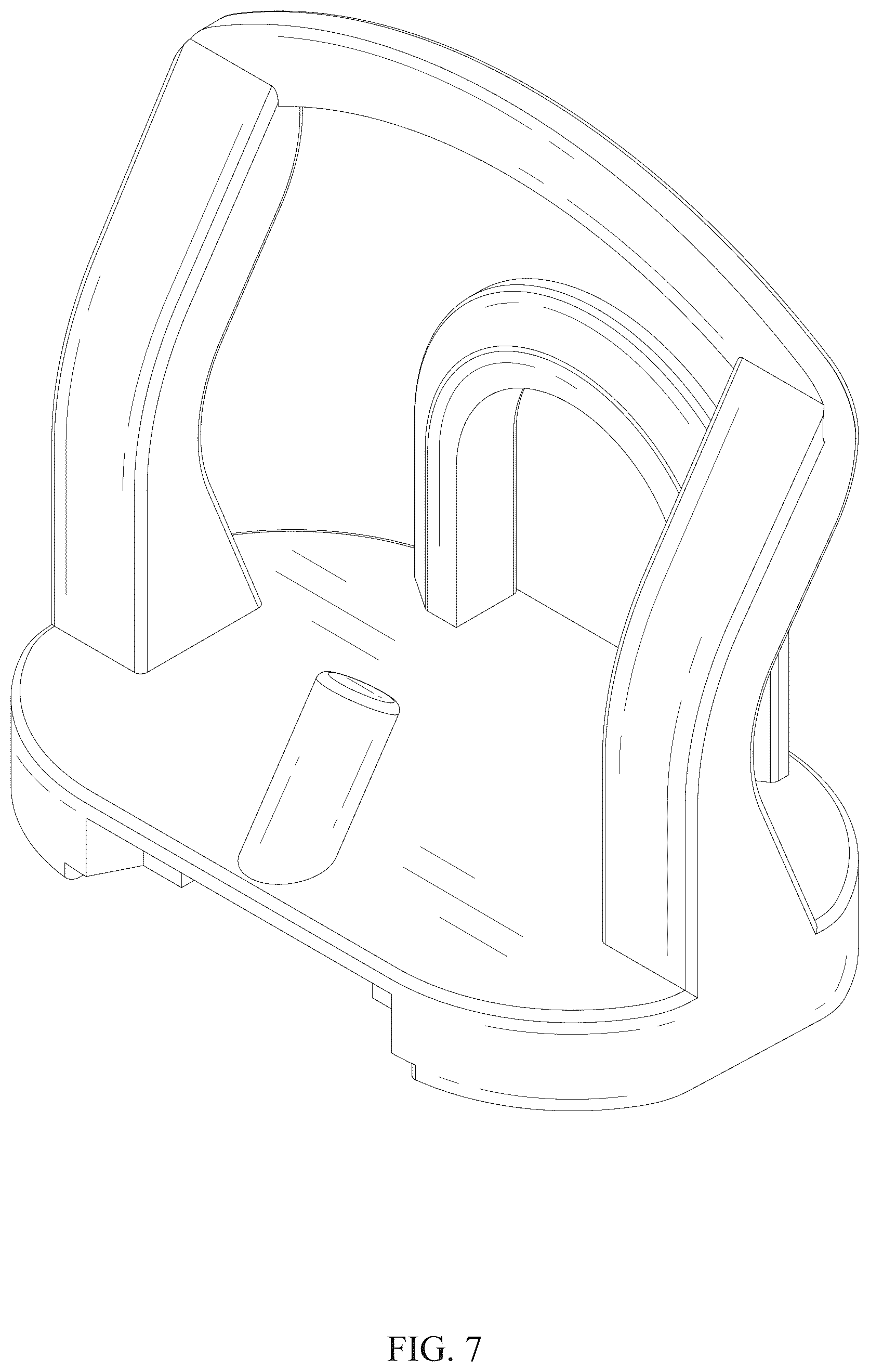

is a perspective view thereof; and,

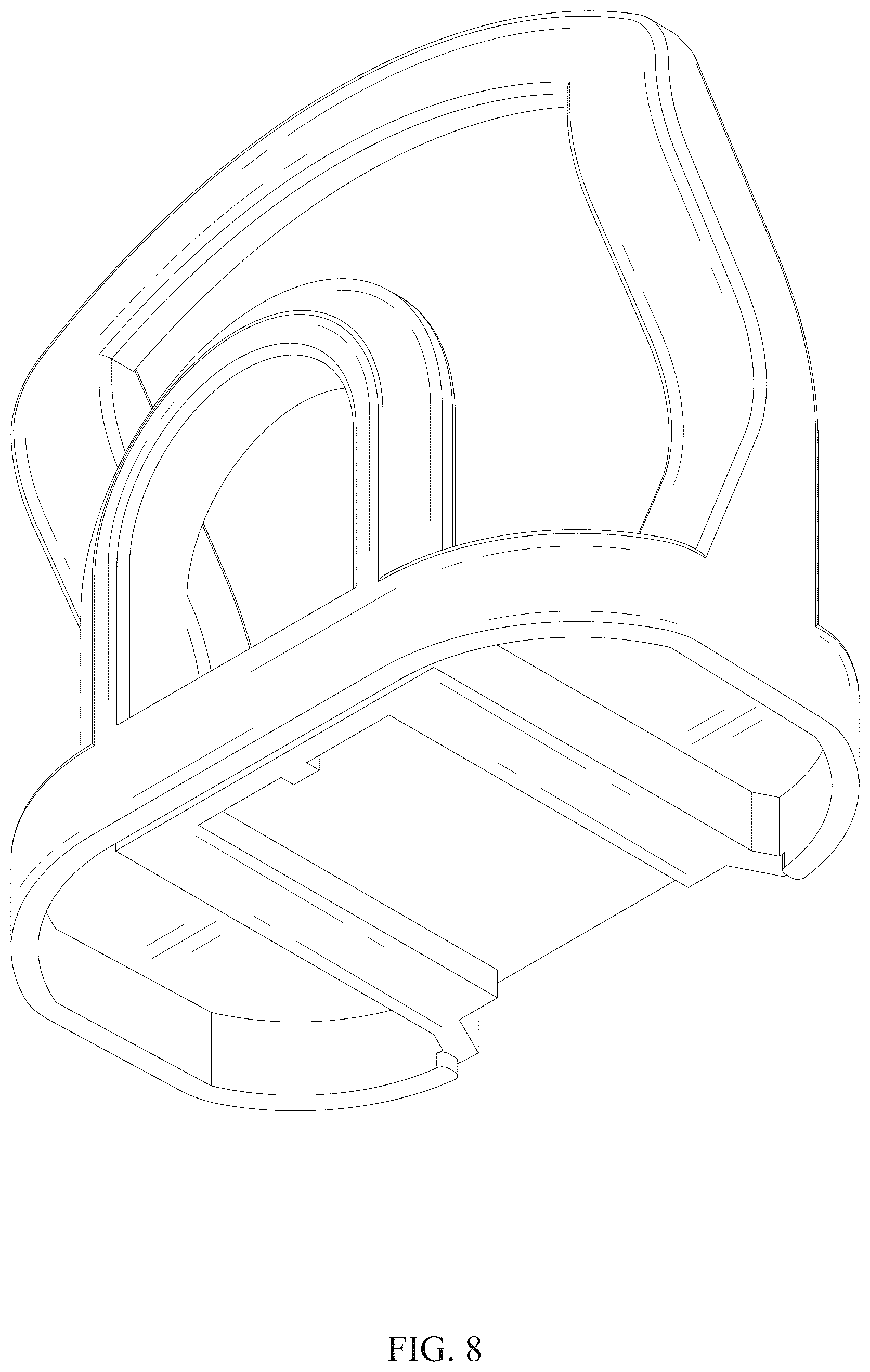

is another perspective view thereof.
