Seed Organizer

USD1043115No. D 1,043,115designGranted 9/24/2024

Patent USD1043115 — Seed organizer — Figure 1 — Fig. 1 · Seed Organizer

Claims (1)

Claim 1 (Independent)

The ornamental design for a seed organizer, as shown and described.

Full Description

Show full text →

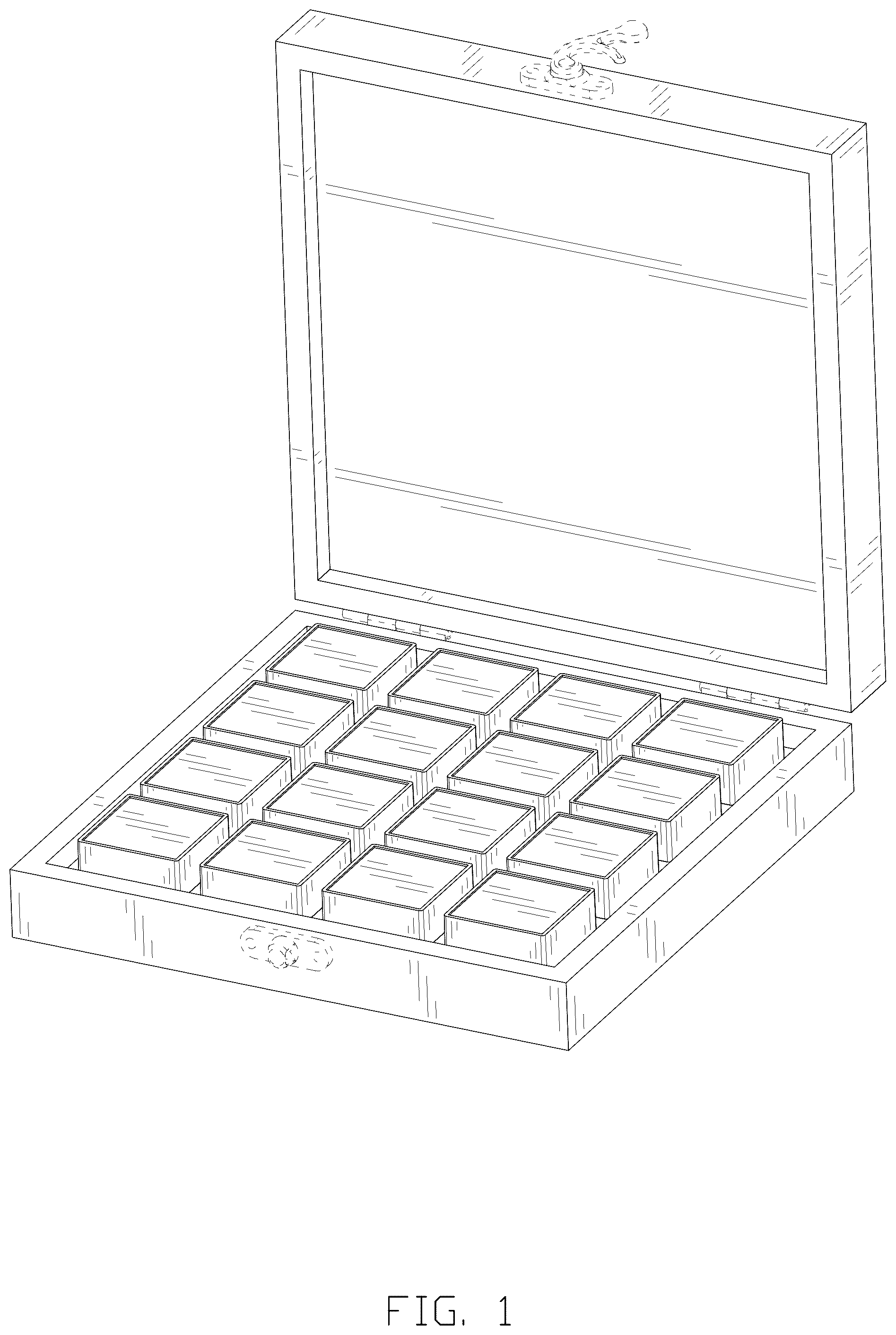

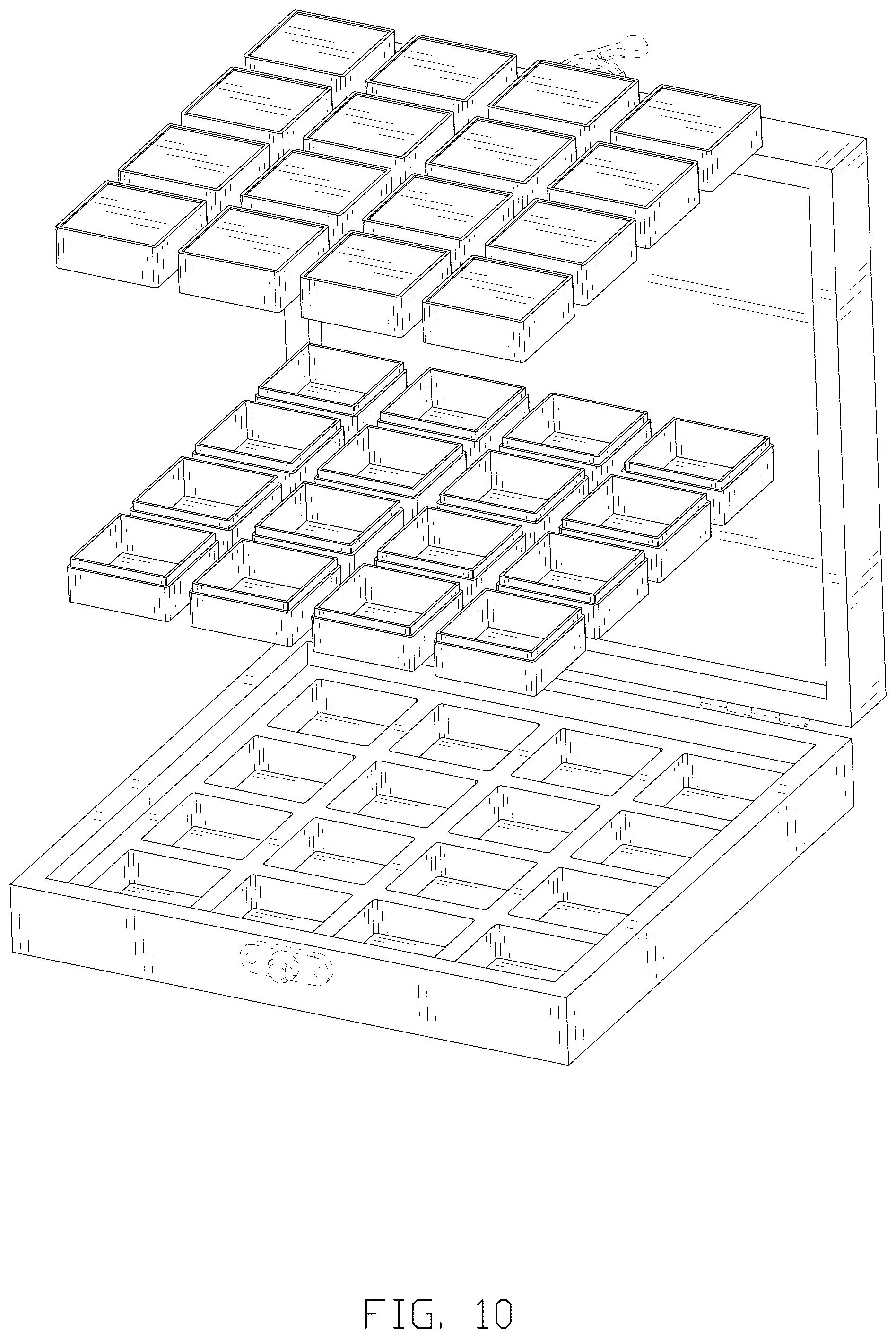

is a front, right and top perspective view of a first embodiment of a seed organizer in an open position, showing my design.

is a rear, left and bottom perspective view thereof.

is a front elevation view thereof.

is a rear elevation view thereof.

is a left side elevation view thereof.

is a right side elevation view thereof.

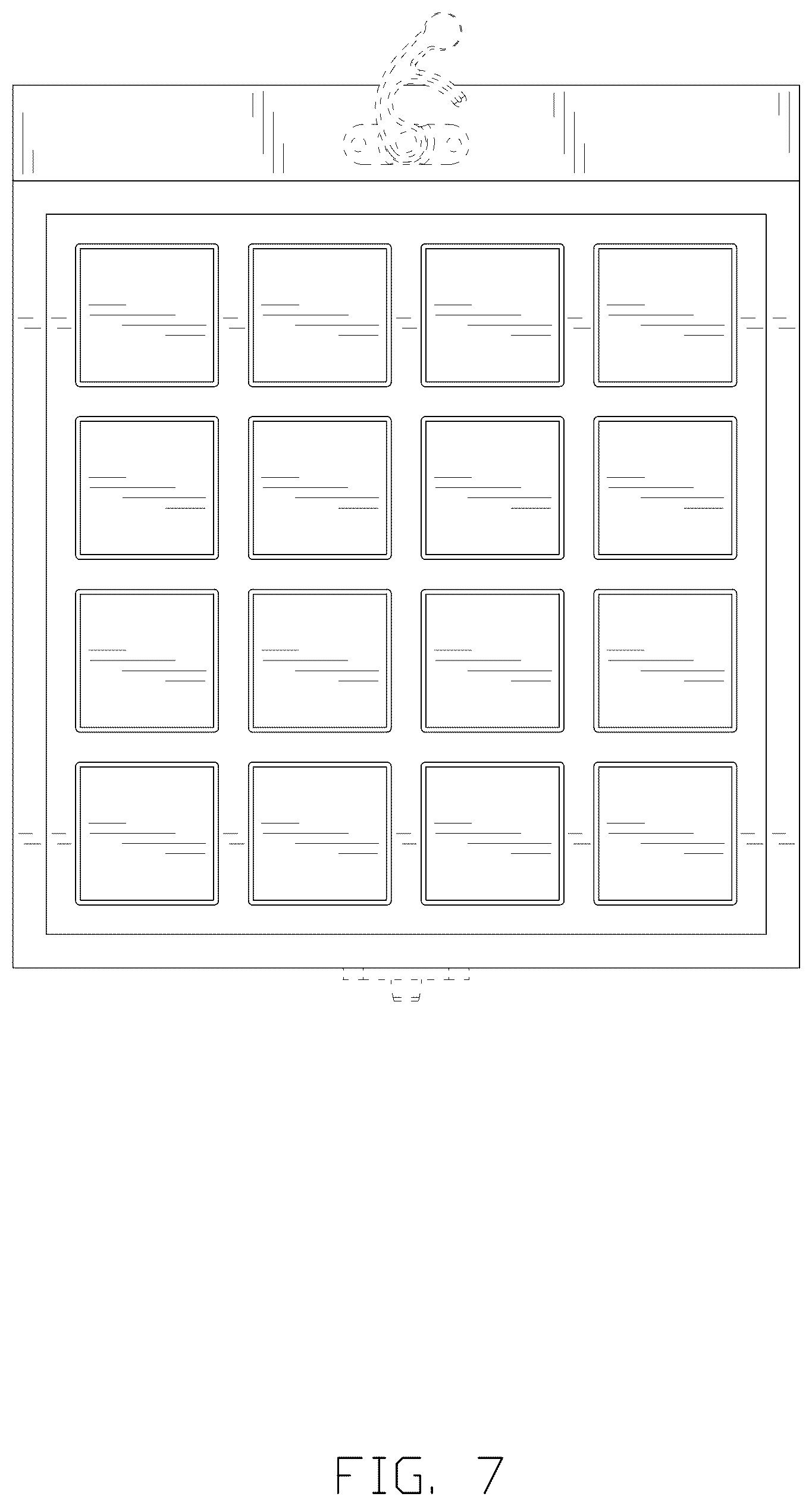

is a top plan view thereof.

is a bottom plan view thereof.

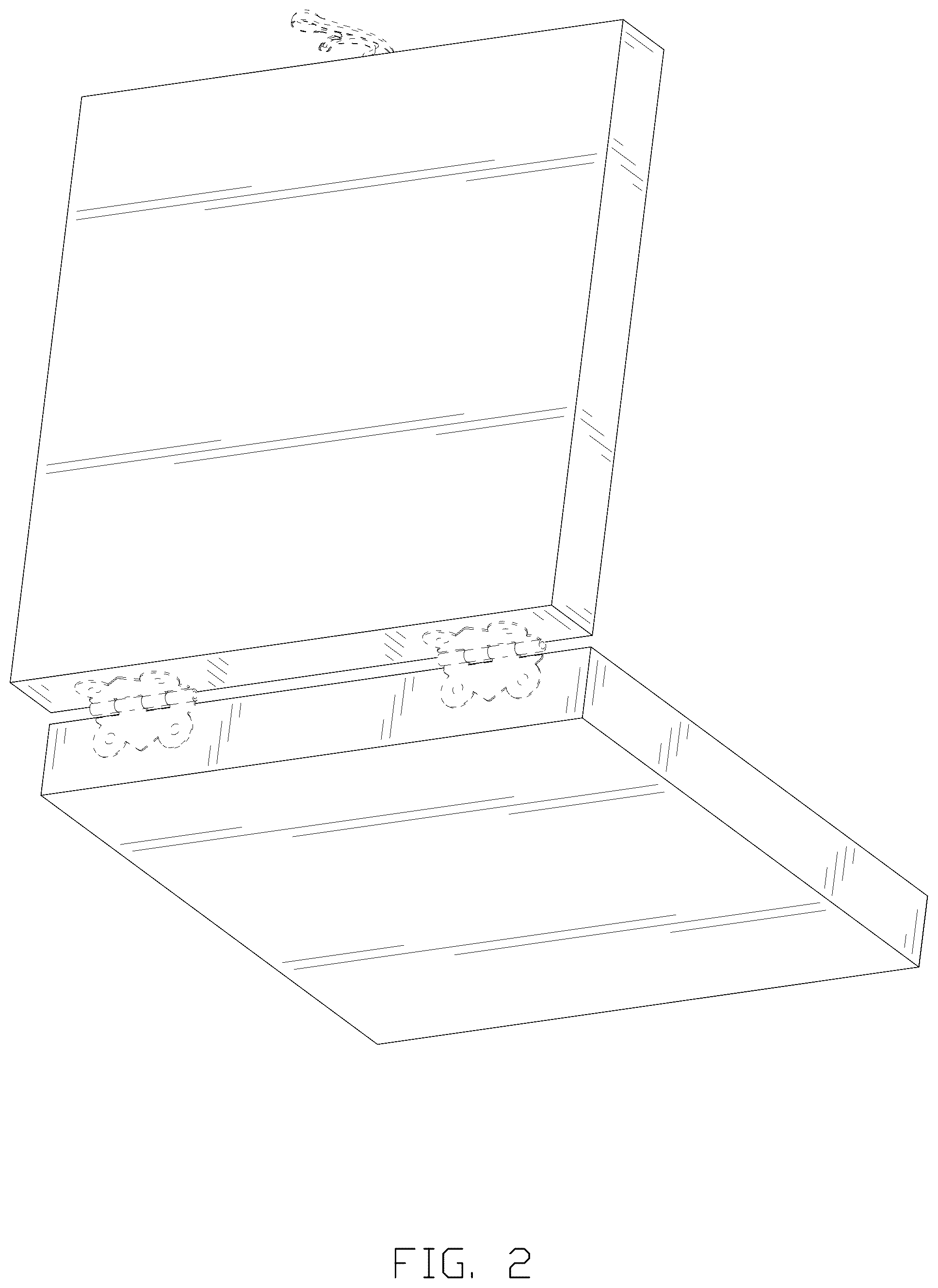

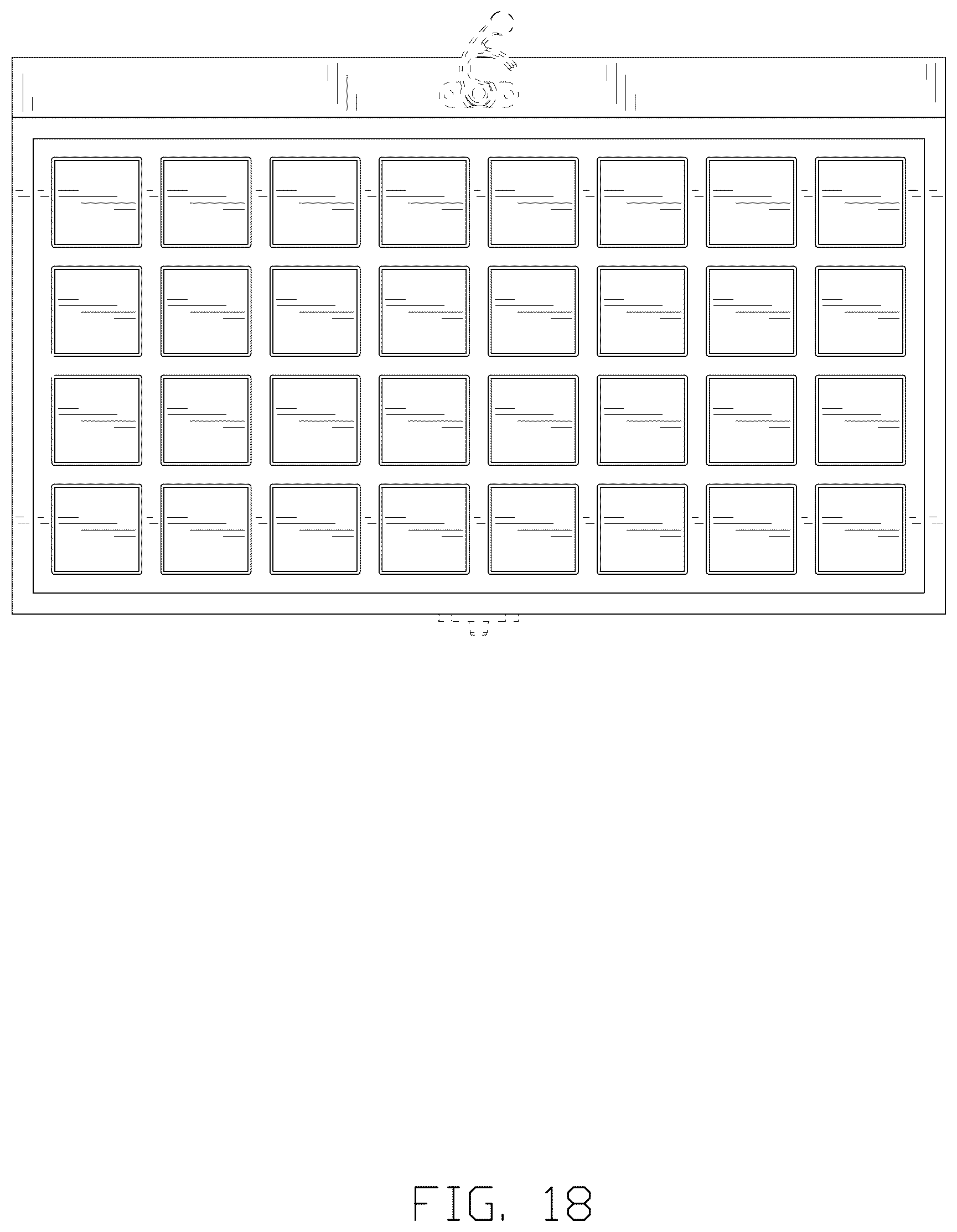

is another front, right and top perspective view of the seed organizer of in an alternate position.

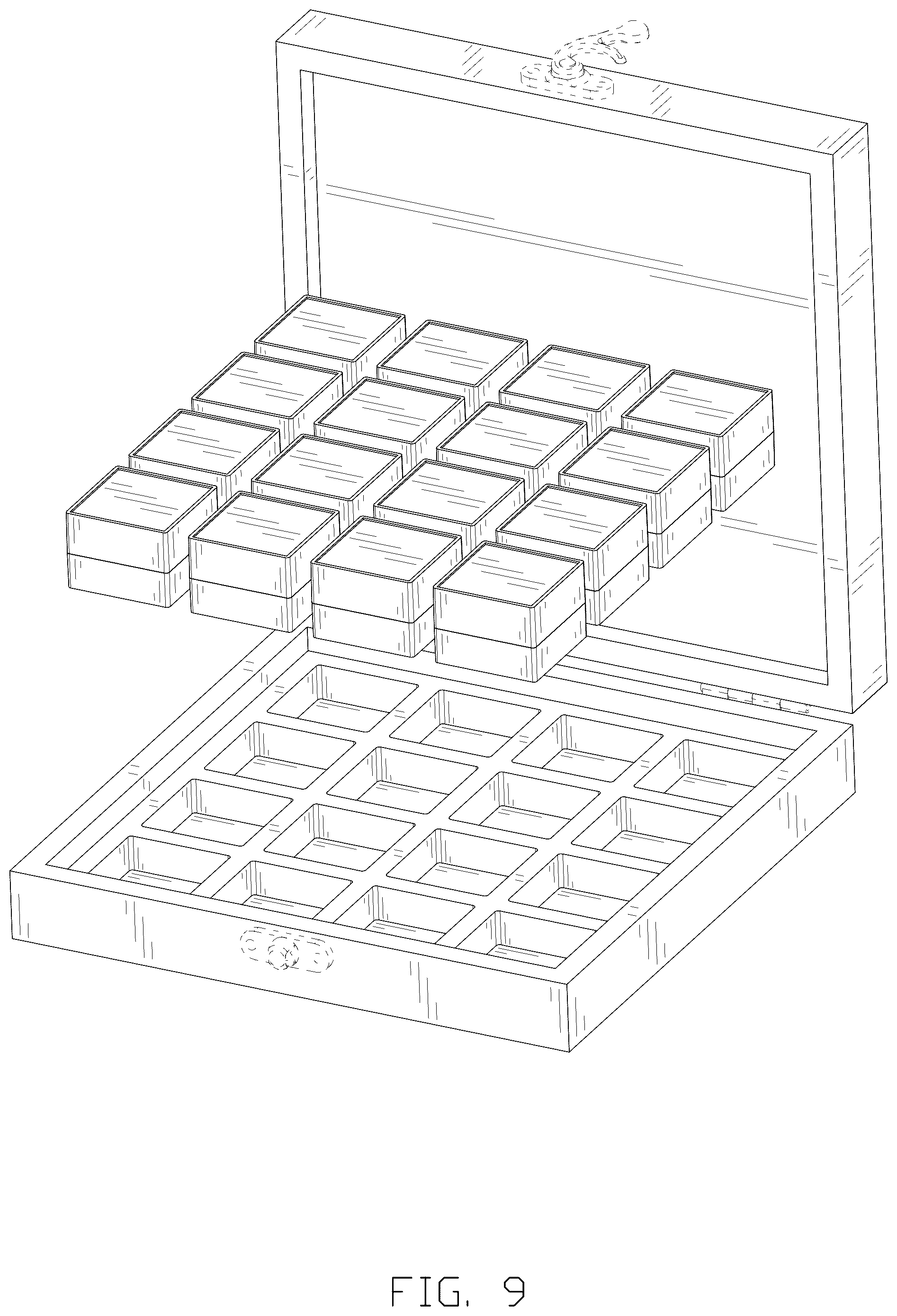

is another front, right and top perspective view of the seed organizer of in an alternate position.

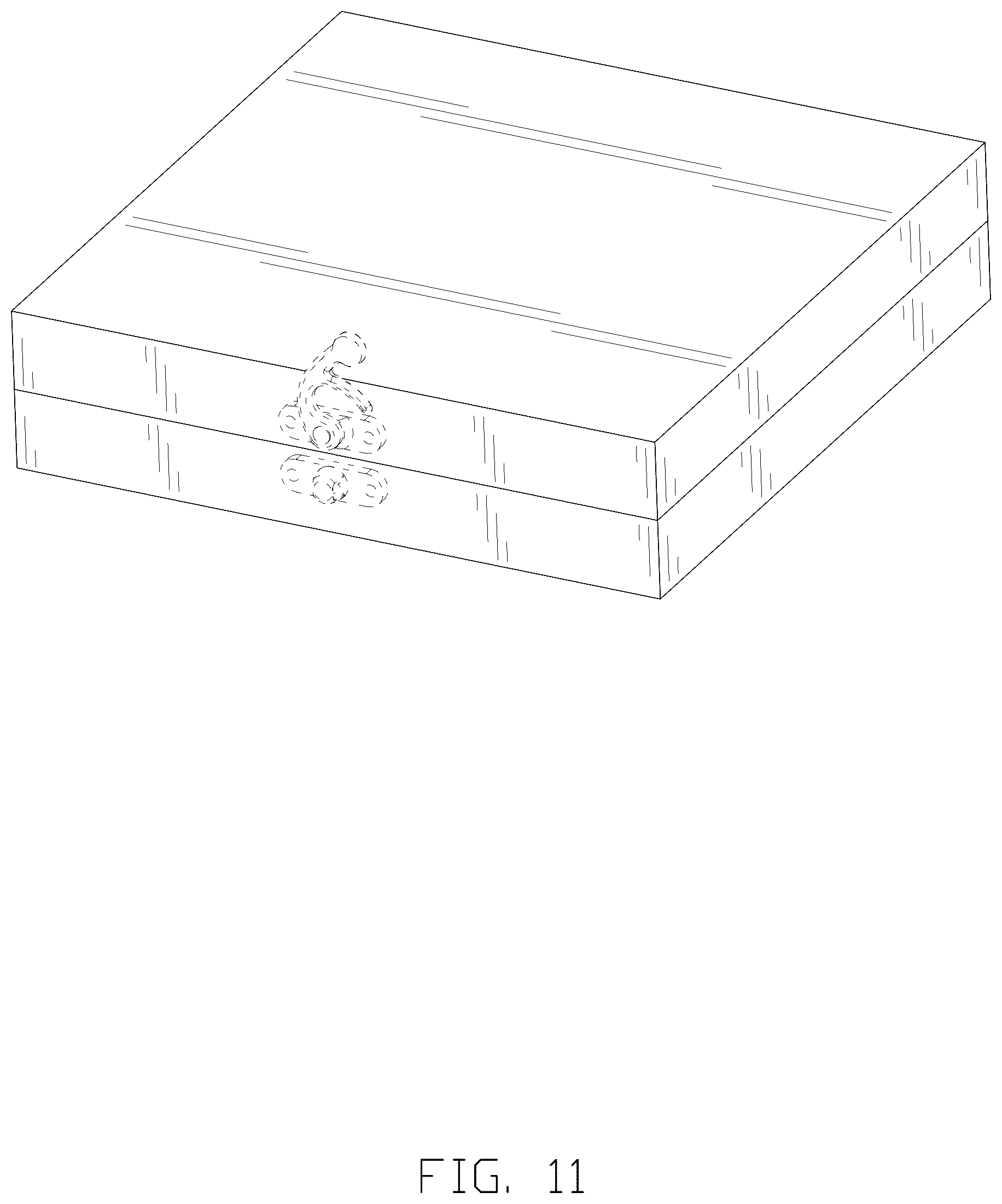

is another front, right and top perspective view of the seed organizer of in a closed position.

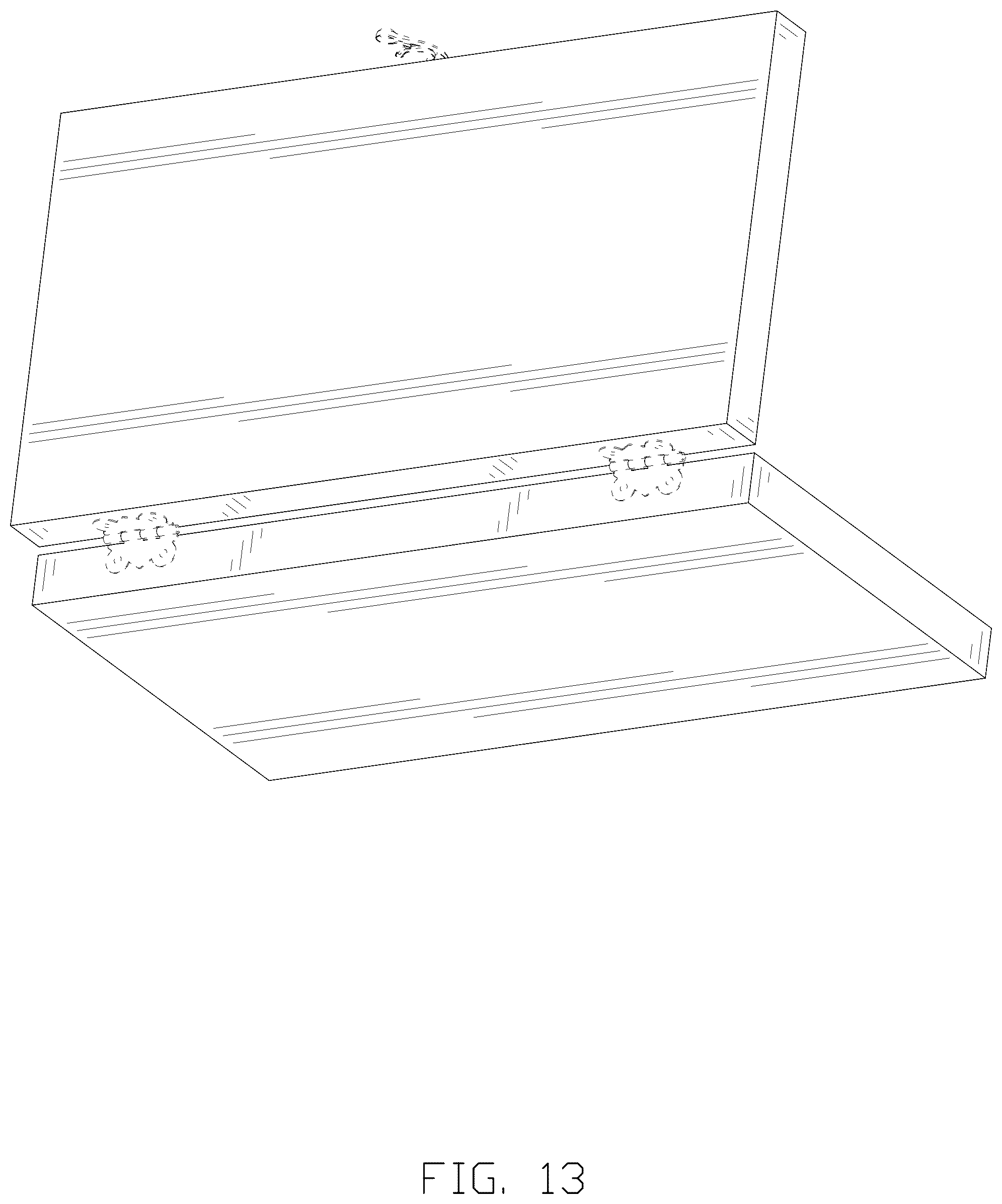

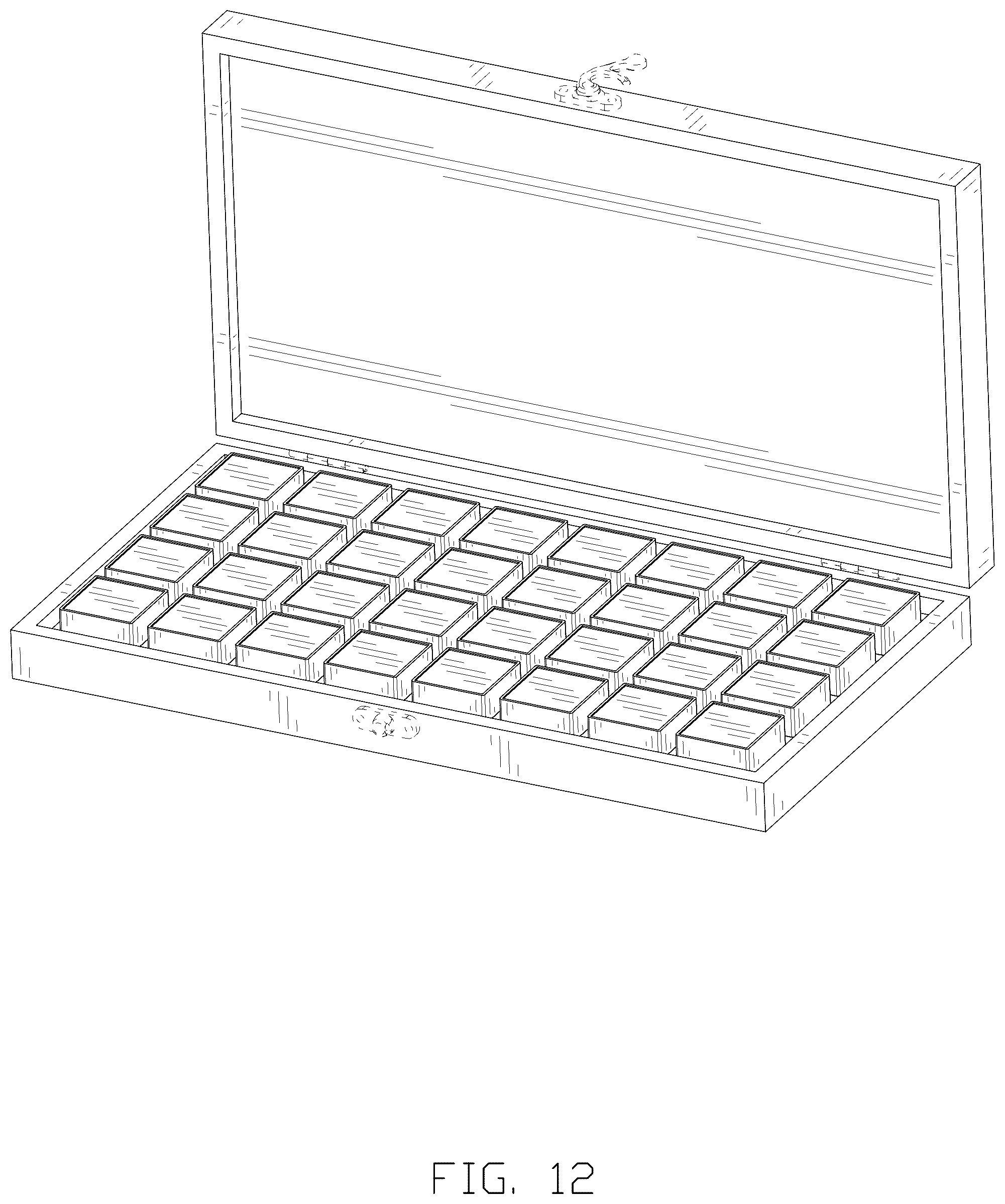

is a front, right and top perspective view of a second embodiment of a seed organizer in an open position.

is a rear, left and bottom perspective view thereof.

is a front elevation view thereof.

is a rear elevation view thereof.

is a left side elevation view thereof.

is a right side elevation view thereof.

is a top plan elevation view thereof.

is a bottom plan elevation view thereof.

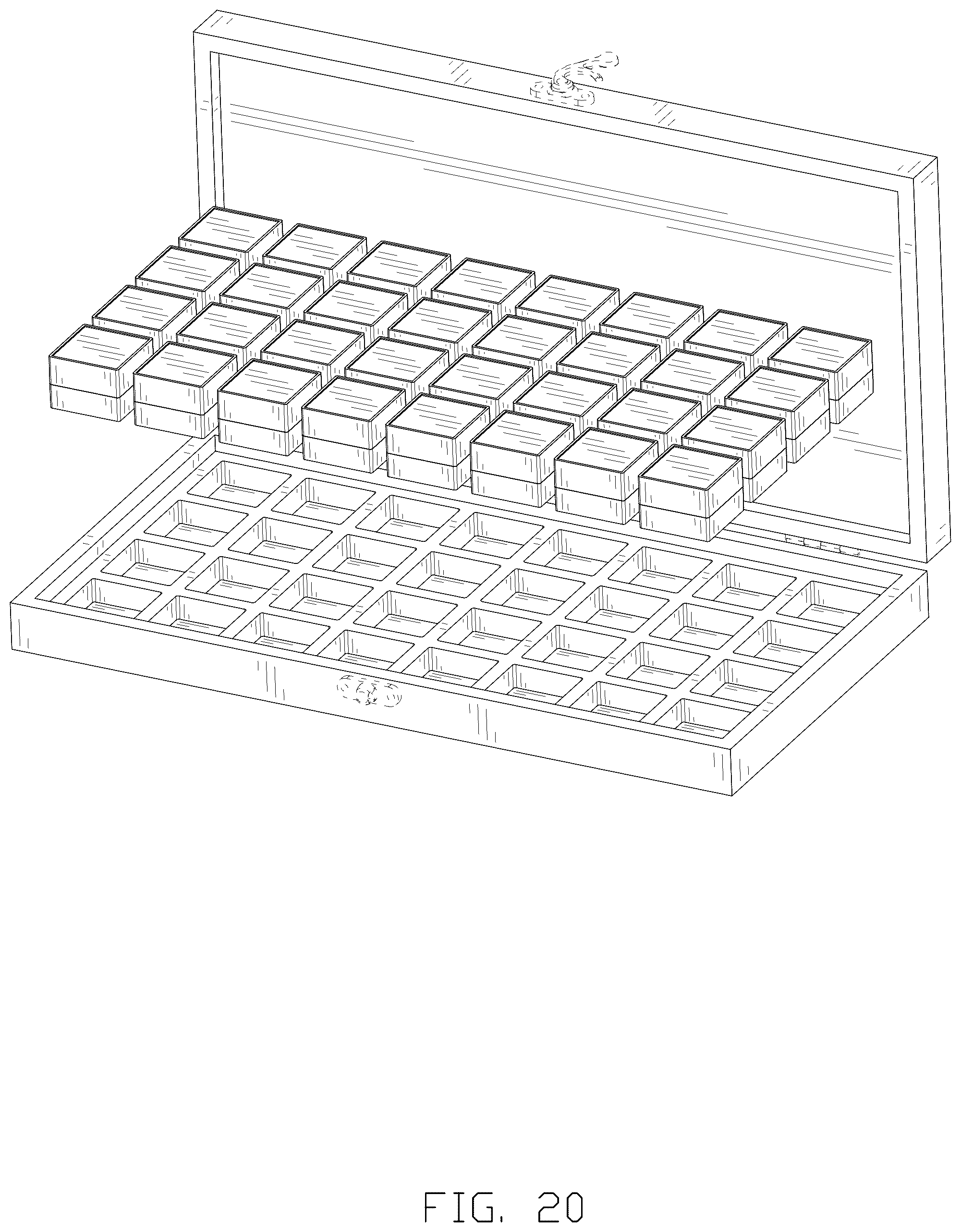

is another front, right and top perspective view of the seed organizer of in an alternate state.

is another front, right and top perspective view of the seed organizer of in an alternate state; and,

is another front, right and top perspective view of the seed organizer of in a closed position.

The broken lines depict portions of the seed organizer that form no part of the claimed design.
