USD1043060No. D 1,043,060designGranted 9/24/2024

Patent USD1043060 — Footwear — Figure 1 — Fig. 1 · Footwear

Claims (1)

Claim 1 (Independent)

The ornamental design for a footwear, as shown and described.

Full Description

Show full text →

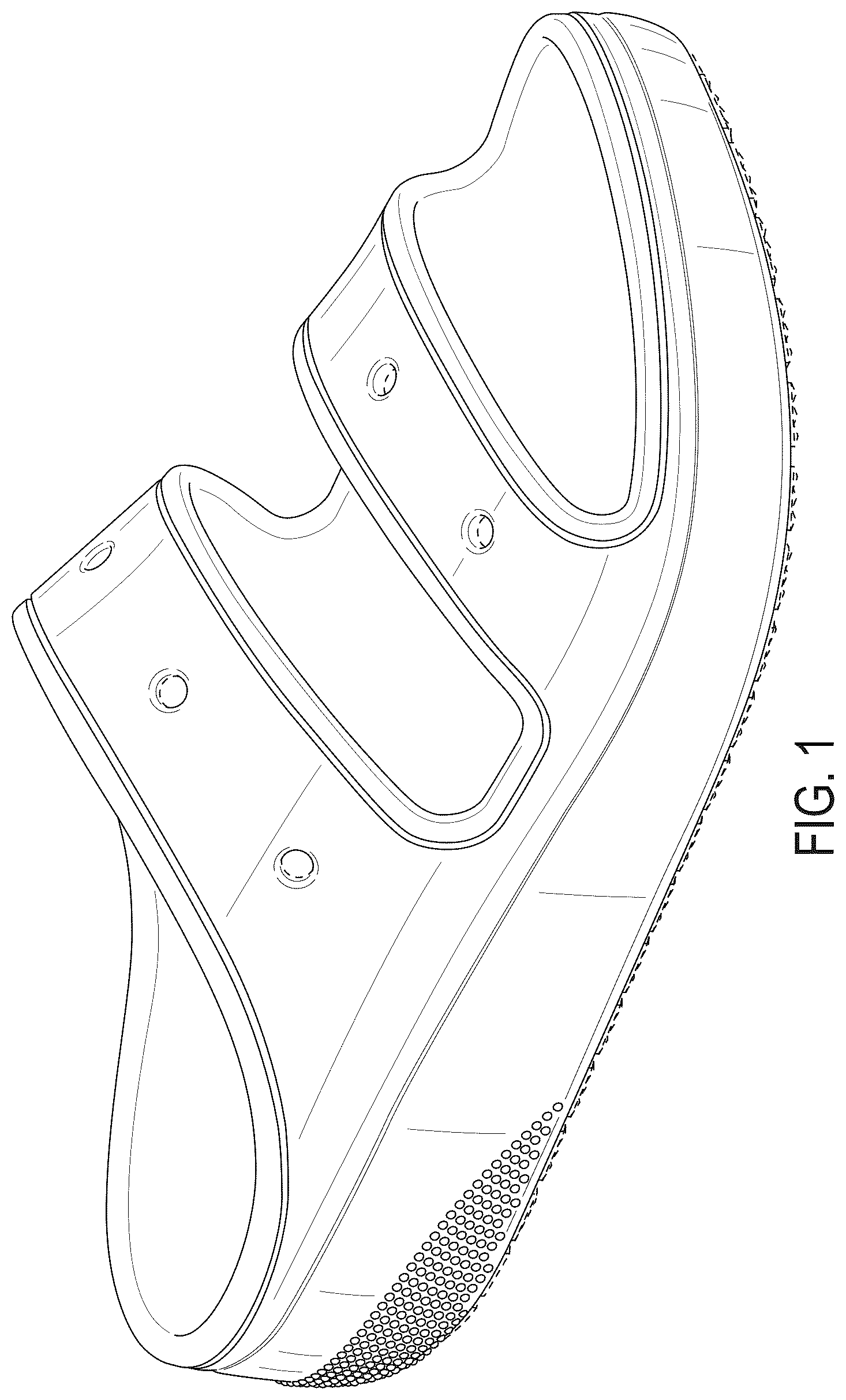

is a front perspective view of a footwear;

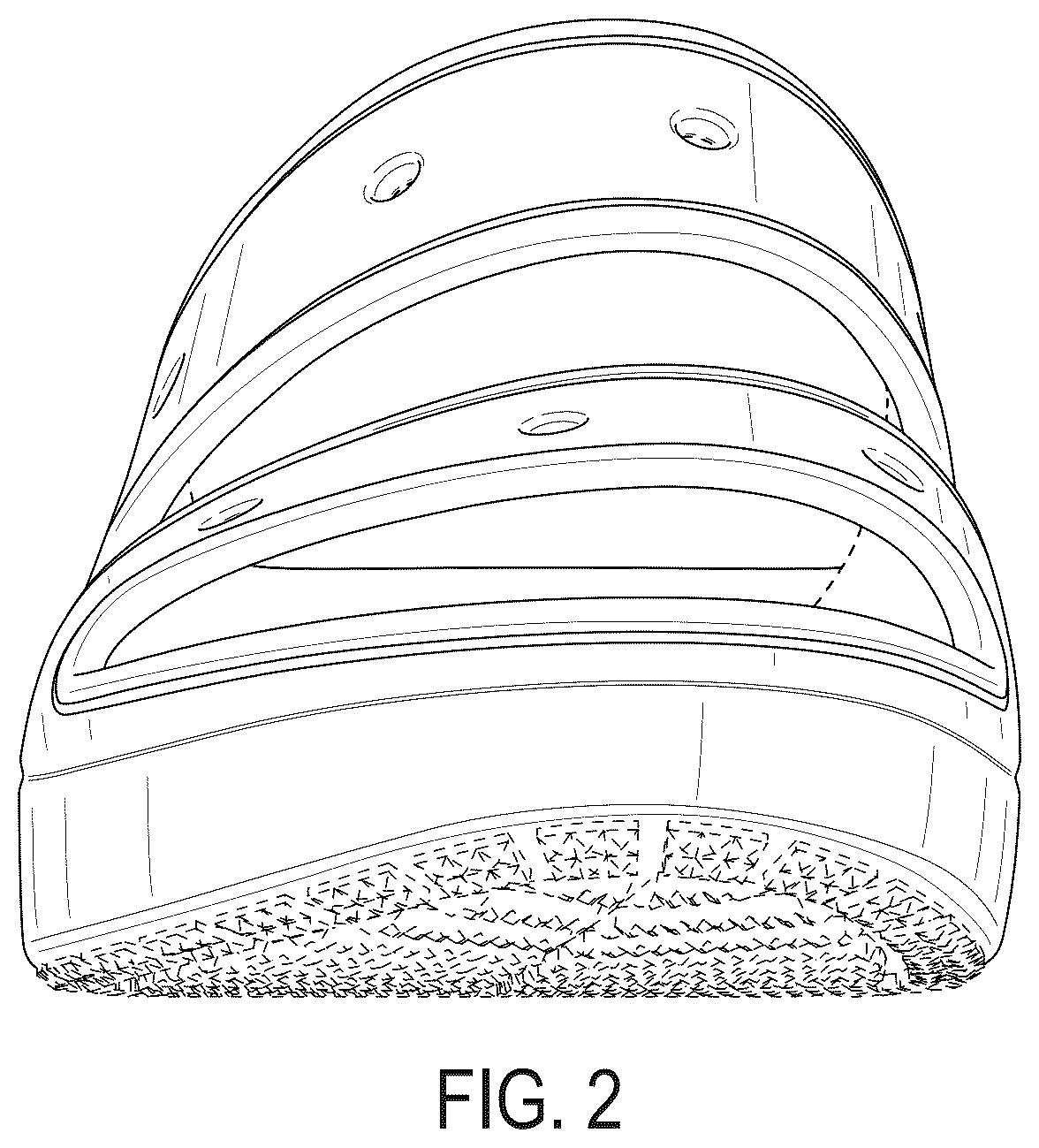

is a front view thereof;

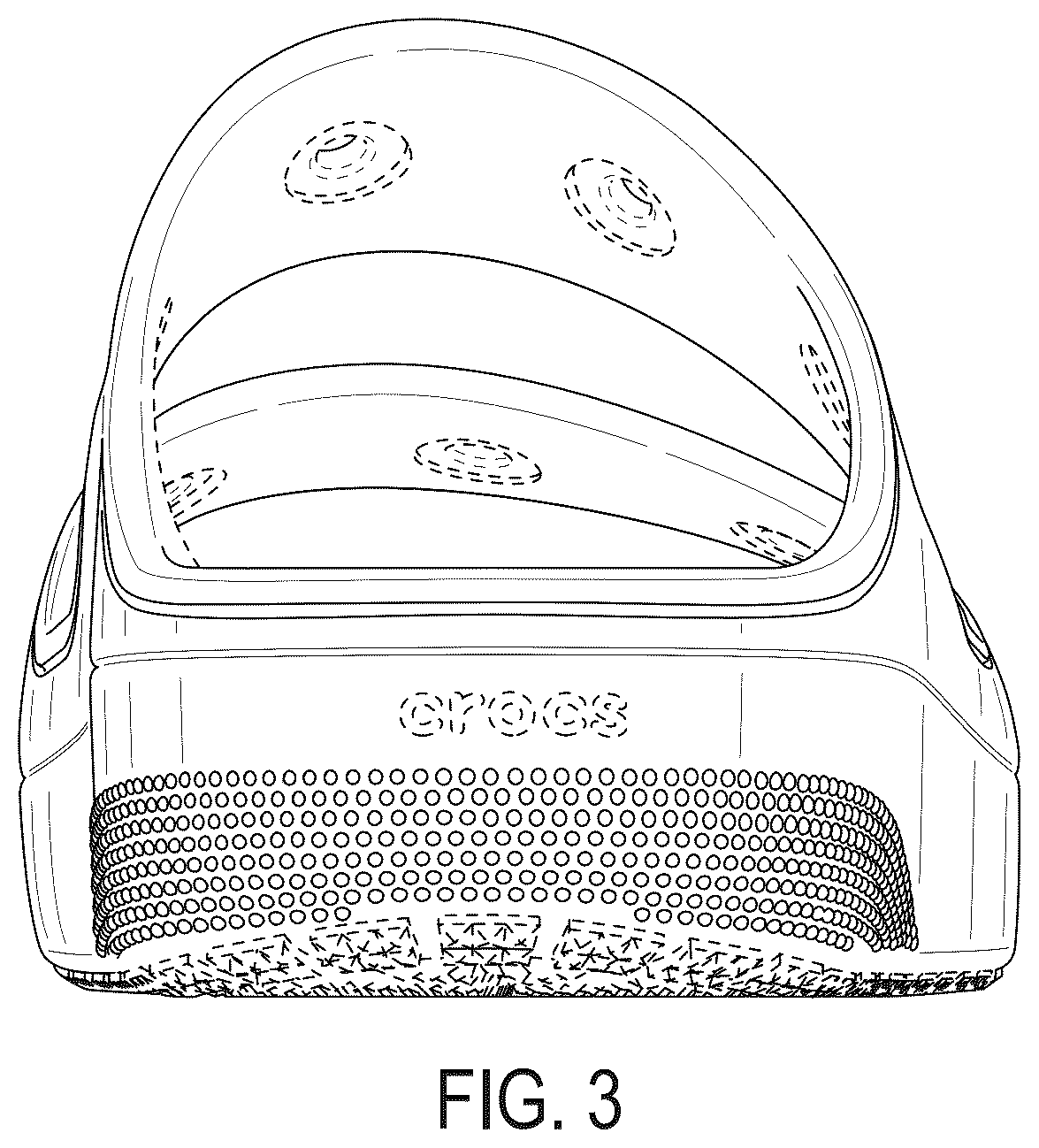

is a back view thereof;

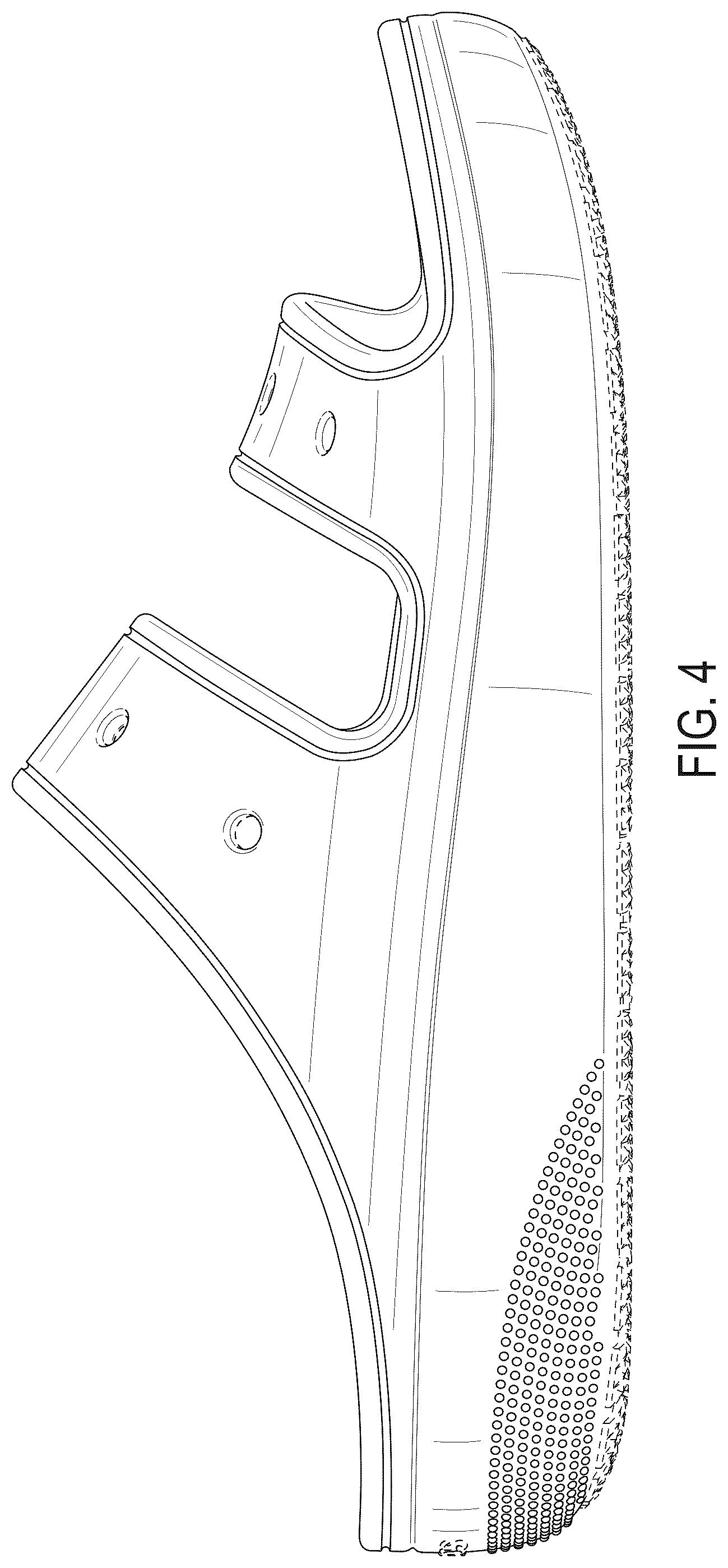

is an outer side view thereof;

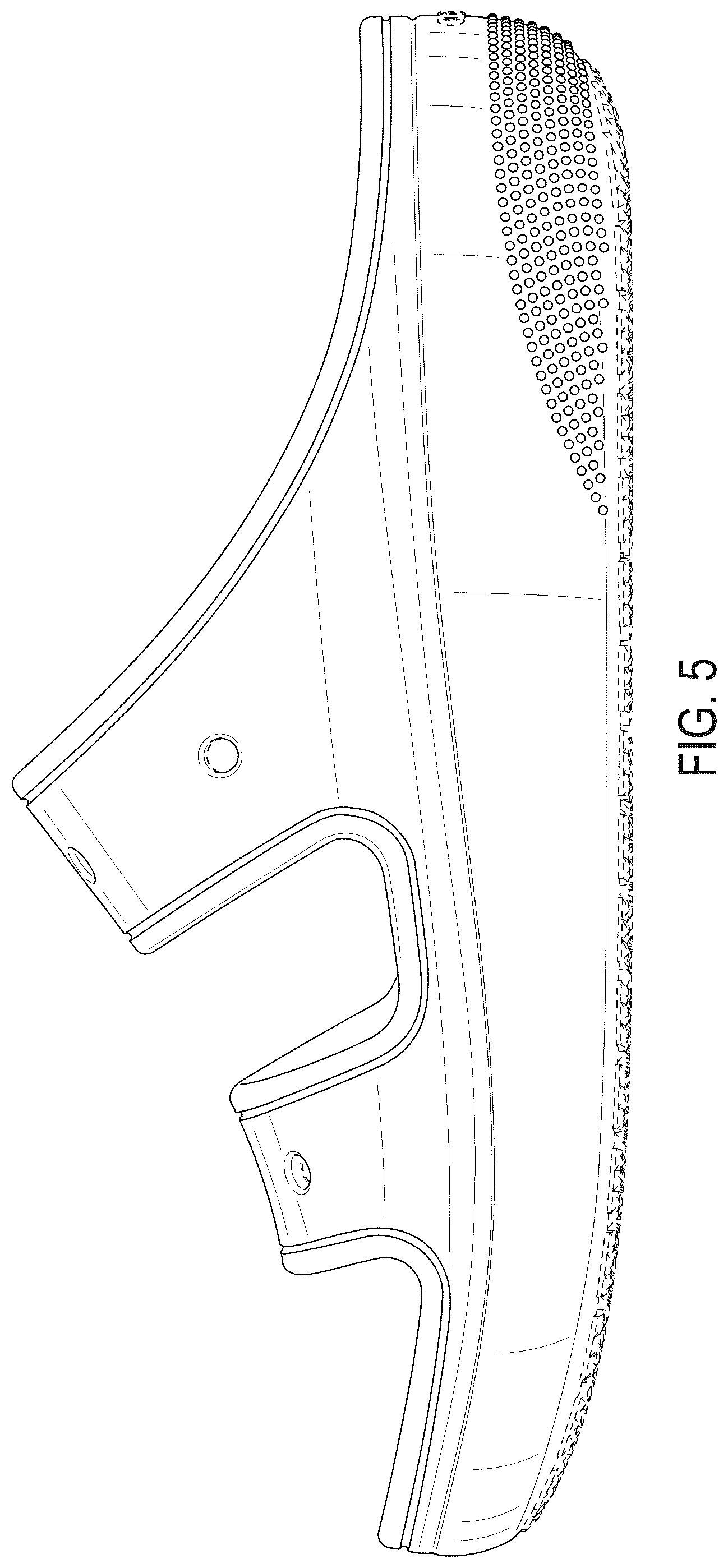

is an inner side view thereof;

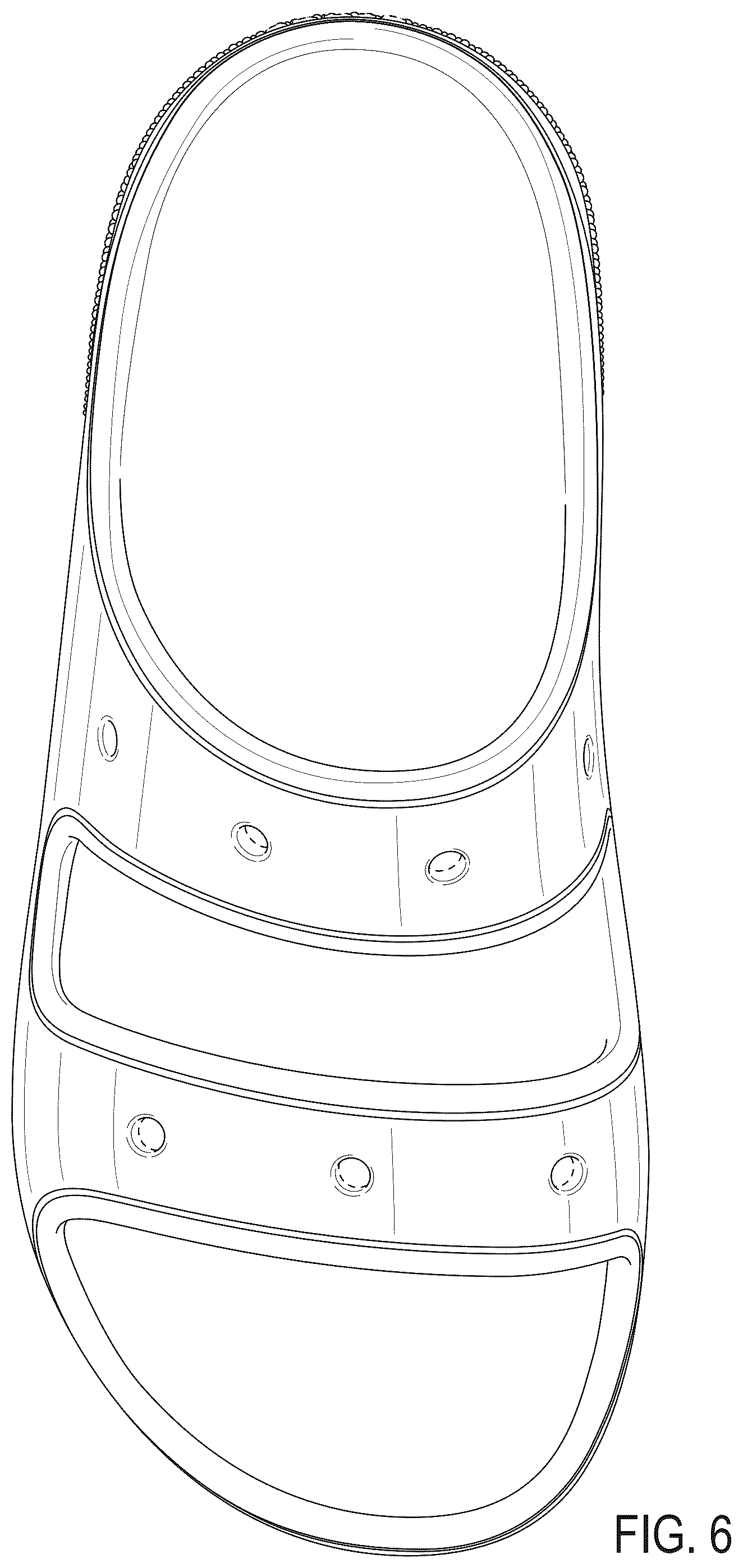

is a top view thereof; and,

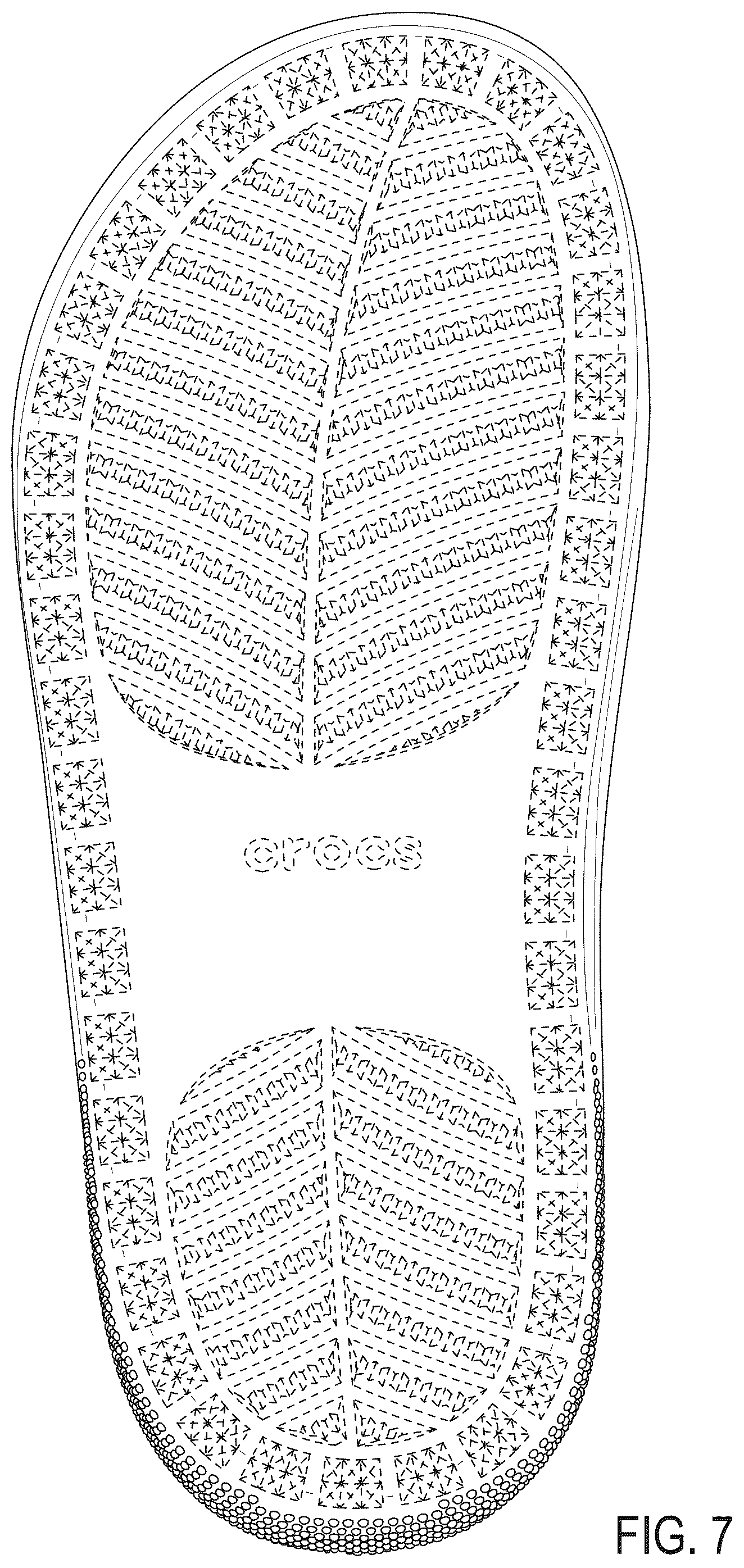

is a bottom view thereof.

The elements shown in in broken lines represent portions that form no part of the claimed design.

Figures (7)

Patent USD1043060 Figure 1 – Footwear — Fig. 1

Patent USD1043060 Figure 2 – Footwear — Fig. 2

Patent USD1043060 Figure 3 – Footwear — Fig. 3

Patent USD1043060 Figure 4 – Footwear — Fig. 4

Patent USD1043060 Figure 5 – Footwear — Fig. 5

Patent USD1043060 Figure 6 – Footwear — Fig. 6

Patent USD1043060 Figure 7 – Footwear — Fig. 7
