Lighting Fixture

USD1008494No. D 1,008,494designGranted 12/19/2023
Patent USD1008494 — Lighting fixture — Figure 1
Fig. 1 · Lighting Fixture

Claims (1)

Claim 1 (Independent)

The ornamental design for a “lighting fixture”, as shown and described.

Full Description

Show full text →

is a perspective view showing my design;

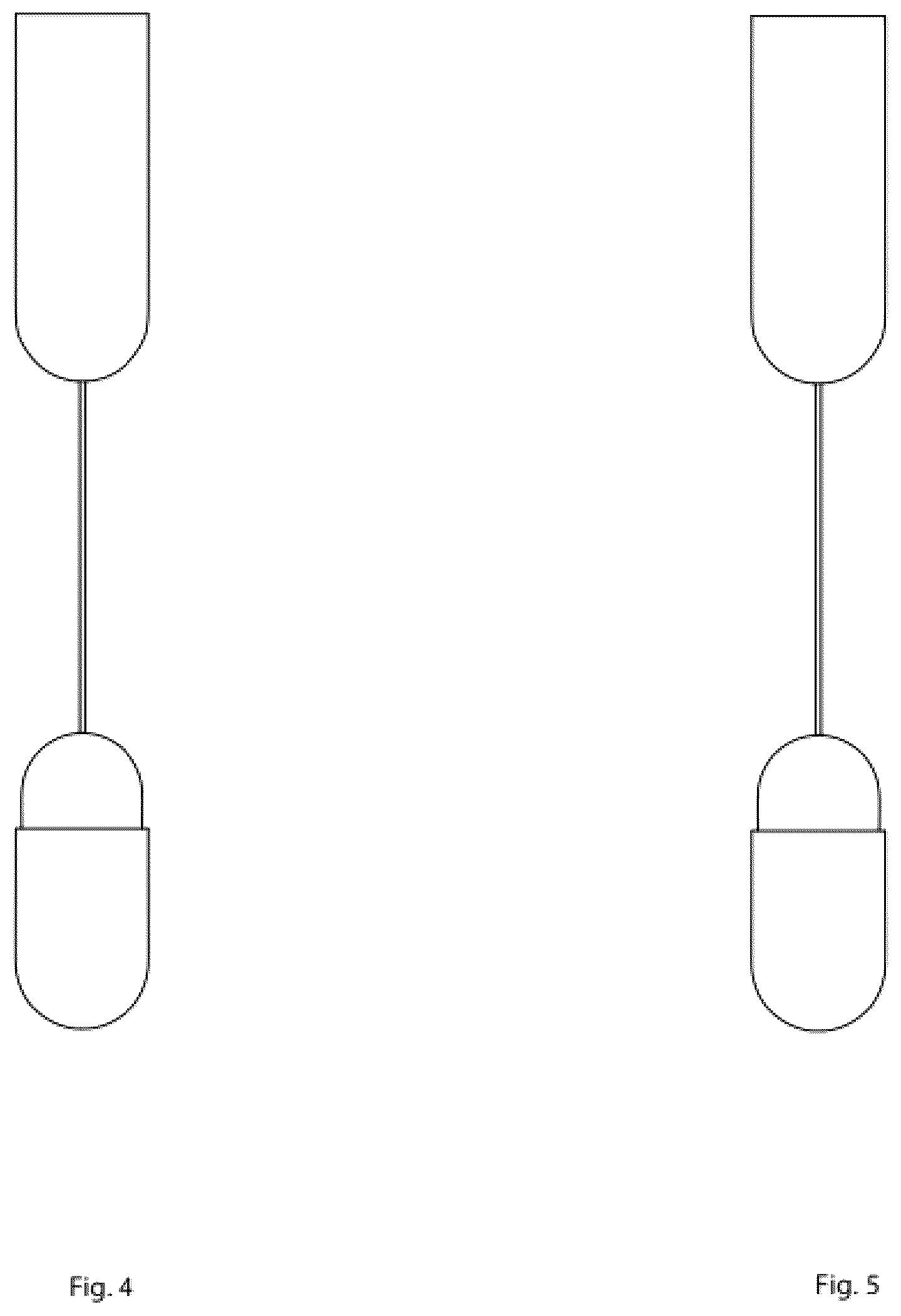

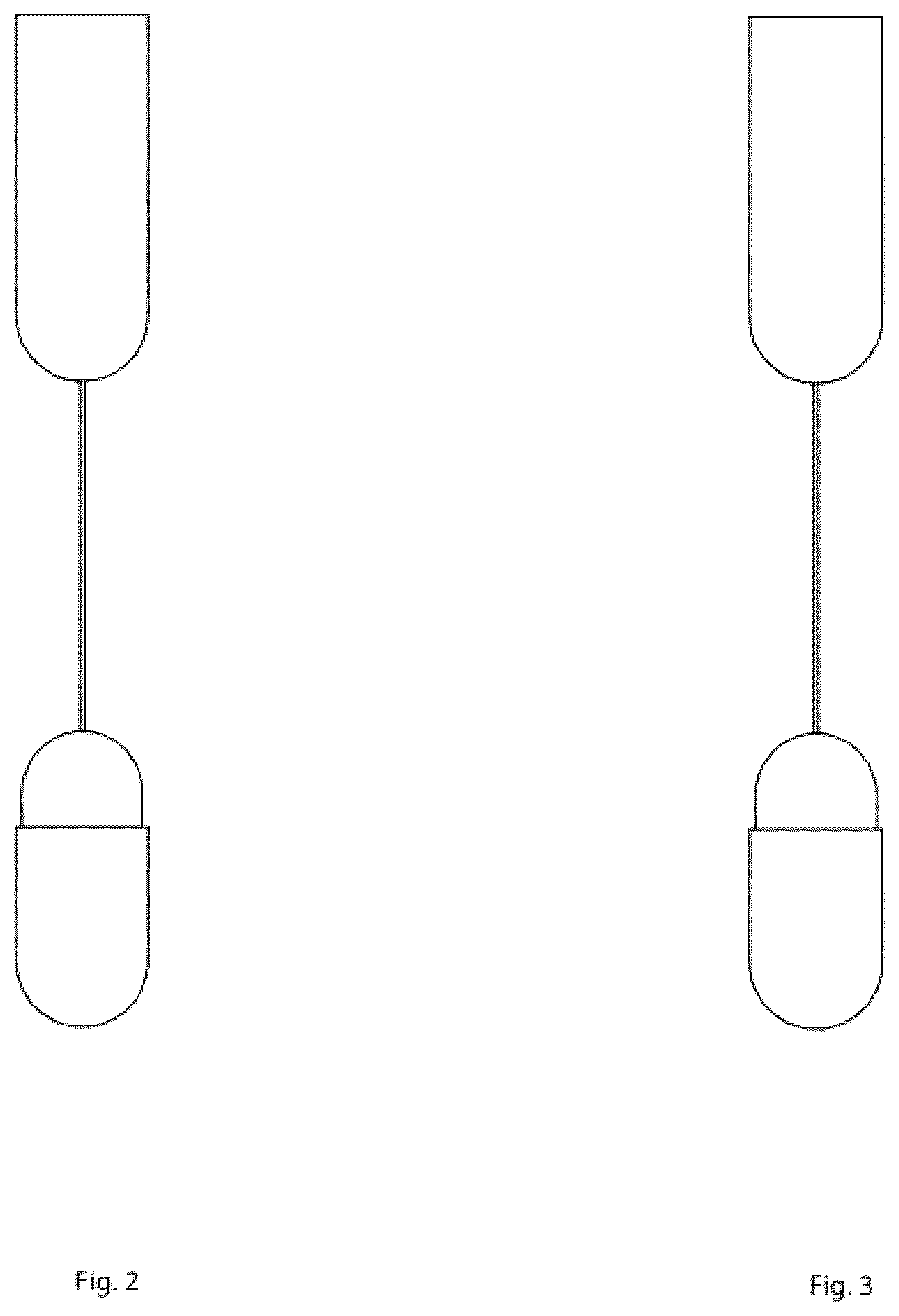

is a front elevational view thereof;

is a rear elevational view thereof;

is a right side elevational view thereof;

is a left side elevational view thereof;

is a top plan view thereof; and,

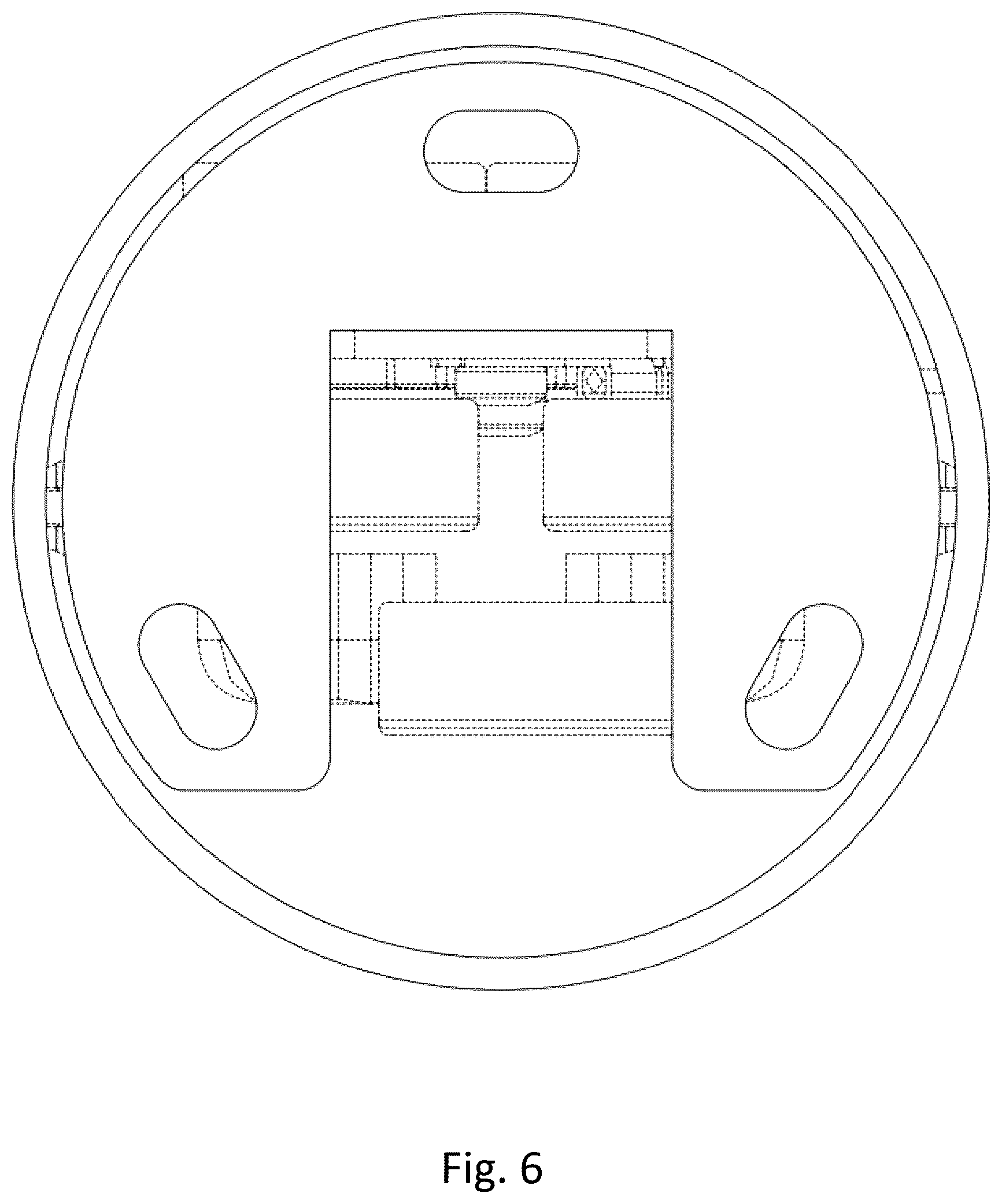

is a bottom plan view thereof.

The broken lines in the drawings illustrate portions of the lighting fixture that form not part of the claimed design.
