Receiver of Dog Training Collar

USD1002129No. D 1,002,129designGranted 10/17/2023

Patent USD1002129 — Receiver of dog training collar — Figure 1 — Fig. 1 · Receiver of Dog Training Collar

Claims (1)

Claim 1 (Independent)

The ornamental design for a receiver of dog training collar, as shown and described.

Full Description

Show full text →

is a front, left and bottom perspective view of a receiver of dog training collar, showing my new design;

is a rear, right and top perspective view thereof;

is a front view thereof;

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

is a top plan view thereof; and,

is a bottom plan view thereof.

The broken lines shown in the drawings illustrate portions of the receiver of dog training collar that form no part of the claimed design.

Figures (8)

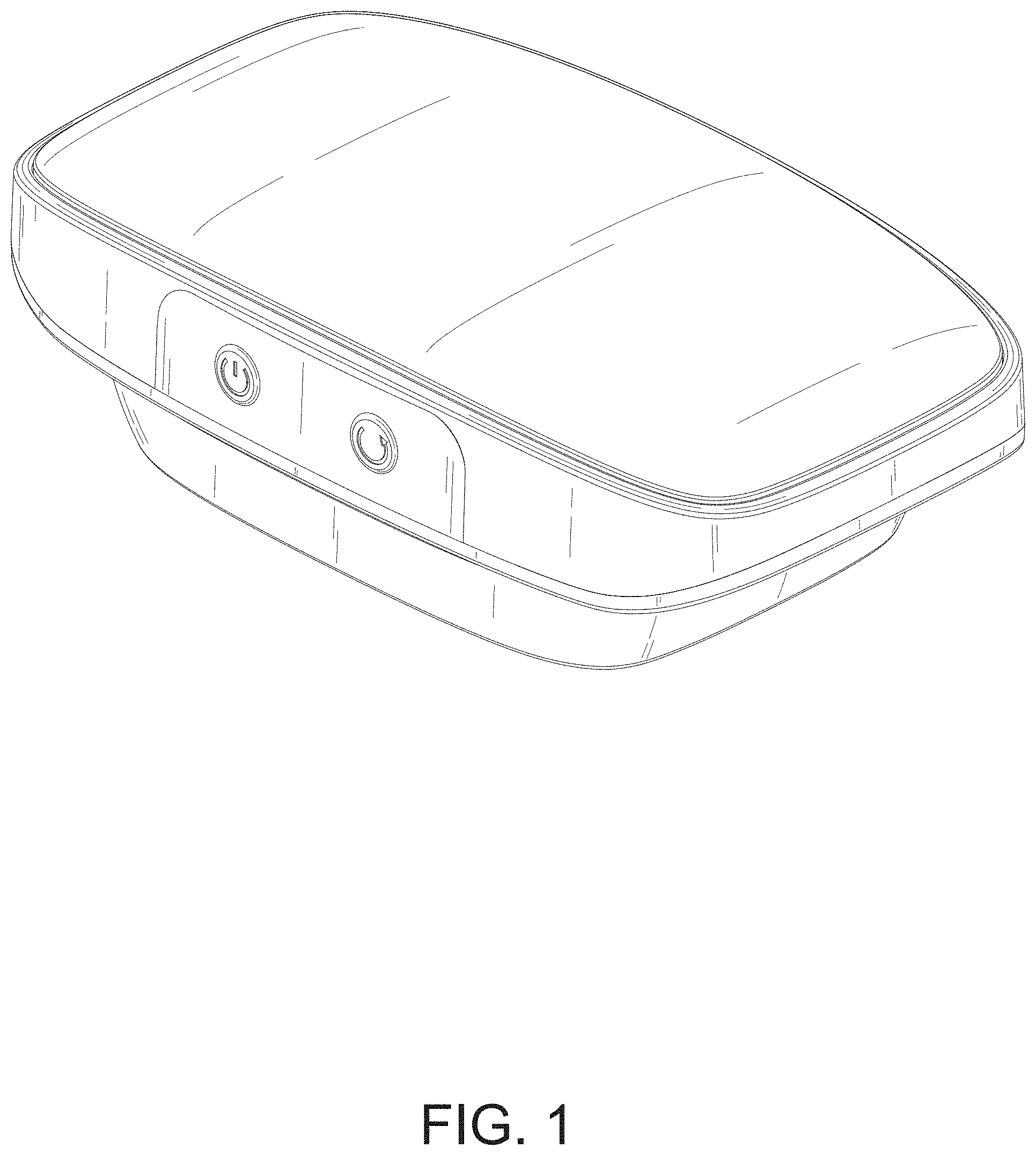

Patent USD1002129 Figure 1 – Receiver of dog training collar — Fig. 1

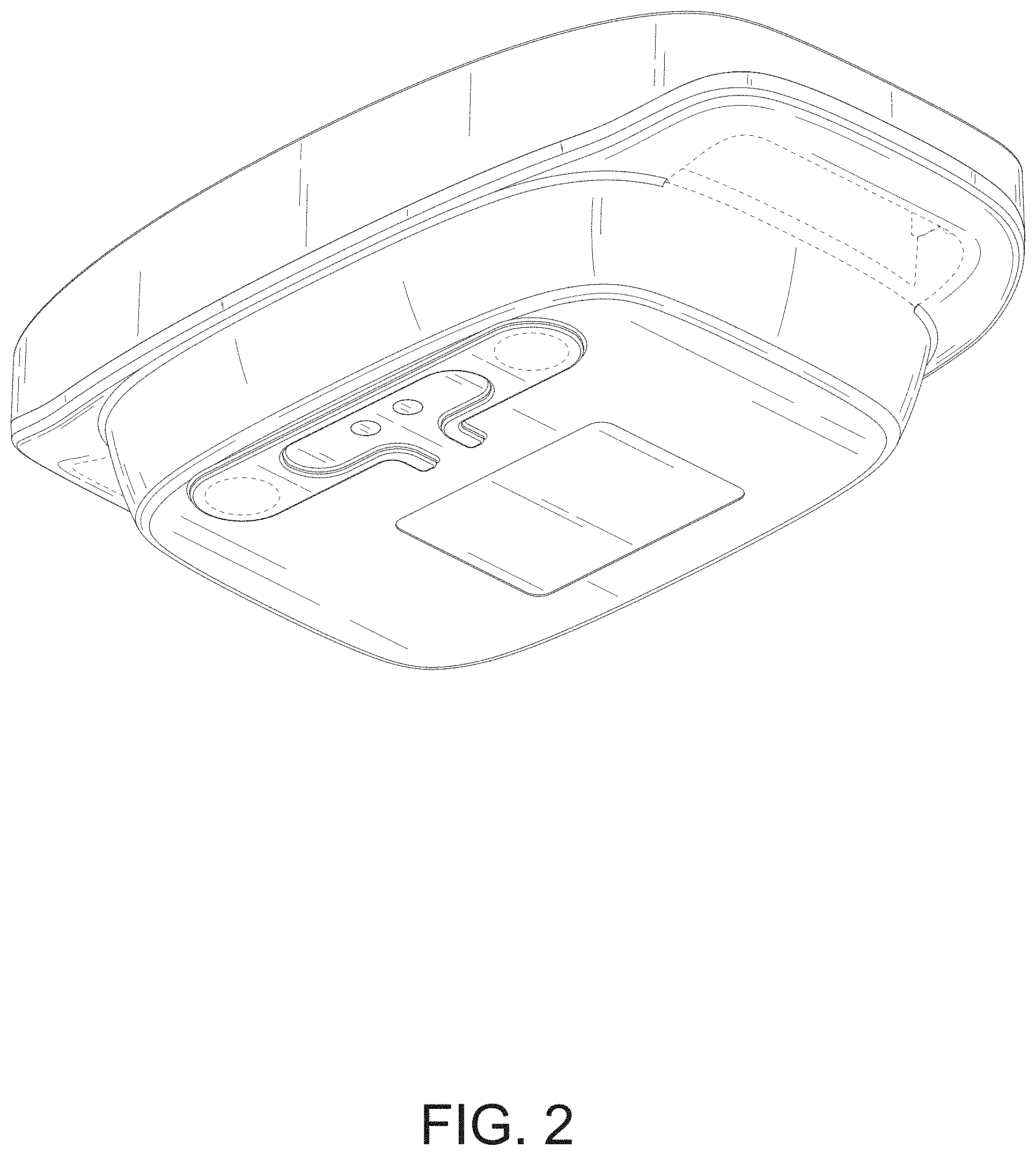

Patent USD1002129 Figure 2 – Receiver of dog training collar — Fig. 2

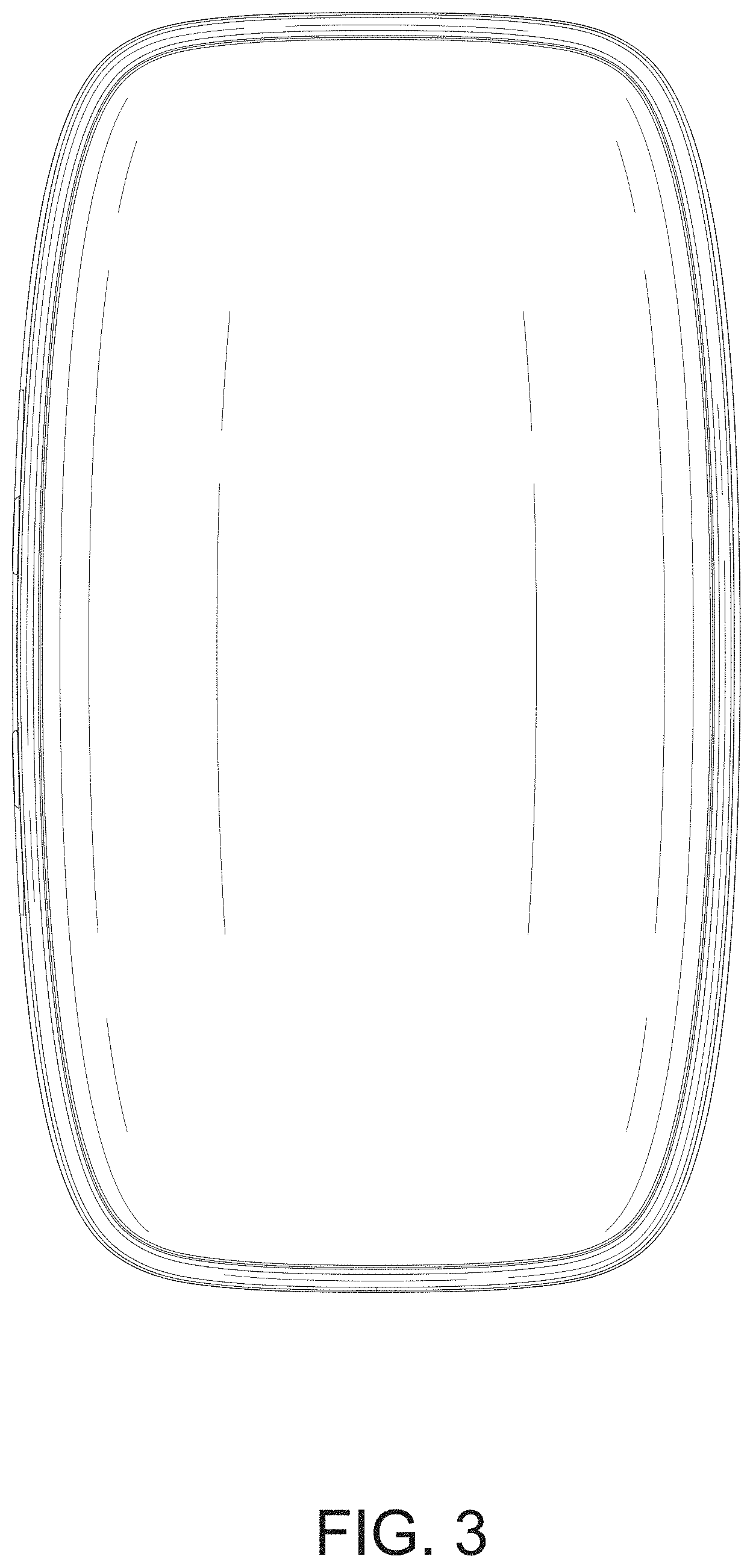

Patent USD1002129 Figure 3 – Receiver of dog training collar — Fig. 3

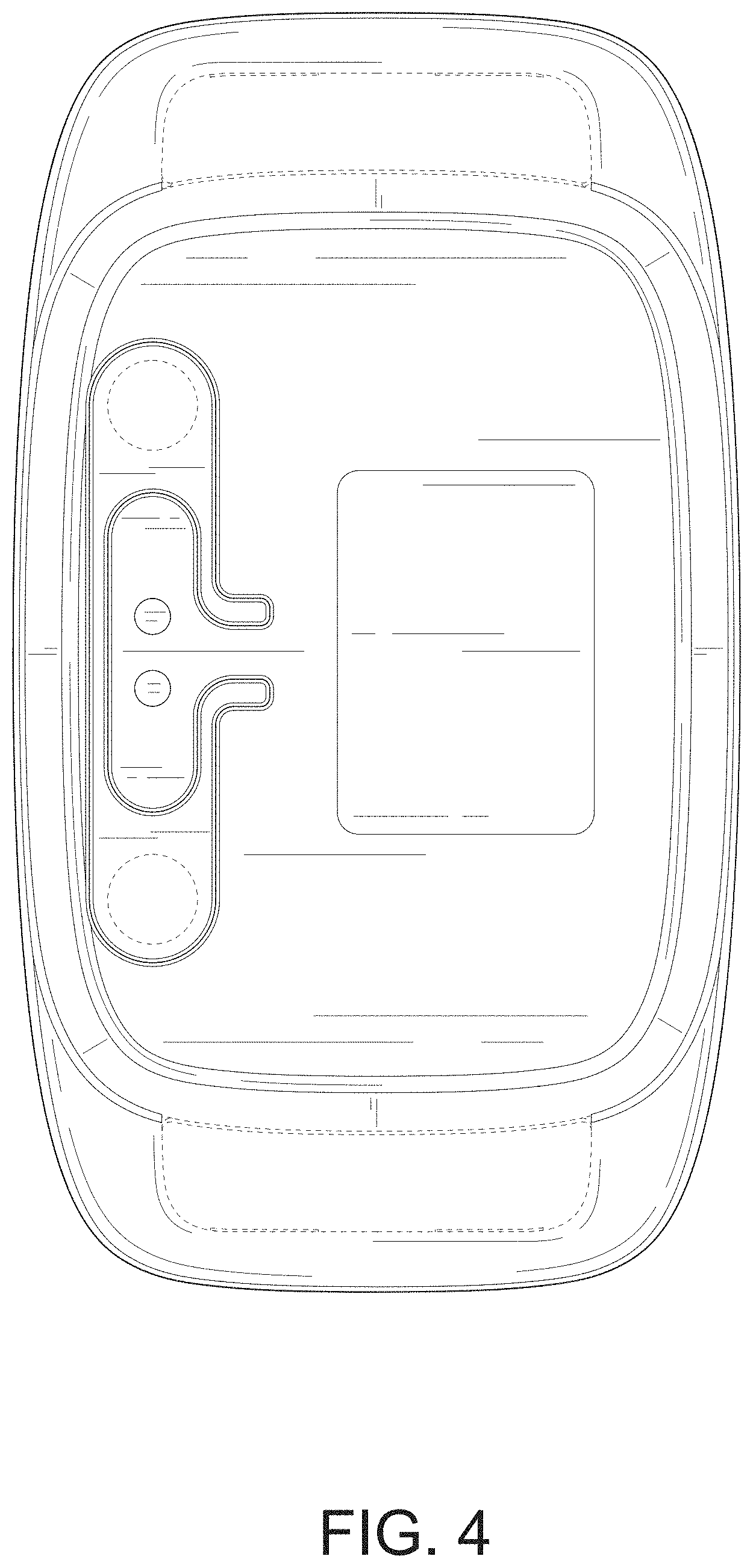

Patent USD1002129 Figure 4 – Receiver of dog training collar — Fig. 4

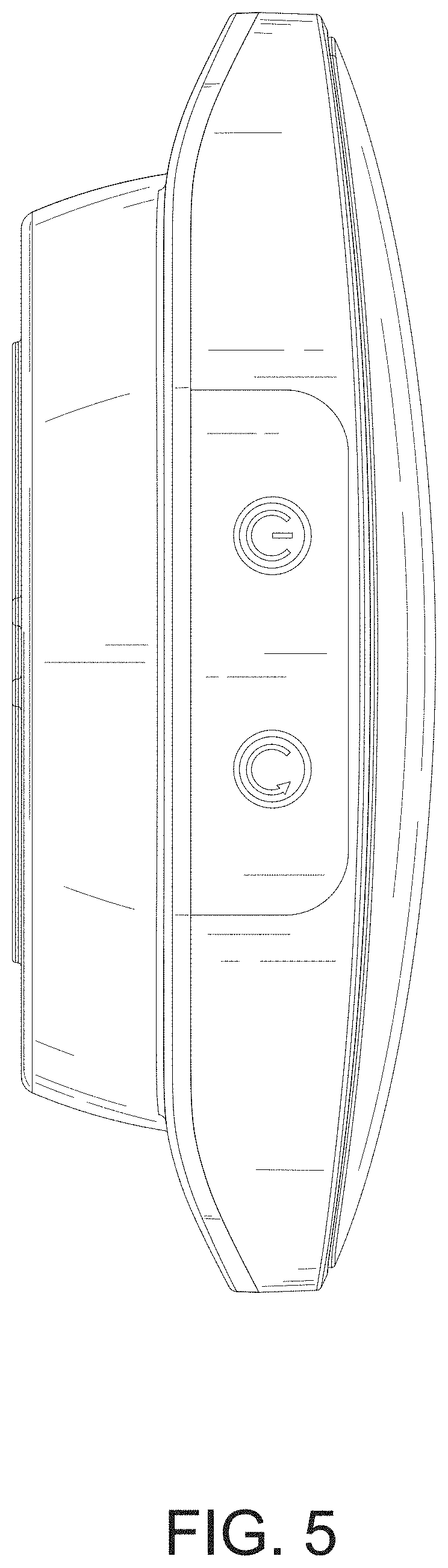

Patent USD1002129 Figure 5 – Receiver of dog training collar — Fig. 5

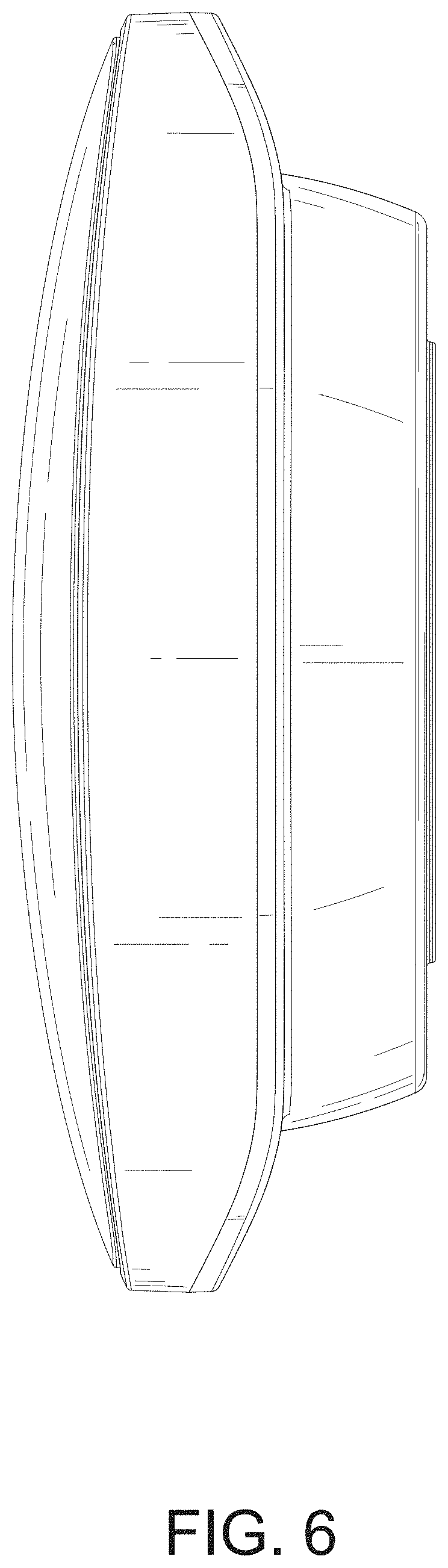

Patent USD1002129 Figure 6 – Receiver of dog training collar — Fig. 6

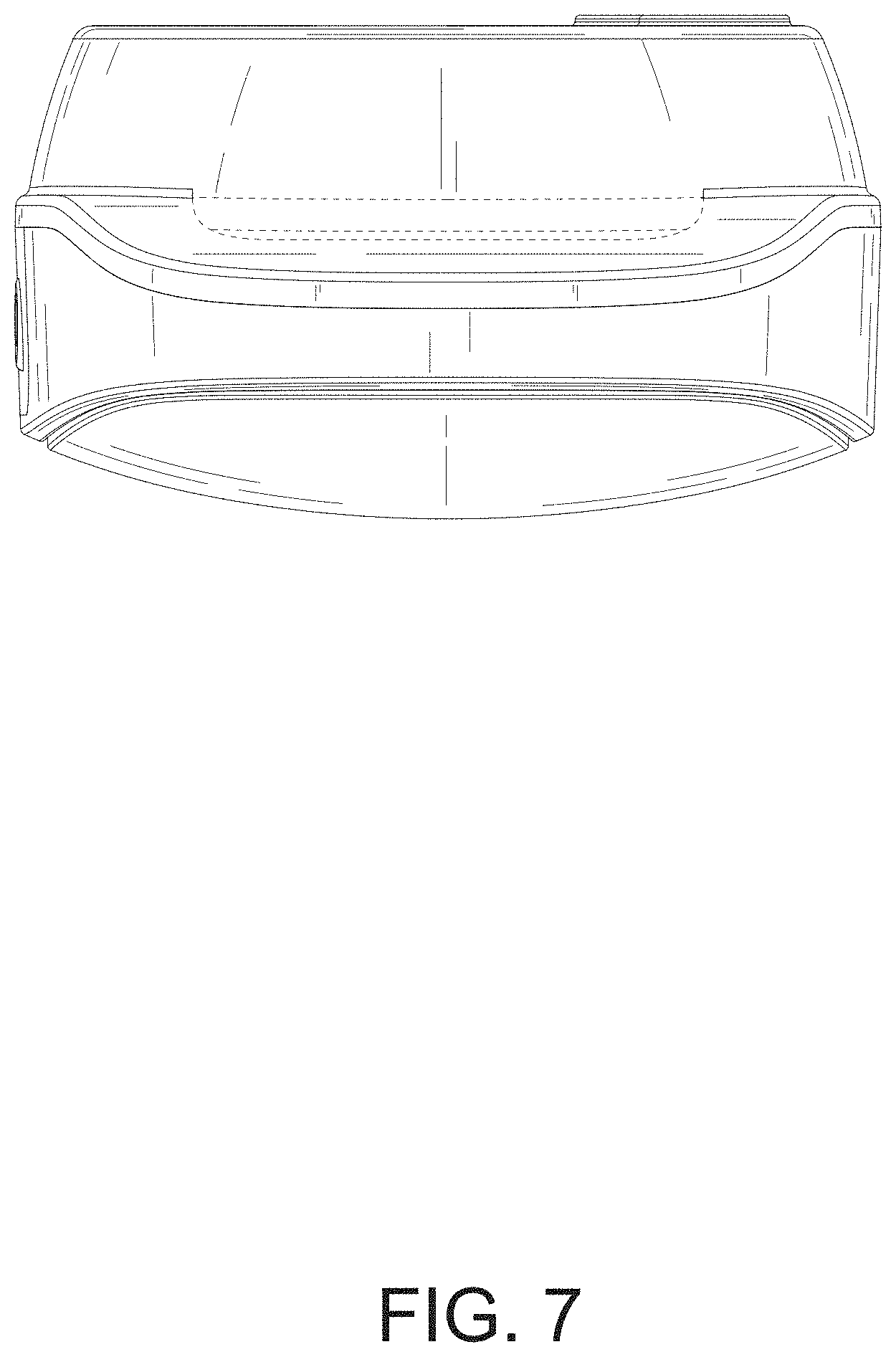

Patent USD1002129 Figure 7 – Receiver of dog training collar — Fig. 7

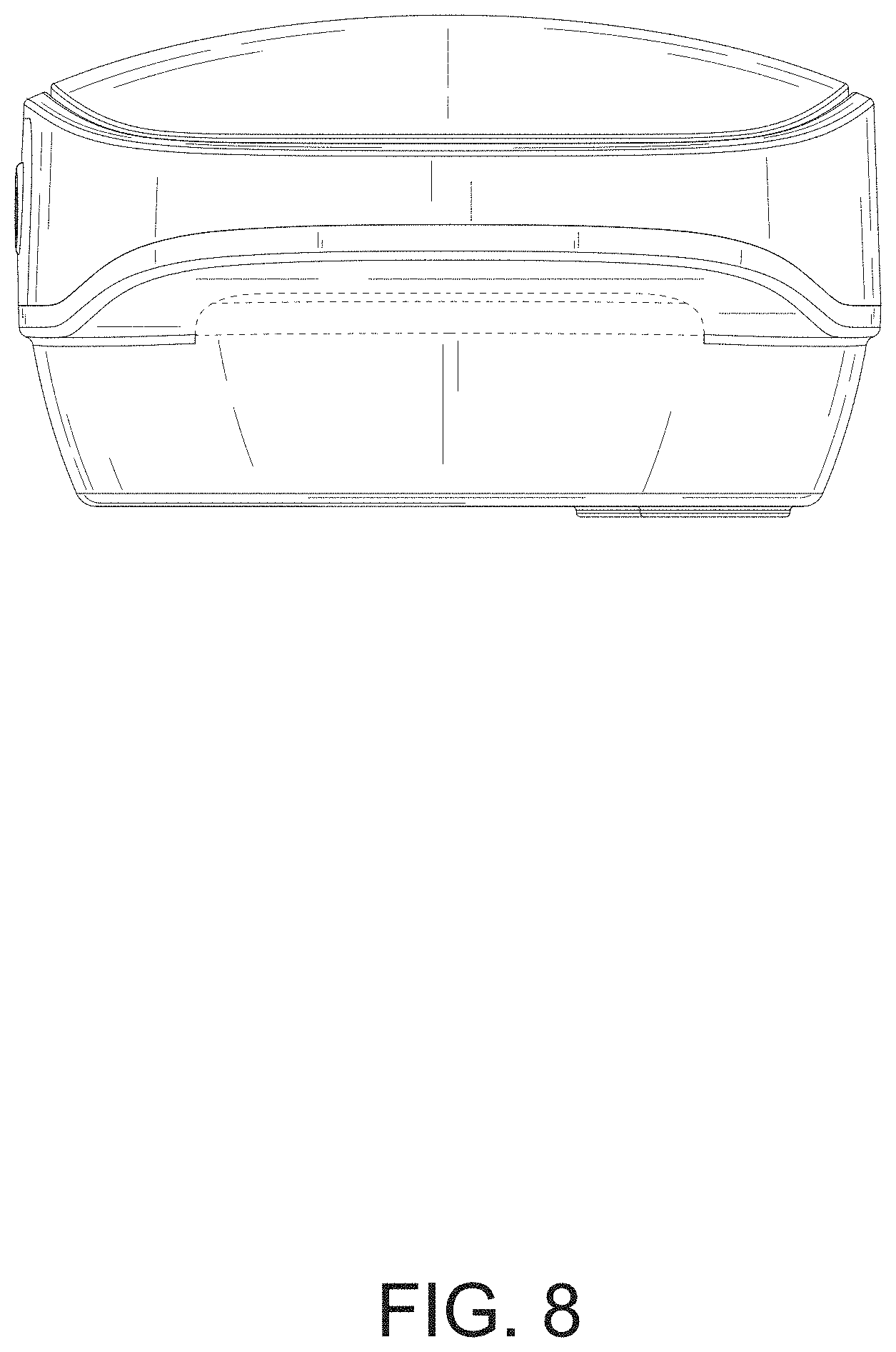

Patent USD1002129 Figure 8 – Receiver of dog training collar — Fig. 8
