Toy for Animal

USD1002125No. D 1,002,125designGranted 10/17/2023
Patent USD1002125 — Toy for animal — Figure 1
Fig. 1 · Toy for Animal

Claims (1)

Claim 1 (Independent)

The ornamental design for a toy for animal, as shown and described.

Full Description

Show full text →

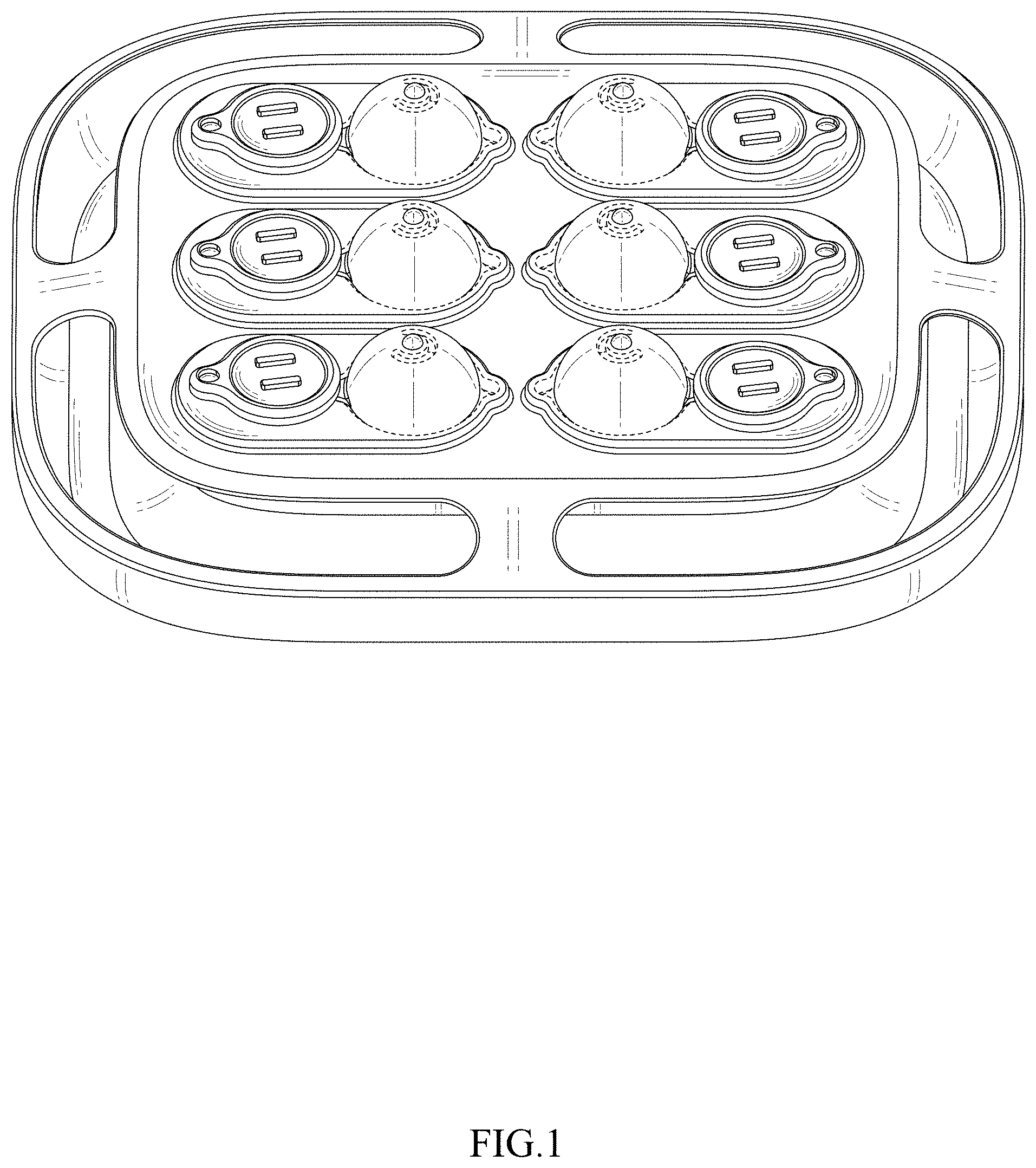

is a perspective view of a toy for animal showing my new design.

is a front view of a toy for animal.

is a rear view of a toy for animal.

is a left side view of a toy for animal.

is a right side view of a toy for animal.

is a top view of a toy for animal; and,

is a bottom view of a toy for animal.

The broken lines throughout the drawing figures depict portions of the toy for animal that form no part of the claimed design.
