Climbing Frame

USD1001946No. D 1,001,946designGranted 10/17/2023

Patent USD1001946 — Climbing frame — Figure 1 — Fig. 1 · Climbing Frame

Claims (1)

Claim 1 (Independent)

The ornamental design for a climbing frame, as shown and described.

Full Description

Show full text →

is a front view of a climbing frame showing my new design.

is a rear view of the climbing frame of .

is a top view of the climbing frame of .

is a bottom view of the climbing frame of .

is a left-side view of the climbing frame of .

is a right-side view of the climbing frame of .

is a front, top, and left-side perspective view of the climbing frame of .

is a rear, top, and right-side perspective view of the climbing frame of .

is a front, bottom, and right-side perspective view of the climbing frame of ; and,

is a front, bottom, and left-side perspective view of the climbing frame of .

Figures (10)

Patent USD1001946 Figure 1 – Climbing frame — Fig. 1

Patent USD1001946 Figure 2 – Climbing frame — Fig. 2

Patent USD1001946 Figure 3 – Climbing frame — Fig. 3

Patent USD1001946 Figure 4 – Climbing frame — Fig. 4

Patent USD1001946 Figure 5 – Climbing frame — Fig. 5

Patent USD1001946 Figure 6 – Climbing frame — Fig. 6

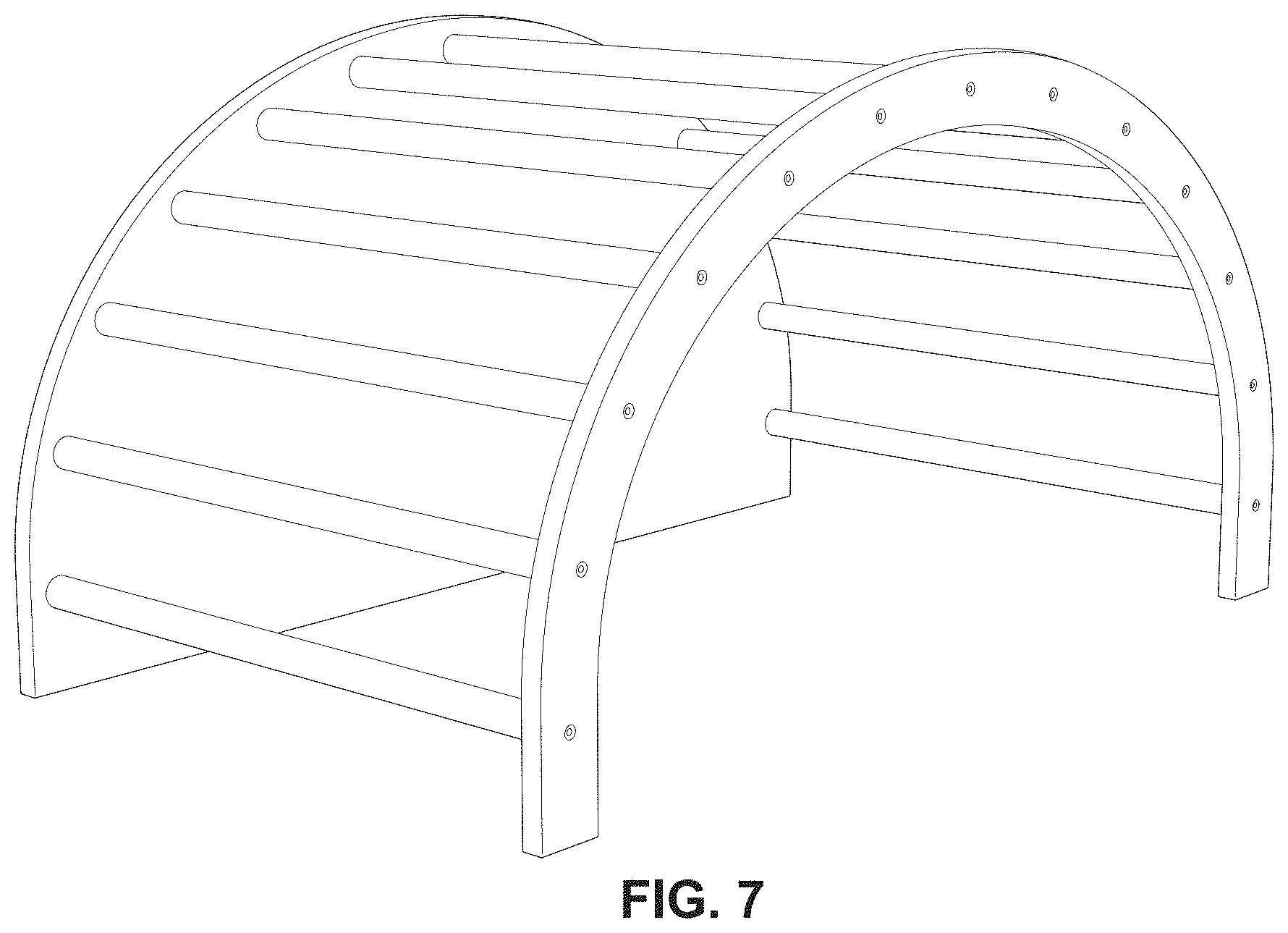

Patent USD1001946 Figure 7 – Climbing frame — Fig. 7

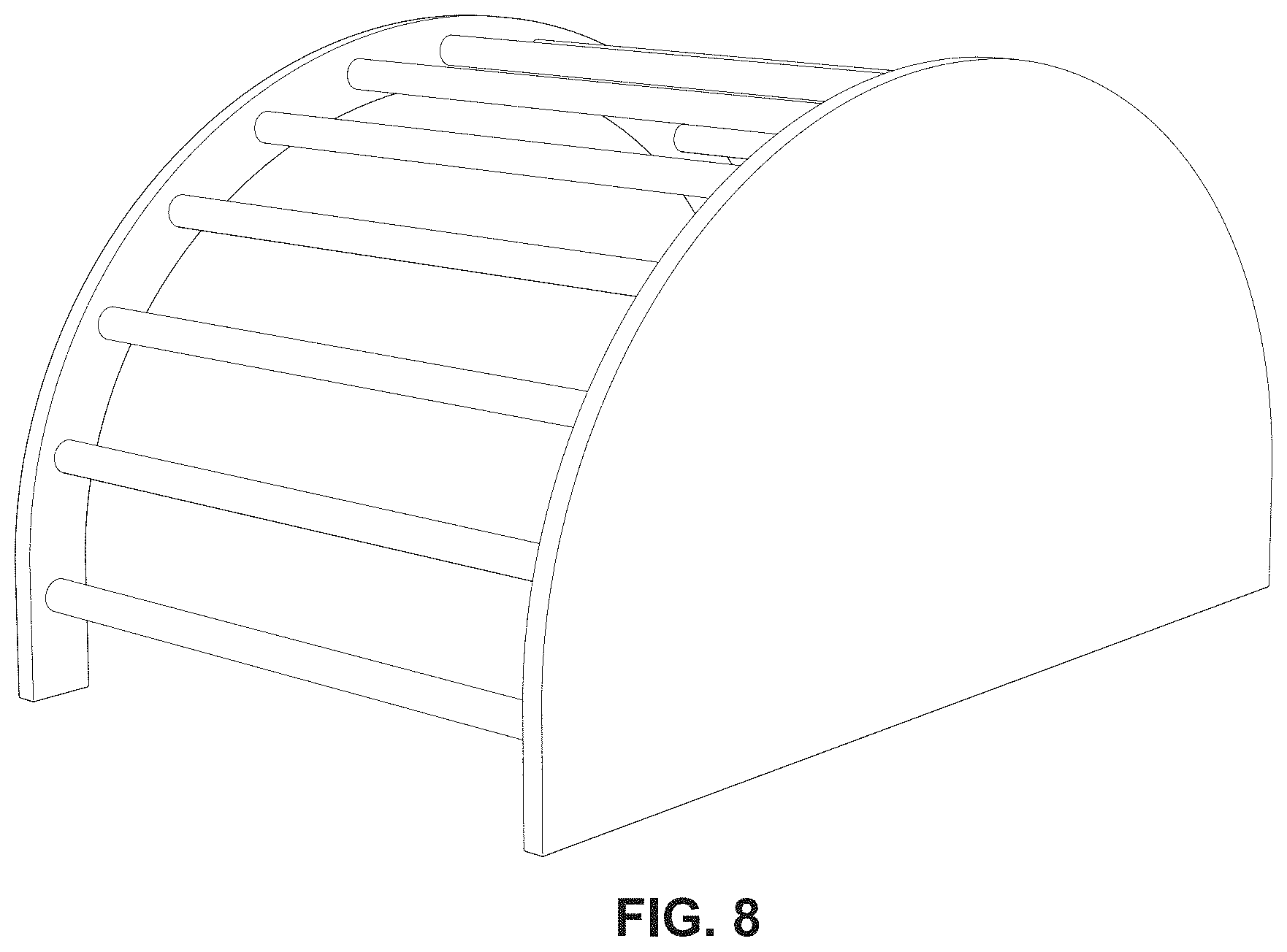

Patent USD1001946 Figure 8 – Climbing frame — Fig. 8

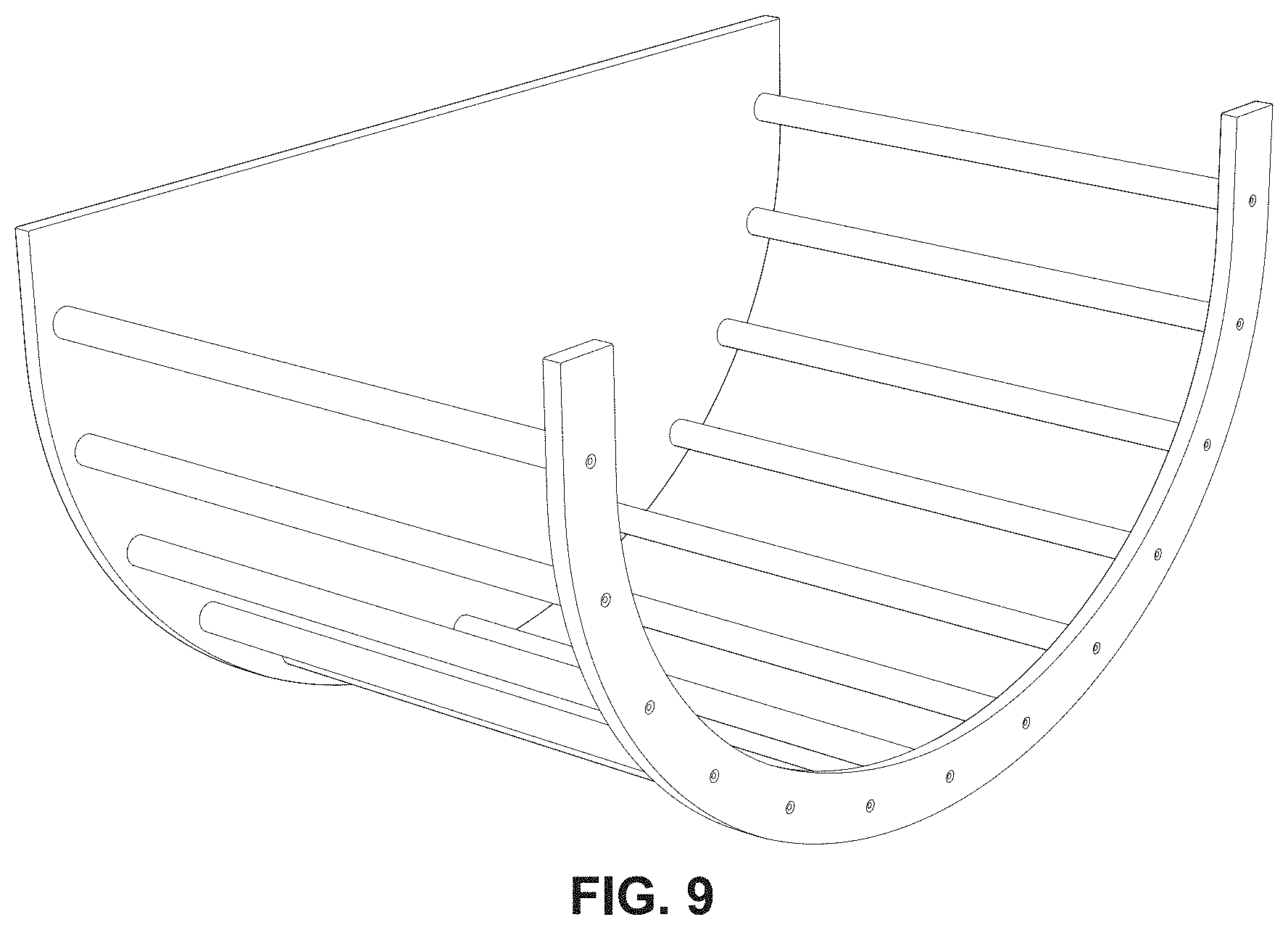

Patent USD1001946 Figure 9 – Climbing frame — Fig. 9

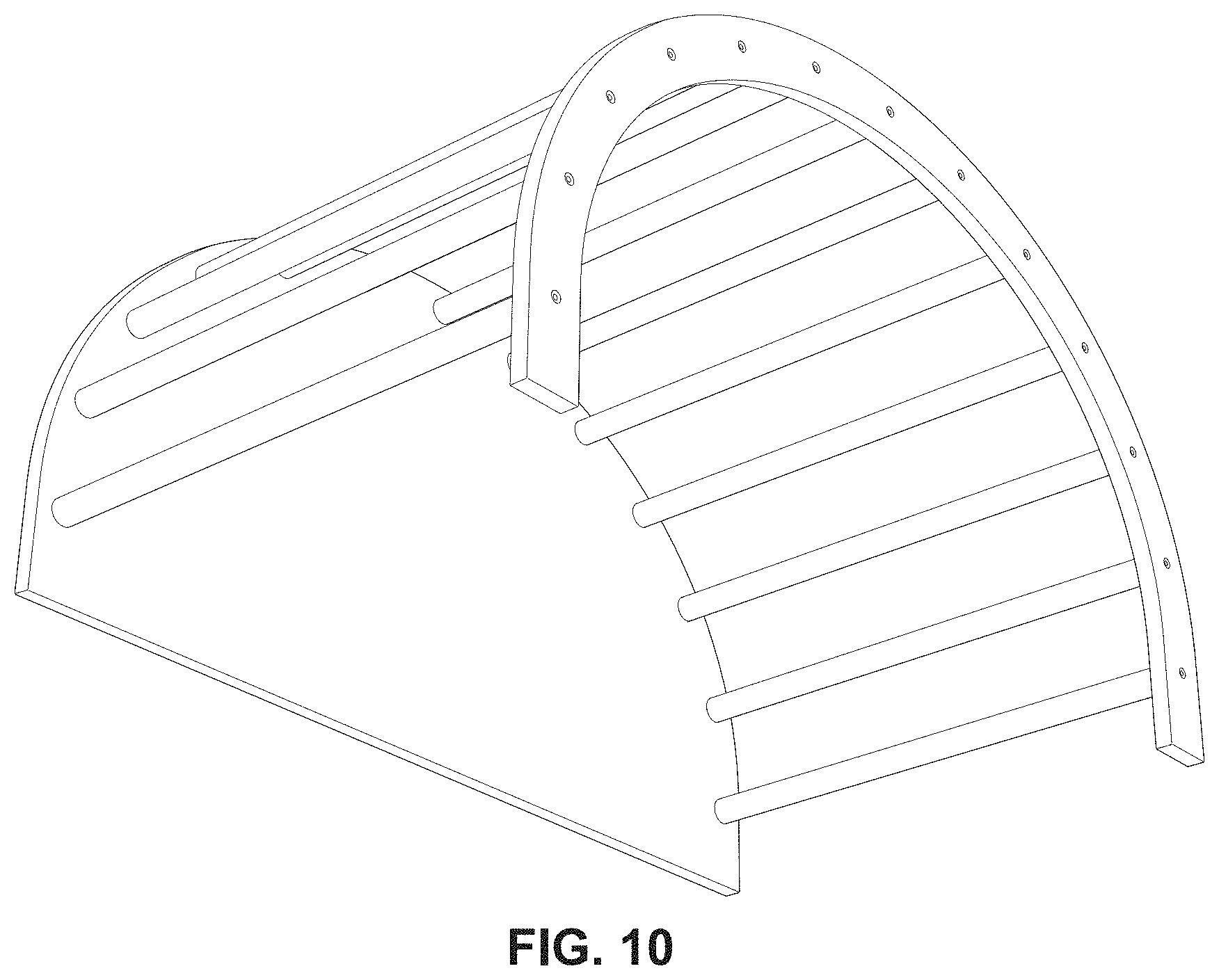

Patent USD1001946 Figure 10 – Climbing frame — Fig. 10
