Magnifier

USD1001863No. D 1,001,863designGranted 10/17/2023
Patent USD1001863 — Magnifier — Figure 1
Fig. 1 · Magnifier

Claims (1)

Claim 1 (Independent)

The ornamental design for a magnifier, as shown and described.

Full Description

Show full text →

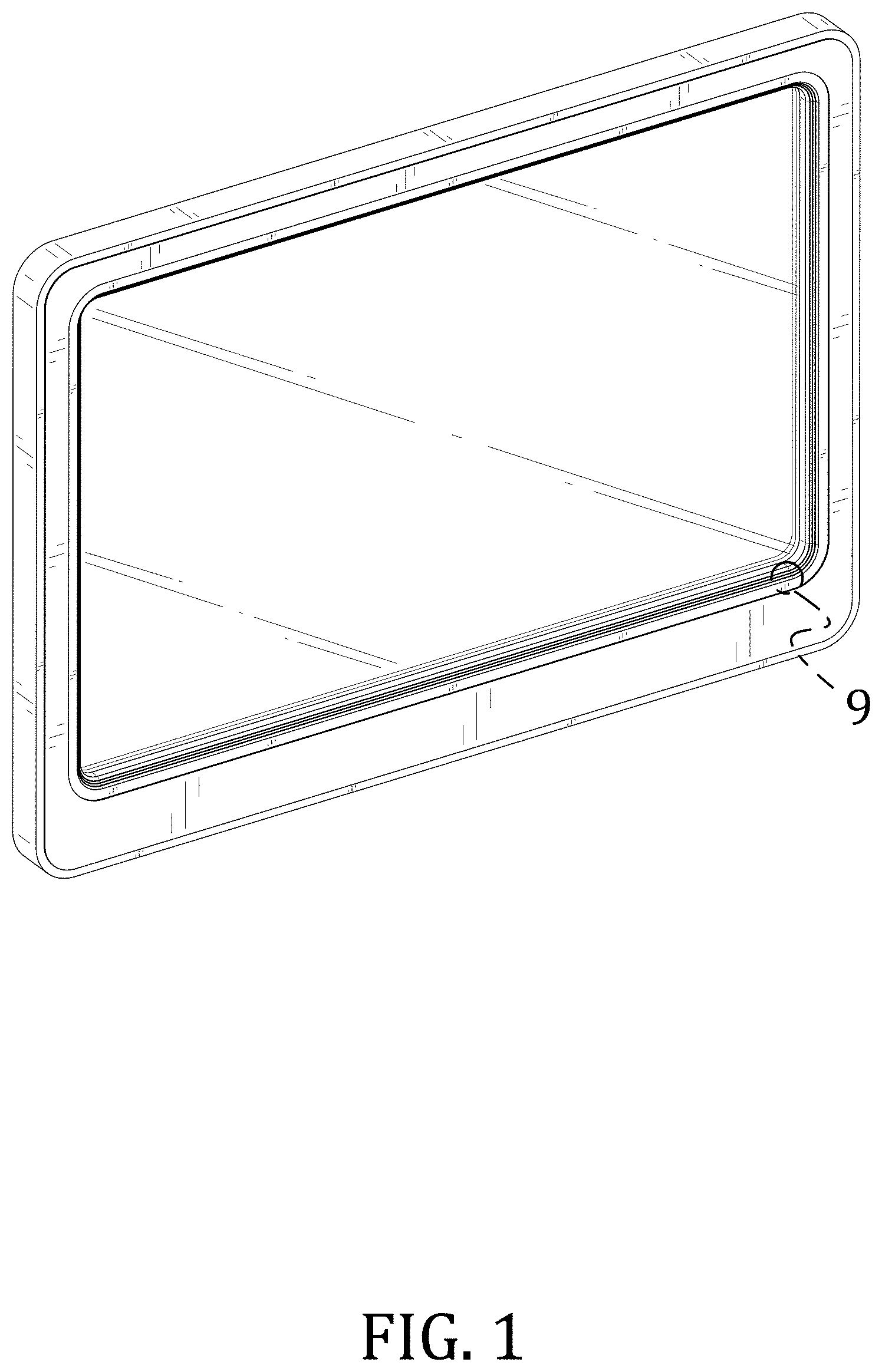

is a front perspective view of a magnifier, showing my new design;

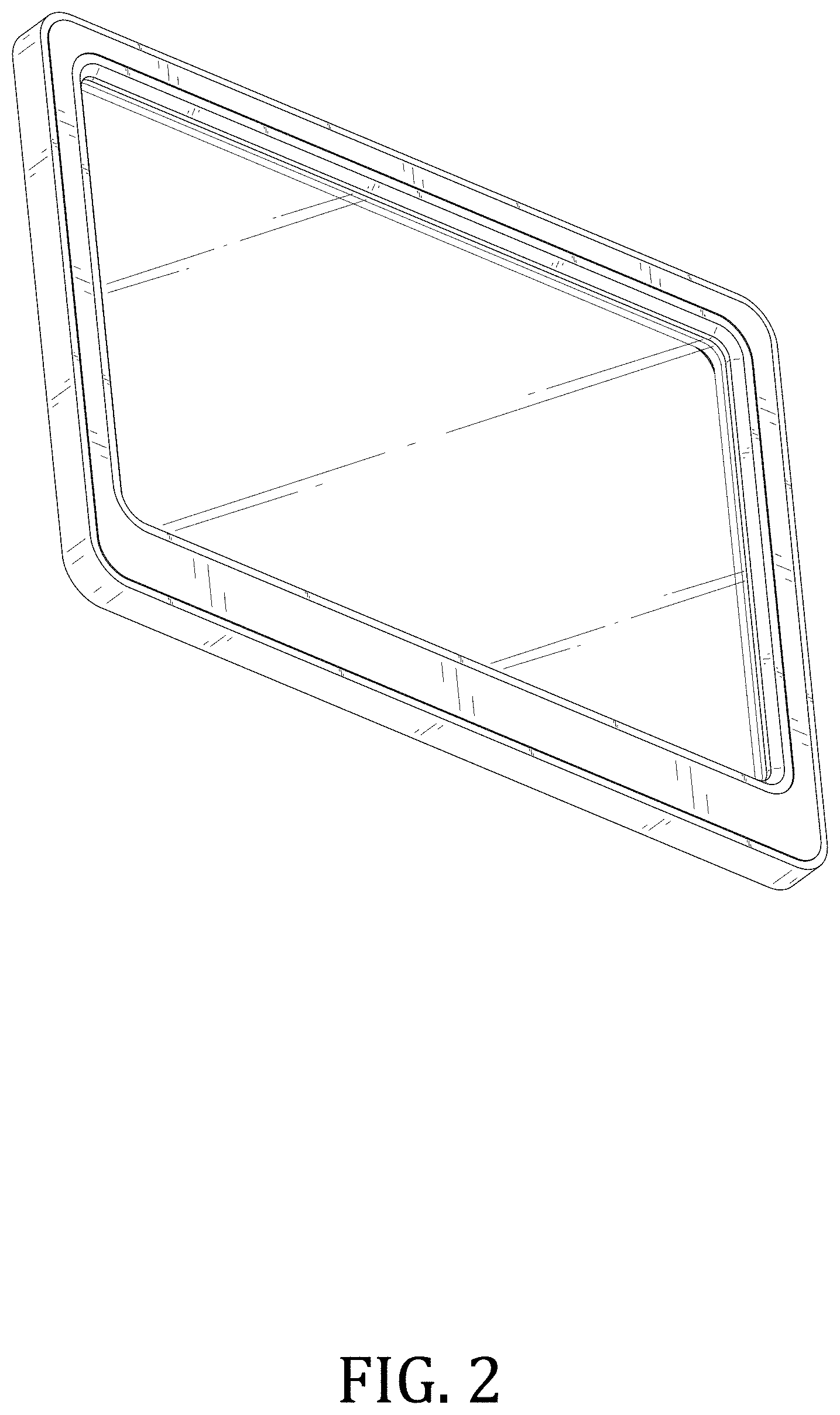

is a rear perspective view thereof;

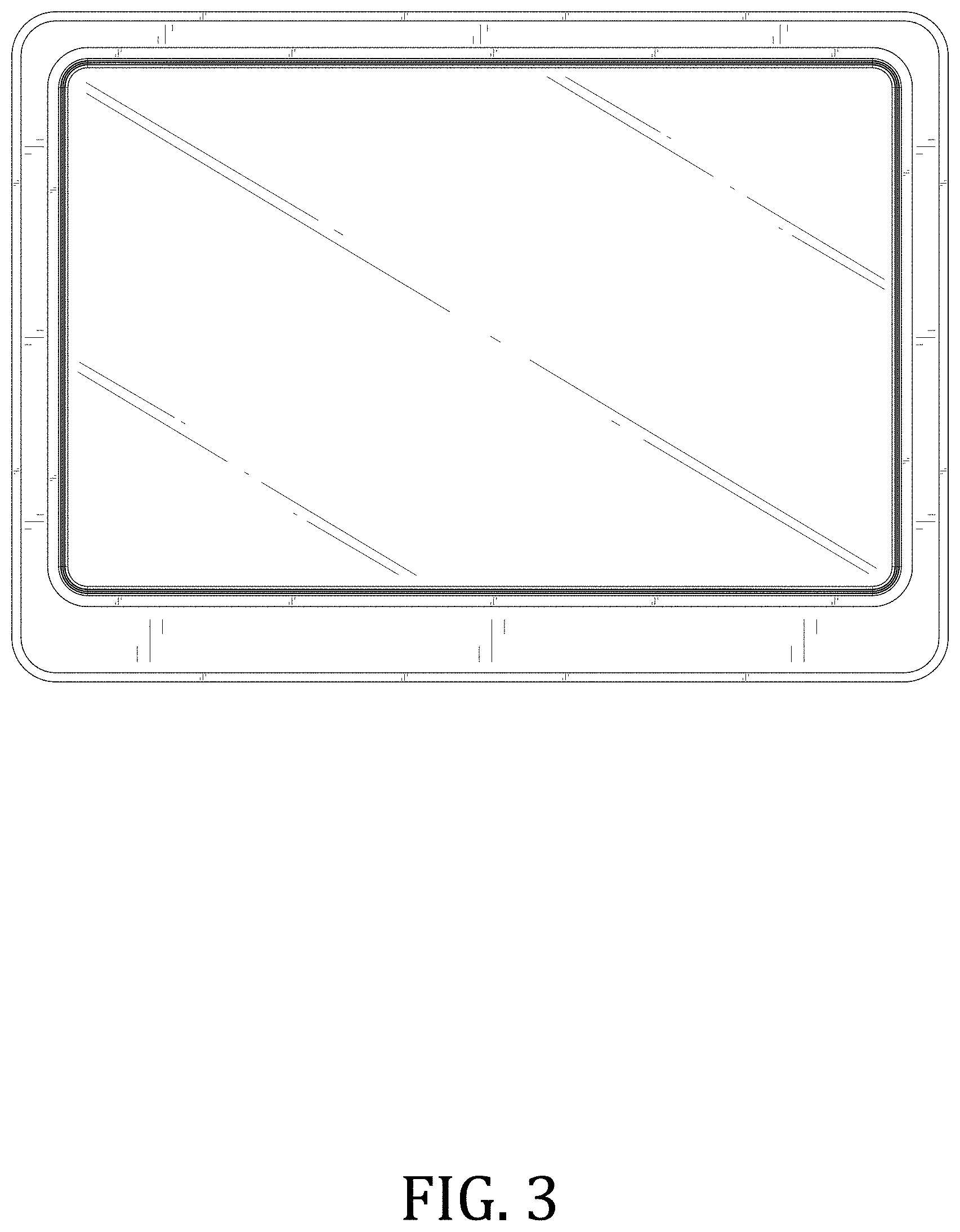

is a front view thereof;

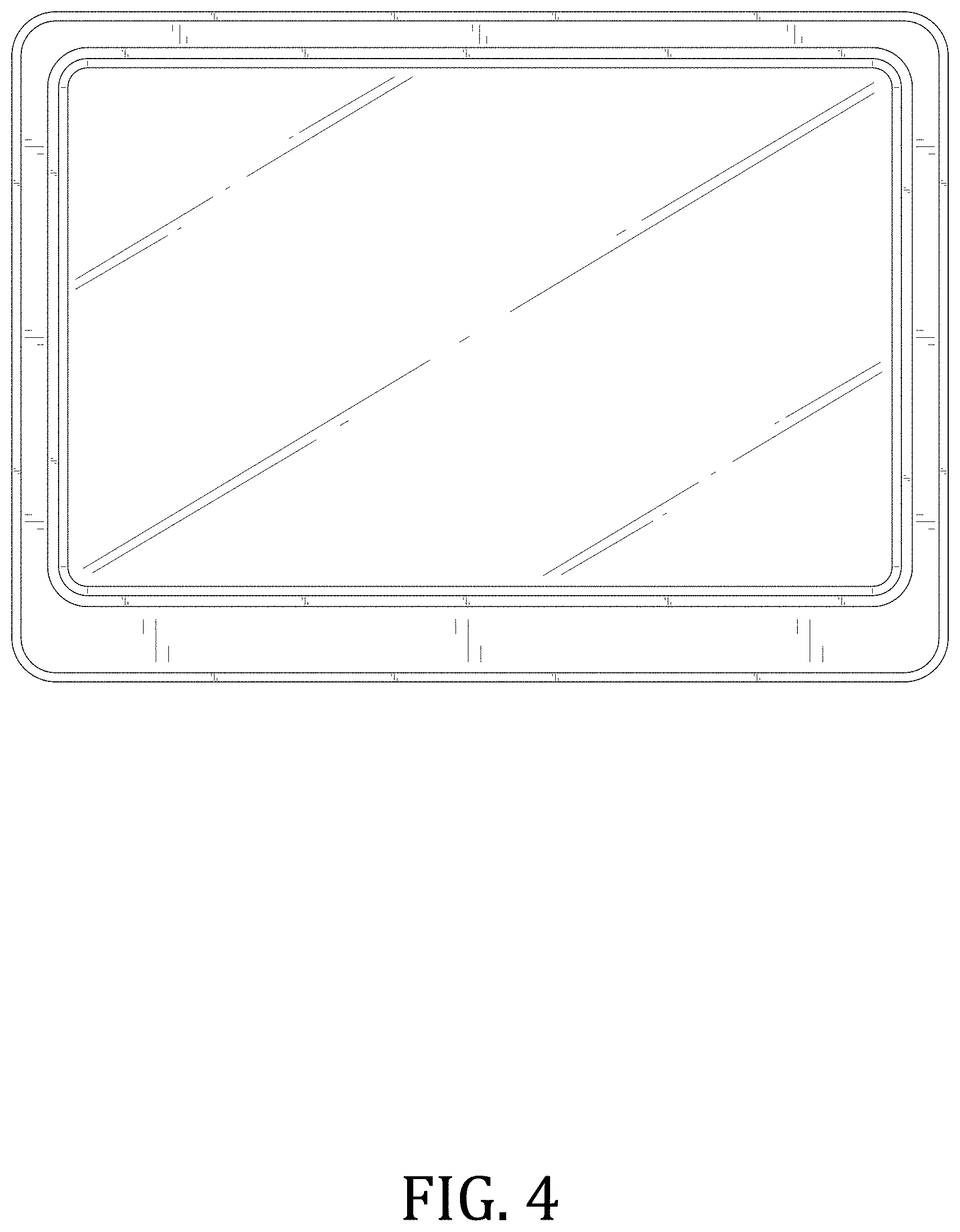

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

is a top view thereof;

is a bottom view thereof; and,

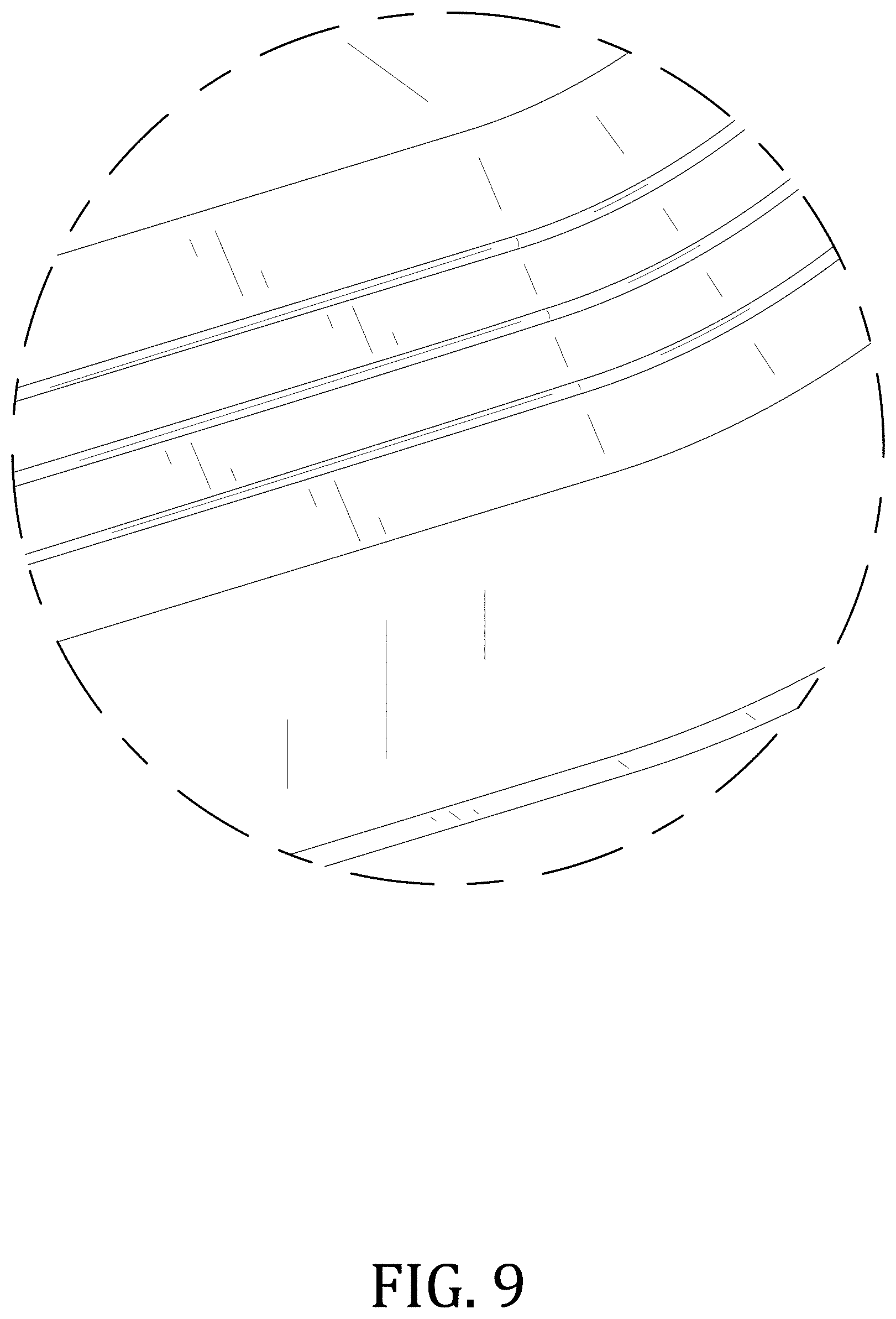

is a partial enlargement of .

The broken lines in demarcate the enlarged view and form no part of the claimed design.
