Container

USD1001641No. D 1,001,641designGranted 10/17/2023

Patent USD1001641 — Container — Figure 1 — Fig. 1 · Container

Claims (1)

Claim 1 (Independent)

The ornamental design for a container, as shown and described.

Full Description

Show full text →

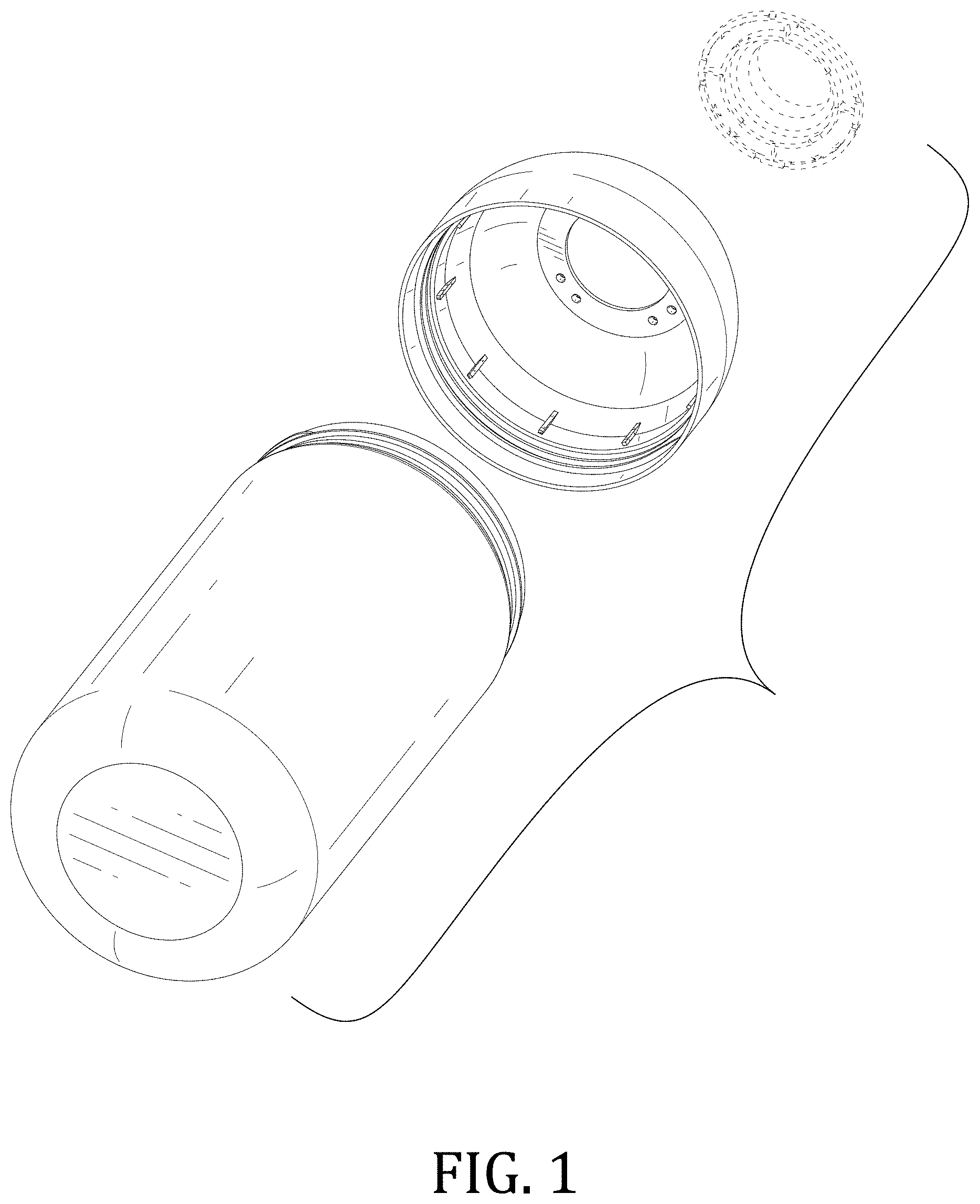

is an exploded bottom perspective view of a first embodiment of a container, showing my new design;

is a top perspective view thereof;

is a front view thereof;

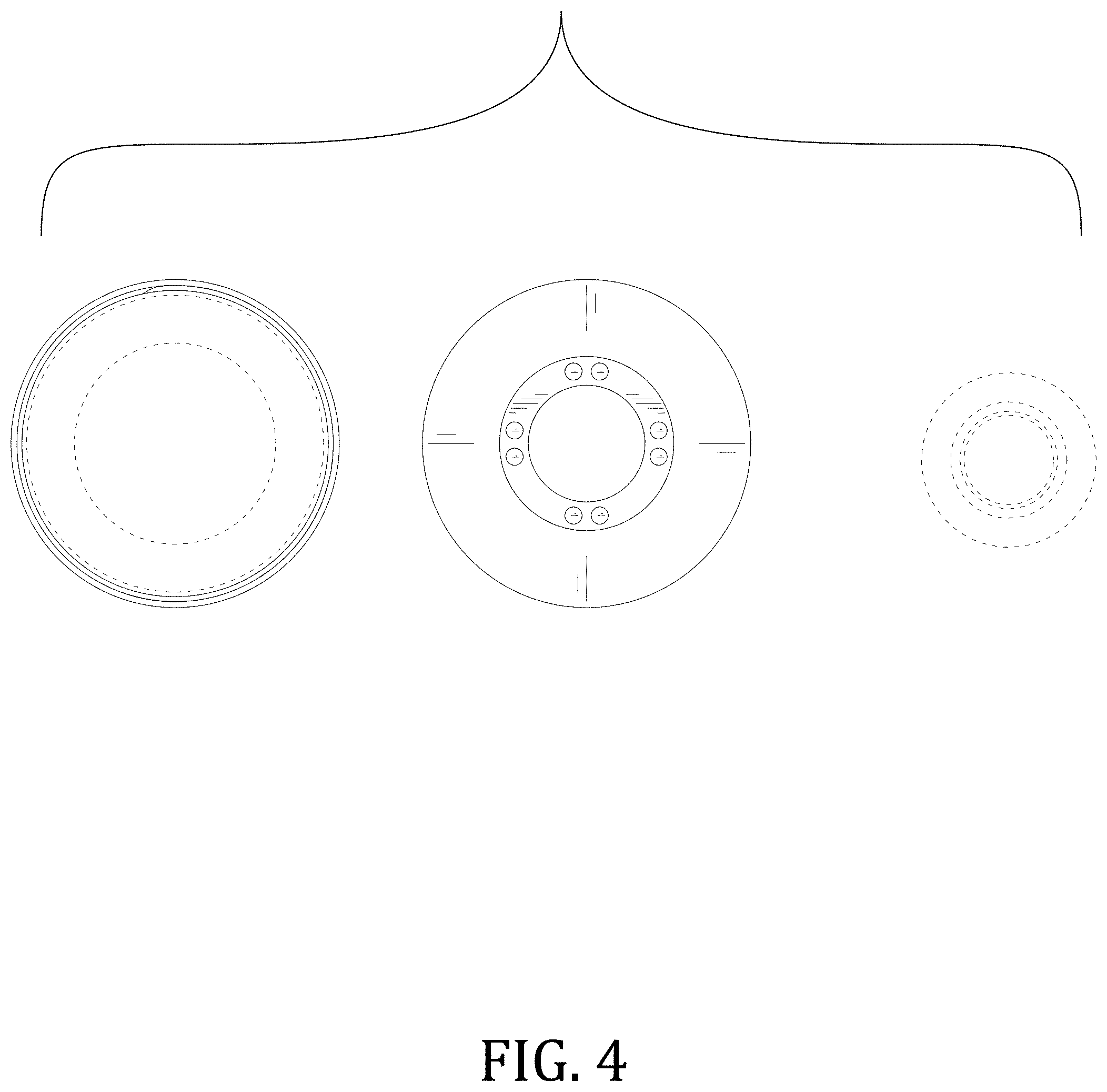

is a top view of each component positioned side by side;

is a bottom view thereof;

is a front view shown in an assembled configuration;

is a bottom perspective view of a second embodiment, showing a component independently to show aspects of the design not visible when combined;

is a front view thereof;

is a top view thereof;

is a bottom view thereof;

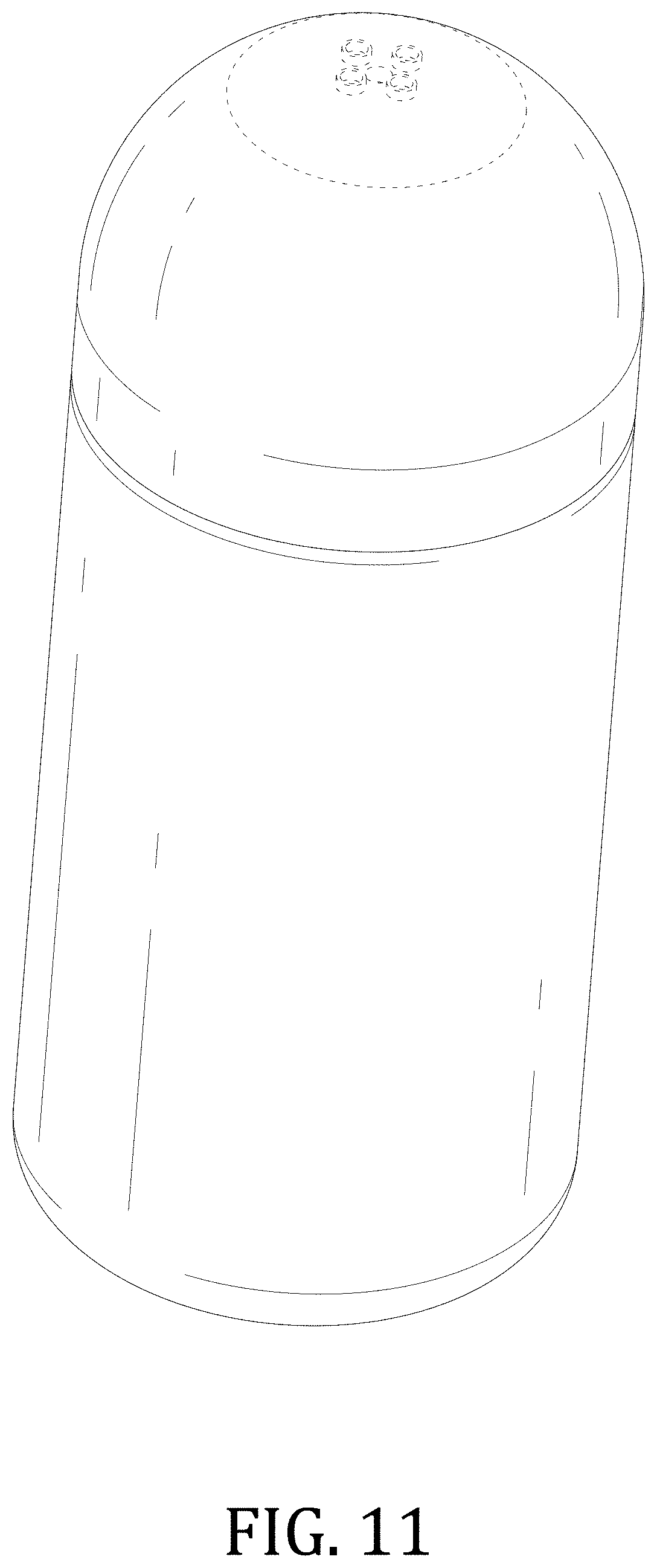

is a top perspective view thereof in an assembled configuration;

is a bottom perspective view of a third embodiment;

is a front view thereof;

is a rear view thereof;

is a top view thereof;

is a bottom view thereof; and,

is a top perspective view of a third embodiment, showing a component independently to show aspects of the design not visible when combined.

The broken lines in the drawings illustrate the portions of the container, which form no part of the claimed design.

Figures (17)

Patent USD1001641 Figure 1 – Container — Fig. 1

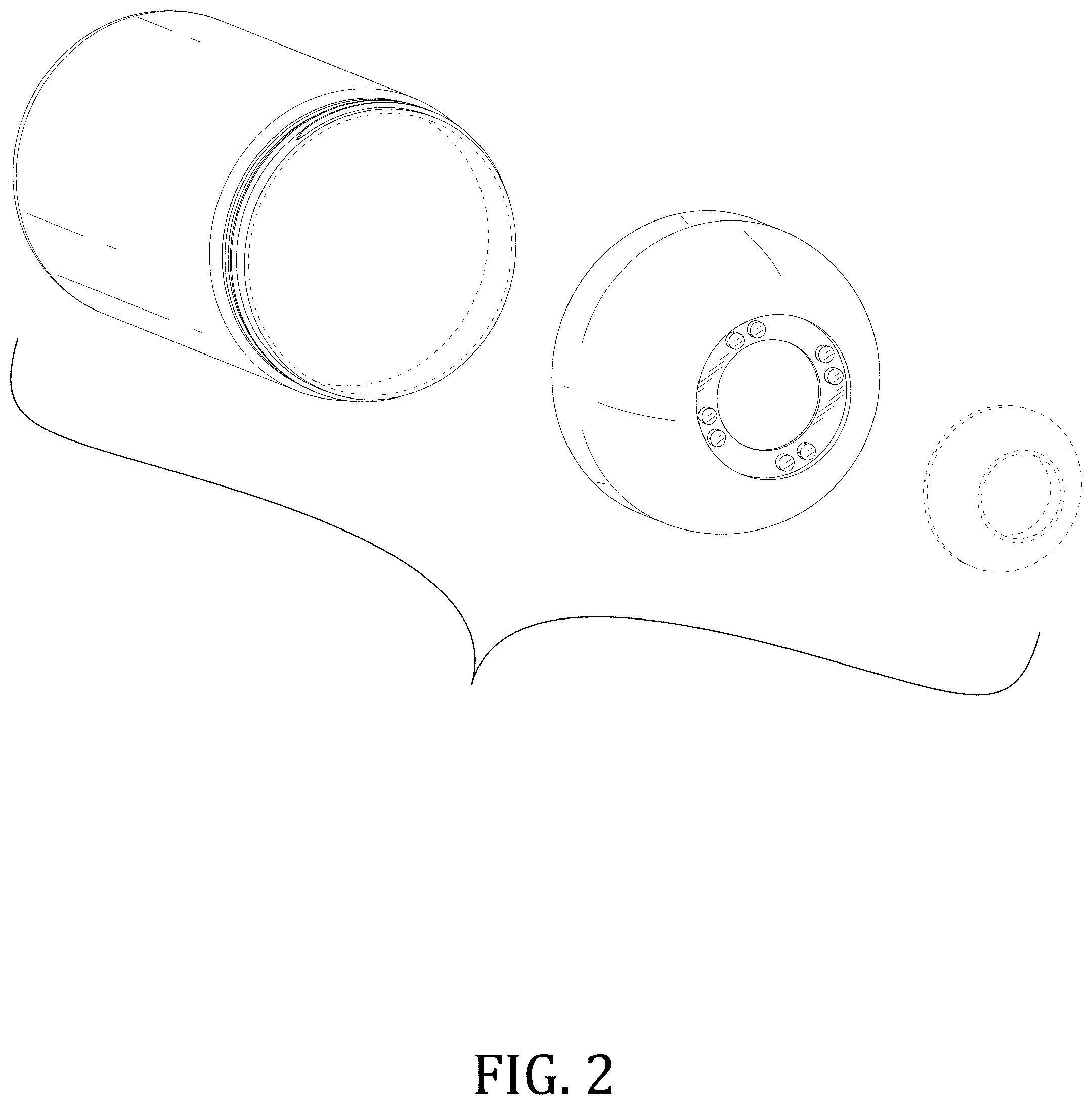

Patent USD1001641 Figure 2 – Container — Fig. 2

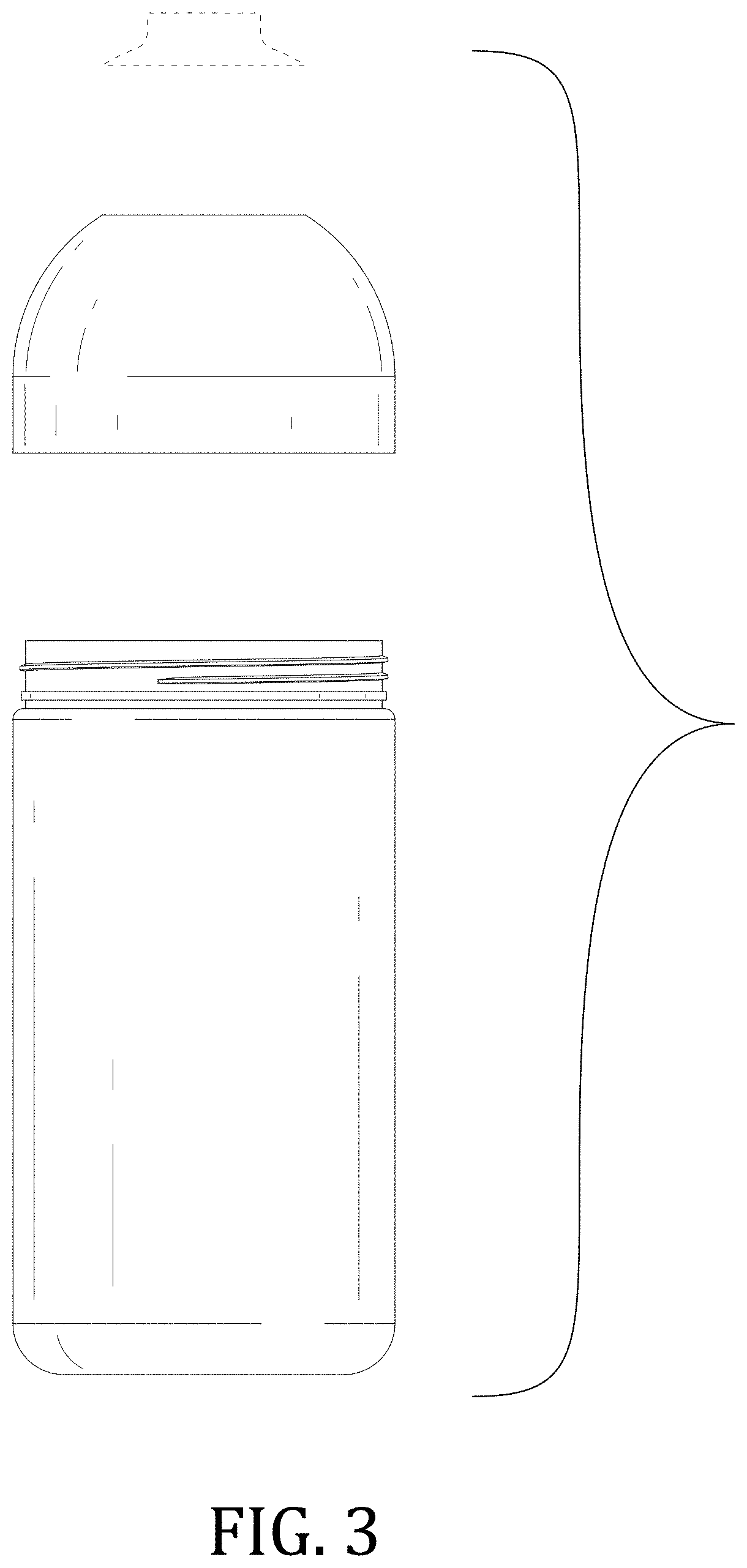

Patent USD1001641 Figure 3 – Container — Fig. 3

Patent USD1001641 Figure 4 – Container — Fig. 4

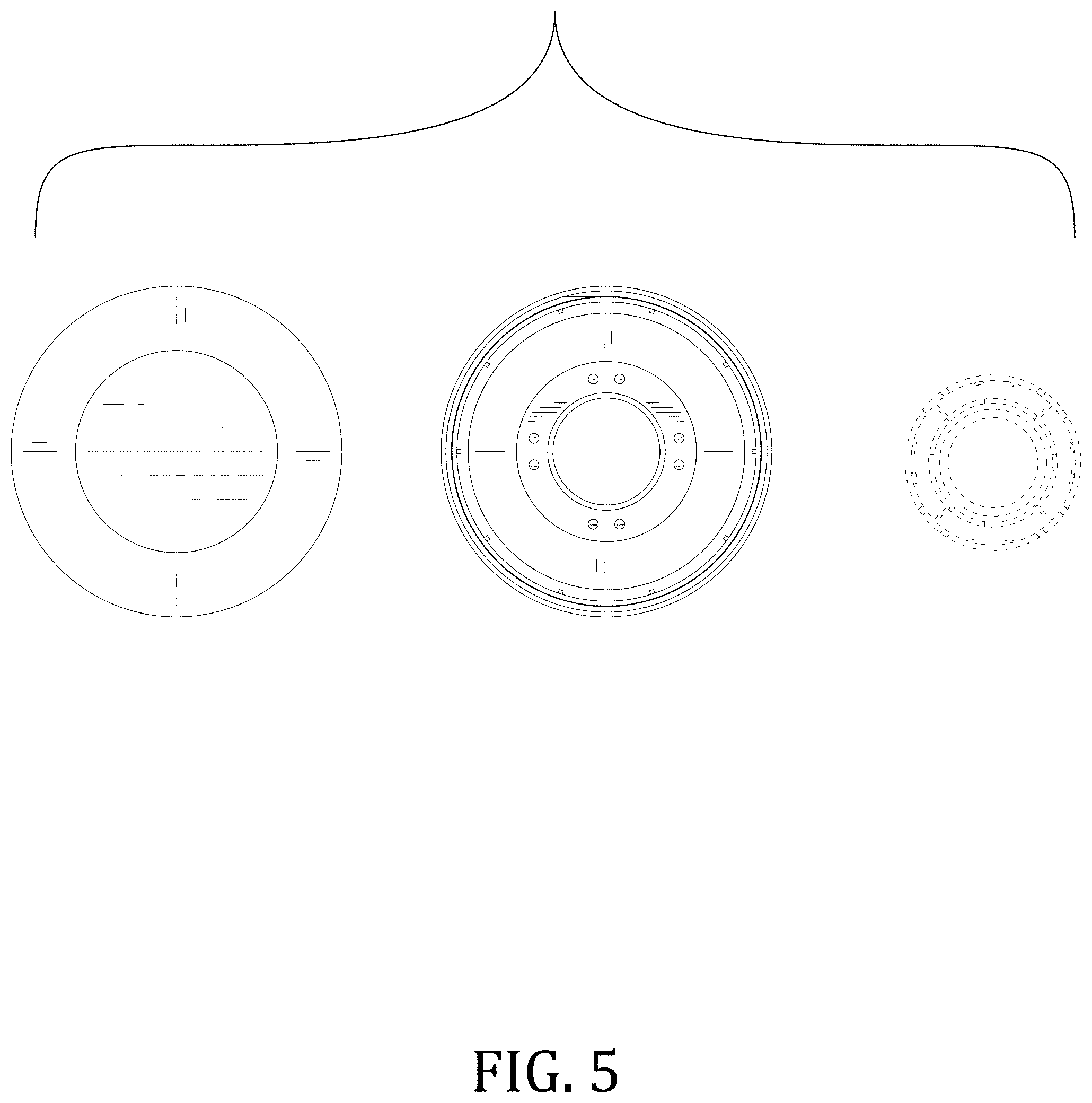

Patent USD1001641 Figure 5 – Container — Fig. 5

Patent USD1001641 Figure 6 – Container — Fig. 6

Patent USD1001641 Figure 7 – Container — Fig. 7

Patent USD1001641 Figure 8 – Container — Fig. 8

Patent USD1001641 Figure 9 – Container — Fig. 9

Patent USD1001641 Figure 10 – Container — Fig. 10

Patent USD1001641 Figure 11 – Container — Fig. 11

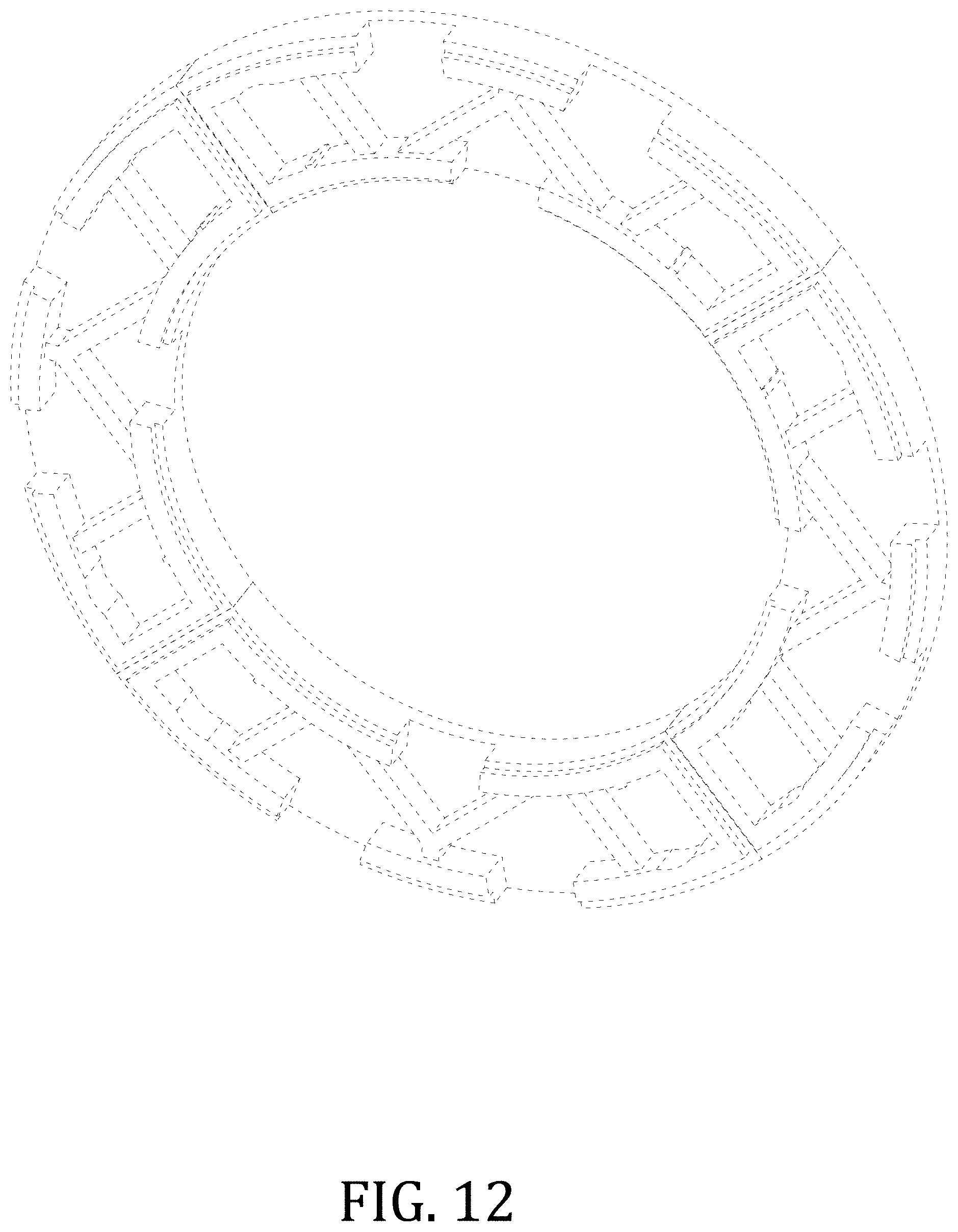

Patent USD1001641 Figure 12 – Container — Fig. 12

Patent USD1001641 Figure 13 – Container — Fig. 13

Patent USD1001641 Figure 14 – Container — Fig. 14

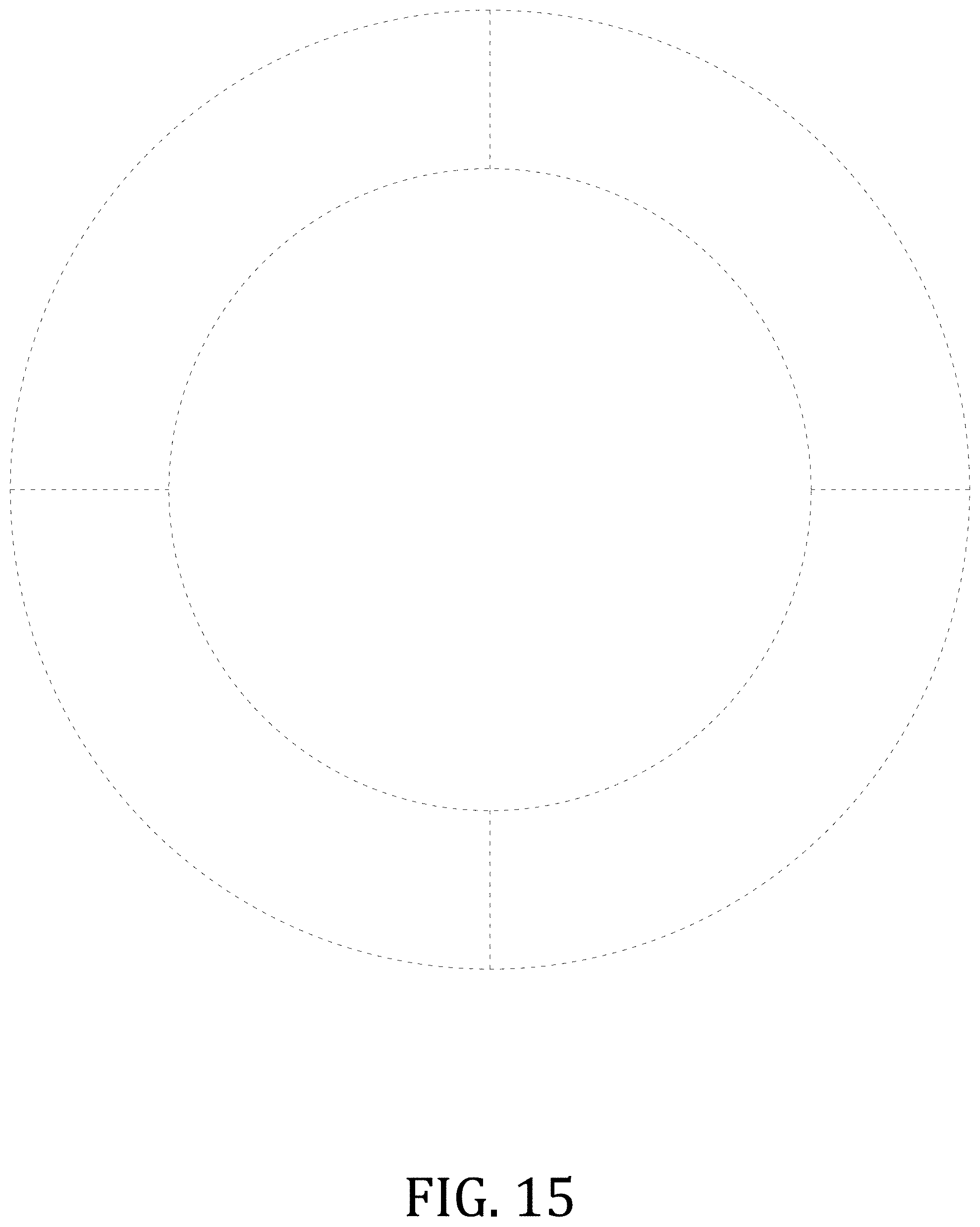

Patent USD1001641 Figure 15 – Container — Fig. 15

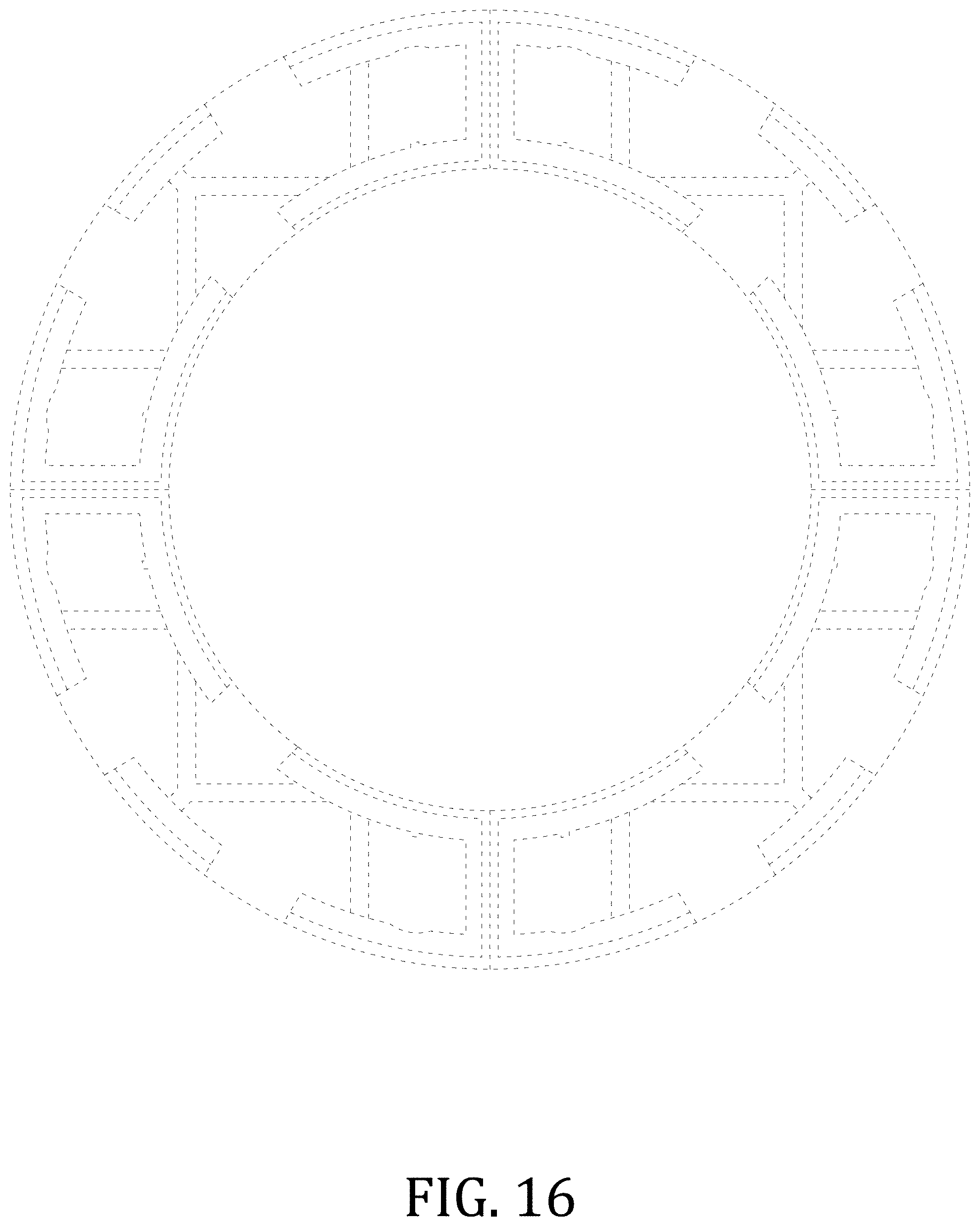

Patent USD1001641 Figure 16 – Container — Fig. 16

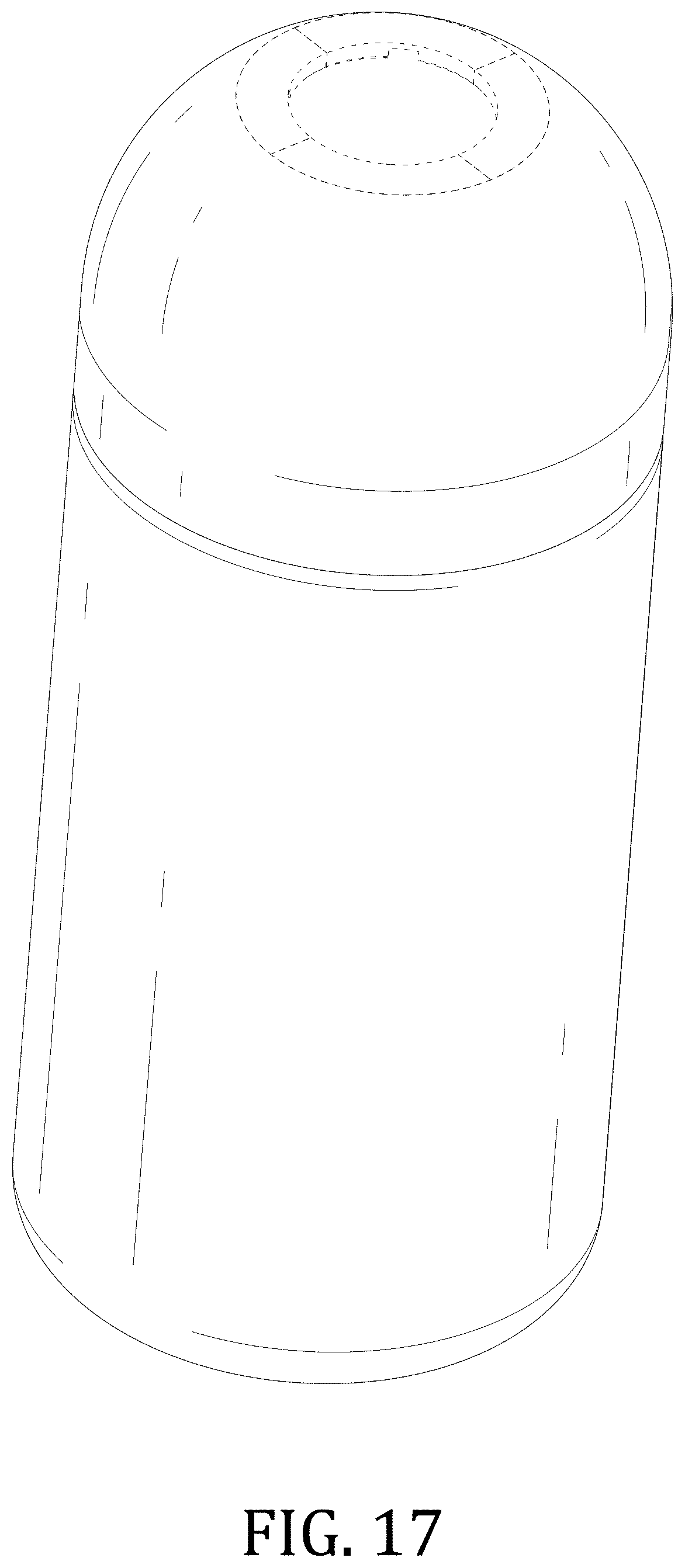

Patent USD1001641 Figure 17 – Container — Fig. 17
