Clip for Furniture

USD1001630No. D 1,001,630designGranted 10/17/2023
Patent USD1001630 — Clip for furniture — Figure 1
Fig. 1 · Clip for Furniture

Claims (1)

Claim 1 (Independent)

The ornamental design for a clip for furniture, as shown and described.

Full Description

Show full text →

is a top, front, right perspective view of the claimed design for a clip for furniture;

is a bottom, back, left perspective view thereof;

is an enlarged top, front, right perspective view of the claimed design for a clip for furniture with some unclaimed subject matter omitted;

is a front view thereof;

is a back view thereof;

is a left side view thereof;

is a right side view thereof;

is a top view thereof; and,

is a bottom view thereof.

The broken lines immediately adjacent to the shaded area depict boundaries of the claimed design and form no part thereof. The broken lines showing the remainder of the clip for furniture depict environmental structure and form no part of the claimed design.

Figures (8)

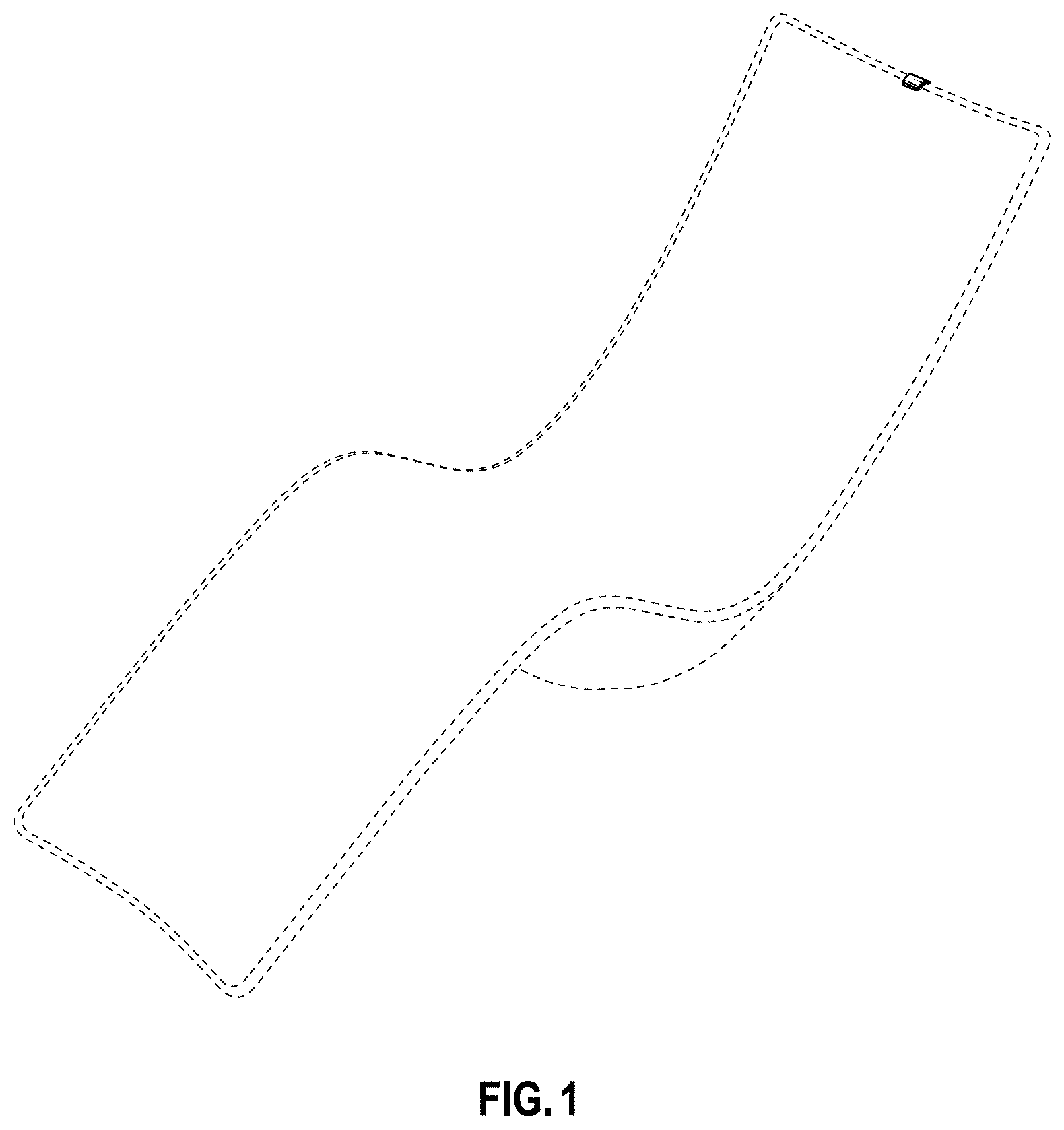

Fig. 1

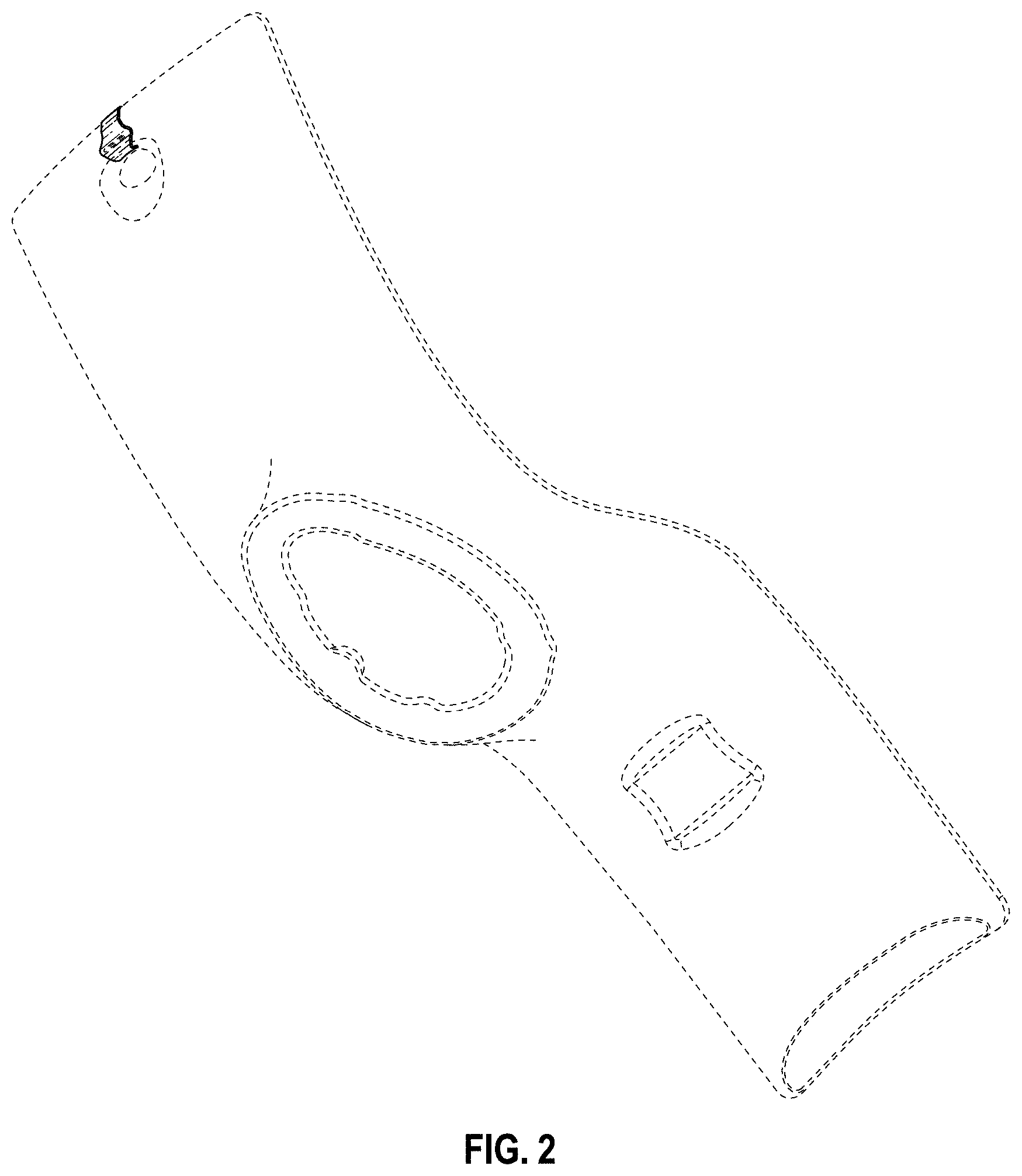

Fig. 2

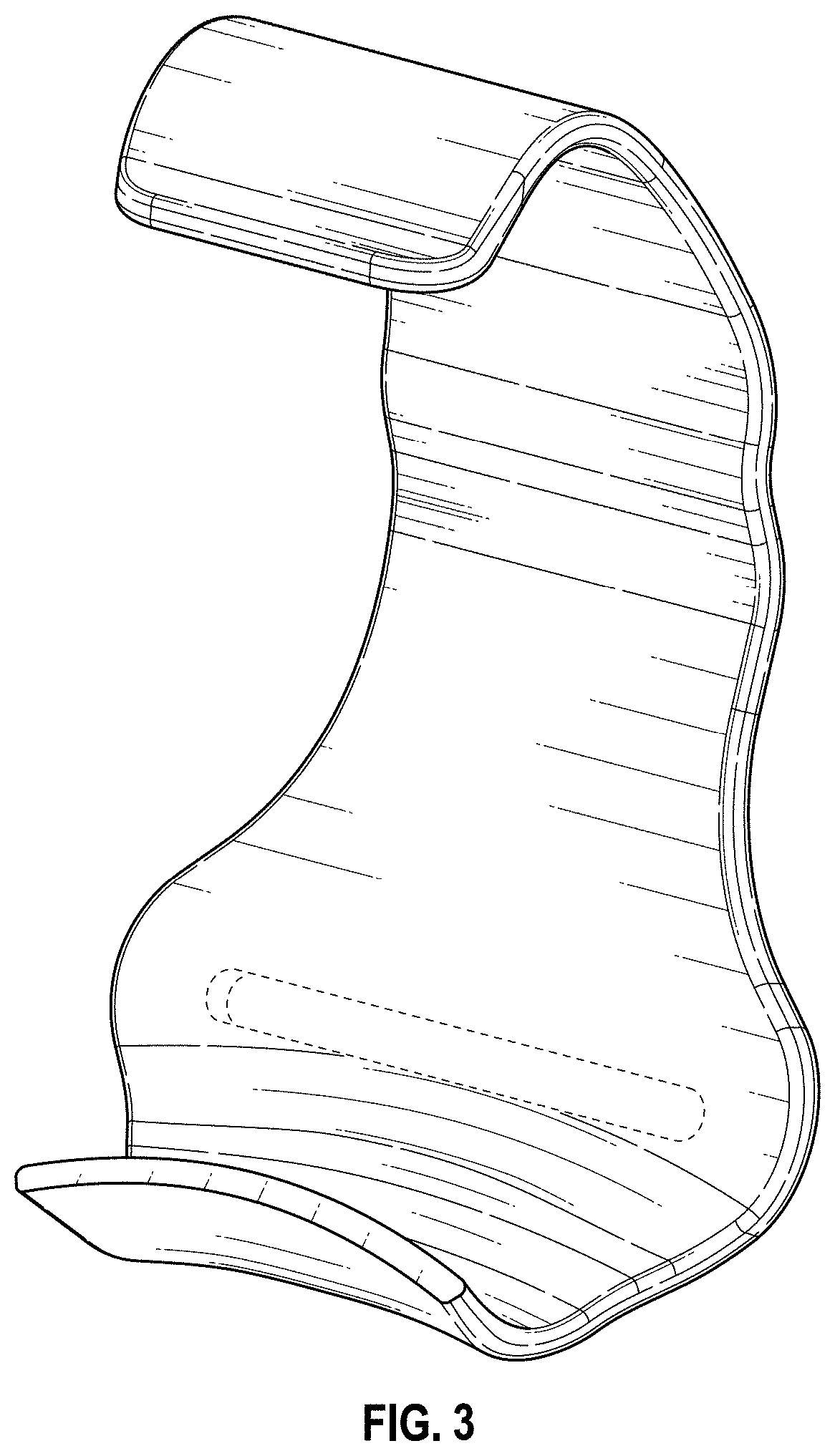

Fig. 3

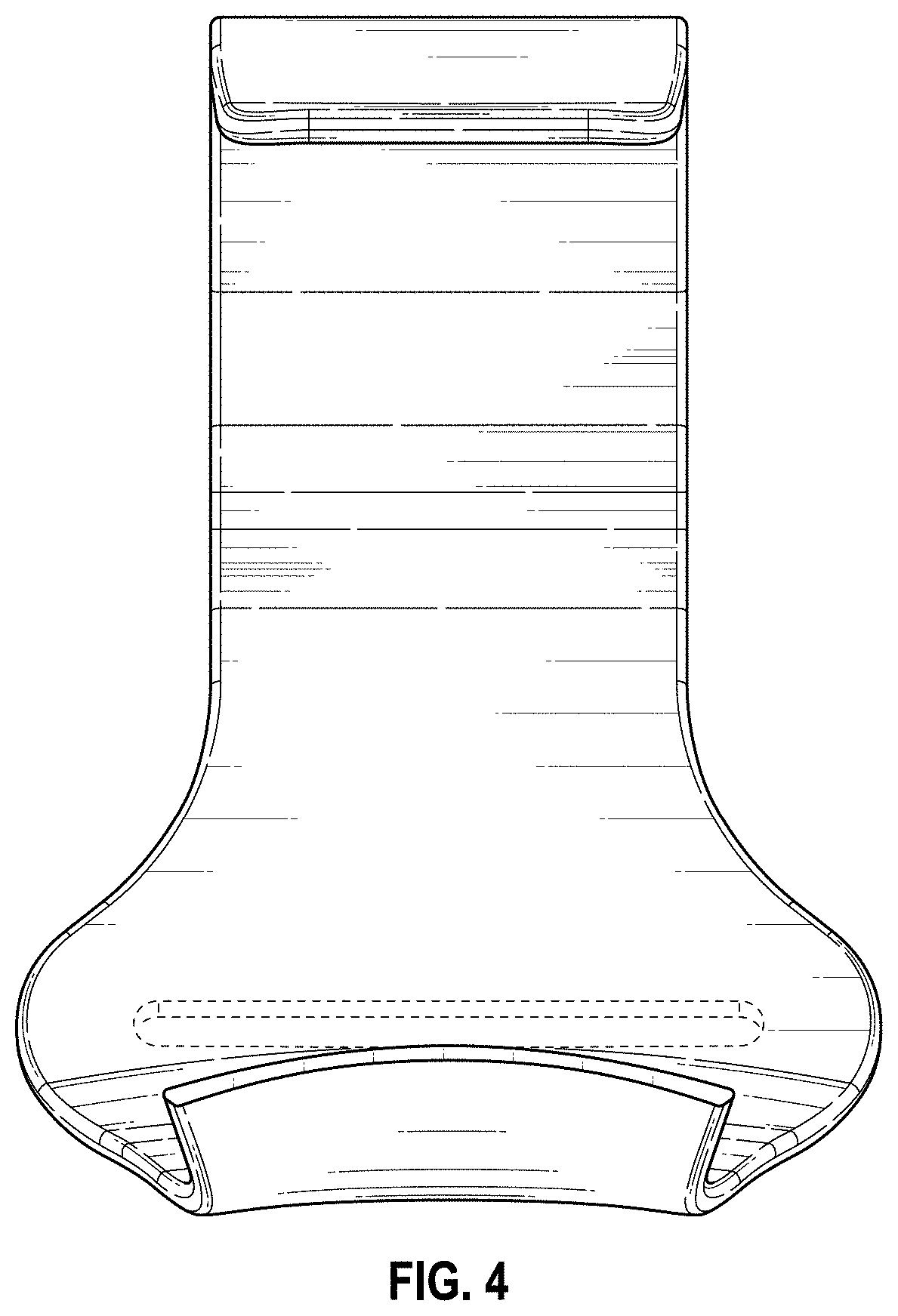

Fig. 4

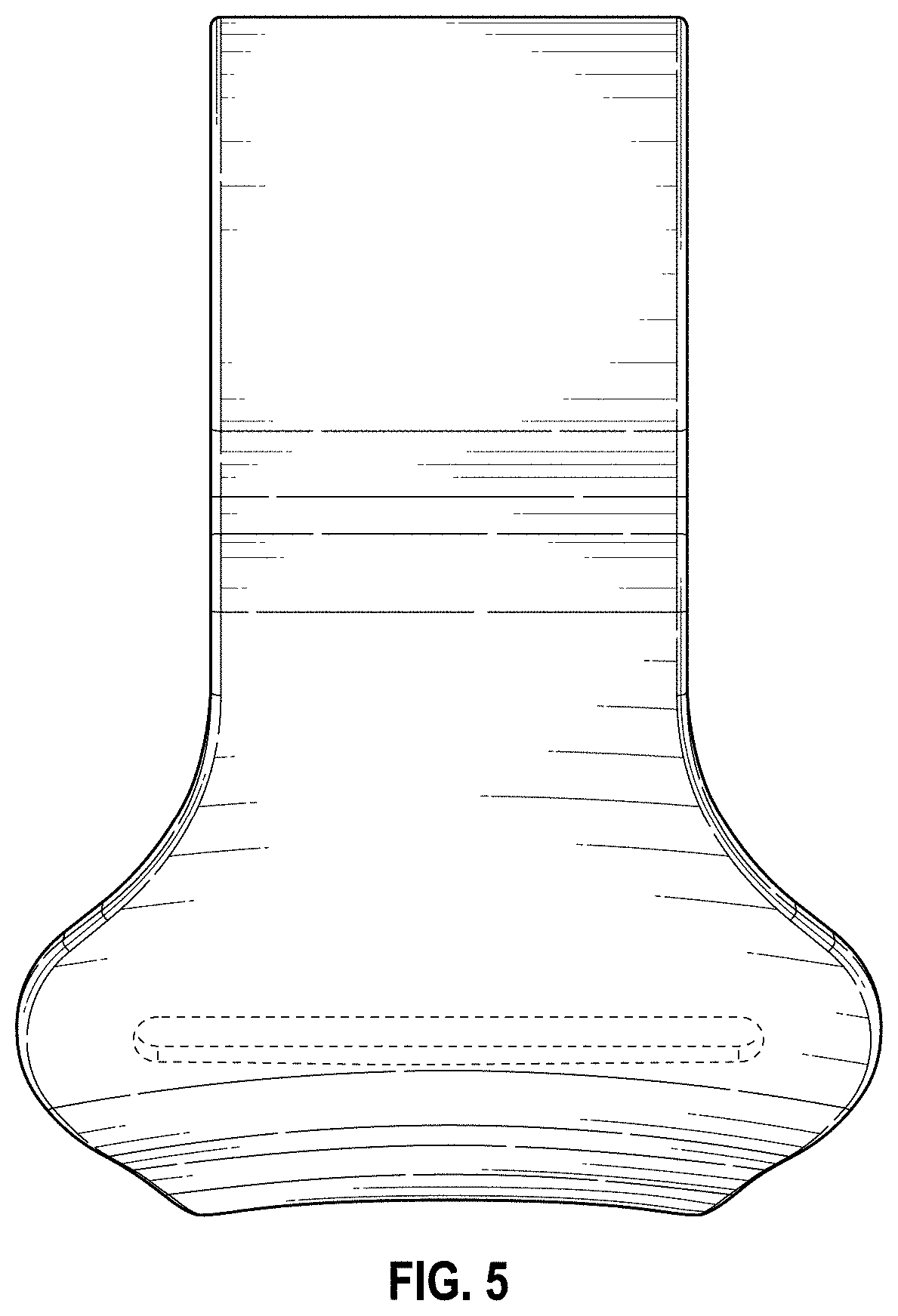

Fig. 5

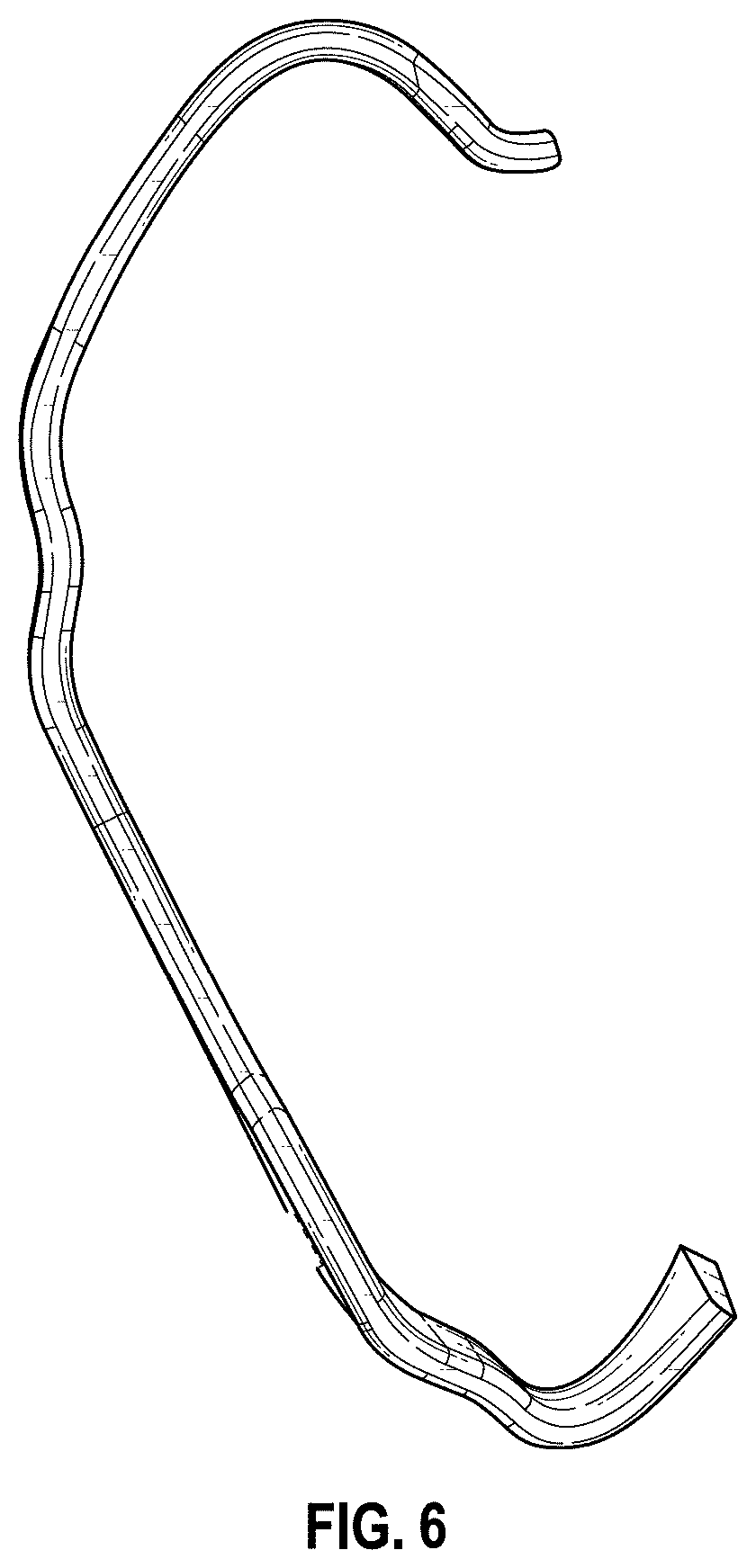

Fig. 6

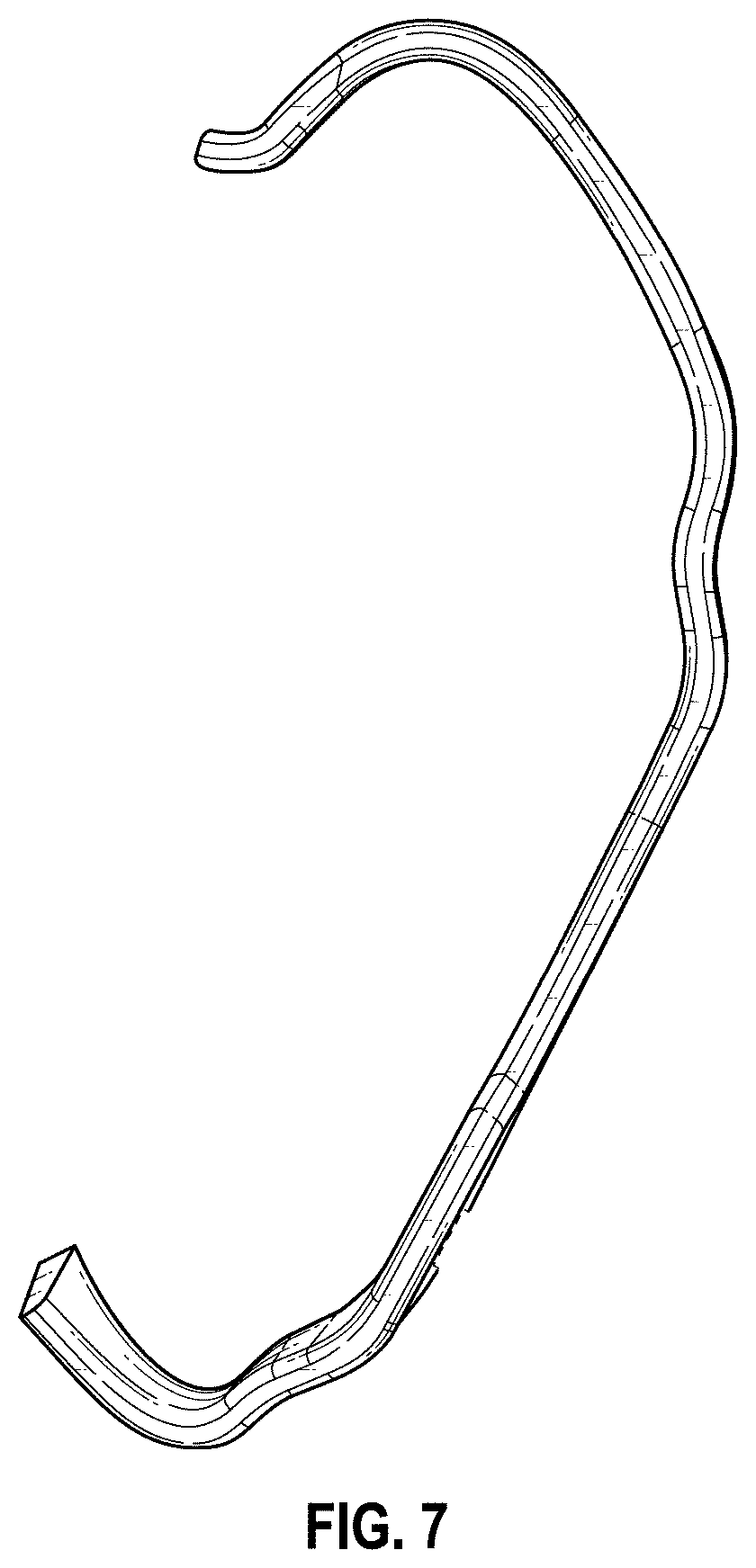

Fig. 7

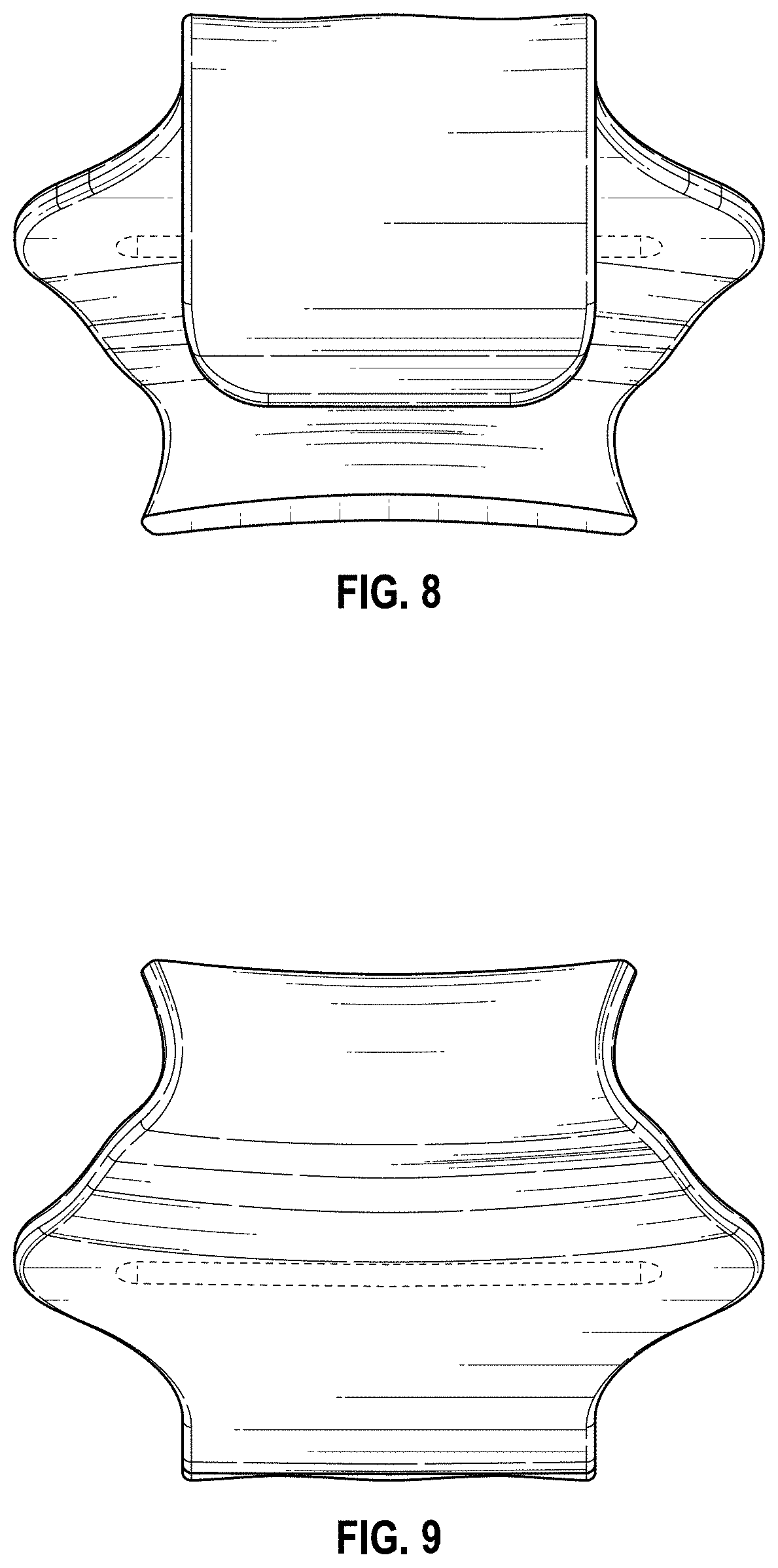

Fig. 8
