Towel Holder

USD1001545No. D 1,001,545designGranted 10/17/2023
Patent USD1001545 — Towel holder — Figure 1
Fig. 1 · Towel Holder

Claims (1)

Claim 1 (Independent)

The ornamental design for a towel holder, as shown and described.

Full Description

Show full text →

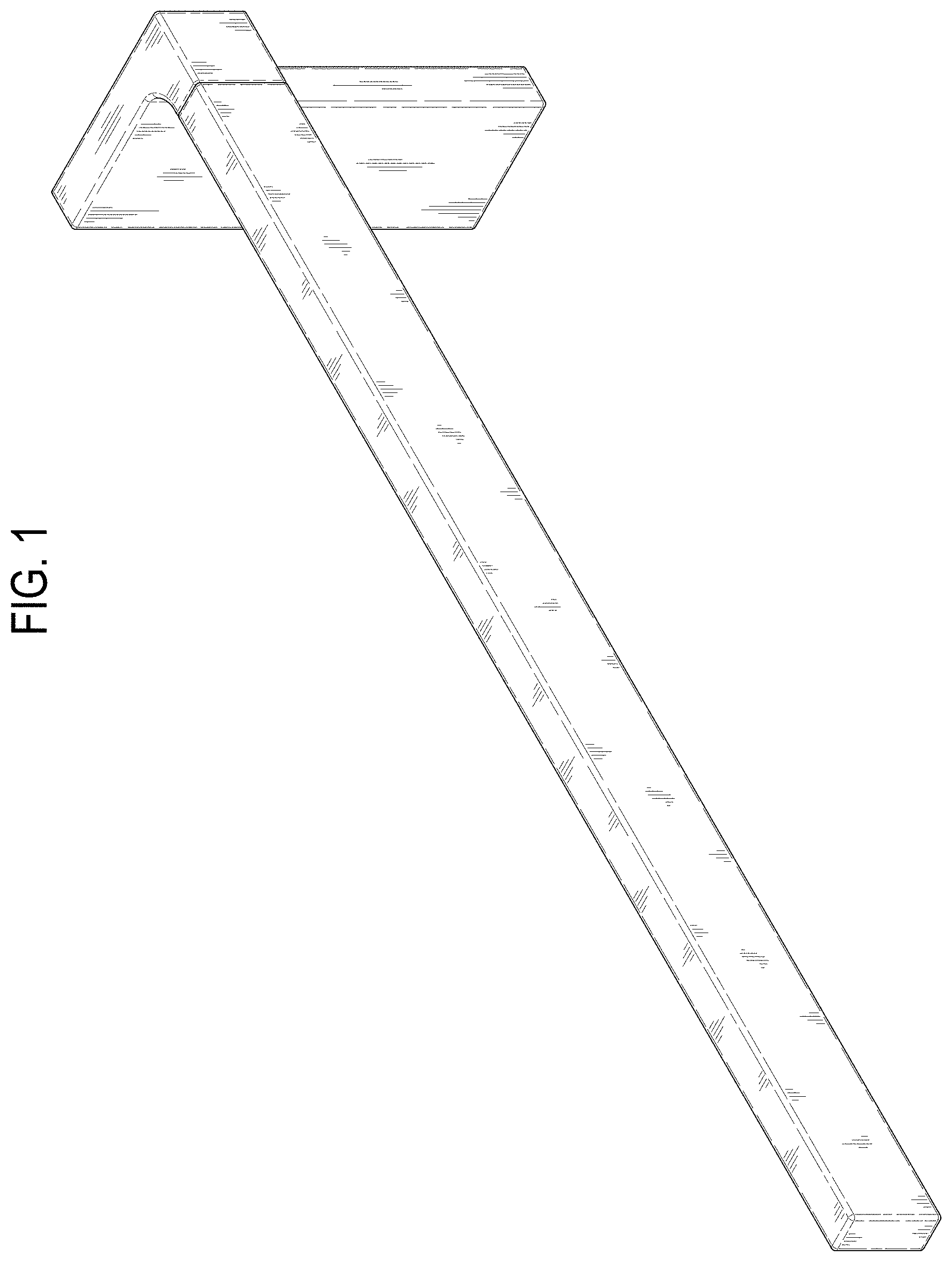

is a perspective view of a towel holder showing my design;

is a front elevational view;

is a rear elevational view;

is a side elevational view;

is a side elevational view;

is a top plan view; and,

is a bottom plan view.

The broken line disclosures in the view represents portions of a towel holder in which the claimed design is embodied, but which forms no part of the claimed design.
