Chair

USD1001528No. D 1,001,528designGranted 10/17/2023
Patent USD1001528 — Chair — Figure 1
Fig. 1 · Chair

Claims (1)

Claim 1 (Independent)

The ornamental design for a chair, as shown and described.

Full Description

Show full text →

is a front and right perspective view of a chair, showing our new design;

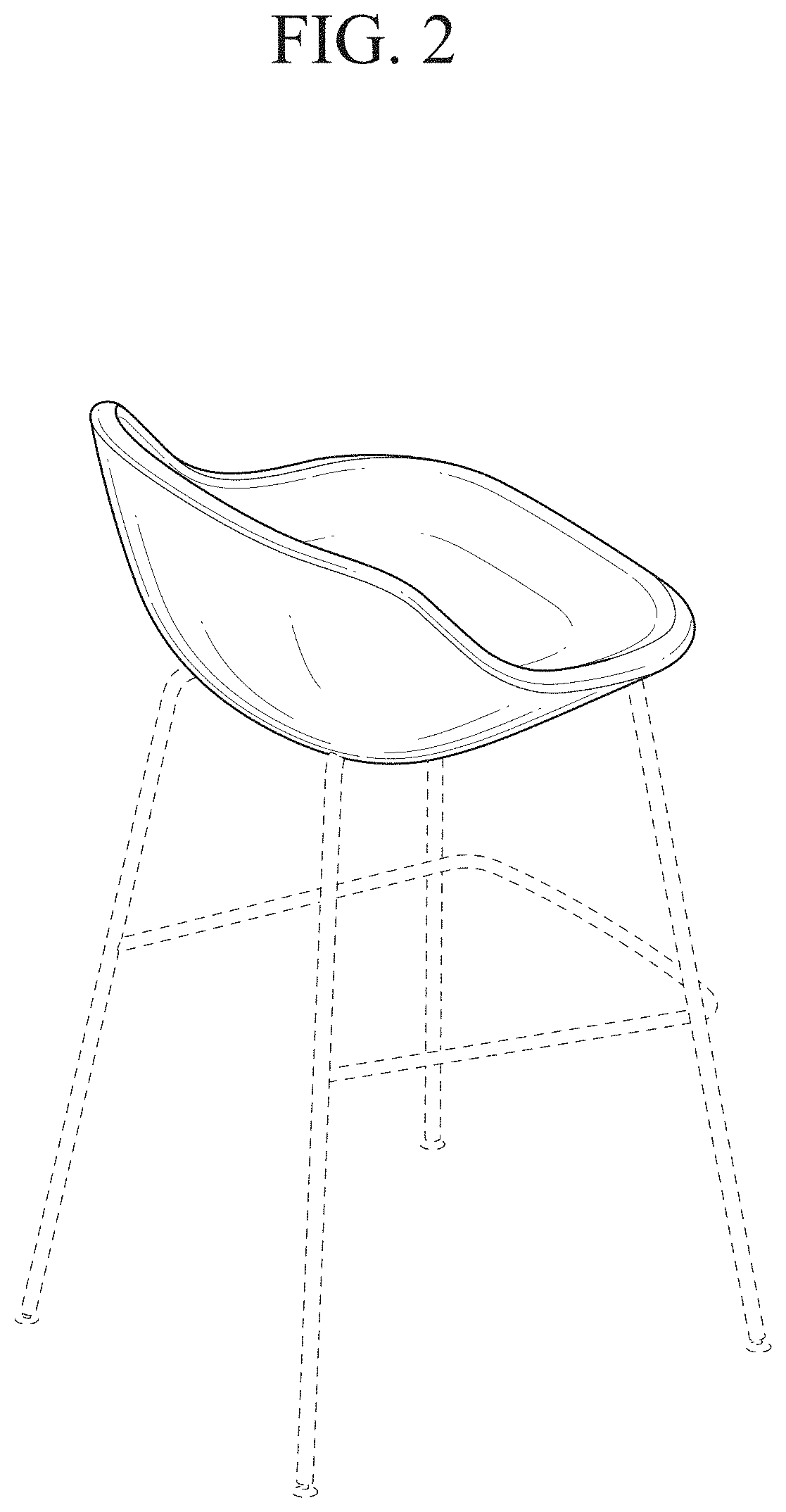

is a rear and left perspective view thereof;

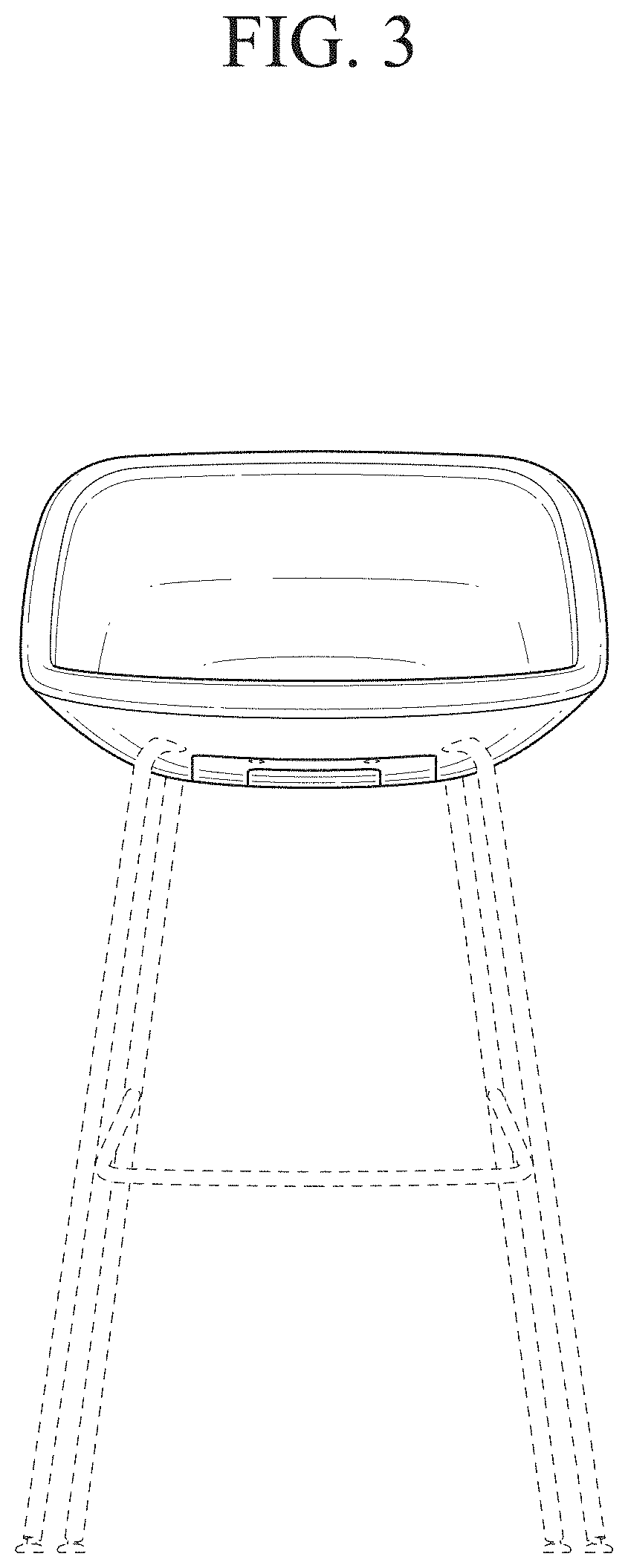

is a front elevation view thereof;

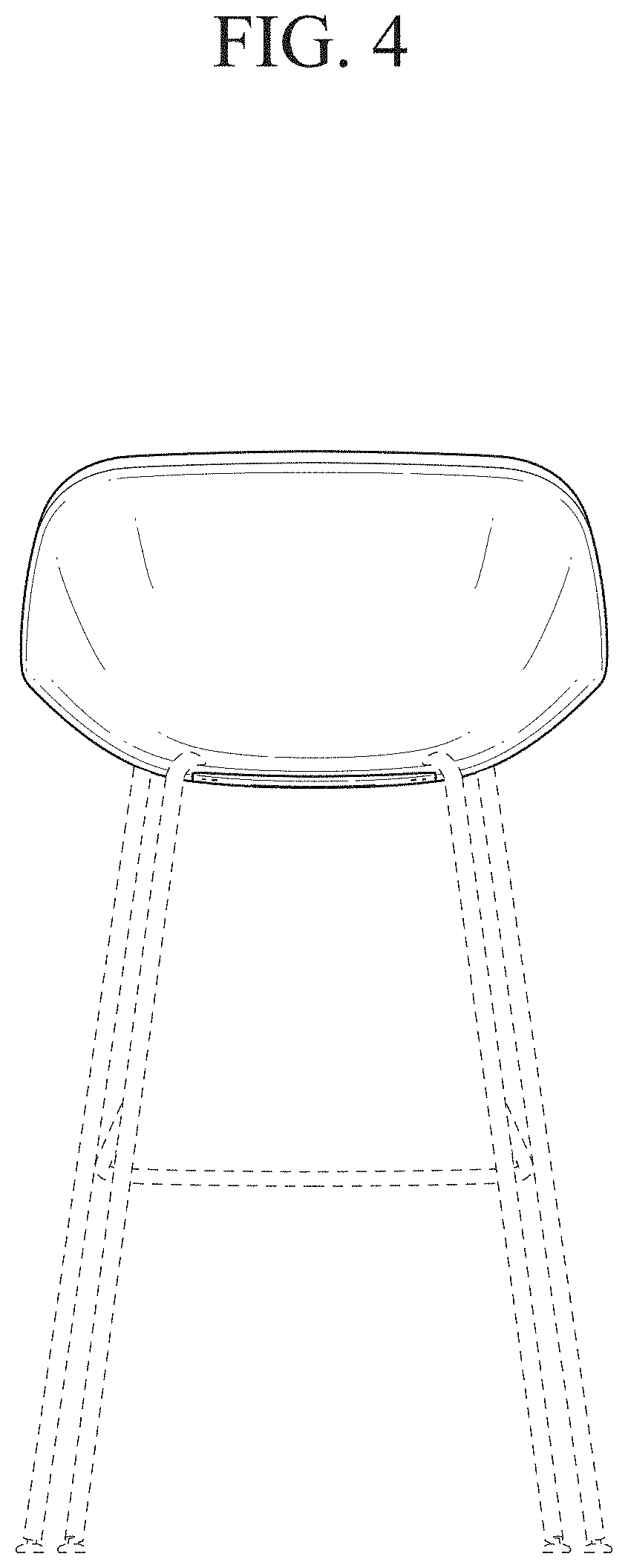

is a rear elevation view thereof;

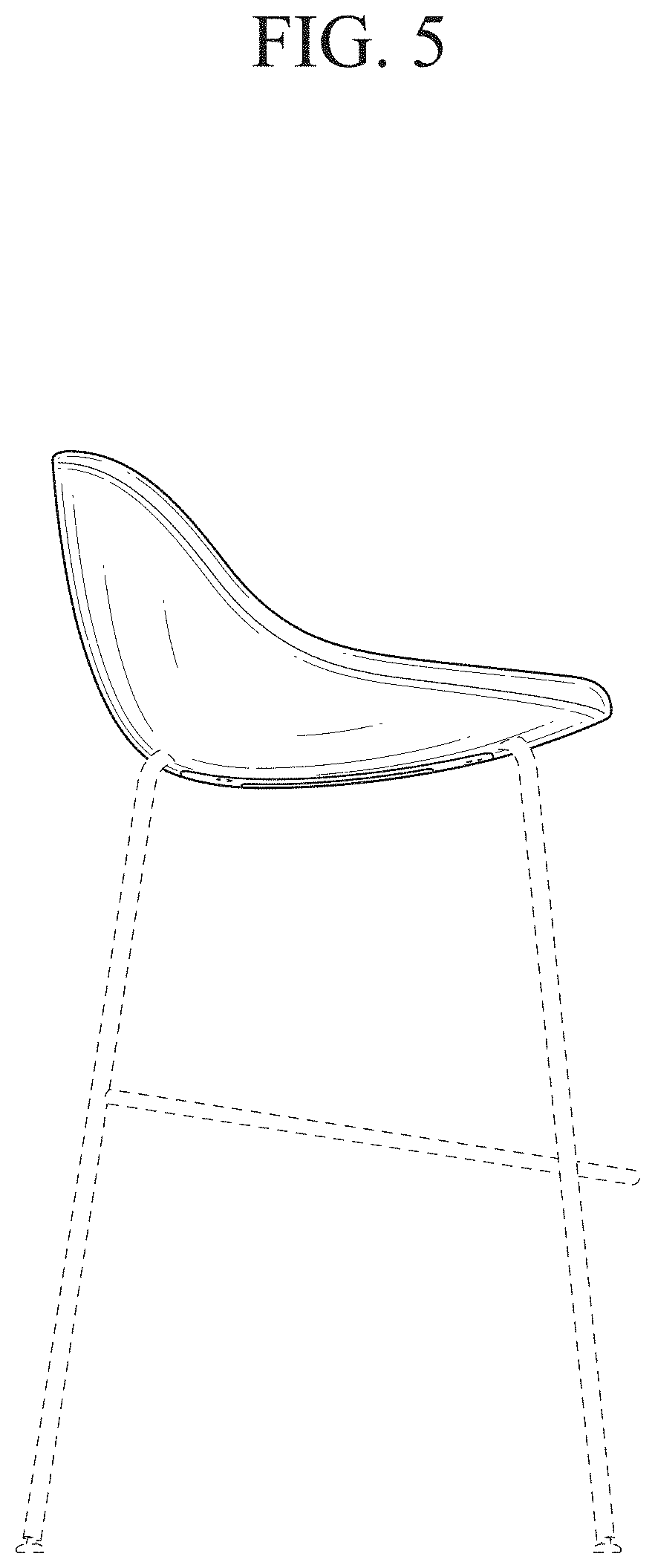

is a left side elevation view thereof;

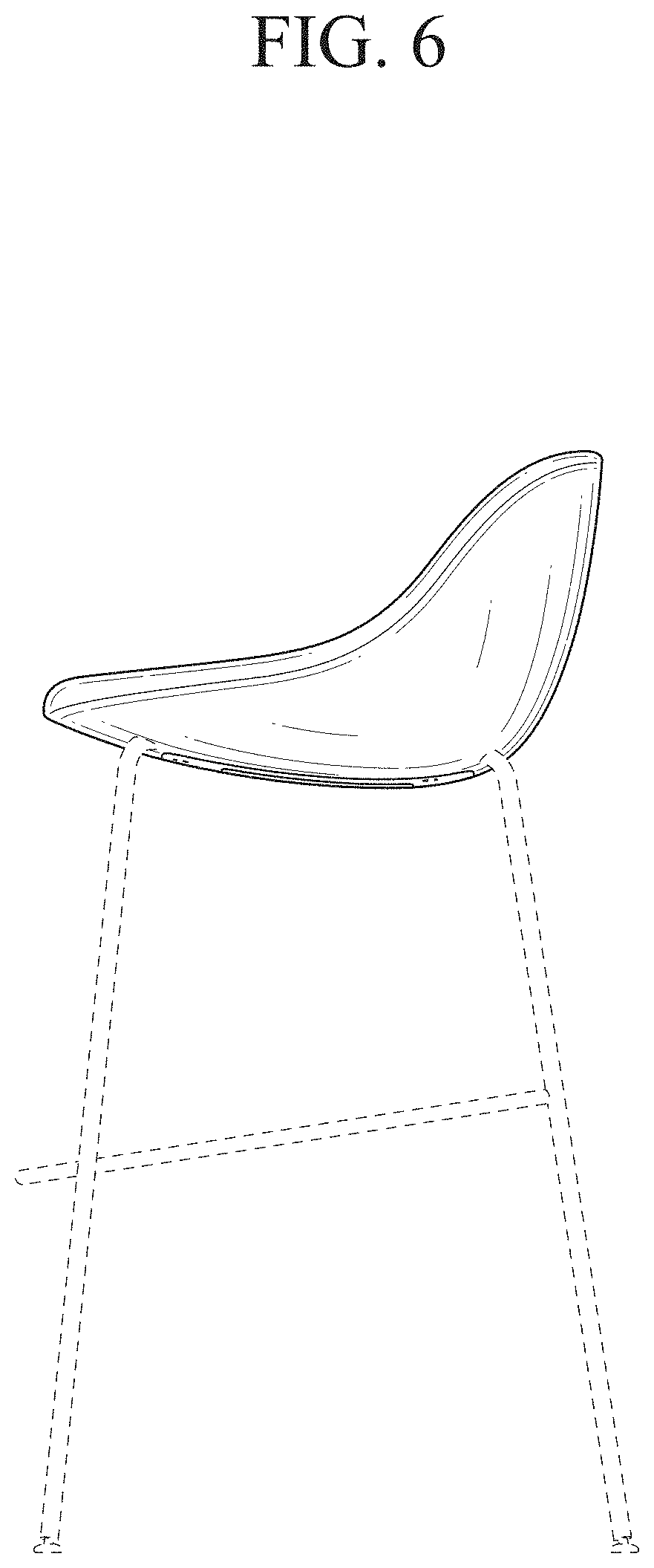

is a right side elevation view thereof;

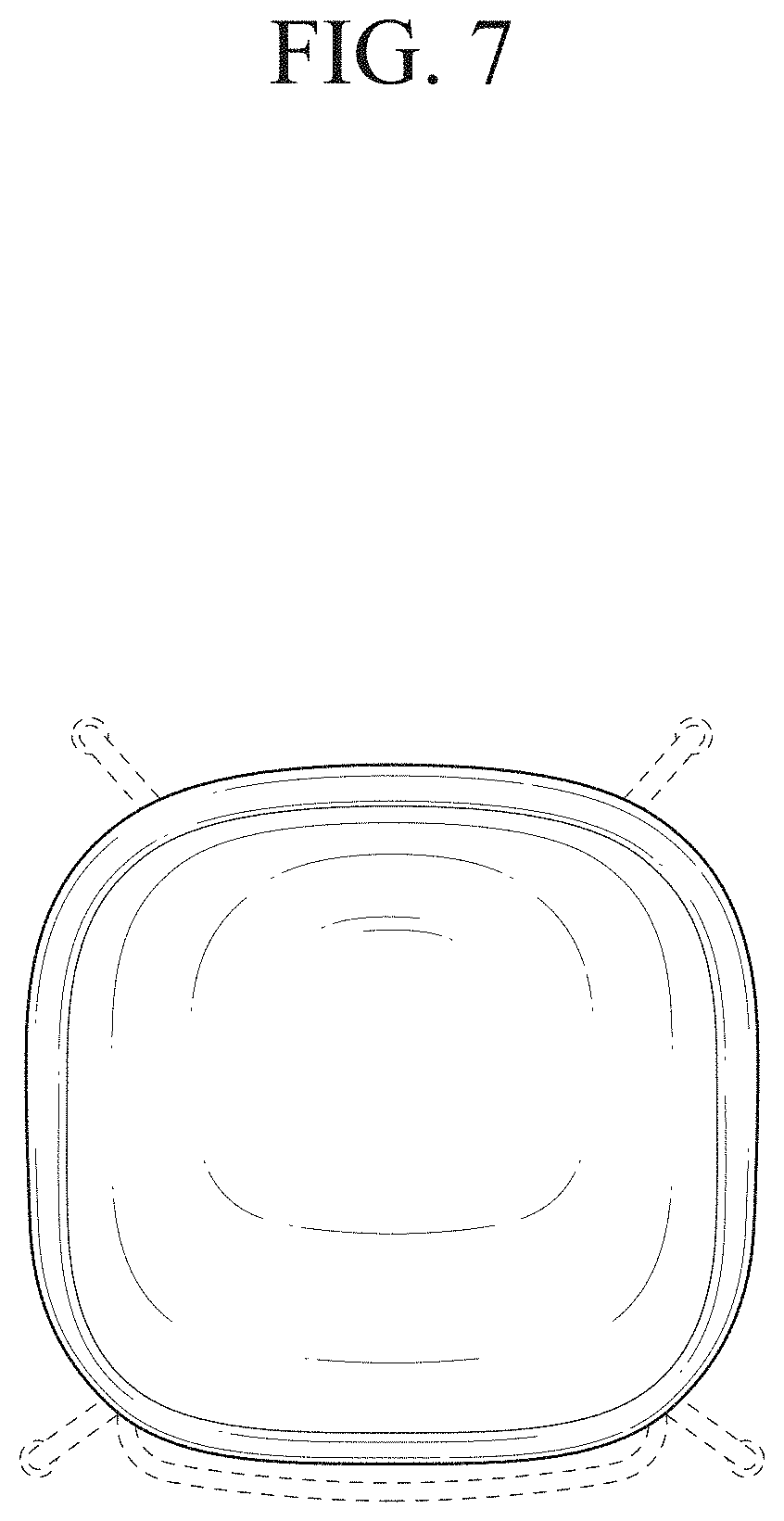

is a top plan view thereof; and,

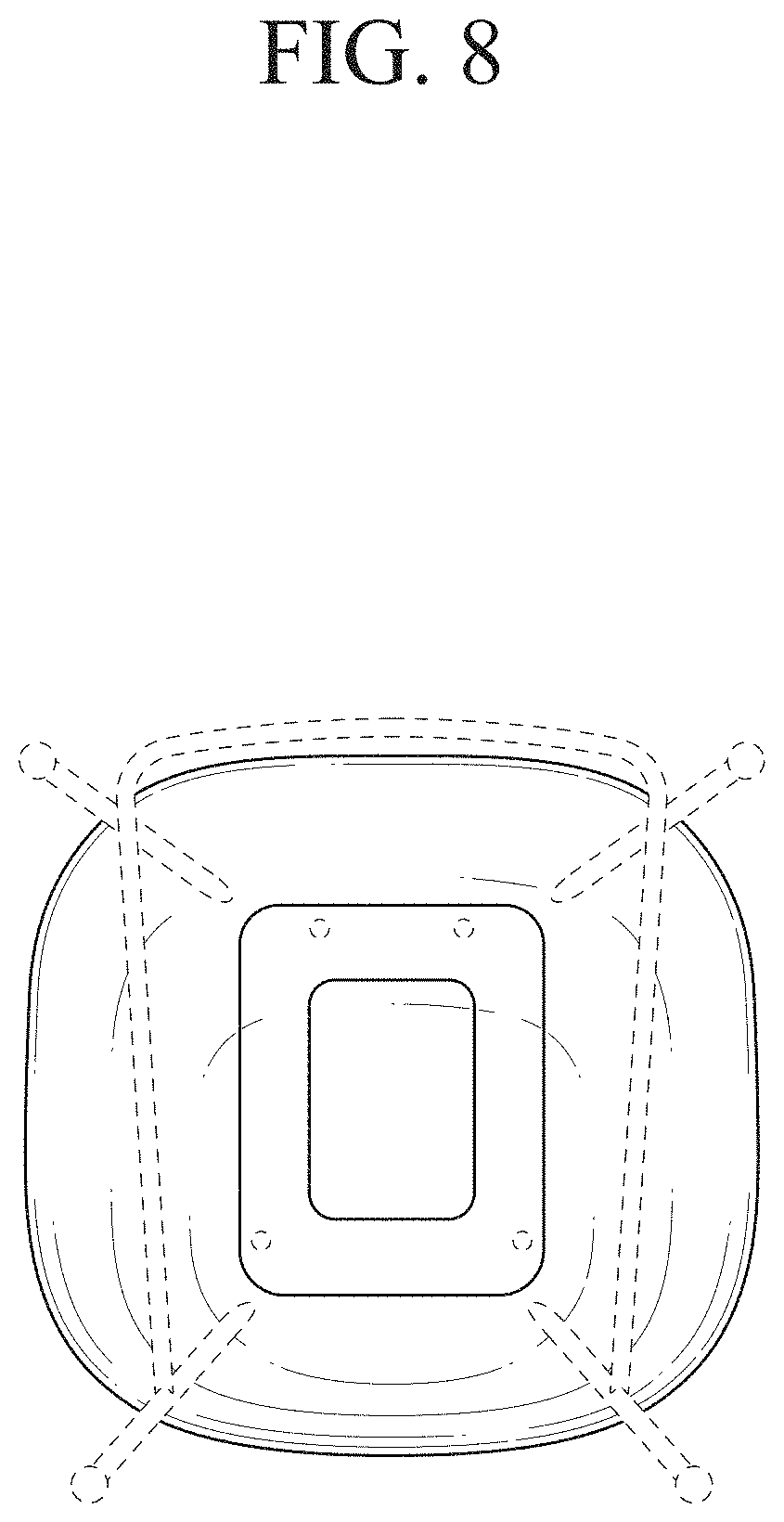

is a bottom plan view thereof.

The broken lines shown in the drawings illustrate portions of the chair that form no part of the claimed design.
