Light Fixture

USD1001339No. D 1,001,339designGranted 10/10/2023
Patent USD1001339 — Light fixture — Figure 1
Fig. 1 · Light Fixture

Claims (1)

Claim 1 (Independent)

The ornamental design for a light fixture, as shown and described.

Full Description

Show full text →

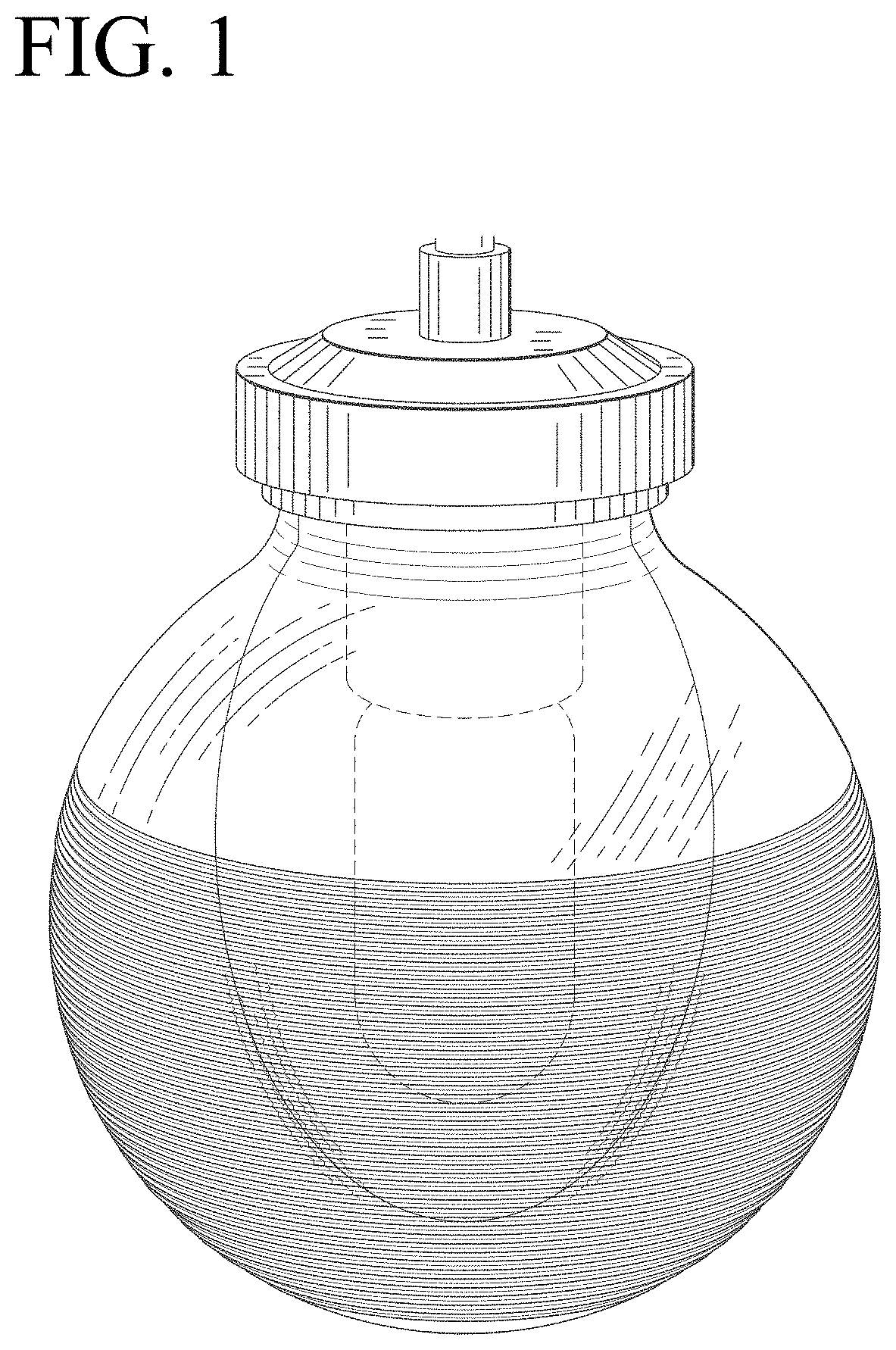

is top perspective view of a lamp showing my new design;

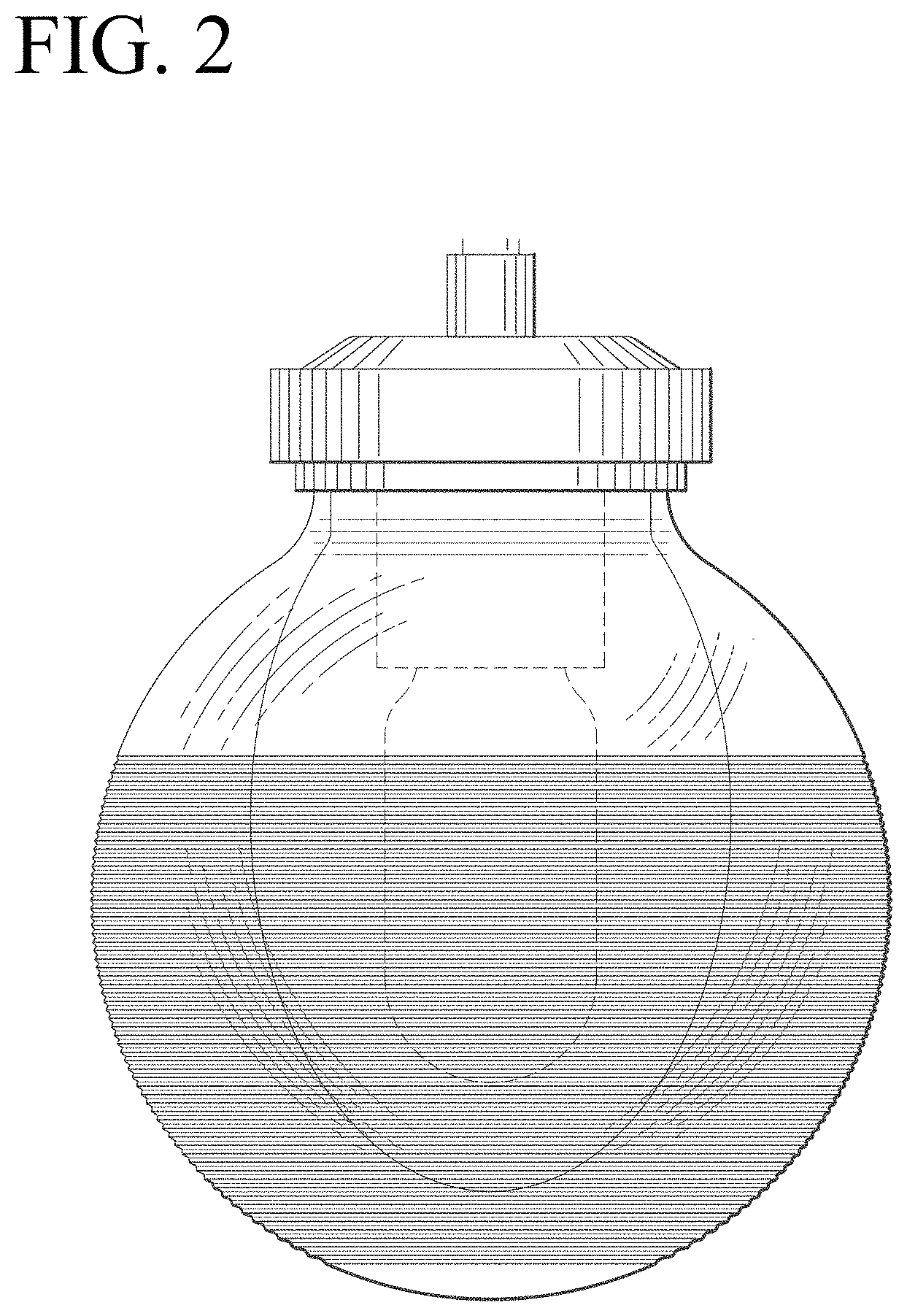

is a side elevation view thereof, the views from all sides being identical due to the lamp's symmetry about a vertical axis;

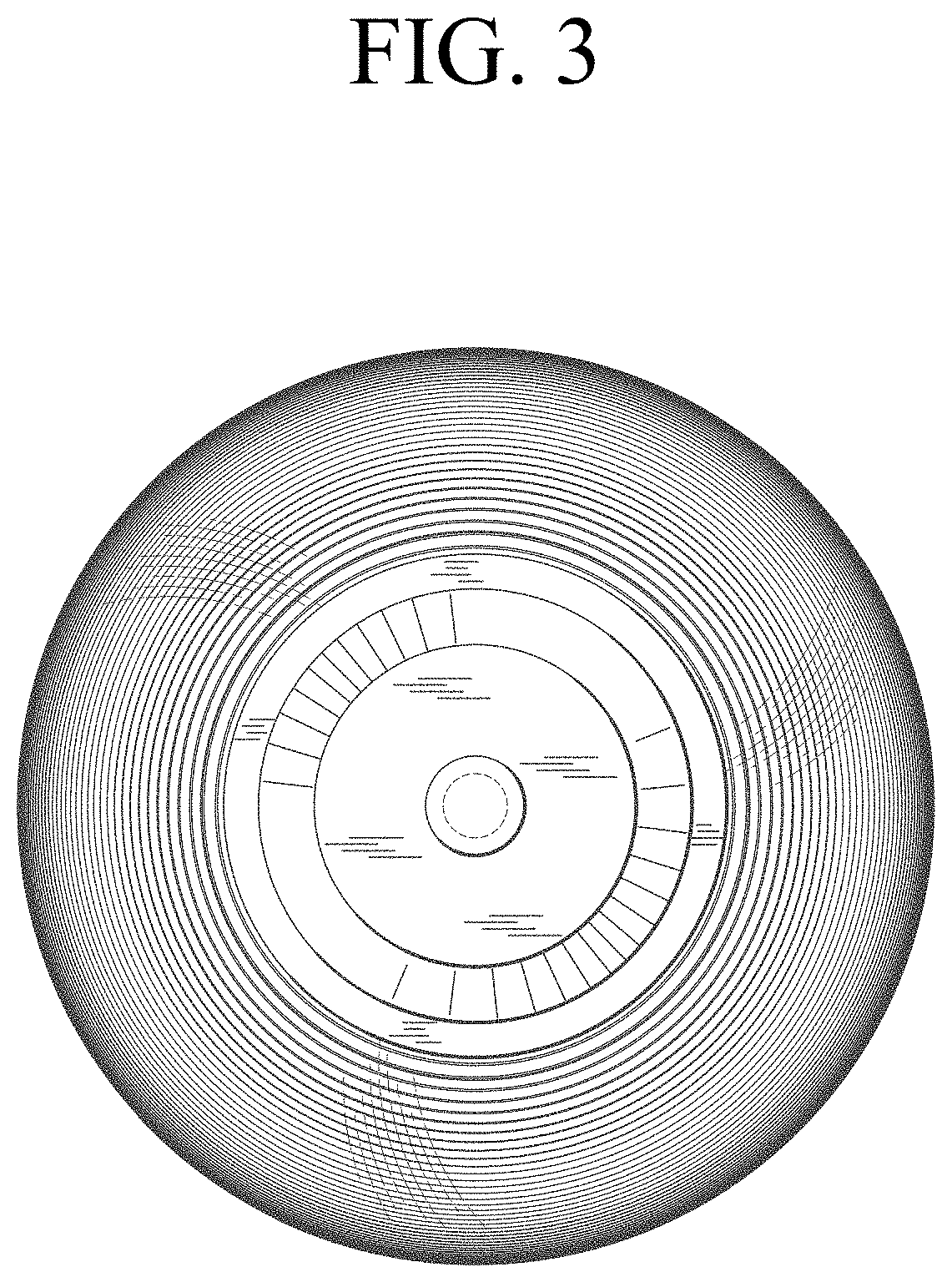

is a top plan view thereof; and,

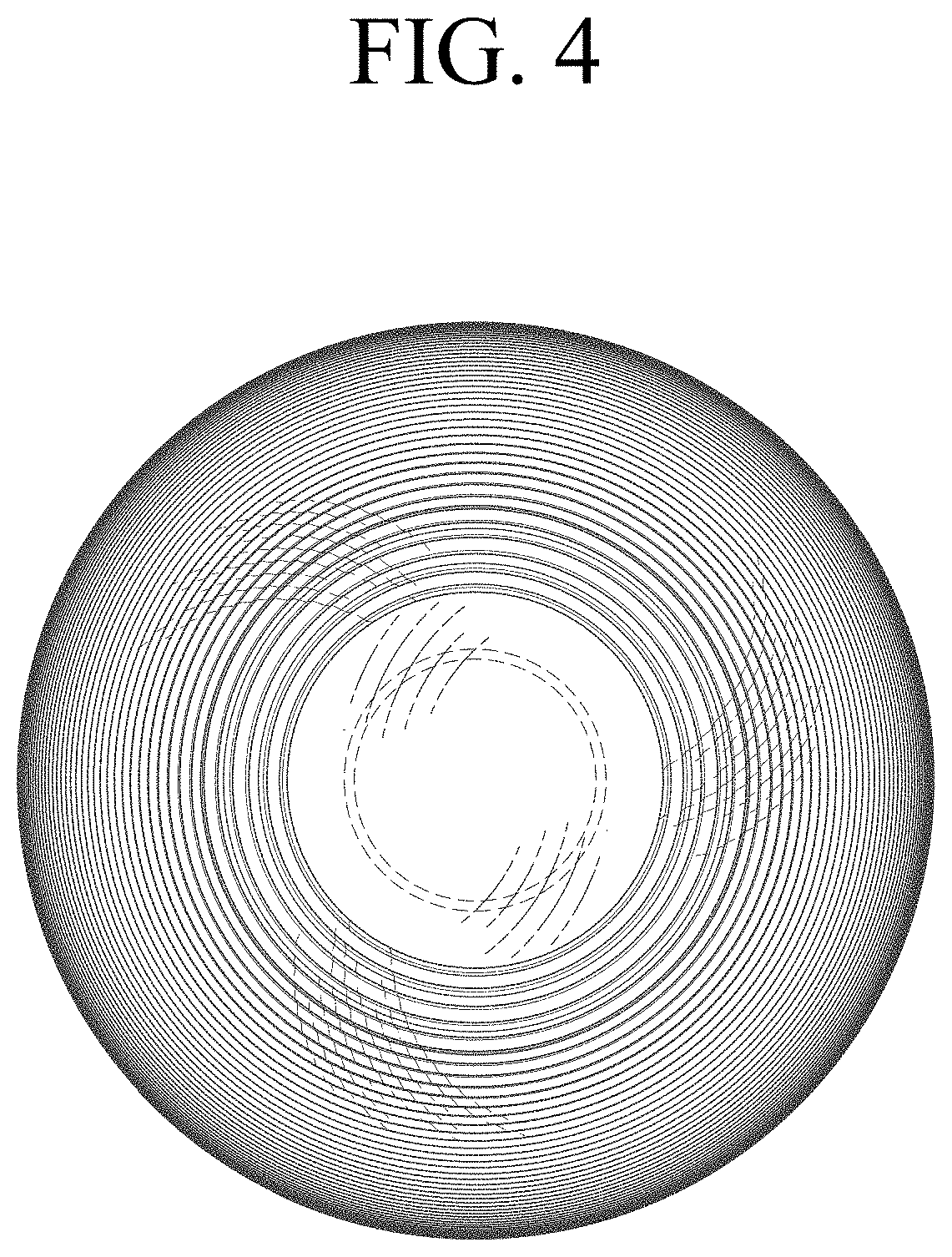

is a bottom plan view thereof.

The broken lines represent portions of the light fixture that form no part of the claimed design.

Figures (4)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
