Claims (1)
Claim 1 (Independent)
The ornamental design for a LED light, as shown and described.
Full Description
Show full text →

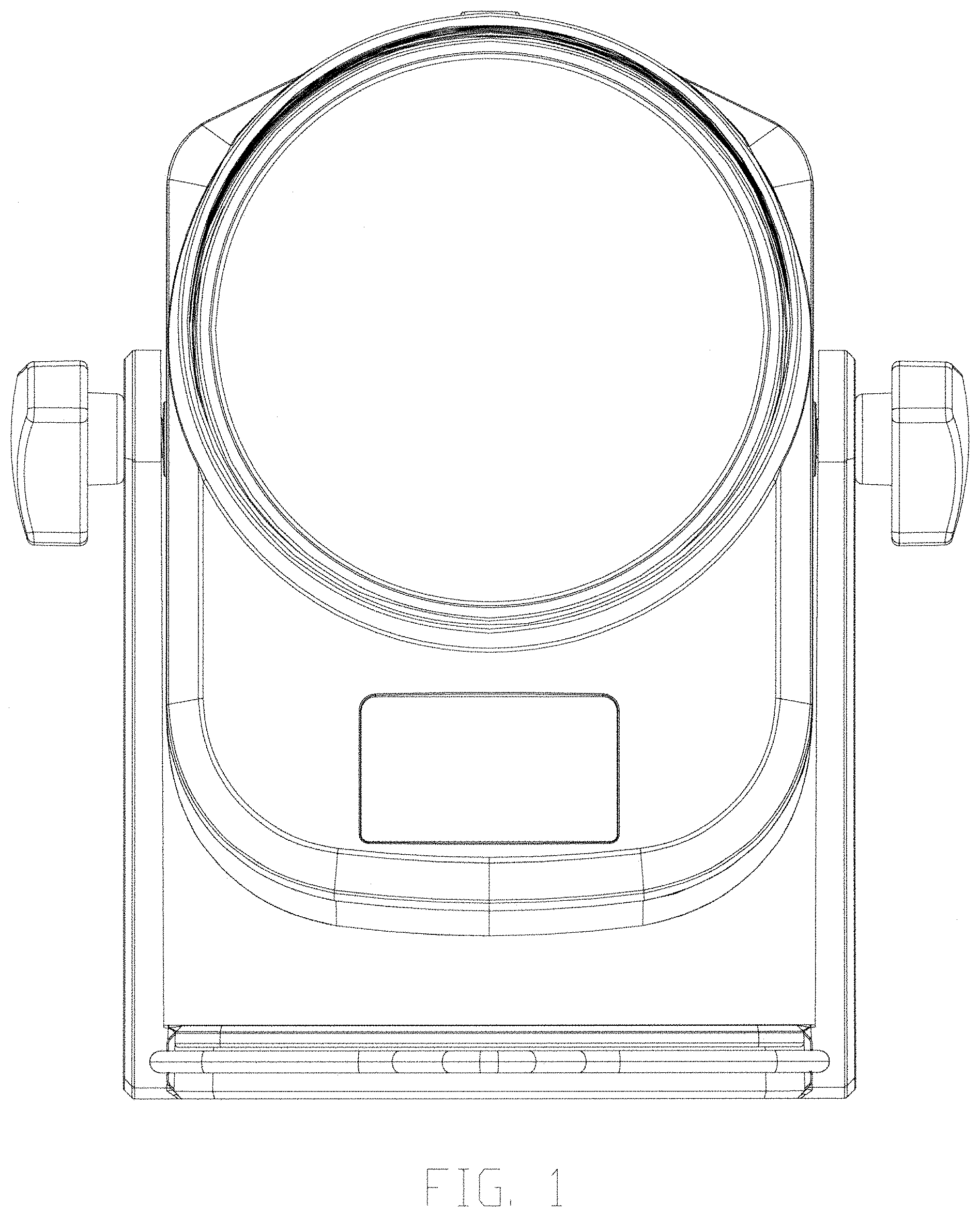

is a front elevational view of a LED light showing my new design;

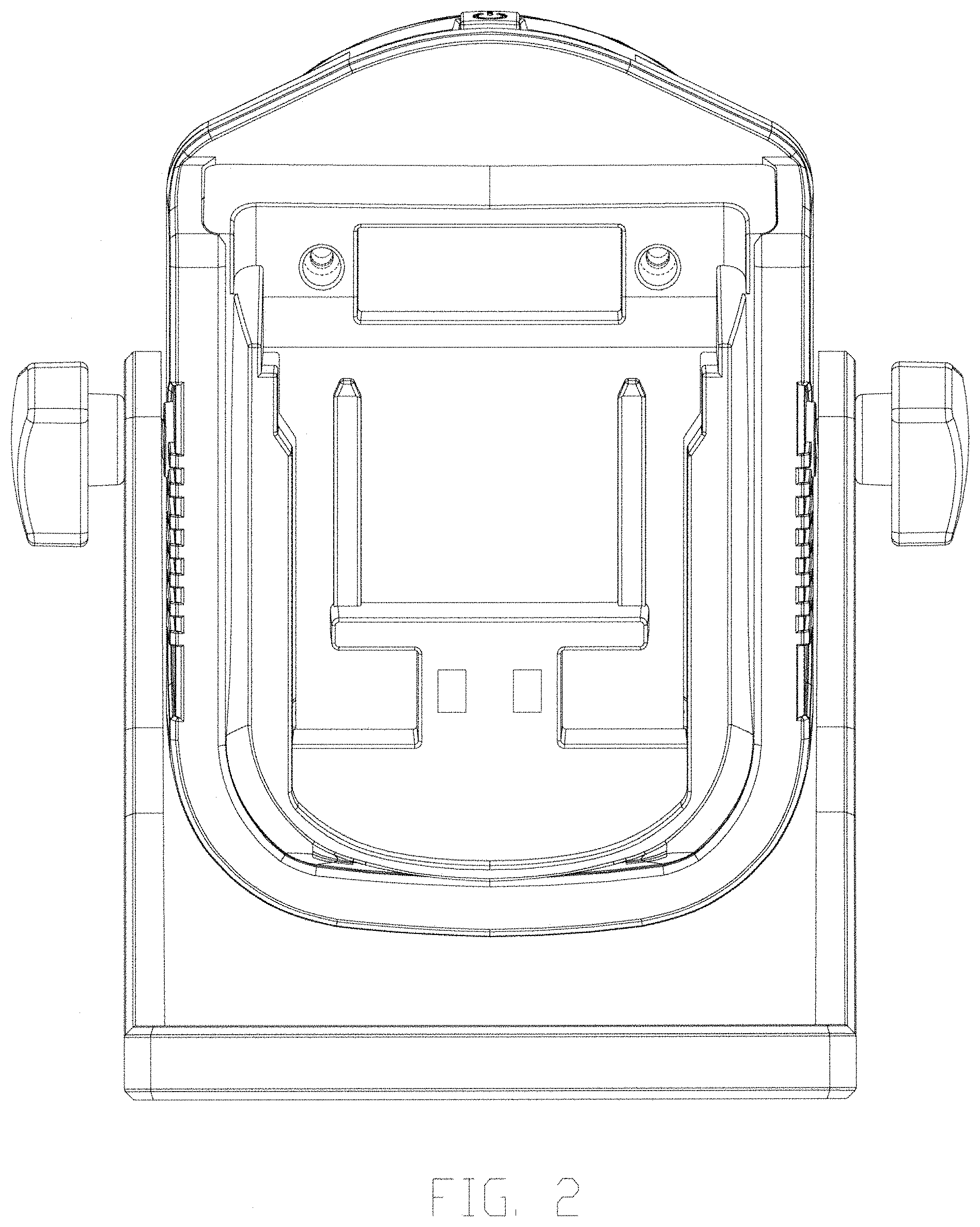

is a rear elevational view thereof;

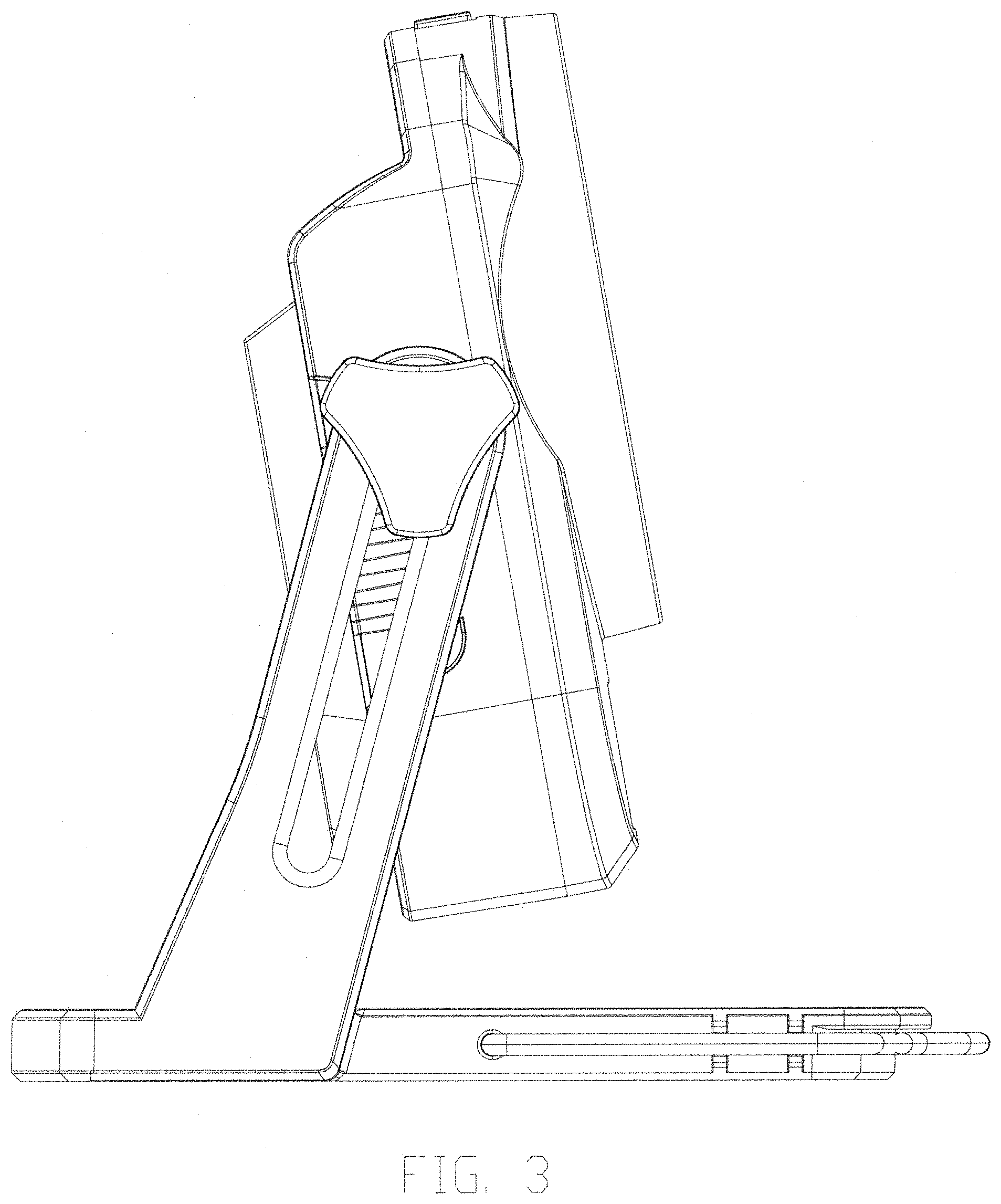

is a left side view thereof;

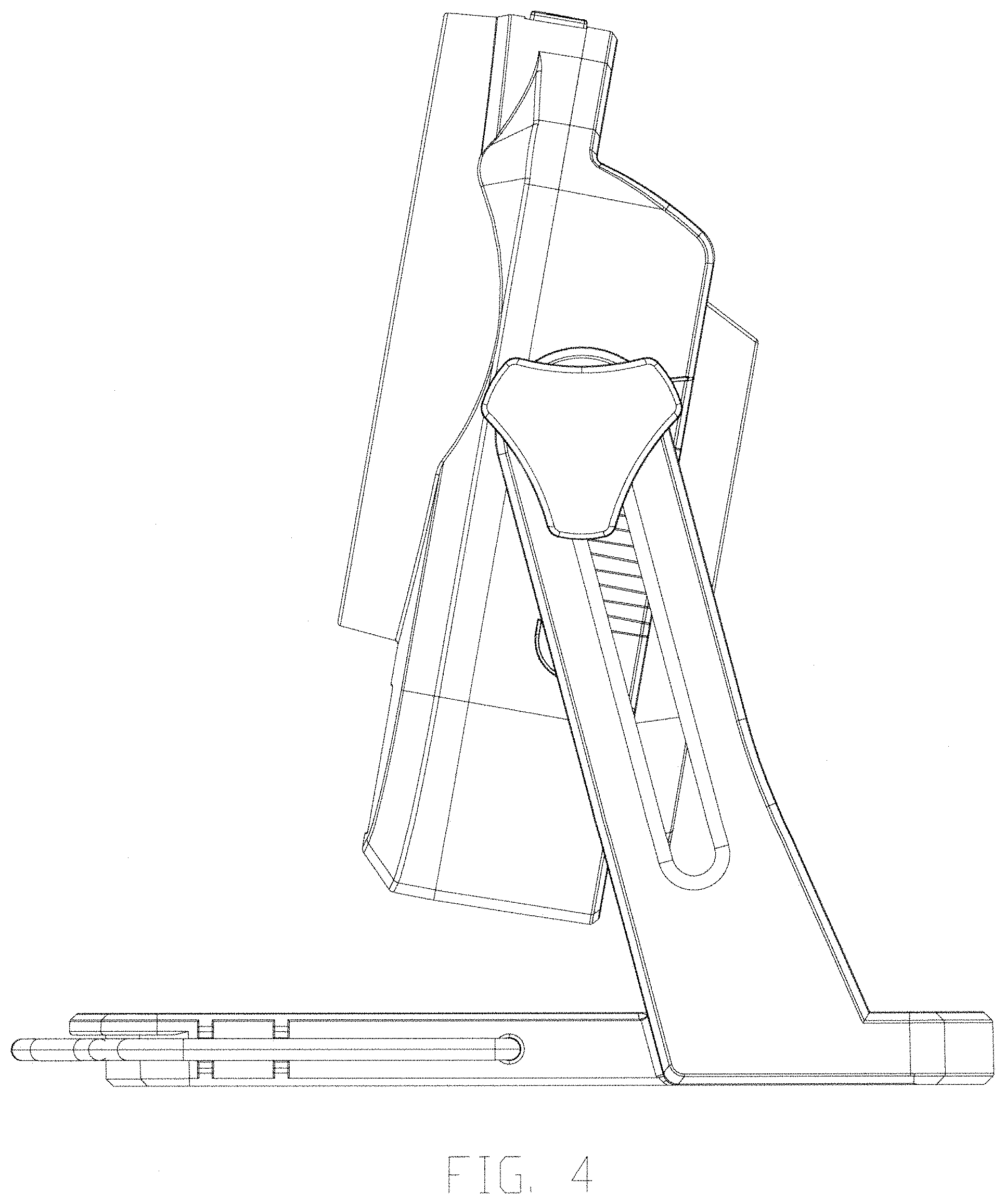

is a right side view thereof;

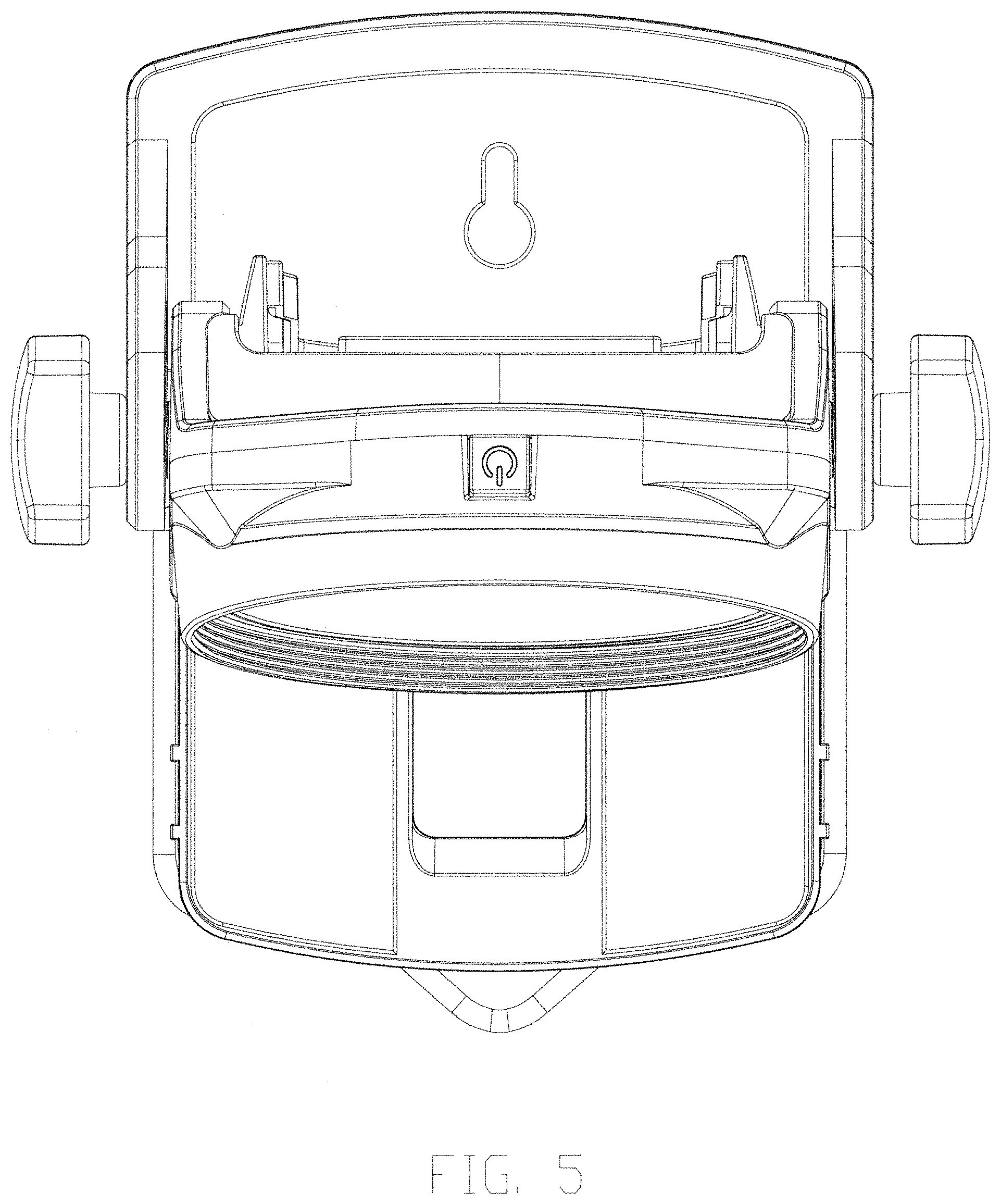

is a top plan view thereof;

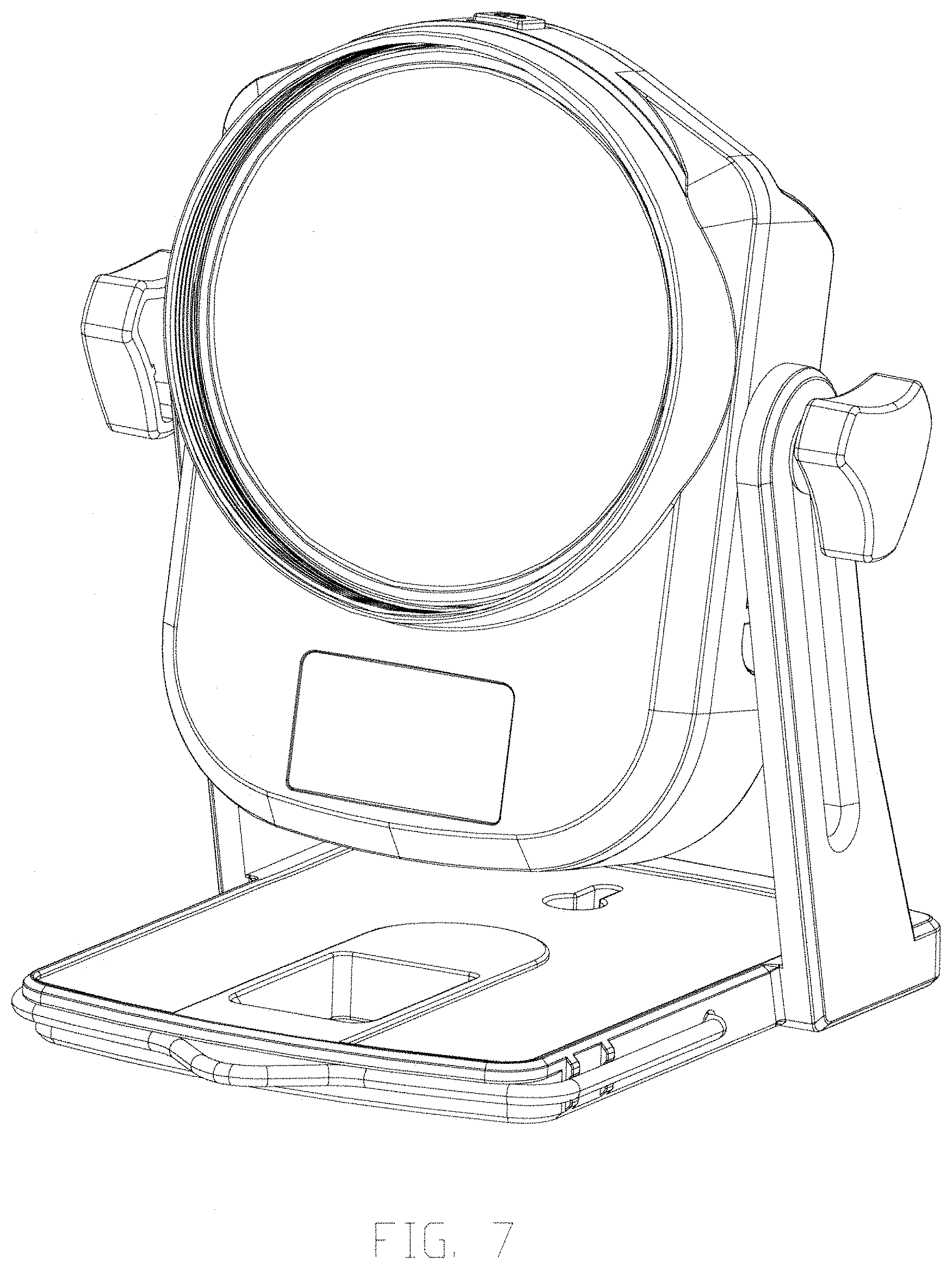

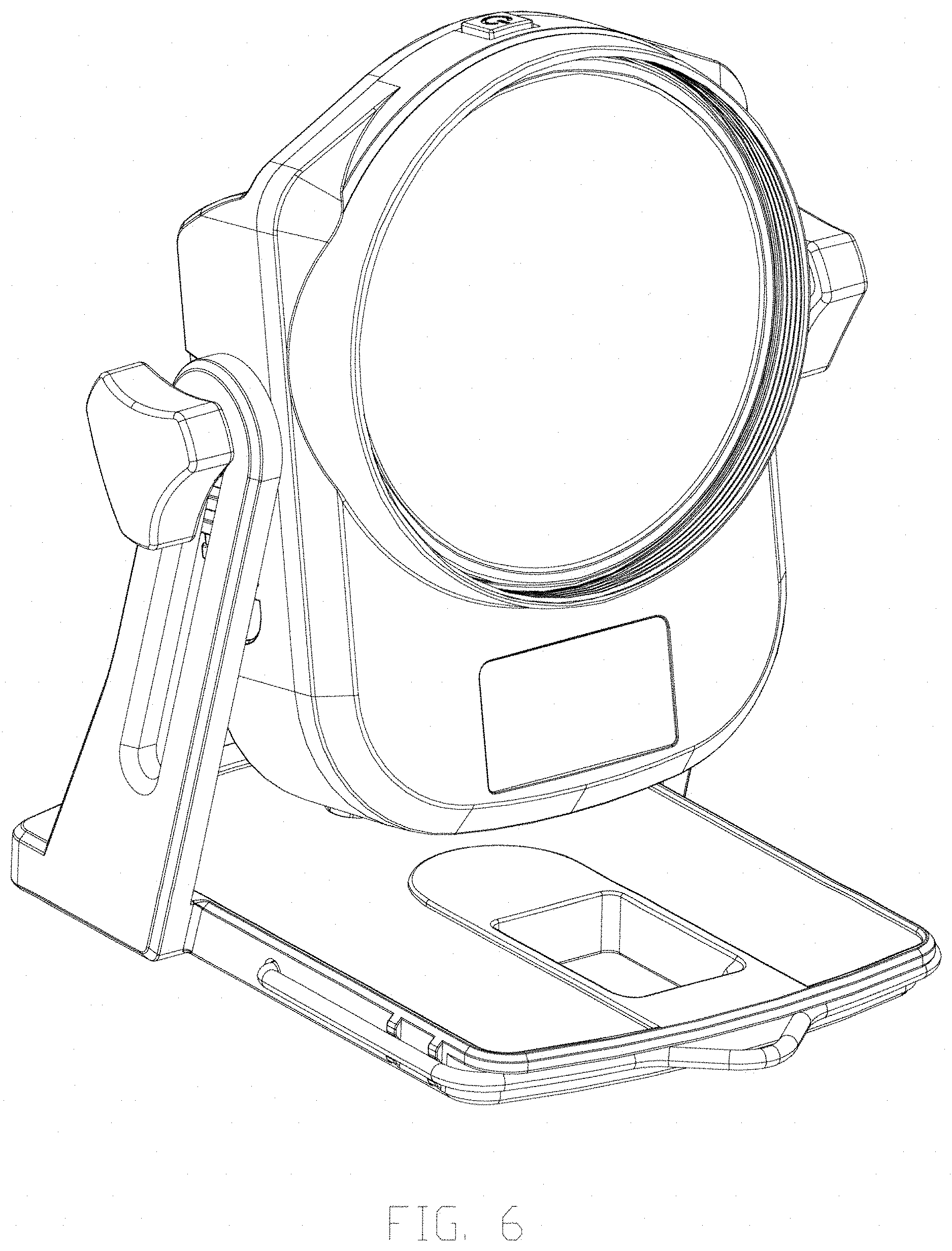

is a perspective view thereof;

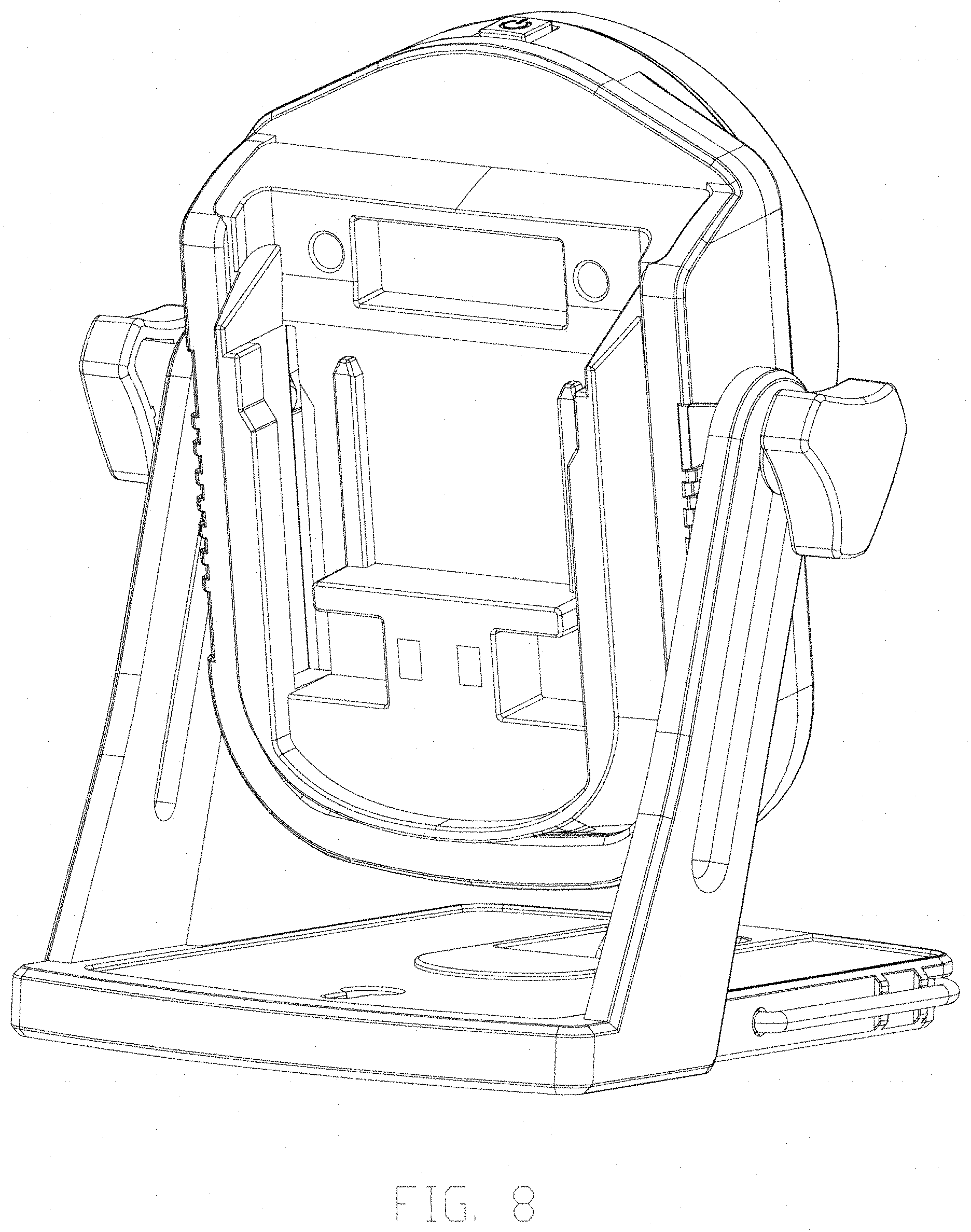

is a second perspective view thereof;
is a third perspective view thereof;

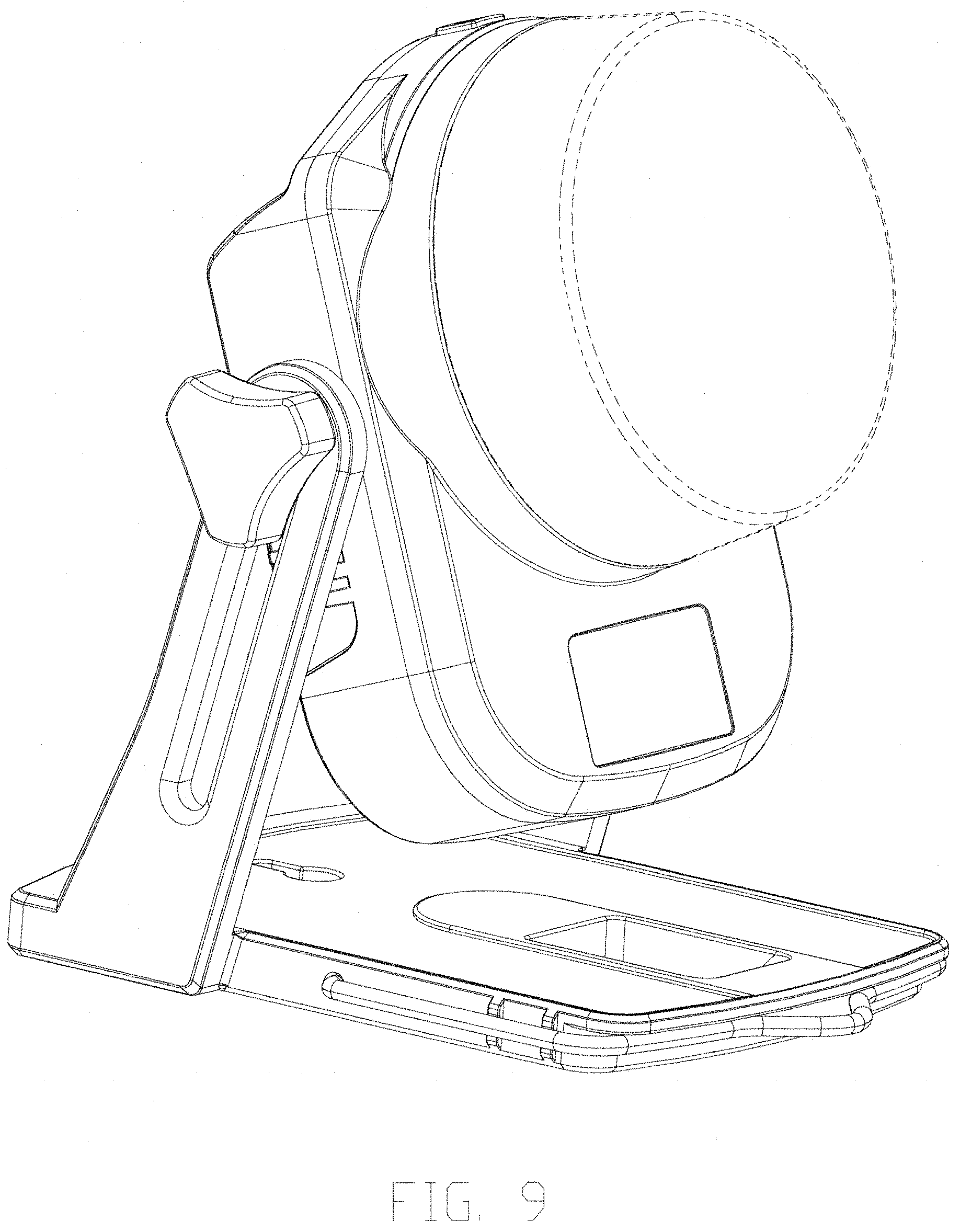

is a perspective view thereof with a cover attached to the LED light; and,

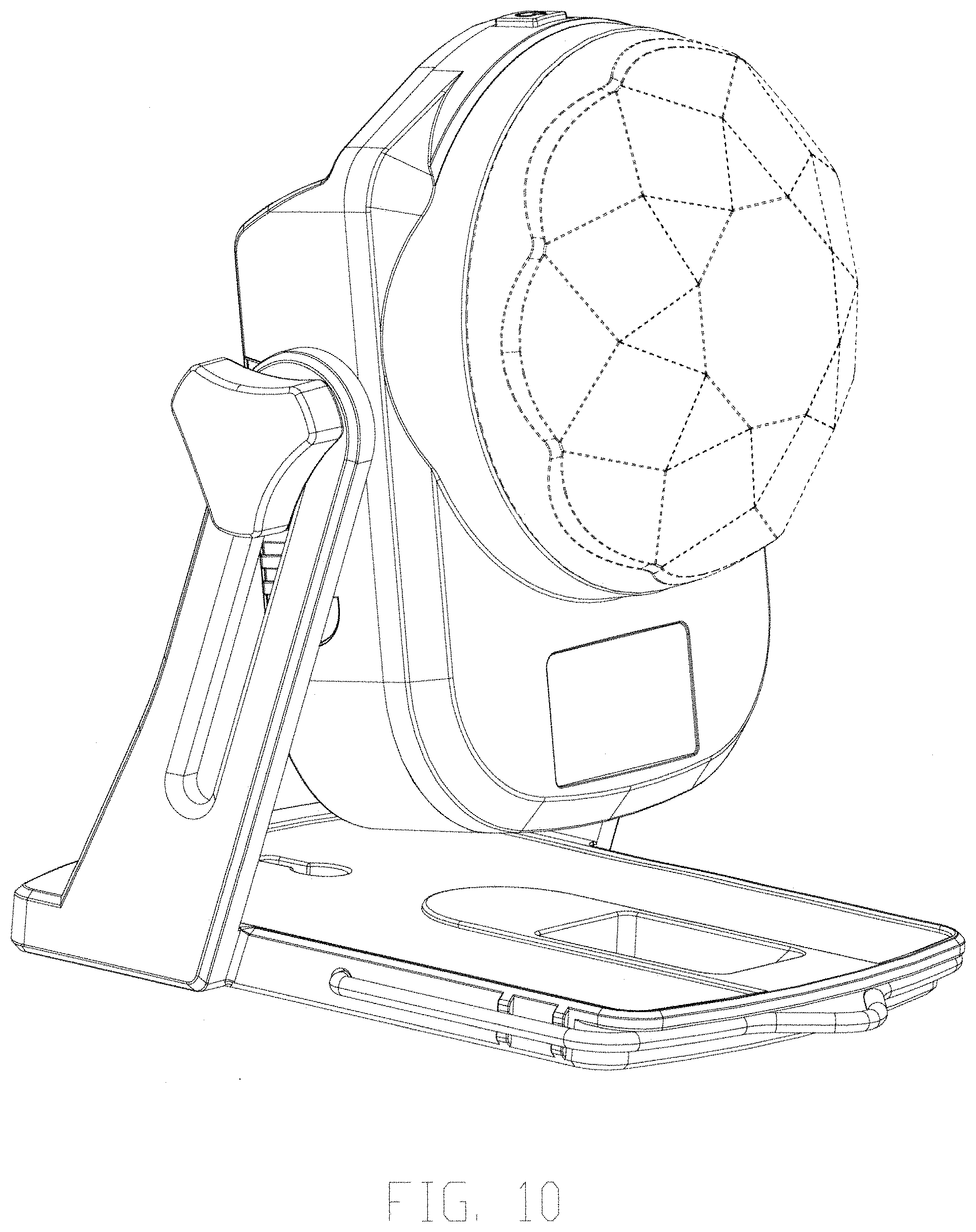

is a perspective view thereof with another cover attached to the LED light.
The broken lines shown in illustrate portions of the LED light, the broken lines showing the cover illustrate environmental structures; all broken lines form no part of the claim.
