Handheld Device for Medical Imaging

USD1001279No. D 1,001,279designGranted 10/10/2023
Patent USD1001279 — Handheld device for medical imaging — Figure 1
Fig. 1 · Handheld Device for Medical Imaging

Claims (1)

Claim 1 (Independent)

The ornamental design for a handheld device for medical imaging, as shown.

Full Description

Show full text →

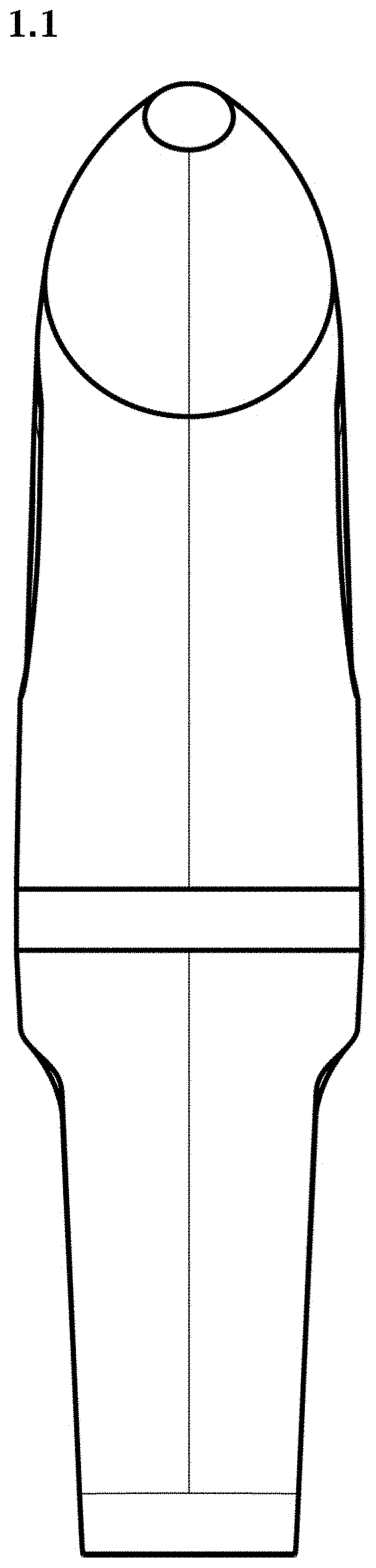

1 . 1 is a right side view of the handheld device for medical imaging showing our new design;

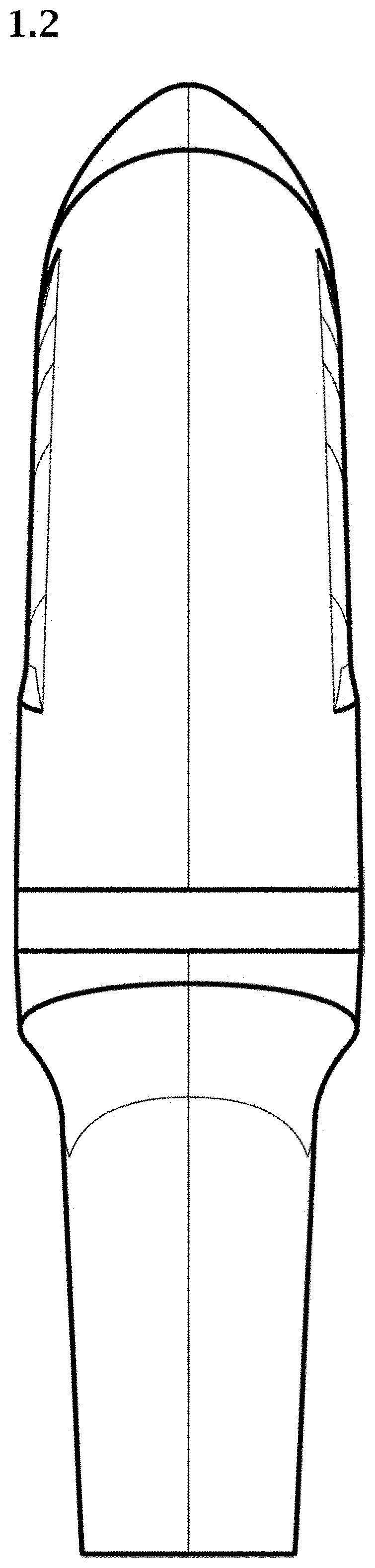

1 . 2 is a left side view thereof:

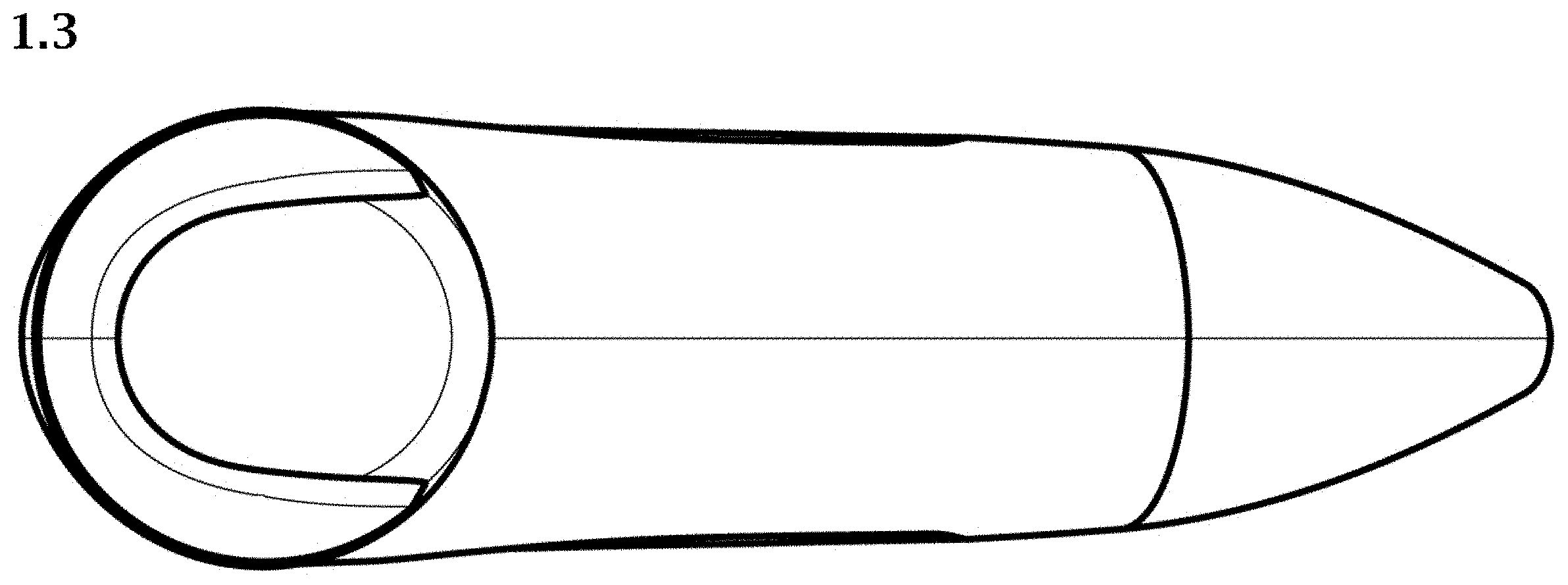

1 . 3 is a bottom view thereof;

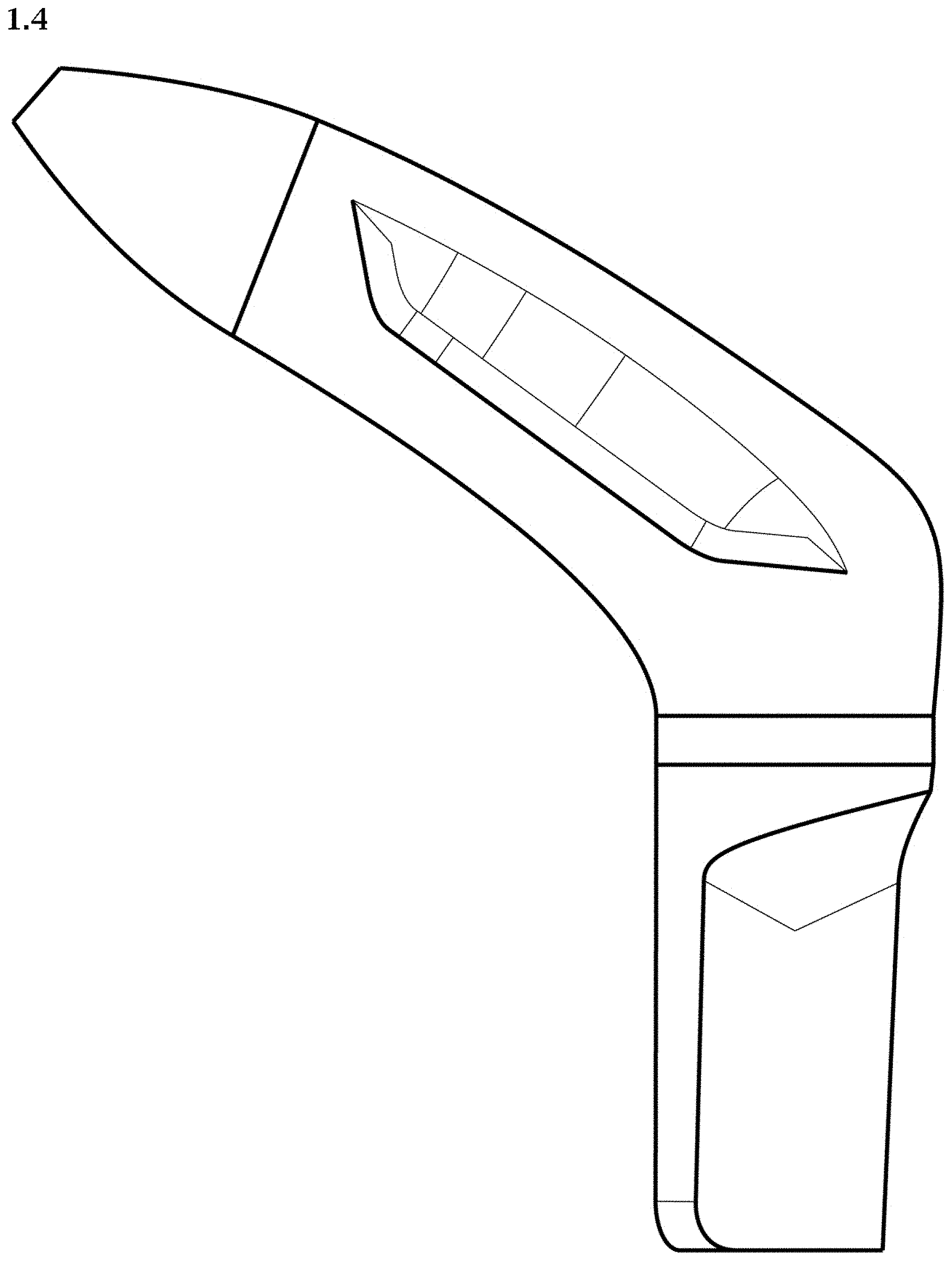

1 . 4 is a rear view thereof;

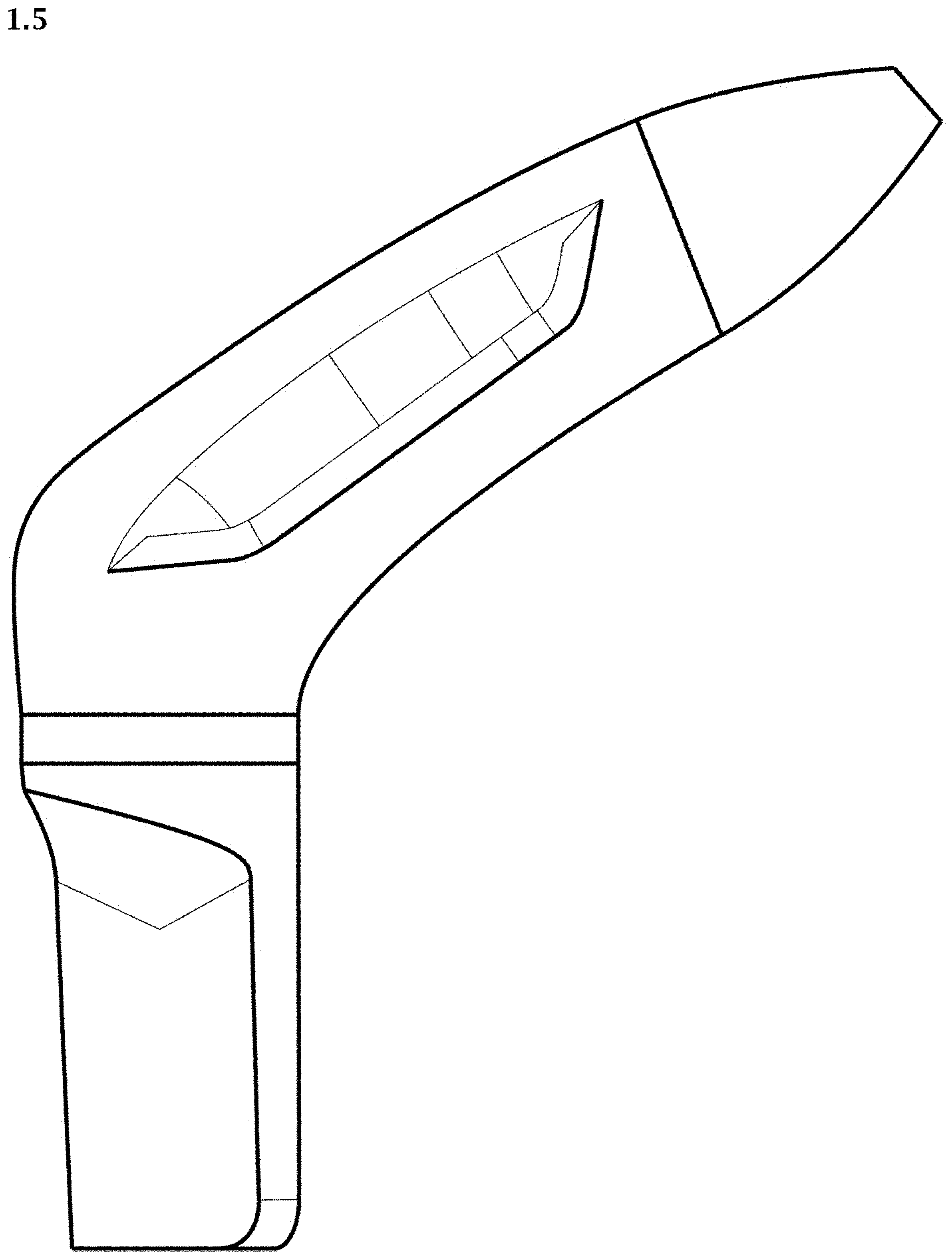

1 . 5 is a front view thereof;

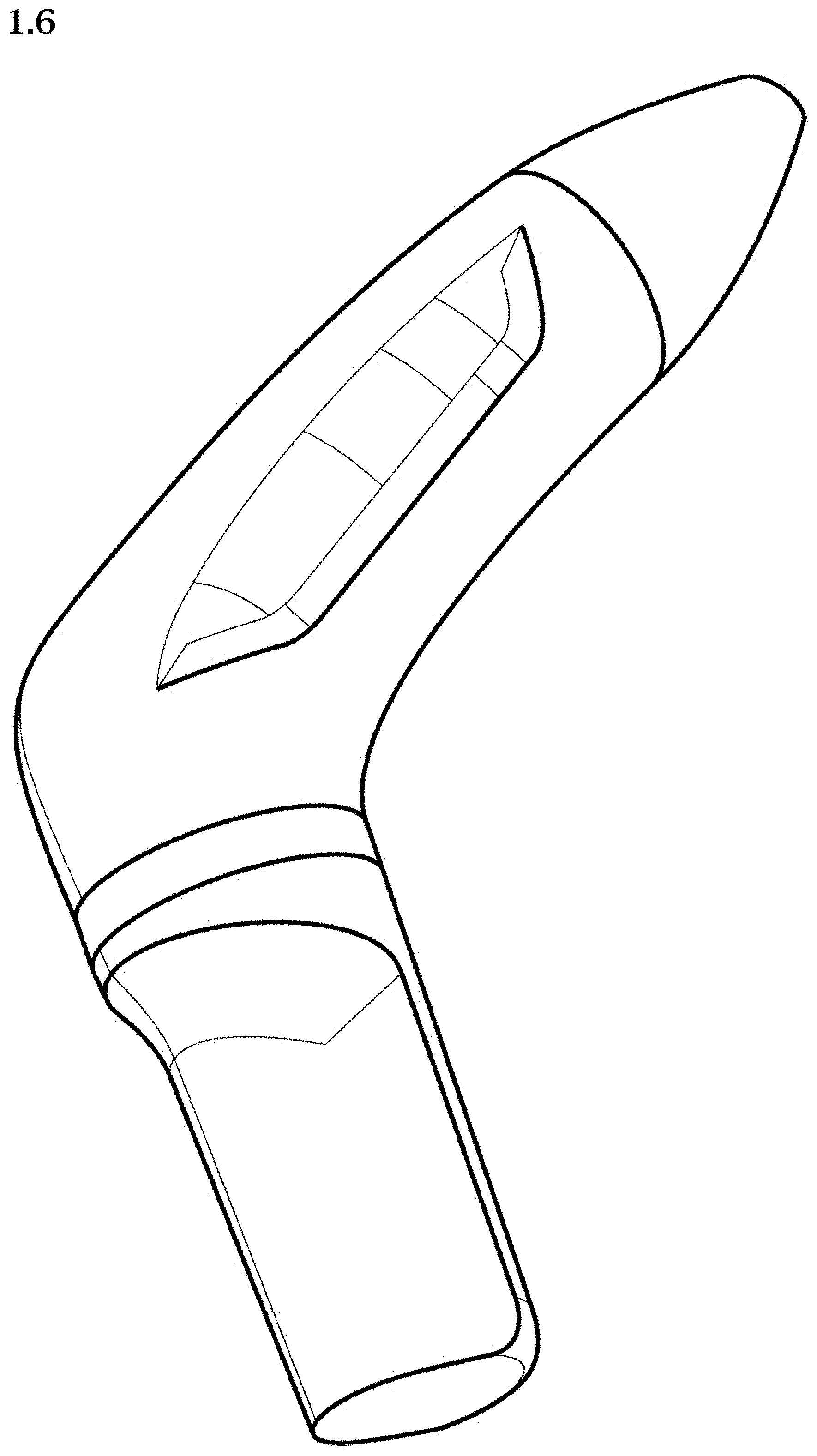

1 . 6 is a perspective view thereof; and

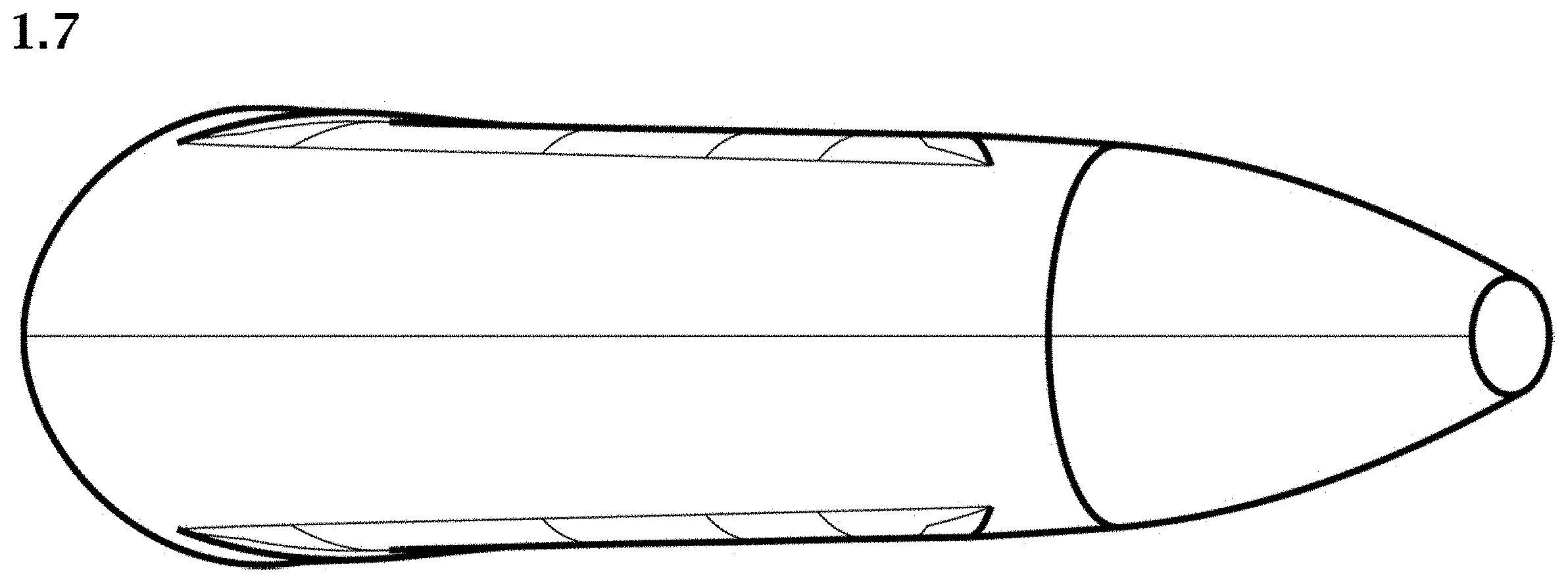

1 . 7 is a top view thereof.
