USD1001266No. D 1,001,266designGranted 10/10/2023
Patent USD1001266 — Medical device — Figure 1
Fig. 1 · Medical Device

Claims (1)

Claim 1 (Independent)

The ornamental design for a medical device, as shown and described.

Full Description

Show full text →

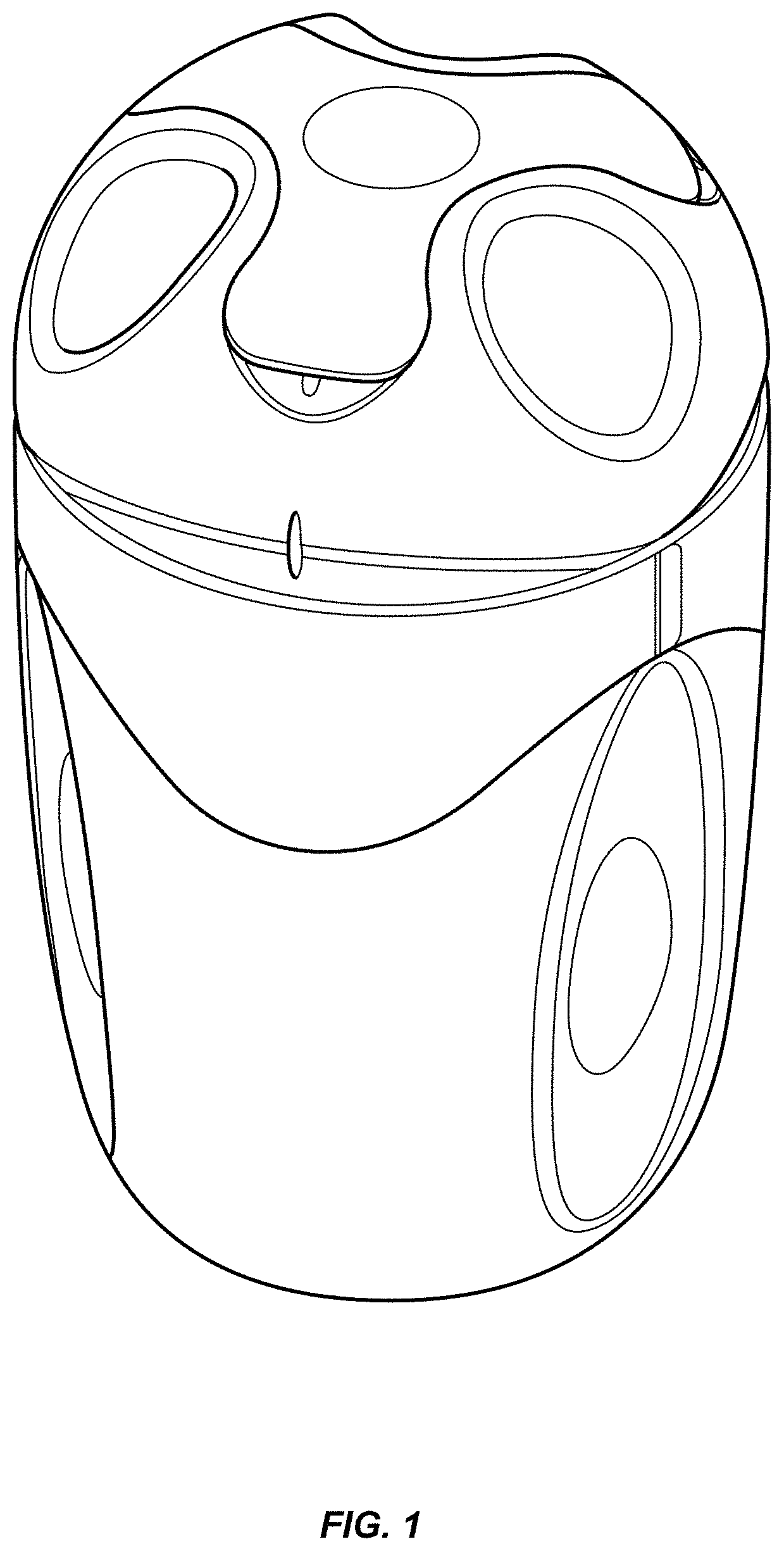

is a top perspective view of a medical device showing the claimed design;

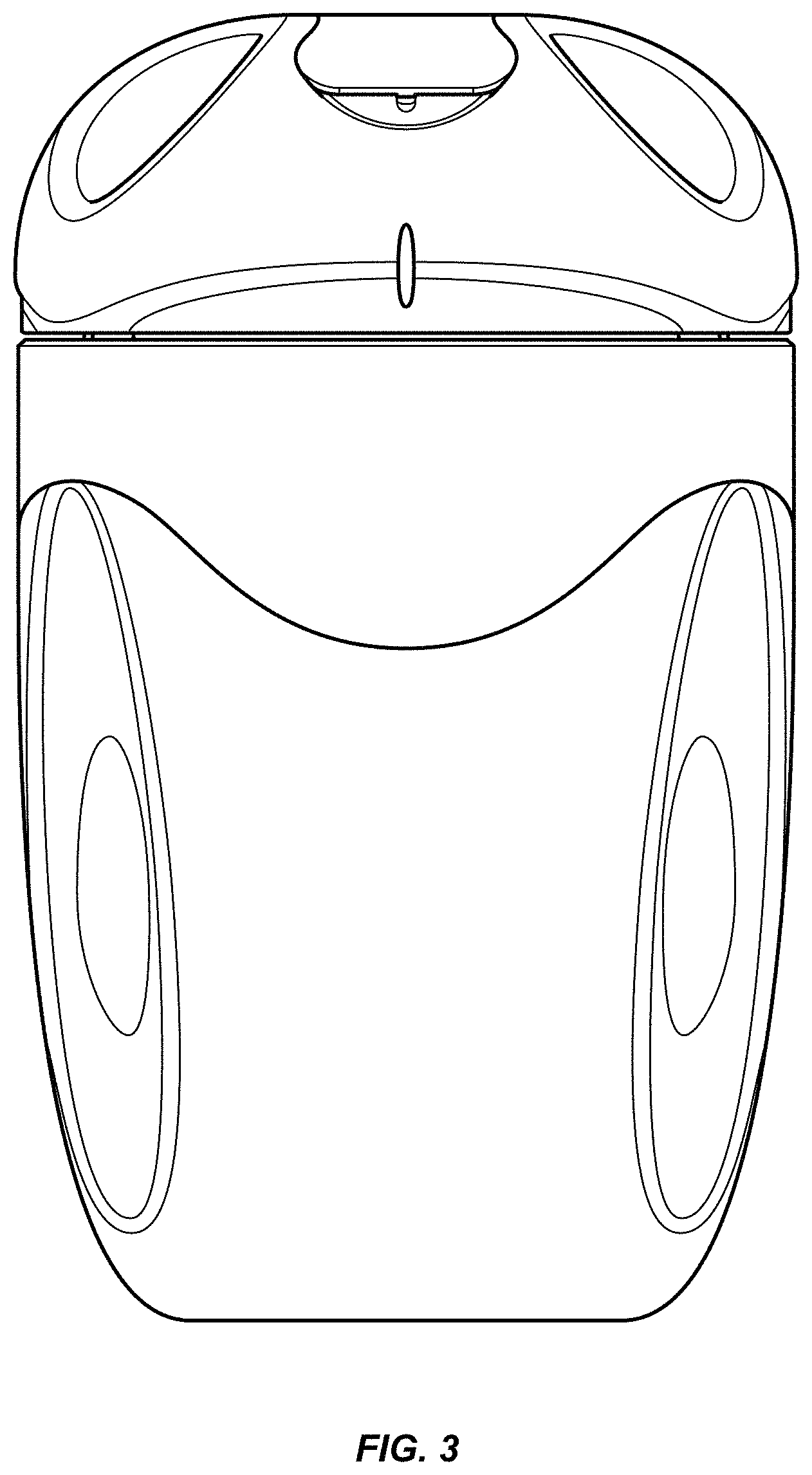

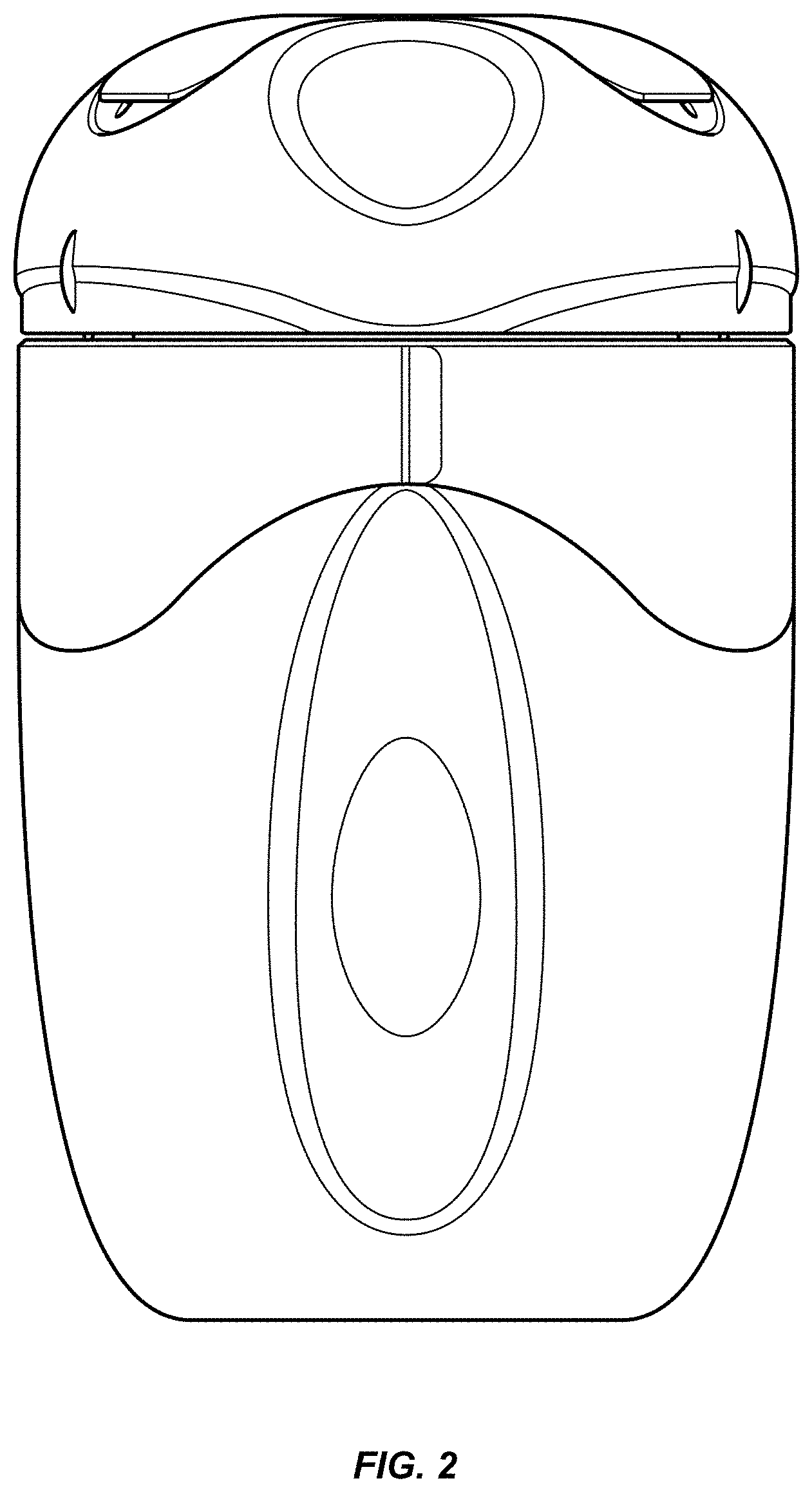

is a front view thereof;

is a rear view thereof;

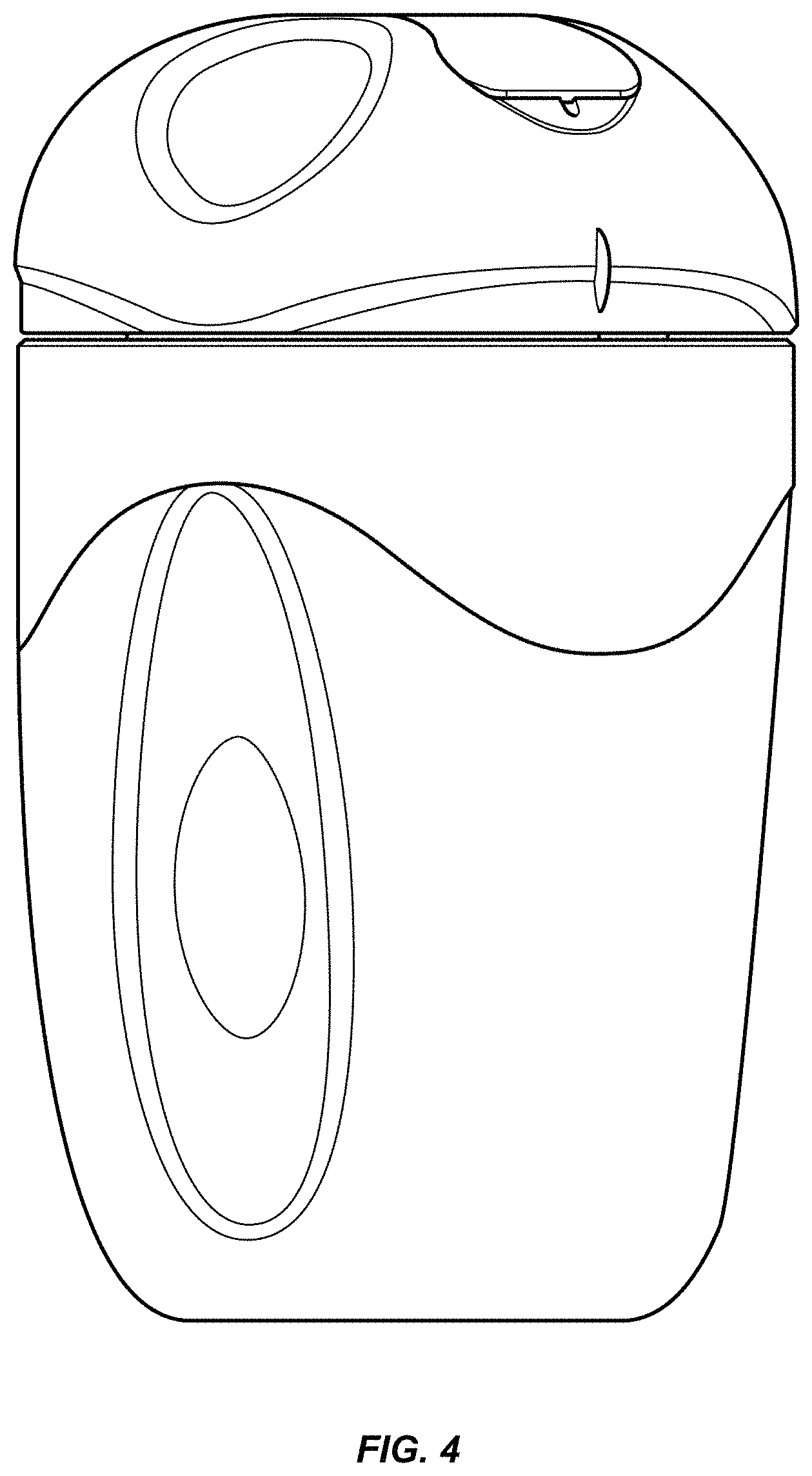

is a left side view thereof;

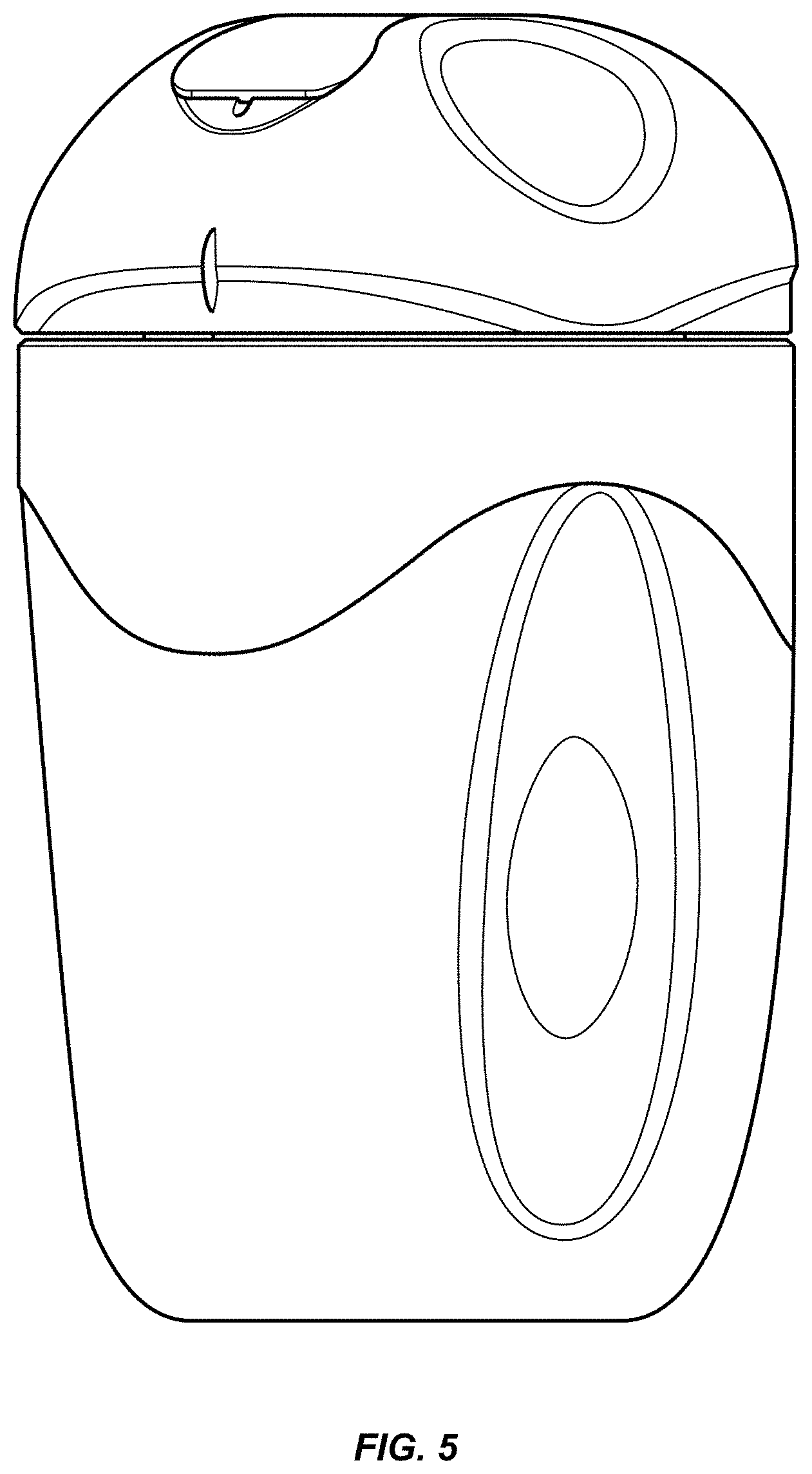

is a right side view thereof;

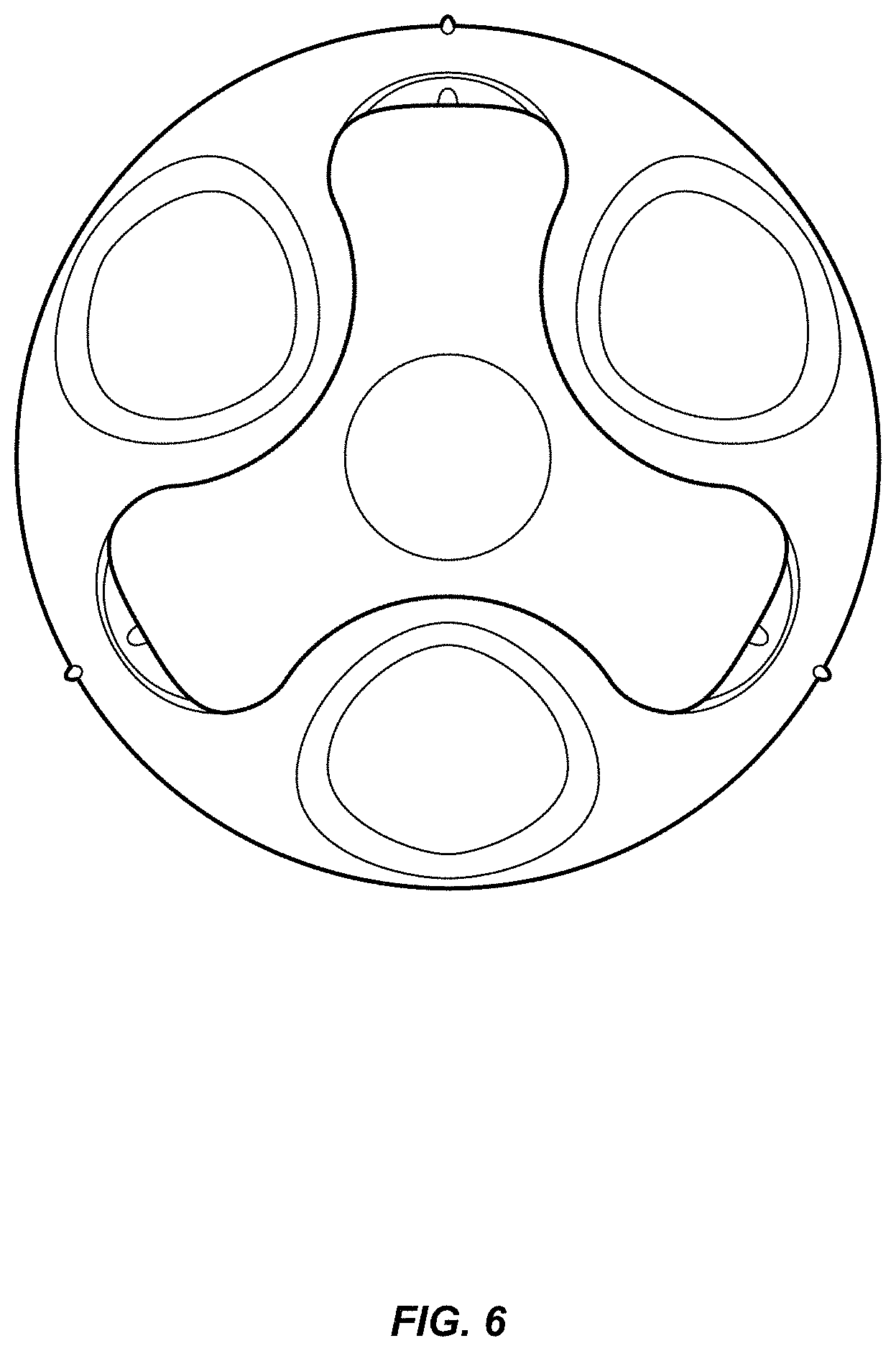

is a top view thereof;

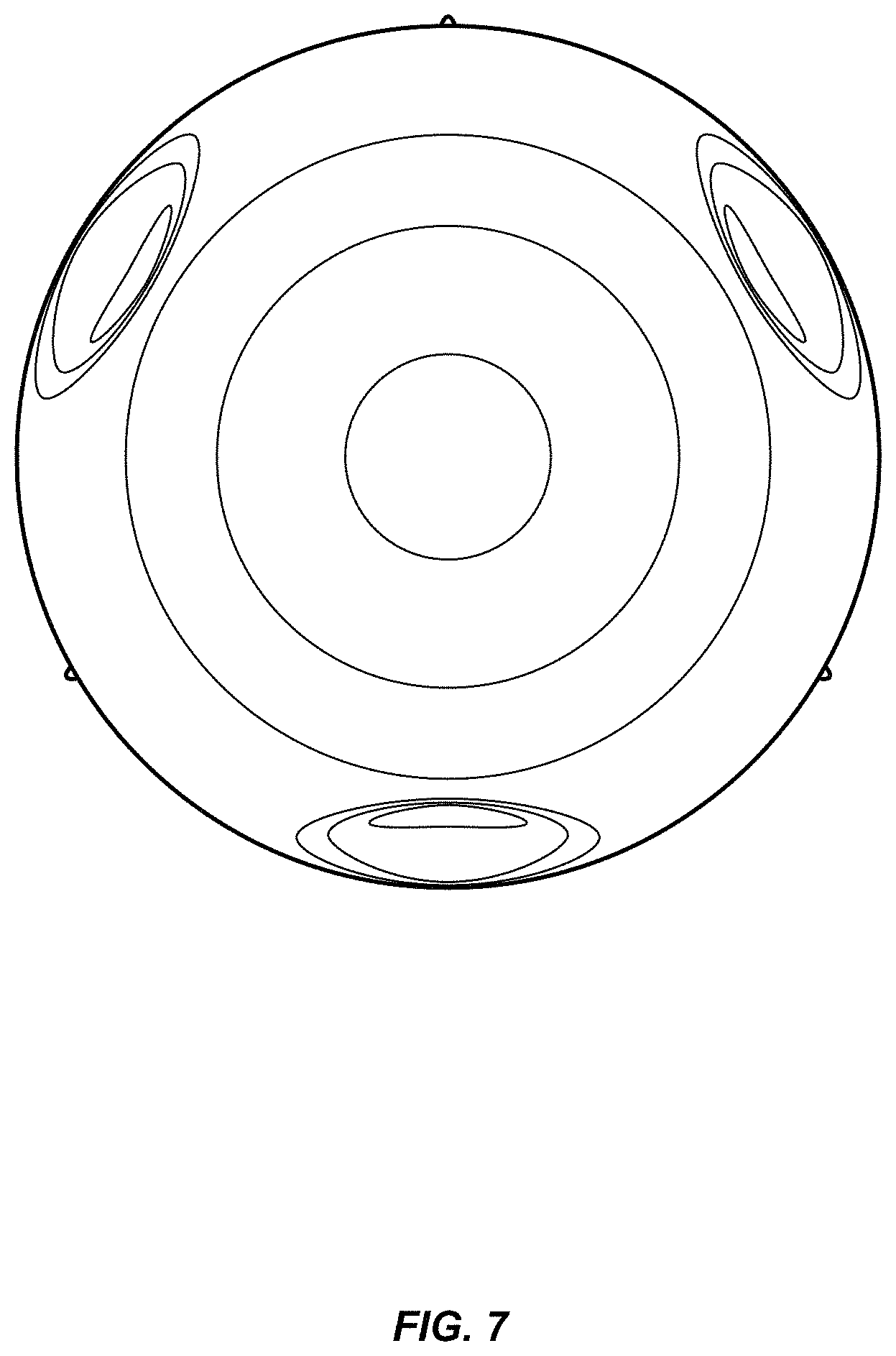

is a bottom view thereof; and,

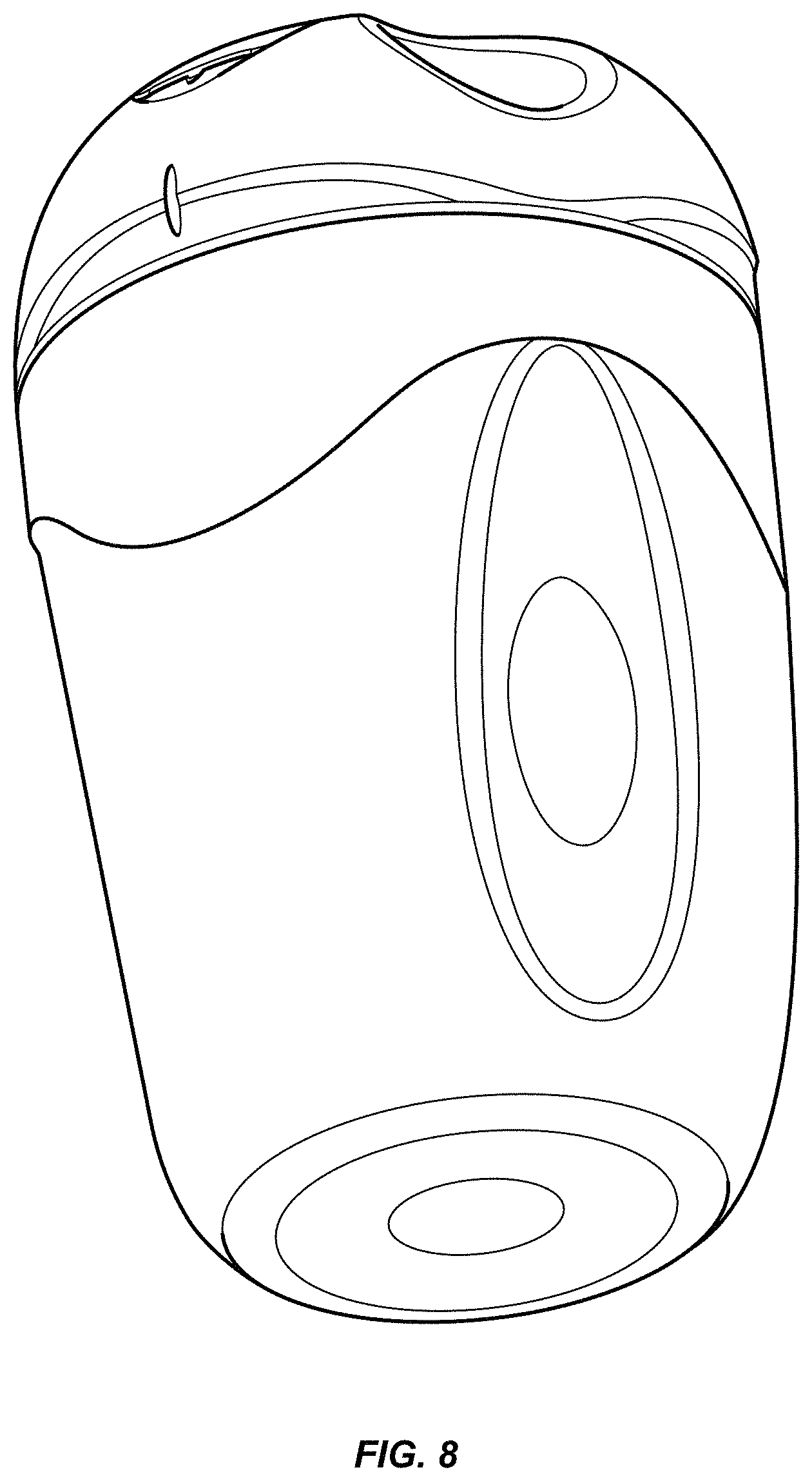

is a bottom perspective view thereof.
