Golf Ball

USD1001218No. D 1,001,218designGranted 10/10/2023
Patent USD1001218 — Golf ball — Figure 1
Fig. 1 · Golf Ball

Claims (1)

Claim 1 (Independent)

The ornamental design for a golf ball, as shown and described.

Full Description

Show full text →

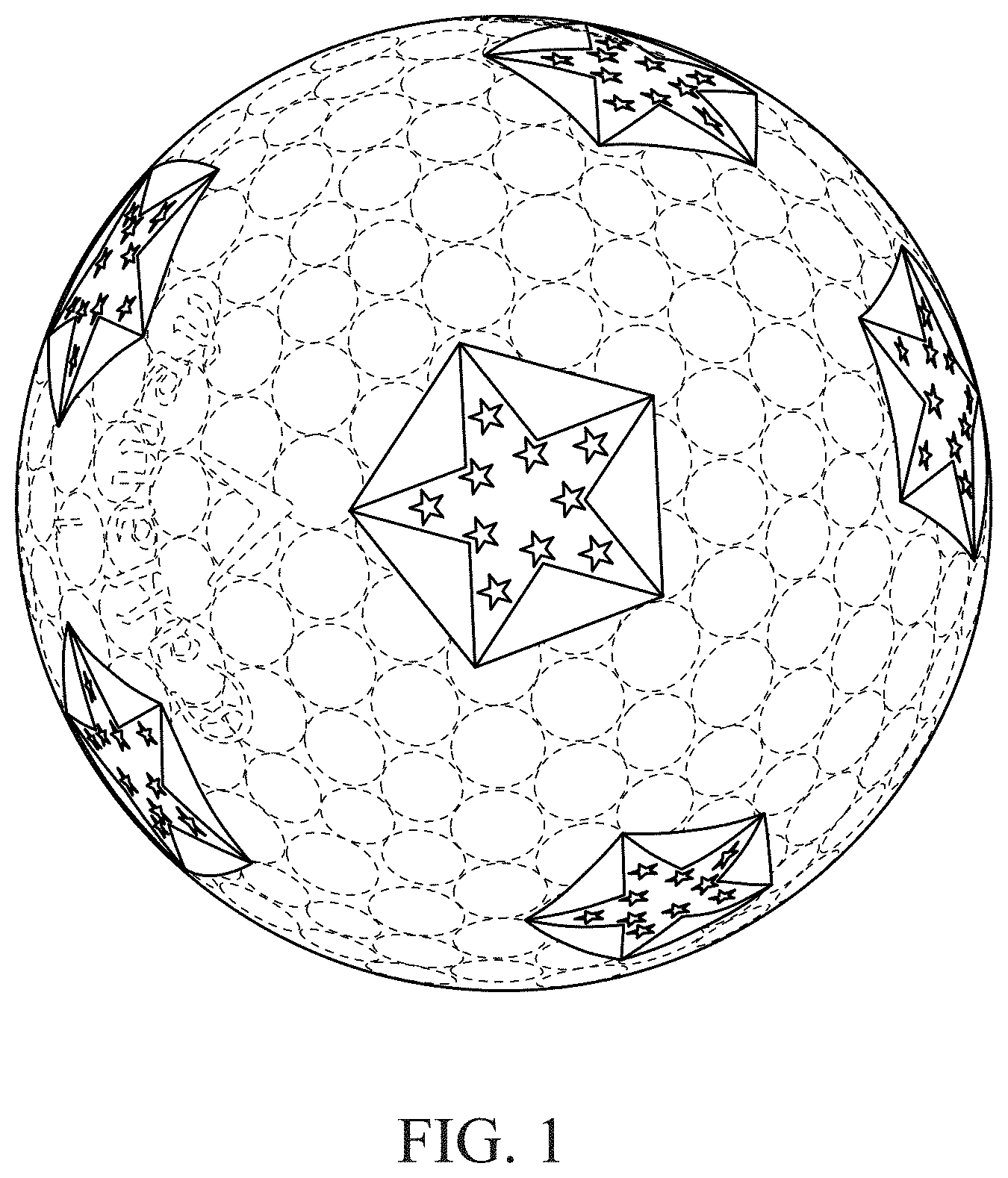

is a top plan view showing our new design for a golf ball with a pattern of twelve equal size pentagons;

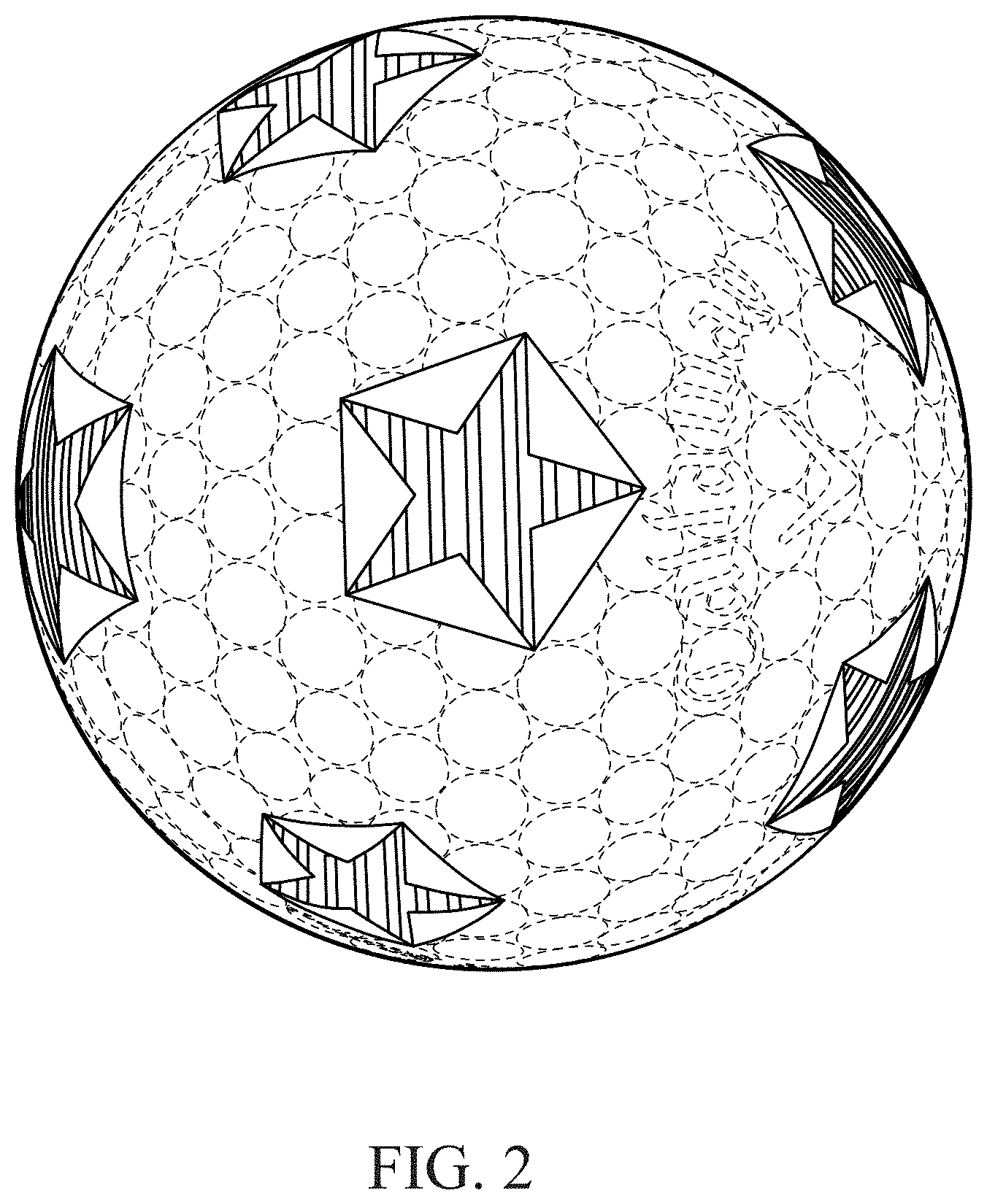

is bottom plan view thereof;

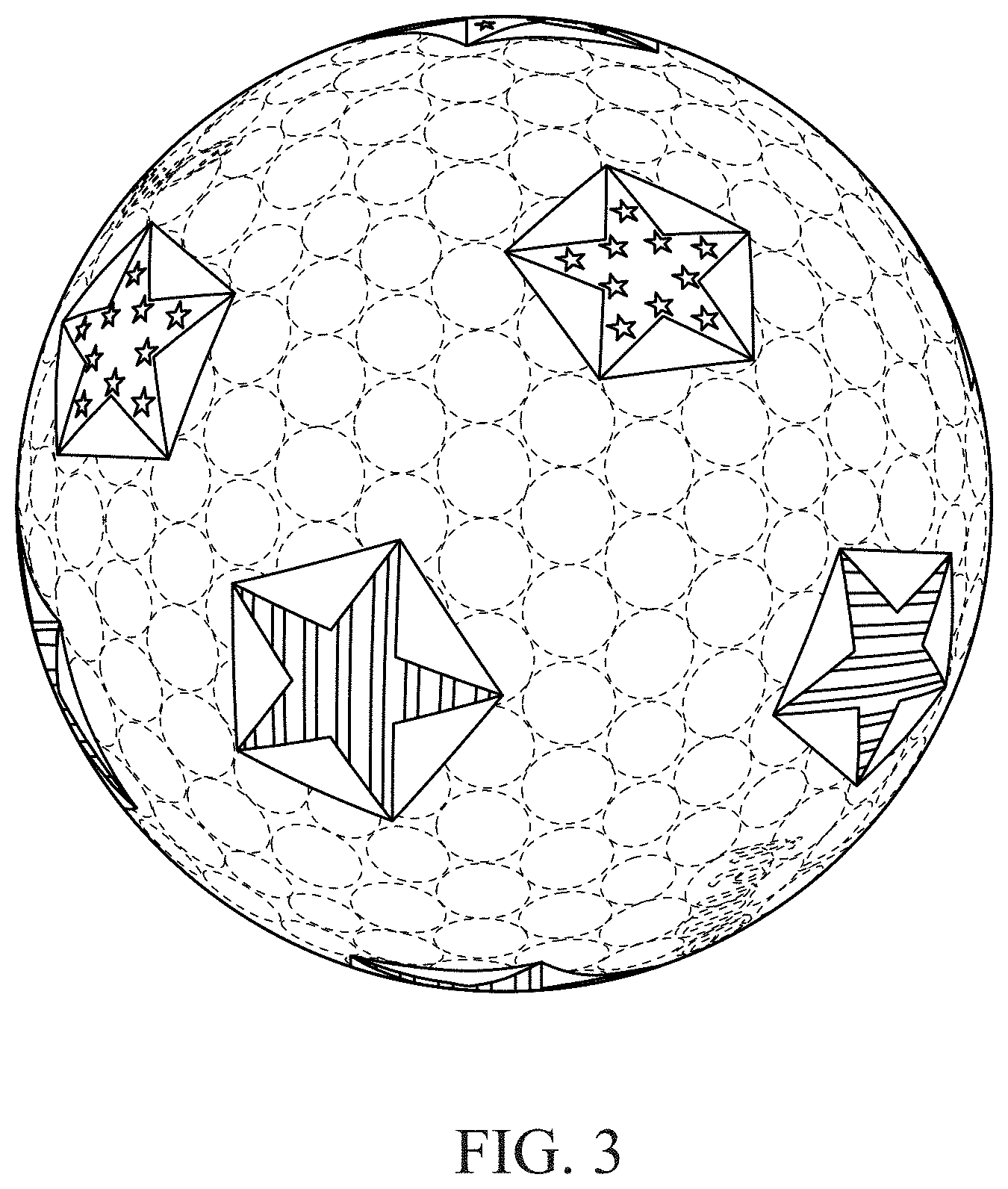

is a front elevation view thereof;

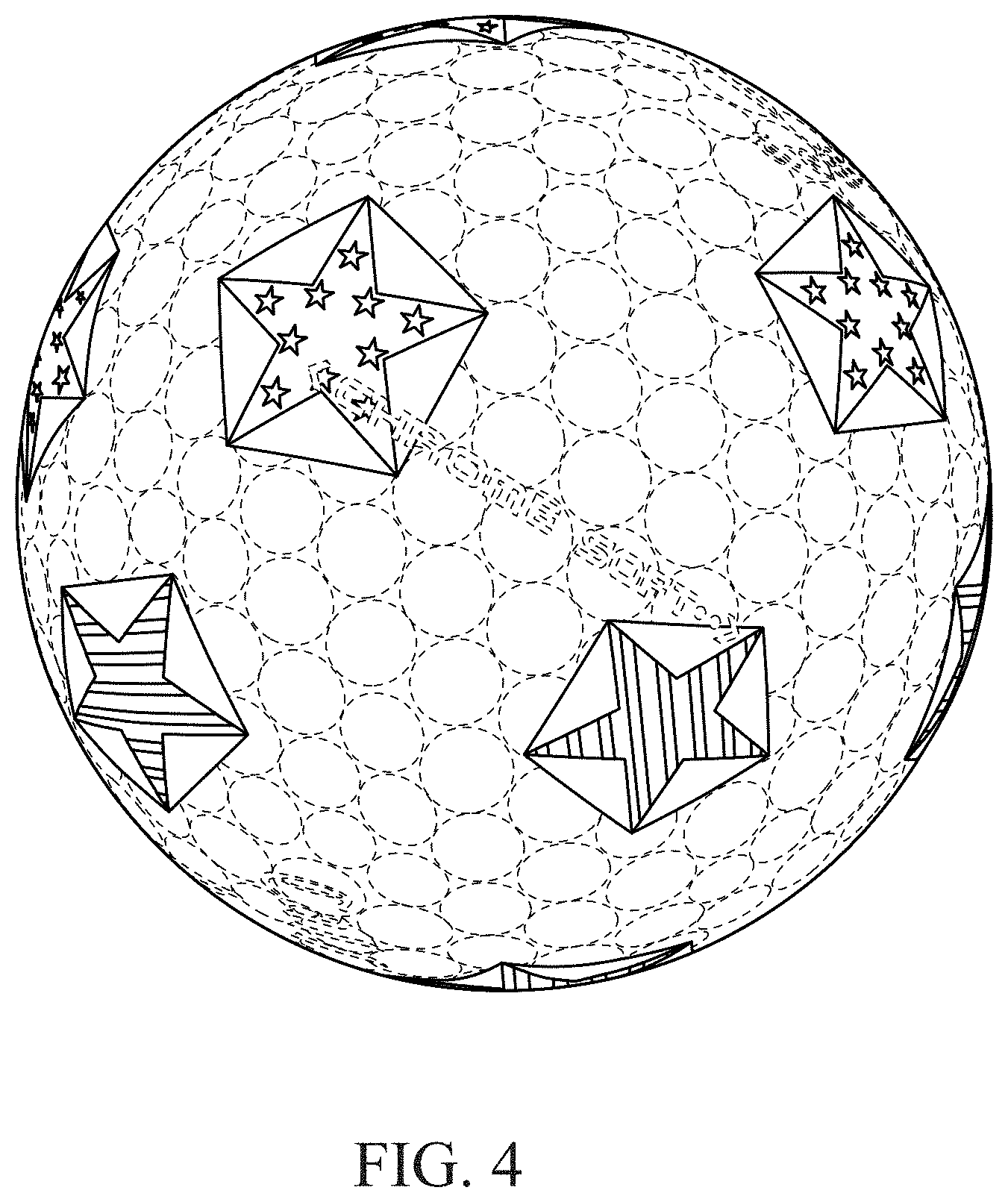

is a rear elevation view thereof;

is a side elevation view thereof; and,

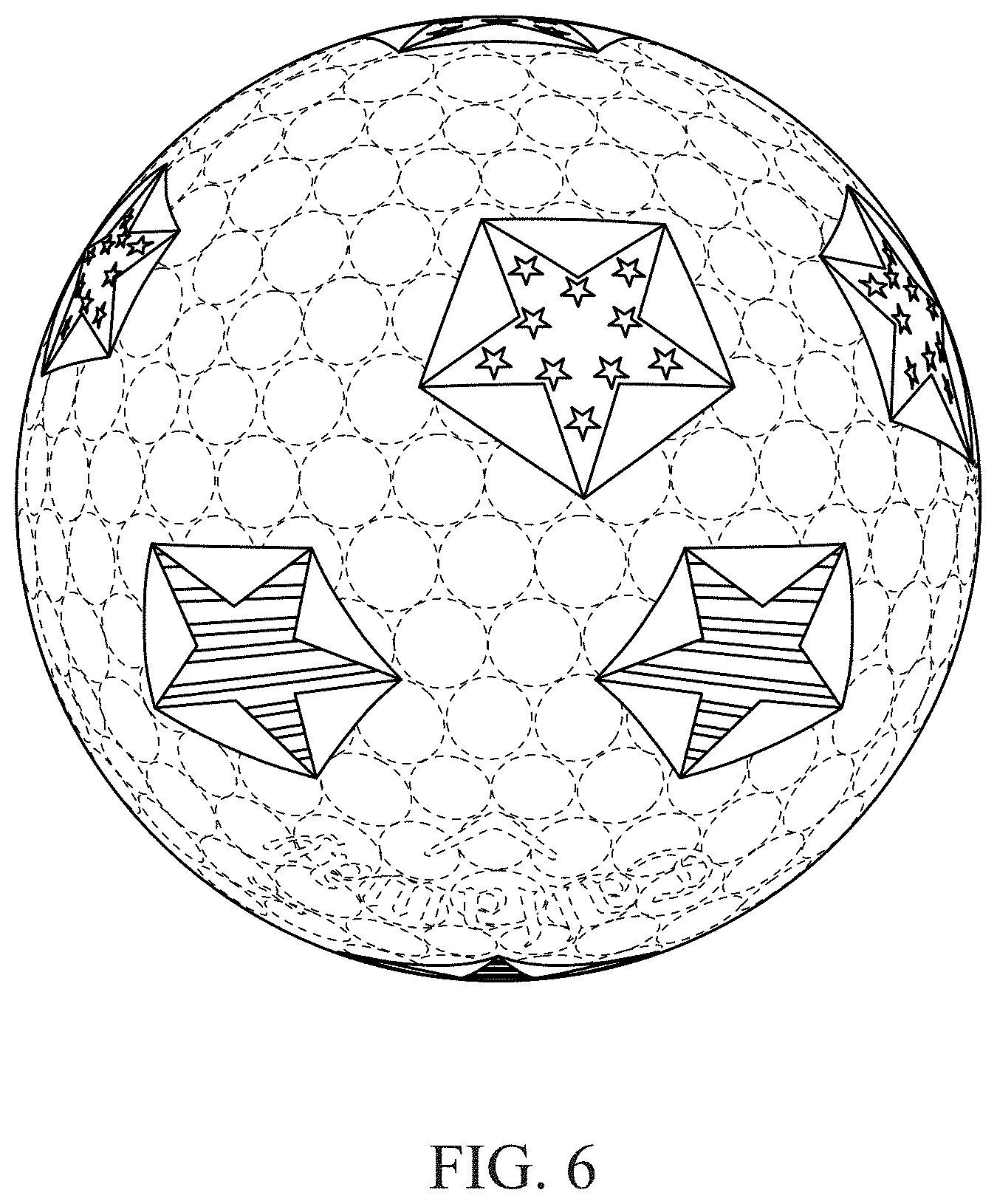

is an opposing side elevation view thereof.

The borders of the logo portions and other details shown in broken lines are for illustrative purposes only and form no part of the claimed design. The trademark “Callaway V” logo is a trademark of the Callaway Golf Company.
