Folding Squat Rack

USD1001216No. D 1,001,216designGranted 10/10/2023

Patent USD1001216 — Folding squat rack — Figure 1 — Fig. 1 · Folding Squat Rack

Claims (1)

Claim 1 (Independent)

The ornamental design for a folding squat rack, as shown and described.

Full Description

Show full text →

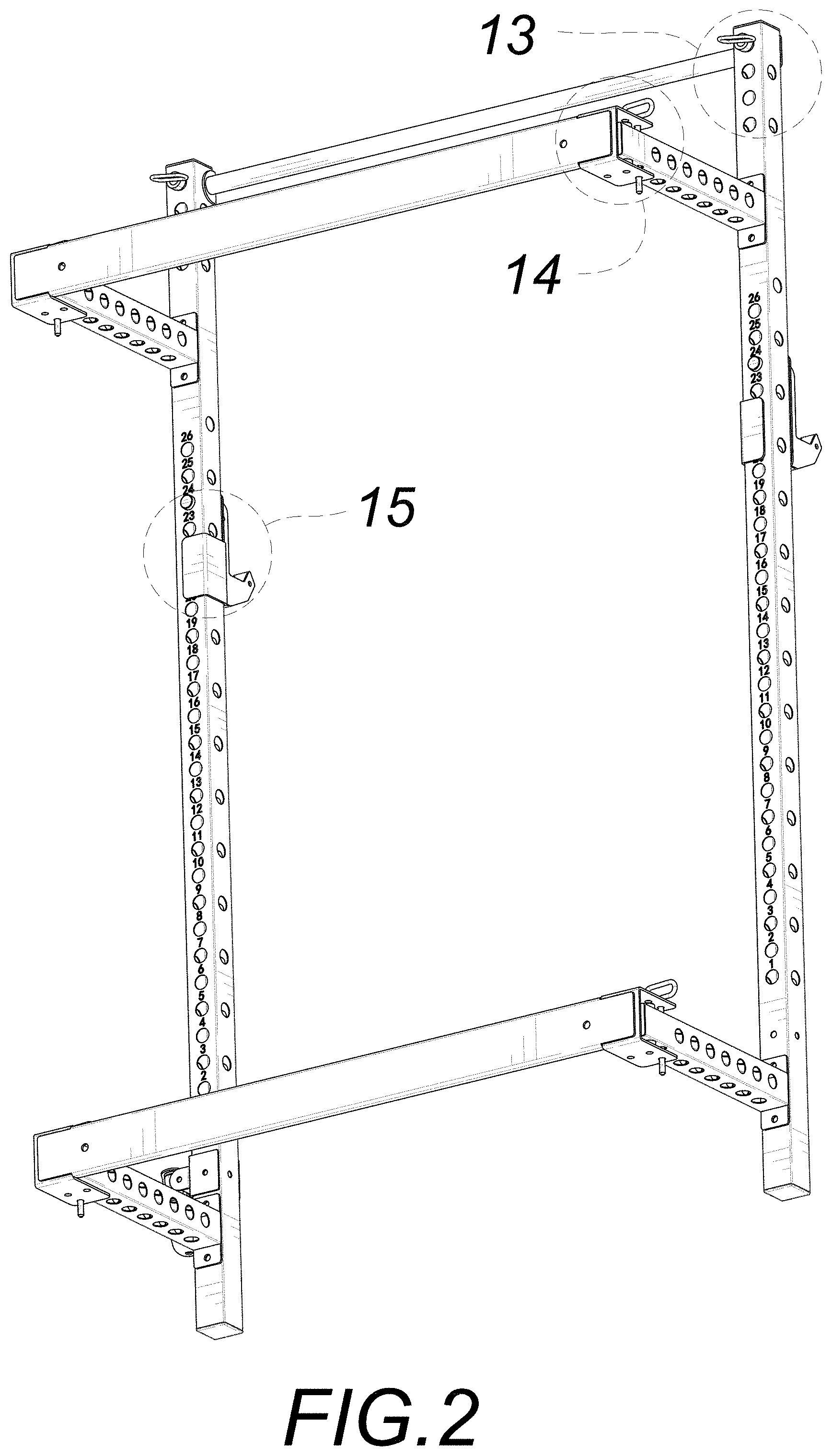

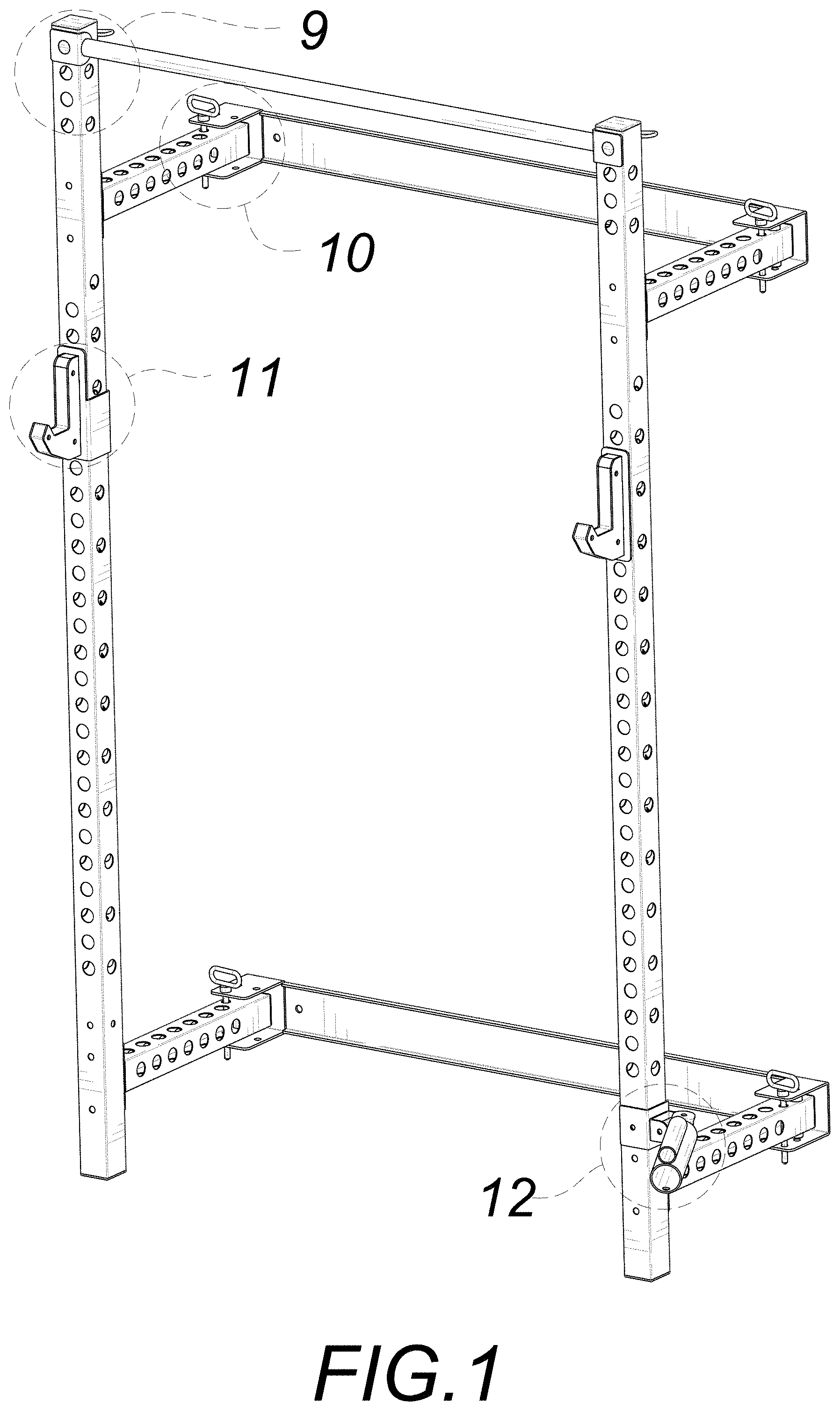

is a perspective view of the folding squat rack, showing my new design;

is another perspective view thereof;

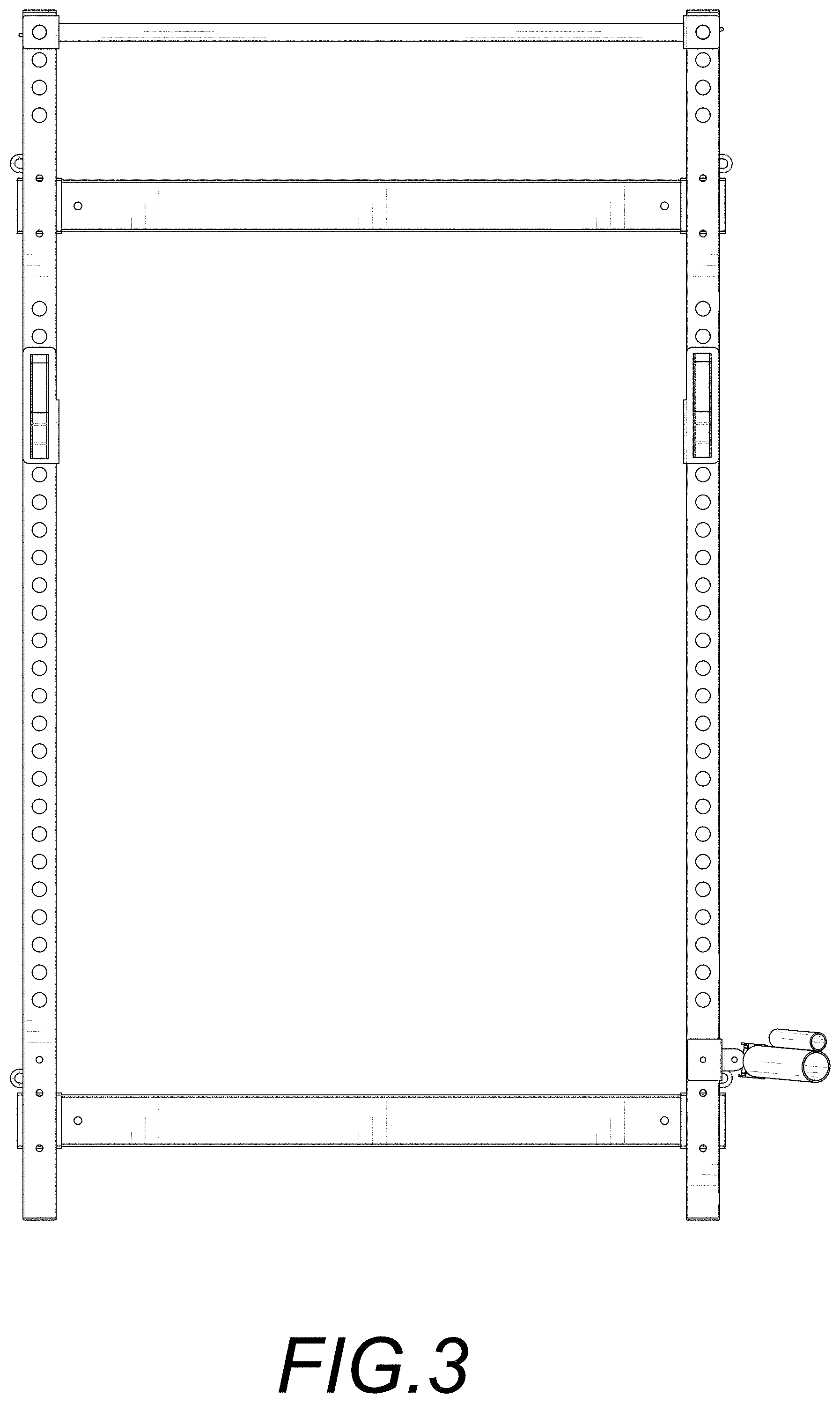

is a front elevation view thereof;

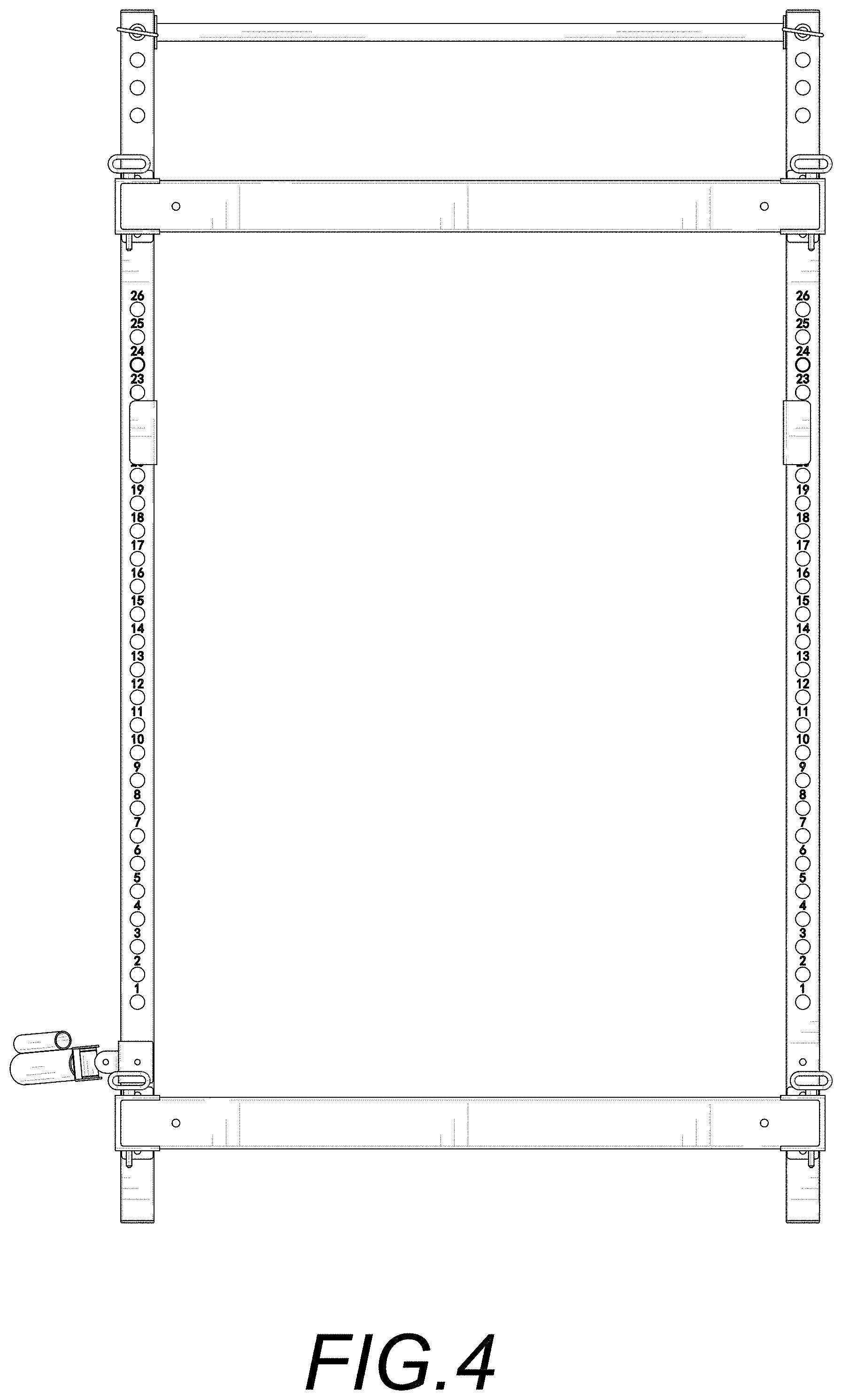

is a rear elevation view thereof;

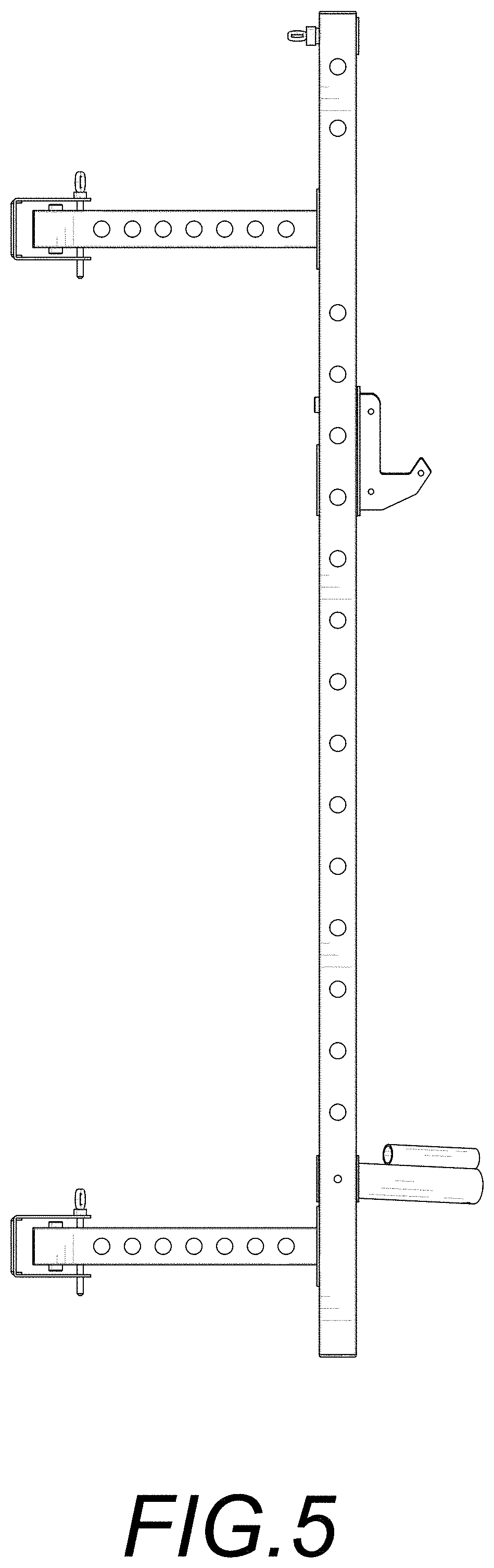

is a left side elevation view thereof;

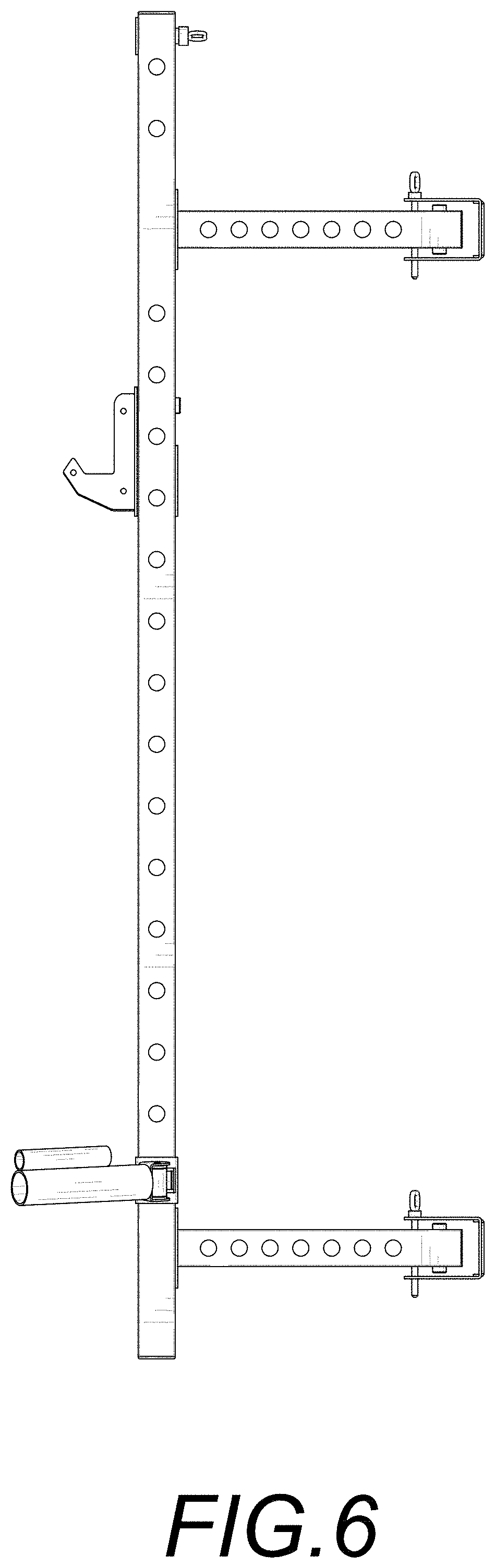

is a right side elevation view thereof;

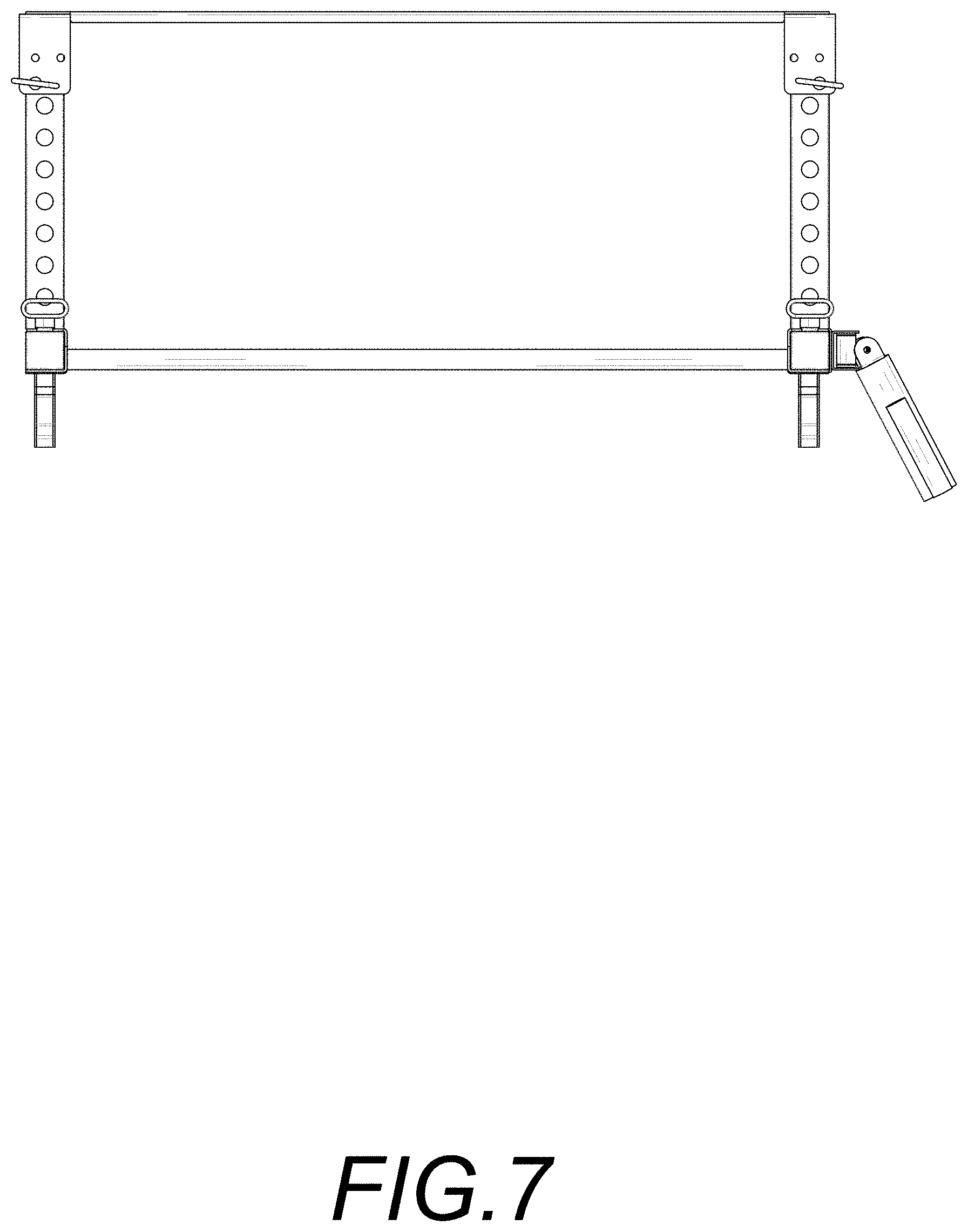

is a top plan view thereof;

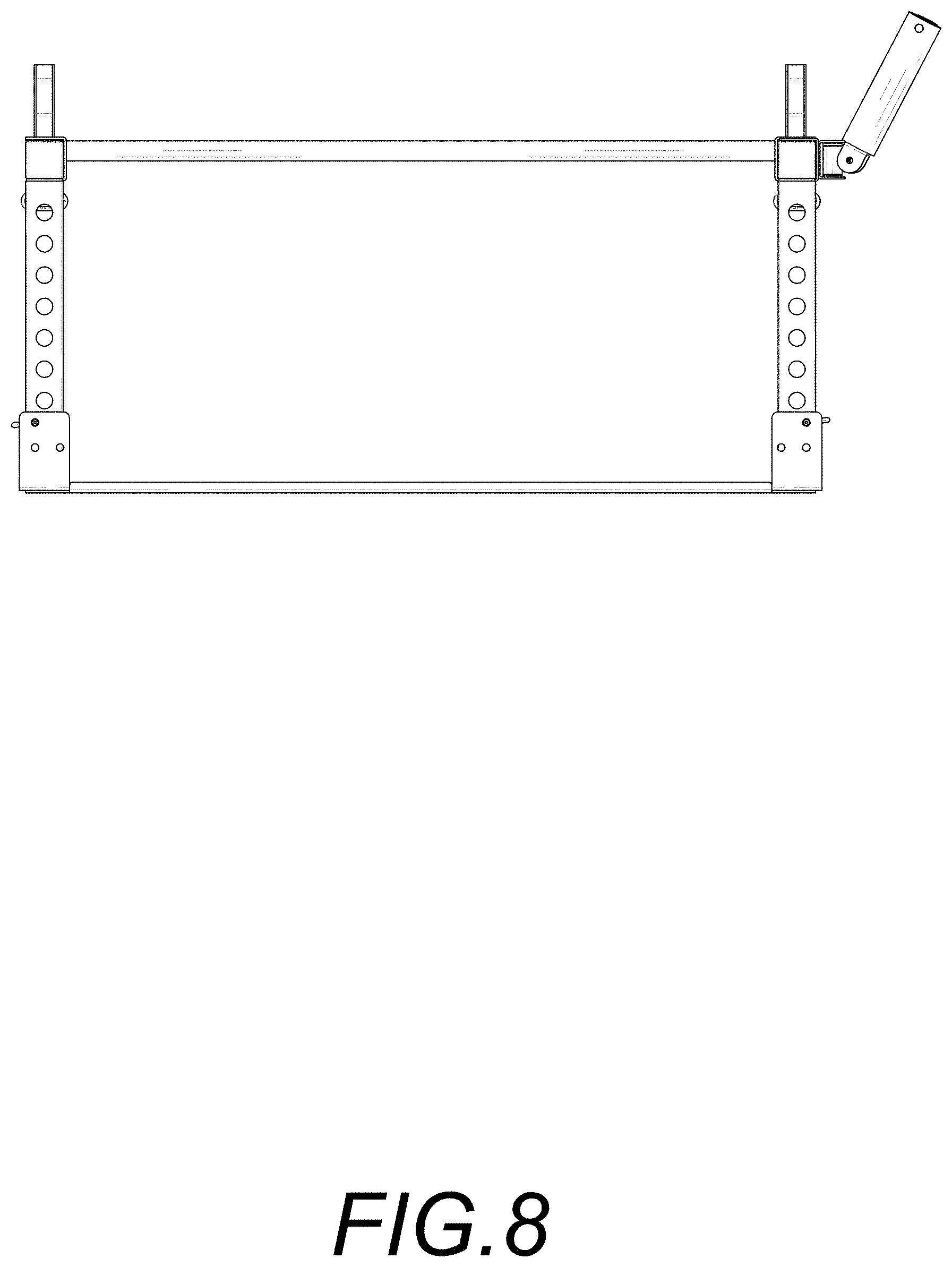

is a bottom plan view thereof;

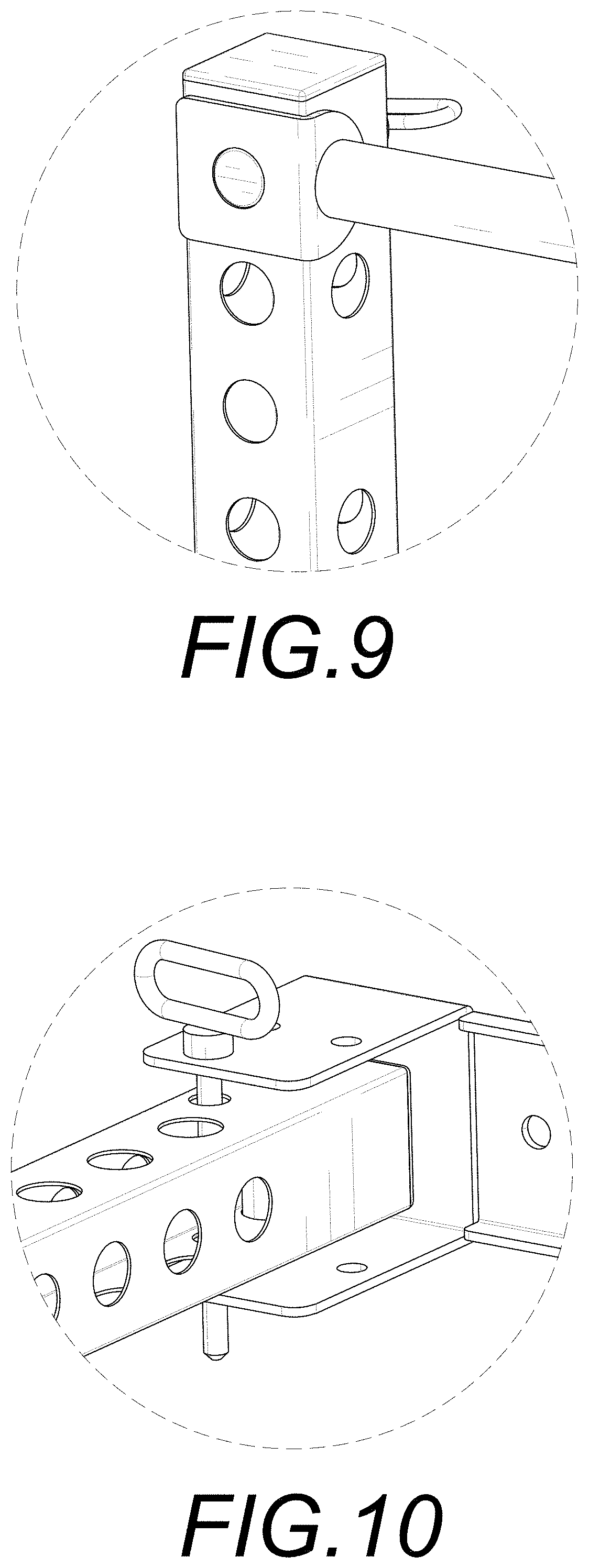

is an enlarged view of the area labelled 9 in ;

is an enlarged view of the area labelled 10 in ;

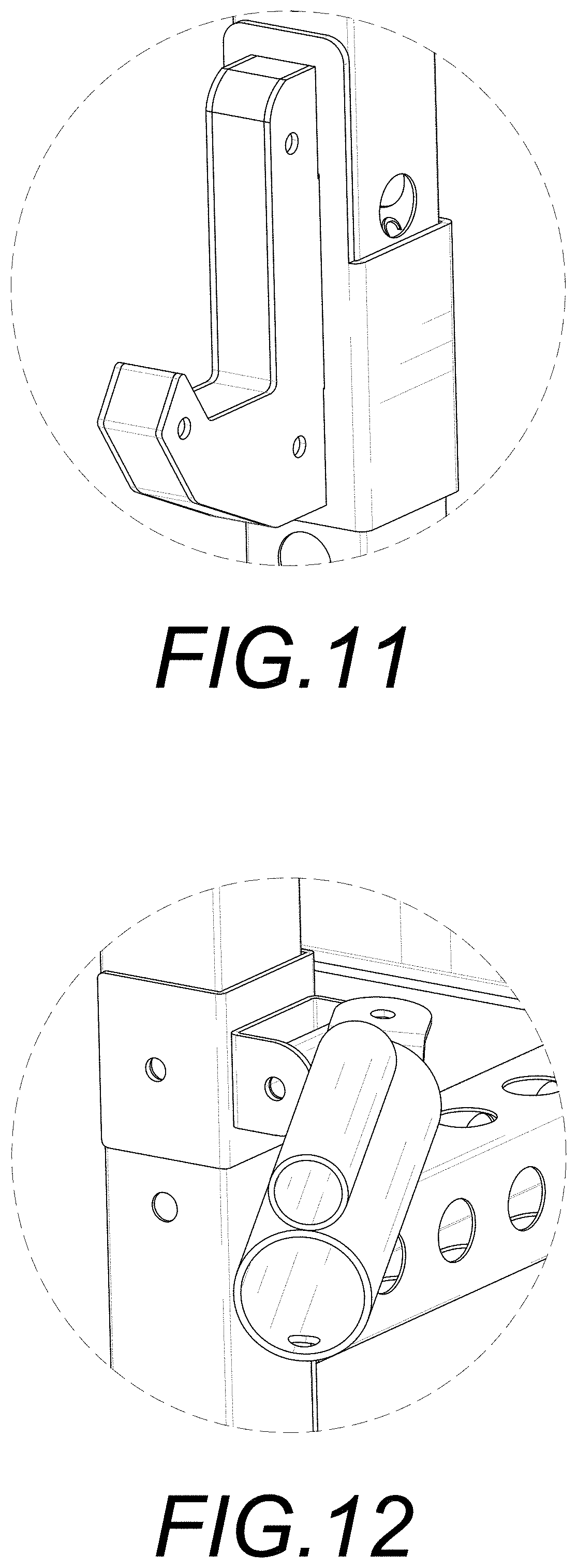

is an enlarged view of the area labelled 11 in ;

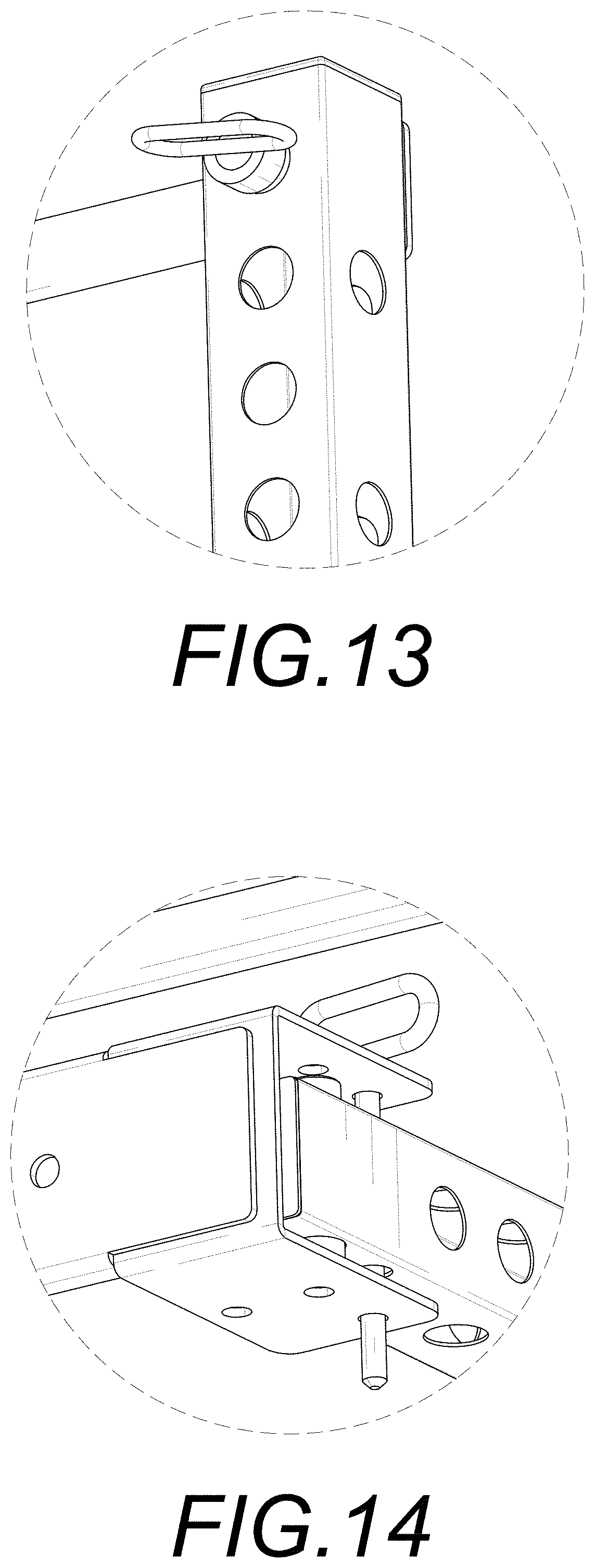

is an enlarged view of the area labelled 12 in ;

is an enlarged view of the area labelled 13 in ;

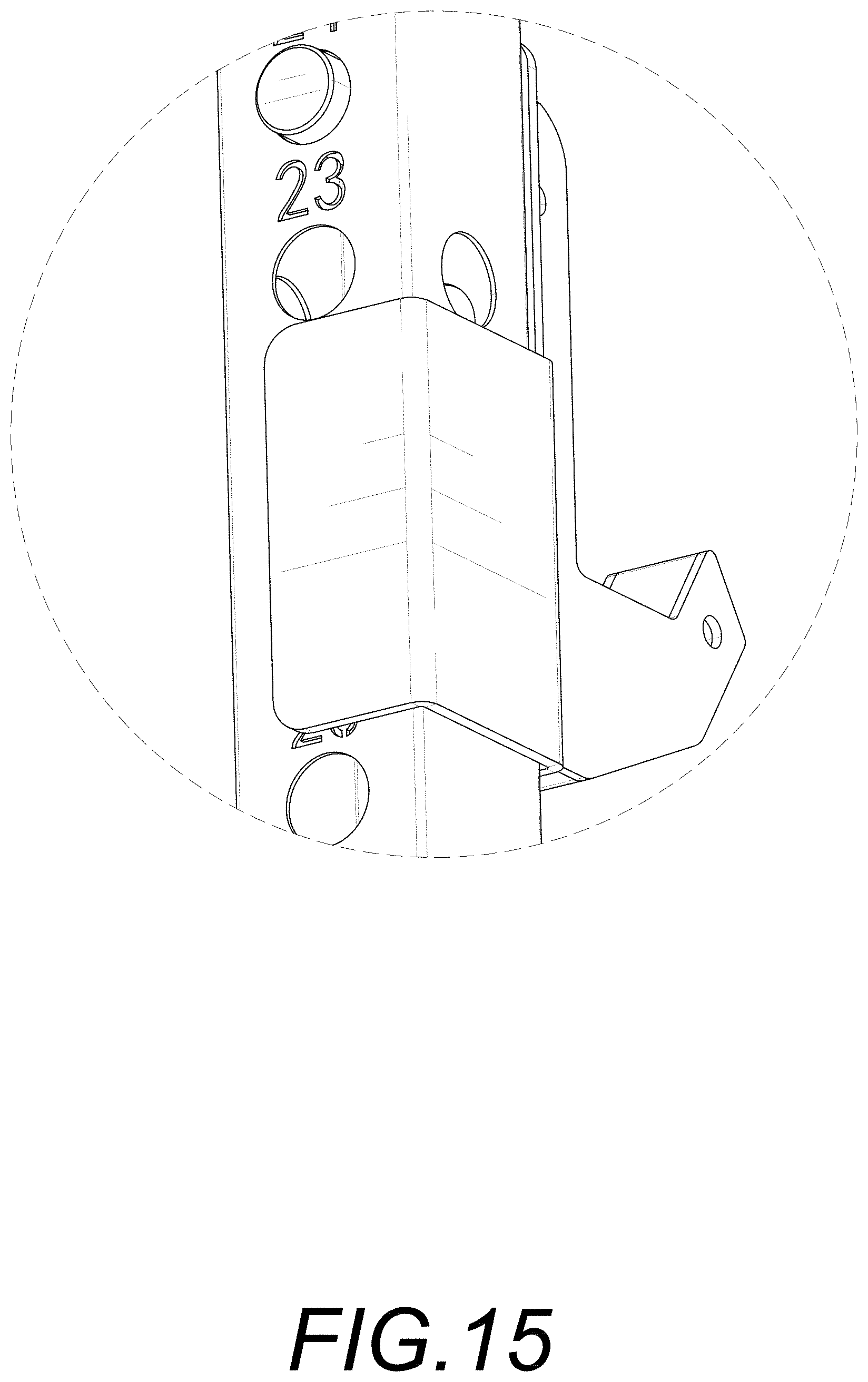

is an enlarged view of the area labelled 14 in ;

is an enlarged view of the area labelled 15 in ; and,

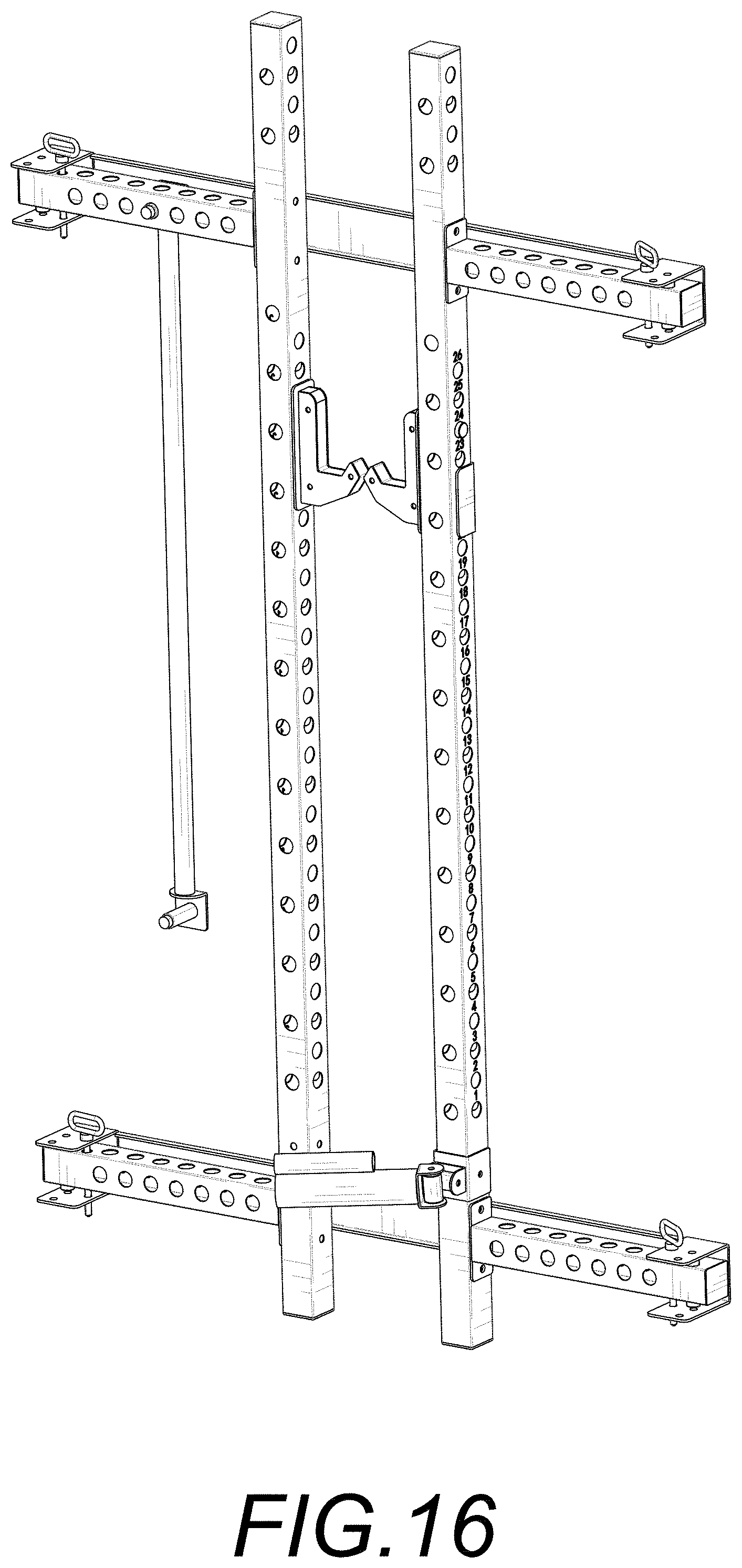

is a perspective view of the folding squat rack in an alternate configuration.
