Exercise Weight

USD1001214No. D 1,001,214designGranted 10/10/2023
Patent USD1001214 — Exercise weight — Figure 1
Fig. 1 · Exercise Weight

Claims (1)

Claim 1 (Independent)

The ornamental design for an exercise weight, as shown and described.

Full Description

Show full text →

is a perspective view of an embodiment of the exercise weight;

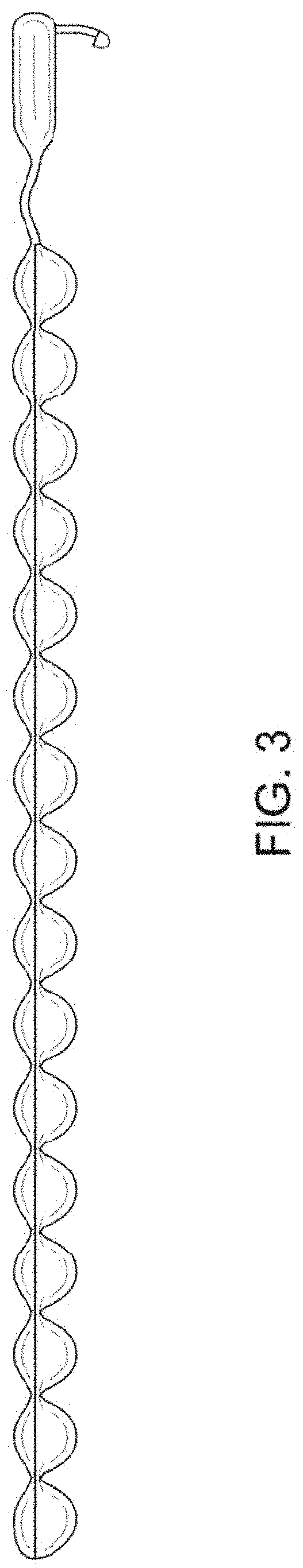

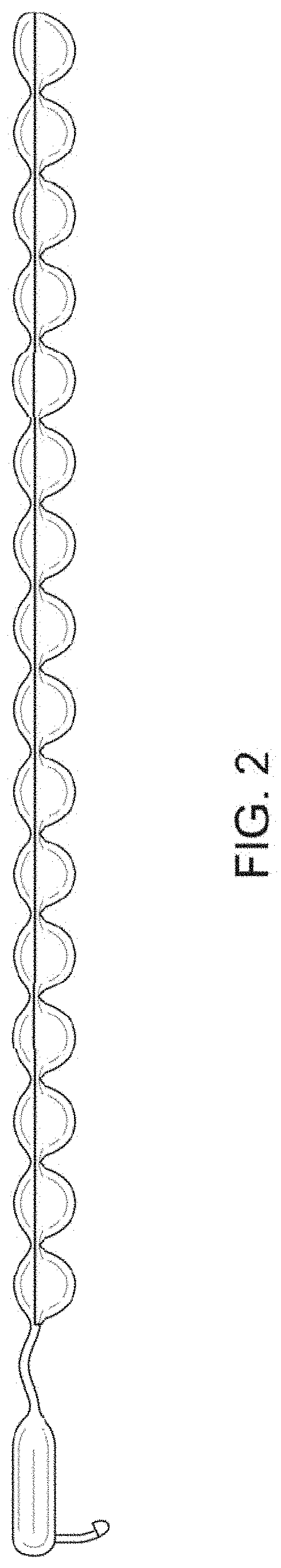

is a left side view thereof;

is a right side view thereof;

is a top view thereof;

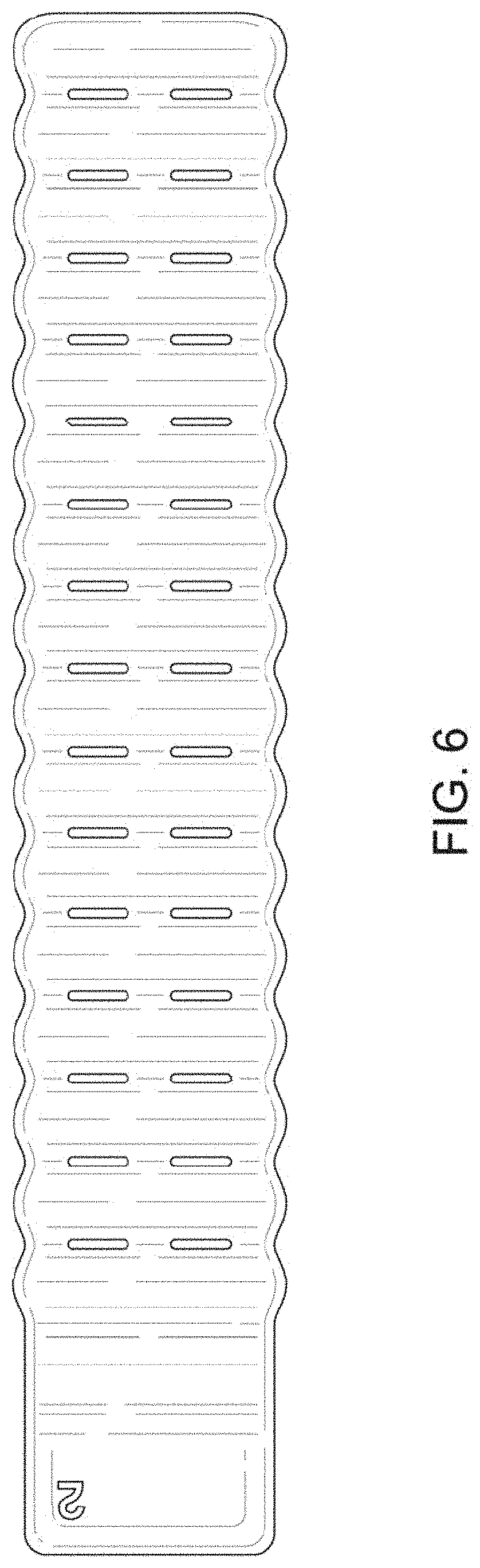

is a bottom view thereof;

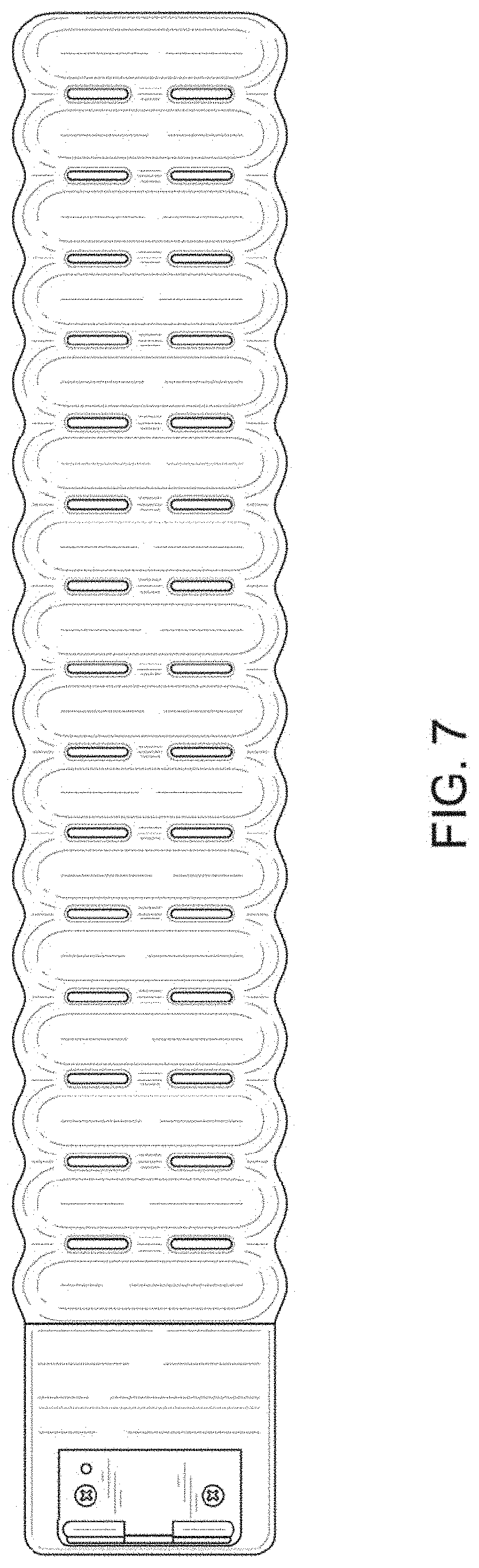

is a front view thereof; and,

is a back view thereof.

The broken lines (e.g., showing discrete portions of the exercise weight) are directed to environment, and form no part of the claimed design. The thin solid lines illustrate surface contour and form no part of the claimed design.
