Rubber Track

USD1001163No. D 1,001,163designGranted 10/10/2023
Patent USD1001163 — Rubber track — Figure 1
Fig. 1 · Rubber Track

Claims (1)

Claim 1 (Independent)

I claim the ornamental design for a rubber track, as shown and described.

Full Description

Show full text →

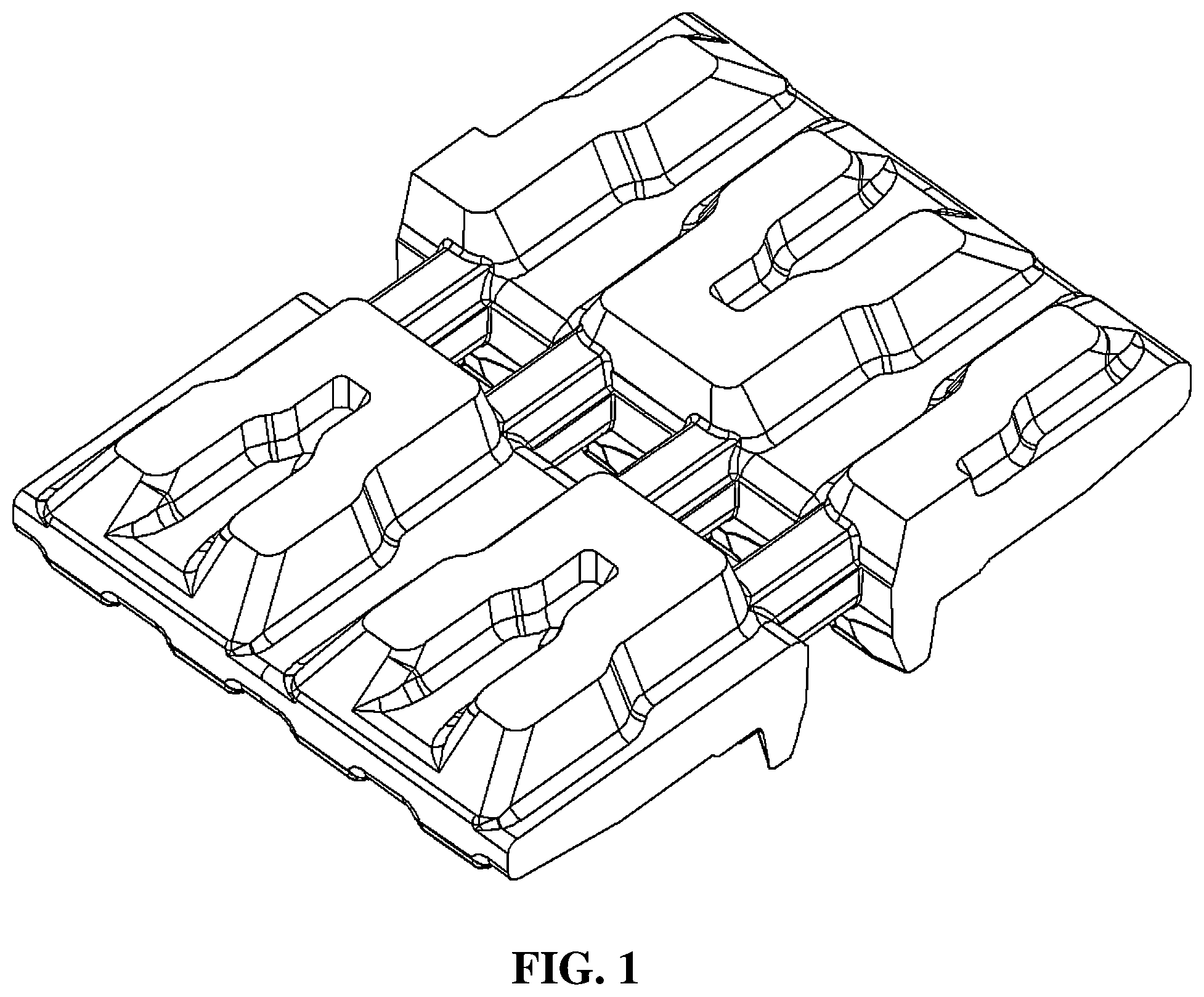

is a top perspective view of a rubber track, showing my new design;

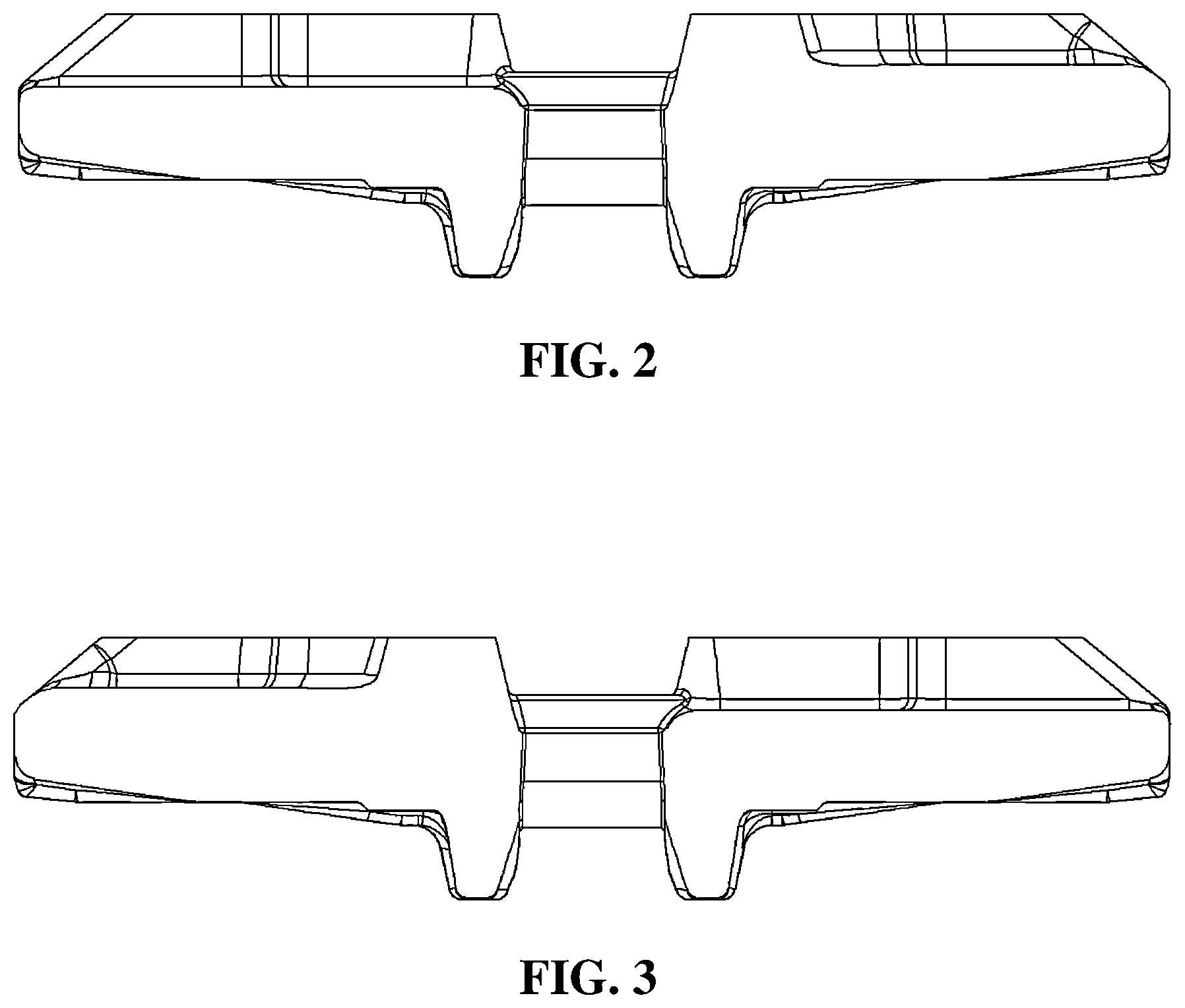

is a front elevation view thereof;

is a rear elevation view thereof;

is a left side elevation view thereof;

is a right side elevation view thereof;

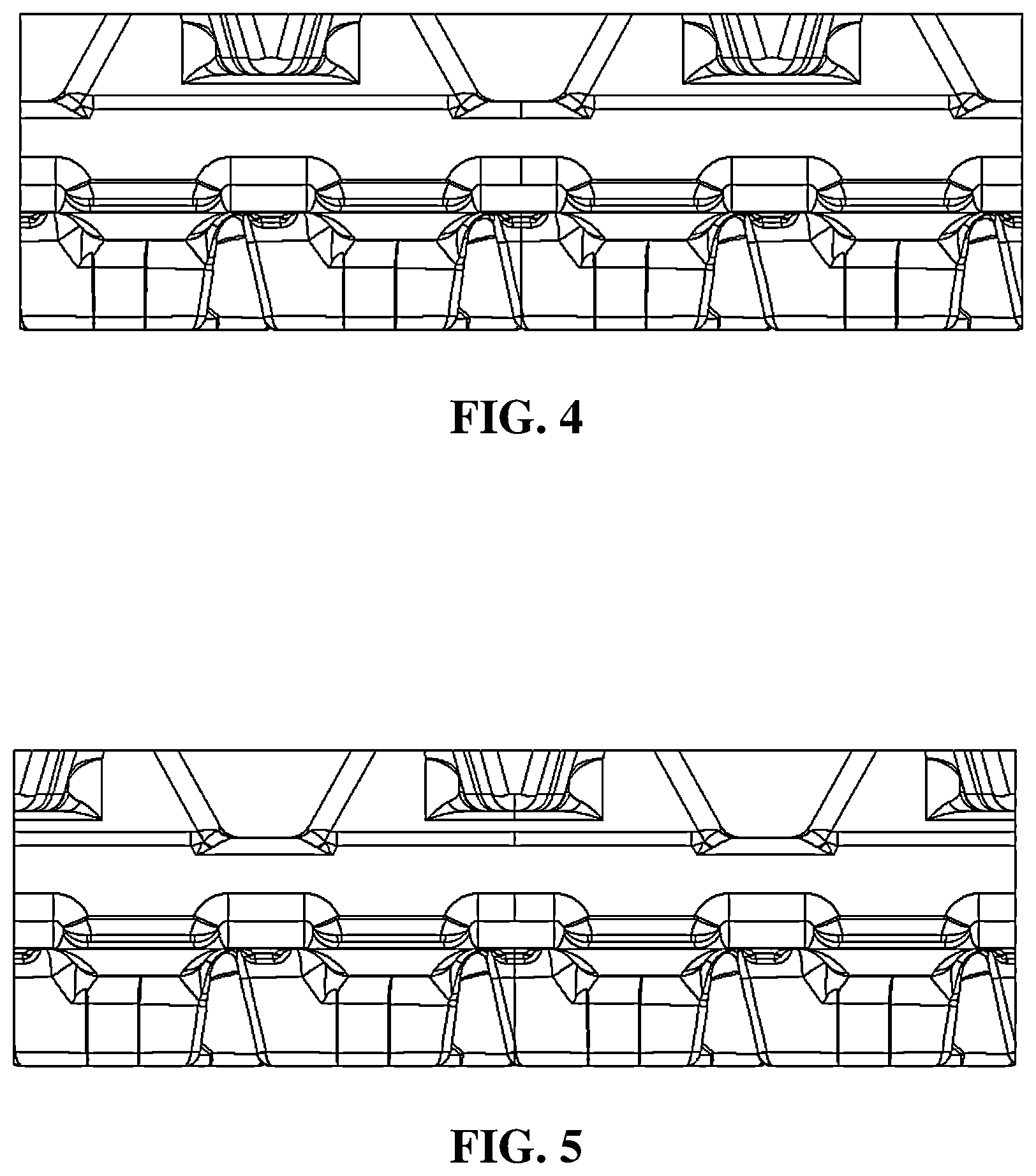

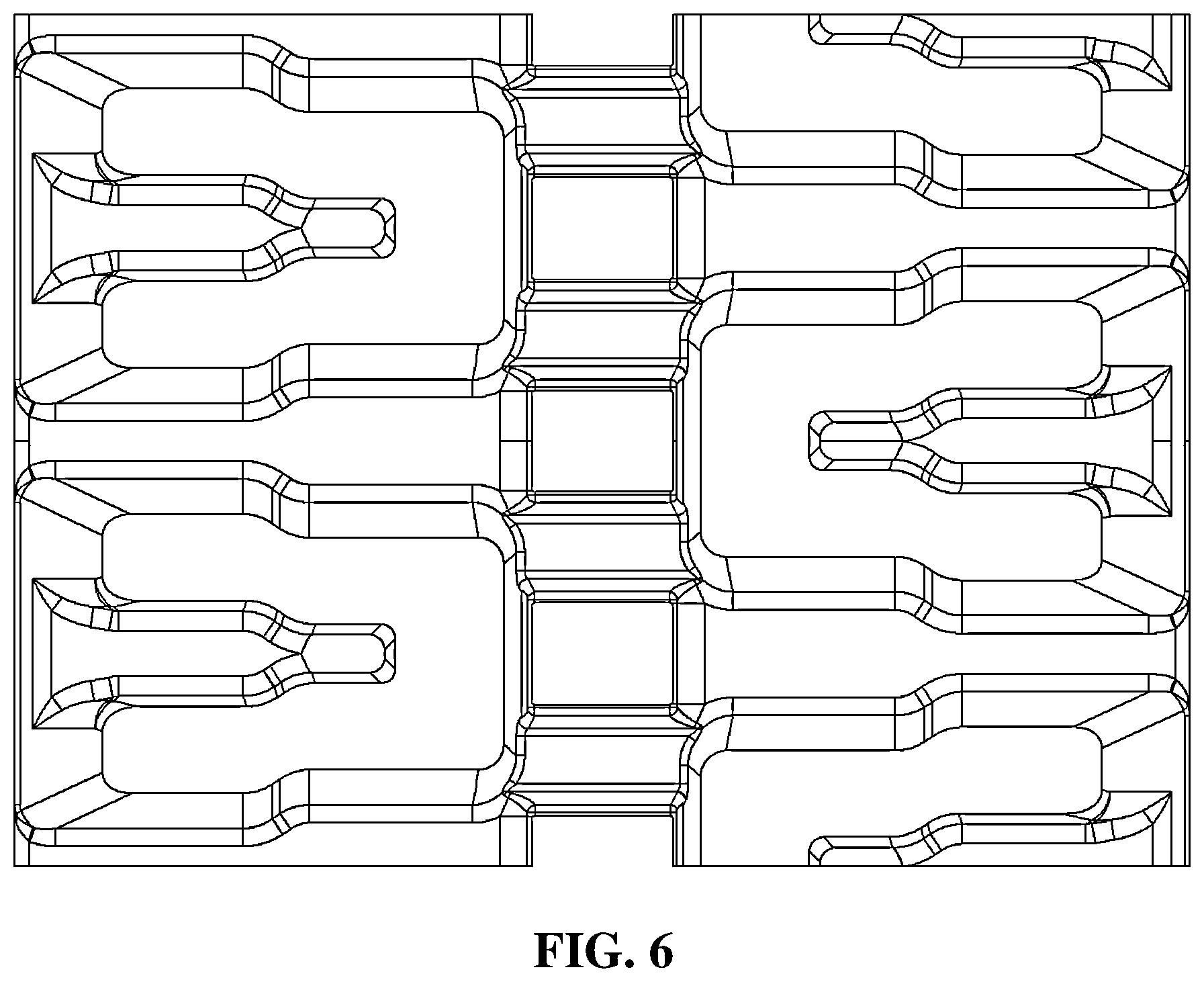

is a top plan view thereof;

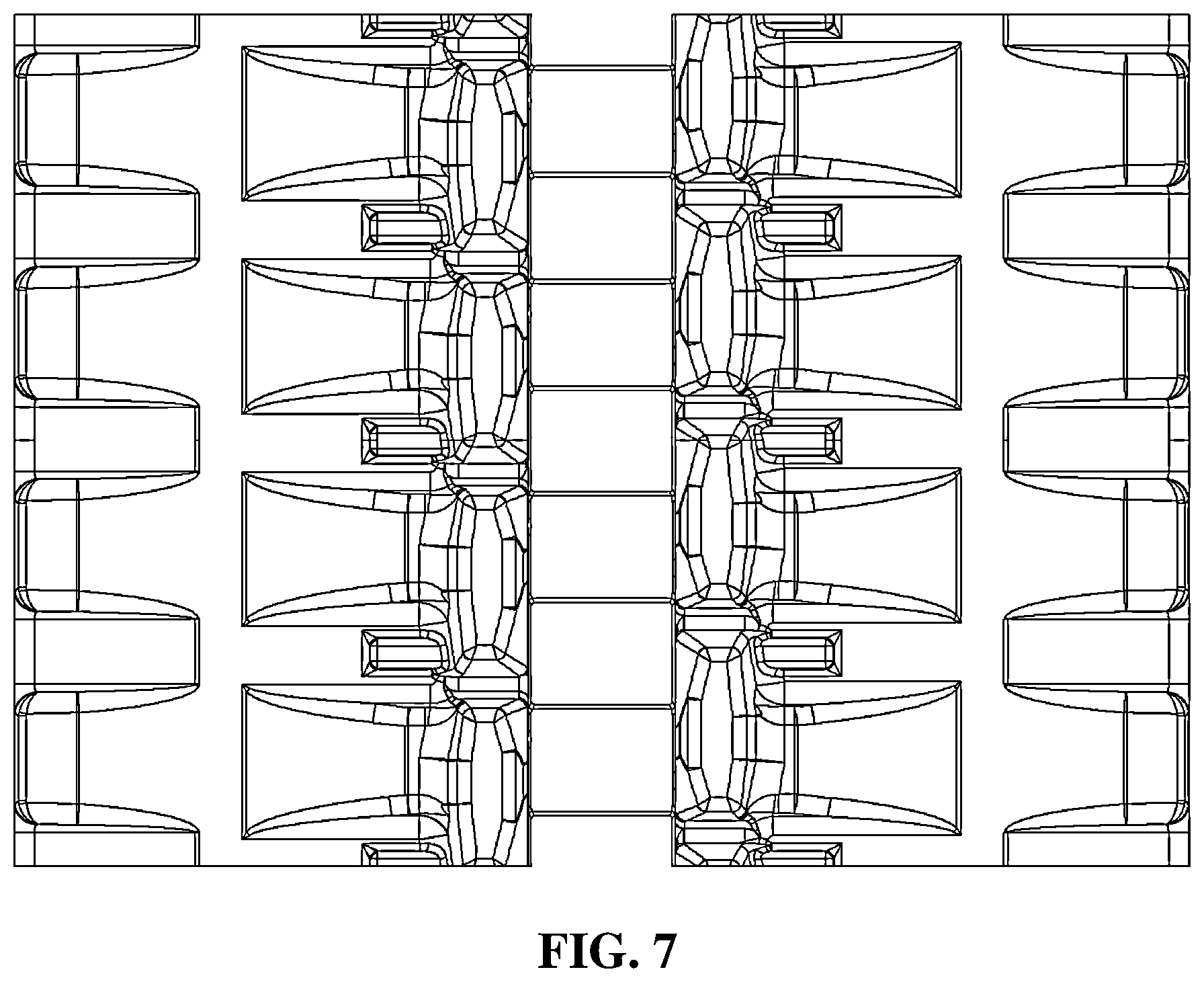

is a bottom plan view thereof; and,

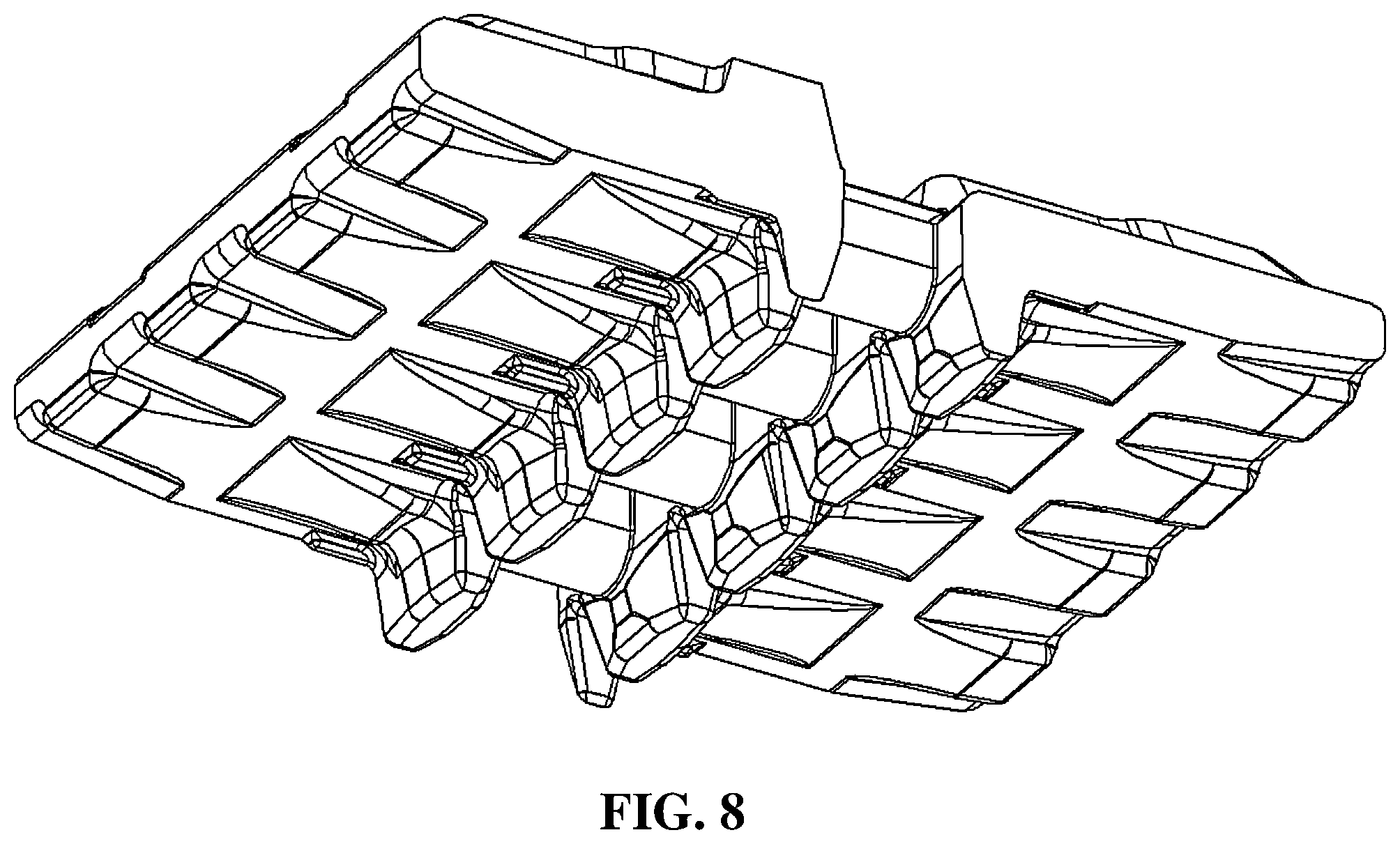

is a bottom perspective view thereof.
