Case for Mobile Telephone

USD1001117No. D 1,001,117designGranted 10/10/2023

Patent USD1001117 — Case for mobile telephone — Figure 1 — Fig. 1 · Case for Mobile Telephone

Claims (1)

Claim 1 (Independent)

The ornamental design for a case for mobile telephone, as shown and described.

Full Description

Show full text →

1. Case for mobile telephone

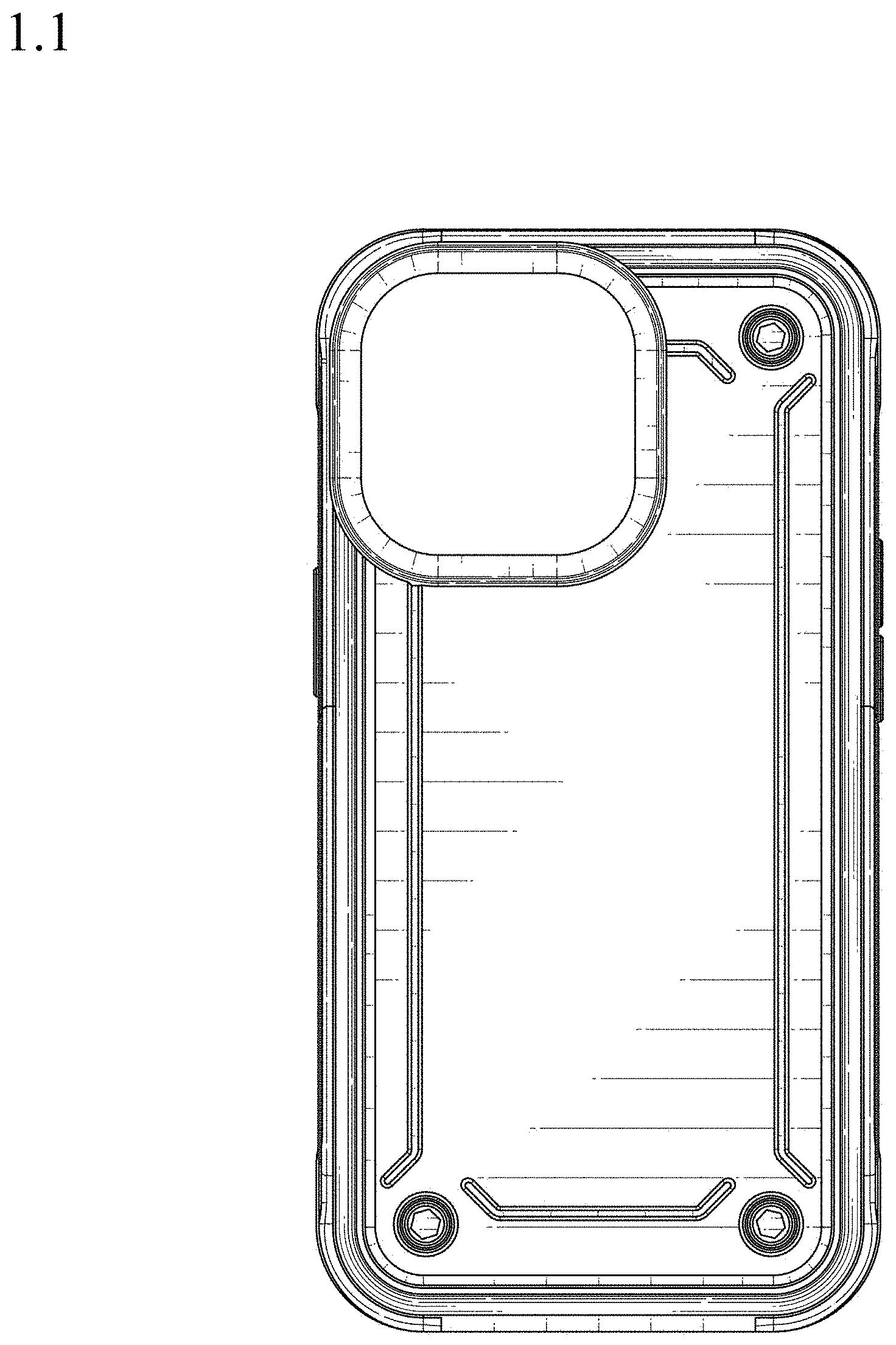

1 . 1 : Front View

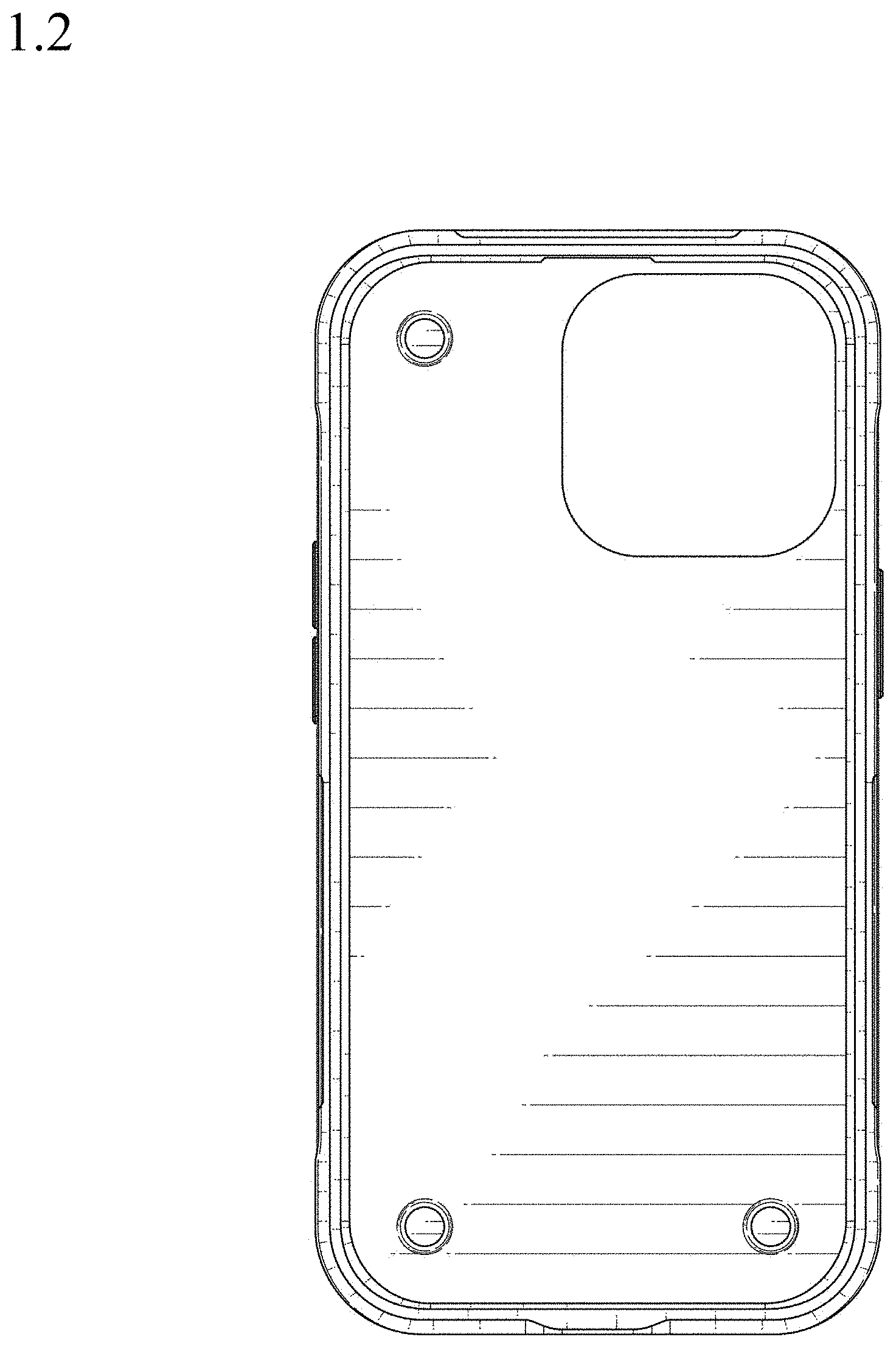

1 . 2 : Rear View

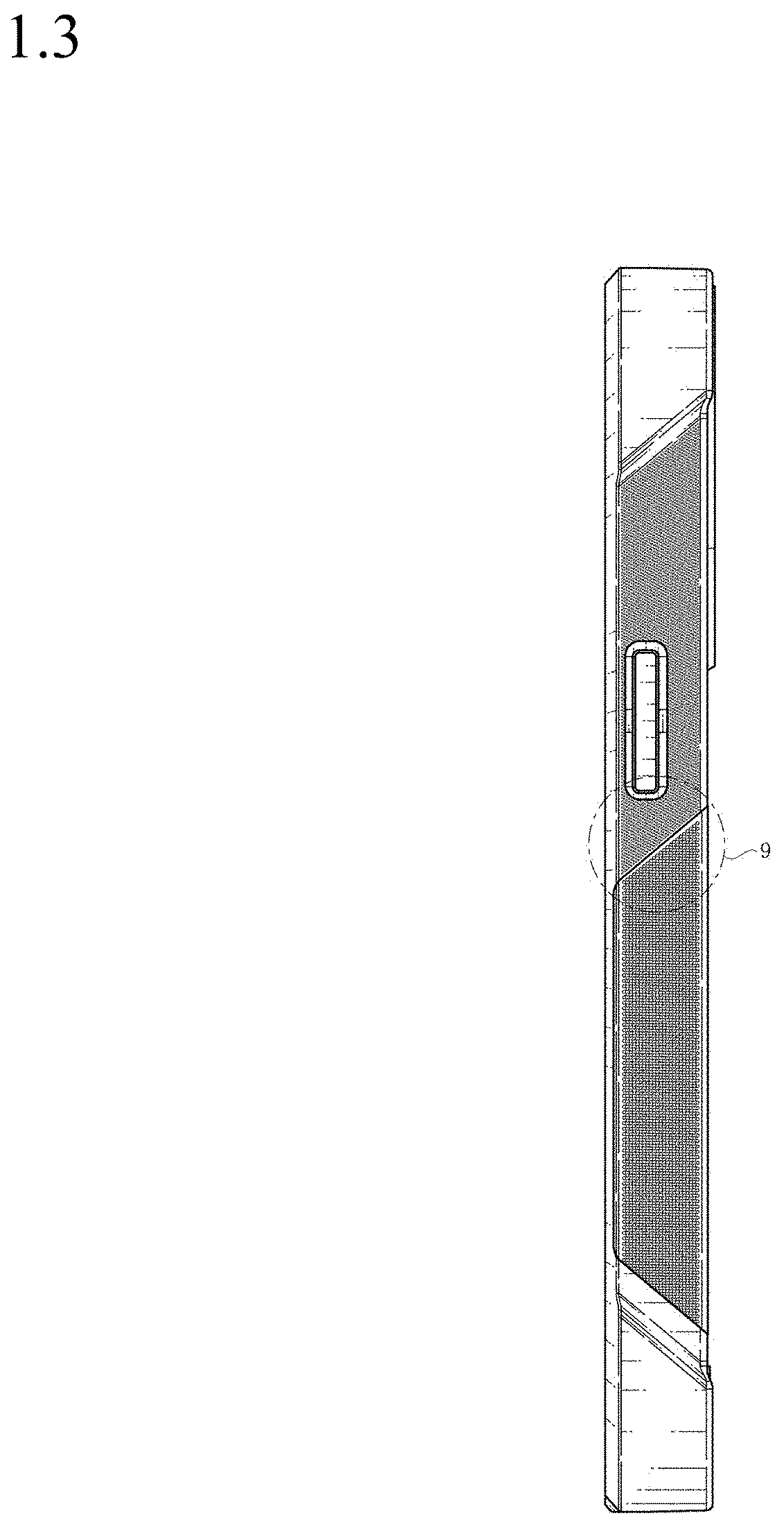

1 . 3 : Left View

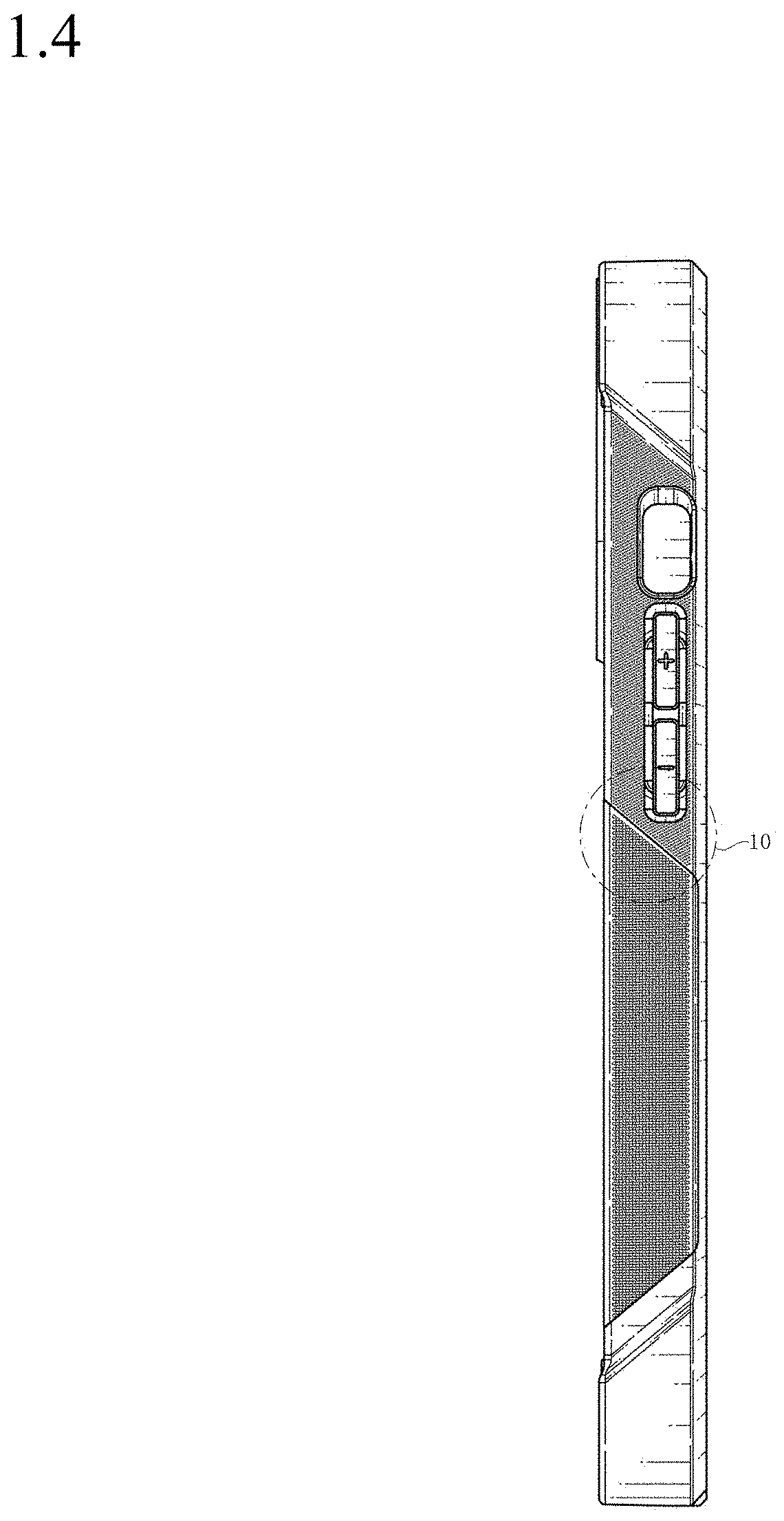

1 . 4 : Right View

1 . 5 : Top View

1 . 6 : Bottom View

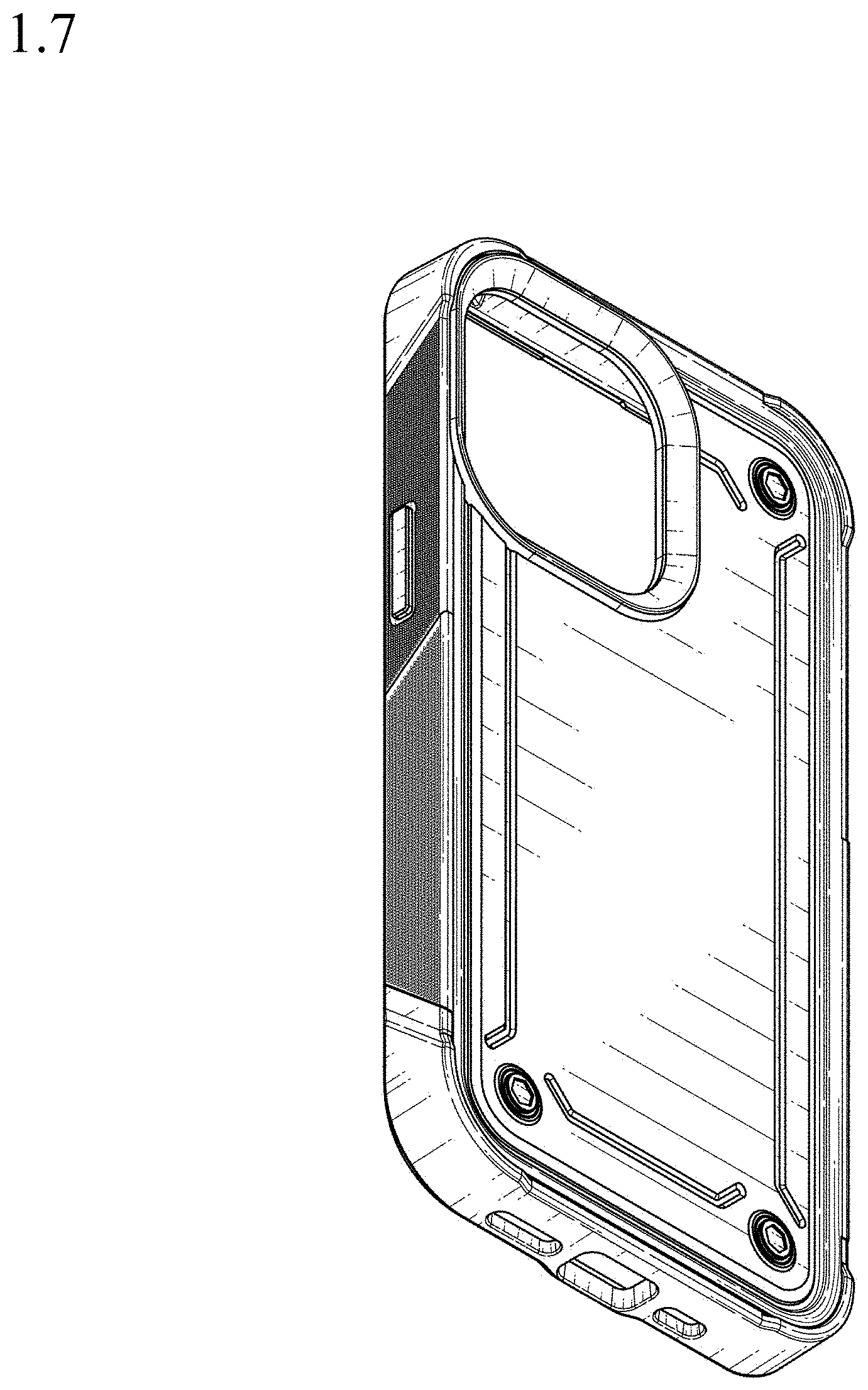

1 . 7 : Front Perspective View

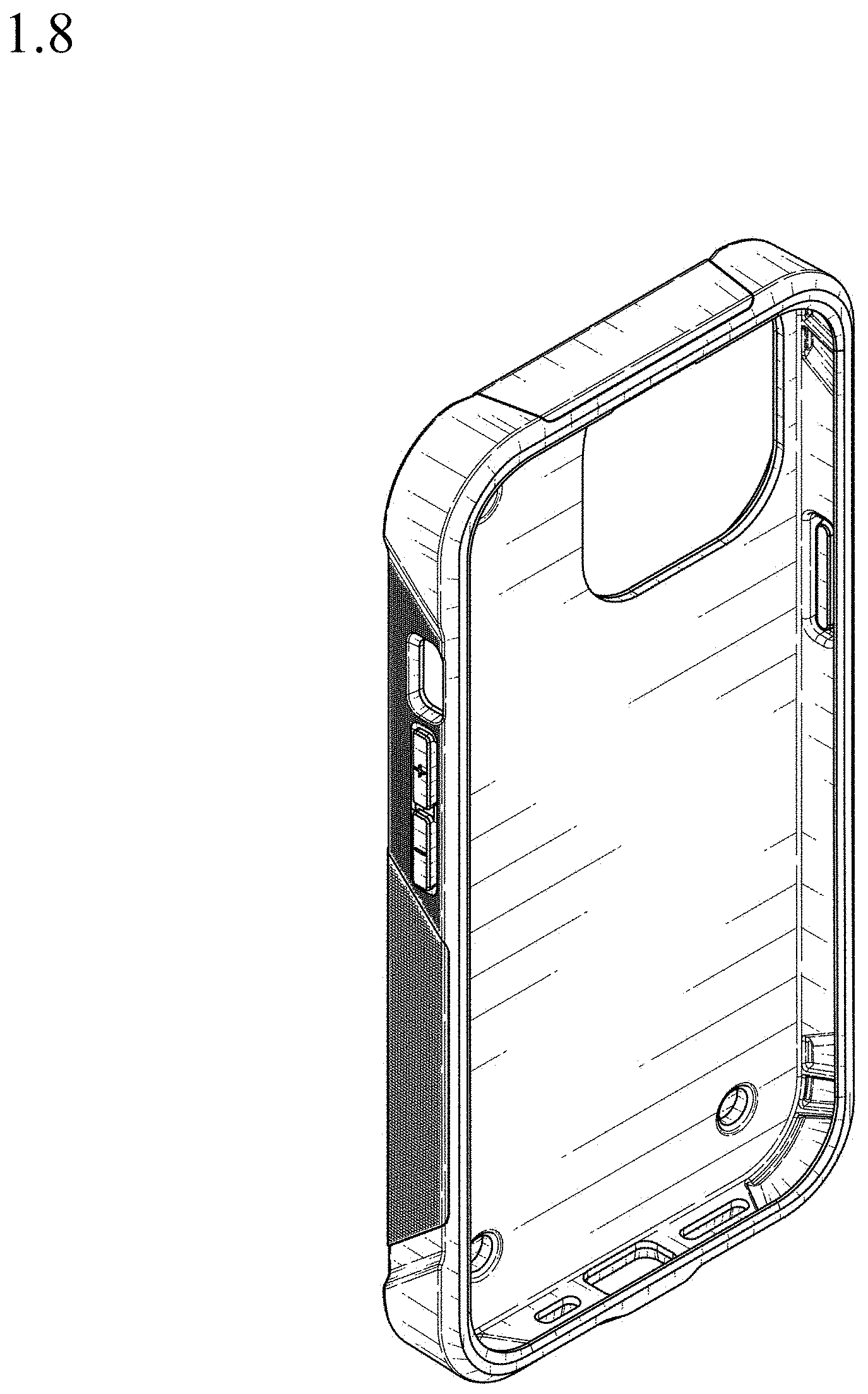

1 . 8 : Rear Perspective View

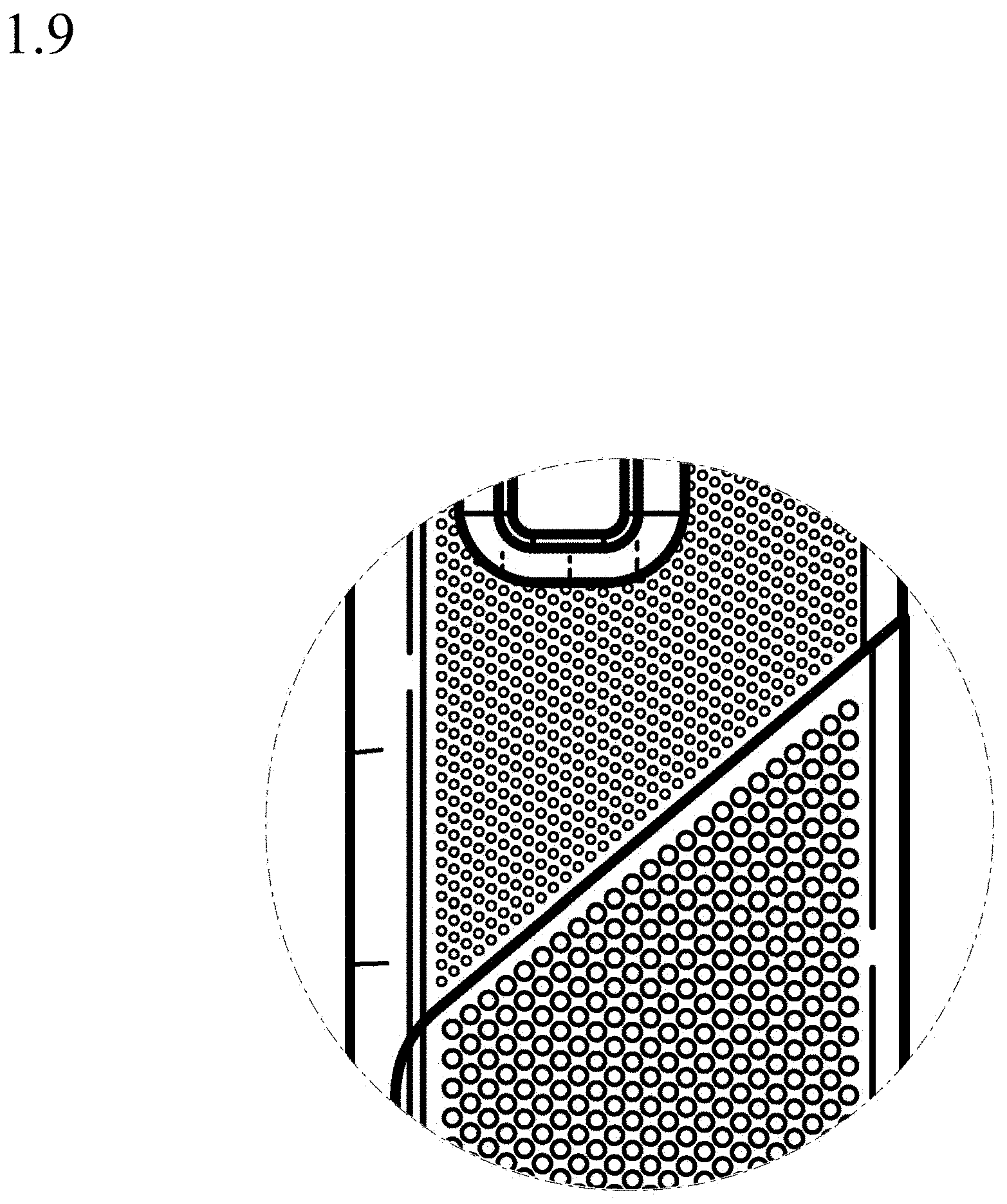

1 . 9 : Partial Enlarged View

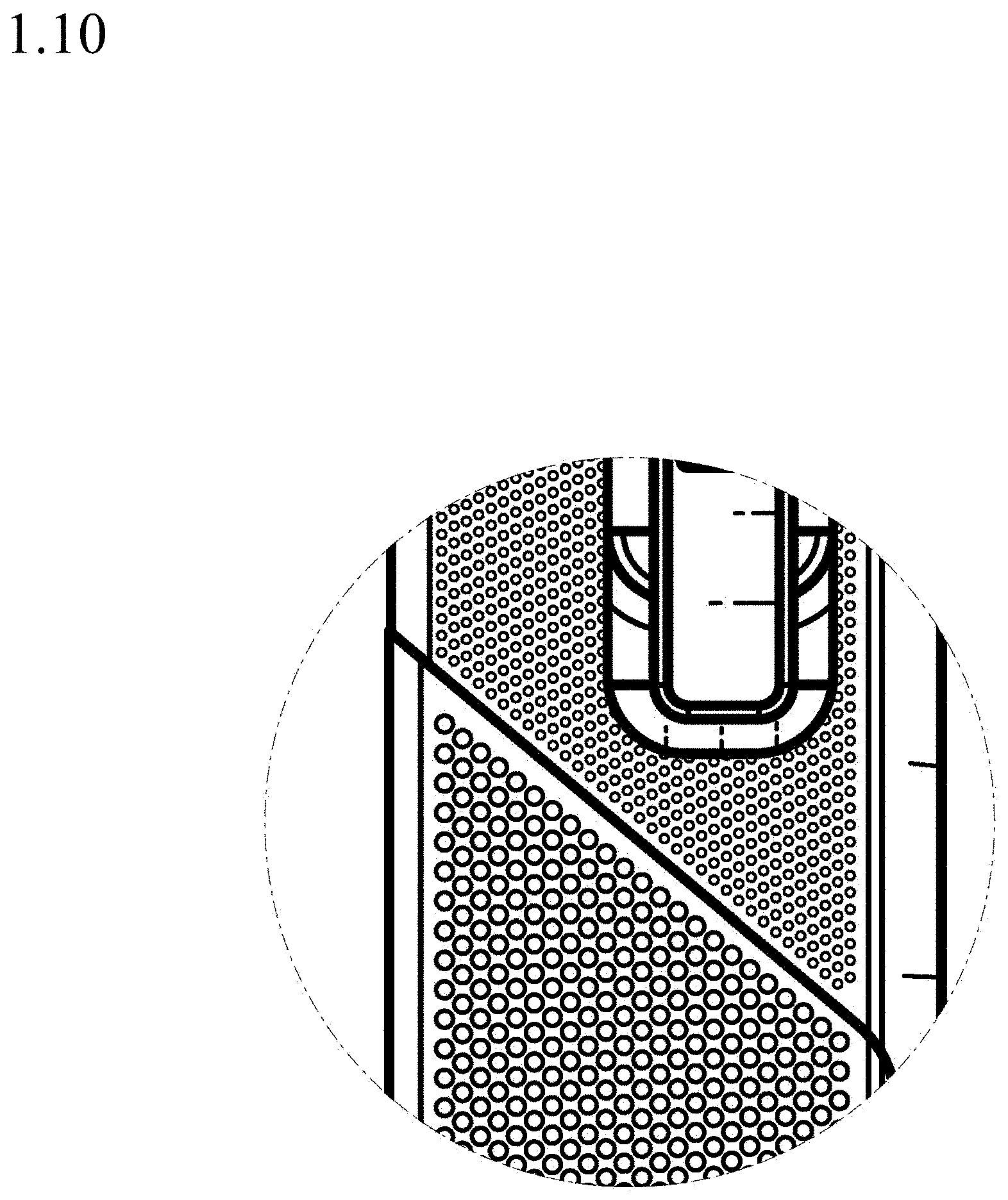

1 . 10 : Partial Enlarged View

. 9 is an enlarged view of the corresponding portion of fig. 1 . 3 outlined by a dot-dash broken line; . 10 is an enlarged view of the corresponding portion of fig. 1 . 4 outlined by a dot-dash broken line; The dot-dash broken lines in figs. 1 . 3 , 1 . 4 , 1 . 9 and 1 . 10 delineate portions of the claimed design that are shown on an enlarged scale in figs. 1 . 9 and 1 . 10 , and form no part of the claimed design.

Figures (10)

Patent USD1001117 Figure 1 – Case for mobile telephone — Fig. 1

Patent USD1001117 Figure 2 – Case for mobile telephone — Fig. 2

Patent USD1001117 Figure 3 – Case for mobile telephone — Fig. 3

Patent USD1001117 Figure 4 – Case for mobile telephone — Fig. 4

Patent USD1001117 Figure 5 – Case for mobile telephone — Fig. 5

Patent USD1001117 Figure 6 – Case for mobile telephone — Fig. 6

Patent USD1001117 Figure 7 – Case for mobile telephone — Fig. 7

Patent USD1001117 Figure 8 – Case for mobile telephone — Fig. 8

Patent USD1001117 Figure 9 – Case for mobile telephone — Fig. 9

Patent USD1001117 Figure 10 – Case for mobile telephone — Fig. 10
