Claims (1)
Claim 1 (Independent)
The ornamental design for a Bluetooth speaker, as shown and described.
Full Description
Show full text →

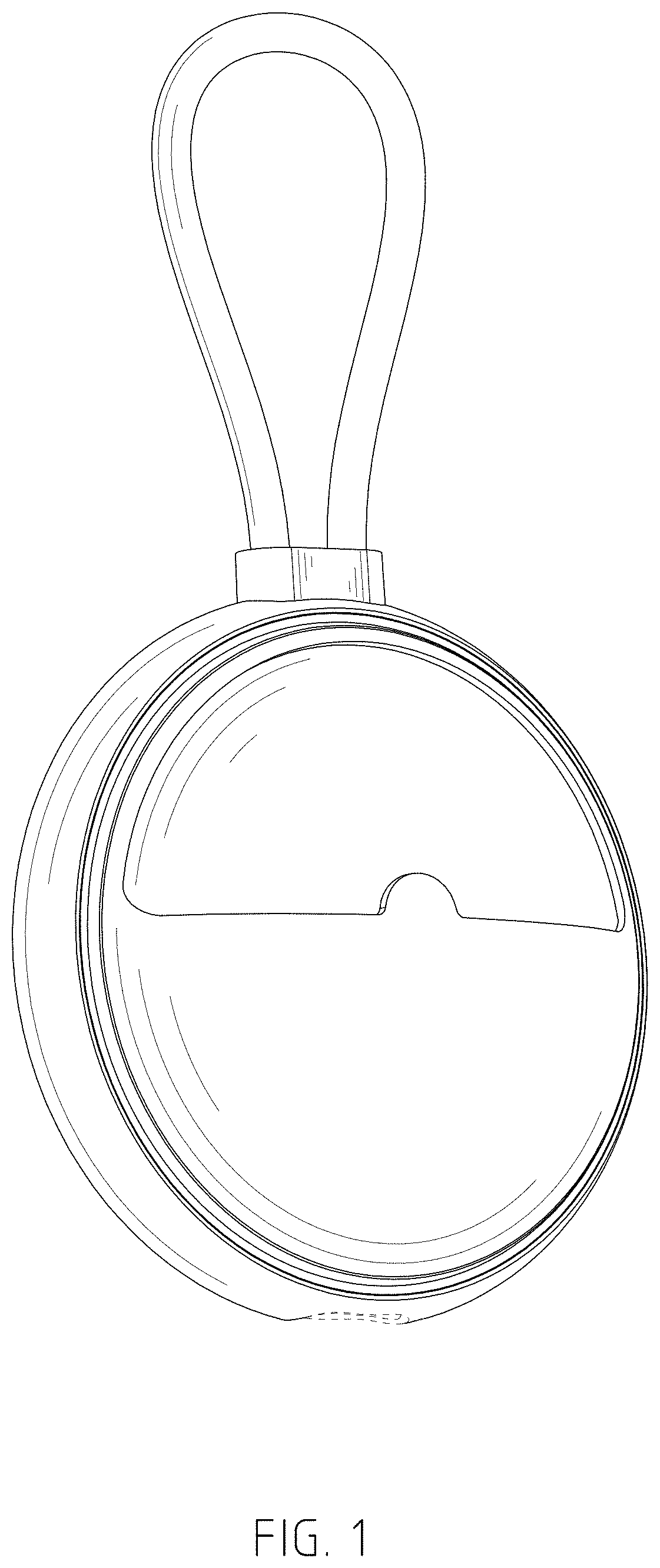

is a first perspective view of a Bluetooth speaker showing my new design;

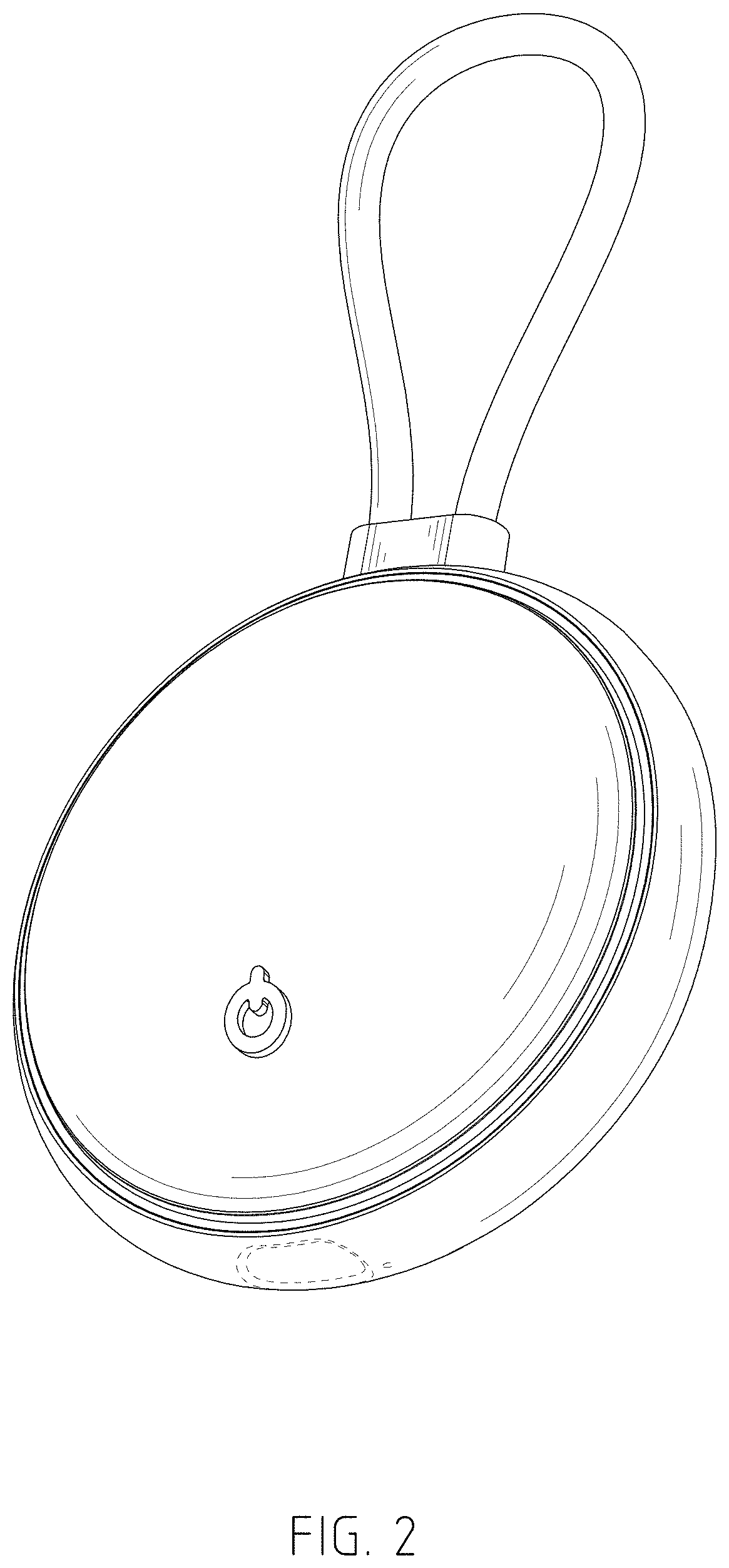

is a second perspective view thereof;

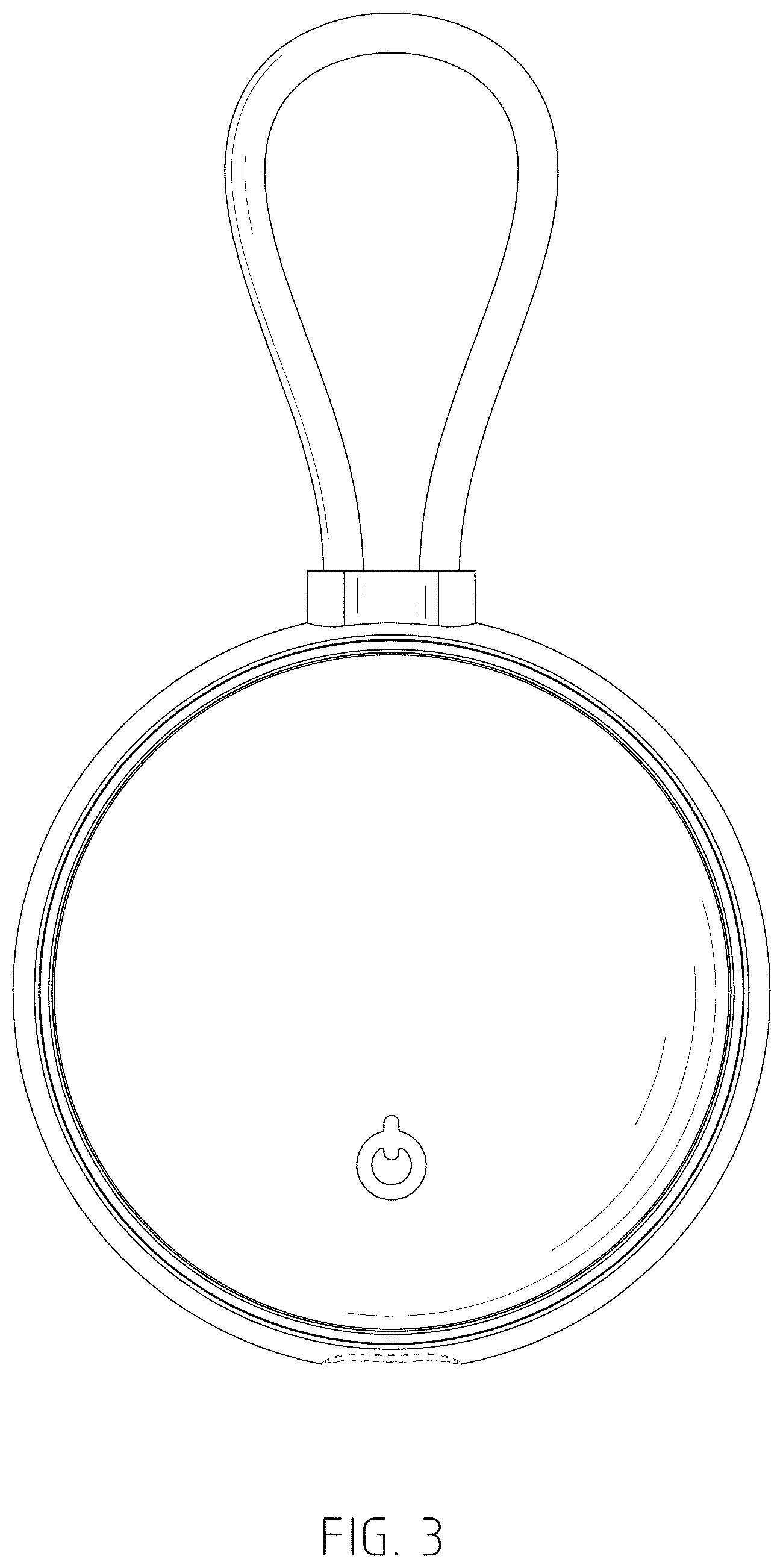

is a front view thereof;

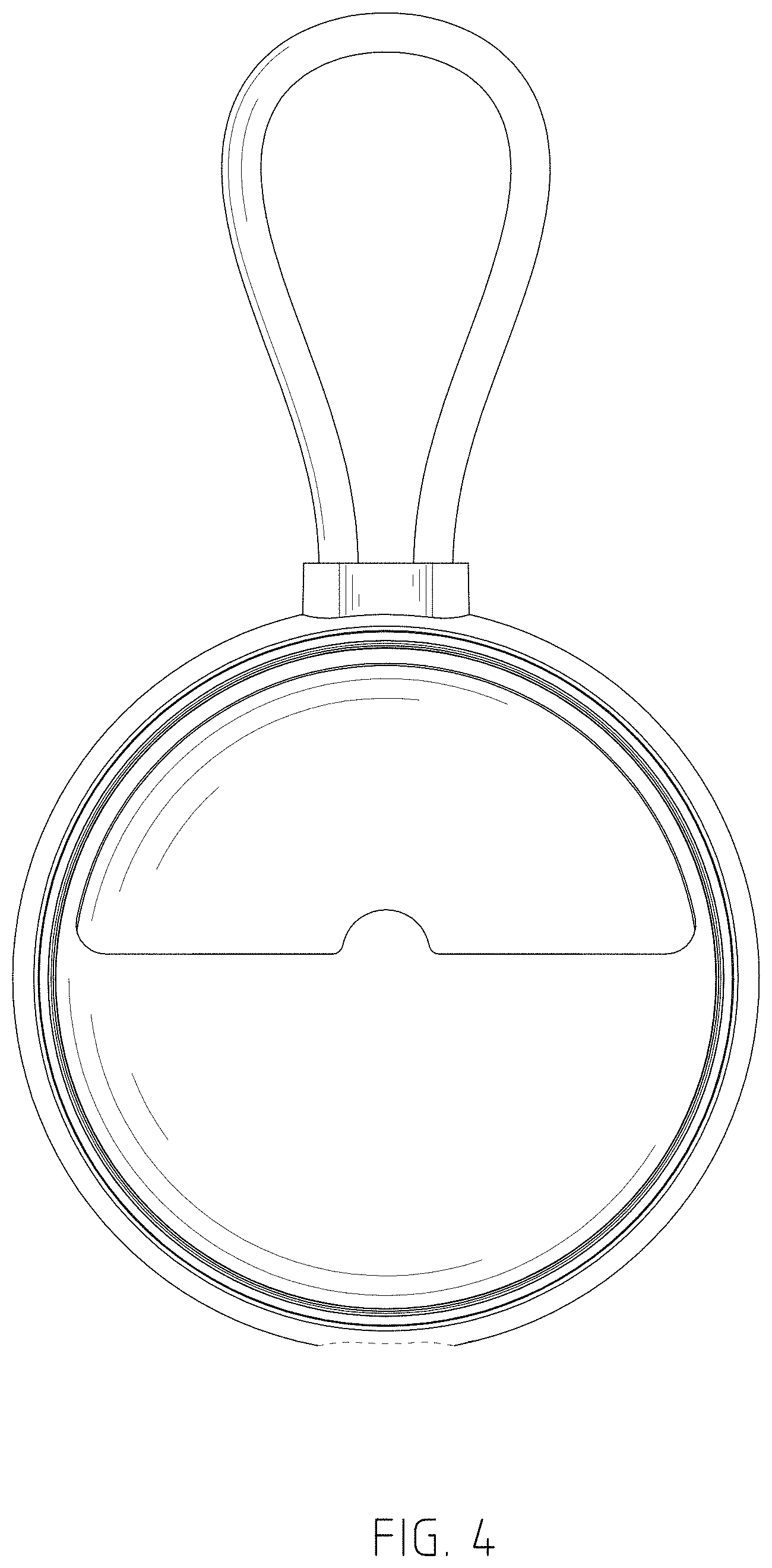

is a back view thereof;

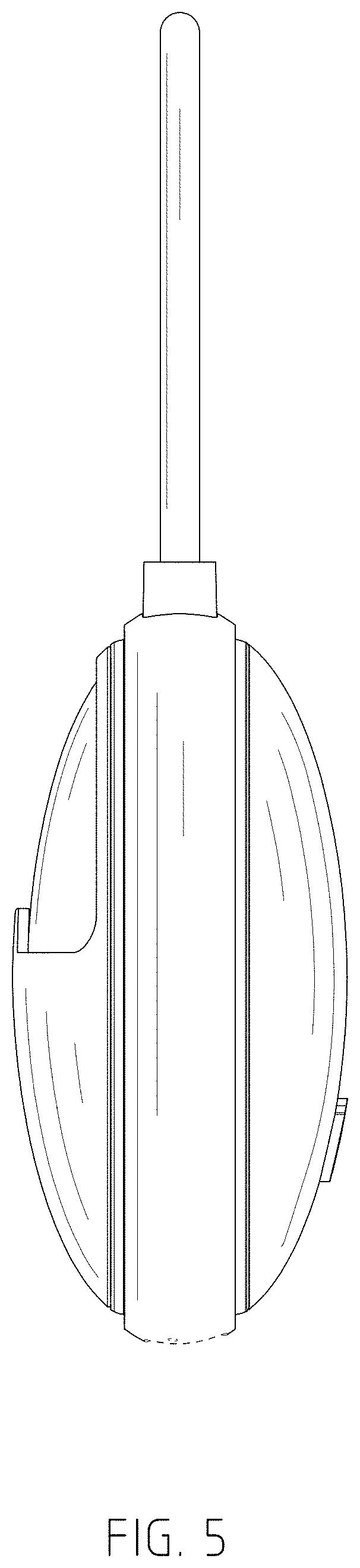

is a left side view thereof;

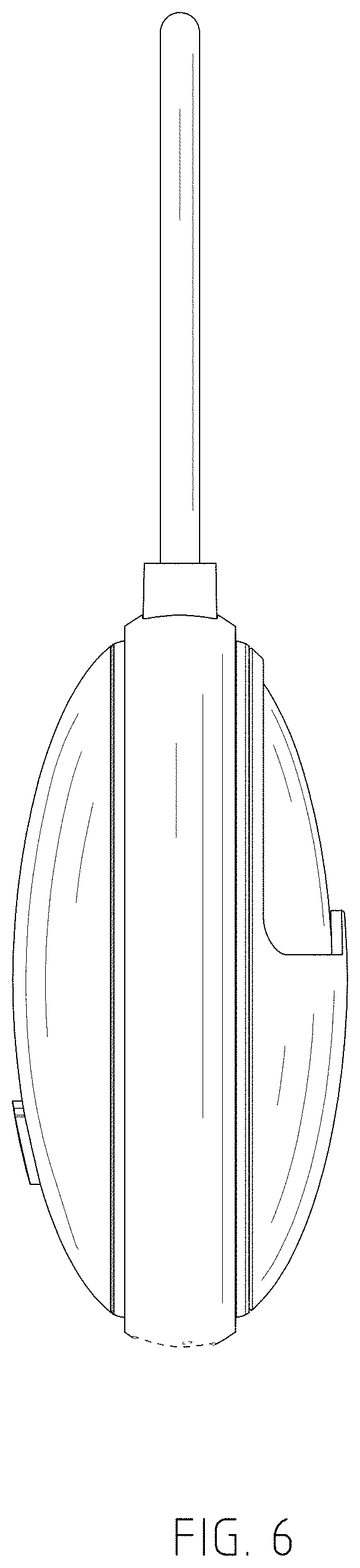

is a right side view thereof;
is a top view thereof; and,
is a bottom view thereof.
The broken lines shown in the drawings depict portions of the Bluetooth speaker that form no part of the claimed design.
