Claims (1)
Claim 1 (Independent)
The ornamental design for a bicycle, as shown and described.
Full Description
Show full text →
2 . 1 is a bottom plan view of a bicycle embodying my new design;

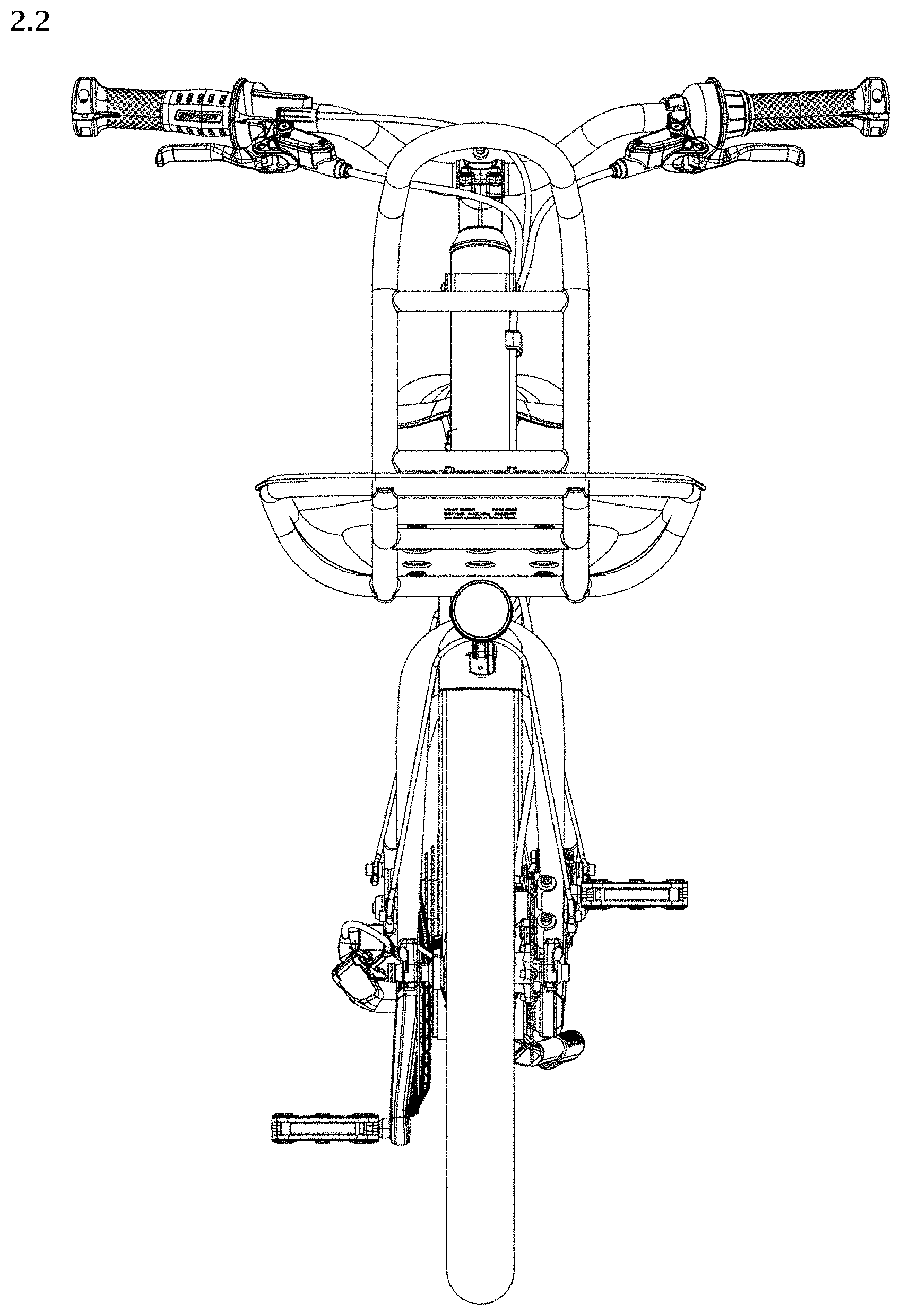

2 . 2 is a front elevation view thereof;

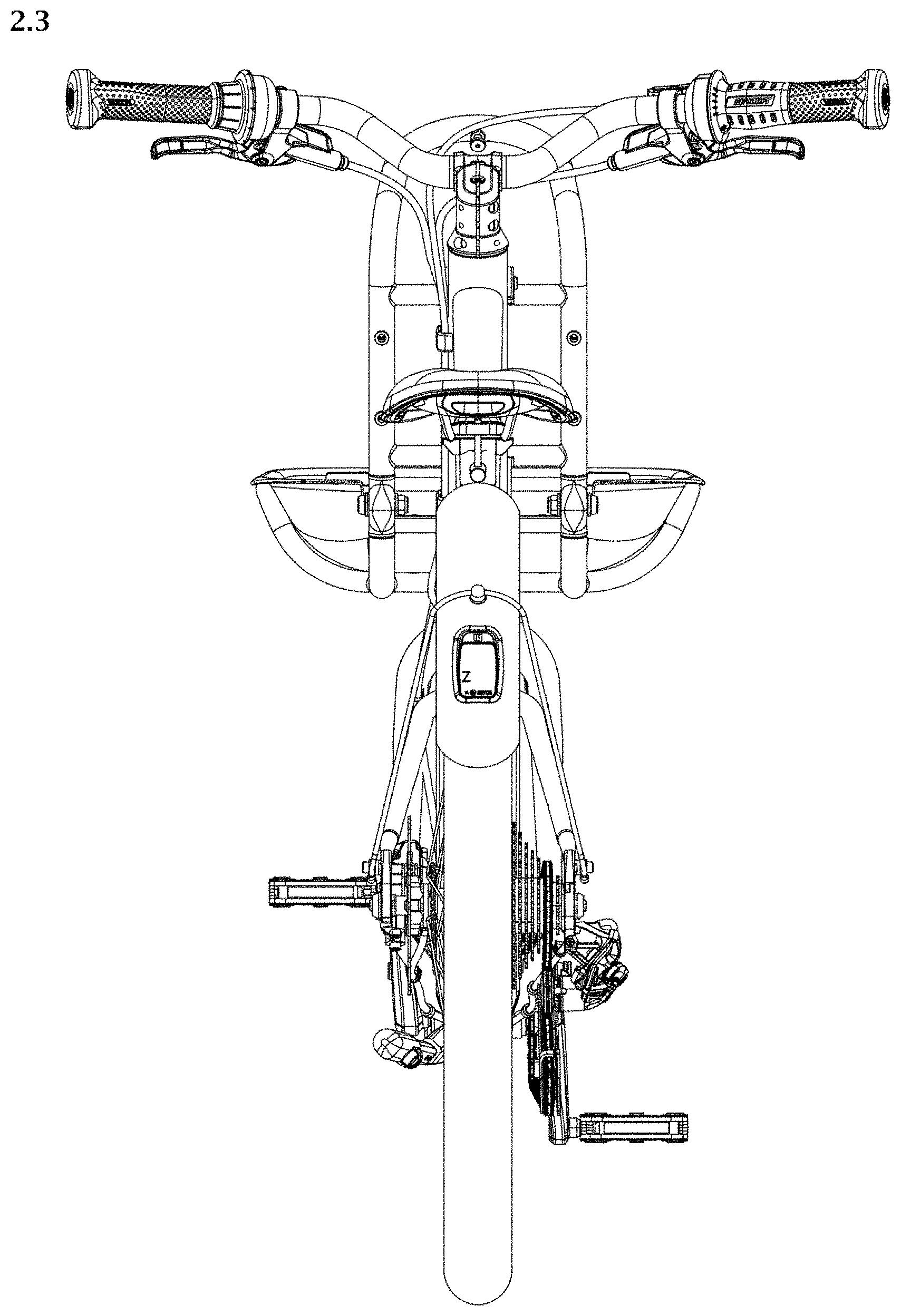

2 . 3 is a rear elevation view thereof;

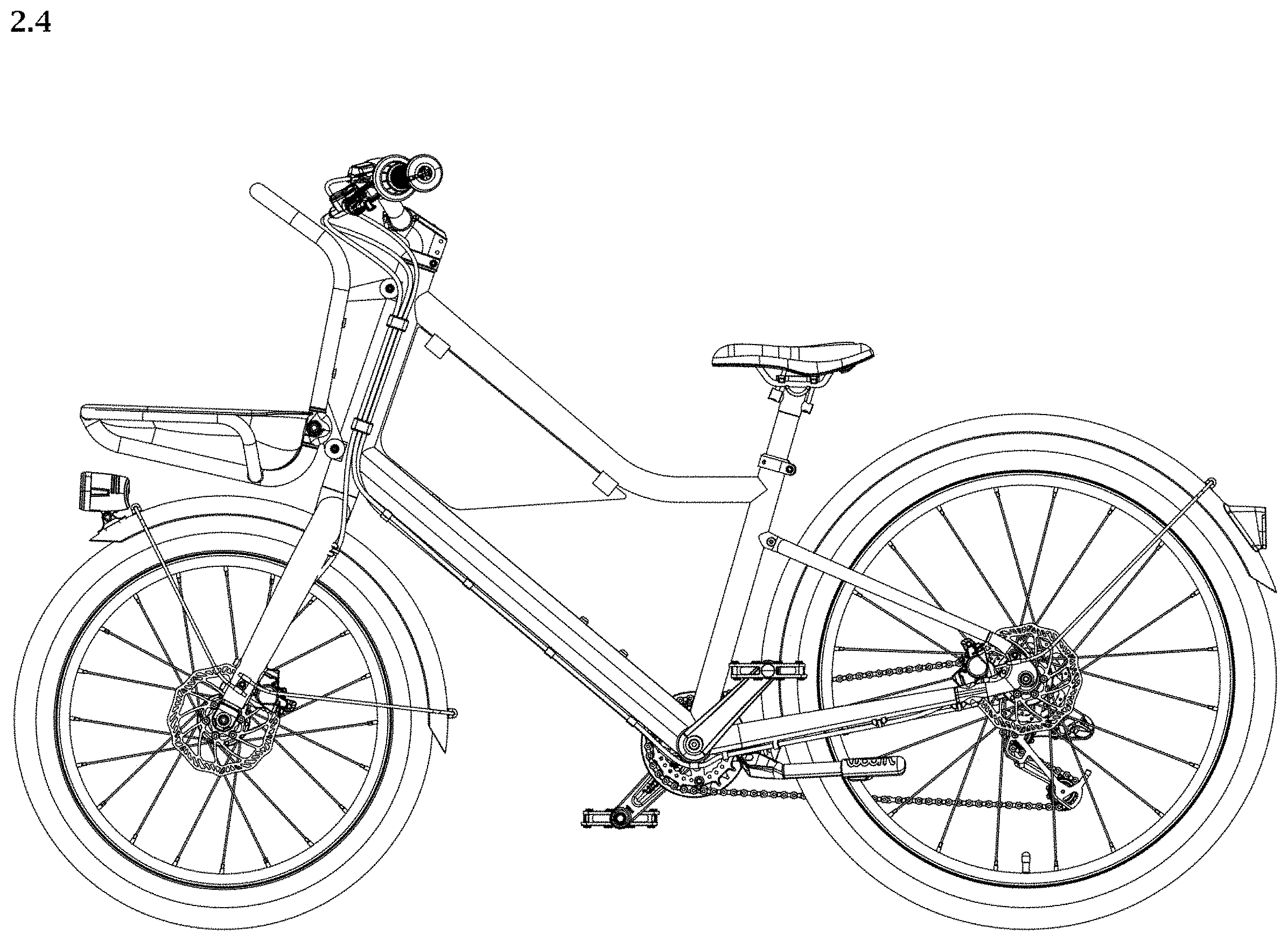

2 . 4 is a left side elevation view thereof;

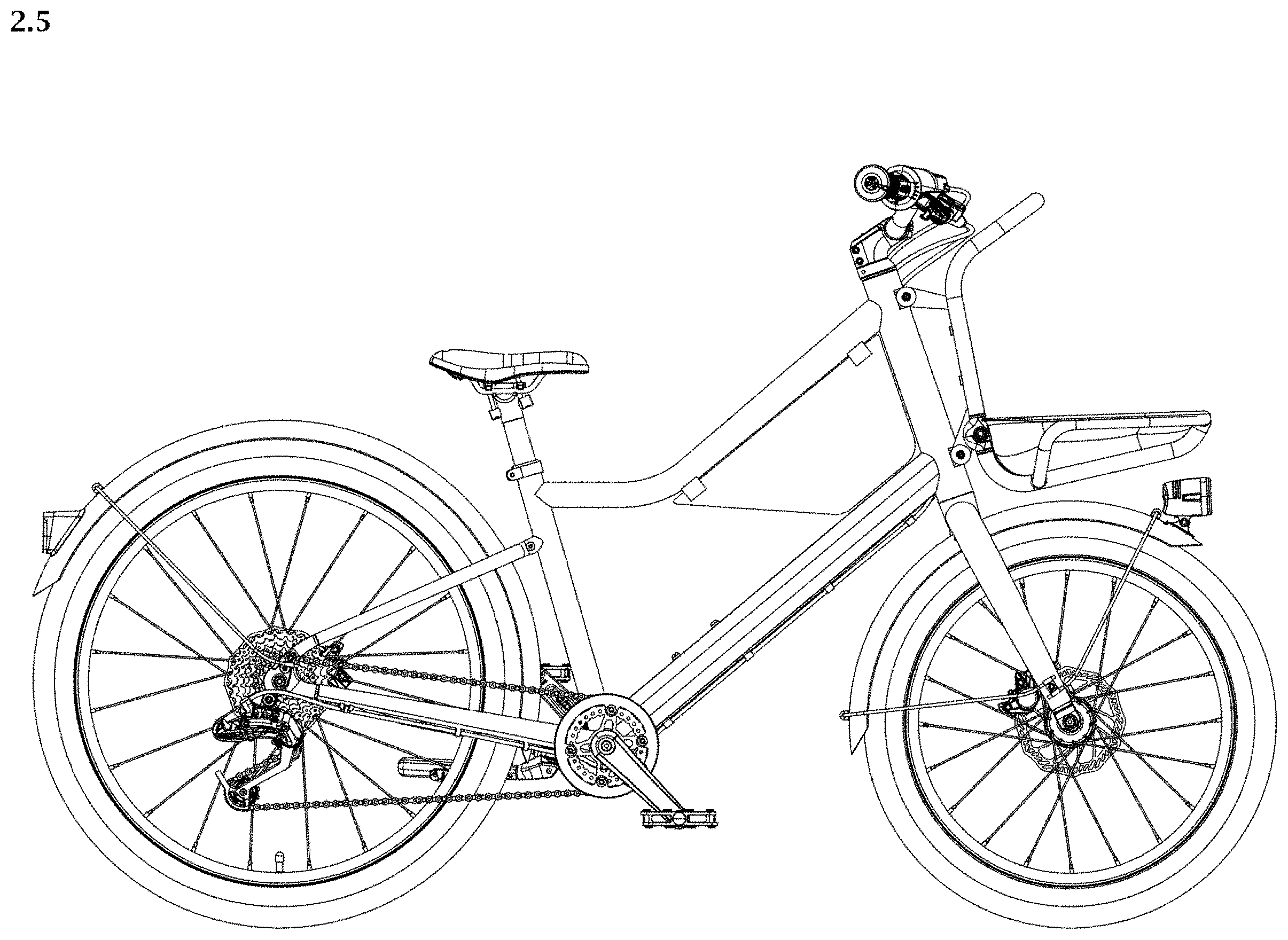

2 . 5 is a right side elevation view thereof;

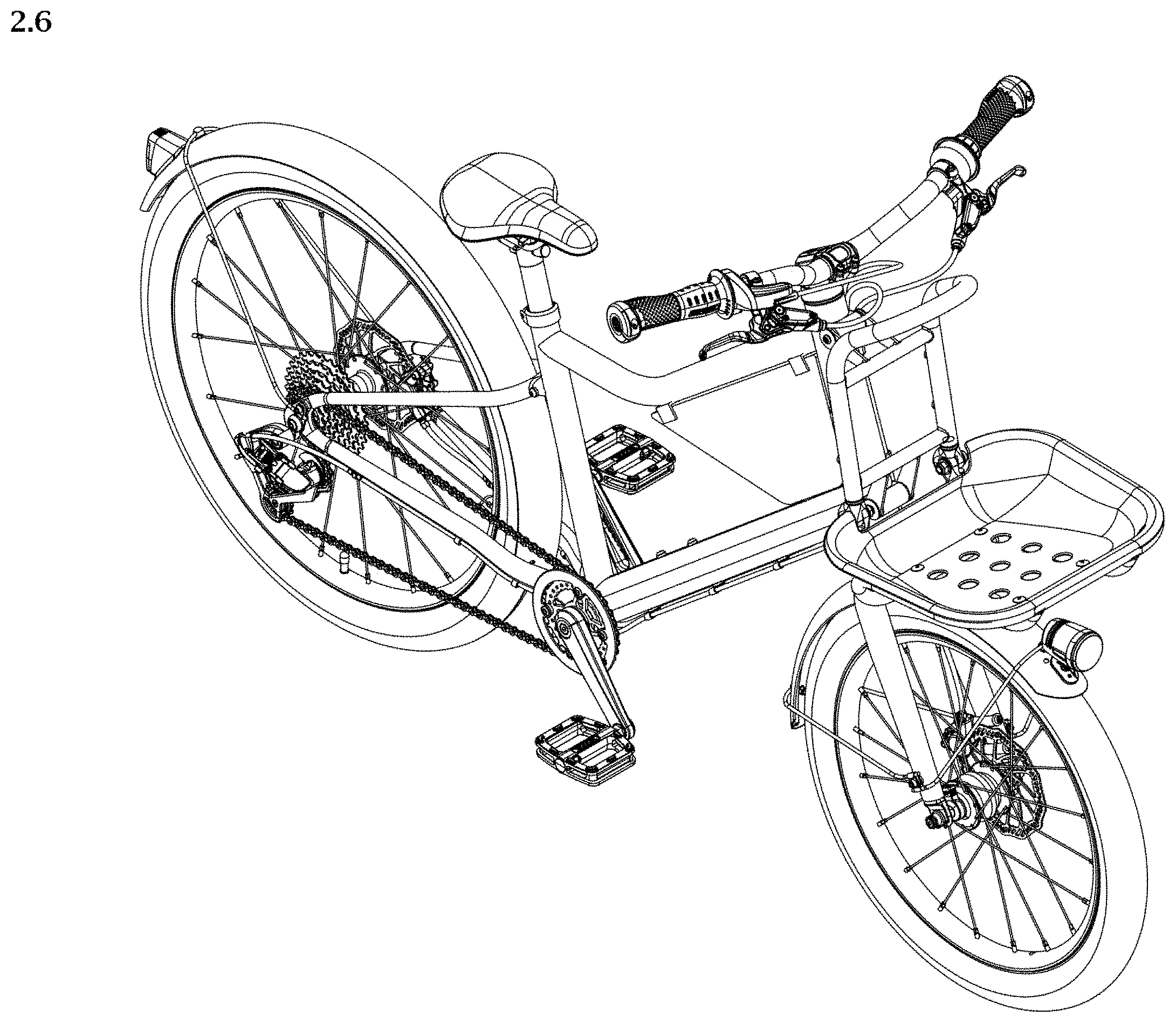

2 . 6 is a front and right side perspective view thereof; and

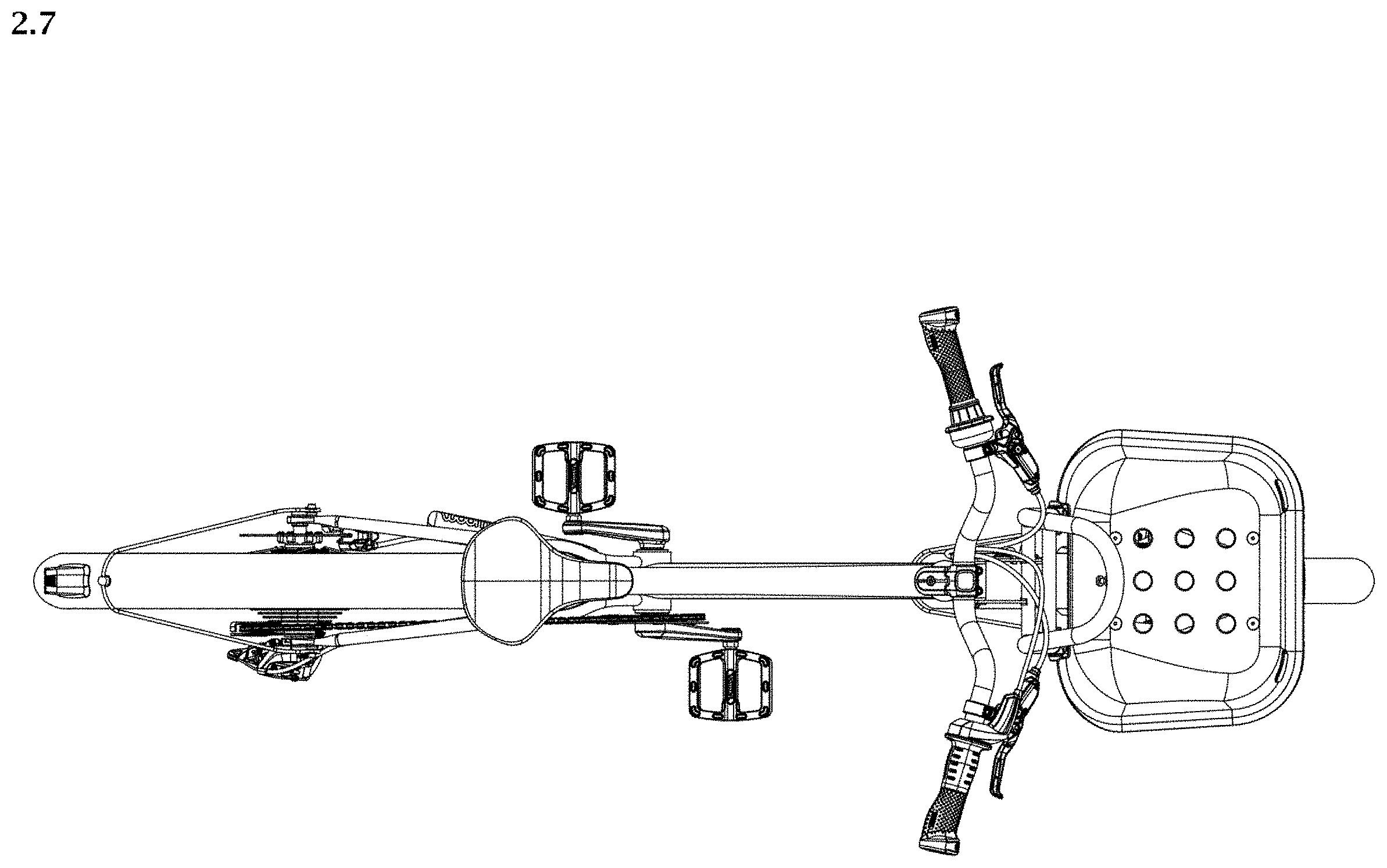

2 . 7 is a top plan view thereof.
