Claims (1)
Claim 1 (Independent)
The ornamental design for a double buckle lunch box, as shown and described.
Full Description
Show full text →

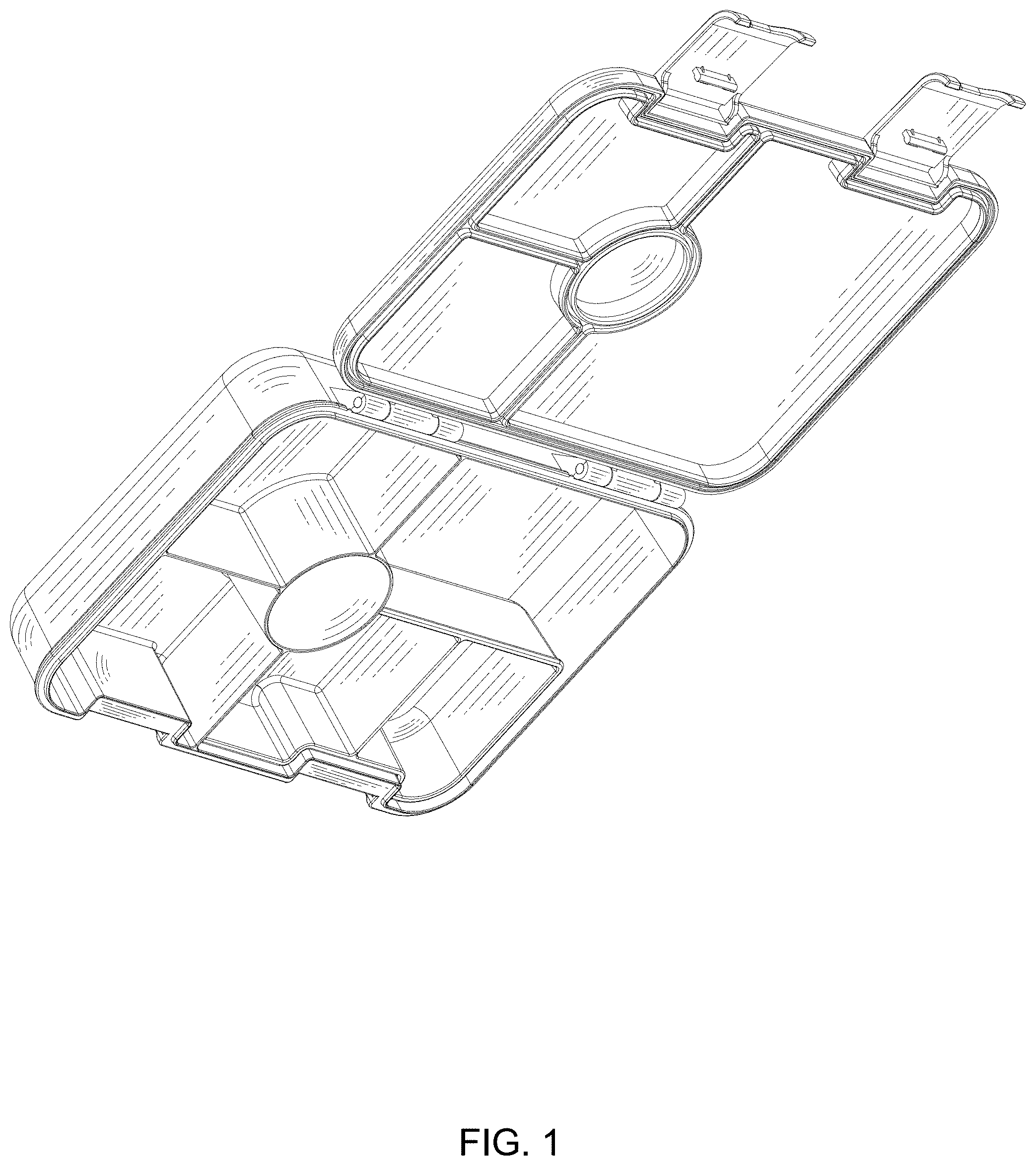

is a perspective view of a double buckle lunch box showing my new design;

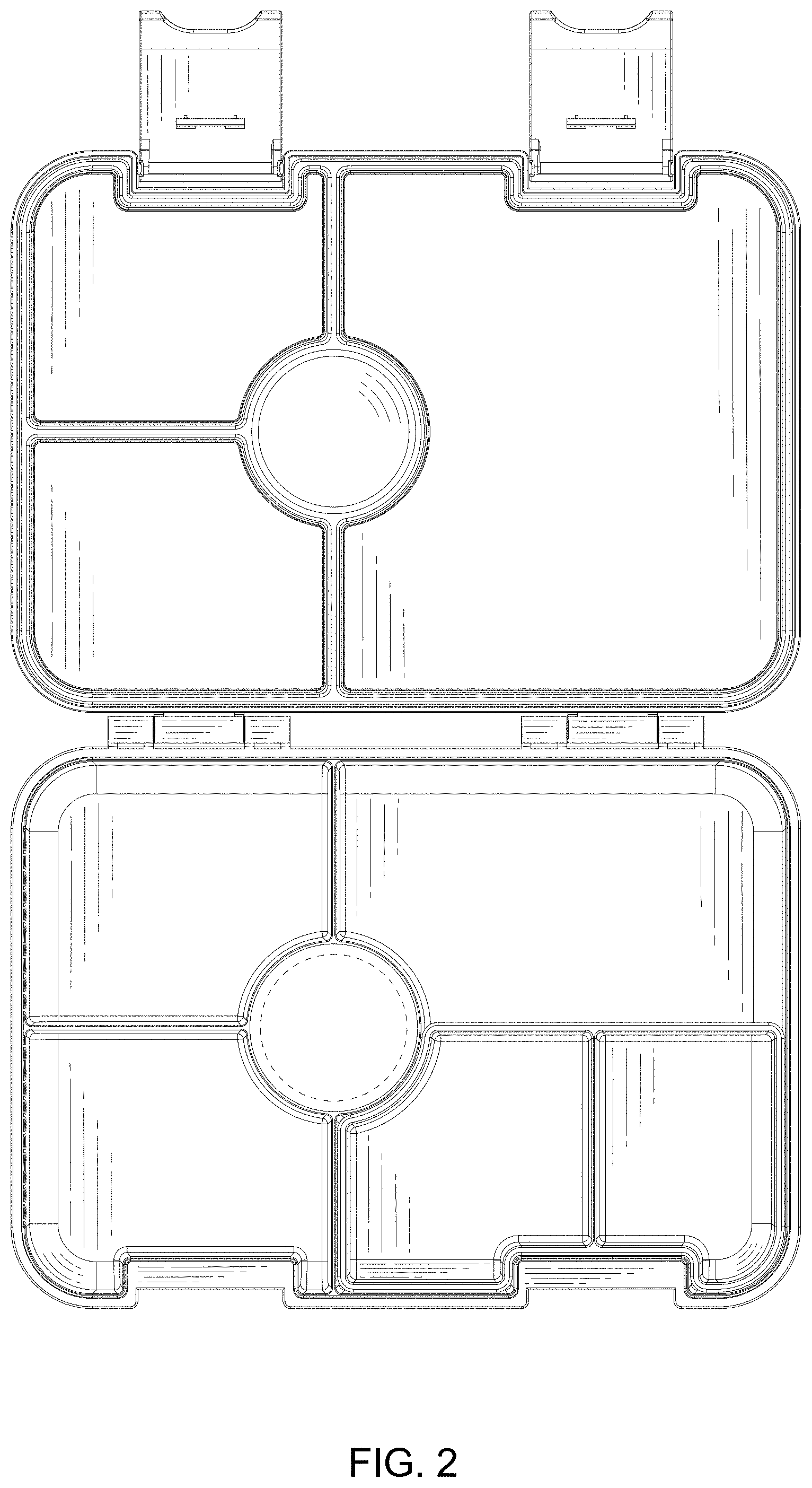

is a front elevation view thereof;

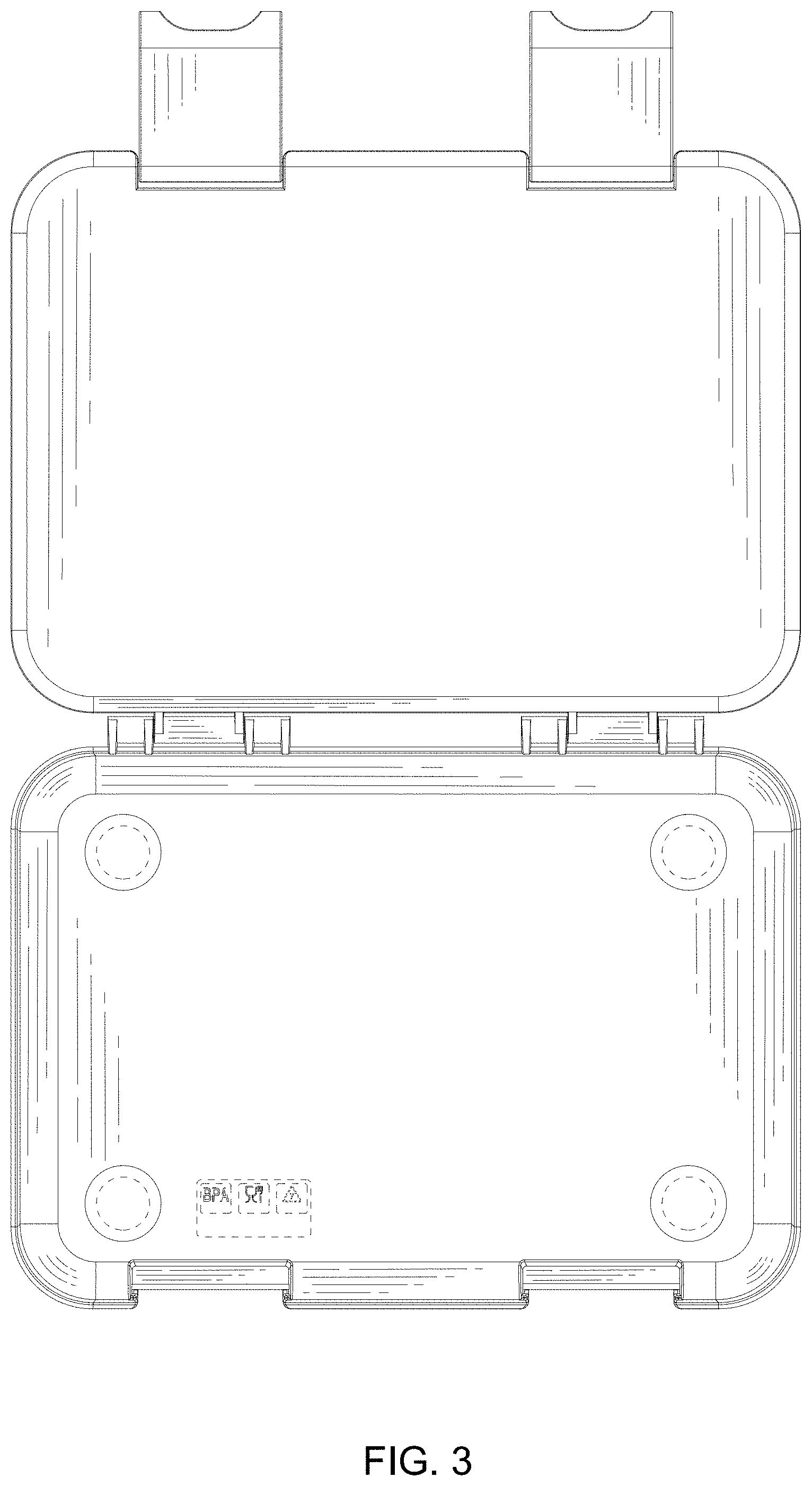

is a rear elevation view thereof;
is a left side elevation view thereof;
is a right side elevation view thereof;
is a top plan view thereof;
is a bottom plan view thereof; and,

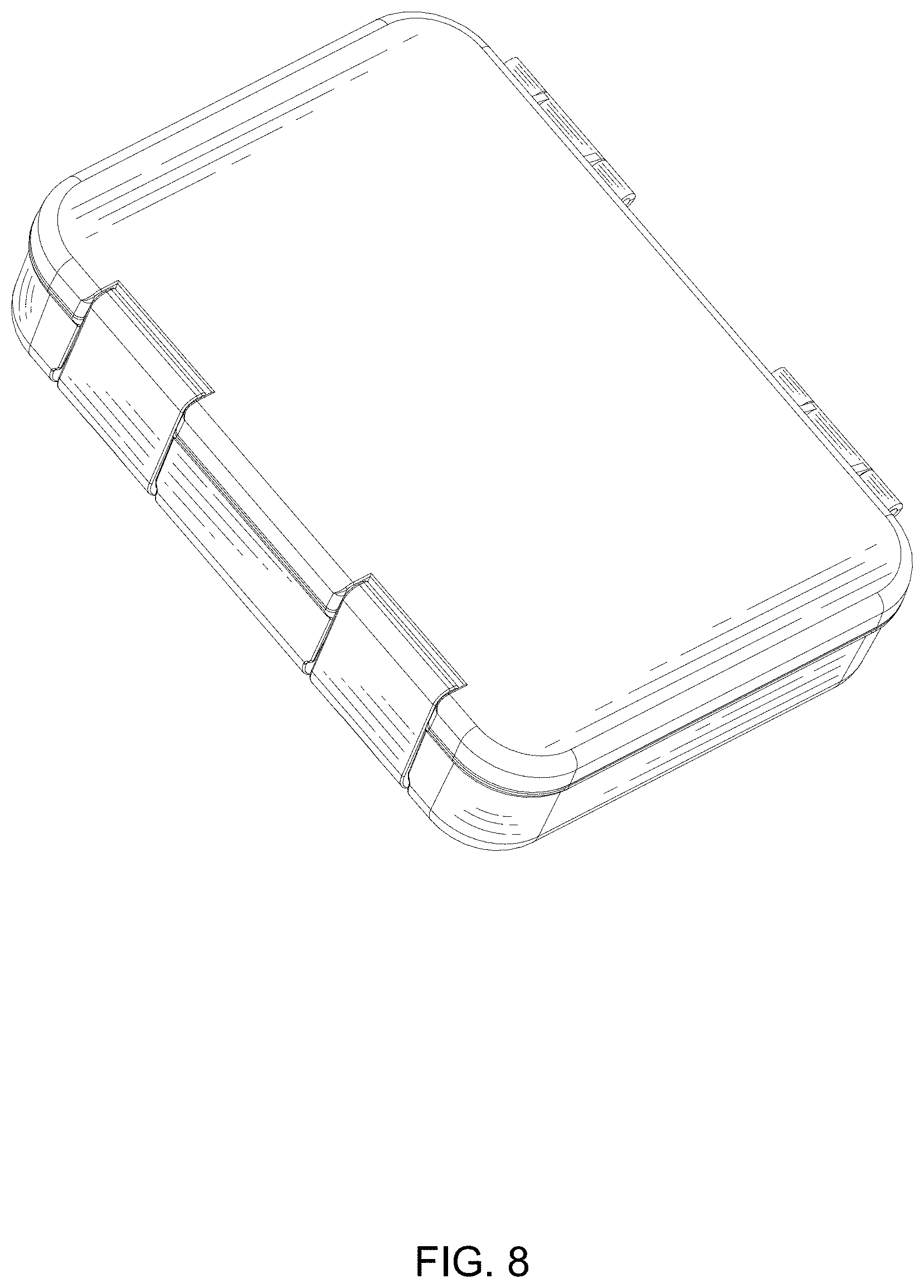

is a perspectivew view thereof, shown in a closed state.
The broken lines in the drawings depict portions of the double buckle lunch box that form no part of the claimed design.
