USD1000842No. D 1,000,842designGranted 10/10/2023
Patent USD1000842 — Mirror — Figure 1
Fig. 1 · Mirror

Claims (1)

Claim 1 (Independent)

The ornamental design for a mirror, as shown and described.

Full Description

Show full text →

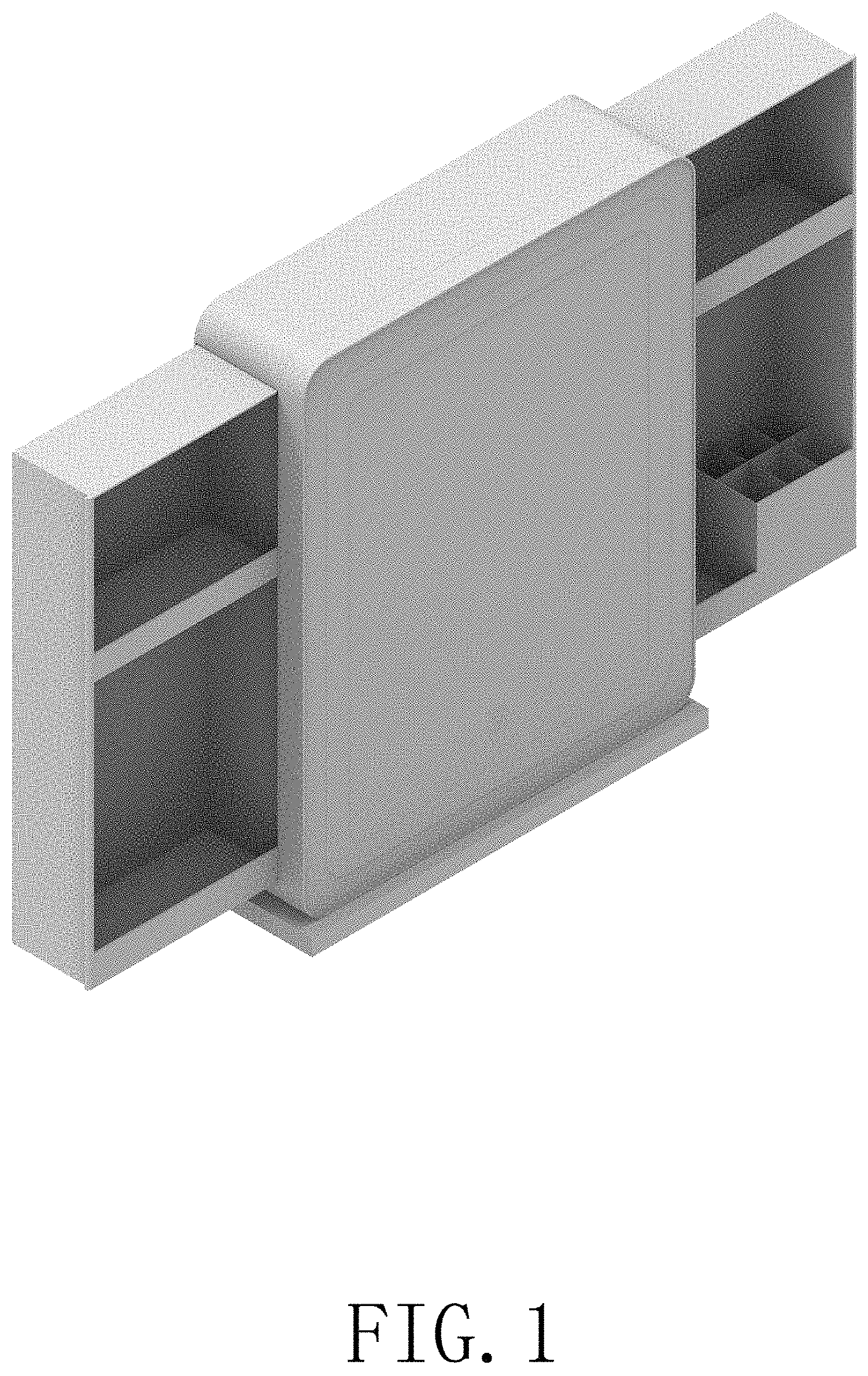

is a first perspective view of a mirror showing my new design;

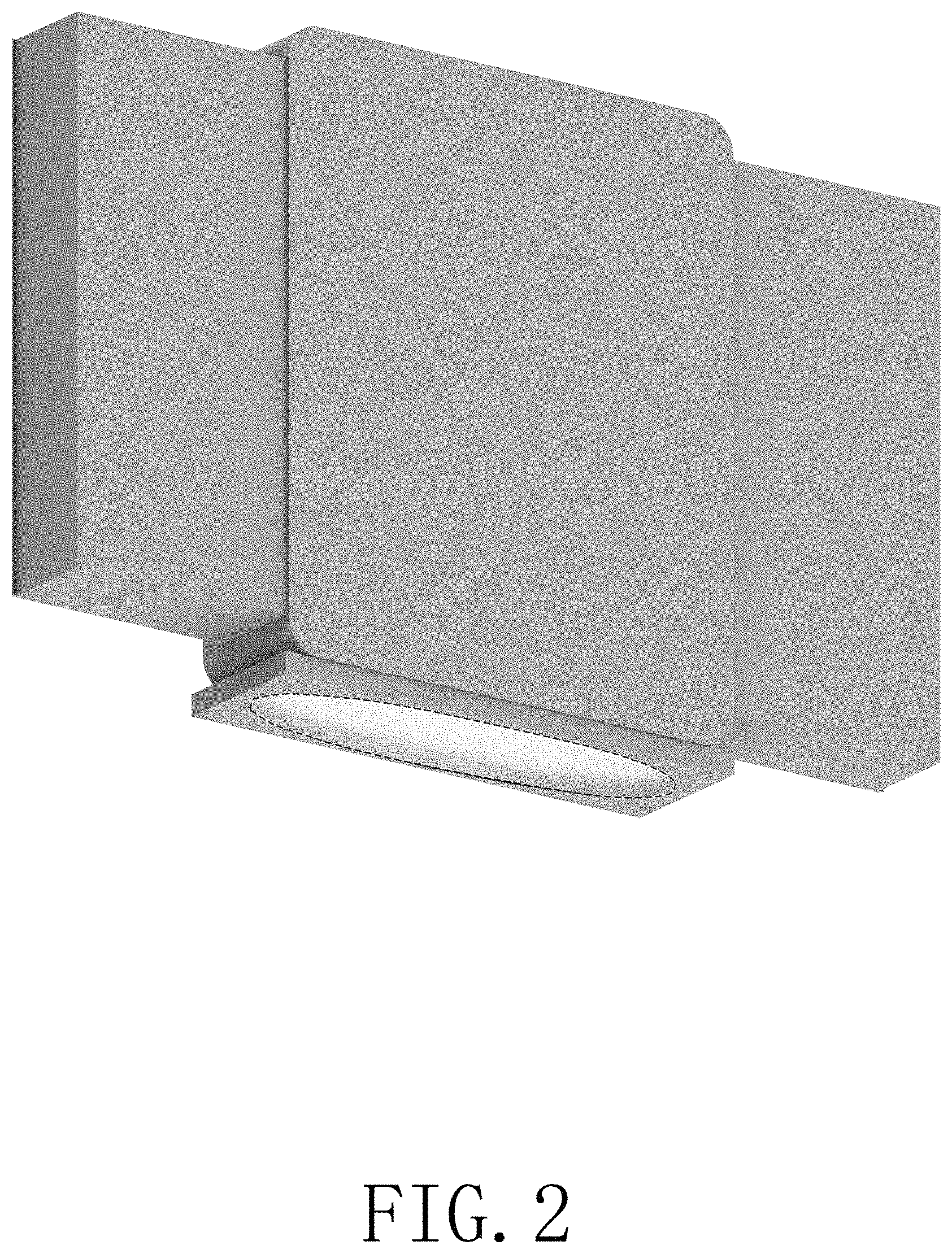

is a second perspective view thereof;

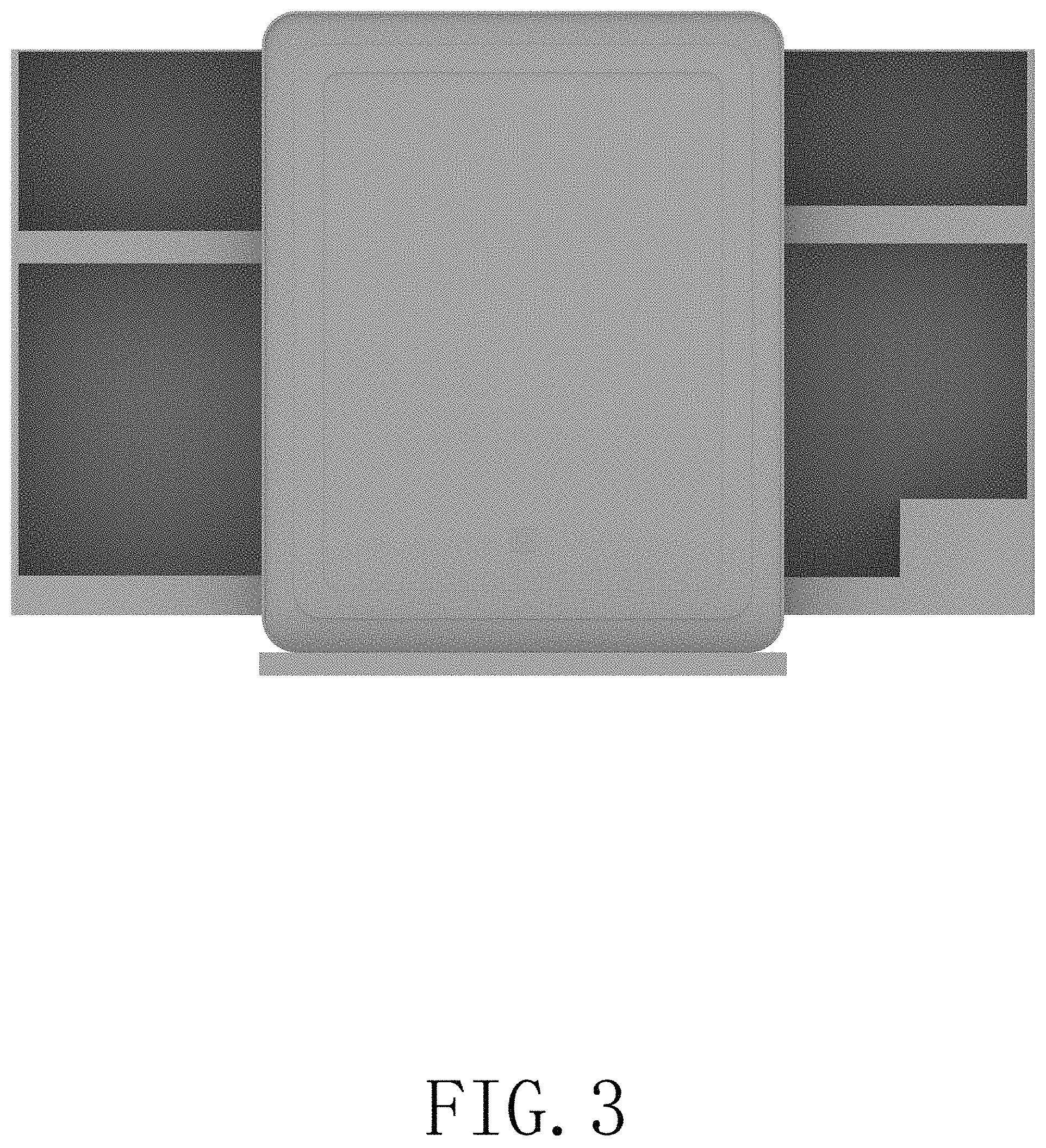

is a front view thereof;

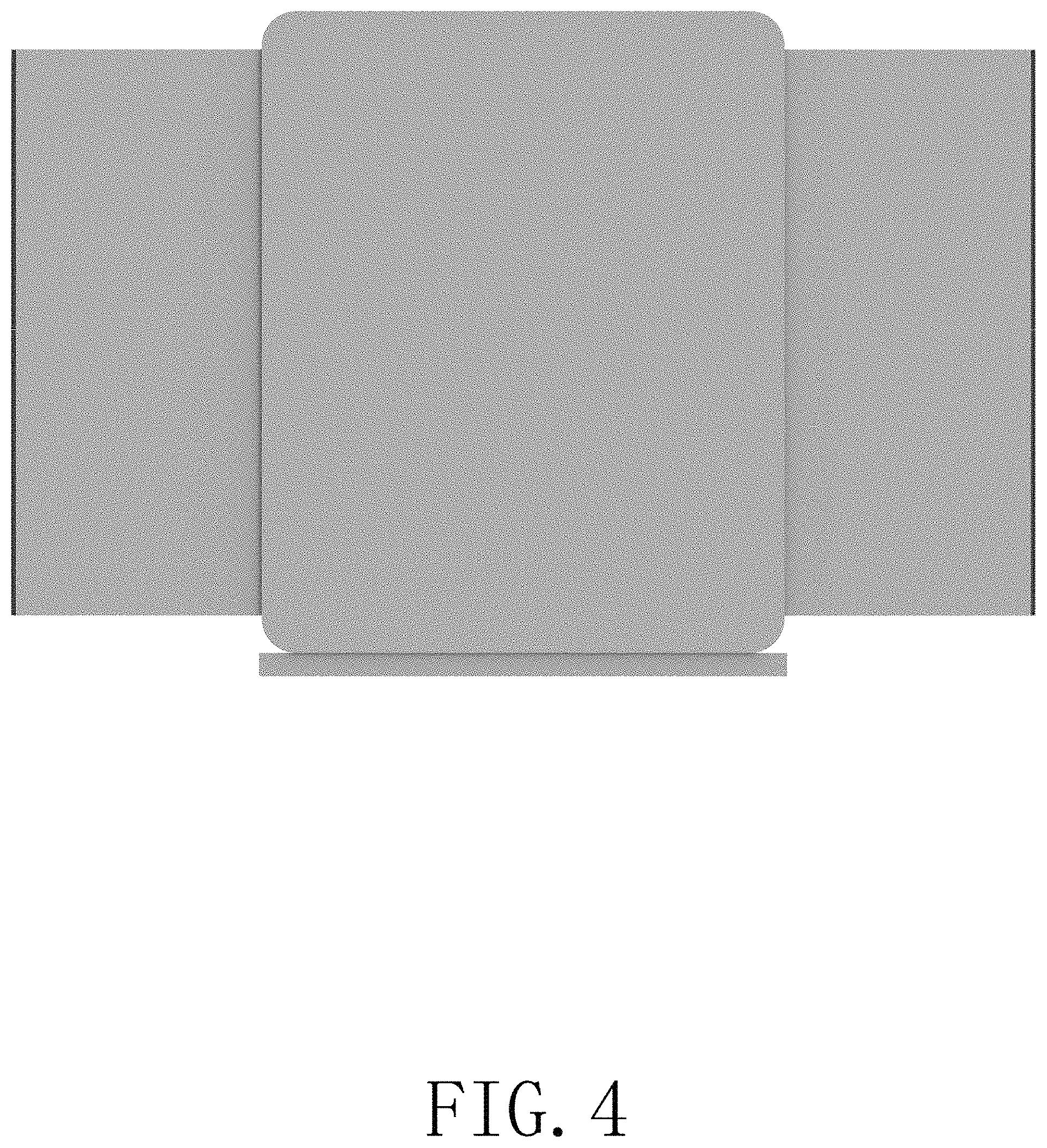

is a back view thereof;

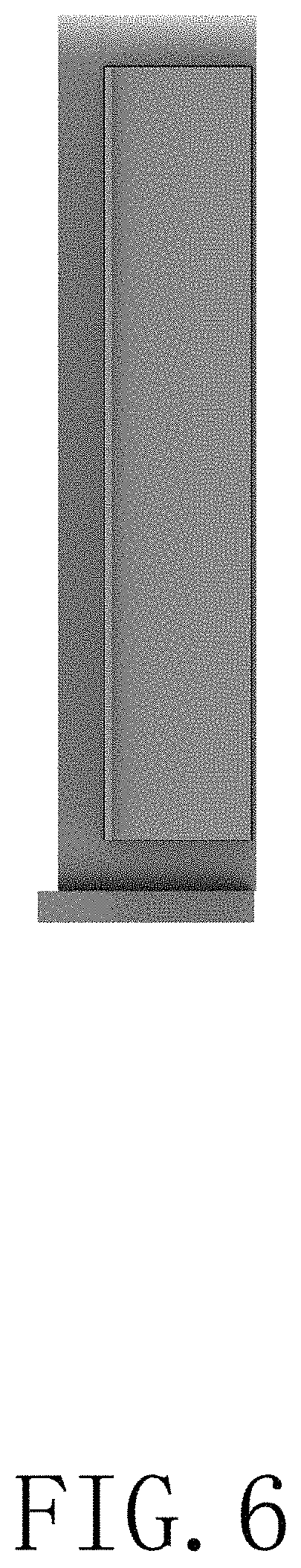

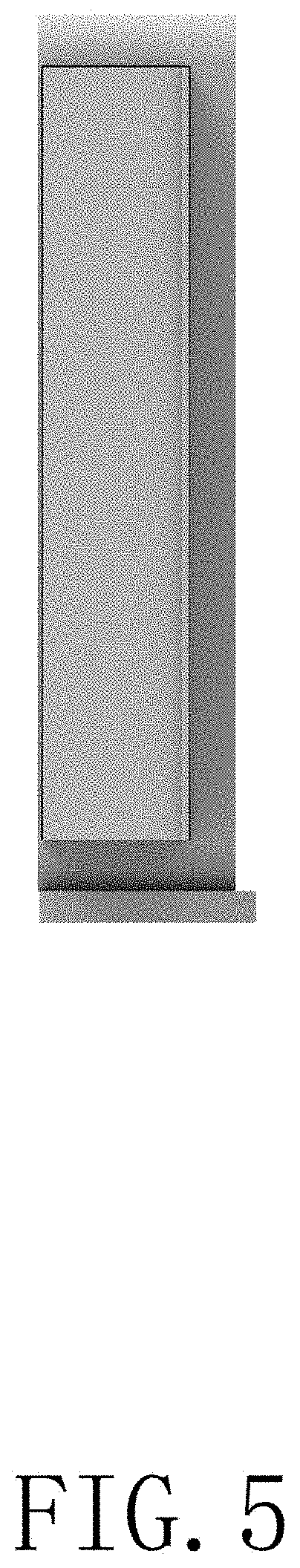

is a left side view thereof;

is a right side view thereof;

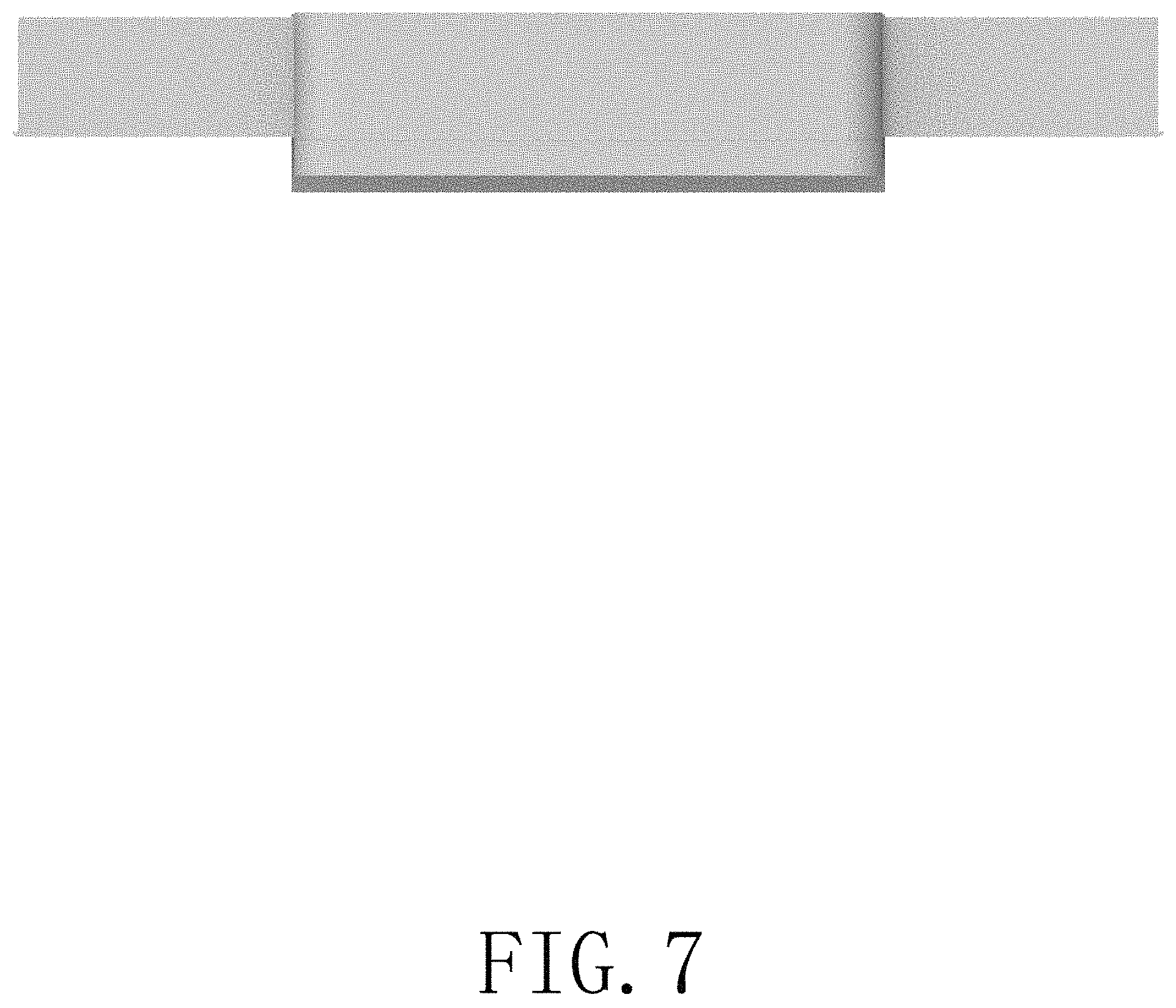

is a top view thereof;

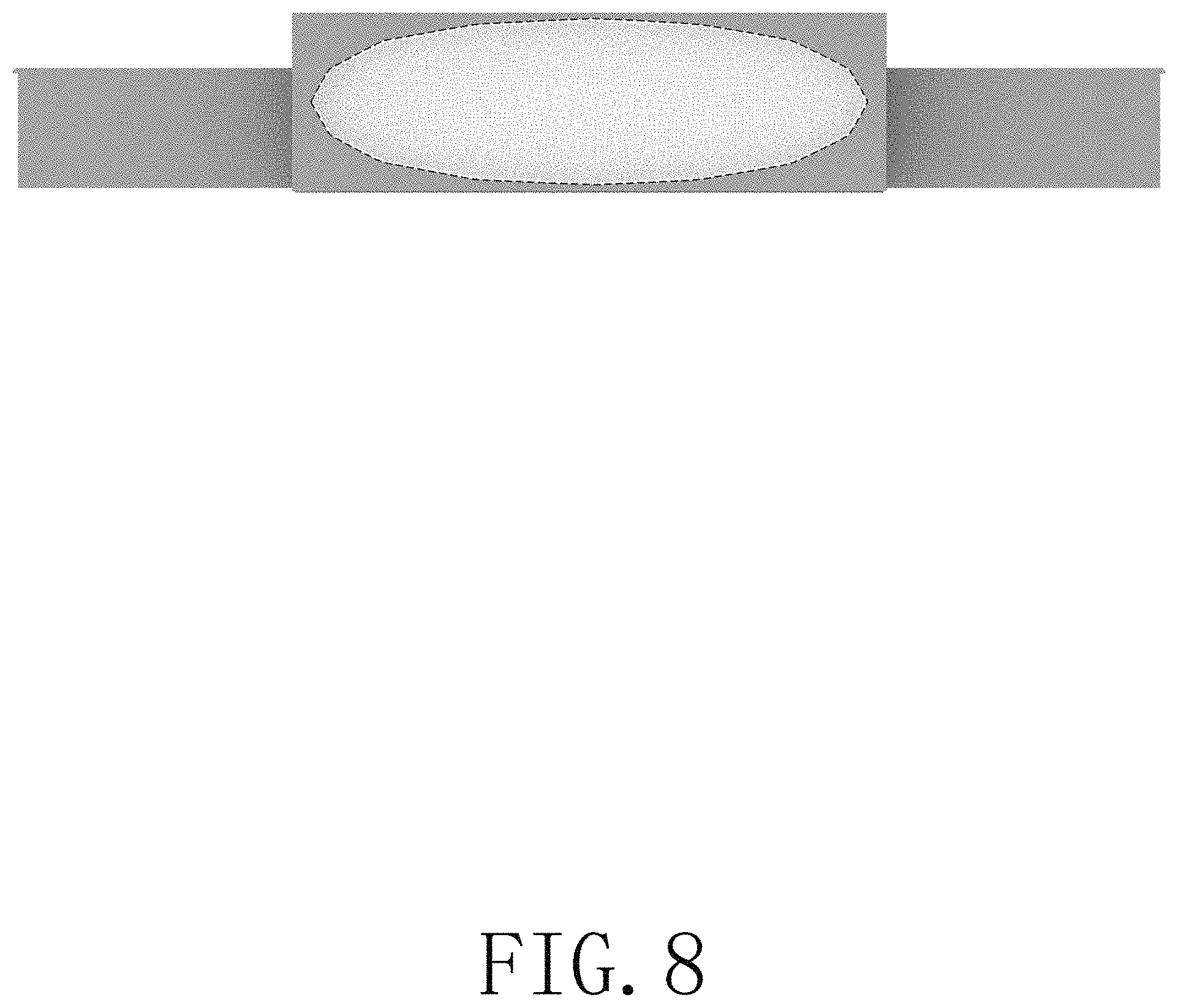

is a bottom view thereof; and,

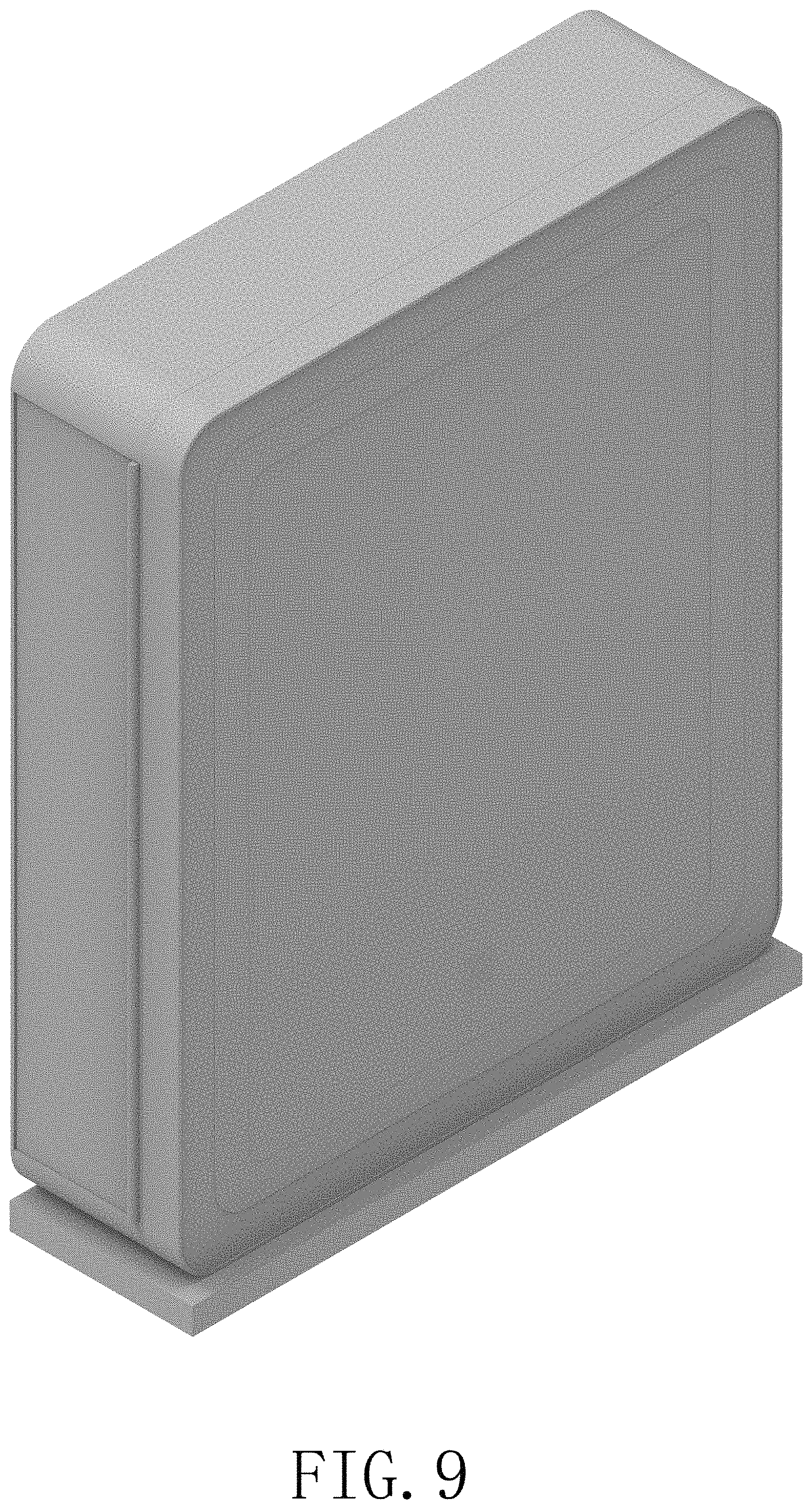

is a perspective view of another state of the mirror thereof.
