Shoe

USD1000790No. D 1,000,790designGranted 10/10/2023
Patent USD1000790 — Shoe — Figure 1
Fig. 1 · Shoe

Claims (1)

Claim 1 (Independent)

The ornamental design for a shoe, as shown and described.

Full Description

Show full text →

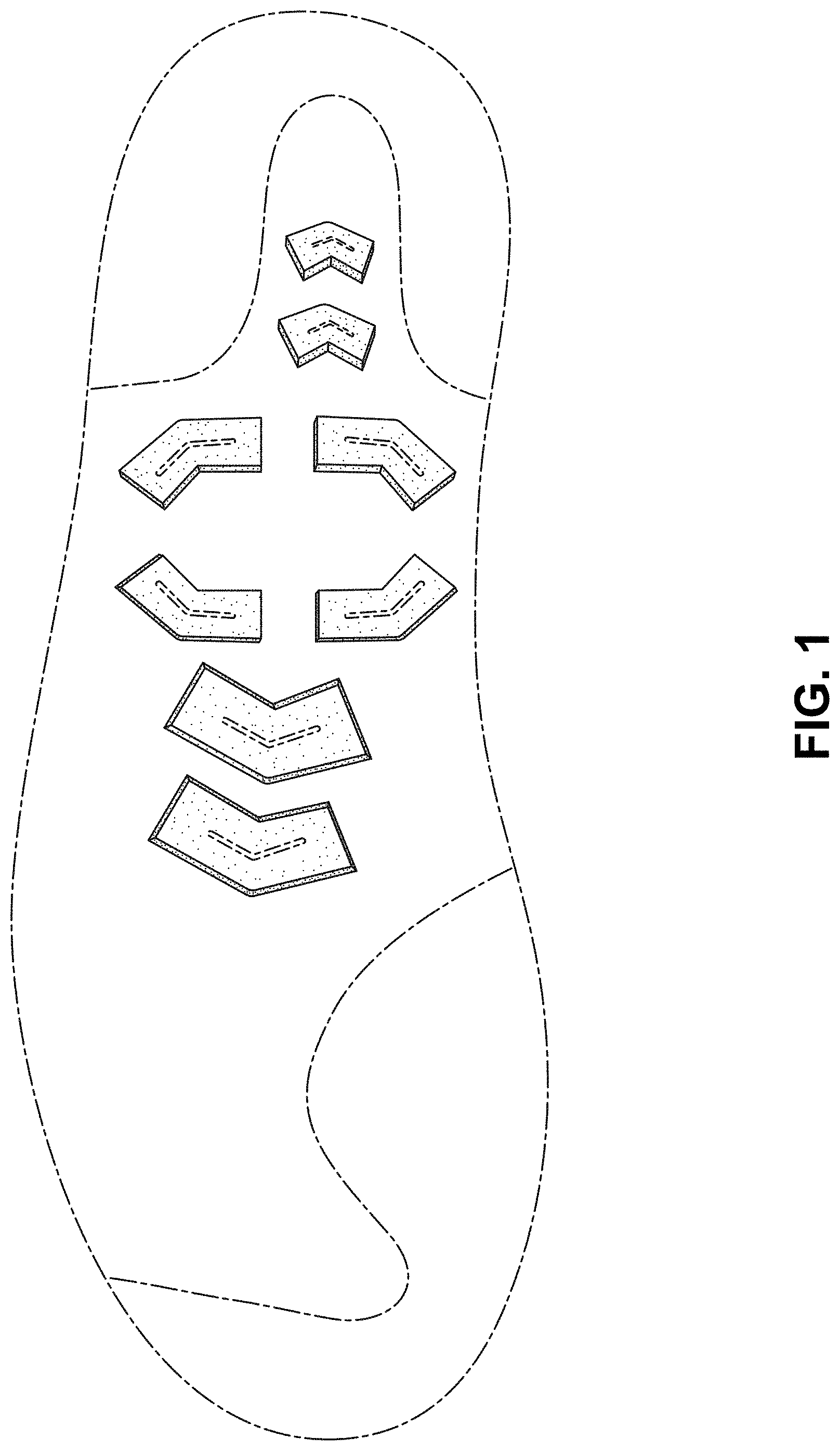

is a bottom view of a shoe showing our new design;

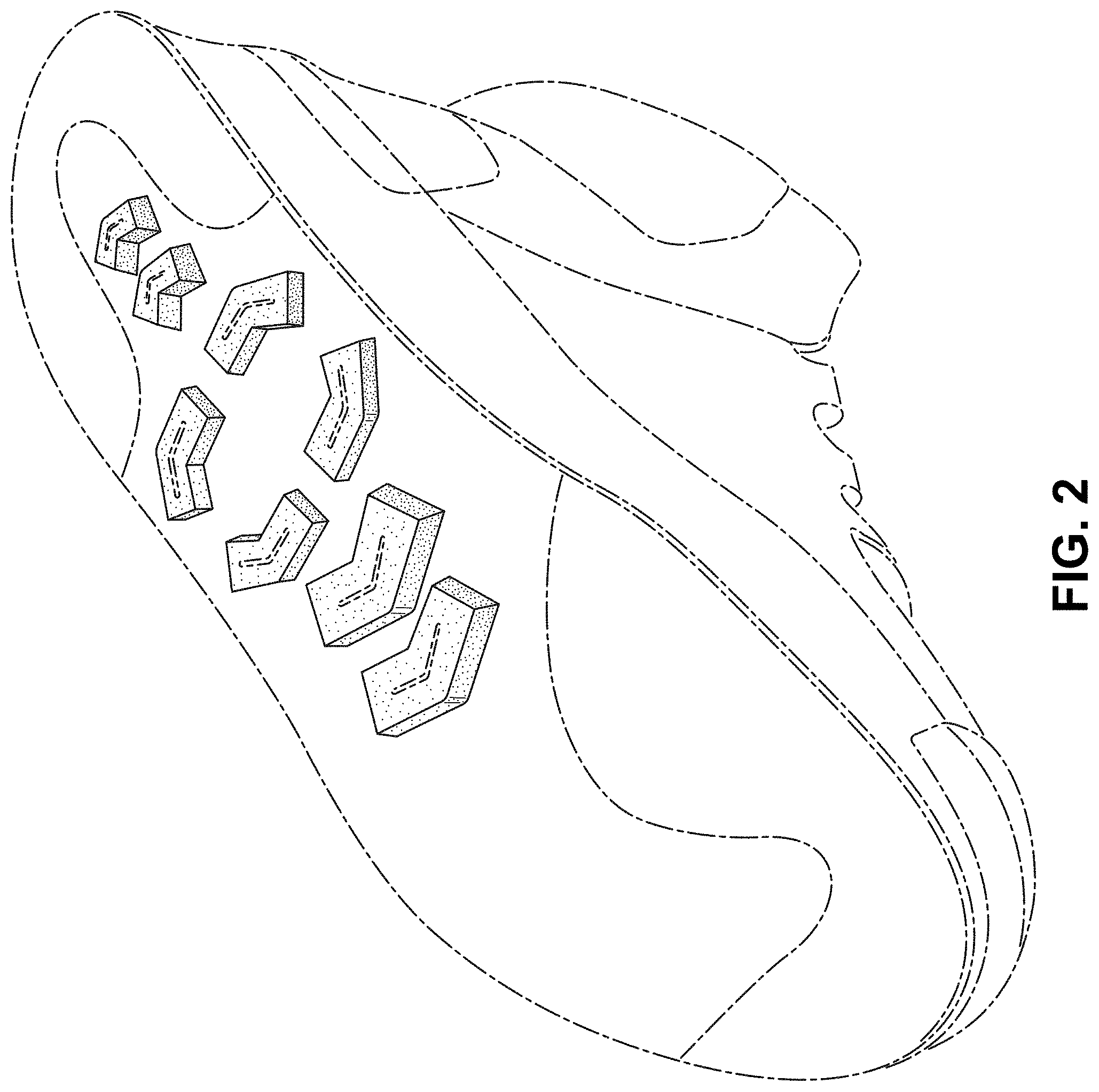

is a bottom front perspective view thereof; and,

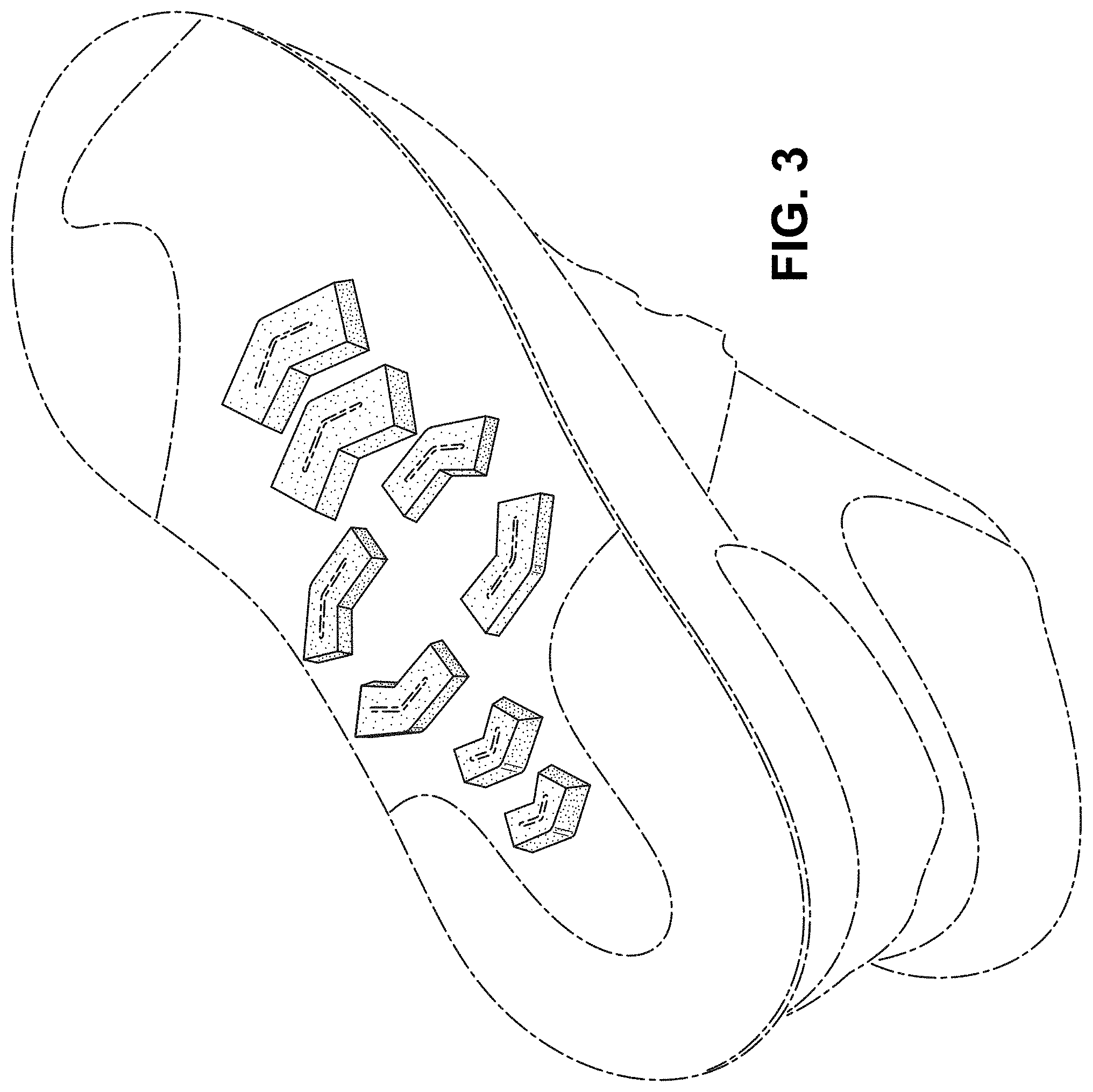

is a bottom rear perspective view thereof.

The broken lines within the shaded areas form no part of the claimed design. The broken lines depicting the remainder of the shoe form no part of the claimed design.

Figures (3)

Fig. 1
Fig. 2
Fig. 3
