Delivery Module for Washing Machine

USD1000736No. D 1,000,736designGranted 10/3/2023
Patent USD1000736 — Delivery module for washing machine — Figure 1
Fig. 1 · Delivery Module for Washing Machine

Claims (1)

Claim 1 (Independent)

The ornamental design for a delivery module for washing machine, as shown and described.

Full Description

Show full text →

1. Delivery module for washing machine

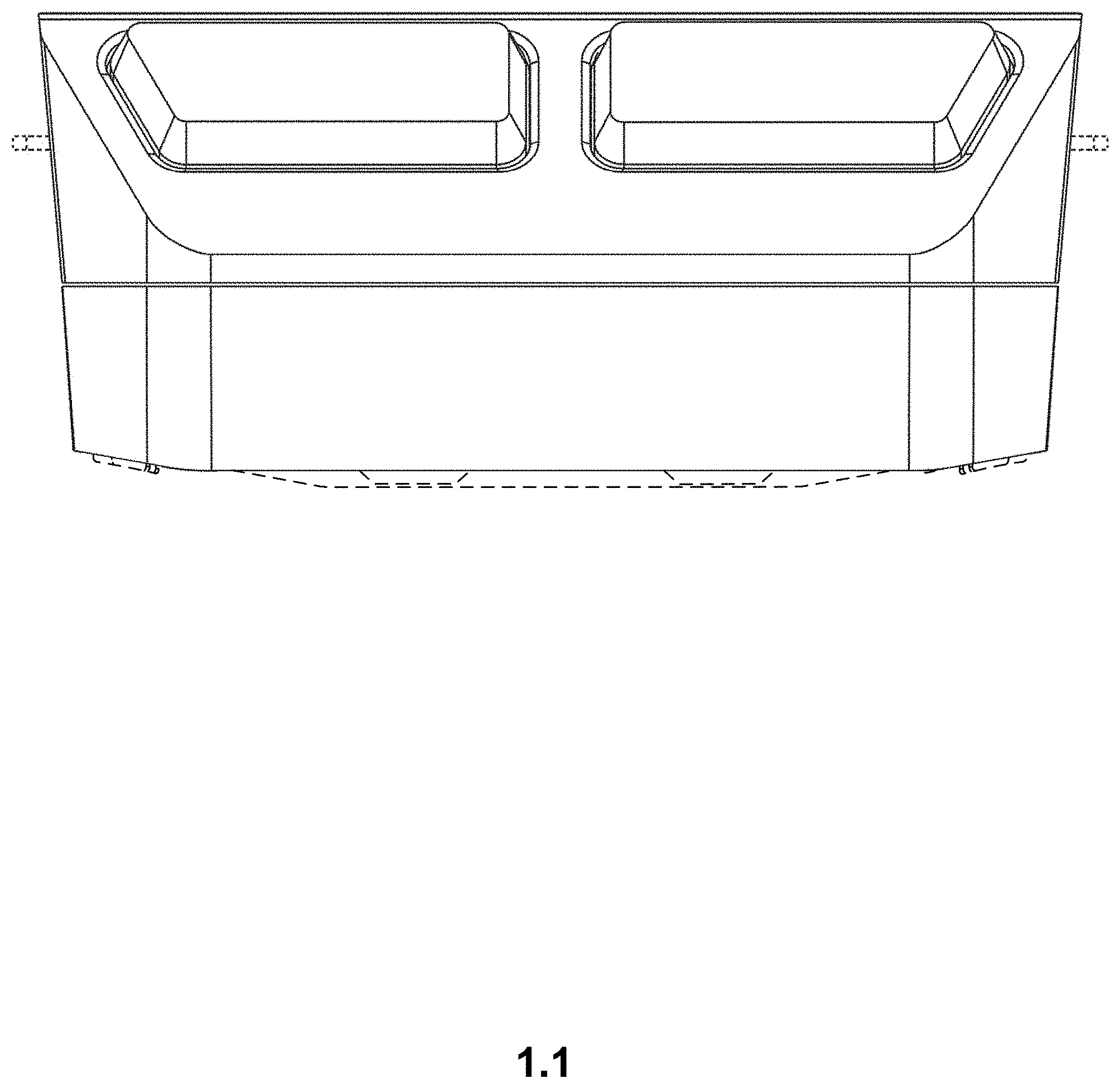

1 . 1 : Front

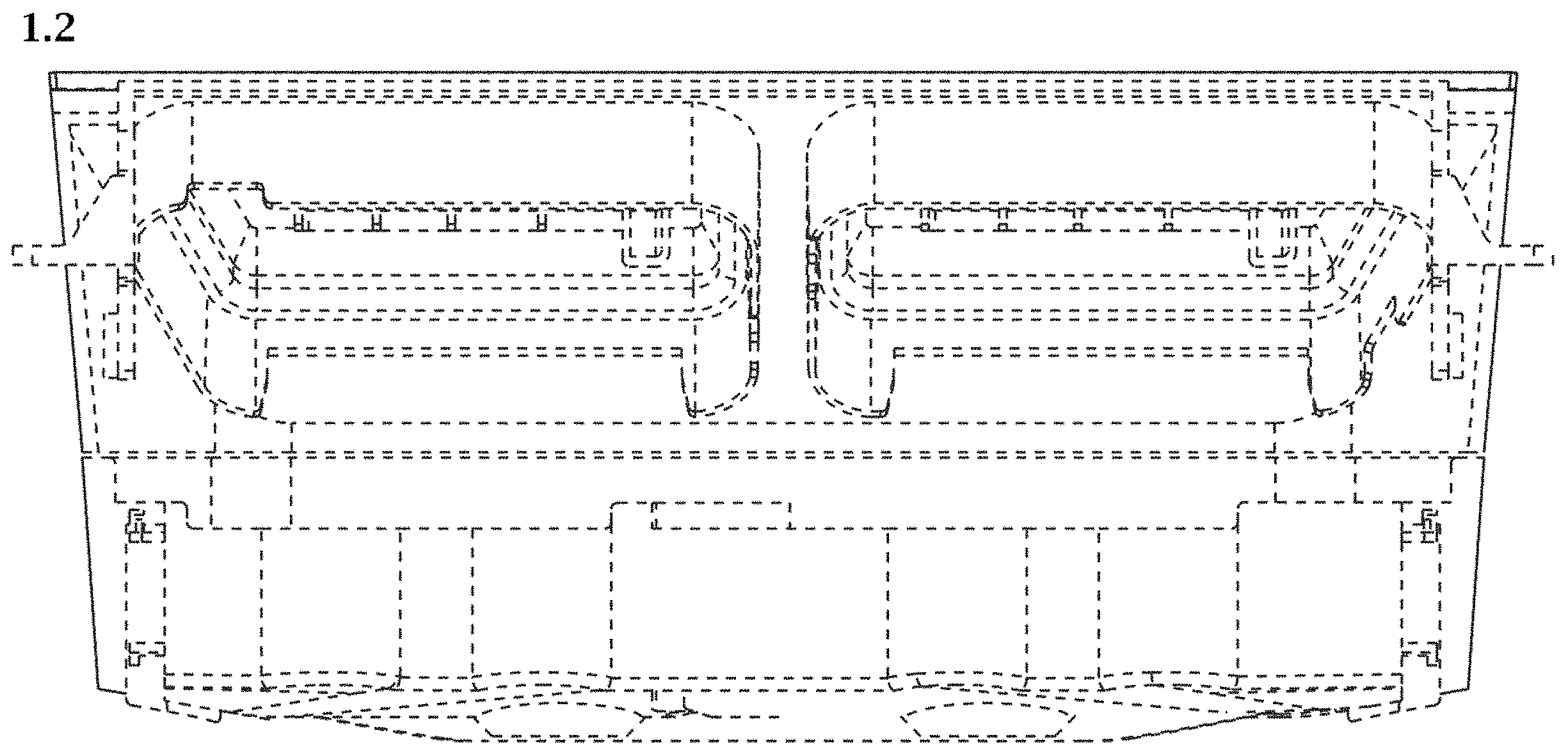

1 . 2 : Back

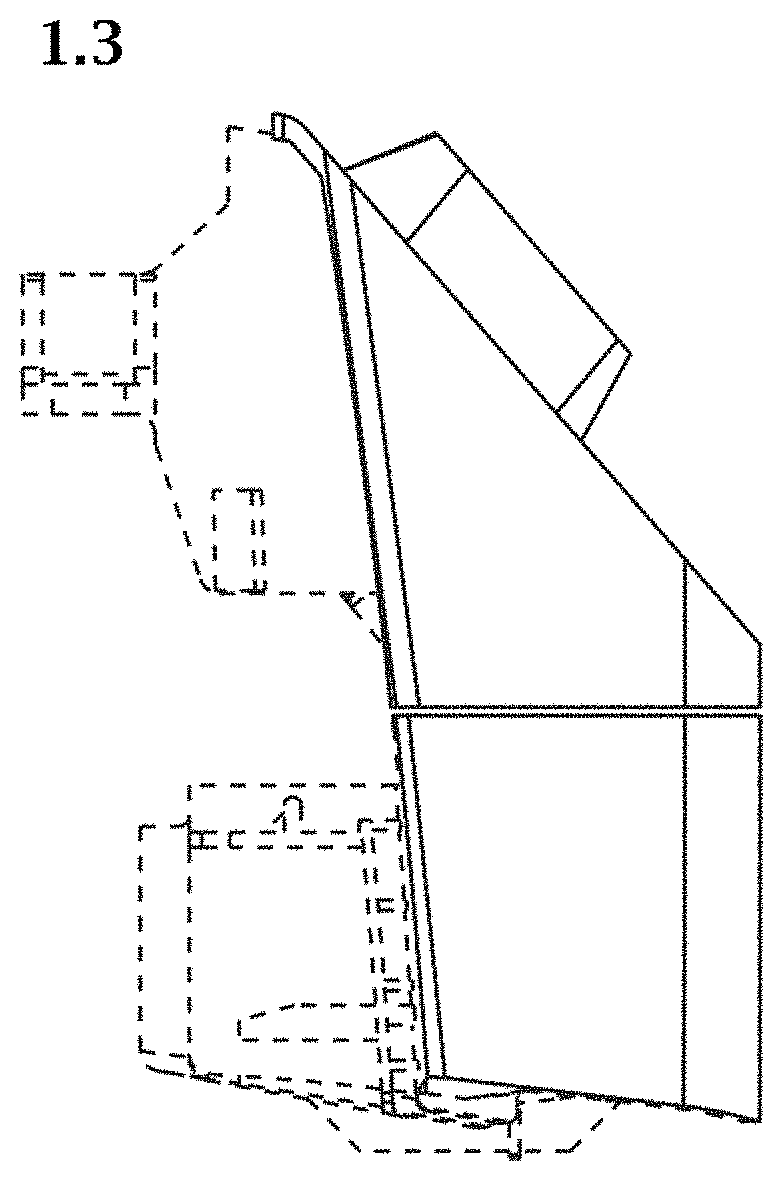

1 . 3 : Left

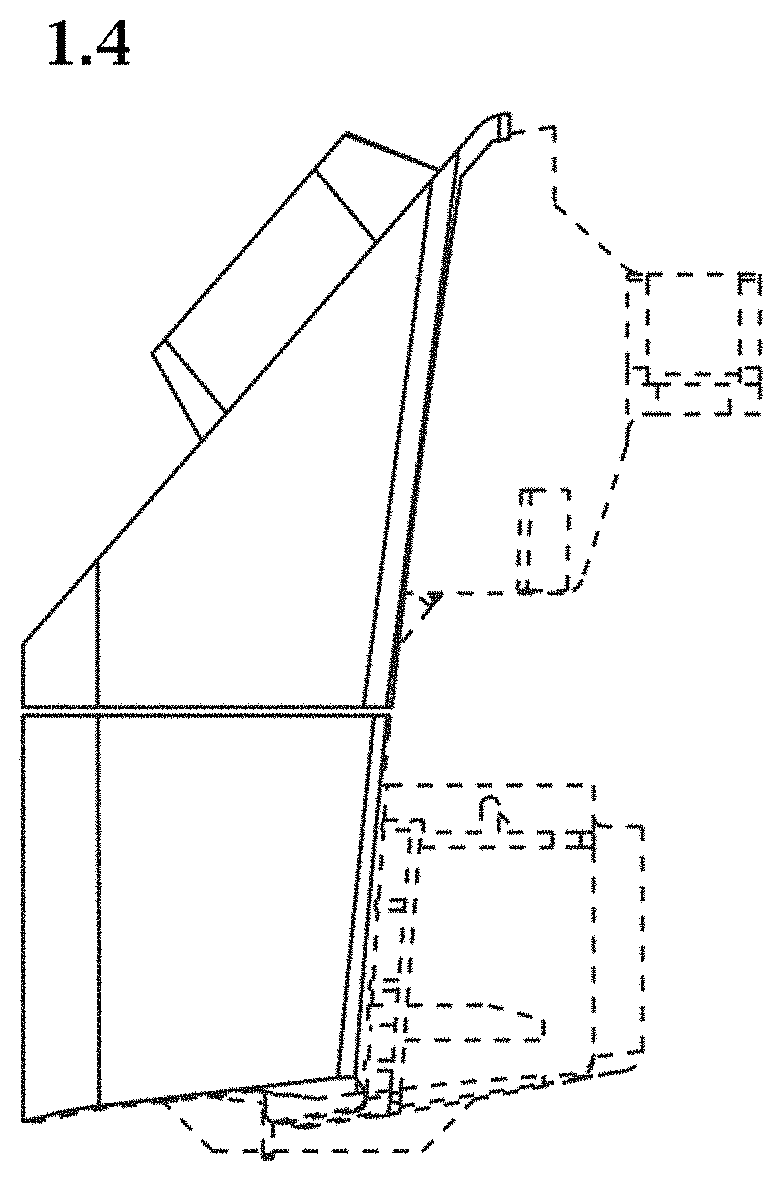

1 . 4 : Right

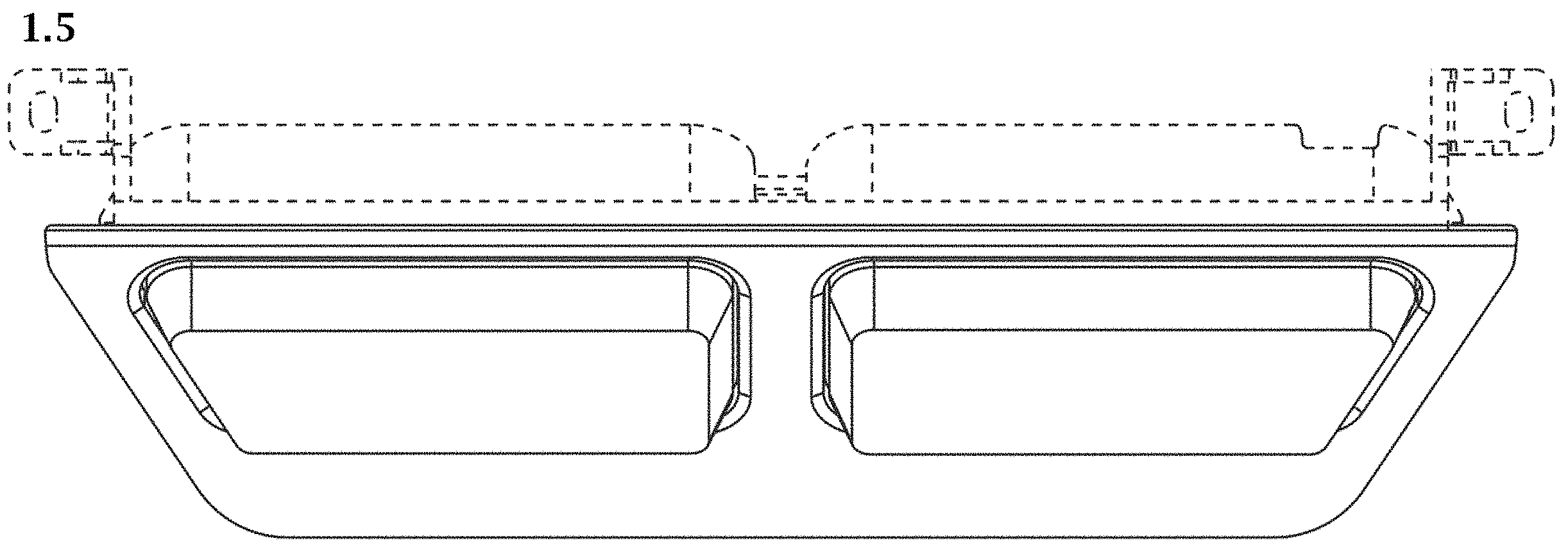

1 . 5 : Top

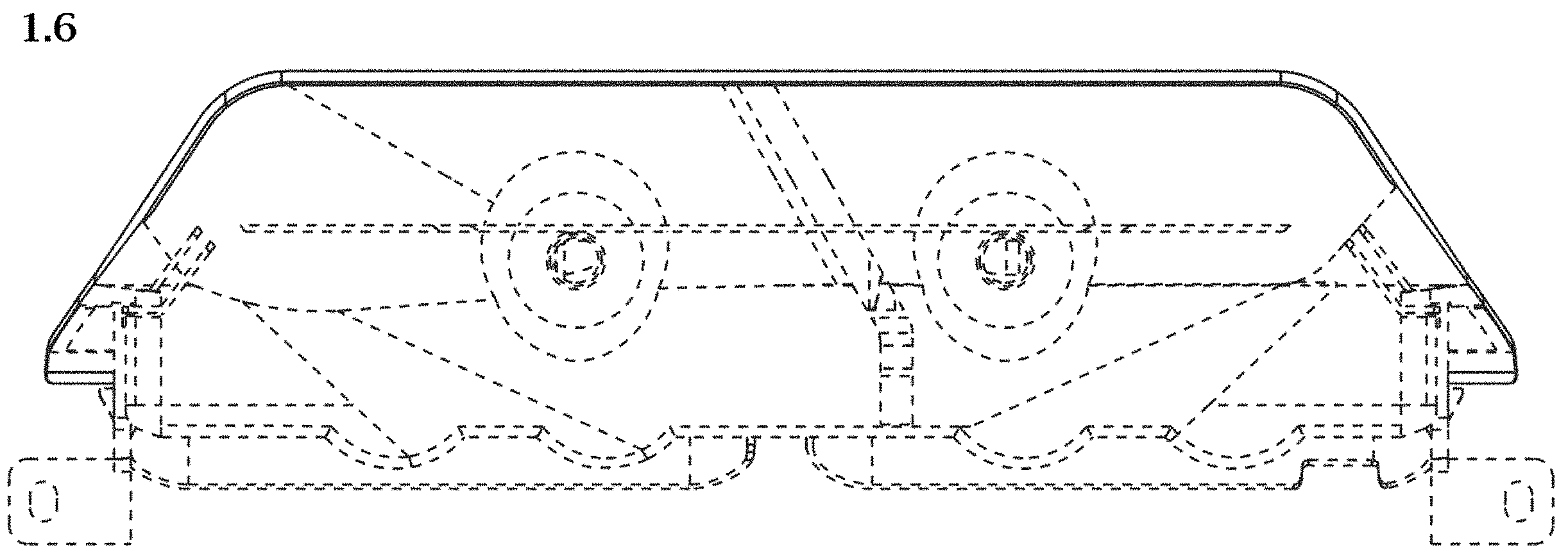

1 . 6 : Bottom

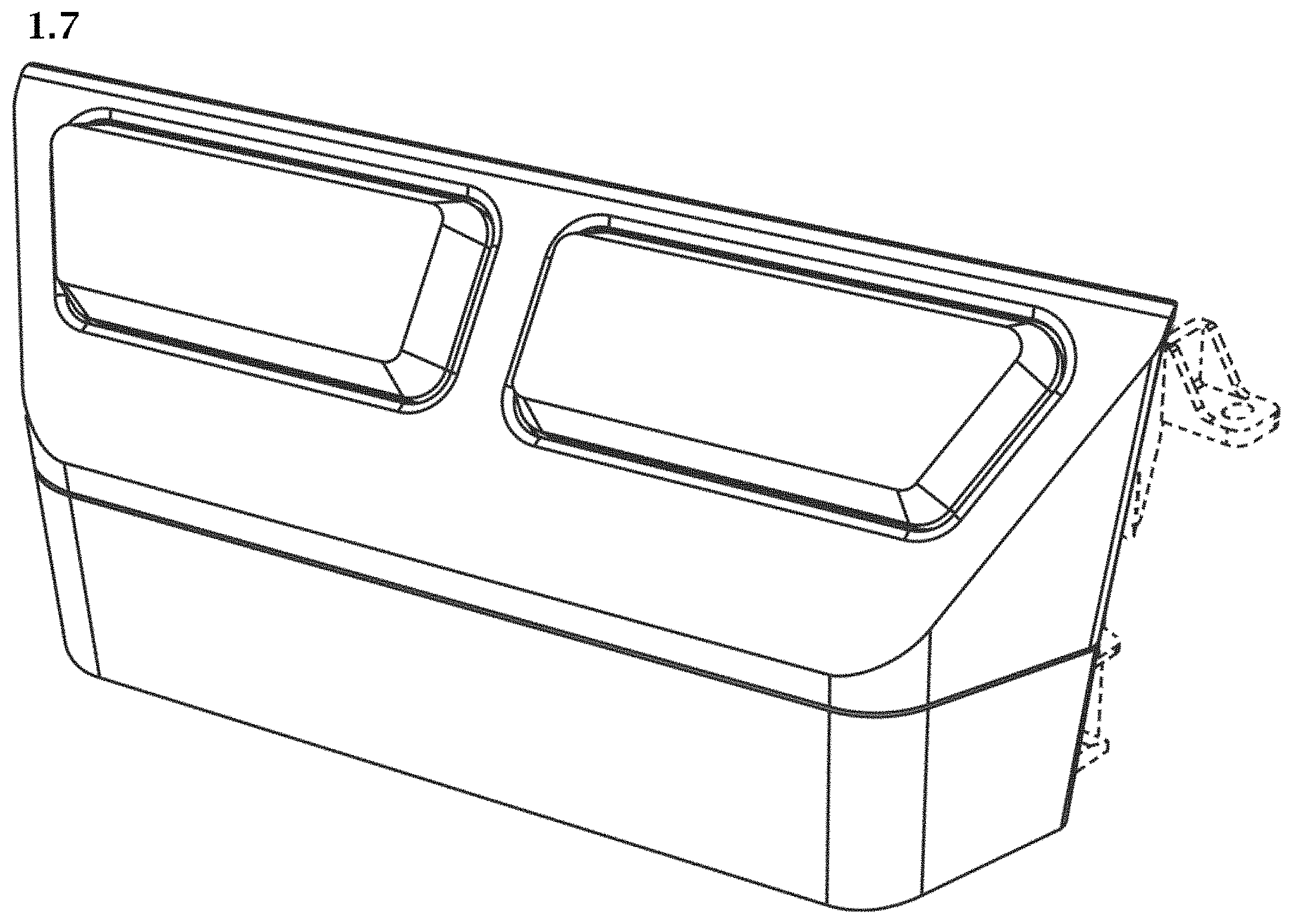

1 . 7 : Perspective

The broken lines shown in the drawings illustrate portions of the delivery module for washing machine that form no part of the claimed design.
