USD1000676No. D 1,000,676designGranted 10/3/2023
Patent USD1000676 — Light — Figure 1
Fig. 1 · Light

Claims (1)

Claim 1 (Independent)

The ornamental design for a light, as shown and described.

Full Description

Show full text →

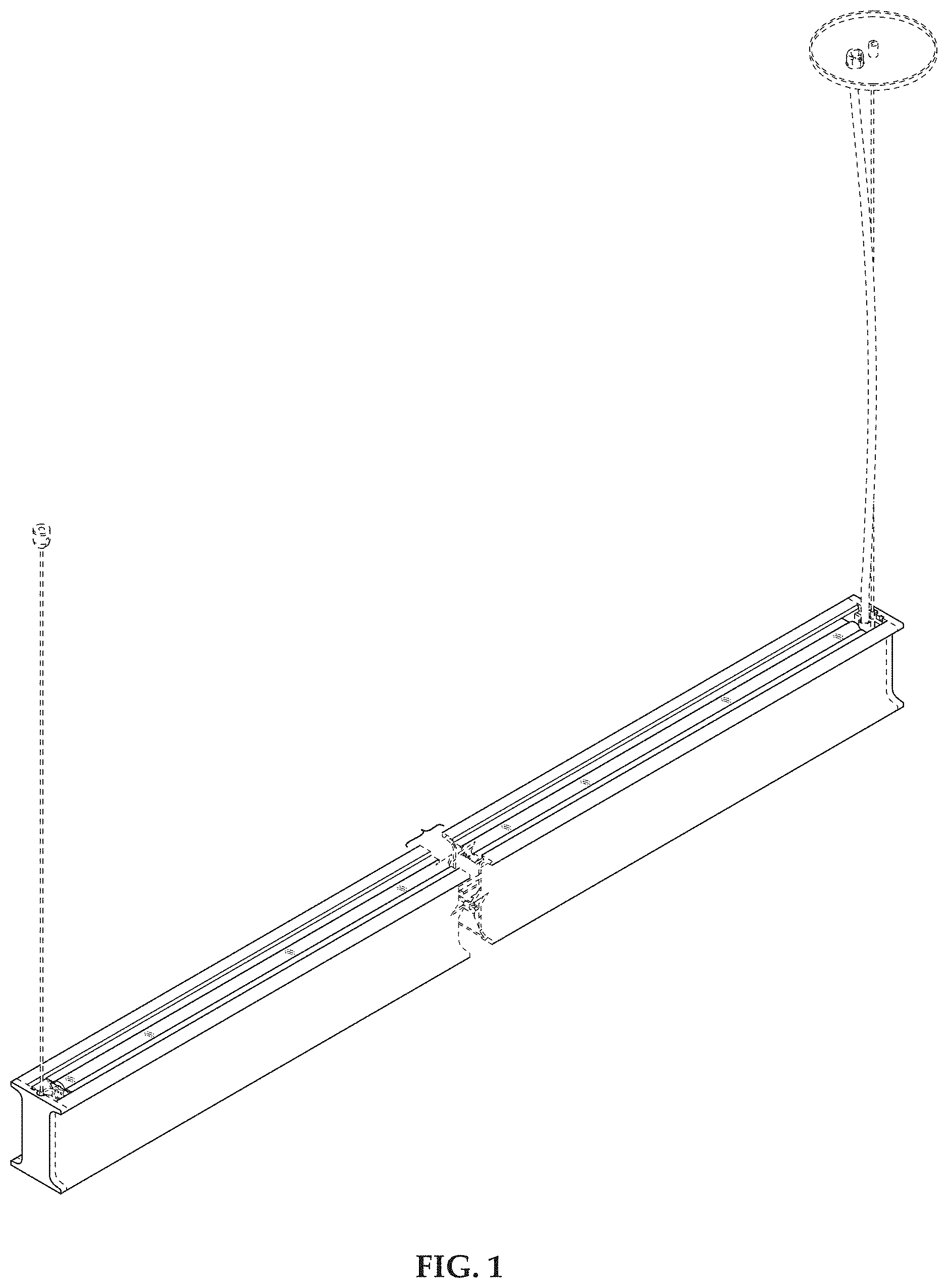

is a top, front perspective view of a light showing our new design;

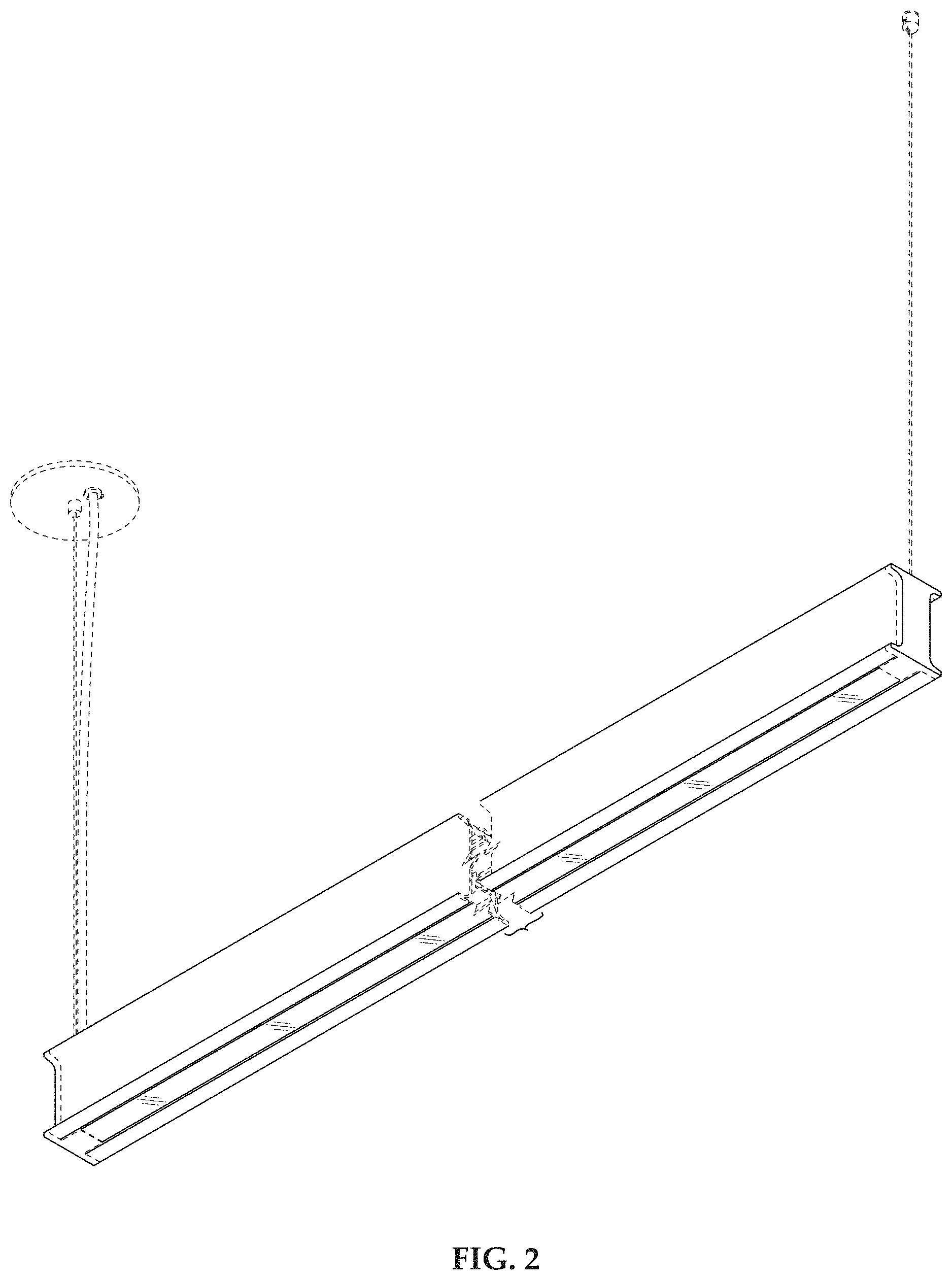

is a bottom, rear perspective view thereof;

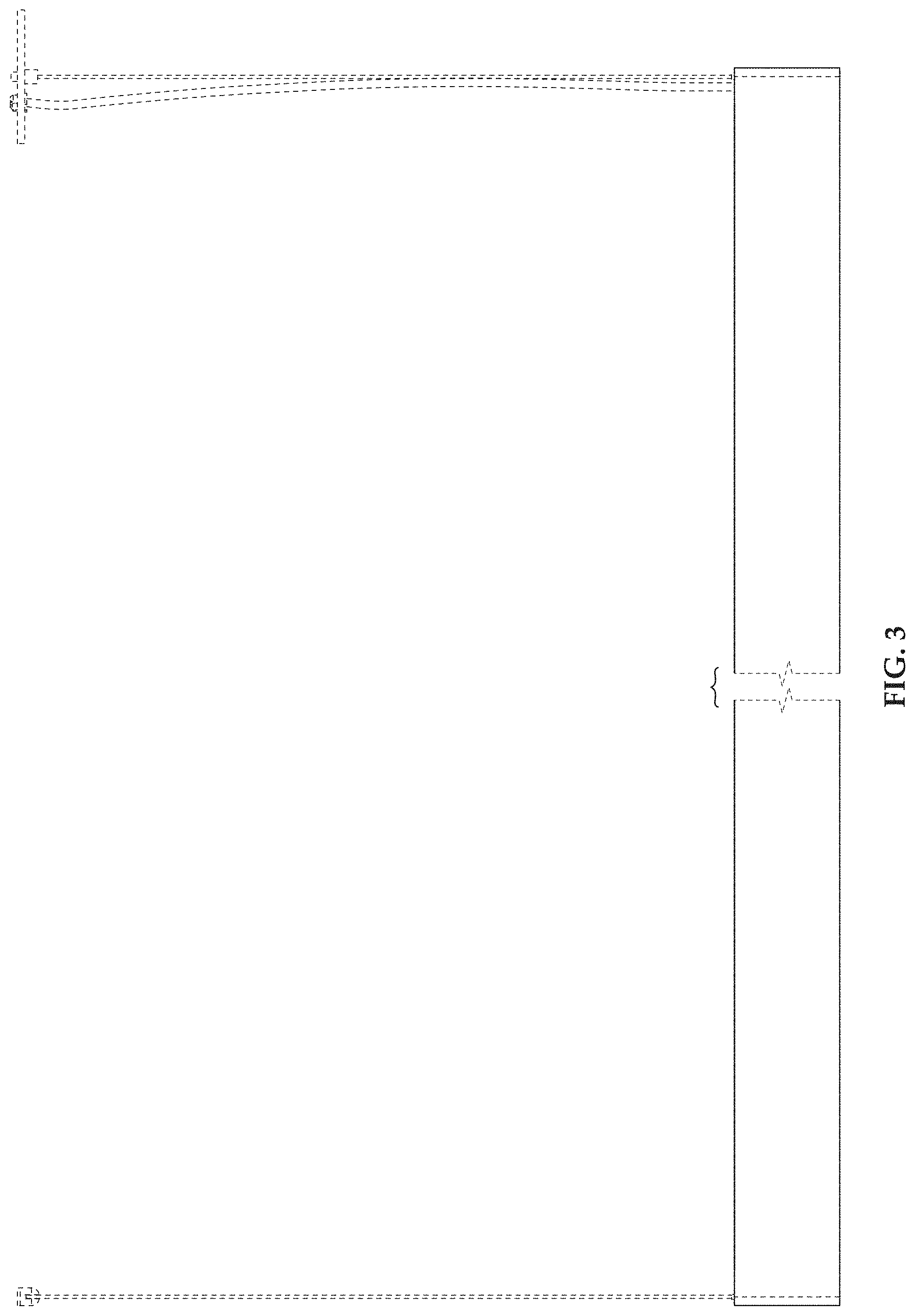

is a front view thereof;

is a rear view thereof;

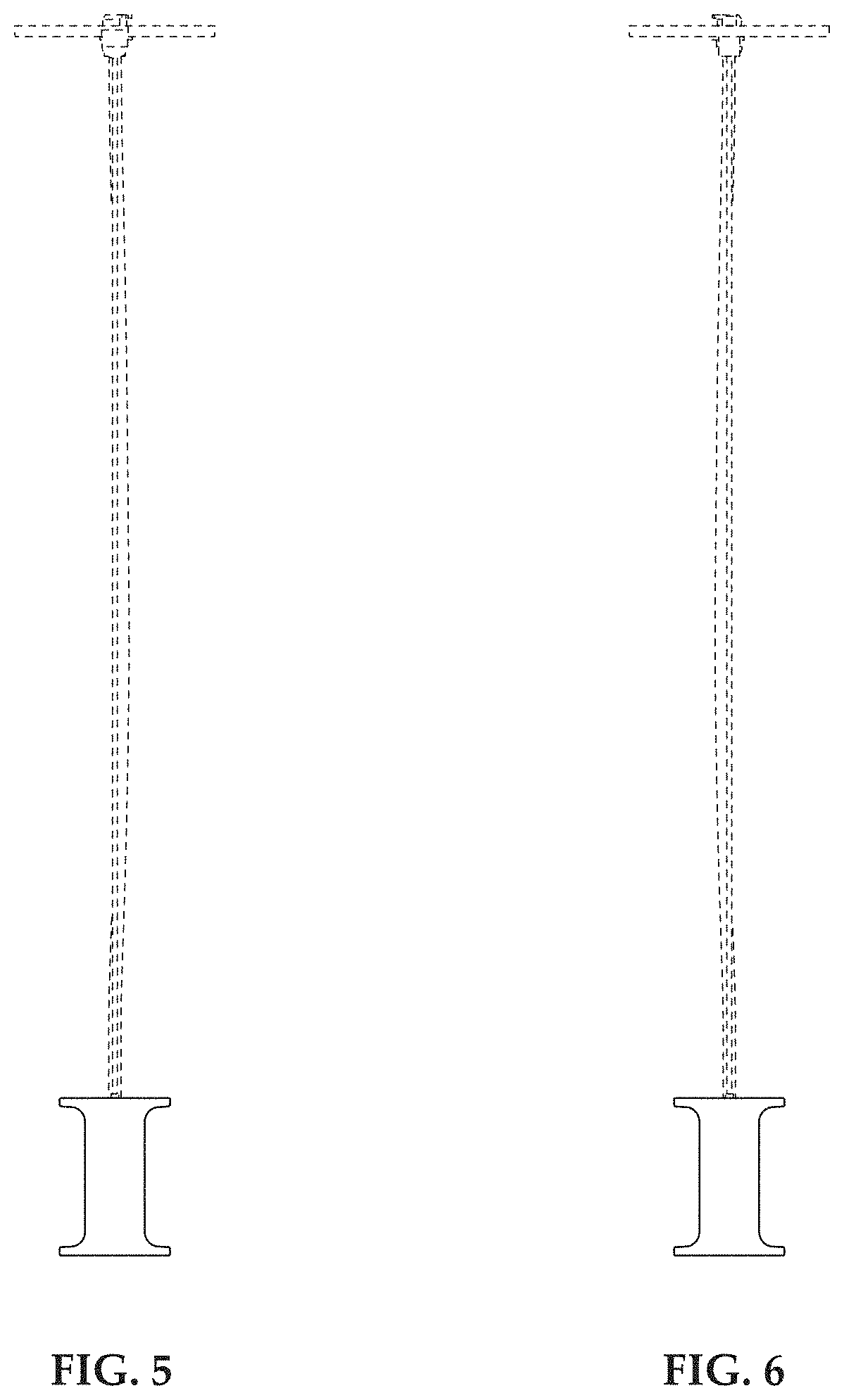

is a left side view thereof;

is a right side view thereof;

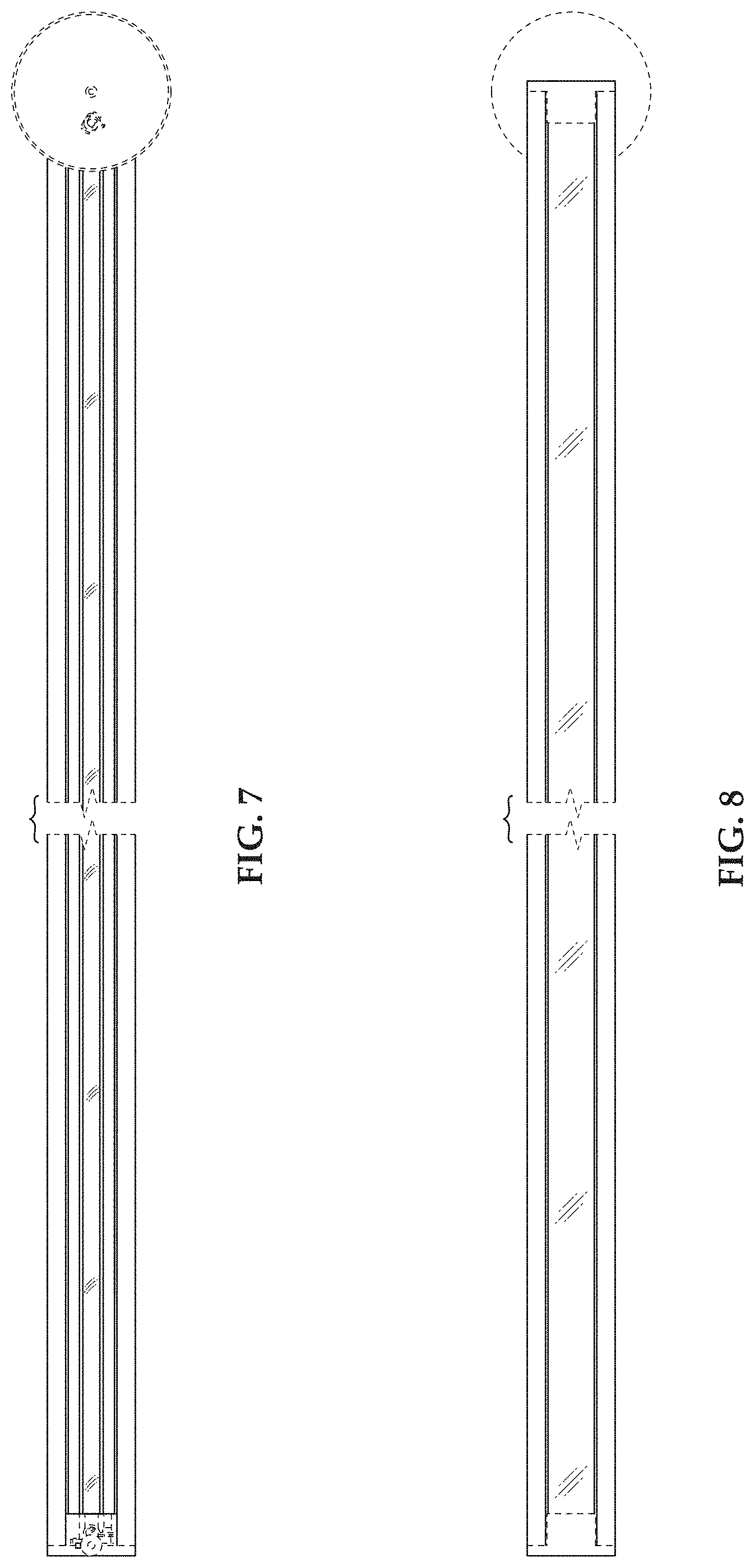

is a top view thereof; and,

is a bottom view thereof.

The broken lines illustrate structure or features which form no part of the claimed design.

The oblique shade lines in the figures show transparency or translucency.

The light is shown with symbolic breaks in its length. The jagged break lines and the appearance of any portion of the article between the jagged break lines form no part of the claimed design.
