Claims (1)
Claim 1 (Independent)
The ornamental design for an iron golf club head, as shown and described.
Full Description
Show full text →

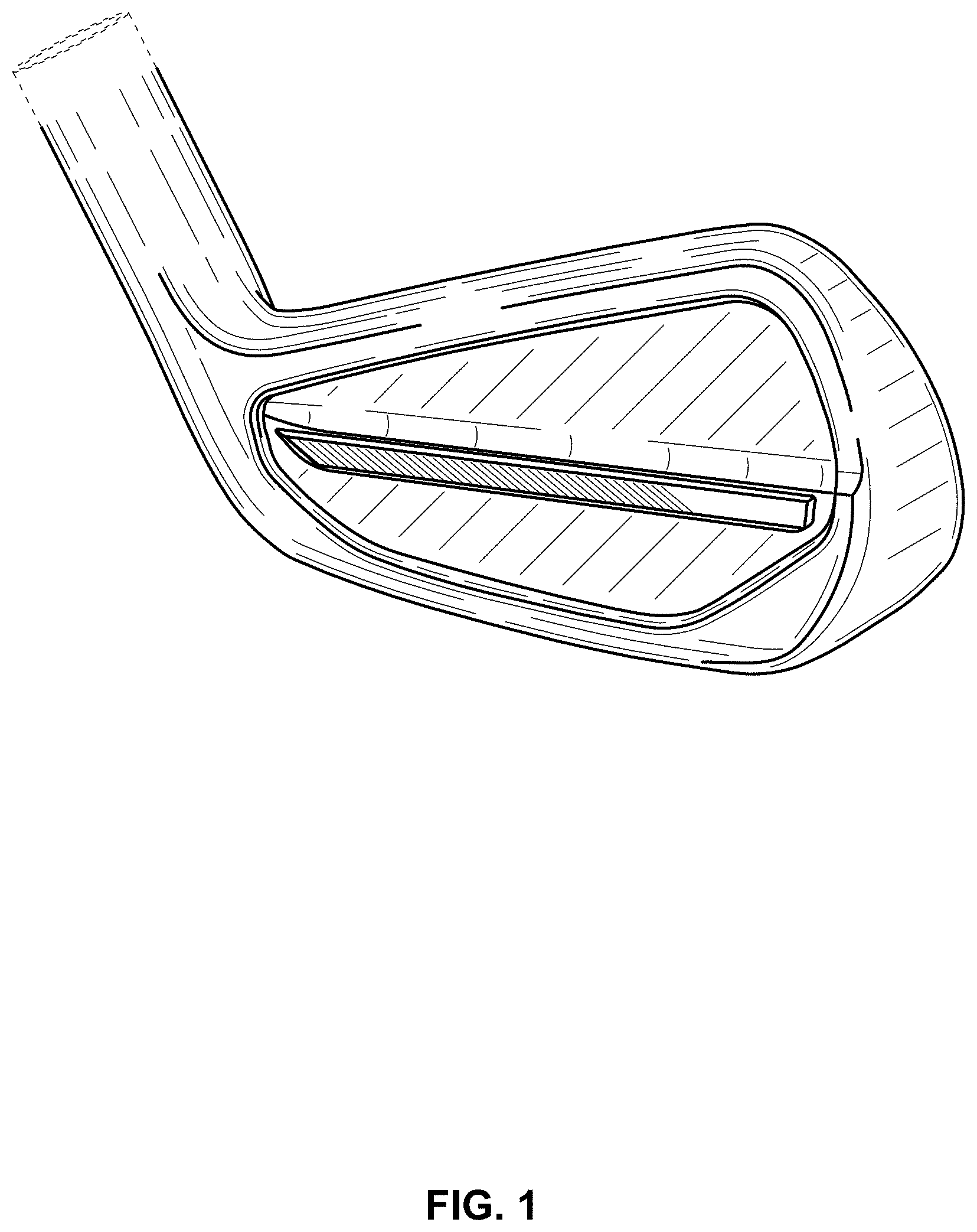

is a perspective rear view of my new design for an iron golf club head;

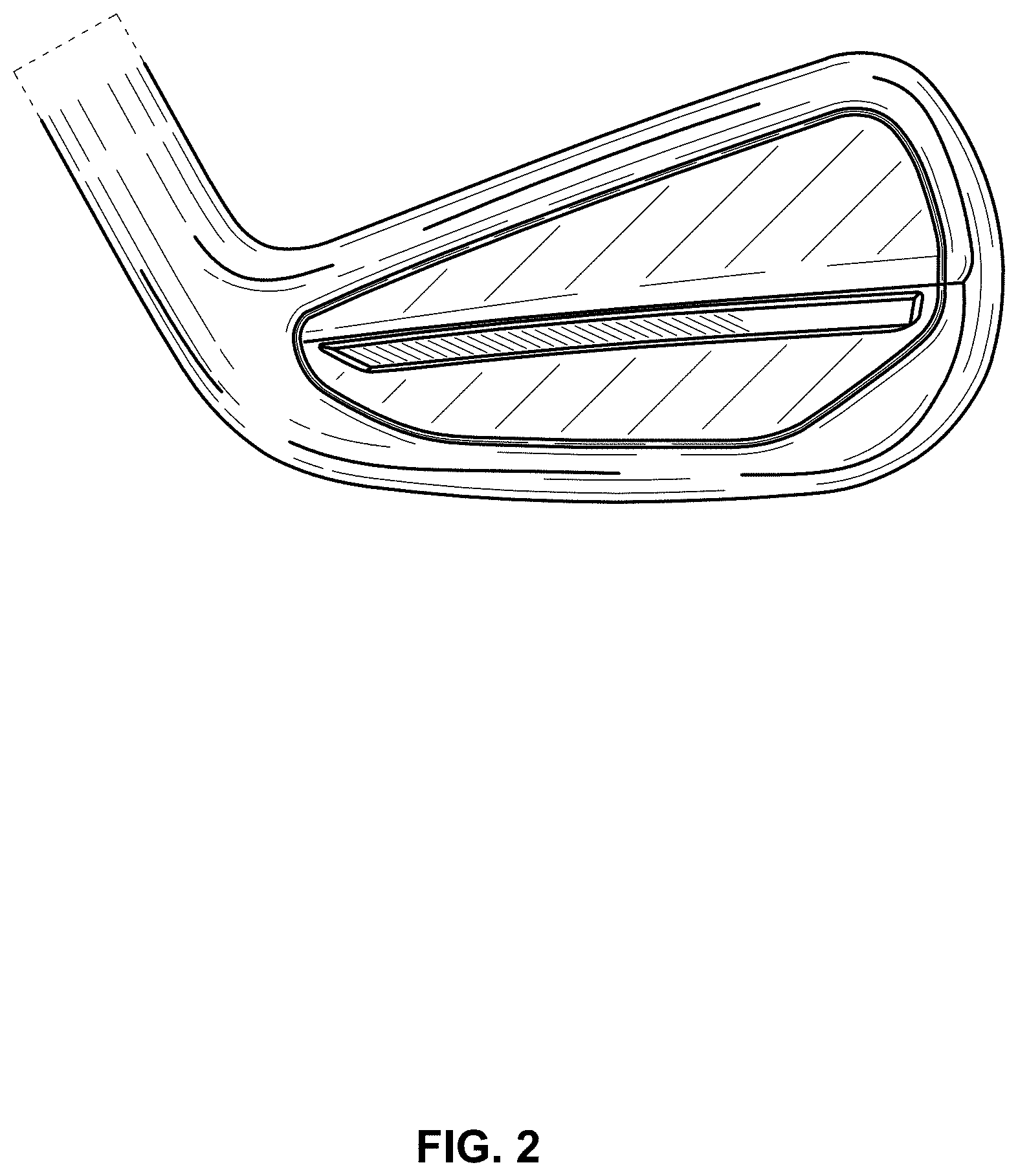

is a rear elevational view thereof;

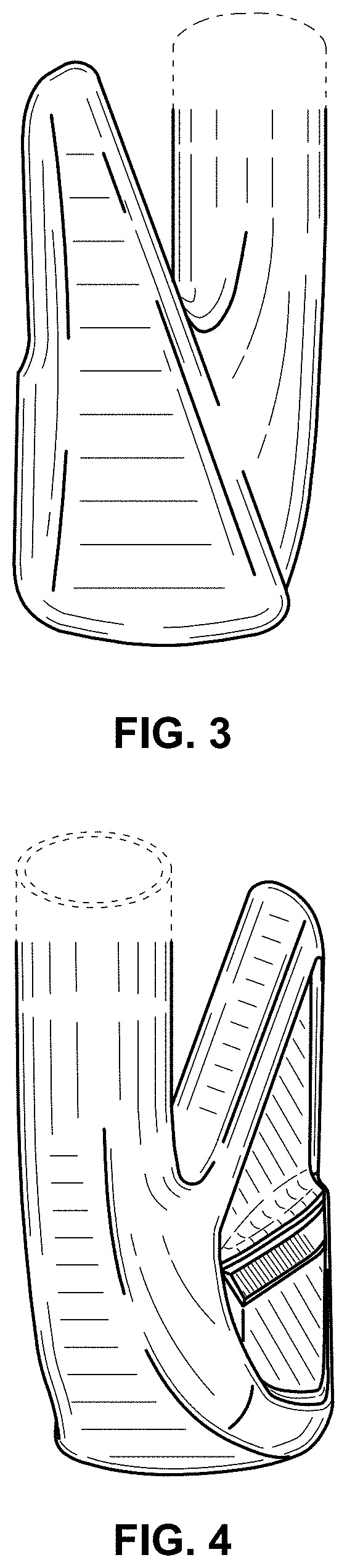

is a toe end view thereof;
is a heel end view thereof;

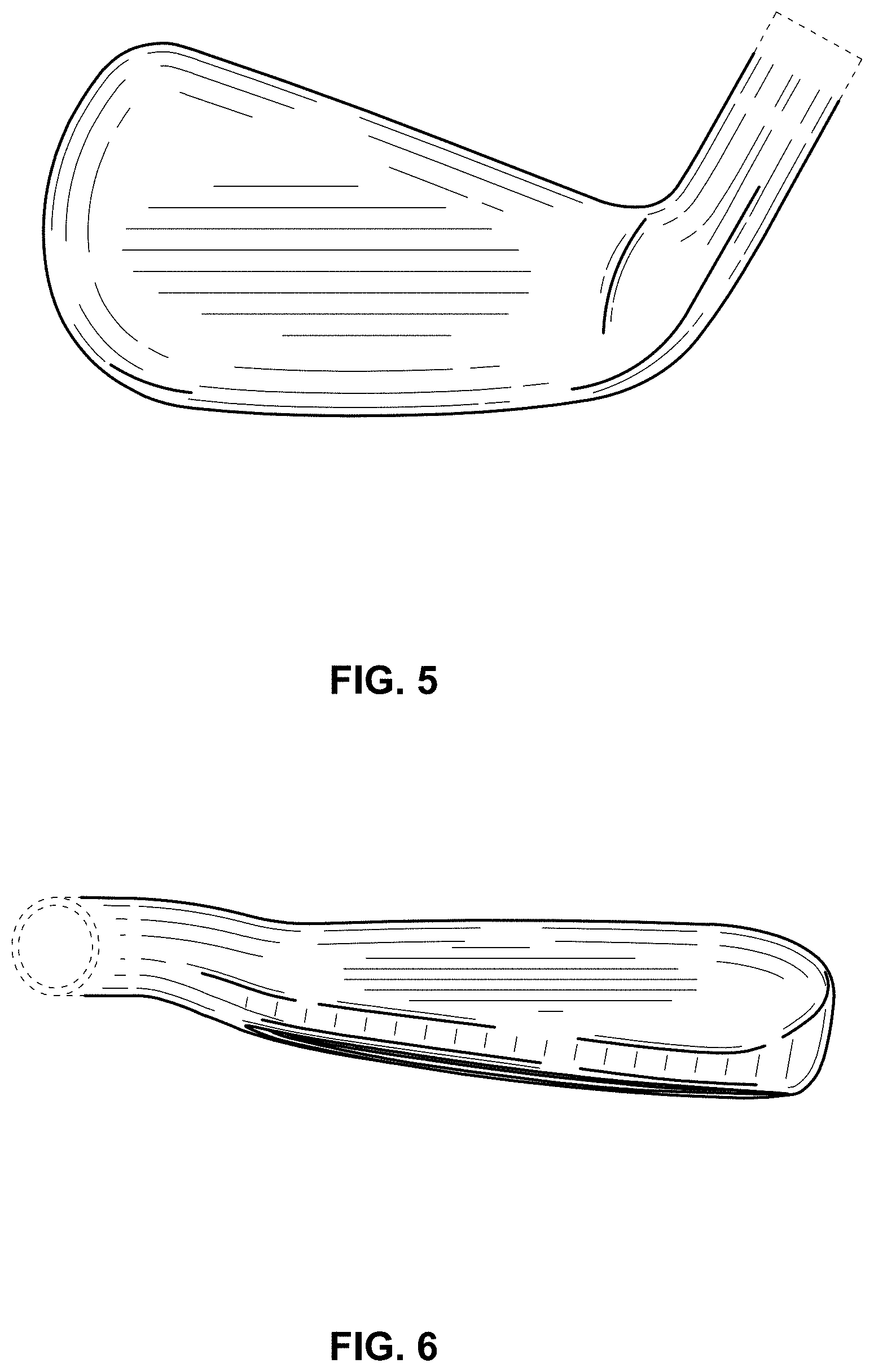

is a front elevation view thereof;
is a top plan thereof; and,
is bottom plan view thereof.
The broken lines shown are included for the purpose of illustrating unclaimed subject matter and form no part of the claimed design.
