Toy Car

USD1000541No. D 1,000,541designGranted 10/3/2023
Patent USD1000541 — Toy car — Figure 1
Fig. 1 · Toy Car

Claims (1)

Claim 1 (Independent)

The ornamental design for a toy car, as shown and described.

Full Description

Show full text →

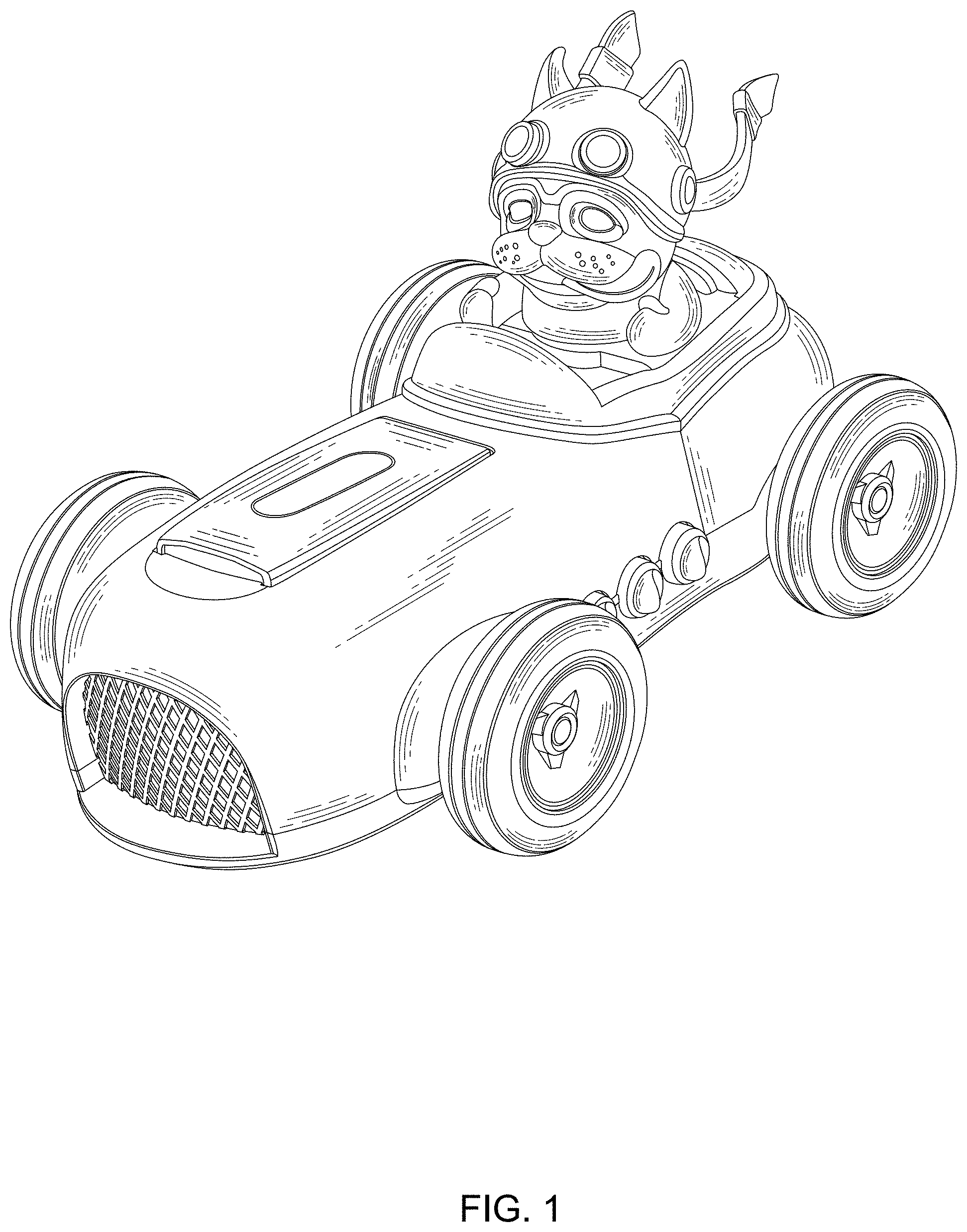

is a top perspective view of a toy car showing my new design;

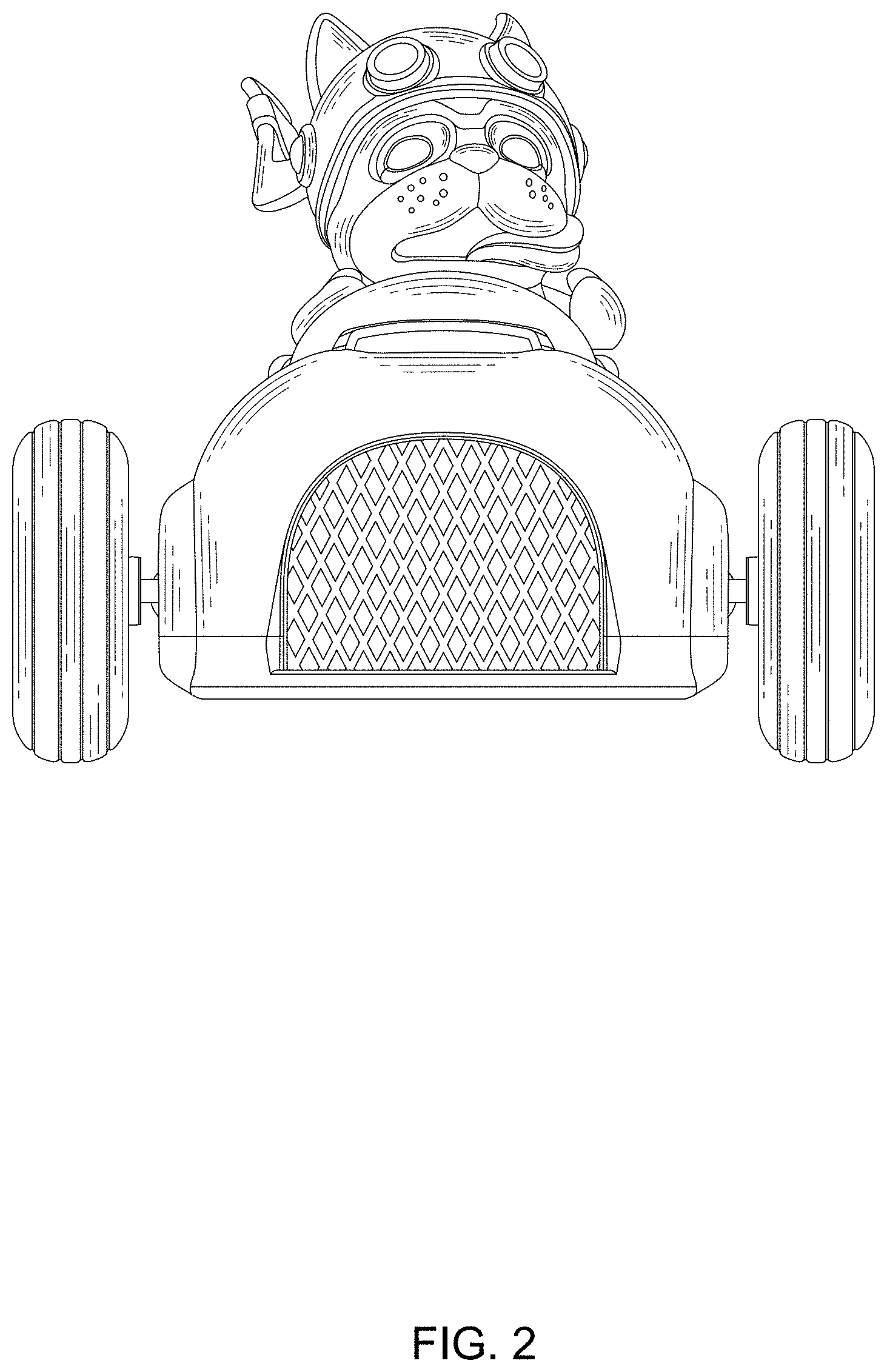

is a front elevation view thereof;

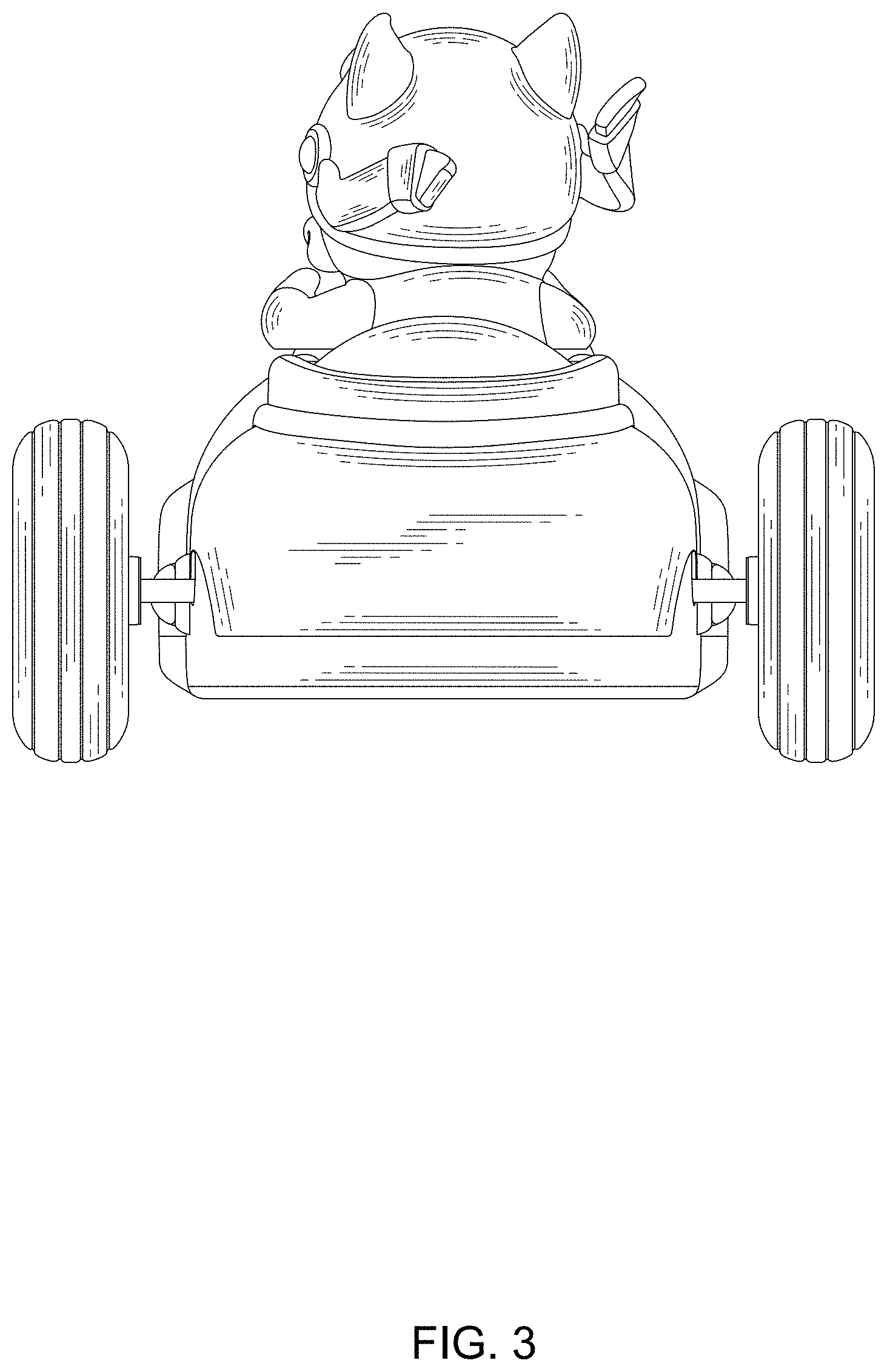

is a rear elevation view thereof;

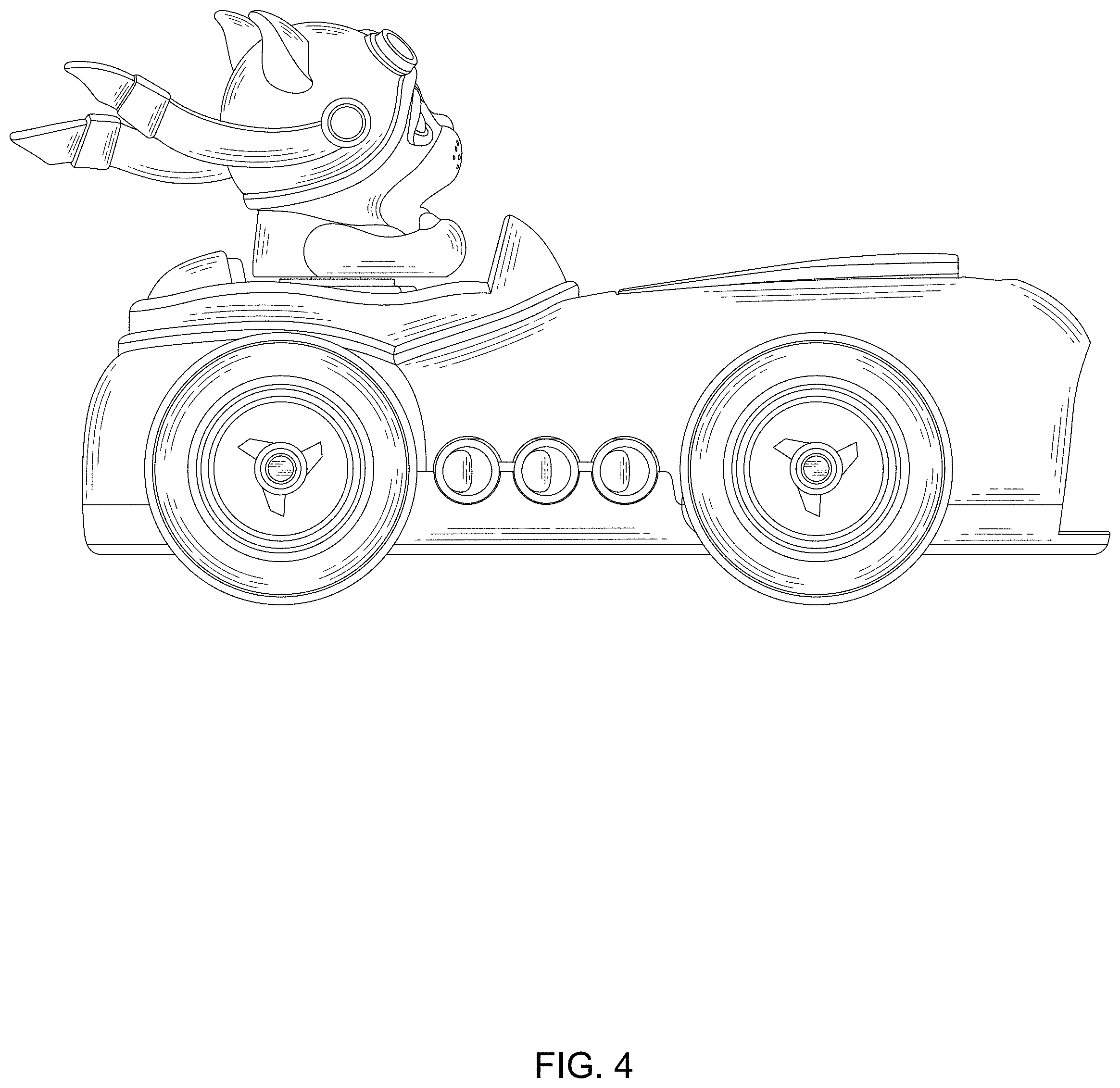

is a left side elevation view thereof;

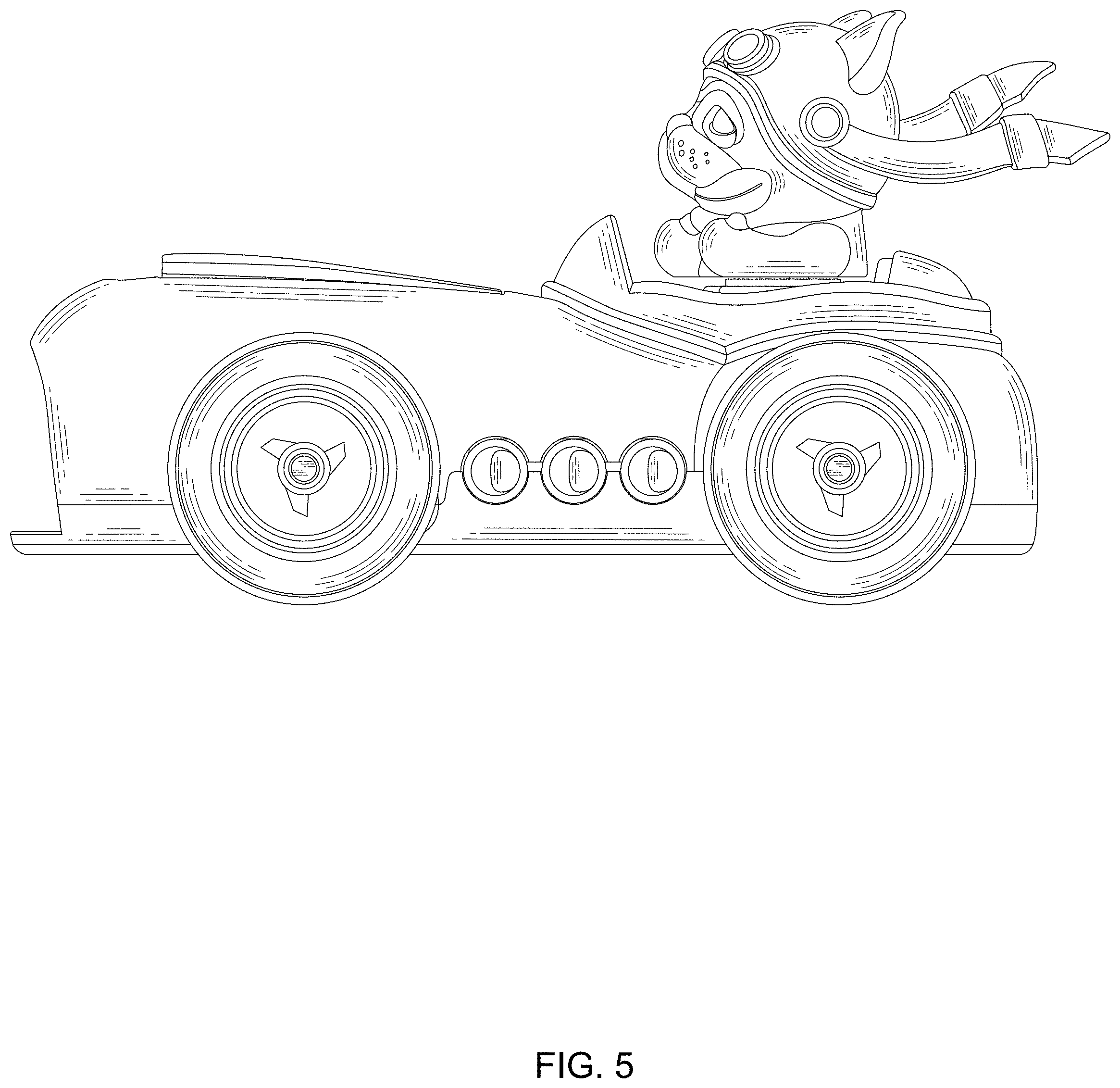

is a right side elevation view thereof;

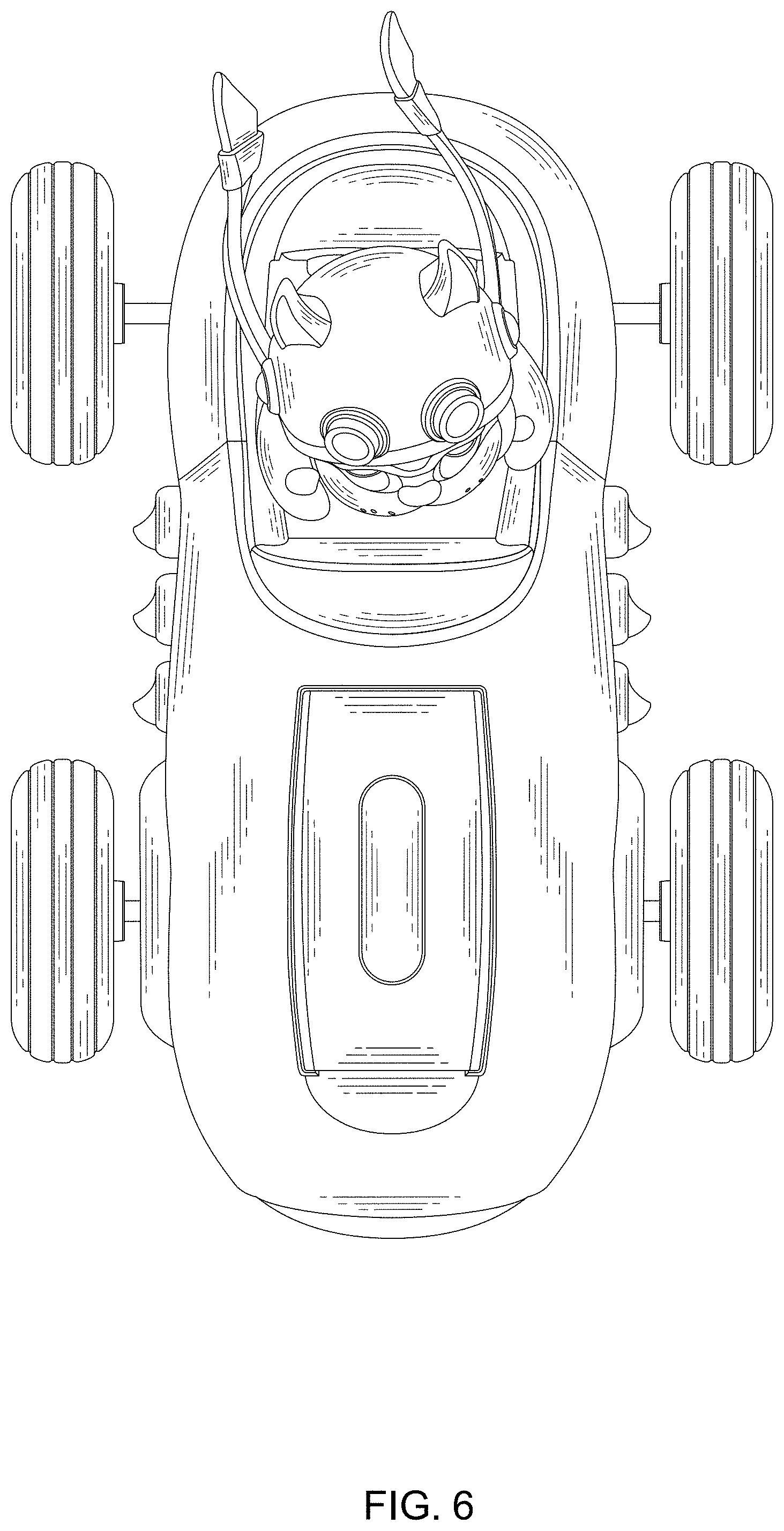

is a top plan view thereof; and,

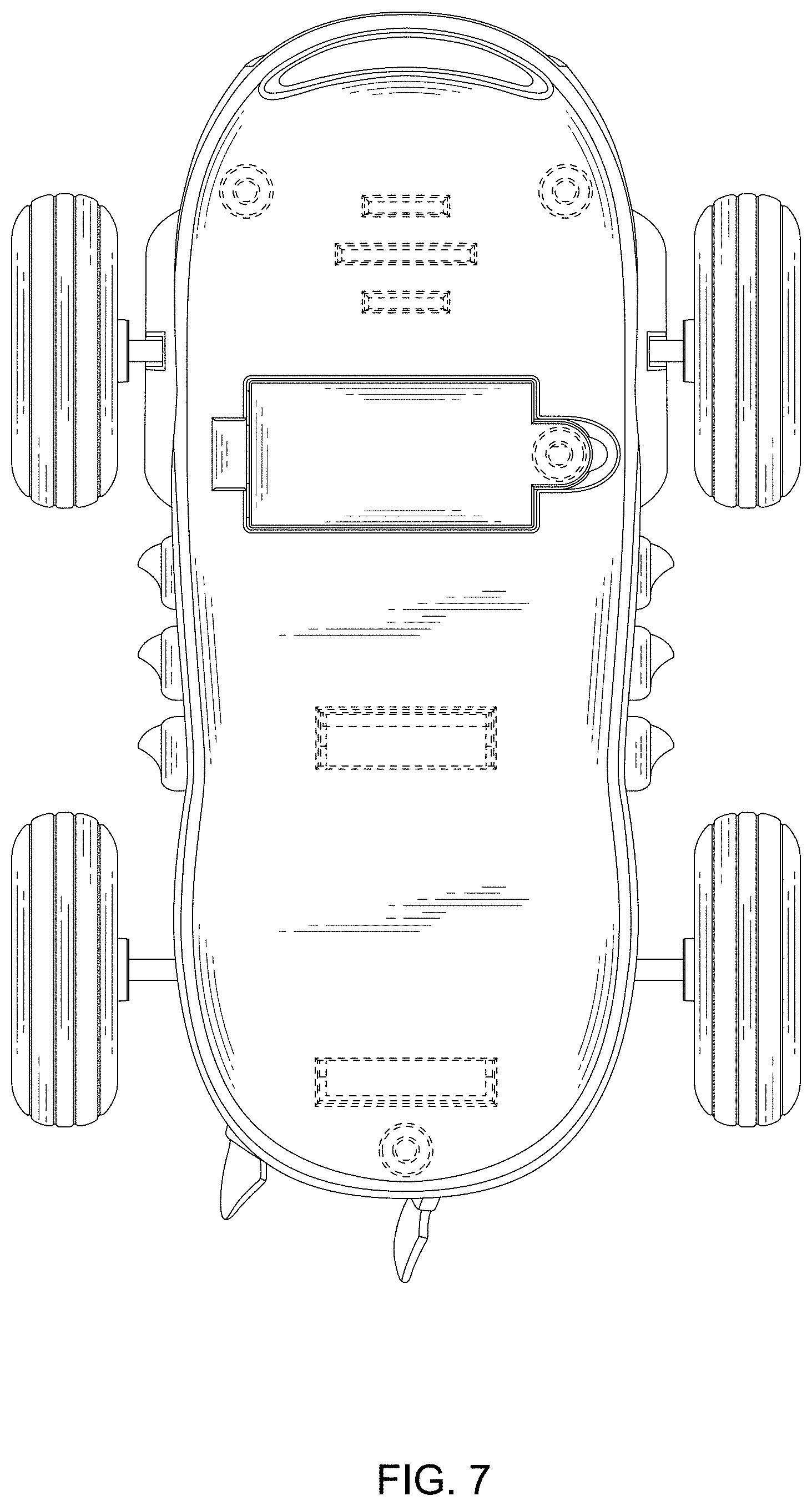

is a bottom plan view thereof.

The broken lines in depict portions of the toy car that form no part of the claimed design.
