Power Supply Unit Universal

USD1000376No. D 1,000,376designGranted 10/3/2023
Patent USD1000376 — Power supply unit universal — Figure 1
Fig. 1 · Power Supply Unit Universal

Claims (1)

Claim 1 (Independent)

The ornamental design for a power supply unit universal, as shown and described.

Full Description

Show full text →

1. Power supply unit, universal

2. Power supply unit, universal

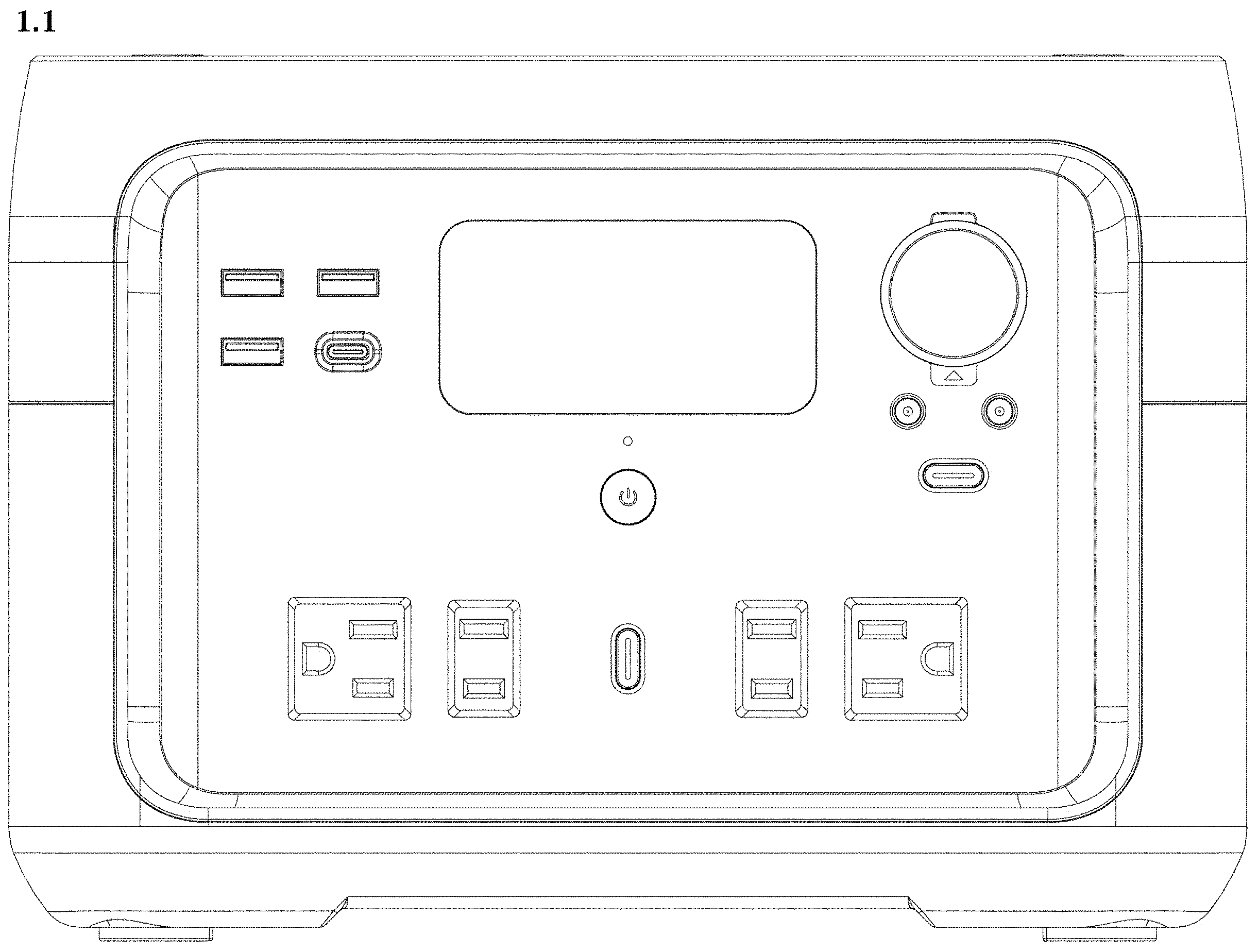

1 . 1 : Front

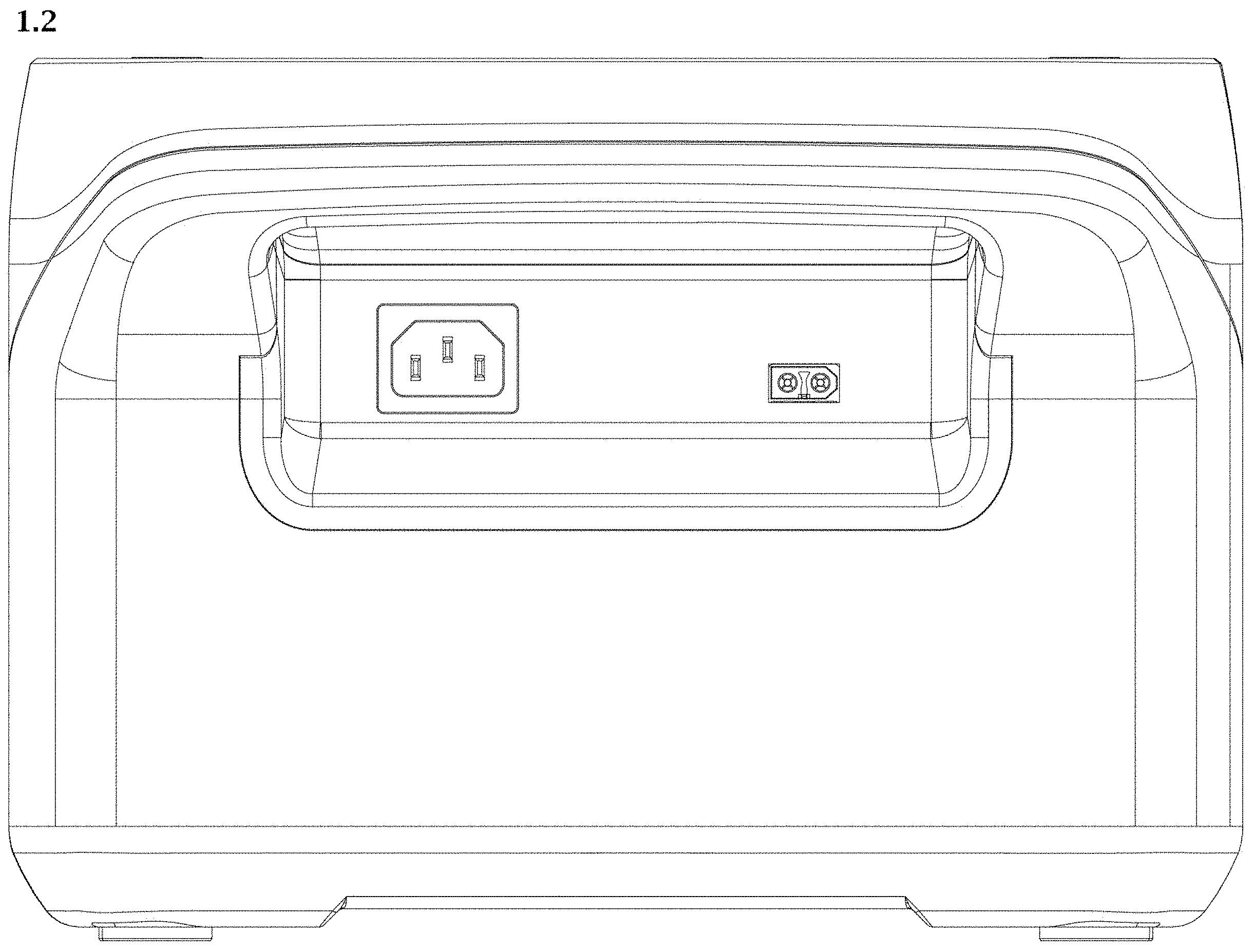

1 . 2 : Back

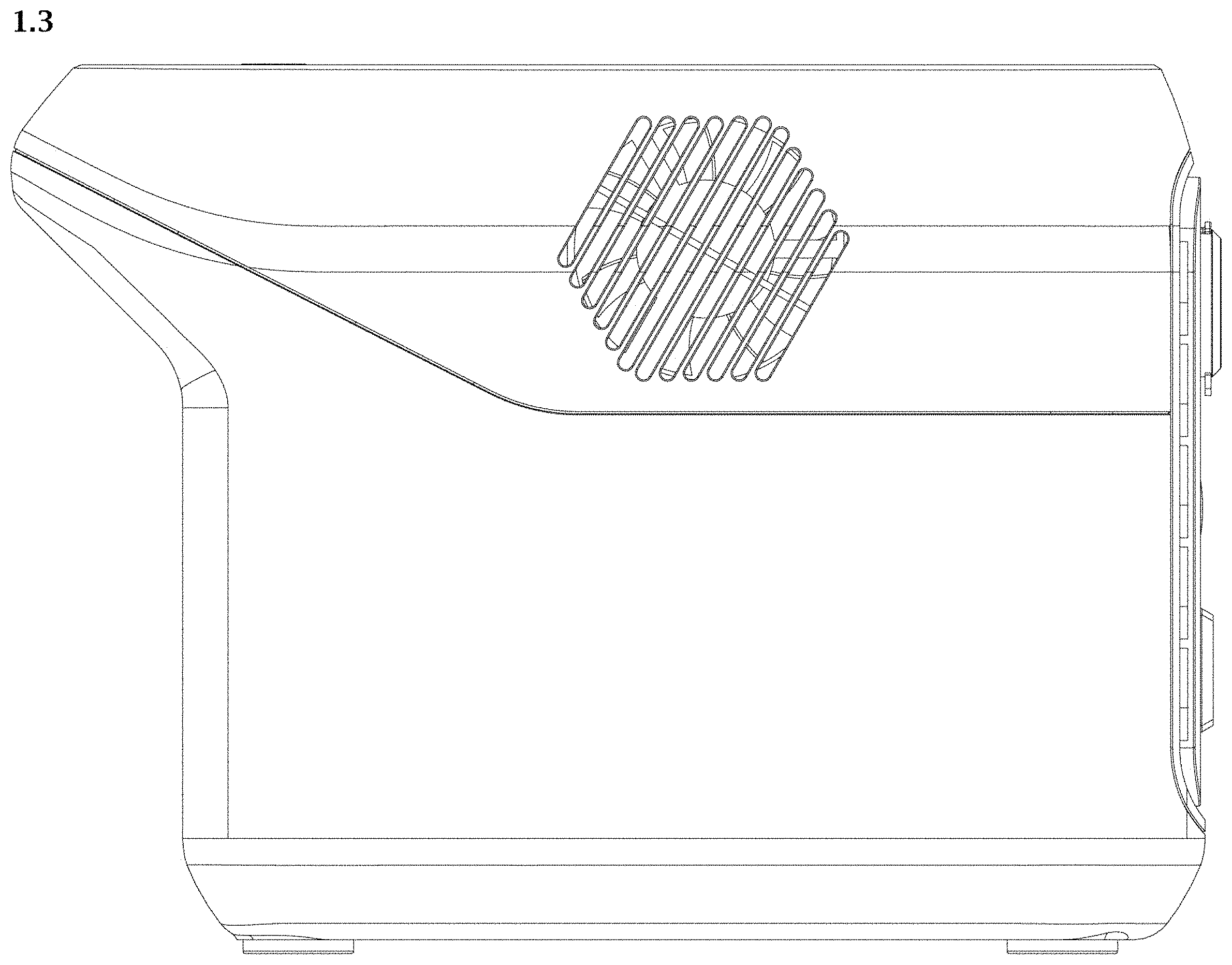

1 . 3 : Left

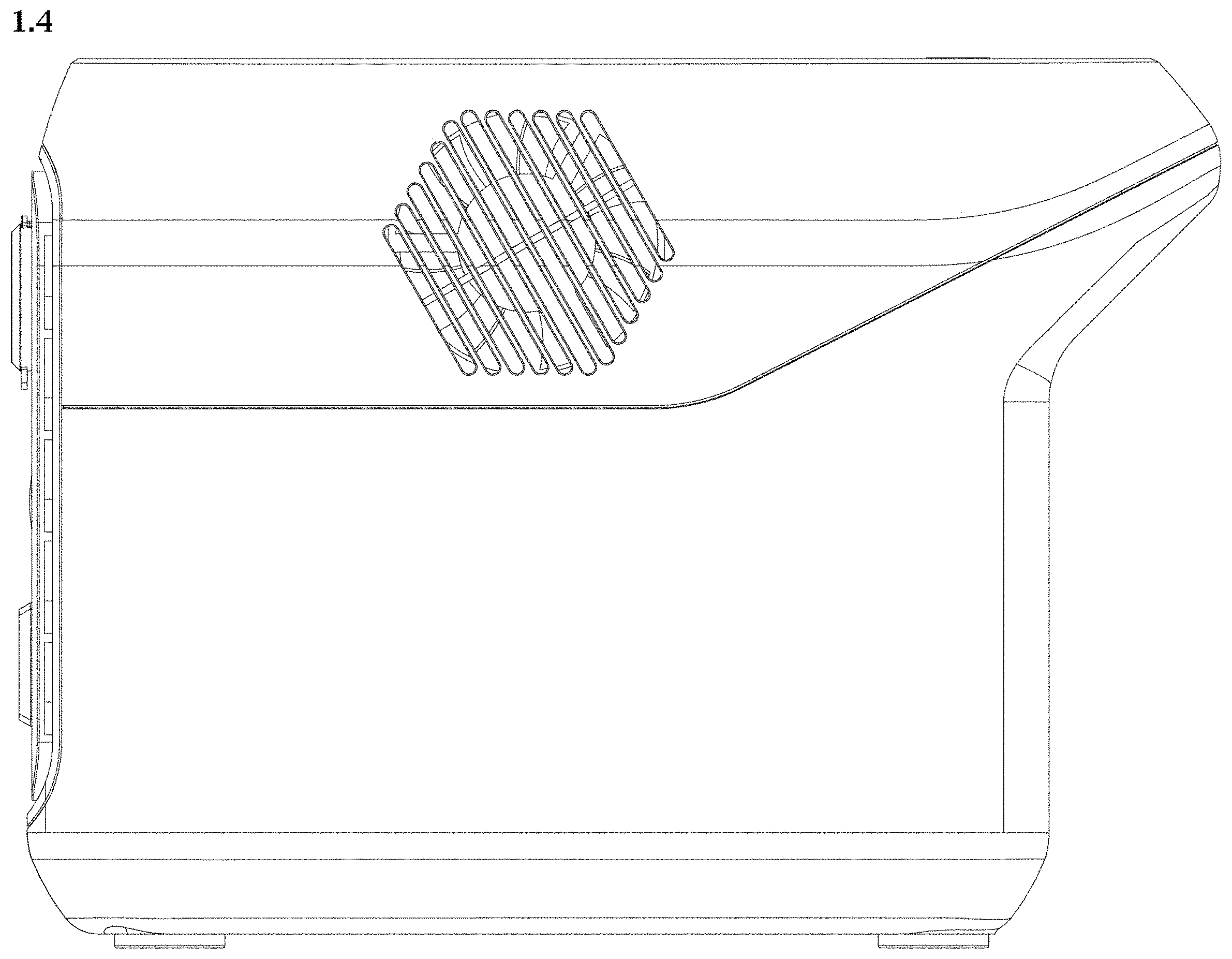

1 . 4 : Right

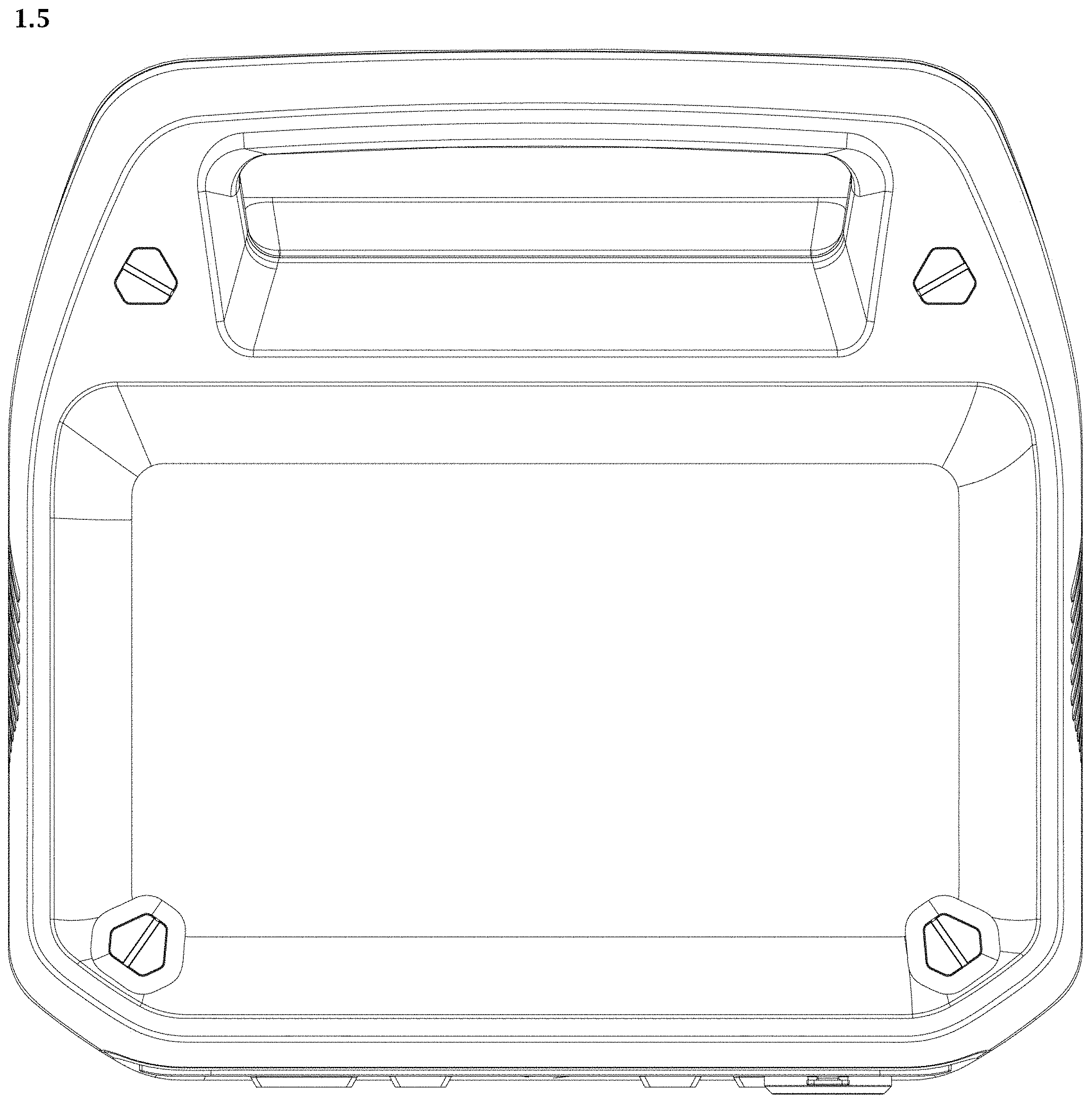

1 . 5 : Top

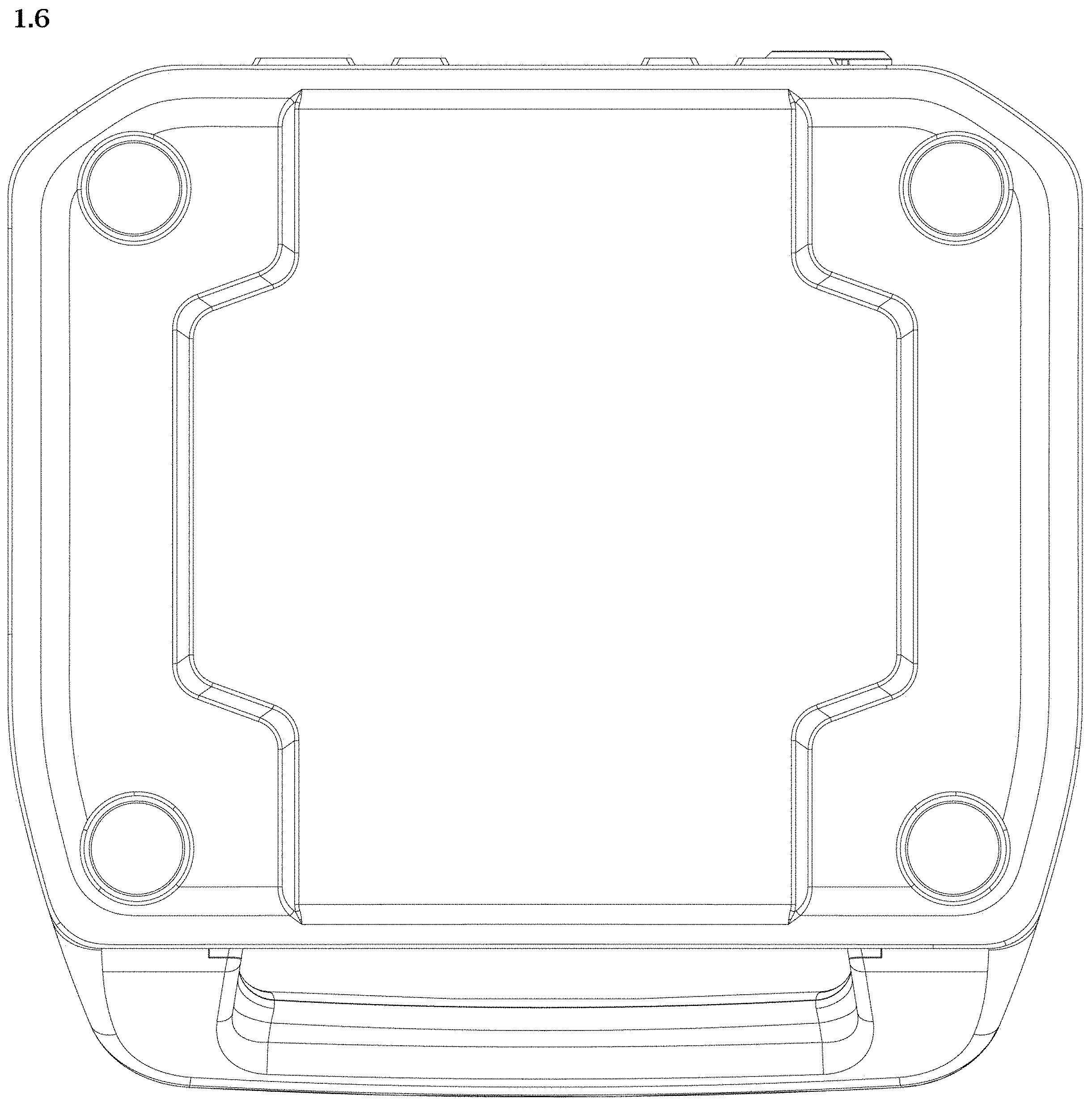

1 . 6 : Bottom

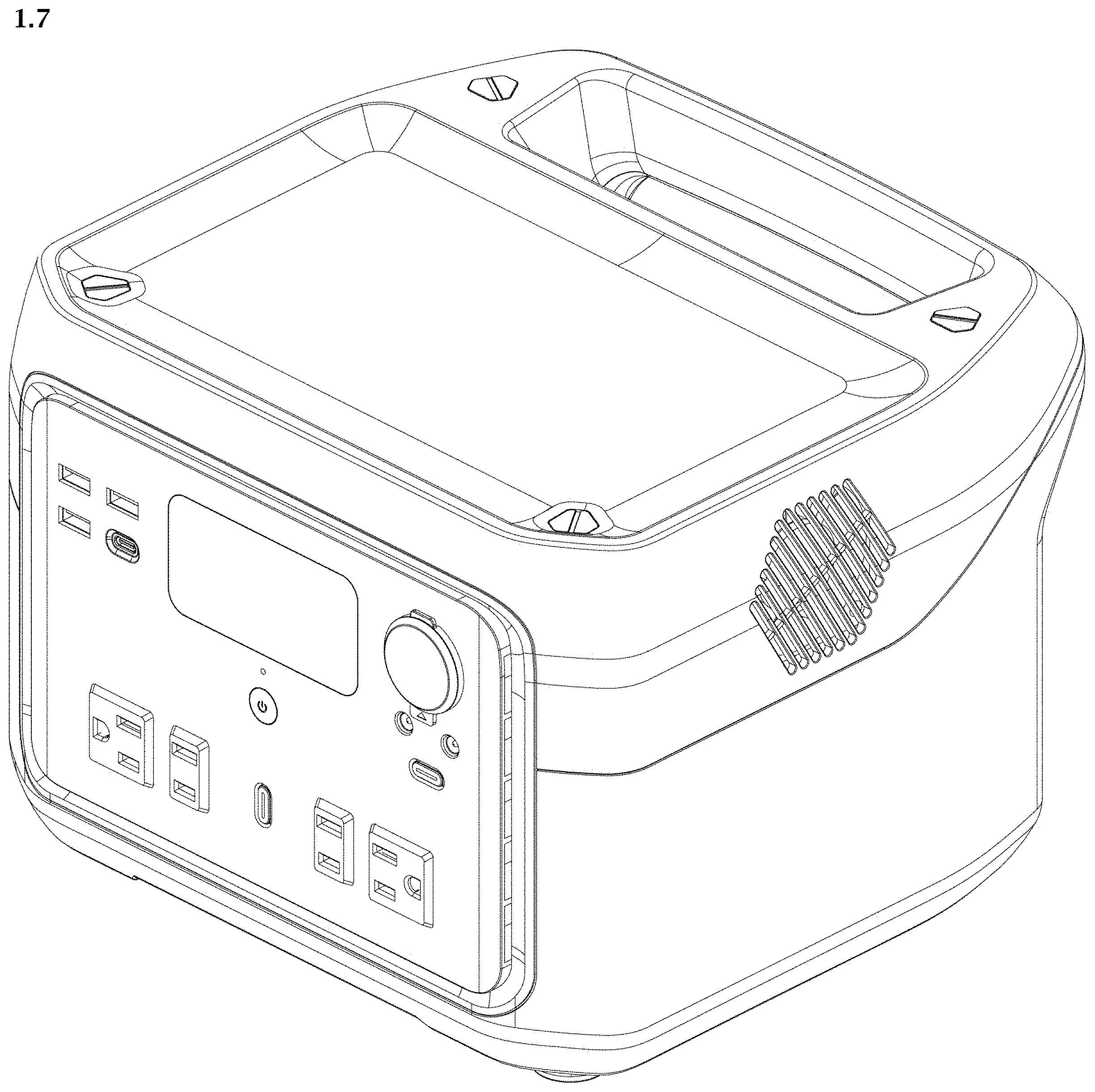

1 . 7 : Perspective

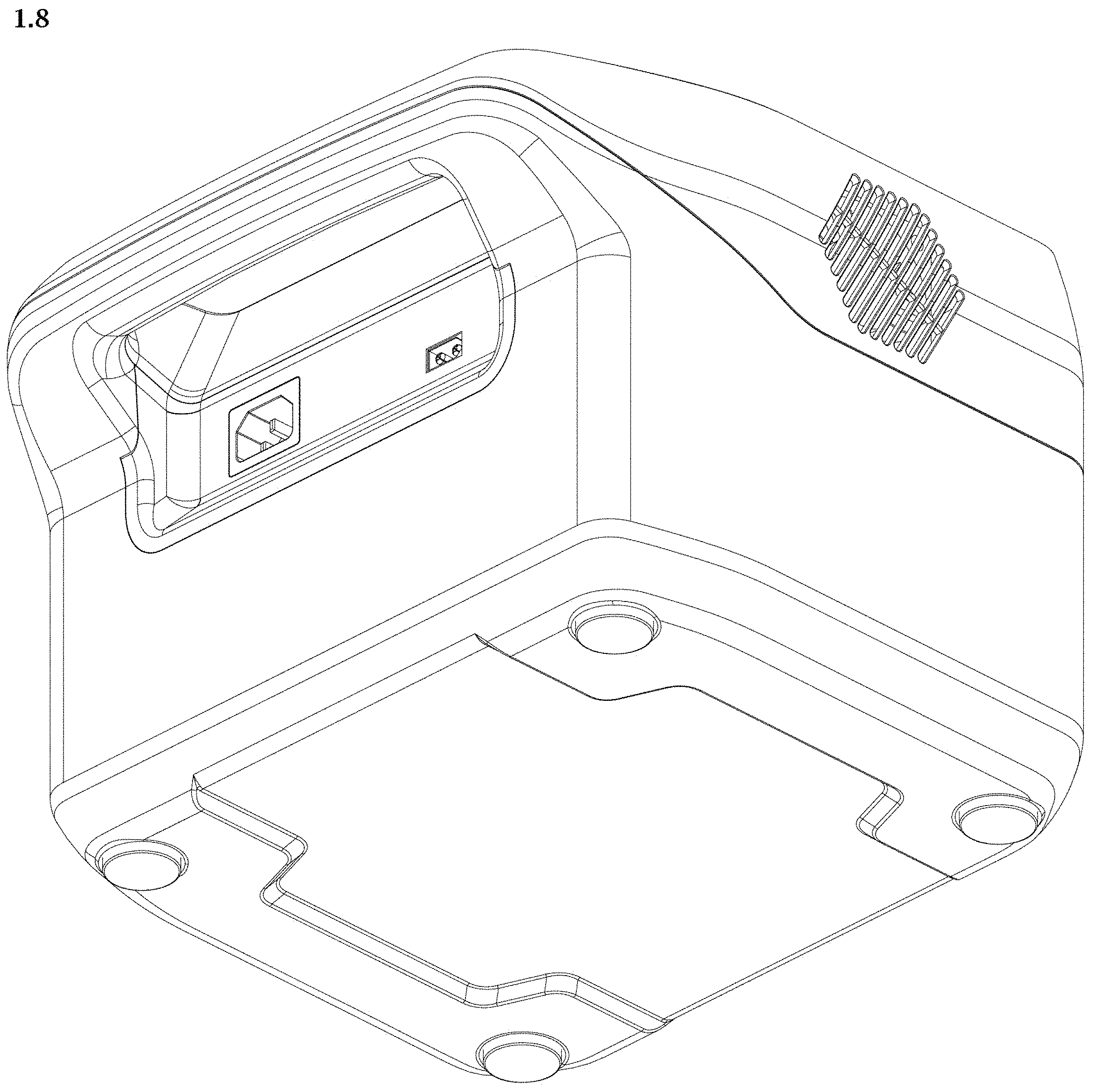

1 . 8 : Perspective

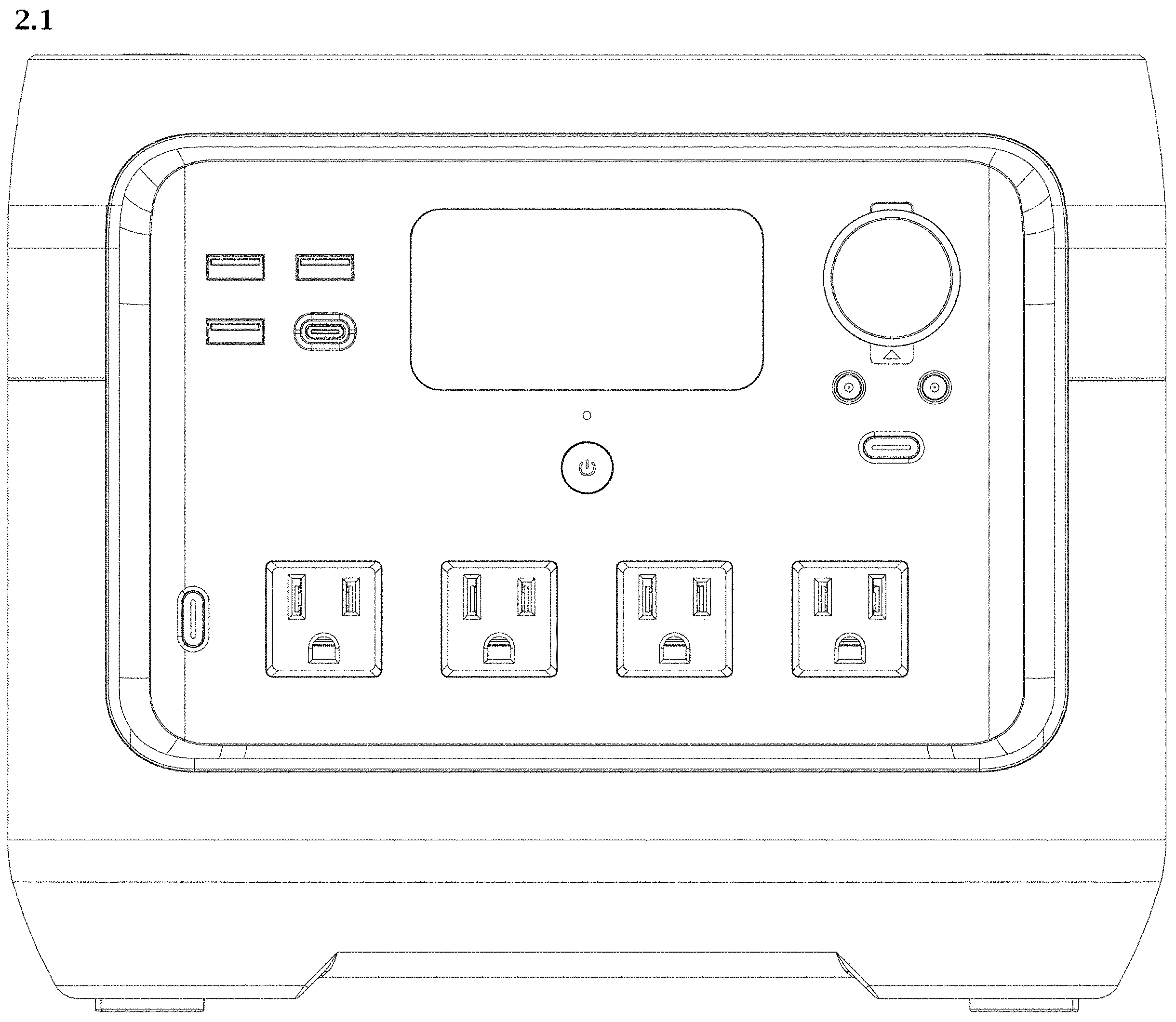

2 . 1 : Front

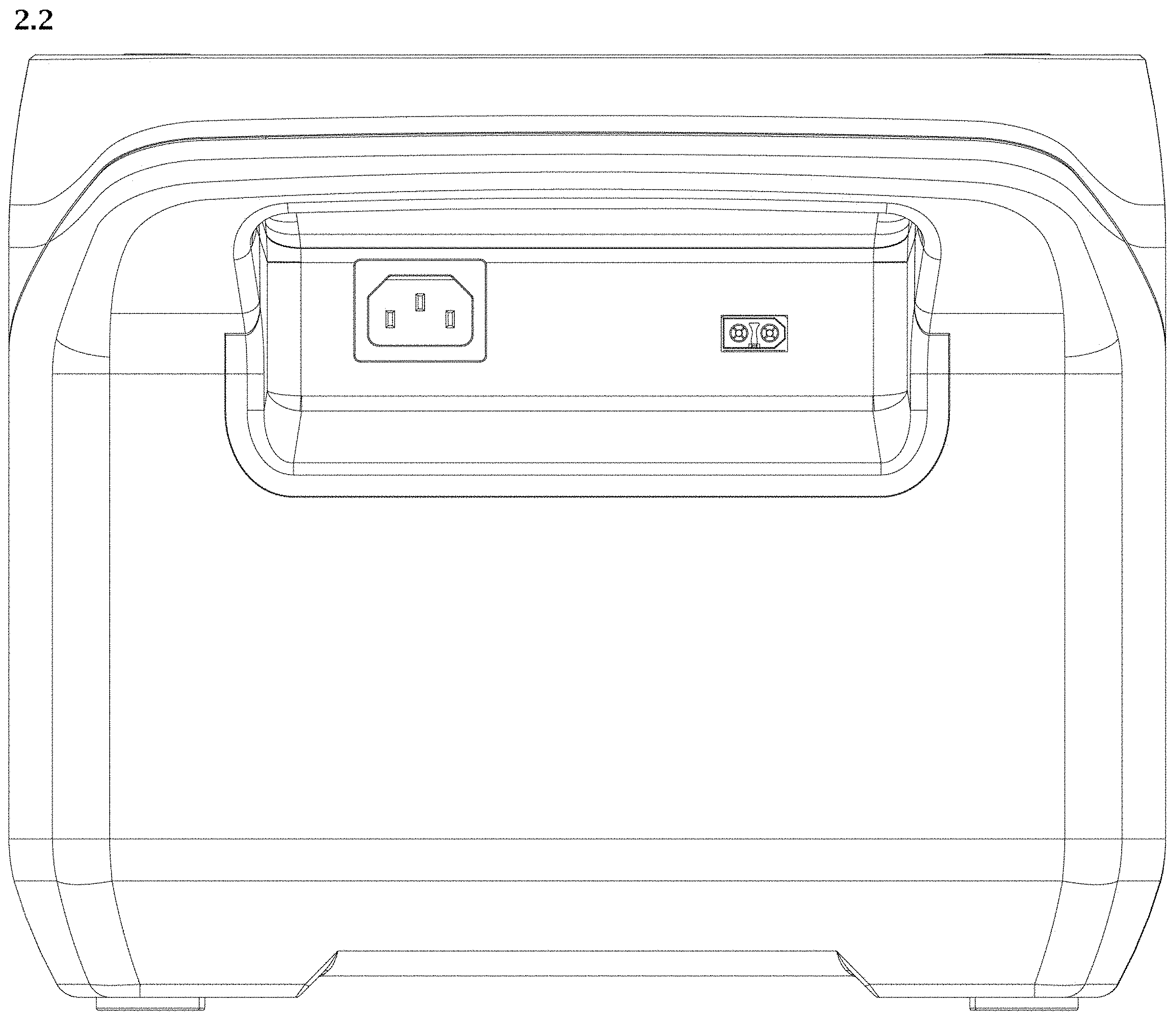

2 . 2 : Back

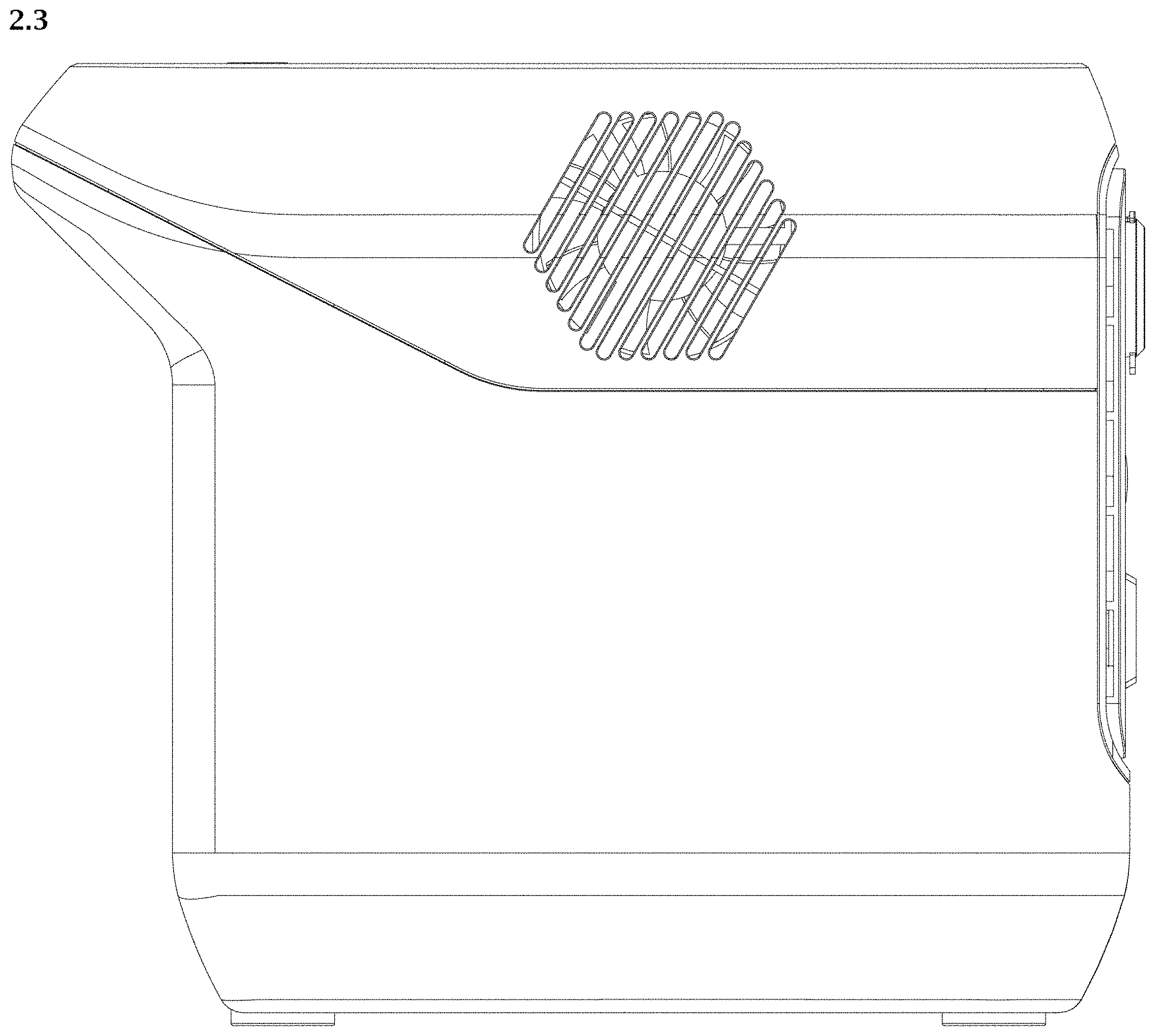

2 . 3 : Left

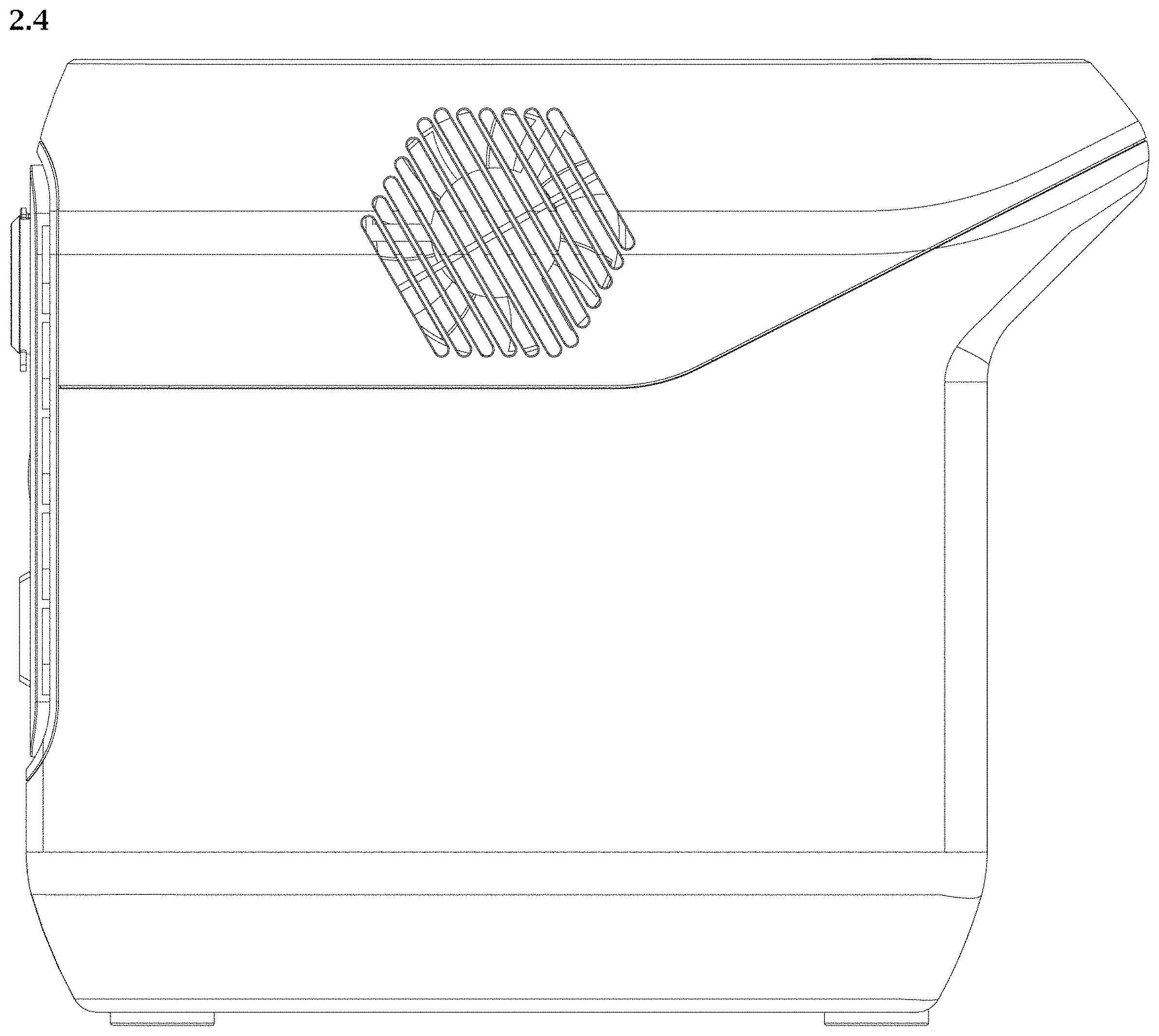

2 . 4 : Right

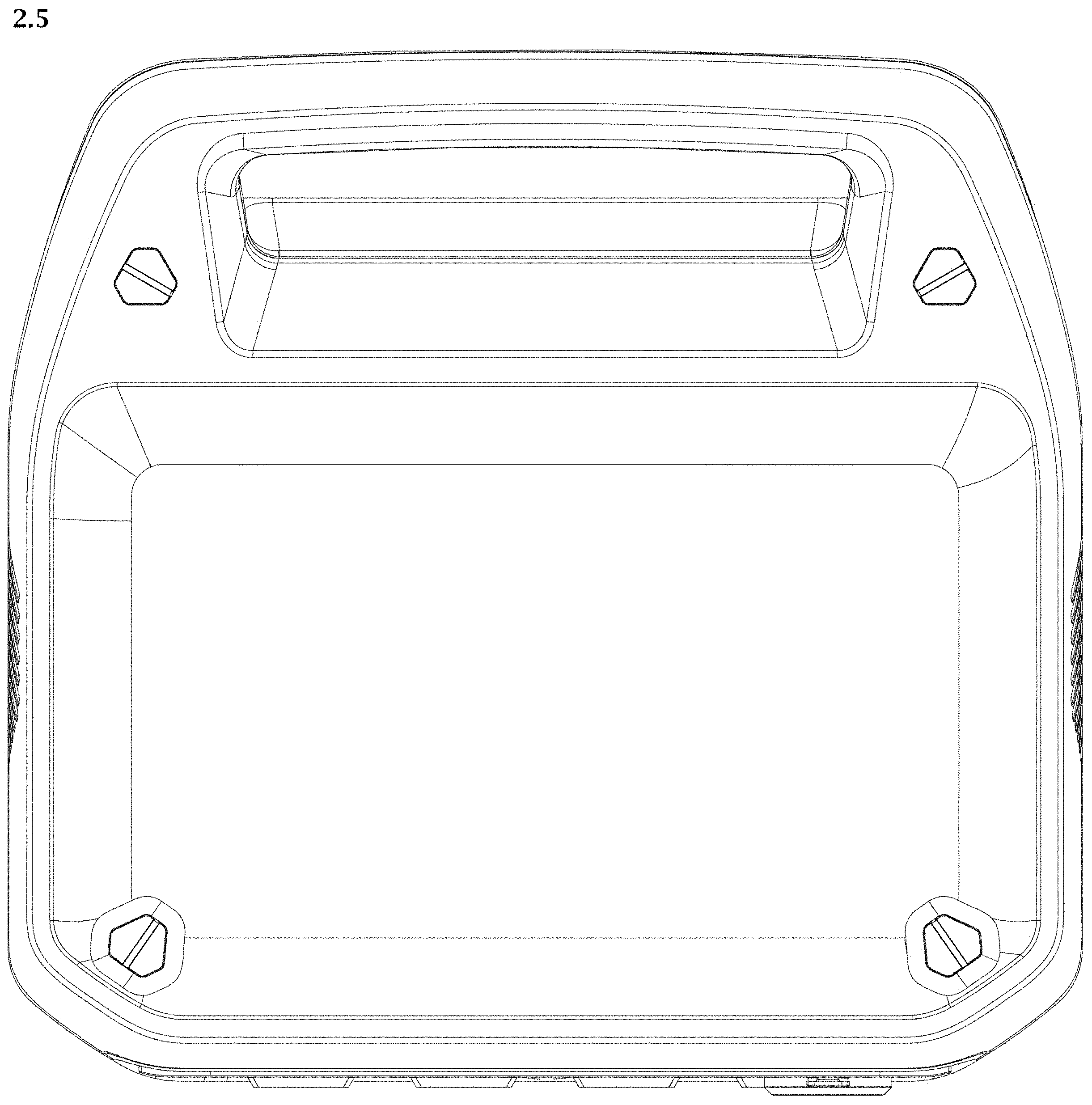

2 . 5 : Top

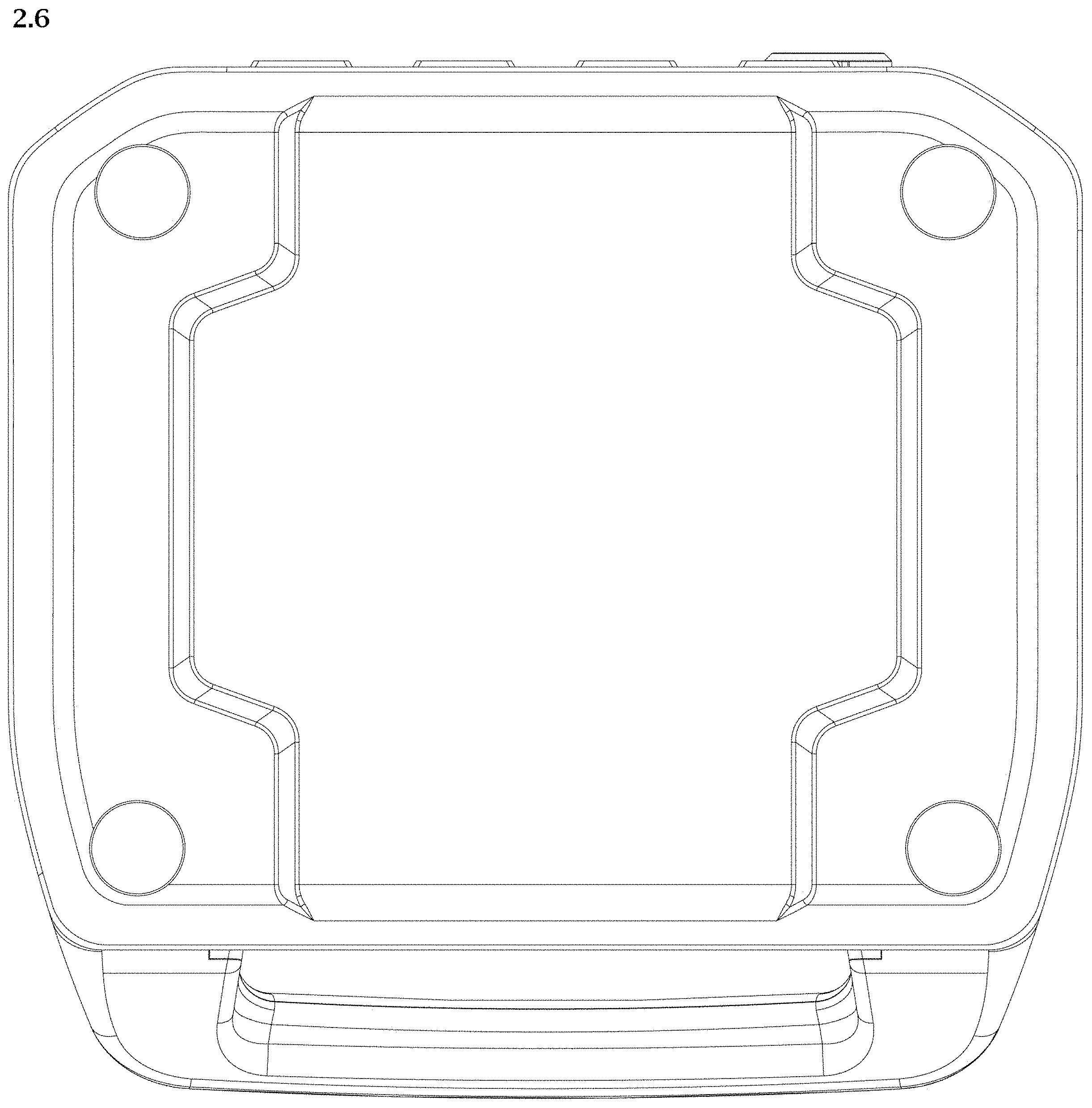

2 . 6 : Bottom

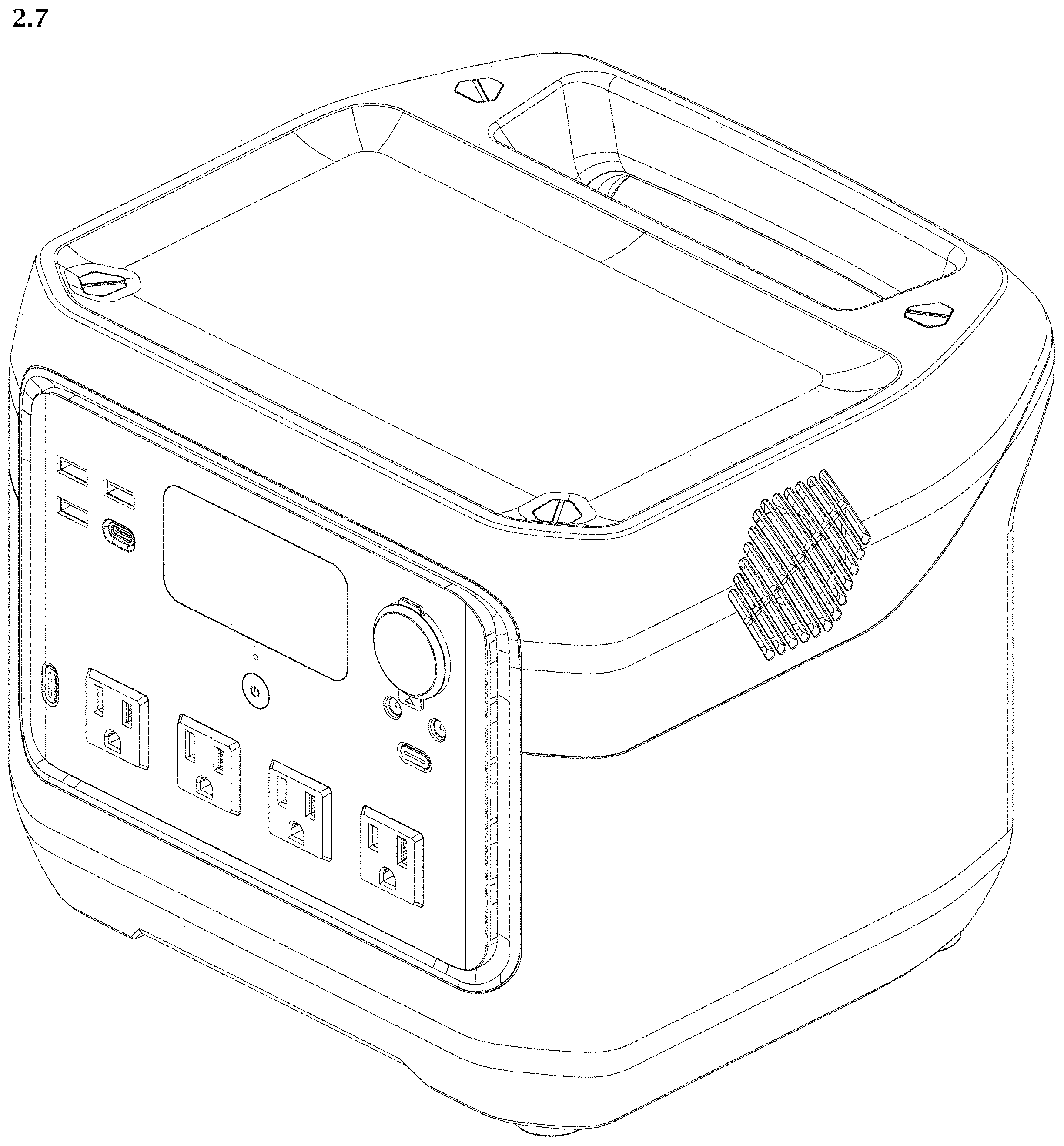

2 . 7 : Perspective

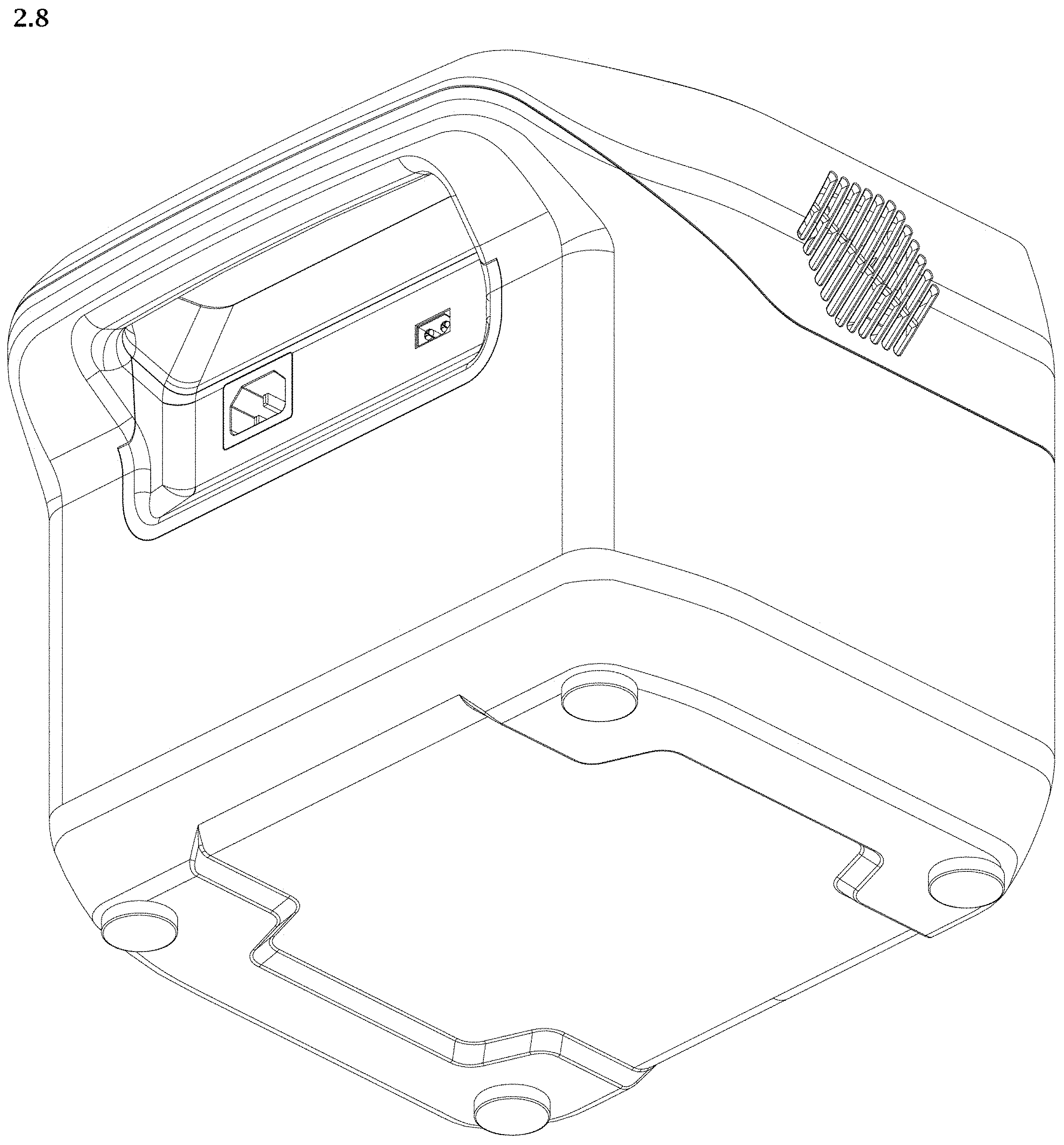

2 . 8 : Perspective

Design 1: reproduction 1 . 1 : front view; reproduction 1 . 2 : back view; reproduction 1 . 3 : left view; reproduction 1 . 4 : right view; reproduction 1 . 5 : top view; reproduction 1 . 6 : bottom view; reproduction 1 . 7 : perspective view (front, top, right side); reproduction 1 . 8 : perspective view (back, bottom, left side). Design 2: reproduction 2 . 1 : front view; reproduction 2 . 2 : back view; reproduction 2 . 3 : left view; reproduction 2 . 4 : right view; reproduction 2 . 5 : top view; reproduction 2 . 6 : bottom view; reproduction 2 . 7 : perspective view (front, top, right side); reproduction 2 . 8 : perspective view (back, bottom, left side).
