Grille

USD1000324No. D 1,000,324designGranted 10/3/2023
Patent USD1000324 — Grille — Figure 1
Fig. 1 · Grille

Claims (1)

Claim 1 (Independent)

The ornamental design for a grille, as shown and described.

Full Description

Show full text →

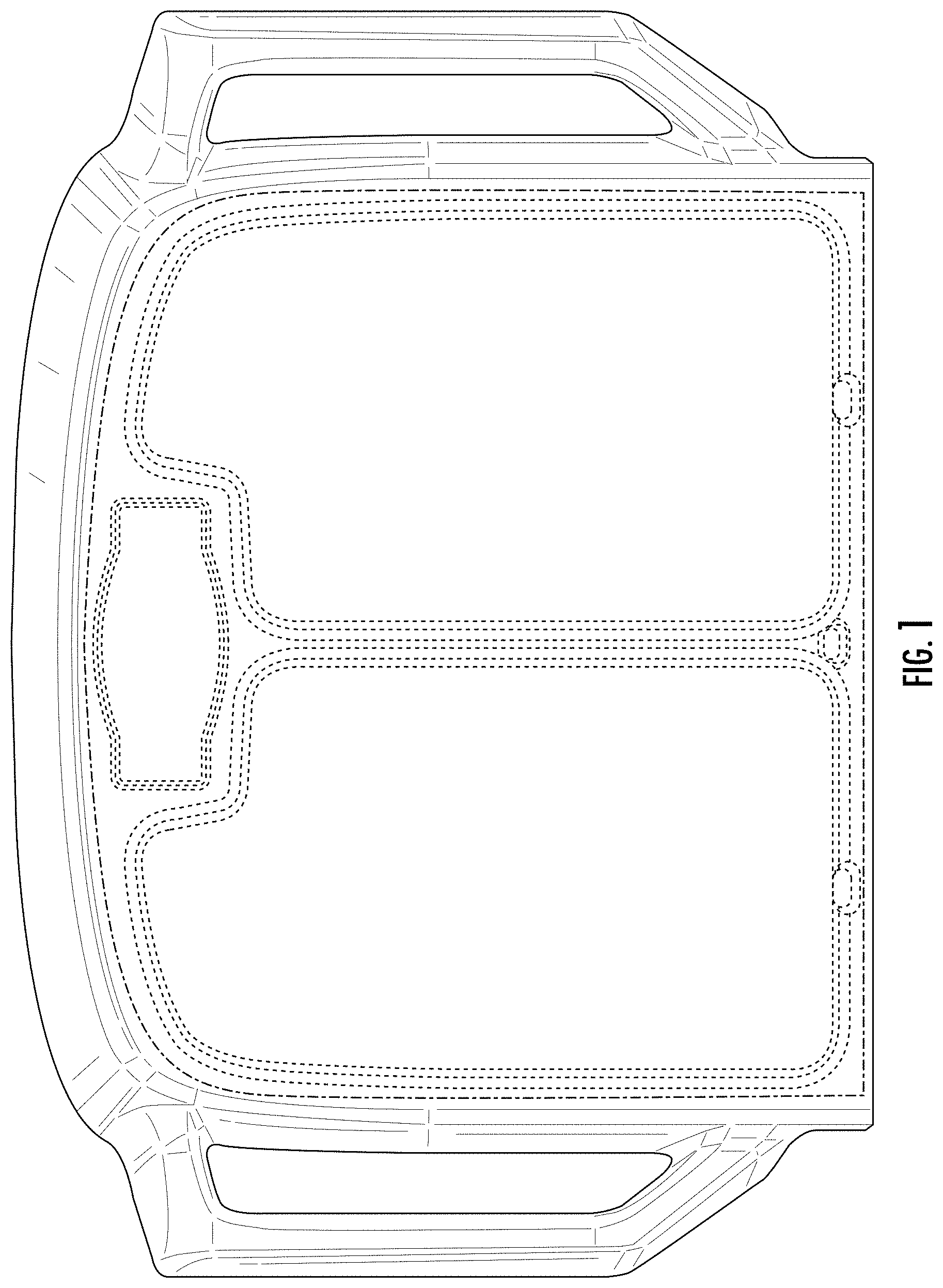

is a front elevation view of a grille embodying our new design;

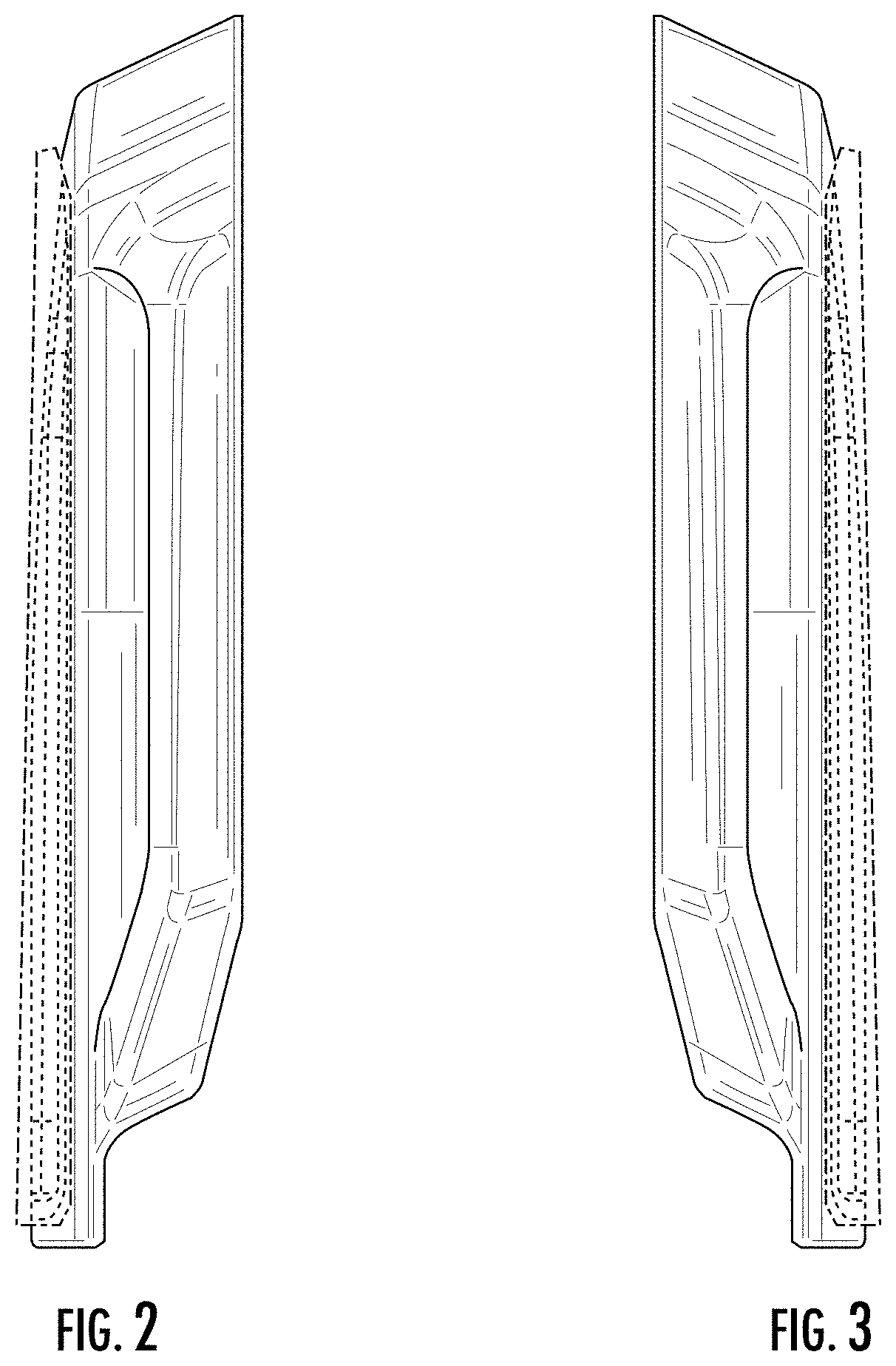

is a right side elevation view thereof;

is a left side elevation view thereof; and,

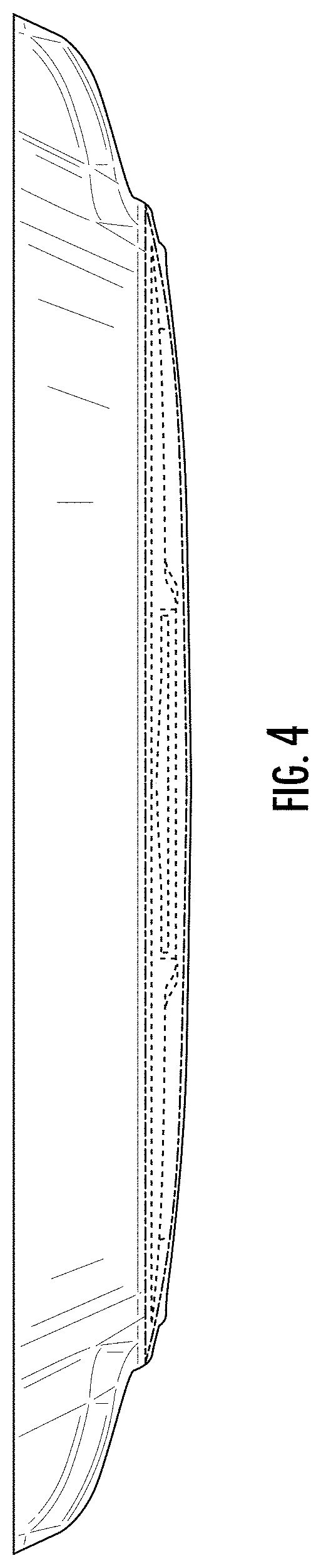

is a top plan view thereof.

The broken lines in the drawings illustrate portions of the grille that form no part of the claimed design. The dash-dot-dot style broken lines are indicative of boundaries of the claimed design.

Figures (3)

Fig. 1
Fig. 2
Fig. 3
