Disconnect Tong

USD1000228No. D 1,000,228designGranted 10/3/2023
Patent USD1000228 — Disconnect tong — Figure 1
Fig. 1 · Disconnect Tong

Claims (1)

Claim 1 (Independent)

The ornamental design for a disconnect tong, as shown and described.

Full Description

Show full text →

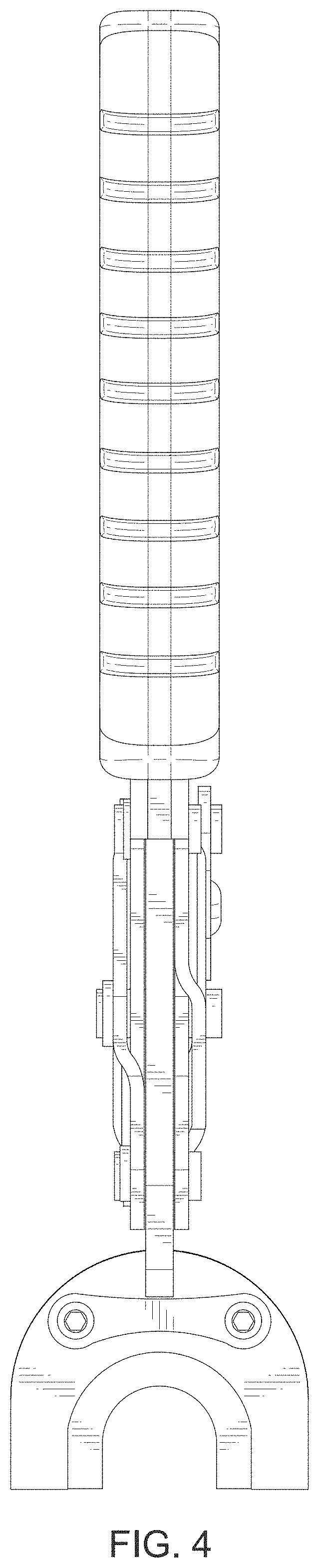

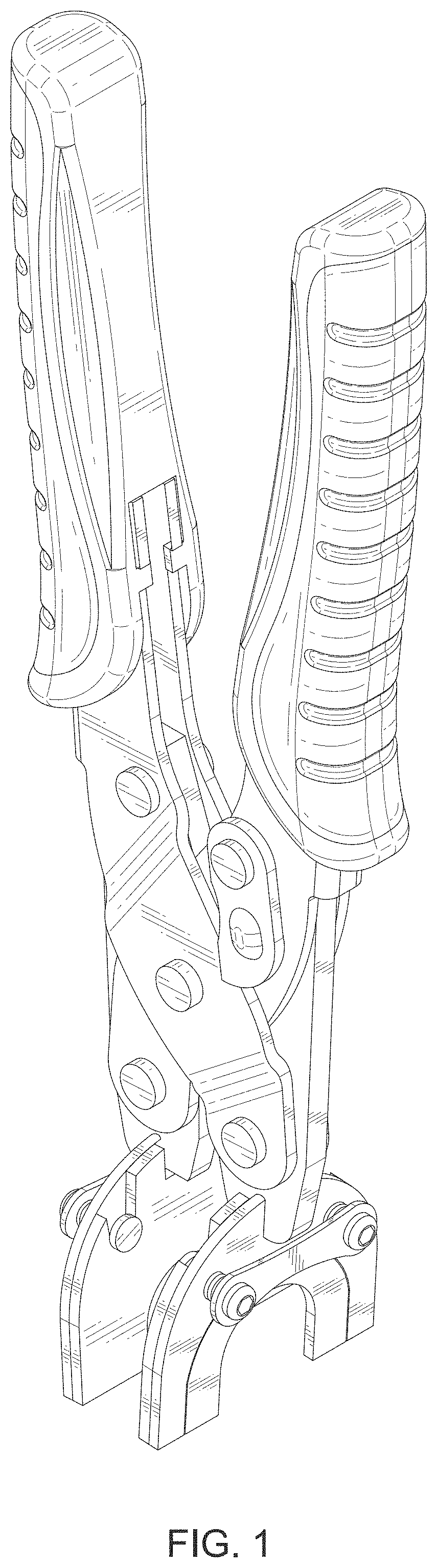

is a front perspective view of a disconnect tong, showing my new design;

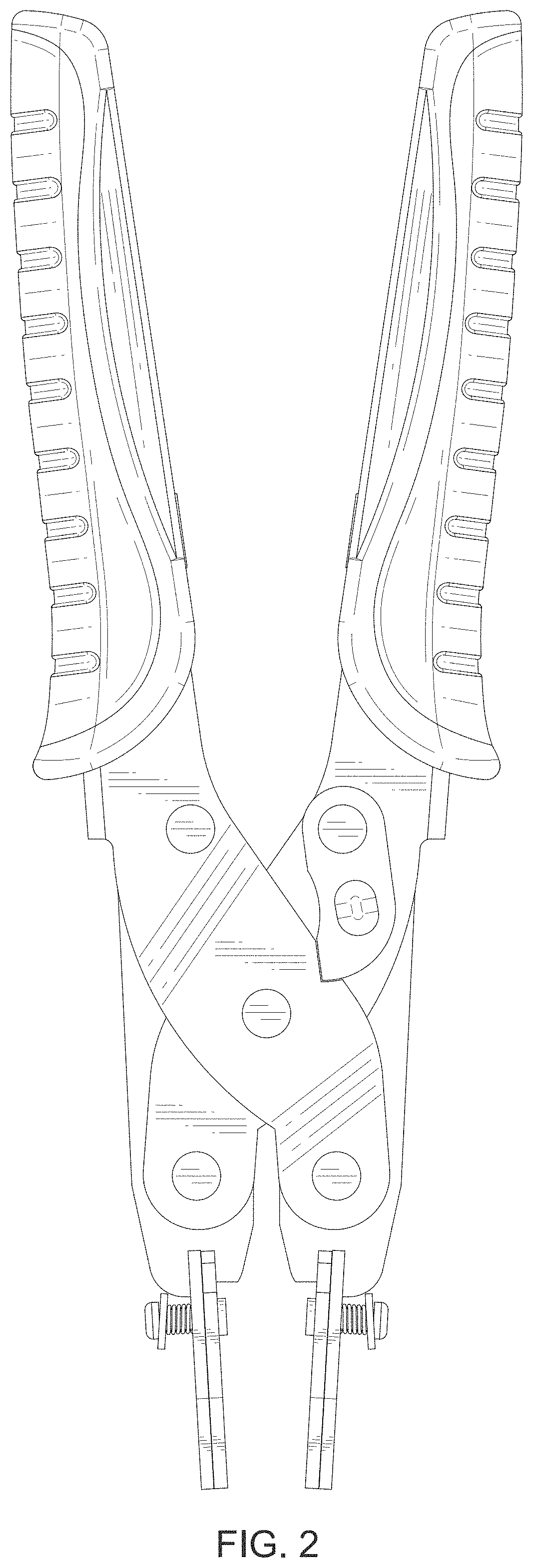

is a front view thereof;

is a rear view thereof;

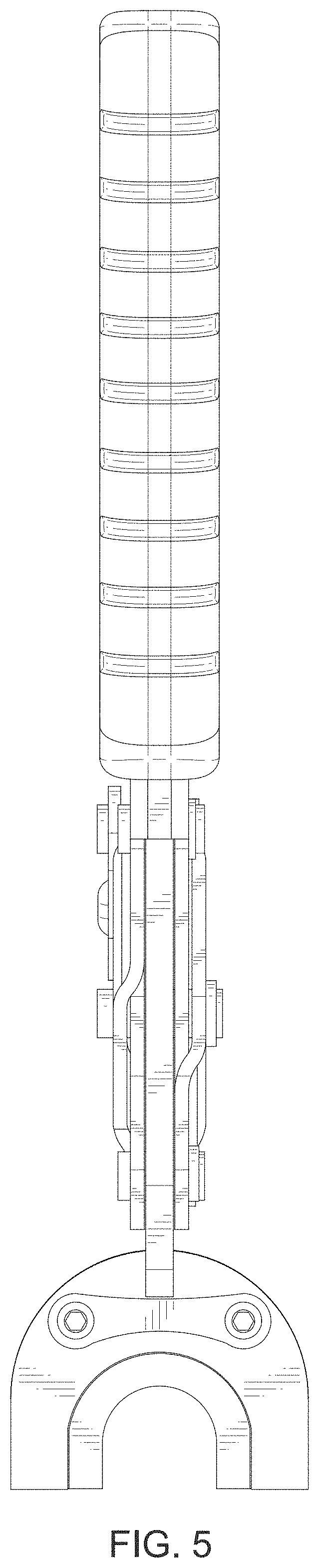

is a left side view thereof;

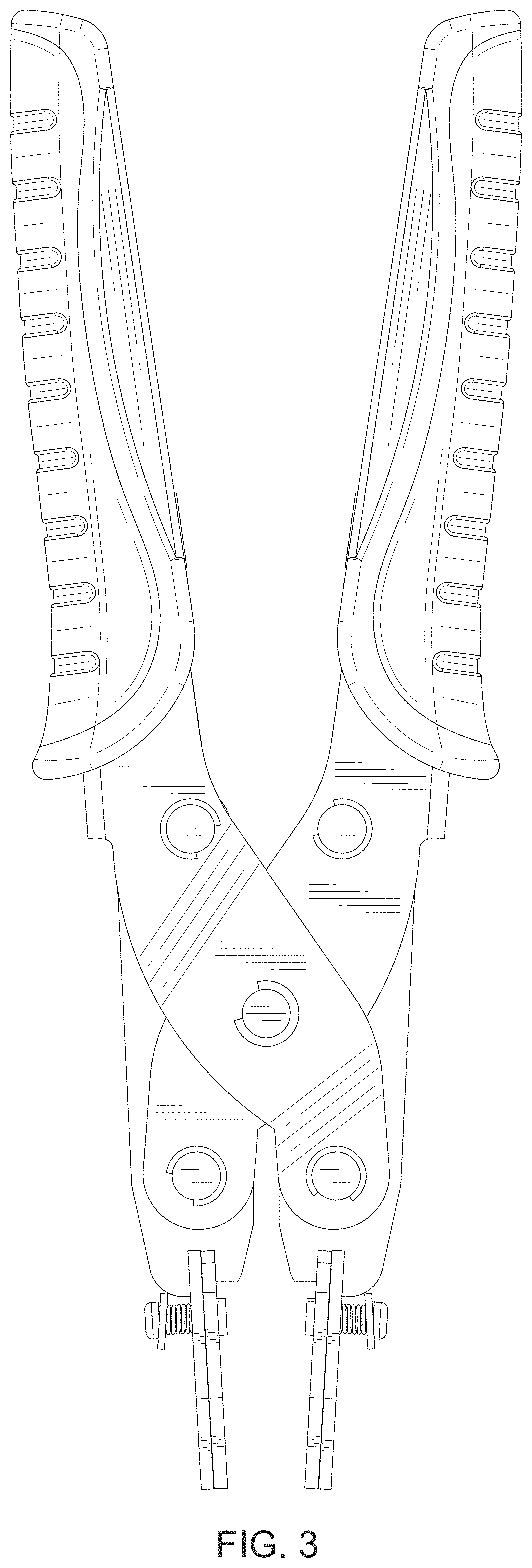

is a right side view thereof;

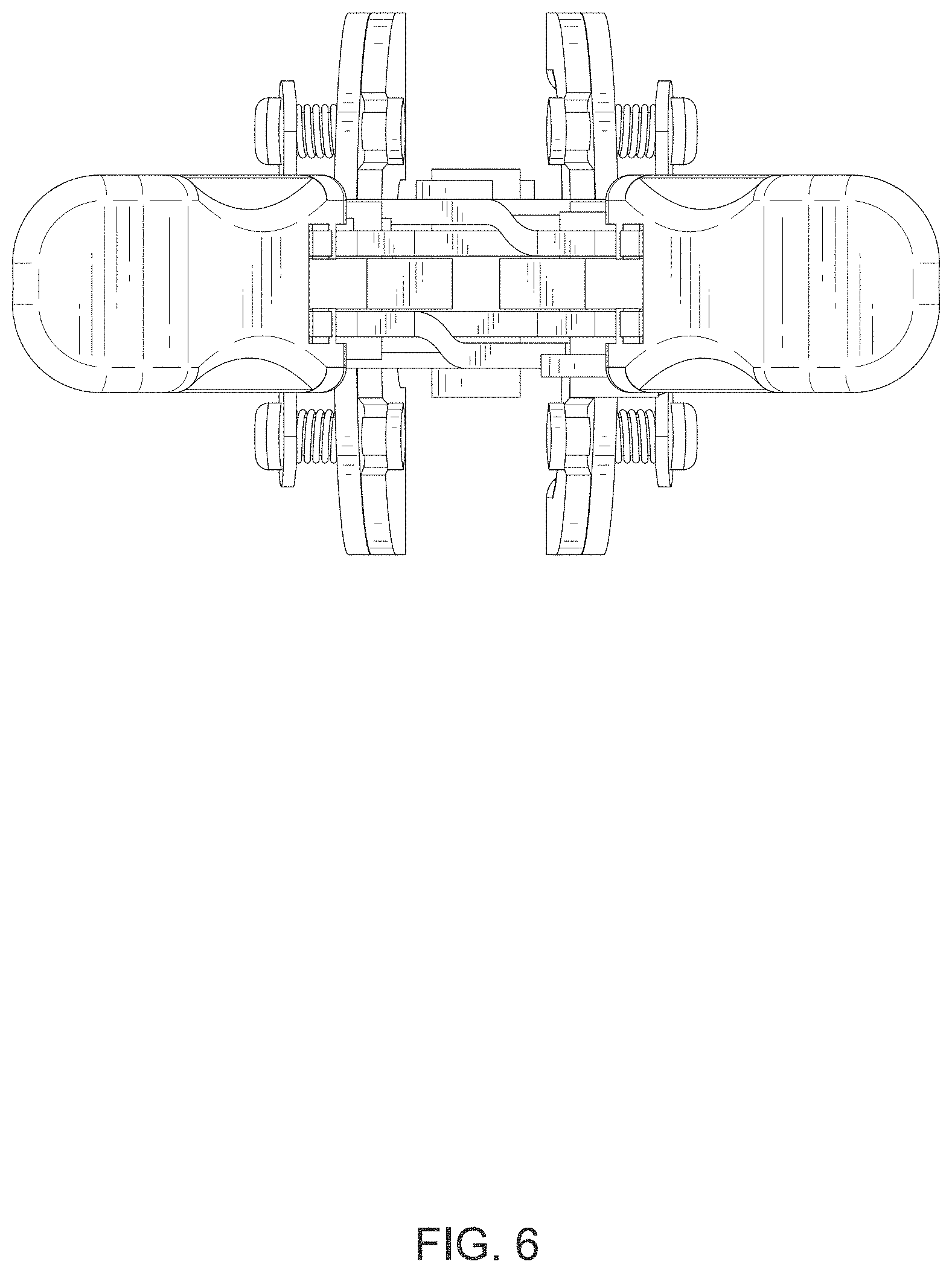

is an enlarged plan of the top surface; and,

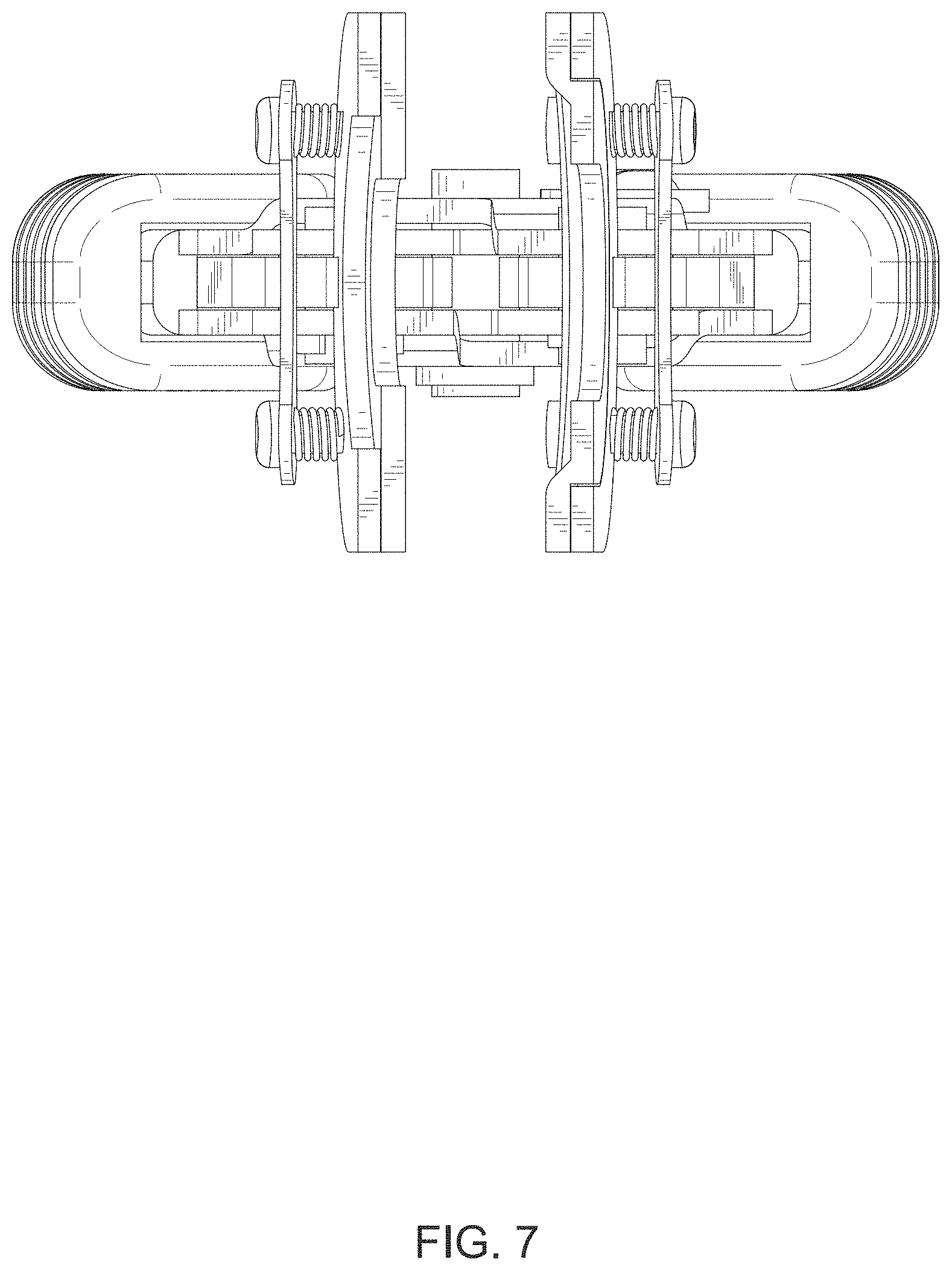

is an enlarged plan of the bottom surface.

Figures (7)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7

Citations

This patent cites (10)

  • USD159039
  • USD177537
  • USD201915
  • USD204492
  • USD284734
  • USD349636
  • USD537308
  • USD572552
  • USD616263
  • US20220212324
