Spoon

USD1000224No. D 1,000,224designGranted 10/3/2023
Patent USD1000224 — Spoon — Figure 1
Fig. 1 · Spoon

Claims (1)

Claim 1 (Independent)

The ornamental design for a spoon, as shown and described.

Full Description

Show full text →

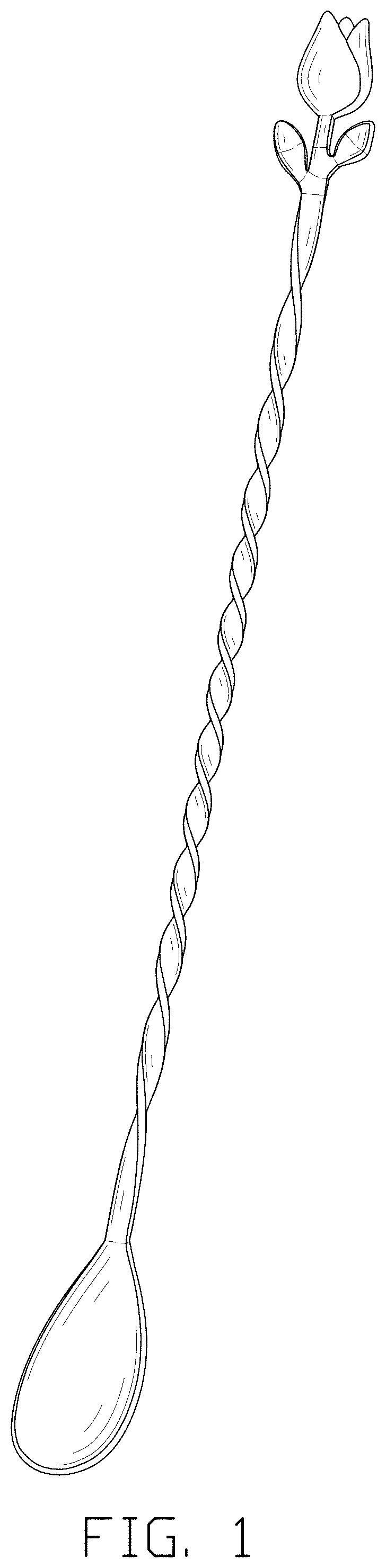

is a perspective view of a spoon showing my new design;

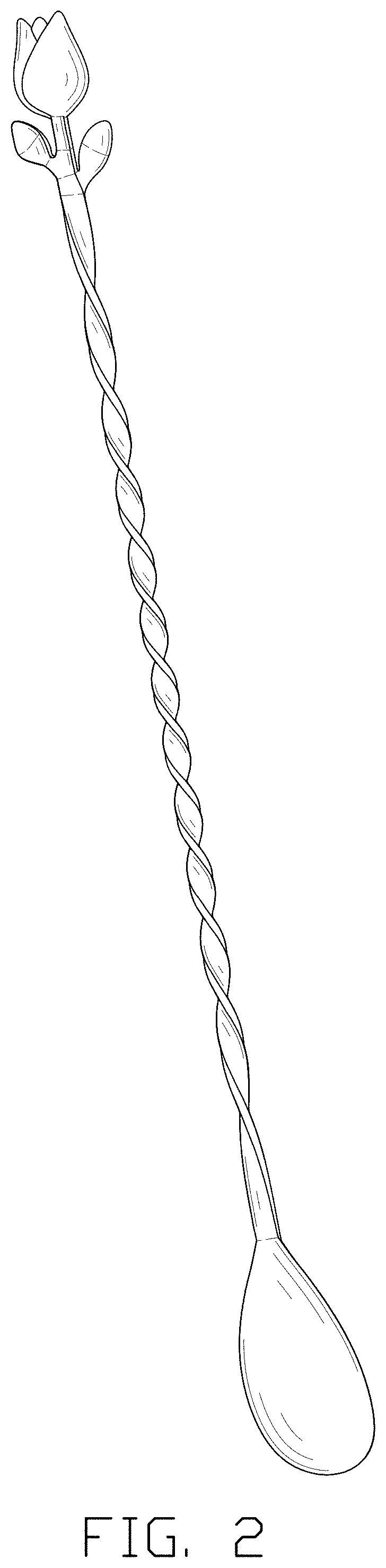

is another perspective view thereof;

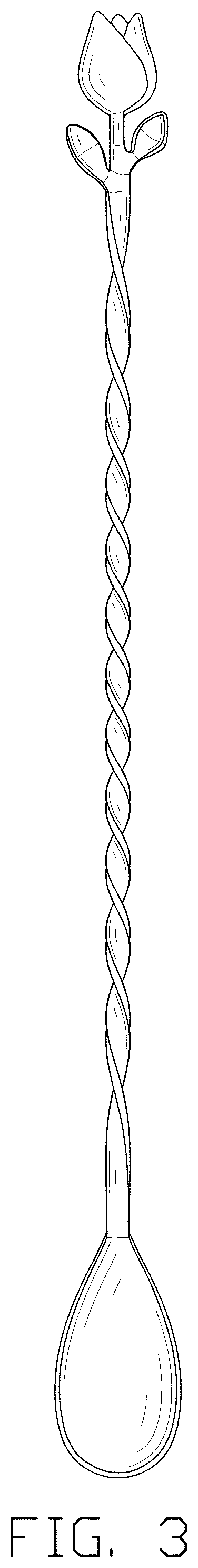

is a front elevational view thereof;

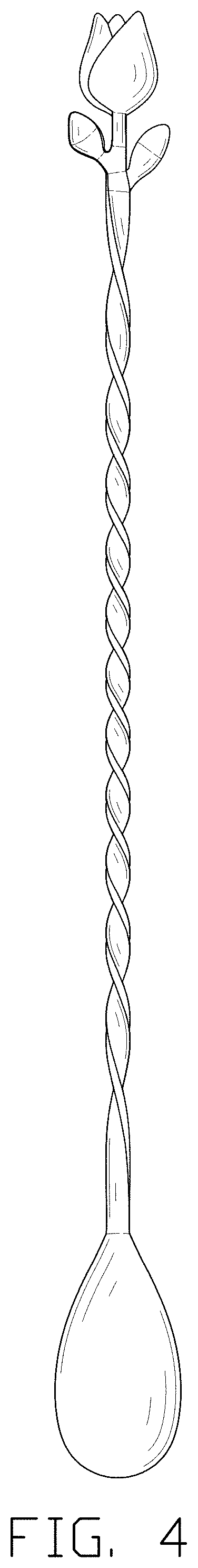

is a rear elevational view thereof;

is a left side elevational view thereof;

is a right side elevational view thereof;

is a top plan view thereof; and,

is a bottom plan view thereof.

Figures (8)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
