Automatic Coffee Machine for Commercial Purposes

USD1000187No. D 1,000,187designGranted 10/3/2023

Patent USD1000187 — Automatic coffee machine for commercial purposes — Figure 1 — Fig. 1 · Automatic Coffee Machine for Commercial Purposes

Claims (1)

Claim 1 (Independent)

The ornamental design for an automatic coffee machine for commercial purposes, as shown and described.

Full Description

Show full text →

3. Automatic coffee machine for commercial purposes

4. Automatic coffee machine for commercial purposes

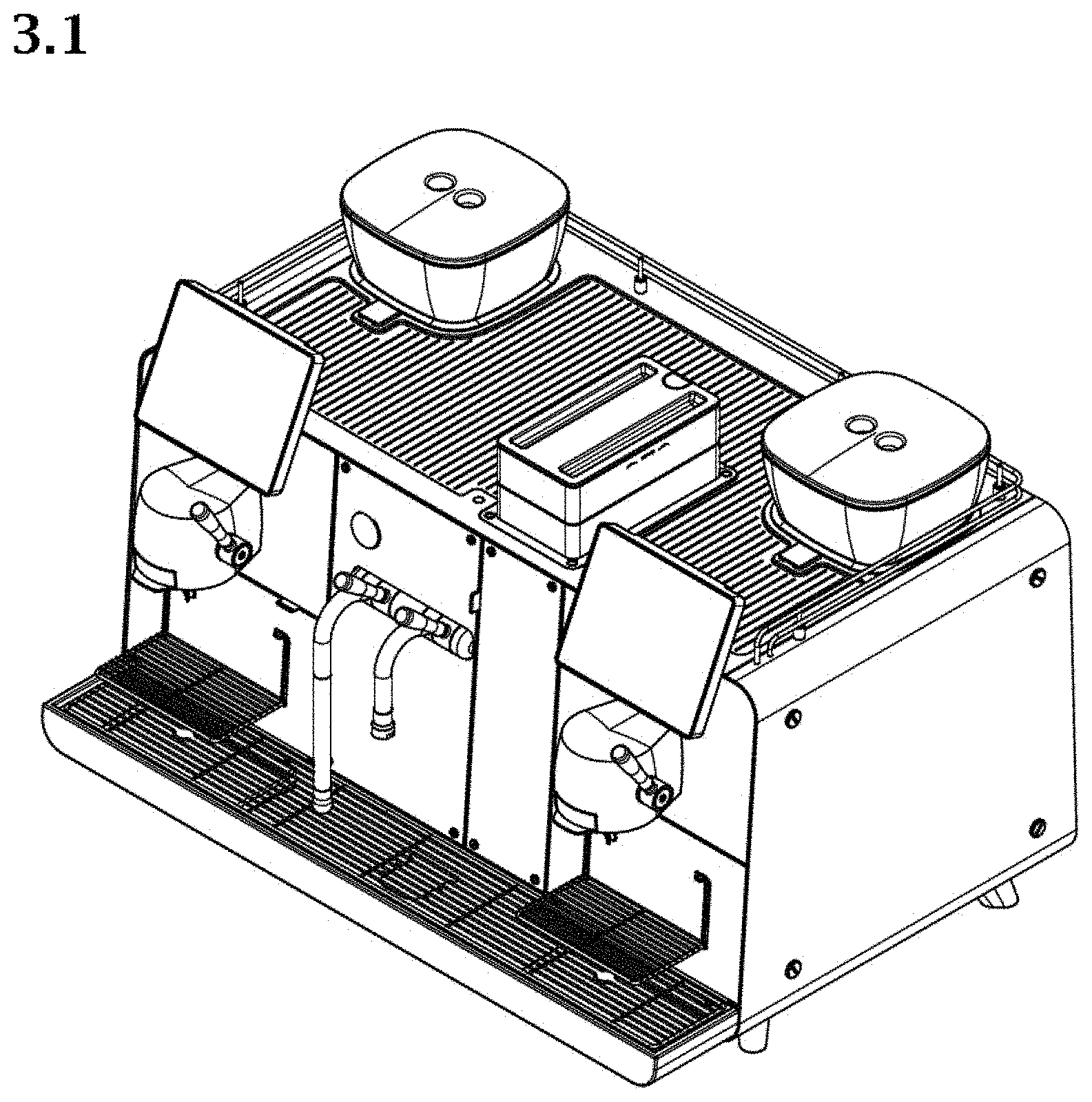

3 . 1 : Perspective

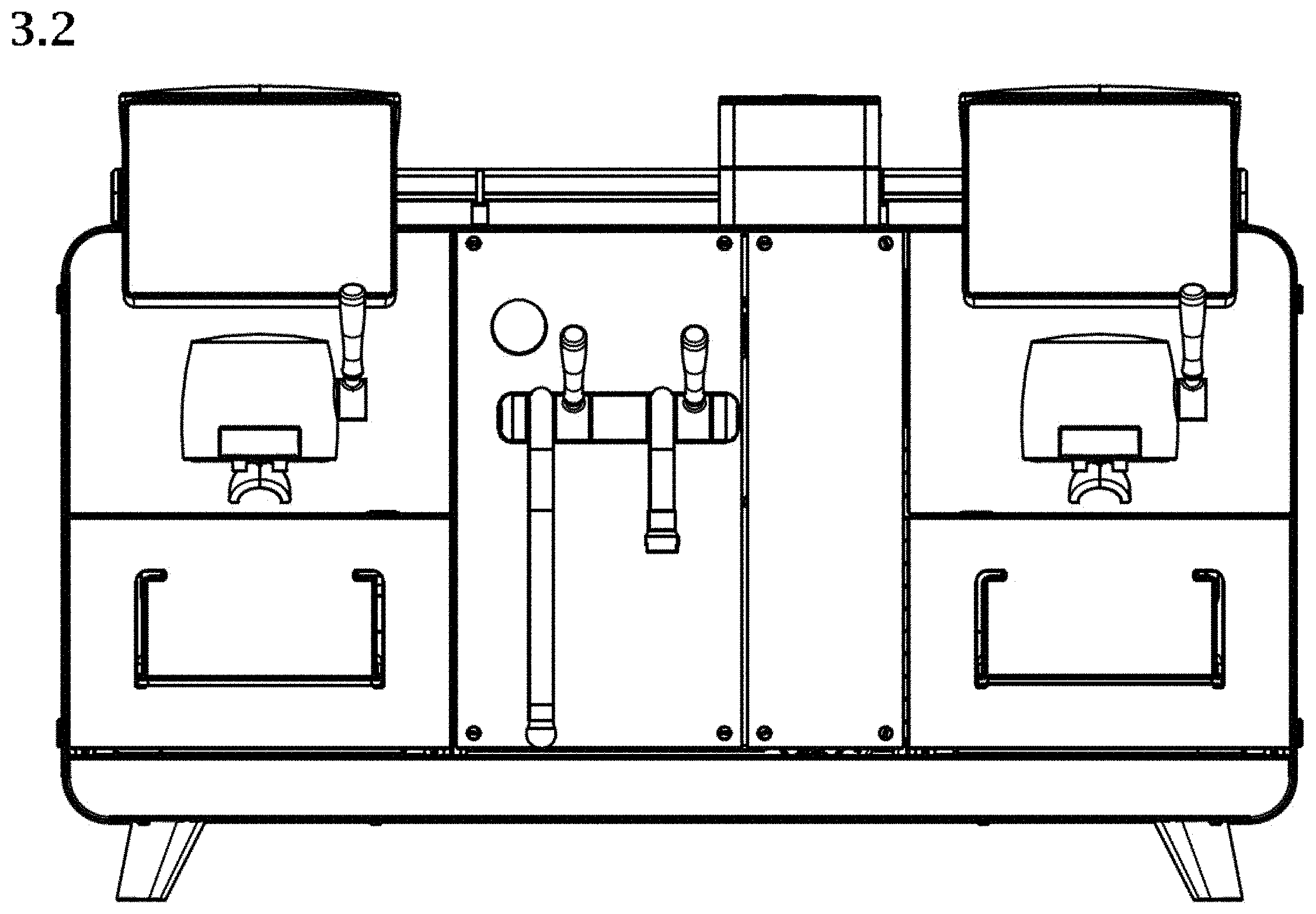

3 . 2 : Front

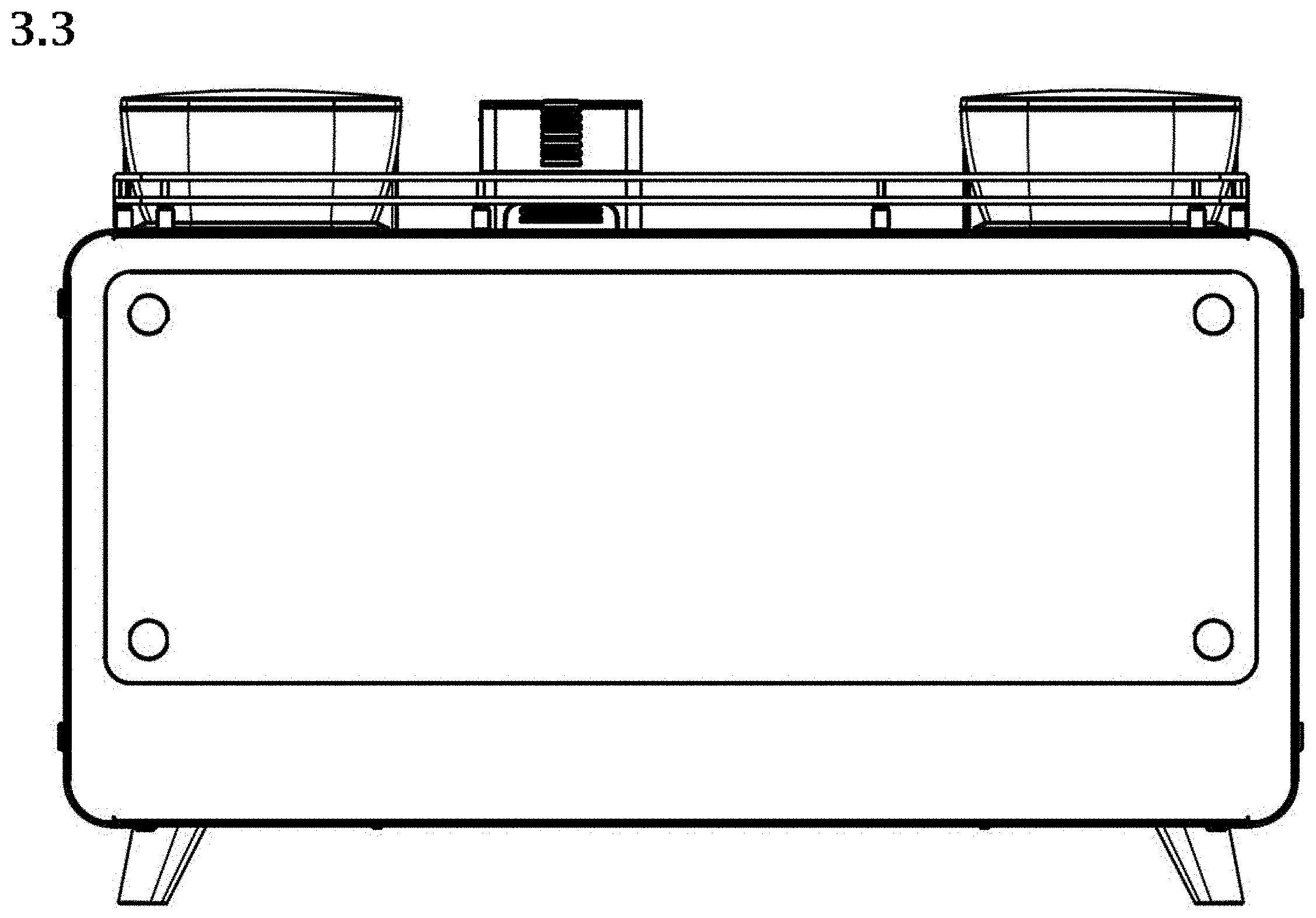

3 . 3 : Back

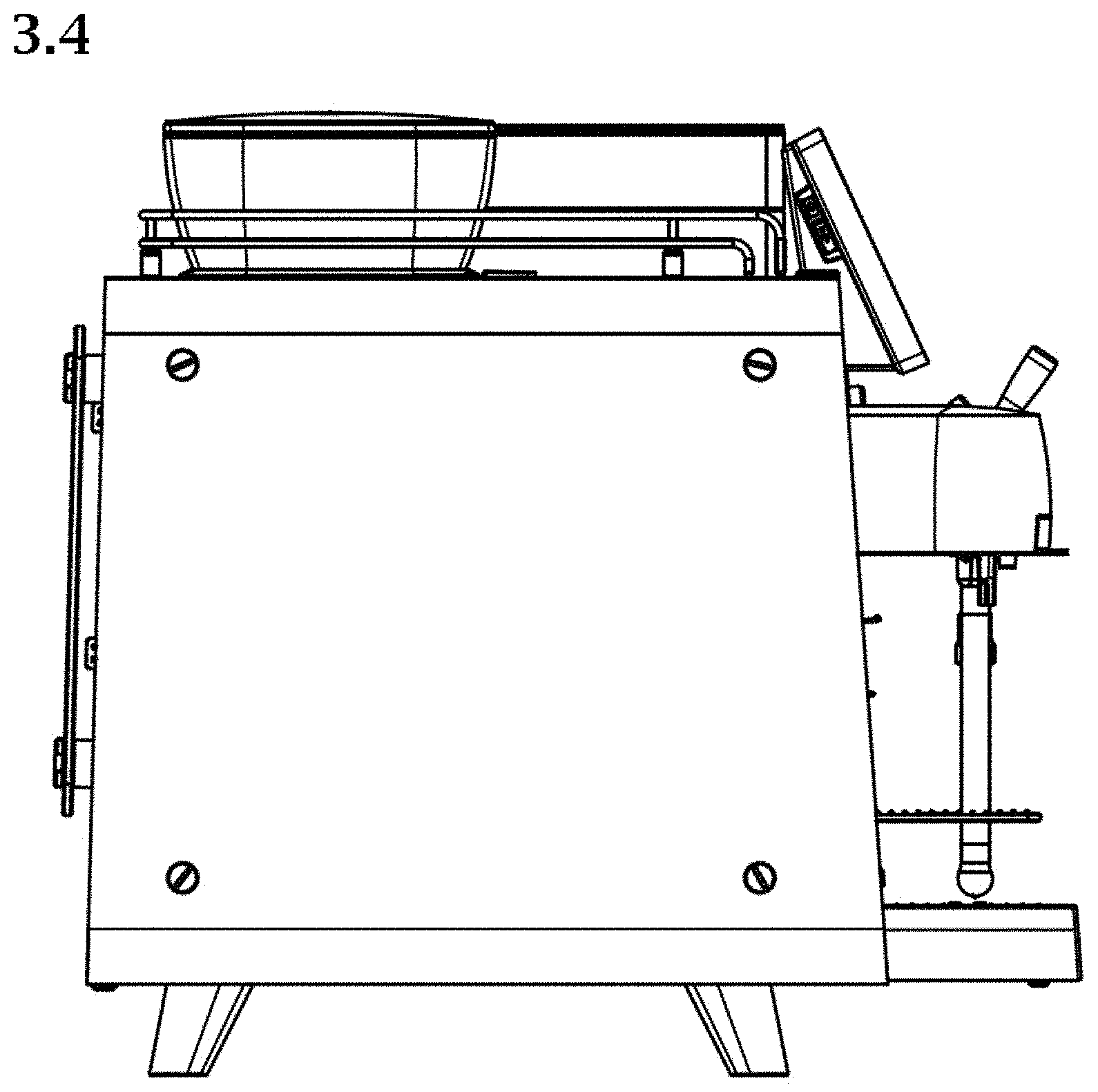

3 . 4 : Left

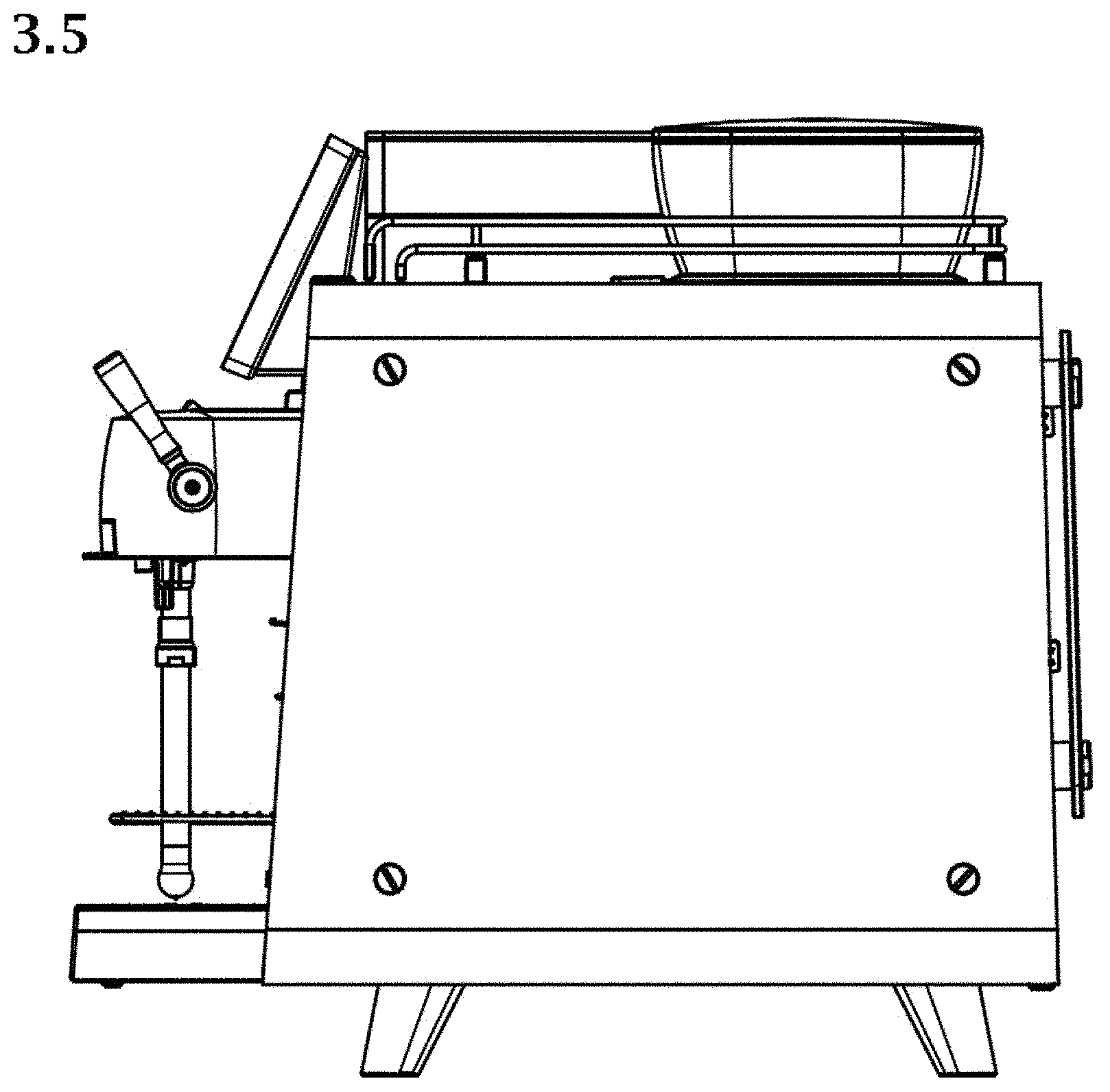

3 . 5 : Right

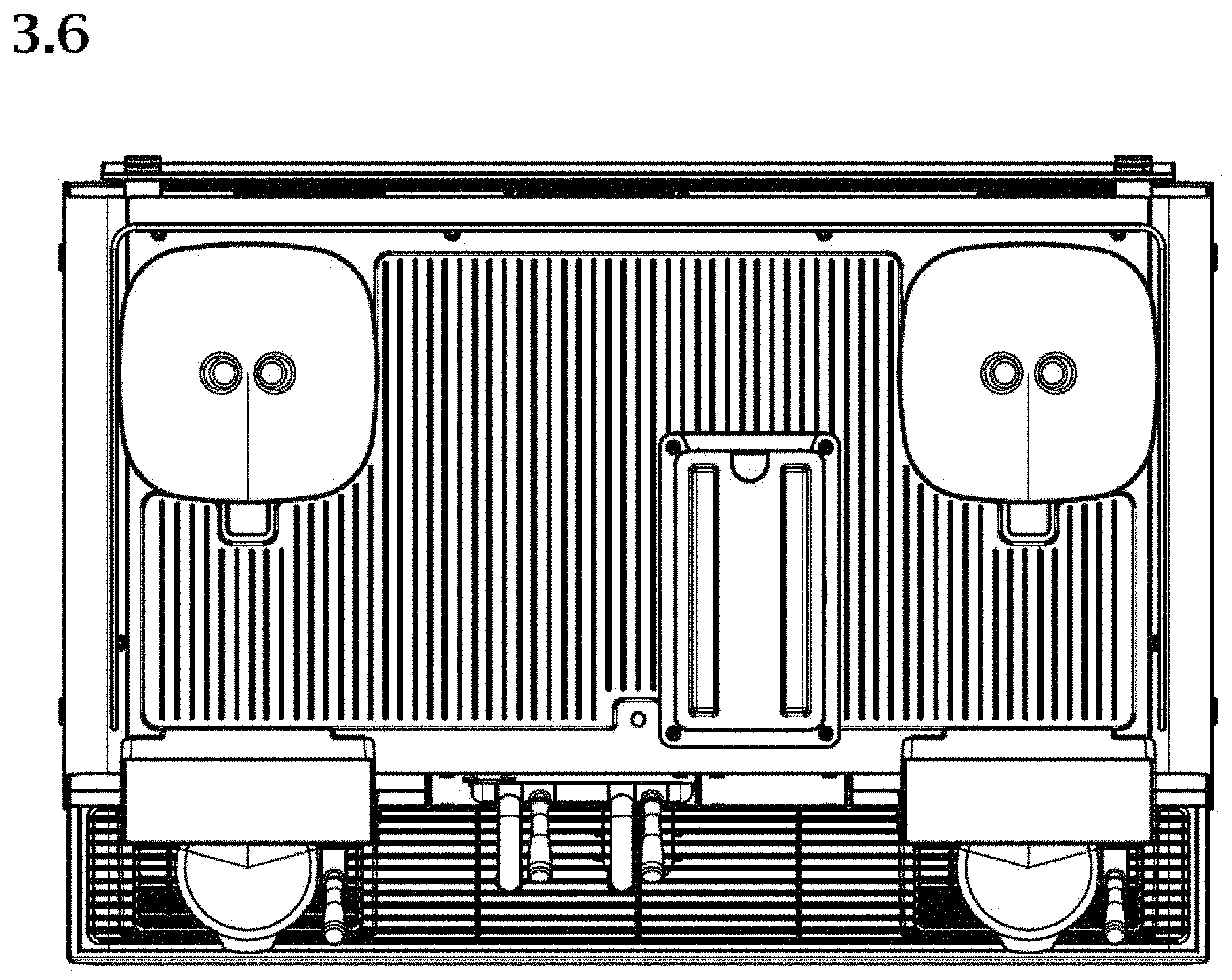

3 . 6 : Top

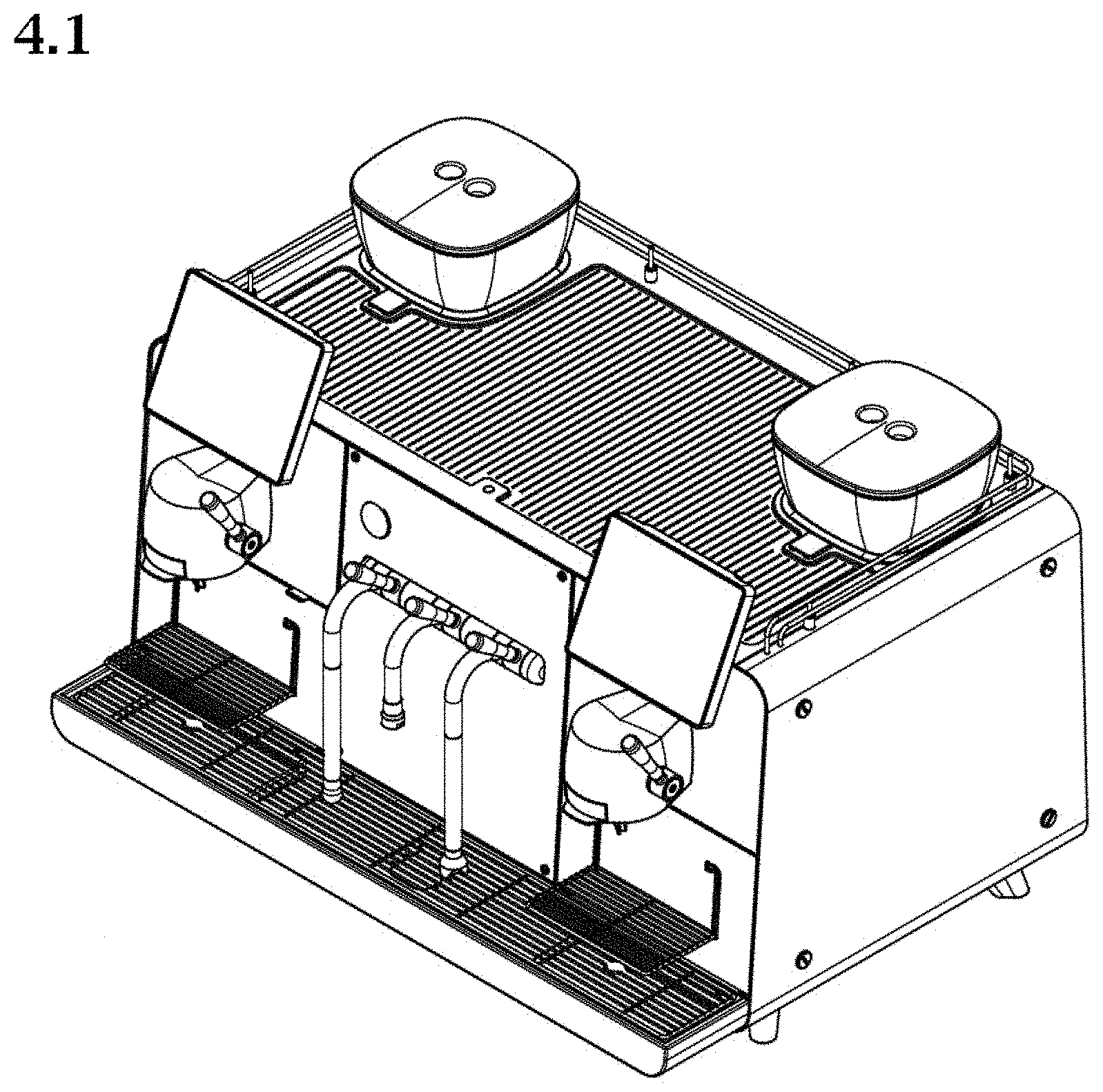

4 . 1 : Perspective

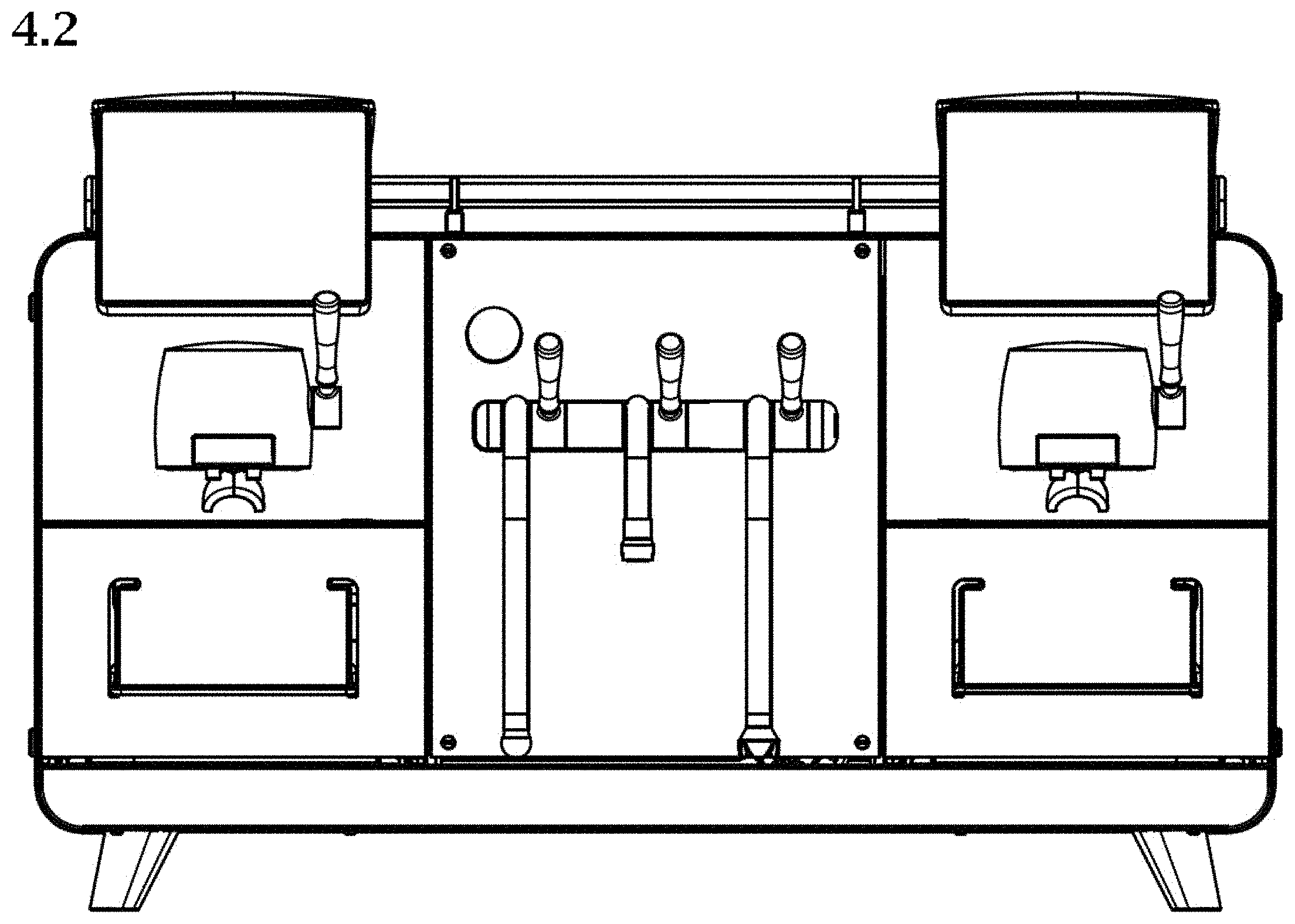

4 . 2 : Front

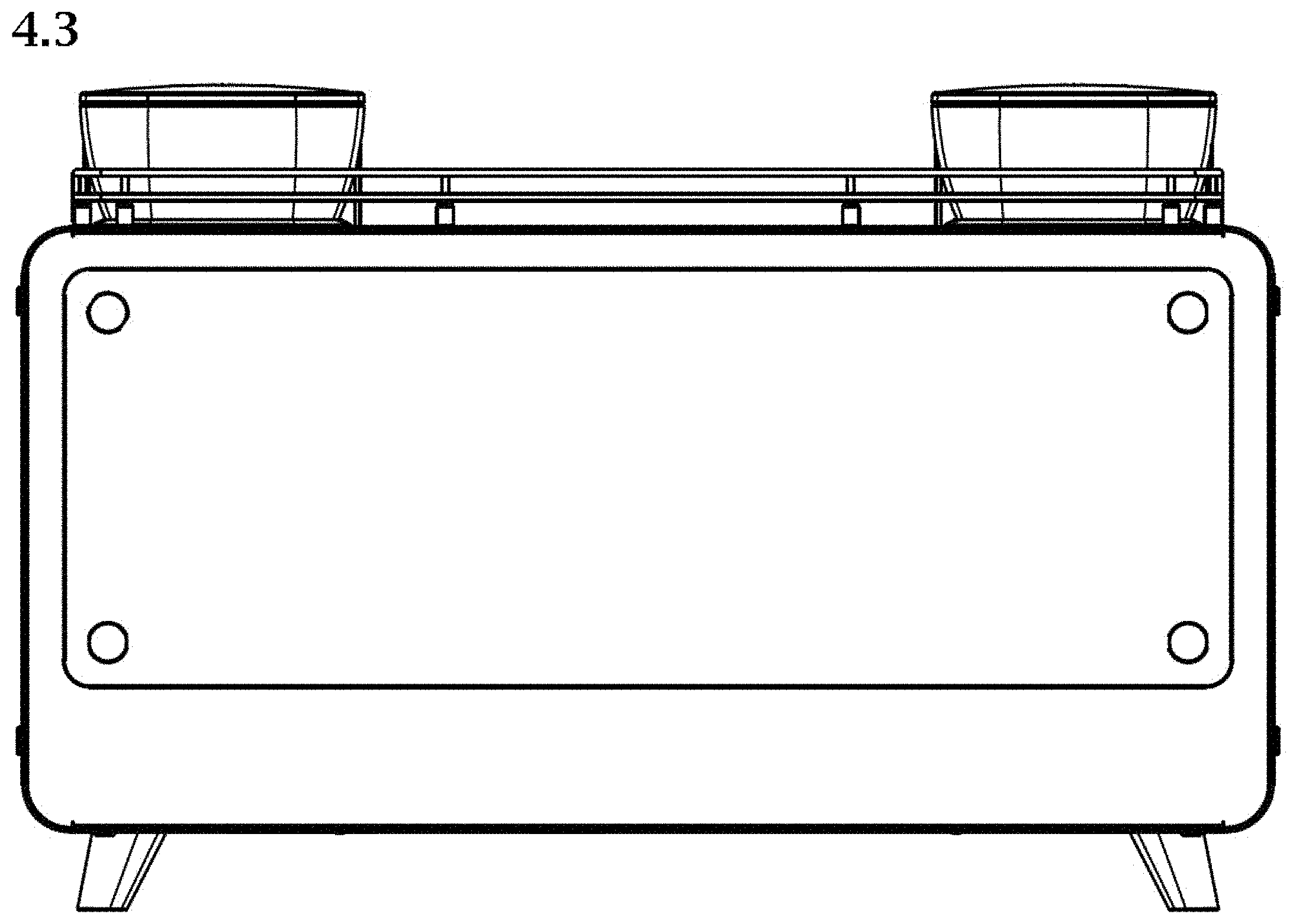

4 . 3 : Back

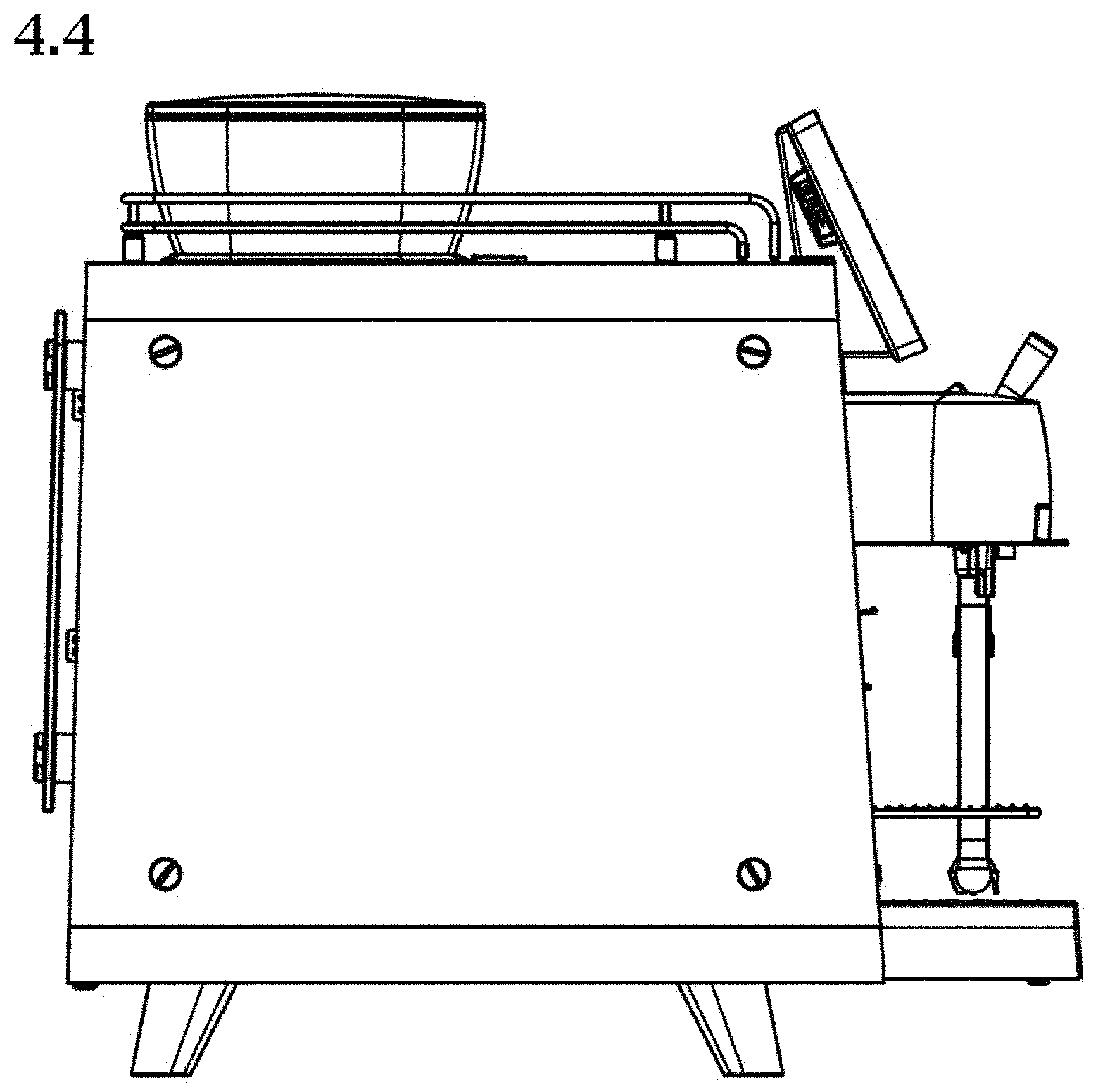

4 . 4 : Left

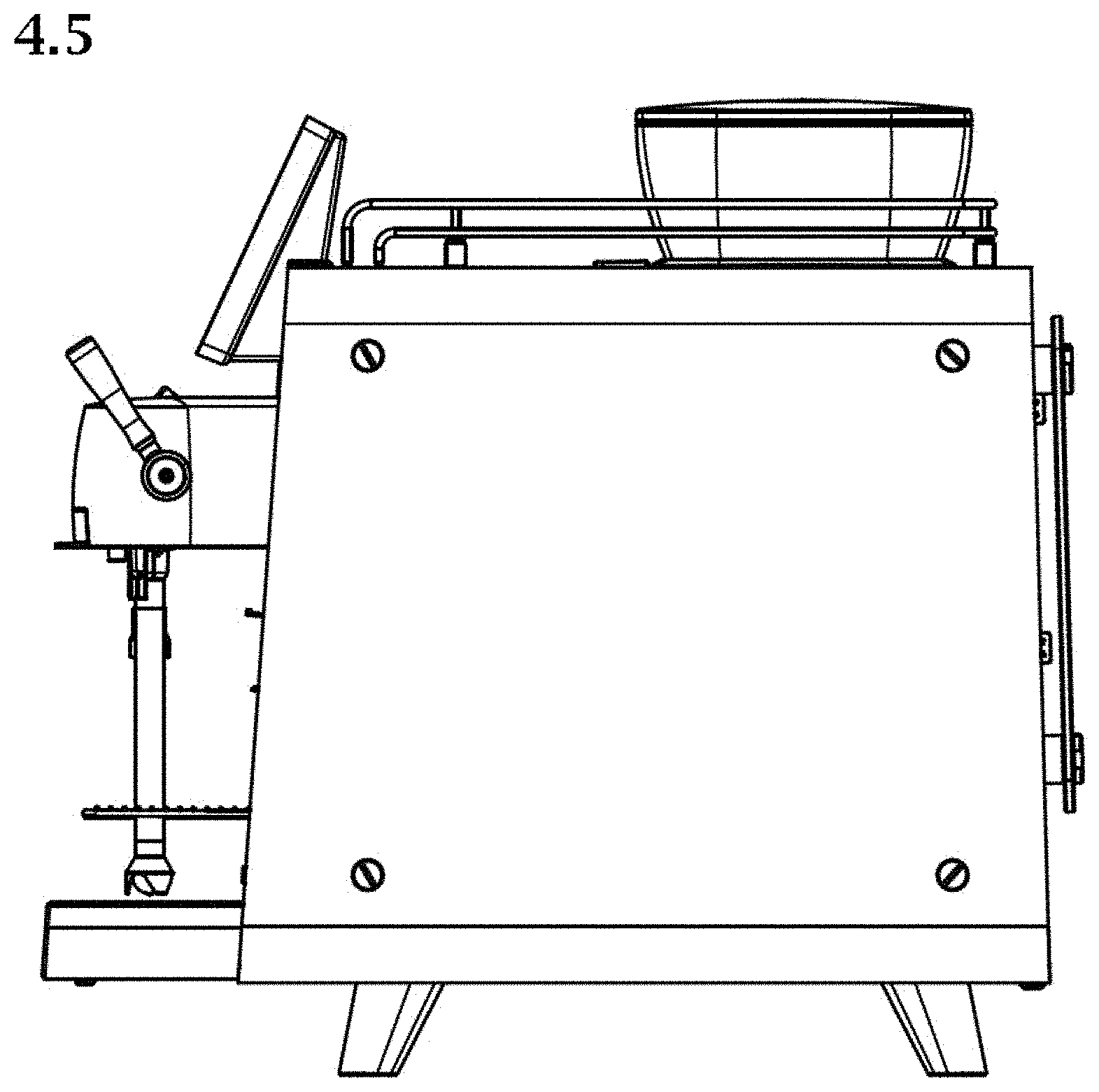

4 . 5 : Right

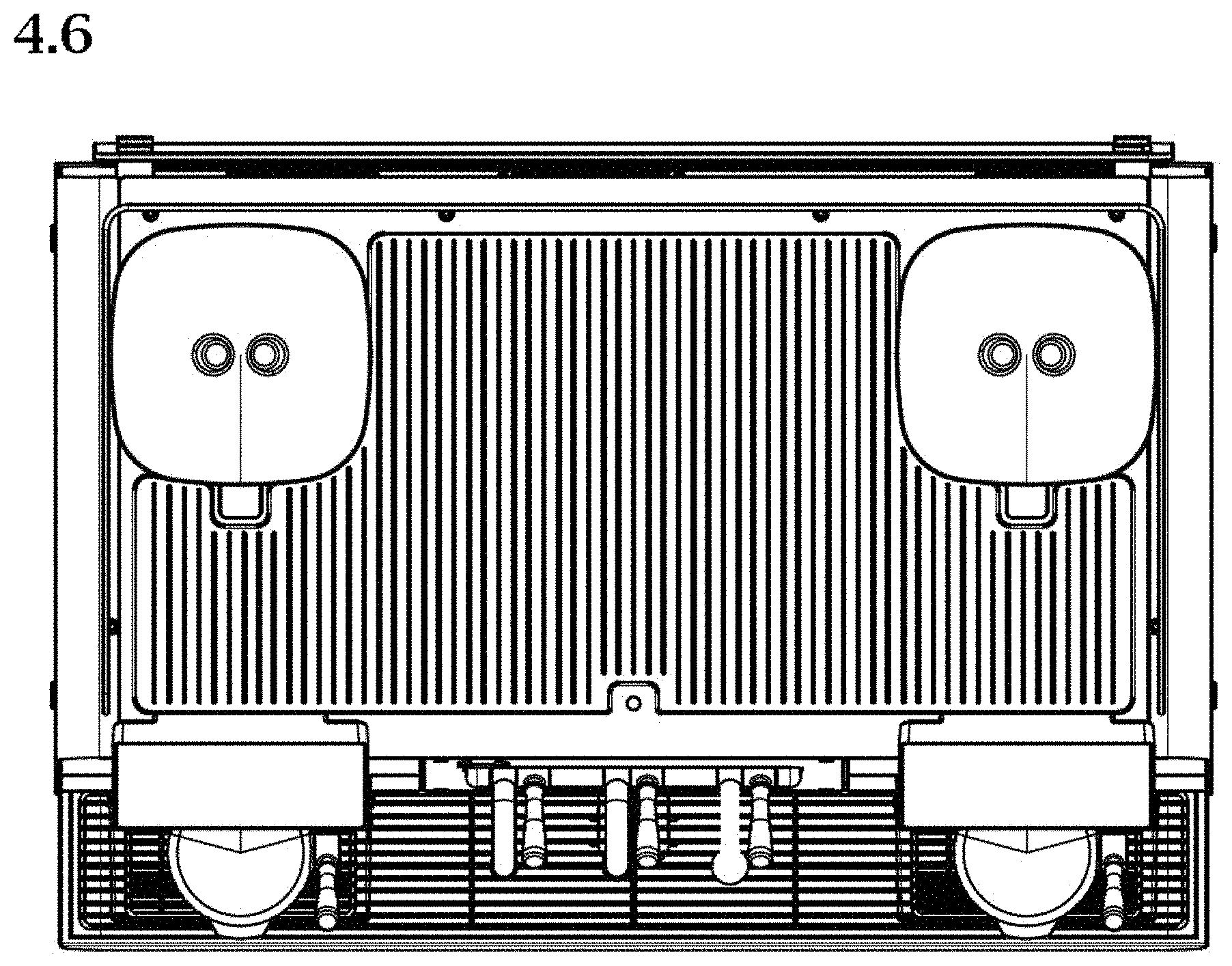

4 . 6 : Top

. 1 , 4 . 1 are top, front and right side perspective views showing our new design; . 2 , 4 . 2 are front elevational views thereof; . 3 , 4 . 3 are rear elevational views thereof; . 4 , 4 . 4 are right side elevational views thereof; . 5 , 4 . 5 are left side elevational views thereof; and . 6 , 4 . 6 are top plan views thereof; the automatic coffee machine according to either of the above embodiments is a heavy article that cannot be viewed from the bottom; the bottom plate thereof is not part of the claimed design.
